PVT-T70MH3Radio Remote Control Transmitter

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 22 of 35 Appendix I: Manual Please see the following pages. 70 - MINI 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. ENGLISH 70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. i 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. INDEX Pág. 1.- SYSTEM DESCRIPTION: CHARACTERISTICS.............................................................................1 2.- SAFETY INSTRUCTIONS..............................................................................................................4 2.1.- GENERALS.................................................................................... .......................................... 4 2.2.- HOISTING MACHINERY............................................................................................................. ...4 2.3.- FCC RECOMMENDATIONS........................................................................................................ 5 3.- INSTALLATION / SYSTEM ASSEMBLY.............................................................................................5 3.1.- TRANSMITTER............................................................................................................................5 3.2.- RECEIVER.................................................................................... ......................................... ..6 3.3.- STARTING UP.................................................................................. ......................................... ..7 4.- TRANSMITTERS.........................................................................................................................................8 4.1.- TYPE OF TRANSMITTERS............................................................... ........................................... ...8 4.2.- MAINTENANCE / TROUBLESHOOTING................................................ ............................................ ...9 5.- RECEIVERS........................................................................................................................................10 5.1.- TYPE OF RECEIVERS........................................................................................................ .. 10 5.2.- MAINTENANCE / TROUBLESHOOTING..................................................................................... .. 11 6.- RADIO REMOTE SYSTEM FUNCTIONALITIES...........................................................................12 6.1.- GENERALS........................................................................................................................ 12 6.2.- BATTERY LEVEL INDICATION............................................................................................... ... 12 6.3.- BASE CHANNEL CHANGING (T70MG10;T70MH3D;T70MH3;T70MH2 TRANSMITTER MODELS)............ . ...13 6.4.- ID RELEASING (T70MG10;T70MH3D;T70MH3;T70MH2 TRANSMITTER MODELS)............................. ..15 6.5.- AUTO TEACHING MODE (T70MG10;T70MH3D;T70MH3;T70MH2 TRANSMITTER MODELS)................. ... 15 6.6.- LOST TRANSMITTER SEARCHING MODE (T70MG10;T70MH3;T70MH2 TRANSMITTER MODELS)............ ... 17 6.7.- PROGRAMMING PARAMETERS(T70MG10;T70MH3;T70MH2 TRANSMITTER MODELS)........................ ... 18 6.8.- PROGRAMATION (T70MH3D TRANSMITTER MODEL)..................................................................... 20 6.8.1.- PROGRAMMING MODE BLOCK DIAGRAM.......................................................................... 21 6.8.2.- PROGRAMMABLE PARAMETERS................................................................................. ... 23 6.8.3.- OUTPUT PROGRAMMING MODE (TELE ALIGNED)............................................................. ... 24 70 MINI USER’S MANUAL 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI se reserva el derecho de modificar esta información sin previo aviso. 1 70-MINI V.01.00 (01/07) 120009-0B.pdf IKUSI reserves the right to modify this information without prior notification. 1.- SYSTEM DESCRIPTION: CHARACTERISTICS The systems are based on several handheld transmitter models (with the possibility of single step keypads by function, known as generic transmitter, or double step keypads by function, known as hoisting transmitter) and several receiver models, available with relays or static outputs –PWM outputs-. The radio, integrated in the PCB of the transmitter and the receiver, is ready to work in different ISM bands, according to different models. The transmitter can be powered by alkaline batteries, type AA or rechargeable NiMH AA type batteries. Applications are many and varied, depending on the emitter-receiver combination; basically the applications’ areas are as follows: - Mobile applications (on board systems) - Industrial hoisting applications (no EC) - Other industrial hoisting applications (Chain hoists / Cat. 3 ;EN-954-1: EC) - Other applications SYSTEM CHARACTERISTICS Transmitters: T70MG10-T70MH3-T70MG10D-T70MH3D Specifications Available frequencies (ISM bands) 915MHz 870MHz/433MHz 419MHz RF Power (ERP) < 1mW 915MHz < 5mW 870 MHz; <10 mW 433MHz < 10mW 419MHz Modulation type FSK 4800 bps and 7.200 bps Protection IP65 Channel bandwidth 25KHz Number of IDs 64K per band Response time < 150ms Working channel selection Automatic at transmitters’ start-up Display option (for Remote Tele-Alignment) 2 lines x 12 characters / line + icons Antenna Printed circuit board integrated (standard) Weight 250gr Dimensions Length = 160mm / Wide = 75mm / Heig…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 16 of 35 Appendix C: Confidentiality Request Letter Please see the following page. May 02, 2005 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0 §0.459 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Technical Product Description • Block Diagram Sincerely, Luis Rodriguez Navarrete Chief Engineer

American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 USA Tel.: +34 943 448800 Fax: +34 943 448811 May 18, 2006 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Please be advised that IKUSI – Angel Iglesias S.A. authorizes Rhein Tech Laboratories, Inc. to act on our behalf, until otherwise notified, for applications submitted to the Federal Communications Commission and/or American Telecommunications Certification Body, Inc.. We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, U.S.C. 862. Further, no party to the application, as defined in 47 CFR 1.2002(b), is subject to denial of federal benefits, that includes FCC benefits. Thank you for your attention to this matter. Sincerely, Luis Rodriguez Navarrete Chief Engineer

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 March 26, 2007 RE: FCC ID: PVT-T70MH3_ATCB004680 Attention: Kathy Grzovic I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the report “2007117 IKUSI T70M FCC&IC Report Only R0.00.pdf” is unreadable and cannot be opened. Please note that the review cannot proceed until a readable report has been provided. Please provide a report that can be opened. 2. Please note that while a 15.249 device has no requirements to list power on the grant, the 731 states the power out of this device is .0018W. Please note that as the test report cannot be opened to review, this indicates that the device is not compliant with the rules for the following reasons: a 1.8mW device (2.55dBm) would relate to a field strength of approximately 109.55uV/m. The limit for 15.249 is 94dBuV/m. Please explain. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

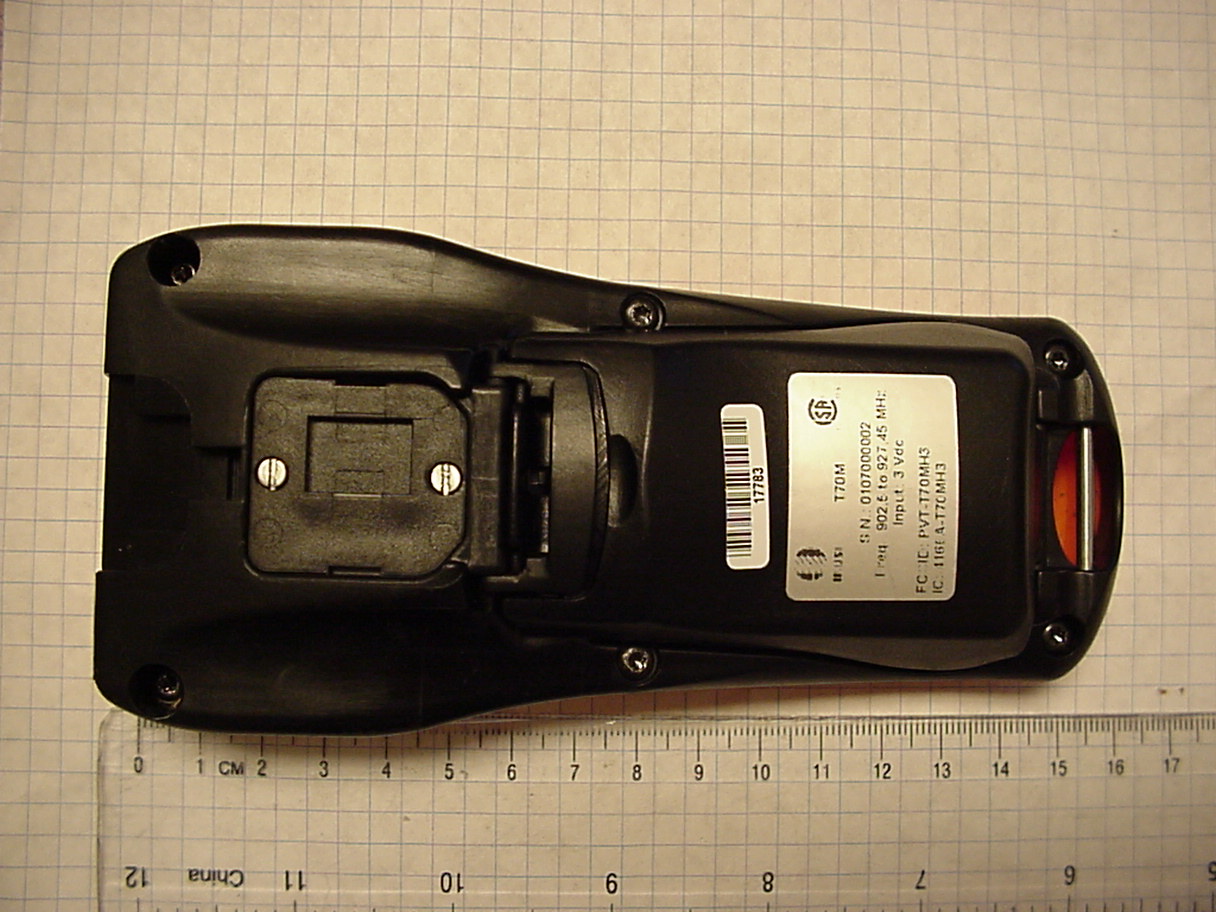

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 25 of 35 Appendix K: External Photographs Photograph 3: Front Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 26 of 35 Photograph 4: Back Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 27 of 35 Photograph 5: Inside Battery Compartment

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 18 of 35 Appendix E: Label and Label Location Please refer to the following pages for a sample of the FCC ID label and its location on the EUT. T70M Technical Operational Description_V2.doc 12 3.2 350035 TRANSMITTER T70M-TR915-64K-E Figure 6 Top view: 350035 TRANSMITTER T70M-TR915-64K-E Figure 7 Bottom view: 350035 TRANSMITTER T70M-TR915-64K-E Figure 8 Internal View: 350035 TRANSMITTER T70M-TR915-64K-E ID Label Here

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 28 of 35 Appendix L: Internal Photographs Photograph 6: PCB Front Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 29 of 35 Photograph 7: PCB Back with Shield Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 30 of 35 Photograph 8: PCB Back with Shield Removed

Engineering and Testing for EMC and Safety Compliance 360 Herndon Parkway, Suite 1400 Herndon, VA 20170 Phone: 703-689-0368; Fax: 703-689-2056 Certification Application Report FCC Part 15.249 & Industry Canada RSS-210 Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Email: [email protected] Applicant: Ikusi – Angel Iglesias Phone: +34 943 448854 Contact: Luis Rodriguez Fax: +34 943 448811 Paseo Miramon 170 Apartado 1320 20009 San Sebastian SPAIN E-Mail: [email protected] FCC ID PVT-T70MH3 IC: 4166A-T70MH3 TEST REPORT DATE March 5, 2007 PLATFORM N/A RTL WORK ORDER NUMBER 2007117 MODEL # T70M RTL QUOTE NUMBER QRTL07-025 FCC Classification DXX – Part 15 Low Power Communication Device Transmitter FCC Rule Part(s) Part 15.249: Operation within the bands 902-928 MHz, 2400-2483.5 MHz, 5725- 5850 MHz, and 24.0-24.25 GHz Industry Canada Standard RSS-210: Low Power License-Exempt Radio Communication Devices (All Frequency Bands) Digital Interface Information Digital Interface was found to be compliant Receiver Information Receiver was found to be compliant Frequency Range (MHz) Output Power (W) Frequency Tolerance Emission Designator 902.5 - 927.45 N/A N/A 14K50F1D I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. Modifications made to the equipment during testing, in order to achieve compliance with these standards, are listed in the report. Furthermore, there was no deviation from, additions to, or exclusions from the FCC Part 2, FCC Part 15, Industry Canada RSS-210, and ANSI C63.4. Signature: Date: March 5, 2007 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 2 of 35 Table of Contents 1 General Information ............................................................................................................................................4 1.1 Scope...........................................................................................................................................................4 1.2 Modifications.................................................................................................................................................4 1.3 Test Facility ..................................................................................................................................................4 1.4 Related Submittal(s)/Grant(s) .......................................................................................................................4 2 Test Information ..................................................................................................................................................5 2.1 Test Justification ...........................................................................................................................................5 2.2 Exercising the EUT .......................................................................................................................................5 2.3 Test Result Summary ...................................................................................................................................5 2.4 Test System Details......................................................................................................................................6 2.5 Configuration of Tested System ...................................................................................................................6 3 Conducted Limits – FCC §15.207 & IC RSS-210 §9.0 .......................................................................................6 4 Duty Cycle Calculation .......................................................................................................................................7 5 Radiated Emission Limits Fundamental Emissions – FCC §15.249 & IC RSS-210 §6.2.2(m2) .....................8 5.1 Radiated Emission Limits Test Procedure ....................................................................................................8 5.2 Radiated Emission Limits Test Data .............................................................................................................8 6 Radiated Emission Limits Radiated Harmonics – FCC §15.249 & IC RSS-210 §6.2.2(m2)............................9 6.1 Radiated Emission Limits Test Procedure ....................................................................................................9 6.2 Radiated Emissions Harmonics/Spurious Test Data – Antenna S/N 2303722 .............................................9 7 Conclusion.........................................................................................................................................................13 Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 3 of 35 Table Index Table 2-1: Test Result Summary with FCC Rules and Regulations ......................................................................5 Table 2-2: Equipment Under Test (EUT)...............................................................................................................6 Table 5-1: Radiated Emissions Fundamental Emissions ......................................................................................8 Table 6-1: Radiated Emissions Harmonics/Spurious (Low Channel, 902.5 MHz)............................................…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 31 of 35 Appendix M: Additional Information for Canadian Certification Industry Canada - Modulated Bandwidth - RSS-210 §5.9.1 Modulated Bandwidth Test Procedure The minimum 20 dB bandwidth was measured using a 50 ohm spectrum analyzer with the resolution bandwidth set at 300 Hz, and the video bandwidth set at 3 kHz. Table 7-1: Industry Canada Modulated Bandwidth Test Equipment RTL Asset # Manufacturer Model Part Type Serial Number Calibration Date 900931 Hewlett Packard 8566B Spectrum Analyzer (100 Hz - 22 GHz) 3138A07771 9/13/07 900930 Hewlett Packard 85662A Spectrum Analyzer Display Section 3144A20839 9/13/07 Modulated Bandwidth Test Data Table 7-2: Minimum 20 dB Modulated Bandwidths CHANNEL 20 dB BANDWIDTH (kHz) 1 14.4 35 14.5 70 14.3 TEST PERSONNEL: Daniel Baltzell February 22, 2007 Test Engineer Signature Date Of Test Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 32 of 35 Modulated Bandwidth Plots Frequency (MHz): 902.5 Resolution Bandwidth (Hz): 300 Video Bandwidth (kHz): 3 Sweep Time (s): 20 Plot 7-1: Modulated Bandwidth Low Channel Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 33 of 35 Frequency (MHz): 915.7 Resolution Bandwidth (Hz): 300 Video Bandwidth (kHz): 3 Sweep Time (s): 20 Plot 7-2: Modulated Bandwidth Mid Channel Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 34 of 35 Frequency (MHz): 927.45 Resolution Bandwidth (Hz): 300 Video Bandwidth (kHz): 3 Sweep Time (s): 20 Plot 7-3: Modulated Bandwidth High Channel TEST PERSONNEL: Daniel Baltzell February 22, 2007 Test Engineer Signature Date Of Test Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 35 of 35 Radiated Receiver/Digital Emissions Data – IC RSS-210 §5.17 Table 7-3: Radiated Receiver/Digital Emissions Data Temperature: 30°F Humidity: 48% Emission Frequency (MHz) Test Detector Antenna Polarity (H/V) Turntable Azimuth (deg) Antenna Height (m) Analyzer Reading (dBuV) Site Correction Factor (dB/m) Emission Level (dBuV/m) Limit (dBuV/m) Margin (dB) 235.958 Qp H 170 1.0 44.9 -25.2 19.7 46.0 -26.3 265.410 Qp H 30 1.0 37.5 -22.7 14.8 46.0 -31.2 265.823 Qp H 180 1.0 35.2 -22.8 12.4 46.0 -33.6 266.198 Qp H 180 1.0 33.2 -22.8 10.4 46.0 -35.6 282.578 Qp V 0 1.0 32.0 -23.1 8.9 46.0 -37.1 353.930 Qp H 180 1.0 36.2 -11.5 24.7 46.0 -21.3 1887.402 Av H 180 1.0 36.6 0.2 36.8 54.0 -17.2 TEST PERSONNEL: Daniel Baltzell February 23, 2007 Test Engineer Signature Date Of Test Table 7-4: Radiated Receiver/Digital Emissions Test Equipment RTL Asset Manufacturer Model Part Type Serial Number Calibration Date 900913 Hewlett Packard 8546A Spectrum Analyzer (9 kHz – 6.5 GHz) 3325A00159 2/28/07 901053 Schaffner &Chase CBL6112B Bilog antenna (20 MHz - 2 GHz) 2648 11/1/07 900905 Rhein Tech Laboratories, Inc. PR-1040 Pre Amplifier 40dB (10 MHz – 2 GHz) 1006 3/15/07 900878 Rhein Tech Labs AM3- 1197-0005 3 meter antenna mast, polarizing Outdoor Range 1 Not Required 901242 Rhein Tech Labs WRT-000- 0003 Wood rotating table N/A Not Required

Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 23 of 35 Appendix J: Test Photographs Photograph 1: Radiated Emissions Front View Rhein Tech Laboratories Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: T70M Suite 1400 Standards: FCC 15.249/IC RSS-210 ID’s: PVT-T70MH3 & 4166A-T70MH3 Herndon, VA 20170 http://www.rheintech.com Report #: 2007117 Page 24 of 35 Photograph 2: Radiated Emissions Rear View
