PVTTR800CE-MCXISM BAND TRANSCEIVER MODULE WITH MCX CONNECTOR

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 32 of 44 Appendix L: Manual Please see the following pages. TM70Pi V3.2 (11/03) 120021.pdf. IKUSI reserves the right to modify this information without prior notification.. OPERATION & INSTALLATION MANUAL TM70 CONSOLE BOX TRANSMITTER T70/3/4/5/6/7/8 MODELS i-KONTROL TM70Pi V3.2 (11/03) 120021.pdf.i IKUSI reserves the right to modify this information without prior notification. I N D I C E Pág. 1.- DECLARATION OF CONFORMITY (870MHZ ISM BAND) ........................................................................1 2.- DECLARATION OF CONFORMITY (433MHZ ISM BAND) ........................................................................2 3.- SYSTEM DESCRIPTION .............................................................................................................................3 4.- SAFETY INSTRUCTIONS............................................................................................................................4 4.1.-WHAT YOU MUST DO......................................................................................................................................4 4.2.-WHAT YOU MUST NOT DO...............................................................................................................................4 4.3.-FCC RECOMENDATIONS.. ...............................................................................................................................5 5.- INSTALLATION...........................................................................................................................................6 5.1.-CB70BATTERY CHARGER..............................................................................................................................6 5.2.- RECEIVER....................................................................................................................................................7 5.3.-STARTING UP................................................................................................................................................9 6.- USING THE SET ........................................................................................................................................10 7.- MAINTENANCE ........................................................................................................................................11 7.1.-WARRANTY.................................................................................................................................................11 7.2.- PRECAUTIONS............................................................................................................................................11 7.3.-TROUBLESHOOTING....................................................................................................................................12 ANNEX A.- PROGRAMMING A SPARE TRANSMITTER. ............................................................................14 ANNEX B.- PROGRAMMING THE MACHINE IDENTIFICATION IN LCD TRANSMITTERS.......................15 ANNEX C.- FREQUENCY CHANNEL CHANGING.........................................................................................16 8.- CAN OPEN INTERFACE ...........................................................................................................................17 8.1.-INTRODUCTION...........................................................................................................................................18 8.2.-CAN BUS CONNECTION................................................................................................................................18 8.3.-TRANSMITER’S DATA DICTIONARY.................................................................................................................19 8.4.-PUSHBUTTONS AND CONSOLE BOX PDO’S.....................................................................................................21 8.5.-RECEIVER DATA DICTIONARY.......................................................................................................................22 8.6.-RECEIVER’S SIGNALLING..............................................................................................................................24 8.7.-TM70CAN RECEIVERS.................................................................................................................................24 9.- LCD70 DISPLAY OPTION........................................................................................................................27 9.1.-INTRODUCTION AND FUNCTIONAL DESCRIPTION............................................................................................28 9.2.-INTERNAL CONNECTION...............................................................................................................................29 9.3.-T70TRANSMITTER AND LCD70DISPLAY ASSEMBLY.......................................................................................30 9.4.-LCD70DISPLAY OPERATING MODES.............................................................................................................31 9.5.-DATA FEEDBACK OPERATING MODE..............................................................................................................32 10.- “FIRST COME – FIRST SERVED” OPERATION ....................................................................................39 10.1-INTRODUCTION..........................................................................................................................................40 10.2-TWO TRANSMITTER SYSTEMS.....................................................................................................................40 TM70Pi V3.2 (11/03) 120021.pdf.ii IKUSI reserves the right to modify this informati…

Text truncated - open the document above for the full version.

American Certification Body Inc. 6731 Whittier Ave Suite C110, McLean, VA 22101 July 28, 2011 RE: IKUSI – Angel Iglesias FCC ID: PVTTR800CE-MCX I have reviewed this Application and found it to comply with FCC Rules and Regulations. Thank you, Douglas E. Noble Examining Engineer mailto: [email protected] Any questions about the content of this correspondence should be directed to the sender.

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 21 of 44 Appendix B: TCB Agency Authorization Letter Please see the following page. Ángel Iglesias S.A. Paseo Miramón 170 20009 San Sebastián SPAIN Tel.: +34 943 44 88 00 Fax.: +34 943 44 88 20 [email protected] www.ikusi.com Authority to Act as Agent Date: June, 20th 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: Rhein Tech Laboratories, Inc. is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: June 2012 By: Borja Pérez Domínguez Title: Research and Development Director On behalf of: IKUSI Ángel Iglesias S.A. Telephone: +34 943 44 88 00

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 22 of 44 Appendix C: FCC Confidentiality Request Letter Please see the following page. Ángel Iglesias S.A. Paseo Miramón 170 20009 San Sebastián SPAIN Tel.: +34 943 44 88 00 Fax.: +34 943 44 88 20 [email protected] www.ikusi.com June 22nd, 2011 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: The following information is to be held confidential pursuant to FCC 47 CFR §0.457(d) and §0.459, because the information provided contains trade secrets and is proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. • Schematics • Technical Product Description • Block Diagram • Parts Lists • Tune Up/Alignment Procedure Sincerely, Borja Pérez Domínguez Research and Development Director

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE_MCX Suite 1400 Standards: FCC 15.249/IC RSS-210 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071DXX Page 24 of 38 Appendix D: DA00-1407 Part 15 Unlicensed Modular TX Attestation Please see the following pages. n/referencia San Sebastián TLCID:11-0002 June 30,2011 Dear: According to the FCC Public Notice as of June 26, 2000 (DA00-1407) and in order to request a limited modular transmitter approval for IKUSI’s new radio module TR800CE- MCX, I submit this cover letter stating the requirements fulfilled for equipment authorization. 1. The modular transmitter TR800CE-MCX has its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with Part 15 limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. 2. The modular transmitter TR800CE-MCX has buffered modulation/data inputs and a proprietary serial communication protocol to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. 3. The modular transmitter TR800CE-MCX has its own power supply regulation. This is intended to ensure that the module will comply with Part 15 requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 4. The modular transmitter TR800CE-MCX complies with the antenna requirements of Section 15.203 and 15.204(c). The radio module has a “unique” antenna coupler (MCX connector). All antennas intended to be used with the module have been tested for approval with the module as indicated in the “Certification Application Report for Limited Modular Approval Report”, at the time of initial authorization. 5. The modular transmitter TR800CE-MCX has been tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. It complies with the Ángel Iglesias S.A. Paseo Miramón 170 20009 San Sebastián SPAIN Tel.: +34 943 44 88 00 Fax.: +34 943 44 88 20 [email protected] www.ikusi.com FEDERAL COMMUNICATIONS COMMISSION Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module did not contain ferrites, since they will not be marketed with the module (see Section 15.27(a)). The length of these lines shall has been at least 10 centimetres to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing will be unmodified or commercially available (see Section 15.31(i)). 6. The modular transmitter TR800CE-MCX will be labelled with its own FCC ID number, and, since the FCC ID is not visible when the module is installed inside the whole system, then IKUSI will provide a label in the outside of the device into which the module is installed displaying this wording: “Contains FCC ID: PVTTR800CE-MCX.” TR800CE-MCX is intended to be used only in transmitters manufactured by IKUSI and will not be sold standalone. For this reason, IKUSI applies for a limited modular transmitter approval. 7. The modular transmitter TR800CE-MCX complies with any specific rule or operating requirements applicable to the transmitter. No instructions will be provided along with the module to explain any such requirements, since TR800CE-MCX is intended to be used only in transmitters manufactured by IKUSI and will not be sold standalone. For this reason, IKUSI applies for a limited modular transmitter approval . 8. The modular transmitter TR800CE-MCX complies with any applicable RF exposure requirements as stated in the “Certification Application Report for Limited Modular Approval Report”, and is intended to be certified along with any possible host IKUSI might eventually release to the market. For this reason, IKUSI applies for a limited modular transmitter approval. I remain at your disposition for any query or further details. Yours faithfully, Borja Pérez Domínguez R&D Manager

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 35 of 44 Appendix N: External Photographs Photograph 7 : EUT Top View with Shield Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 36 of 44 Photograph 8 : EUT Top View without Shield ID l abel in this photo is NOT representative of the ID label; please see the Label exhibit for a representative ID label photograph. Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 37 of 44 Photograph 9 : EUT Bottom View

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 25 of 44 Appendix F: Label and Label Location Photograph 1: ID Label Sample Photograph 2: ID Label on EUT ID Label Here Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 26 of 44 Photograph 3: Sample Host ID Label Photograph 4: Sample Host Label Location

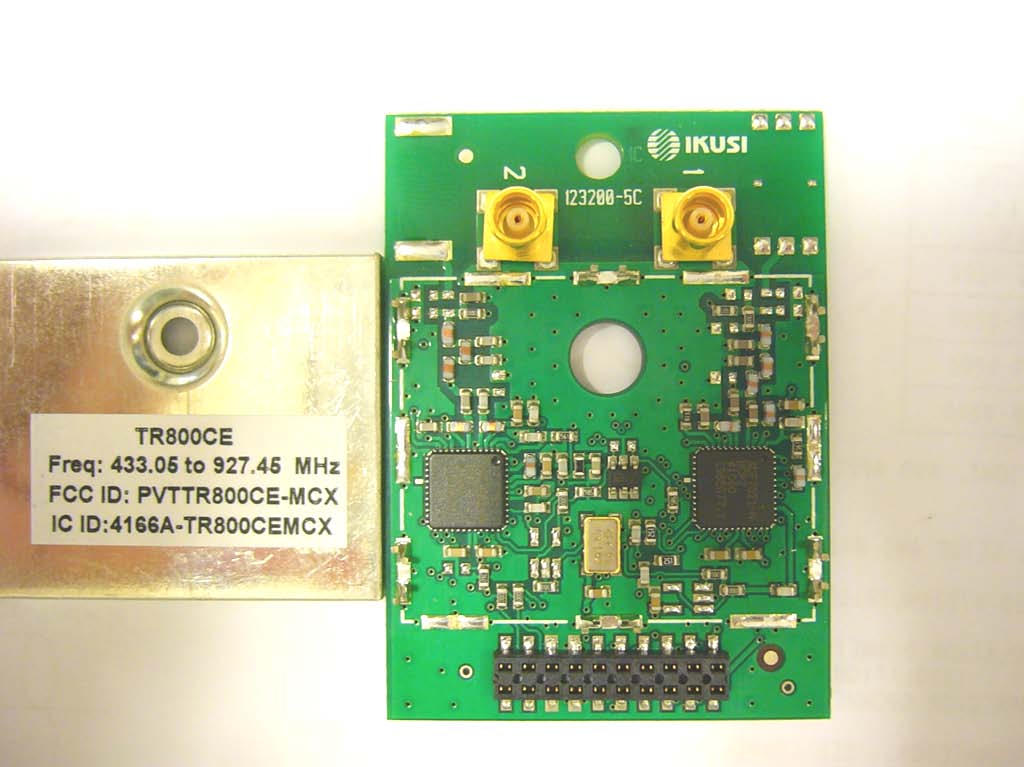

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 38 of 44 Appendix O: Internal Photographs Photograph 10 : EUT Top View with Shield Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 39 of 44 Photograph 11 : EUT Top View without Shield ID l abel in this photo is NOT representative of the ID label; please see the Label exhibit for a representative ID label photograph. Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 40 of 44 Photograph 12 : EUT Bottom View

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 20 of 44 Appendix A: FCC Part 1.1307, 1.1310, 2.1091, 2.1093; IC RSS-Gen: RF Exposure No RF Exposure Evaluation Required if power is below the following threshold: Tunable Range f(GHz) Low f(GHz) High Center of Tunable Band (GHz) 60/f SAR Limitation (mW) 0.450 0.464 0.457 131 Maximum measured transmitter power: Pout Conducted (mW) Maximum Antenna Gain (numeric) Pout EIRP (mW) 16 1.585 25.4 Threshold at which no RF exposure evaluation is 131 mW. Maximum TX Power is 16 mW conducted and 25.4 mW EIRP. Conclusion: No RF exposure evaluation is required since the maximum Transmitter Pout (both conducted and EIRP) is below the FCC threshold.

Engineering Solutions & Electromagnetic Compatibility Services 360 Herndon Pkwy | Suite 1400 | Herndon | Virginia 20170 Phone: 703.689.0368 | Fax: 703.689.2056 | www.rheintech.com FCC Part 90 & IC RSS-119 Limited Modular Approval Report Test Lab: Rhein Tech Laboratories, Inc. Phone: 703-689-0368 360 Herndon Parkway Fax: 703-689-2056 Suite 1400 Web: www.rheintech.com Herndon, VA 20170 Email: [email protected] Applicant: Ikusi – Angel Iglesias Phone: +34 943 448800 Paseo Miramon 170 20009 San Sebastian SPAIN Contact: Borja Pérez Domínguez FCC ID: IC: PVTTR800CE-MCX 4166A-TR800CEMCX Test Report Date June 30, 2011 Platform N/A RTL Work Order Number 2011071 Model # TR800CE-MCX RTL Quote Number QRTL11-101 American National Standard Institute ANSI C63.4-2003: Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz FCC Classification TNB: Licensed Non-Broadcast Station Transmitter FCC Rule Part(s) Part 90 (10-01-10): Private Land Mobile Radio Services IC Rule Part(s) RSS-119 Issue 11: Land Mobile and Fixed Radio Transmitters and Receivers Operating in the Frequency Range 27.41-960 MHz Frequency Range (MHz) Output Power (W) Frequency Tolerance (ppm) Emission Designator 450 – 464 0.016 0.42 12K0F1D I, the undersigned, hereby declare that the equipment tested and referenced in this report conforms to the identified standard(s) as described in this test report. No modifications were made to the equipment during testing in order to achieve compliance with these standards. Furthermore, there was no deviation from, additions to, or exclusions from, the applicable parts of FCC Part 2, FCC Part 90, ANSI C63.4, and IC RSS-119. Signature: Date: June 30, 2011 Typed/Printed Name: Desmond A. Fraser Position: President This report may not be reproduced, except in full, without the written approval of Rhein Tech Laboratories, Inc. and IKUSI. The test results relate only to the item(s) tested. These tests are accredited and meet the requirements of ISO/IEC 17025 as verified by ANSI-ASQ National Accreditation Board/ACLASS. Refer to certificate and scope of accreditation AT-1445. Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 2 of 44 Table of Contents 1 General Information .............................................................................................................................. 5 1.1 Scope ............................................................................................................................................ 5 1.2 Modifications ................................................................................................................................. 5 1.3 Test Facility ................................................................................................................................... 5 1.4 Related Submittal(s)/Grant(s) ....................................................................................................... 5 2 Test Information .................................................................................................................................... 6 2.1 Test Justification ........................................................................................................................... 6 2.2 Exercising the EUT ....................................................................................................................... 6 2.3 Test Result Summary .................................................................................................................... 6 2.4 Test System Details ...................................................................................................................... 7 2.5 Configuration of Tested System .................................................................................................... 7 3 FCC Rules and Regulations Part 2.1033(C)(8) Voltages and Currents Through The Final Amplifying Stage ..................................................................................................................................................... 8 4 FCC Rules and Regulations Part 2.1046(a): RF Power Output: Conducted, Part 90.217; RSS-119 5.4 ......................................................................................................................................................... 8 4.1 Test Procedure .............................................................................................................................. 8 4.2 Test Data ....................................................................................................................................... 8 5 FCC Rules and Regulations Part 2.1051; RSS-119 5.5, 5.8:Spurious Emissions at Antenna Terminals .............................................................................................................................................. 9 5.1 Test Procedure .............................................................................................................................. 9 5.2 Test Data ....................................................................................................................................... 9 6 FCC Rules and Regulations Part 2.1049(c)(1): Occupied Bandwidth; Part 90.210; RSS-119 5.5, 5.8 ............................................................................................................................................................ 10 6.1 Test Procedure ............................................................................................................................ 10 6.2 Test Data ..................................................................................................................................... 10 7 FCC Rules and Regulations Part 90.213 and Pa…

Text truncated - open the document above for the full version.

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 41 of 44 Appendix P: Additional Information for Canadian Certification Industry Canada - Modulated Bandwidth - RSS-Gen Modulated Bandwidth Test Procedure The minimum 20 dB bandwidth was measured using a 50 ohm spectrum analyzer with the resolution bandwidth set at 100 Hz, and the video bandwidth set at 1 kHz. Table 10-1: Industry Canada Modulated Bandwidth Test Equipment RTL Asset # Manufacturer Model Part Type Serial Number Calibration Due Date 901413 Agilent Technologies E4448A Spectrum Analyzer US44020346 04/08/12 Modulated Bandwidth Test Data Table 10-2: Minimum 20 dB Modulated Bandwidths Frequency (MHz) 20 dB Bandwidth (kHz) 450.5 10.2 457.0 10.8 463.5 10.8 Test Personnel: Daniel Baltzell August 1, 2011 Test Engineer Signature Date of Test Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 42 of 44 Modulated Bandwidth Plots Plot 10-1: Modulated Bandwidth - Low Channel Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 43 of 44 Plot 10-2: Modulated Bandwidth - Mid Channel Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 44 of 44 Plot 10-3: Modulated Bandwidth - High Channel Test Personnel: Daniel Baltzell August 1, 2011 Test Engineer Signature Date of Test

Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 33 of 44 Appendix M: Test Photographs Photograph 5: Radiated Emissions – Module Tested Inside “Typical Host” Rhein Tech Laboratories, Inc. Client: IKUSI – Angel Iglesias 360 Herndon Parkway Model: TR800CE-MCX Suite 1400 Standards: FCC 90/IC RSS-119 Herndon, VA 20170 http://www.rheintech.com FCC ID: PVTTR800CE-MCX Report #: 2011071 Page 34 of 44 Photograph 6: Radiated Emissions - Module Tested Inside Second “Typical Host”
