PWX-A56GSM Mobile phone

Contents 1 See also Index at the end of this User Guide A56 AE, A31008-H5320-A100-1-4A19 (16. October 2002, 16:25) © Siemens AG 2001, I:\Mobil\A56\am\A56IVZ.fm Safety precautions ..................... 3 Safety Information ..................... 4 Antenna care ........................... 4 Phone operation ...................... 4 Electronic devices ..................... 5 SAR (Specific Absorption Rate) .. 8 Overview of the phone ............ 10 Getting Started ........................ 11 Insert SIM card/battery ........... 12 Charge battery ....................... 13 General Instructions ................. 14 User Guide ............................. 14 Control key ............................ 14 Switch on, off / PIN entry ......... 16 Security .................................... 17 Codes .................................... 17 My phone ................................. 19 Making a phone call ................. 20 Dialing with number keys ....... 20 End call .................................. 20 Set volume ............................. 20 Redial previous numbers ........ 20 When a number is busy .......... 21 Accept call ............................. 21 Reject call .............................. 21 Held call ................................. 22 Call waiting/Swap ................... 22 Multi party ............................. 23 Call menu .............................. 23 Phonebook ................................24 <New entry> ..........................24 Call/search for an entry ...........25 Call with Record no. ............... 25 Edit entry ............................... 25 Location: ............................... 26 Assign animation .................... 27 Groups ...................................................28 SMS to group ..........................28 Group setup ........................... 29 Call log ...................................... 30 Messages (SMS) ........................31 Read messages ......................31 Inbox/outbox ......................... 32 Archive ...................................32 Compose a message ...............33 Predefined text ....................... 34 SMS to group ..........................34 Picture & Sound ......................35 Surf & fun ................................. 36 Internet (WAP) ........................36 Games .................................... 39 Bitmap viewer ........................40 Sound manager ...................... 41 Organizer ..................................44 Alarm clock ............................ 44 Calculator ............................... 44 Voice message/Mailbox ............45 CB services ................................ 46 Contents See also In- dex at the end of this User Guide Contents 2 See also Index at the end of this User Guide A56 AE, A31008-H5320-A100-1-4A19 (16. October 2002, 16:25) © Siemens AG 2001, I:\Mobil\A56\am\A56IVZ.fm Profiles ..................................... 47 Setup ..................................... 47 Car Kit ................................... 48 Headset ................................. 48 Aircraft mode ......................... 48 Favorites .................................. 49 Fast access key ......................... 50 Control key (on the left) ......... 50 Speed dialing keys .................. 51 Setup ........................................ 52 Display ................................... 52 Audio ..................................... 53 Keys ....................................... 55 Phone setup ........................... 55 Clock ..................................... 58 Connectivity ........................... 59 Security ................................. 62 Network ................................. 63 Accessories ............................ 65 Text entry with "T9" .................. 66 Setup ..................................... 66 Create a word using T9 ........... 66 Display symbols (selection) ..... 68 Notes A-Z .................................. 69 Questions&Answers ................. 77 Siemens Service ....................... 80 Specifications ........................... 81 Exposure to radiofrequency sig- nals ........................................ 81 Technical data ....................... 81 Trademarks ............................ 81 Maintenance ............................. 82 Accessories ............................... 83 Basics ..................................... 83 Car Solutions ......................... 83 U.S. FDA .................................... 84 FCC/Industry Canada Notice .....90 Ten Driving Safety Tips ............. 91 Intellectual Property ................. 93 Index ......................................... 94 Safety precautions 3 A56 AE, A31008-H5320-A100-1-4A19 (16. October 2002, 16:25) © Siemens AG 2001, I:\Mobil\A56\am\A56_Security.fm Safety precautions NOTE: Review these operating instructions and safety precautions carefully before use. Explain the content to your children and the hazards associated with using the phone. Do not use mobile phone in hos- pitals or in the vicinity of medical devices, such as pacemakers or hearing aids. Mobile phones may interfere with the operation of these devices. Keep a mini- mum distance of 8" between pacemaker and mobile phone. When using the mobile phone hold it to the ear farthest from the pacemaker. Always use the handsfree kit to make calls while driving (p. 83). Turn off mobile phone while aboard any aircraft. To prevent accidental activation, see (p. 48). Do not use mobile phone near gas stations, fuel depots, chem- ical plants or blasting opera- tions. Mobile phones may cause interference with the operation of technical installations. The ring tone, info tones and hands-free speaker are ampli- fied through the earpiece. Never hold the mobile phone to your ear when it is ringing or when you are using the hands-free speaker mode. Serious and per- manent damage could occur to your hearing! Caution! SIM card may be re- moved. Small parts could be swallowed by children. Do not exceed the mains v…

Text truncated - open the document above for the full version.

A56 Front View A56 Back View (with battery cover) A56 Side View

Date 06.08.2002 Approval label Name Buttermann Standard IMEI-Label A56 ICM MP PO2 1 06.08.02 Bu LETTERING PLAN Version Date Token SIEMENS AG DIS 20210 Page 1 From 1 A24850-V1-A4-2 VORSTD.DOC White label with black lettering SIEMENS S30880-S5320-XXXX-1 YY XXXXXX FF SSSSSS C Typ-Approval Code: TAC Made xx xxxxxxx 3) A56 Barcode: Typ 128, table C and B Characteristic: IMEI-No. has 15 digits Digit 1-14 is generated as Barcode with table C. Digit 15 is printed with table B. 1)2) 4) 5) 7) 8) Current serial number (6 digits) Assigned by PICS Final-Assembly Code: FAC 15. digit CHECK DIGIT 10) 10) 10) 11)12) FCC ID: PWX-A56 IC: 267E-A56 6) Ink ribbon: TTR-Band Ricoh 110-A Font: Title blocks concentric 1) Corporate logo: 1.5 SN 66324 2) Product name: Internal font B, size 3 3) Made xx xxxxxxx Internal font B, size 3 4) Code of date: Internal font D, size 4 e.g. F3  March +-1995 5) Code number: Internal font D, size 4 6) Canada FCC and US FCC font: A2.1 height 1,2mm 7) Barcode IMEI-No.: Code: 128 Size: 2 Ratio: 3.0 Height: 3 mm 8) IMEI-No. (plain writing): Internal font D, size 4, space between TAC, FAC, serial no. and 15.digit 10) Document for IMEI-No. allocation: DIS 20213 000 xx BOM Valid is the highest level in the digital archive 11) Code number: Corresponding to the number of the transceiver unit part list 12) “Made in Germany“ or Depending on final assembly code “Made in China” or “Made in Denmark” or “Made in Brazil”

A56 Label Position

A56 Front cover removed A56 Keypad A56 GSM Dualband Antenna A56 Board, side 1 A56 Board with shielding lids, side 2 A56 Board without shielding lids, side 2

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_272 Page 1 of 48 Report Dosimetric Assessment of the Portable Device Siemens A56 (FCC ID: PWX-A56) According to the FCC Requirements October 17, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.2.doc/19.06.2002/CH DASY Test-Report, Siemens_ 6575_272 Page 2 of 48 dasy_report_fcc_supplement_c _2.2.doc/19.06.2002/CH Executive Summary The A56 is a new mobile phone (Portable Device) from Siemens operating in the 800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 850 and PCS 1900 standards including GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards. The examinations have been carried out with the dosimetric assessment system „DASY3“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. The Siemens A56 mobile phone (FCC ID: PWX-A56) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessories and combinations: “Belt Clip” with “Headset” and “Tour Case” with “Headset” for normal Talk mode (1 TX slot). “Belt Clip” without “Headset” and “Tour Case” without “Headset” for GPRS mode (1 TX slot). A larger Belt Clip (plastic, with no metal components) is also available, but since it dictates a larger distance than the tested Belt Clip, additional measurements are not required. The additionally available Leather Case was not tested since it is only a carry case, to establish or to answer a call is not possible because there are no apertures for a headset. prepared by: ........................................... reviewed by: .............................................. Dipl.-Ing. Christoph Hennes Dr.-Ing. Frank Gustrau test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 372 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_272 Page 3 of 48 dasy_report_fcc_supplement_c _2.2.doc/19.06.2002/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 11 4.2 PROBE....................................................................................................................................................... 11 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 11 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 12 5 SAR RESULTS ................................................................................................................................................ 13 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 21 7.1 ADMINISTRATIVE DATA...............................................................................................................................21 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 21 7.3 TISSUE RECIPES......................................................................................................................................... 22 7.4 MATERIAL PARAMETERS............................................................................................................................. 23 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 23 7.6 ENVIRONMENT.......................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 1 of 34 Appendix for the Report Dosimetric Assessment of the Siemens A56 Mobile Phone (FCC ID: PWX-A56) According to the FCC Requirements SAR Distribution Plots October 16, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 2 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, TEST SIDE AMBIENT CONDITIONS.................................................... 3 2 SAR DISTRIBUTION PLOTS, GSM850 (HEAD) ........................................................................................ 7 3 SAR DISTRIBUTION PLOTS, PCS1900 (HEAD) ...................................................................................... 11 4 SAR DISTRIBUTION PLOTS, GSM850 (BODY) ...................................................................................... 15 5 SAR DISTRIBUTION PLOTS, PCS1900 (BODY) ...................................................................................... 21 6 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 27 7 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................31 DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 3 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, Test side ambient conditions. Fig. 1: Test side ambient measurements, 835 MHz, head position. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 4 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 2: Test side ambient measurements, 835 MHz, body position. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 5 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 3: Test side ambient measurements, 1900 MHz, head position. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 6 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 4: Test side ambient measurements, 1900 MHz, body position. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 7 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 2 SAR Distribution Plots, GSM850 (Head) Fig. 5: SAR distribution, GSM850, channel 190, cheek position, left side of head. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 8 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 6: SAR distribution, GSM850, channel 190, tilted position, left side of head. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 9 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 7: SAR distribution, GSM850, channel 190, cheek position, right side of head. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 10 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 8: SAR distribution, GSM850, channel 190, tilted position, right side of head. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 11 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 3 SAR Distribution Plots, PCS1900 (Head) Fig. 9: SAR distribution, PCS1900, channel 661, cheek position, left side of head. Cube 2: 0.0789 W/kg. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 12 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 10: SAR distribution, PCS1900, channel 661, tilted position, left side of head. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 13 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 11: SAR distribution, PCS1900, channel 661, cheek position, right side of head. Cube 2: 0.224 W/kg. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 14 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 12: SAR distribution, PCS1900, channel 661, tilted position, right side of head. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 15 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 4 SAR Distribution Plots, GSM850 (Body) Fig. 13: SAR distribution, GSM850, channel 190, body worn configuration, Belt Clip with Headset (Talk mode, 1 TX slot). DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 16 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 14: SAR distribution, GSM850, channel 190, body worn configuration, Belt Clip without Headset (GPRS mode, 1 TX slot). DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 17 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 15: SAR distribution, GSM850, channel 190, body worn configuration, Tour Case with Headset (Talk mode, 1 TX slot), display down. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 18 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 16: SAR distribution, GSM850, channel 190, body worn configuration, Tour Case with Headset (Talk mode, 1 TX slot), display up. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 19 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 17: SAR distribution, GSM850, channel 190, body worn configuration, Tour Case without Headset (GPRS mode, 1 TX slot), display down. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 20 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 18: SAR distribution, GSM850, channel 190, body worn configuration, Tour Case without Headset (GPRS mode, 1 TX slot), display up. DASY Test-Report, Siemens_ 6575_272_SAR Distribution Plots Page 21 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 5 SAR Distribution Plo…

Text truncated - open the document above for the full version.

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_272: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens A56 (FCC ID: PWX-A56) According to the FCC Requirements Calibration Data October 15, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory. Probe ET3DV6 SN:1579 Manufactured:May 7, 2001 Last calibration:January 29, 2002 Repaired:April 26, 2002 Recalibrated:May 3, 2002 Calibrated for System DASY3 Page 1 of 9 ET3DV6 SN:1579May 3, 2002 DASY3 - Parameters of Probe: ET3DV6 SN:1579 Sensitivity in Free SpaceDiode Compression NormX1.61 mV/(V/m) 2 DCP X93mV NormY1.58 mV/(V/m) 2 DCP Y93mV NormZ1.59 mV/(V/m) 2 DCP Z93mV Sensitivity in Tissue Simulating Liquid Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.7 ± 9.5% (k=2)Boundary effect: ConvF Y6.7 ± 9.5% (k=2)Alpha0.32 ConvF Z6.7 ± 9.5% (k=2)Depth2.54 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.4 ± 9.5% (k=2)Boundary effect: ConvF Y5.4 ± 9.5% (k=2)Alpha0.45 ConvF Z5.4 ± 9.5% (k=2)Depth2.48 Boundary Effect Head900MHzTypical SAR gradient: 5 % per mm Probe Tip to Boundary1 mm2 mm SAR be [%] Without Correction Algorithm8.34.9 SAR be [%] With Correction Algorithm0.30.4 Head1800MHzTypical SAR gradient: 10 % per mm Probe Tip to Boundary1 mm2 mm SAR be [%] Without Correction Algorithm11.27.6 SAR be [%] With Correction Algorithm0.20.3 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection1.5 ± 0.2mm Page 2 of 9 ET3DV6 SN:1579May 3, 2002 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 9 ET3DV6 SN:1579May 3, 2002 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 9 ET3DV6 SN:1579May 3, 2002 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 9 ET3DV6 SN:1579May 3, 2002 Dynamic Range f(SAR brain ) ( Waveguide R22 ) ET3DV6 SN:1579May 3, 2002 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 9 Conversion Factor Assessment Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.7 ± 9.5% (k=2)Boundary effect: ConvF Y6.7 ± 9.5% (k=2)Alpha0.32 ConvF Z6.7 ± 9.5% (k=2)Depth2.54 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.4 ± 9.5% (k=2)Boundary effect: ConvF Y5.4 ± 9.5% (k=2)Alpha0.45 ConvF Z5.4 ± 9.5% (k=2)Depth2.48 ET3DV6 SN:1579May 3, 2002 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 9 Conversion Factor Assessment Body900MHz ε r =55.0 ± 5% σ = 1.05 ± 5% mho/m Body835MHz ε r =55.2 ± 5% σ = 0.97 ± 5% mho/m ConvF X6.4 ± 9.5% (k=2)Boundary effect: ConvF Y6.4 ± 9.5% (k=2)Alpha0.33 ConvF Z6.4 ± 9.5% (k=2)Depth2.60 Body1800MHz ε r =53.3 ± 5% σ = 1.52 ± 5% mho/m Body1900MHz ε r =53.3 ± 5% σ = 1.52 ± 5% mho/m ConvF X5.1 ± 9.5% (k=2)Boundary effect: ConvF Y5.1 ± 9.5% (k=2)Alpha0.56 ConvF Z5.1 ± 9.5% (k=2)Depth2.39 ET3DV6 SN:1579May 3, 2002 f = 900 MHz, WG R9 (body) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (body) 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 8 of 9 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 9 of 9 Page 2 of 2May 8, 2002 Dosimetric E-Field Probe ET3DV6 SN:1579 Conversion factor (± standard deviation) 835 MHzConvF6.8 ± 8% εε εε r = 41.5 ± 5% σσ σσ = 0.90 ± 5% mho/m (head tissue) 835 MHzConvF6.6 ± 8% εε εε r = 55.2 ± 5% σσ σσ = 0.97 ± 5% mho/m (body tissue) 1900 MHzConvF5.2 ± 8% εε εε r = 40.0 ± 5% σσ σσ = 1.40 ± 5% mho/m (head tissue) 1900 MHzConvF4.8 ± 8% εε εε r = 53.3 ± 5% σσ σσ = 1.52 ± 5% mho/m (body tissue)

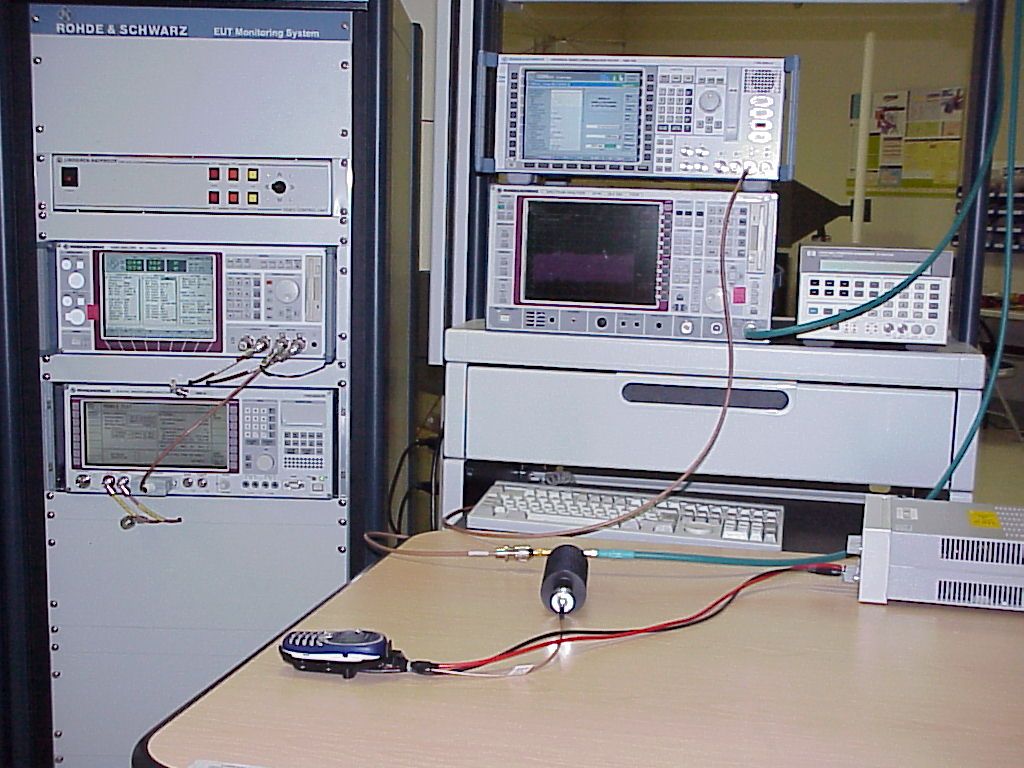

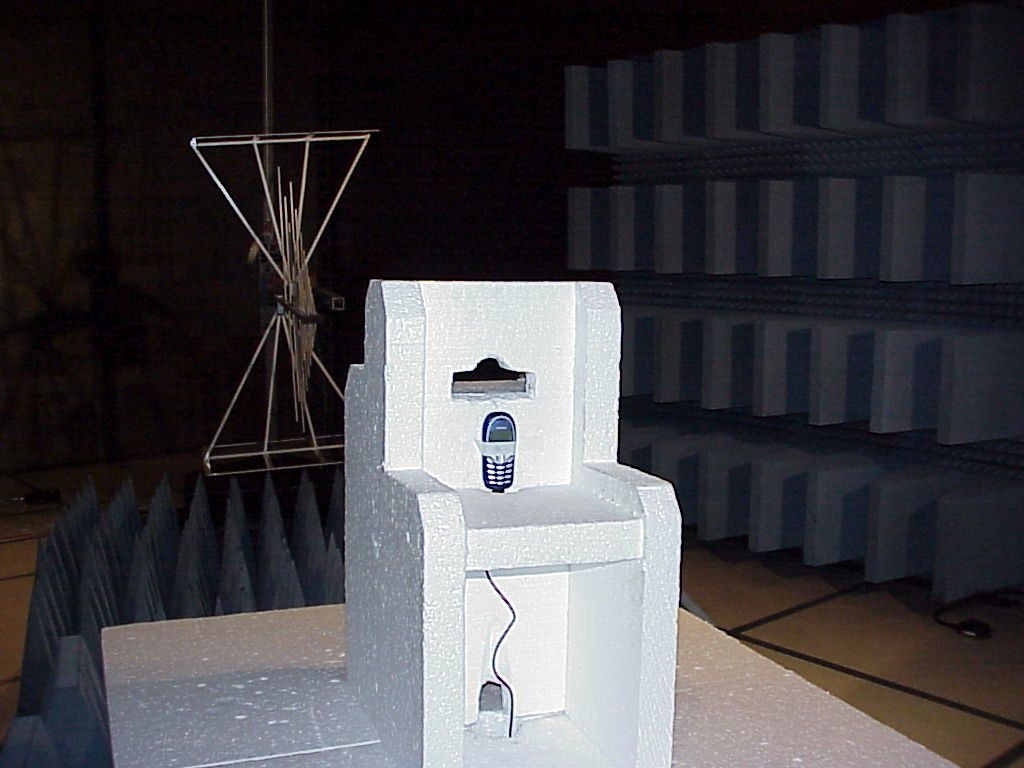

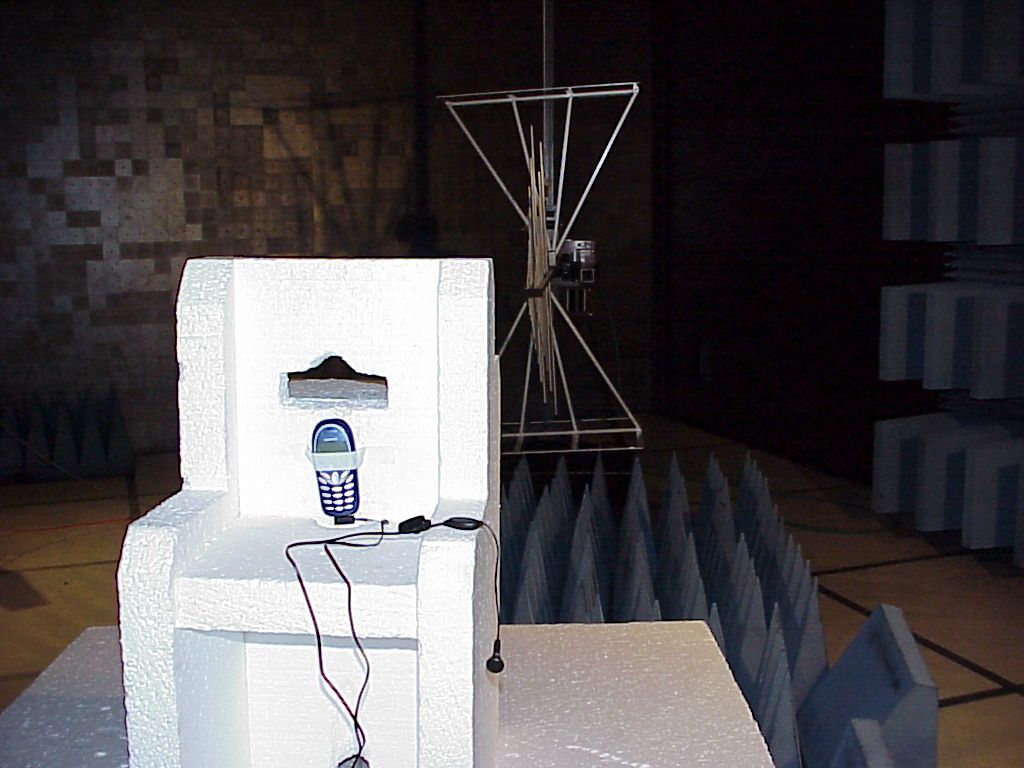

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 85 Pages Page 1 (85) Test report no.: EMC_350_FCC22-24_2002_A56 FCC Part 22,24 / RSS 133 (A56) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 CETECOM Inc. Test report no.: EMC_350_FCC22-24_2002_A56 Issue date: 2002-10-16 Page 2 (85) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_350_FCC22-24_2002_A56 Issue date: 2002-10-16 Page 3 (85) 1.3 Details of applicant Name : SIEMENS Mobile LLC Street : 16745 West Bernardo Dr. City / Zip Code : San Diego, CA 92129 Country : U.S.A Contact : Dr. Peter Nevermann Telephone : (858) 521 3282 Tele-fax : (858) 521 3105 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-09-25 Date of receipt test item : 2002-09-30 Date of test : 2002-10-05/07 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : A56 Model No. : L56 Tuna Serial No.(IMEI) : 001002000132683 Description : GSM 850 / 1900 PCS mobile phone FCC-ID : PWX-A56 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Embedded dual band Power supply : Battery or charger (AC adaptor) Output power : 30.09dBm (1.02W) max. ERP measured in GSM-850 31.83dBm (1.524W) max. EIRP measured in PCS-1900 Extreme vol. Limits : 3.3 VDC – 5.2 VDC Extreme temp. Tolerance : -30 C to +50 C 1.6 Test standards FCC Part 22, 24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. CETECOM Inc. Test report no.: EMC_350_FCC22-24_2002_A56 Issue date: 2002-10-16 Page 4 (85) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2002-10-16 EMC & Radio Siegfried Lehmann (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2002-10-16 EMC & Radio Hapreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_350_FCC22-24_2002_A56 Issue date: 2002-10-16 Page 5 (85) 2.2 Test report TEST REPORT Test report no.: EMC_350_FCC22-24_2002_A56 (A56) CETECOM Inc. Test report no.: EMC_350_FCC22-24_2002_A56 Issue date: 2002-10-16 Page 6 (85) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(A) / § 24.232 (B) 7 FREQUENCY STABILITY § 2.1055(A)(1)(B) / § 24.235 18 OCCUPIED BANDWIDTH §2.1049(C)(1), §24.238(A)(B) 21 MOBILE EMISSIONS IN BASE FREQUENCY §22.917(F) 32 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 33 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 66 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 71 CONDUCTED EMISSIONS § 15.107/207 79 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 83 BLOCK DIAGRAMS 84 CETECOM Inc. Test report no.: EMC_350_FCC22-24_2002_A56 Issue date: 2002-10-16 Page 7 (85) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. power transmission and proper modulation. This paragraph contains both average, peak output powers and EIRP measurements for the EUT.(ERP for GSM-850) In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT w…
