PWX-A65GSM 900/1800/1900 Mobile Phone

© Siemens AG 2003, D:\Werkstatt\A65 am\PumaIVZ.fm Table of Contents1 VAR Language: am; VAR issue date: 040609 See also Index at the end of this User Guide left page (1) of A65_PUMA am, A31008-H5810-A40-1-4A19 (12.08.2004, 16:07) Legal notices ...................................... 2 Safety precautions ............................. 4 Phone overview .................................. 5 Display symbols (selection) ................ 7 Getting started ................................... 8 Using the SIM card/battery ............... 8 Charging the battery ........................ 8 Switching on/off, PIN .......................... 9 Enter PIN ......................................... 9 Strong reception signal .................... 9 Emergency number (SOS) .............. 10 Without a SIM card ........................ 10 General information ......................... 10 User guide ..................................... 10 Menu control ................................. 10 Standby mode ............................... 10 Security ............................................ 10 Codes ............................................ 10 Clear SIM card barring .................... 11 Making a phone call ......................... 11 Text entry ......................................... 12 Text entry without T9 .................... 12 Text entry with T9 .......................... 13 Predef. texts .................................. 14 Phonebook ....................................... 14 <New entry> .................................. 14 Call (search for an entry) ................ 14 Edit entry ....................................... 14 Assign picture ................................ 15 Groups .......................................... 15 Call log 15 Durat/charges ................................... 15 Camera ............................................. 16 Voicemail/CB services ....................... 16 SMS ................................................... 17 MMS ................................................. 18 Message lists/ Message settings 19 Surf & fun ......................................... 19 Internet browser (WAP) .................. 19 Games & more .............................. 20 Setup ................................................ 21 Profiles .......................................... 21 Display .......................................... 21 Call setup ...................................... 22 Clock ............................................. 23 Connectivity .................................. 23 Security ......................................... 23 Network ........................................ 24 Accessories ................................... 24 Ringtones ......................................... 25 Extras 25 Alarm clock ................................... 25 Calculator ...................................... 25 Stopwatch ..................................... 25 SIM services (optional) .................. 26 Fast access ....................................... 26 Own stuff ......................................... 26 Questions & Answers ....................... 27 Customer Care ................................. 30 Care and maintenance 31 Product data ..................................... 32 U.S. FDA ........................................... 33 FCC/Industry Canada Notice ............ 39 Ten driving safety tips ..................... 40 Intellectual property ........................ 42 Accessories ...................................... 43 SAR (A65) ......................................... 44 End user license agreement ............ 46 Menu tree ........................................ 51 Index ................................................ 55 Table of Contents See also In- dex at the end of this User Guide © Siemens AG 2003, D:\Werkstatt\A65 am\LegalNotices.fm Legal notices2 VAR Language: am; VAR issue date: 040609 left page (2) of A65_PUMA am, A31008-H5810-A40-1-4A19 (12.08.2004, 12:50) Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS networks operating on the GSM 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2004 Siemens Information and Communication Mobile, LLC. All rights reserved. Siemens and the A65 model phone are trademarks or registered trade- marks of Siemens AG and/or its affili- ates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trade- marks and logos are trademarks or registered trademarks of Sun Micro- systems, Inc. in the U.S and other countries. The names of actual com- panies and products mentioned herein may be the trademarks of their respective owners. Disclaimer THE INFORMATION CONTAINED IN THE USER GUIDE IS WRITTEN FOR THE A65 PHONE. SIEMENS RESERVES THE RIGHT TO MAKE CHANGES AND IMPROVEMENTS TO THE PRODUCTS AND ANY OF THE FEATURES OF THE PRODUCTS DESCRIBED IN THIS DOC- UMENT WITHOUT PRIOR NOTICE. THE CONTENTS OF THE USER GUIDE ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SIEMENS RESERVES THE RIGHT TO REVISE THE USER GUIDE OR WITH- DRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUM- STANCES SHALL SIEMENS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is prohibited. You must comply with all applicable export laws, restrictions and regula- tions of the United States foreign © Siemens AG 2003, D:\Werkstatt\A65 am\LegalNotices.fm 3Legal notices VAR…

Text truncated - open the document above for the full version.

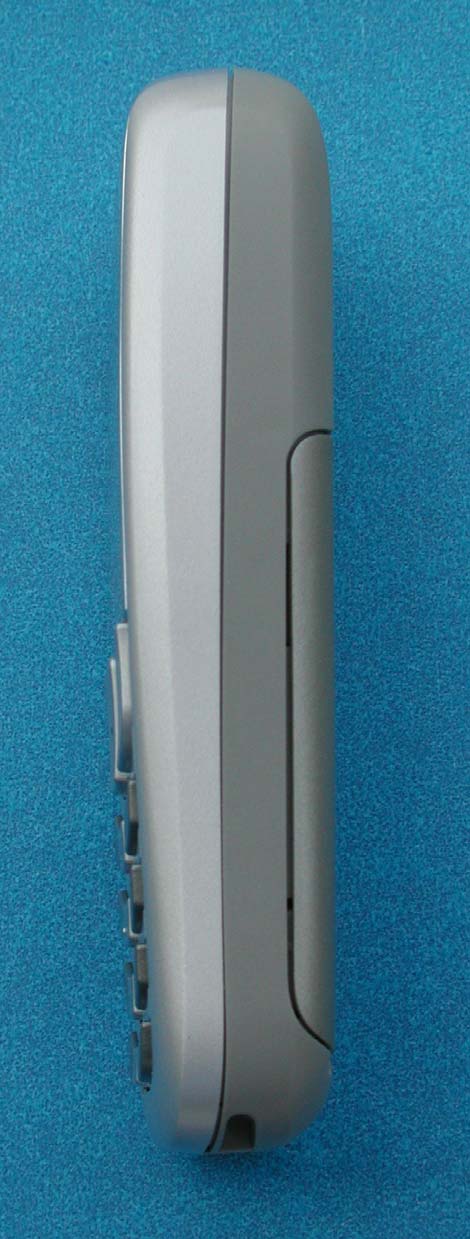

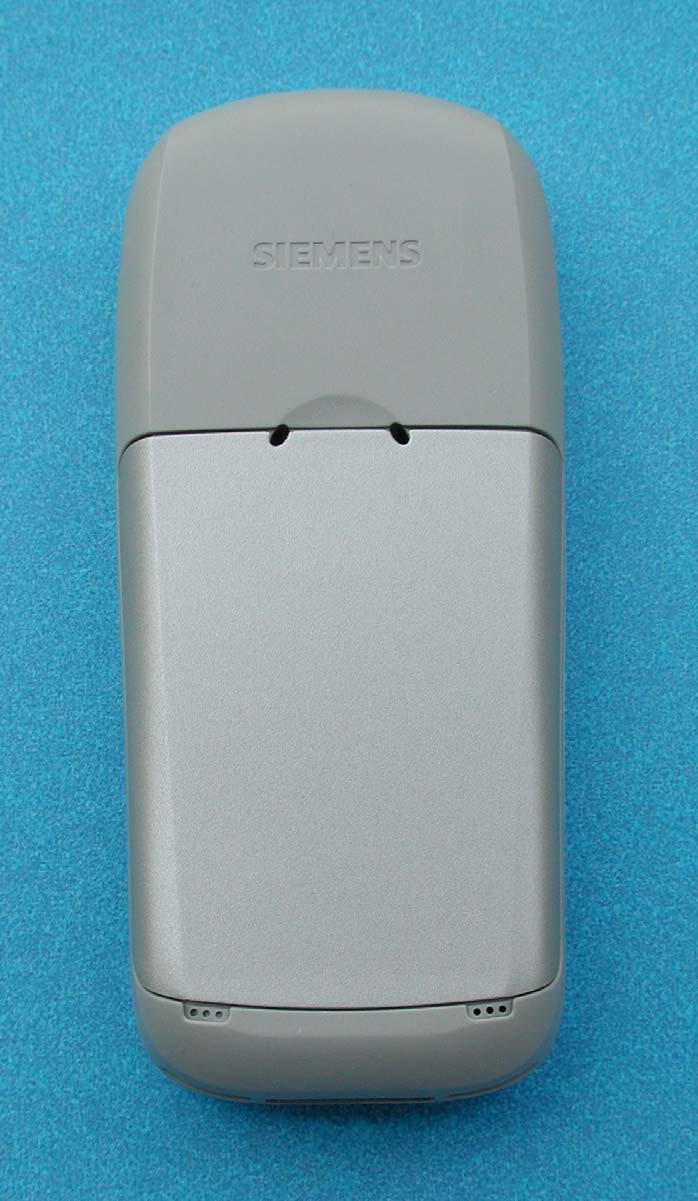

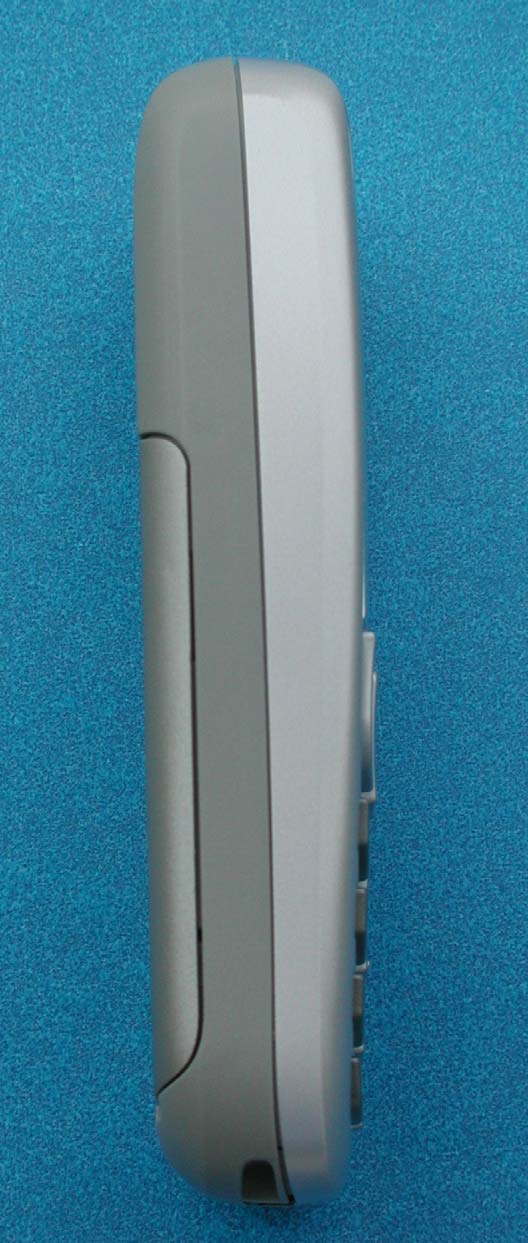

A65 Front View A65 Back View A65 Side View A65 Side View

Confidential Page 1 8/5/2004 A65 IMEI LABEL and LABEL LOCATION Confidential Page 2 8/5/2004 A65 IMEI LABEL and LABEL LOCATION

A65 Open battery cover (Final label: see extra exhibit) A65 Disassembly step 1 A65 Disassembly step 2 A65 Board Without Shield A65 GSM Tri-band Antenna

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_426d_SAR Distribution PlotsCalData Appendix for the Report Dosimetric Assessment of the Siemens A65 (FCC ID: PWX-A65) According to the FCC Requirements SAR Distribution Plots July 26, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_426d_SAR Distribution Plots Page 1 of 17 Appendix for the Report Dosimetric Assessment of the Siemens A65 (FCC ID: PWX-A65) According to the FCC Requirements SAR Distribution Plots July 26, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6620_426d_SAR Distribution Plots Page 2 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH....................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH CAM ................................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE................................................. 13 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 14 6 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................16 DASY Test-Report, Siemens_ 6620_426d_SAR Distribution Plots Page 3 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without Flash Test Laboratory: IMST GmbH; File Name: 083plm_1.da4 DUT: Siemens; Type: A65; Serial: 004400005978083 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(4.93, 4.93, 4.93); Calibrated: 21.05.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn489; Calibrated: 19.07.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 15.4 V/m; Power Drift = 0.027 dB Maximum value of SAR (measured) = 0.348 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = 0.027 dB Maximum value of SAR (measured) = 0.352 mW/g Peak SAR (extrapolated) = 0.496 W/kg SAR(1 g) = 0.315 mW/g; SAR(10 g) = 0.186 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.4 V/m; Power Drift = 0.027 dB Maximum value of SAR (measured) = 0.283 mW/g Peak SAR (extrapolated) = 0.436 W/kg SAR(1 g) = 0.246 mW/g; SAR(10 g) = 0.133 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (23.07.2004; Ambient Temperature: 21.2∞ C; Liquid Temperature : 20.4∞ C). DASY Test-Report, Siemens_ 6620_426d_SAR Distribution Plots Page 4 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 083plm_2.da4 DUT: Siemens; Type: A65; Serial: 004400005978083 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(4.93, 4.93, 4.93); Calibrated: 21.05.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn489; Calibrated: 19.07.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 16.6 V/m; Power Drift = -0.038 dB Maximum value of SAR (measured) = 0.386 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.6 V/m; Power Drift = -0.038 dB Maximum value of SAR (measured) = 0.386 mW/g Peak SAR (extrapolated) = 0.554 W/kg SAR(1 g) = 0.347 mW/g; SAR(10 g) = 0.194 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (23.07.2004; Ambient Temperature: 21.3∞ C; Liquid Temperature : 20.4∞ C). DASY Test-Report, Siemens_ 6620_426d_SAR Distribution Plots Page 5 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 083prm_1.da4 DUT: Siemens; Type: A65; Serial: 004400005978083 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 39; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(4.93, 4.93, 4.93); Calibrated: 21.05.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn489; Calibrated: 19.07.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13 V/m; Power Drift = 0.017 dB Maximum value of SAR (measured) = 0.494 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13 V/m; Power Drift = 0.017 dB Maximum value of SAR (measured) = 0.502 mW/g Peak SAR (extrapolated) = 0.659 W/kg SAR(1 g) = 0.399 mW/g; SAR(10 g) = 0.221 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head. (23.07.2004; Ambient Temperature: 21.3∞ C; Liquid Temperature : 20.4∞ C). DASY Test-Report, Siemens_ 6620_426d_SAR Distribution Plots Page 6 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 083prm_2.da4…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6620_426d Page 1 of 34 Report Dosimetric Assessment of the Portable Device Siemens A65 (FCC ID: PWX-A65) According to the FCC Requirements July 26, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Siemens_6620_426d Page 2 of 34 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The A65 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 1 TX slots (Class 8). The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens A65 mobile phone (FCC ID: PWX-A65) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in Head configuration without and with connected QuickPic Camera. In the Body Worn configuration with the following accessories and combinations: GSM mode (1 TX slot) with headset and FCT 650 carry case GSM mode (1 TX slot) with headset and FCL 600 carry case GPRS mode (1TX slot, Class 8) with data cable and FCL 600 carry case prepared by: ........................................... reviewed by: .............................................. AndrÈ van den Bosch Dr. Ing. Achim Bahr test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6620_426d Page 3 of 34 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 18 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 18 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 18 7.3 TISSUE RECIPES......................................................................................................................................... 19 7.4 MATERIAL PARAMETERS............................................................................................................................. 19 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 20 7.6 ENVIRONMENT........................................................................................................................................... 24 7.7 TEST EQUIPMENT.............................................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_704FCC-24_2004_A65 FCC Part 24 / RSS 133 FCC ID: PWX-A65 IC ID: 267E-A65 CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 2 (52) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 3 (52) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-08-09 Date of test : 2004-08-09/10/18/19 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : A65 Model No. : A65 Description : GSM 1900 Mobile Phone FCC-ID : PWX-A65 IC ID : 267E-A65 Additional information Test Sample for GSM : IMEI: 00-4400-00-597727-5 radiated sample IMEI: 00-4400-00-597731-7 conducted sample Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : External Power supply : Battery or Charger (AC Adaptor) Output power : 32.2dBm (1.66W) max. EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 4 (52) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-08-25 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-08-25 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 5 (52) 2.2 Test report TEST REPORT Test report no.: EMC_704FCC-24_2004_A65 CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 6 (52) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 10 OCCUPIED BANDWIDTH §2.1049(h)(i) 12 EMISSION BANDWIDTH §24.238(b) 16 EMISSIONS LIMITS §24.238 20 BAND EDGE COMPLIANCE §24.238(b) 35 RECEIVER RADIATED EMISSIONS § 15.209 37 CONDUCTED SPURIOUS EMISSIONS 43 CONDUCTED EMISSIONS § 15.107/207 48 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 50 BLOCK DIAGRAMS 51 CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 7 (52) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 8 (52) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to attached document: “A65_Conducted_Power_FCC” (Page 3, section 1.1, Siemens A65, “IMEI: 004400005977234”) Frequency (MHz) Burst Peak Power (dBm) 1850.2 29.3 1880.0 29.1 1909.8 28.8 CETECOM Inc. Test report no.: EMC_704FCC-24_2004_A65 Issue date: 2004-08-25 Page 9 (52) Radiated: EIRP Measurements Limits: Power Step Burst Peak EIRP (dBm) 0 ≤33dBm (1W) Power Measurements: This measurement was done in Antenna pattern measurement chamber. No plots are available. Radiated: Burst Peak EIRP (dBm) Frequency (MHz) Power Step EIRP 1850.2 0 31.31 1880.0 0 31.99 1909.8 0 32.2 ±0.5 dB ANALYZER SETTINGS: RBW = VBW = 3MHz CETECOM Inc. Test report no.: EMC_704FCC-24_…

Text truncated - open the document above for the full version.

SIEMENS AG Subject:A65 ICM MP PD HW Beijing Test case: Output Power Page:1/6 Test Report Conducted Output Power GSM 1900 SIEMENS A65 Issue date: July 05, 2004 Test Site SIEMENS ICM MP PD HW Beijing Information and Communication Mobile No.7 Wangjing Zhonghuan Nanlu, Chaoyang District, Beijing People’s Republic of China Tel.: +86-010-6472-1888 Fax.: +86-010-6472-0276 Test Engineer: Gu Chao RF Manager Berkhout Paulus File: A65_Conducted_Power_FCC.doc SIEMENS AG Subject:A65 ICM MP PD HW Beijing Test case: Output Power Page:2/6 Contents: 1 Objective and Method..................................................2 2 Results...............................................................3 3 Minutes of Test.......................................................3 3.1 Description of Device under Test.......................... .........3 3.2 Measurement Set Up........................................ .........4 4 Calibration Certificate...............................................5 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurement. Using a special adapter and connecting to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting. File: A65_Conducted_Power_FCC.doc SIEMENS AG Subject:A65 ICM MP PD HW Beijing Test case: Output Power Page:3/6 Results 1.1 GSM 1900 Band Average Power during burst at connector Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens A65, “Sample 1” IMEI: 004400005977317 +29.2 dBm +29.0 dBm +28.7 dBm Siemens A65, “Sample 2” IMEI: 004400005977275 +29.2 dBm +29.0 dBm +28.7 dBm Siemens A65, “Sample 3” IMEI: 004400005977572 +29.2 dBm +29.0 dBm +28.7 dBm Siemens A65, “Sample 4” IMEI: 004400005978356 +29.2 dBm +29.0 dBm +28.8 dBm Siemens A65, “Sample 5” IMEI: 004400005978083 +29.2 dBm +29.0 dBm +28.8 dBm Siemens A65, “Sample 6” IMEI: 004400005977465 +29.2 dBm +29.1 dBm +28.9 dBm Siemens A65, “Sample 7” IMEI: 004400005978208 +29.2 dBm +29.1 dBm +28.8 dBm Siemens A65, “Sample 8” IMEI: 004400005977424 +29.2 dBm +29.1 dBm +28.8 dBm Siemens A65, “Sample 9” IMEI: 004400005977234 +29.3 dBm +29.1 dBm +28.8 dBm Remark: Results of power measurement @ RF connector for Siemens A65 2 Minutes of Test 2.1 Description of Device under Test Mobile Phone: Siemens A65 Frequency range GSM 1900: 1850 - 1990 MHz Siemens part number: S30880-S5810-* Voltage: 4.0 V Temperature: 25 °C File: A65_Conducted_Power_FCC.doc SIEMENS AG Subject:A65 ICM MP PD HW Beijing Test case: Output Power Page:4/6 2.2 Measurement Setup Fig. 1: Block diagram of test setup for conductive power measurement. Figure 2: Set-up for conducted power measurement File: A65_Conducted_Power_FCC.doc SIEMENS AG Subject:A65 ICM MP PD HW Beijing Test case: Output Power 4 Calibration Certificate Page:5/6 File: A65_Conducted_Power_FCC.doc SIEMENS AG Subject:A65 ICM MP PD HW Beijing Test case: Output Power Page:6/6 File: A65_Conducted_Power_FCC.doc
