PWX-AF51GSM 900/1800/1900 Mobile Phone

Table of Contest1 See also Index at the end of this User Guide right page (1) of AF51 DTC FCC us-en (21.12.2005, 12:04) © Siemens AG 2004, \\Itl.eu\cottbus\Projekte_30\BenQ _Mobile\AF51_Quail\output\SUG\AF51_QUAIL_1_FCC_us- Template: X75, Version 2.1; VAR Language: am; VAR issue date: 050711 Legal notices ...................................... 2 Safety precautions ............................. 4 Antenna care ................................... 5 Phone operation .............................. 5 Electronic devices ............................ 6 Overview of the phone ...................... 9 Display symbols ................................ 11 Getting started ................................. 12 Switch on/off, PIN ............................. 13 General instructions ......................... 14 Standard functions ........................... 15 Security ............................................ 15 Codes ............................................ 15 Calling .............................................. 16 Text entry ......................................... 18 Preferred directory ........................... 20 Phonebook ....................................... 21 <New entry> .................................. 21 Call (search for an entry) ................ 21 Change entry ................................. 21 Address book .................................... 21 <New entry> .................................. 21 Change entry ................................. 21 Call (search for an entry) ................ 22 Voice dialing .................................. 22 Groups .......................................... 22 Records ............................................. 22 Dur./charges ..................................... 23 Voice message/ mailbox .................. 23 CB services ........................................ 24 SMS ................................................... 24 MMS ................................................. 25 Message lists/settings ...................... 26 Ring tones ........................................ 26 Alarm clock ....................................... 27 Fast access key ................................. 28 Surf & fun ......................................... 28 Games & more ............................... 29 Setup ................................................ 30 Extras ............................................... 36 SIM services (optional) .................. 36 Organizer ...................................... 36 Calculator ...................................... 37 Currency conv ............................... 37 Stopwatch ..................................... 38 Countdown ................................... 38 Voice comm. ................................. 38 Remote sync. ................................. 38 Own stuff ......................................... 39 Customer Care ................................. 40 Care and maintenance ..................... 41 Product data ..................................... 42 Accessories ...................................... 43 SAR ................................................. 44 U.S. FDA ........................................... 45 FCC/Industry Canada Notice ............ 49 Intellectual property ........................ 50 Ten Driving Safety Tips .................... 51 End user license agreement ............ 53 Index ................................................ 56 Table of Contest See also In- dex at the end of this User Guide Legal notices2 © Siemens AG 2004, \\Itl.eu\cottbus\Projekte_30\BenQ _Mobile\AF51_Quail\output\S UG\AF51_QUAIL_1_FCC_us- left page (2) of AF51 DTC FCC us-en, (21.12.2005, 12:02) Template: X75, Version 2.1; VAR Language: am; VAR issue date: 050711 Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS net- works operating on the GSM 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2005 Siemens Communications Inc. All rights reserved. Siemens and the AF51 model phone are trademarks or registered trademarks of Siemens and/or its affiliates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Disclaimer The information contained in the User Guide is written for the AF51 phone. Siemens reserves the right to make chang- es and improvements to the products and any of the features of the products de- scribed in this document without prior no- tice. The contents of the user guide are pro- vided "AS IS". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of mer- chantability and fitness for a particular pur- pose, are made in relation to the accuracy, reliability or contents of this document. Siemens reserves the right to revise the user guide or withdraw it at any time with- out prior notice. Under no circumstances shall Siemens be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howso- ever caused. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is pro- hibited. You must comply with all applica- ble export laws, restrictions and regulations of the United States foreign agencies or au- thorities, and may not export, or transfer for the purpose of re-export, the mobile phone or any part of the phone in violation of any applicable restrictions, laws or regu- lations, or without all necessary approvals. Network Services A number of features included in this guide are called Network Services. They…

Text truncated - open the document above for the full version.

BenQ Mobile GmbH & Co OHG Haidenauplatz 1 81667 München Germany Tel. +49 89 722 37148 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 January 4, 2006 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and §0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, BenQ Mobile requests confidentiality for the following products: FCC ID Number Product Title/Model PWX–AF51 Tri -Band/AF51 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Technical Description Required for section 2.1003 (c) • Operational Description 5) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain BenQ Mobile trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dr. Martin Weinberger Engineering Manager

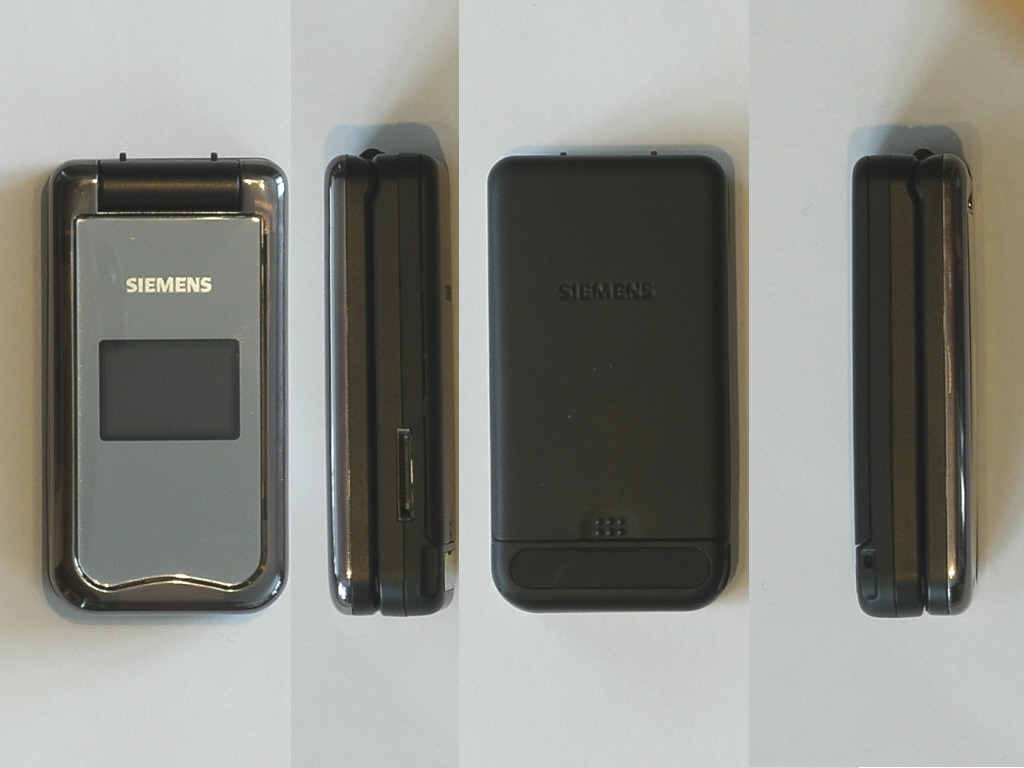

AF 51 front view, side view, back view (flip open) AF 51 front view, side view, back view (flip closed)

85CCB Z30880-Z9999-Z85-* IMEI LPT1 300DPI Labelname Partno. baselabel Description Resolution T y p e Printer AF51/IMEI/Z85/STD/BQ Add. information (# INFO 4 #) FCC ID: PWX-AF51 Produkttyp (# INFO 2 #) AF51 Devicepartnumber S30XXX-SXXXX-XXXX-1 Add.information (# INFO 5 #) IC: 6175C-AF51 BENQ BMP IMEI as plain writing assignment by PICS Made in text depending on product location IMEI as barcode assignment by PICS CE_0682_SYMBOL BMP Datecode assignment by PICS BOM-139308-01-000 12/14/2005 1 Page 1 of 12/14/2005 1 Page 1 of LabelDocument V7.05 8/4/2005 Name Dai Documentnumber AF51 IMEI label position The label will be placed like shown above on the metal shielding under the battery

1 AF51 open battery cover AF51 tri-band antenna (assembled) 2 AF51 tri-band antenna AF51 disassembly step1 (base, left) 3 AF51 disassembly step1 (base, right) AF51 disassembly step2 (flip, left) 4 AF51 disassembly step2 (flip, right) AF51 auxiliary board with display 5 AF51 PCB (top and bottom view) AF51 PCB (removed shieldings)

DAT-P-152/98-01 SAR Report, BenQ_6620_557_FCC_CalData_AF51_2 dasy_report_fcc_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the BenQ AF51 (FCC ID: PWX-AF51) According to the FCC Requirements Calibration Data December 12, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark AsP Siemens Kaj 1 DK-9400 Norresundby This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, BenQ_6620_557_FCC_1900_SAR Plots_AF51 Page 1 of 11 Appendix for the Report Dosimetric Assessment of the BenQ AF51 (FCC ID: PWX-AF51) According to the FCC Requirements SAR Distribution Plots December 08, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort dasy_report_fcc_ 1900_plots_1.1.d o c/08.07.2005/C H Customer BenQ Denmark ApS Siemens Kaj 1 DK-9400 Norresundby The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR Report, BenQ_6620_557_FCC_1900_SAR Plots_AF51 Page 2 of 11 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD........................................................................................ 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET......................................................... 7 3 SAR DISTRIBUTION PLOTS, GPRS 1900 BODY WITH DATA CABLE............................................... 8 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY IN PTT MODE............................................................. 9 5 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 10 6 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 11 SAR Report, BenQ_6620_557_FCC_1900_SAR Plots_AF51 Page 3 of 11 dasy_report_fcc_ 1900_plots_1.1.d o c/08.07.2005/C H 1 SAR Distribution Plots, PCS 1900 Head Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 620bplm_1.da4 DUT: BenQ; Type: AF51; Serial: 004400015939620 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.25, 8.25, 8.25); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 07.07.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Cheek Left/Area Scan (6x12x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.678 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.43 V/m; Power Drift = 0.028 dB Peak SAR (extrapolated) = 0.948 W/kg SAR(1 g) = 0.627 mW/g; SAR(10 g) = 0.383 mW/g Maximum value of SAR (measured) = 0.676 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (December 05, 2005; Ambient Temperature: 22.3°C; Liquid Temperature: 21.5°C). SAR Report, BenQ_6620_557_FCC_1900_SAR Plots_AF51 Page 4 of 11 dasy_report_fcc_ 1900_plots_1.1.d o c/08.07.2005/C H Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 620bplm_2.da4 DUT: BenQ; Type: AF51; Serial: 004400015939620 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.25, 8.25, 8.25); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 07.07.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Tilted Left/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.073 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.67 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.108 W/kg SAR(1 g) = 0.072 mW/g; SAR(10 g) = 0.046 mW/g Maximum value of SAR (measured) = 0.076 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.67 V/m; Power Drift = 0.071 dB Peak SAR (extrapolated) = 0.057 W/kg SAR(1 g) = 0.035 mW/g; SAR(10 g) = 0.022 mW/g Maximum value of SAR (measured) = 0.038 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (December 05, 2005; Ambient Temperature: 22.2°C; Liquid Temperature: 21.4°C). SAR Report, BenQ_6620_557_FCC_1900_SAR Plots_AF51 Page 5 of 11 dasy_report_fcc_ 1900_plots_1.1.d o c/08.07.2005/C H Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 620bprm_1.da4 DUT: BenQ; Type: AF51; Serial: 004400015939620 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.42 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.25, 8.25, 8.25); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 07.07.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Cheek Right/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.567 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 1.42 V/m; Power Drift = 0.200 dB Peak SAR (extrapolated) = 0.817 W/kg SAR(1 g) = 0.577 mW/g; SAR(10 g) = 0.365 mW/g Maximum value of SAR (measured) = 0.620 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (December 05, 2005; Ambient Temperature: 22.4°C; Liquid Temperature: 21.5°C). SAR Report, BenQ_6620_557_FCC_1900_SAR Plots_AF51 Page 6 of 11 dasy_report_fcc_ 1900_plots_1.1.d o c/08.07.2005/C H Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 620bprm_2.da4 DUT: BenQ; Type: AF51; Serial: 004400015939620 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, BenQ_6620_557_FCC_1900_AF51 Page 1 of 35 Report Dosimetric Assessment of the Portable Device BenQ AF51 (FCC ID: PWX-AF51) According to the FCC Requirements December 07, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark AsP Siemens Kaj 1 DK-9400 Norresundby The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.4.doc/14.09.2005/ABo SAR Report, BenQ_6620_557_FCC_1900_AF51 Page 2 of 35 dasy_report_fcc_1900_4.4.doc/14.09.2005/ABo Executive Summary The AF51 is a mobile phone (Portable Device) from BenQ operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 8 capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with open flip. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The BenQ AF51 mobile phone (FCC ID: PWX-AF51) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • GSM with headset (6 mm distance) • GPRS (Class 8) with data cable (6 mm distance) • Push-to-Talk mode (GPRS Class 8) with 25 mm distance prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR Report, BenQ_6620_557_FCC_1900_AF51 Page 3 of 35 dasy_report_fcc_1900_4.4.doc/14.09.2005/ABo Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 17 8 APPENDIX....................................................................................................................................................... 19 8.1 ADMINISTRATIVE DATA............................................................................................................................ 19 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 19 8.3 TISSUE RECIPES...................................................................................................................................... 20 8.4 MATERIAL PARAMETERS......................................................................................................................... 20 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 21 8.6 ENVIRONMENT..............................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM FCC Test Report FCC Part 24 / RSS 133 FOR: TRI-BAND GSM MOBILE PHONE MODEL #: AF51 BENQ MOBILE HAIDENAUPLATZ 1 81667 MUNCHEN GERMANY FCC ID: PWX-AF51 IC ID: 6175C-AF51 TEST REPORT #: EMC_BENQ0_002_05001_FCC24 DATE: DECEMBER 14, 2005 Test Report #: EMC_BENQ0_002_05001_FCC24 Date of Report: 2005-12-14 Page 2 of 62 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .................................................................................................................................... 4 2 ADMINISTRATIVE DATA............................................................................................................... 5 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT......................... 5 2.2 IDENTIFICATION OF THE CLIENT................................................................................................... 5 2.3 IDENTIFICATION OF THE MANUFACTURER.................................................................................... 5 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................ 6 3.1 IDENTIFICATION OF THE EQUIPMENT UNDER TEST....................................................................... 6 4 SUBJECT OF INVESTIGATION..................................................................................................... 7 5 MEASUREMENTS............................................................................................................................. 8 5.1 RF POWER OUTPUT....................................................................................................................... 8 5.1.1 FCC 2.1046 Measurements required: RF power output....................................................... 8 5.1.2 Limits: ................................................................................................................................... 8 5.1.2.1 FCC 24.232 (b)(c) Power limits. ....................................................................................... 8 5.1.3 Conducted Output Power Measurement procedure:............................................................. 8 5.1.4 Results 1900 MHz band(conducted): .................................................................................... 9 5.1.5 Radiated Output Power Measurement procedure:.............................................................. 10 5.1.6 EIRP Results 1900 MHz band:............................................................................................ 11 5.2 OCCUPIED BANDWIDTH/EMISSION BANDWIDTH........................................................................ 15 5.2.1 FCC 2.1049 Measurements required: Occupied bandwidth............................................... 15 5.2.2 Occupied / emission bandwidth measurement procedure:.................................................. 15 5.2.3 Occupied / Emission bandwidth results 1900 MHz band: .................................................. 16 5.3 FREQUENCY STABILITY............................................................................................................... 23 5.3.1 Limit .................................................................................................................................... 23 5.3.2 FREQUENCY STABILITY (PCS-1900) .............................................................................. 24 5.4 SPURIOUS EMISSIONS CONDUCTED............................................................................................. 25 5.4.1 FCC 2.1051 Measurements required: Spurious emissions at antenna terminals. .............. 25 5.4.2 Limits: ................................................................................................................................. 25 5.4.2.1 FCC 24.238 Emission limitations for Broadband PCS equipment. ............................... 25 5.4.3 Conducted out of band emissions measurement procedure: ............................................... 25 5.4.4 Bandedge Results PCS-1900 ............................................................................................... 27 5.4.5 Conducted Spurious Results PCS-1900 .............................................................................. 29 5.5 SPURIOUS EMISSIONS RADIATED................................................................................................ 33 5.5.1 FCC 2.1053 Measurements required: Field strength of spurious radiation....................... 33 5.5.2 Limits: ................................................................................................................................. 33 5.5.2.1 FCC 24.238 Emission limitations for Broadband PCS equipment. ............................... 33 5.5.3 Radiated out of band measurement procedure: .................................................................. 34 5.6 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 .................................................... 51 5.6.1 Receiver Spurious on EUT .................................................................................................. 52 5.7 AC POWERLINE CONDUCTED EMISSIONS § 15.107/207 ................................................. 57 5.7.1 Results EUT......................................................................................................................... 58 Test Report #: EMC_BENQ0_002_05001_FCC24 Date of Report: 2005-12-14 Page 3 of 62 This report shall not be reproduc…

Text truncated - open the document above for the full version.

PAGE 1 OF 7 Test Setup Photos FCC Part 24 / RSS 133 FOR: TRI-BAND GSM MOBILE PHONE MODEL #: AF51 BENQ MOBILE HAIDENAUPLATZ 1 81667 MUNCHEN GERMANY FCC ID: PWX-AF51 IC ID: 6175C-AF51 REFERENCE TEST REPORT #: EMC_BENQ0_002_05001_FCC24 DATE: DECEMBER 14, 2005 TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM PAGE 2 OF 7 Table of Contents .................................................................................................................................... 3 1ASSESSMENT ..................................................................................................................... 4 2TEST SETUP PHOTOS This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 3 OF 7 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Parts 2, and 24 of Title 47 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS133. Company Description Model # BENQ MOBILE TRI-BAND GSM MOBILE PHONE AF51 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 4 OF 7 2 TEST SETUP PHOTOS Radiated emissions This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 5 OF 7 AC power line conducted emissions This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 6 OF 7 Antenna port conducted measurments This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 7 OF 7 Freq/temp This report shall not be reproduced except in full without the written approval of: CETECOM, Inc.
