PWX-AL21AMobile phone (GSM 850/1800/1900)

Table of contents1 right page (1) of AL21a, FCC, am (31.03.2006, 09:36) © Siemens AG 2006, \\Itl.eu\cottbus\Proj ekte_30\BenQ_Mobile\AL21_PELICAN\out- Template: X75, Version 2.1; VAR Language: am; VAR issue date: 051010 Legal notices ...................................... 2 Safety precautions ............................. 4 Antenna care ................................... 5 Phone operation .............................. 5 Electronic devices ............................ 6 Overview of the phone ...................... 9 Getting started ................................. 10 Open/close slider .............................. 11 Security ............................................ 11 Codes ............................................ 11 Calling .............................................. 11 Text entry ......................................... 12 Address book .................................... 13 <New entry> .................................. 13 Change entry ................................. 13 Voice dialing .................................. 13 SMS ................................................... 13 MMS ................................................. 13 Ring tones ........................................ 14 Surf & fun ......................................... 14 Internet ......................................... 14 Games & more .............................. 15 Organizer ......................................... 16 Alarm clock ................................... 16 Calendar ....................................... 16 Appointments ............................... 16 Notes ............................................ 16 Time zones .................................... 16 Calend. setup ................................ 16 Customer Care ................................. 17 Care and maintenance ..................... 18 Product data ..................................... 19 SAR ................................................. 20 U.S. FDA ........................................... 21 FCC/Industry Canada Notice ............ 25 Intellectual property ........................ 26 Ten Driving Safety Tips .................... 27 End user license agreement ............ 29 Index ................................................ 32 Table of contents Legal notices2 © BenQ Mobile 2006, \\Itl.eu\cottbus\P rojekte_30\BenQ_Mobile\AL21_PELICAN\out- left page (2) of AL21a, FCC, am (31.03.2006, 09:36) Template: X75, Version 2.1; VAR Language: am; VAR issue date: 051010 Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS net- works operating on the GSM 850, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2006 Siemens Communications Inc. All rights reserved. Siemens and the AL21a model phone are trademarks or registered trademarks of Siemens and/or its affiliates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Disclaimer The information contained in the User Guide is written for the AL21a phone. Siemens reserves the right to make chang- es and improvements to the products and any of the features of the products de- scribed in this document without prior no- tice. The contents of the user guide are pro- vided "AS IS". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of mer- chantability and fitness for a particular pur- pose, are made in relation to the accuracy, reliability or contents of this document. Siemens reserves the right to revise the user guide or withdraw it at any time with- out prior notice. Under no circumstances shall Siemens be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howso- ever caused. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is pro- hibited. You must comply with all applica- ble export laws, restrictions and regulations of the United States foreign agencies or au- thorities, and may not export, or transfer for the purpose of re-export, the mobile phone or any part of the phone in violation of any applicable restrictions, laws or regu- lations, or without all necessary approvals. Network Services A number of features included in this guide are called Network Services. They are special services provided by wireless service providers. In order to use any of these Network Services, you must sub- scribe to these service(s) from your ser- vice provider and obtain instructions for their use. Some of these Network Servic- es may not be available when roaming on a network other than your home network. 3Legal notices right page (3) of AL21a, FCC, am (31.03.2006, 09:36) © BenQ Mobile 2006, \\Itl.eu\cottbus\Projekte_30\BenQ_Mobile\AL21_PELICAN\out- Template: X75, Version 2.1; VAR Language: am; VAR issue date: 051010 Standby and Talk Time Information The mobile phone incorporates features that are new to the mobile phone world. These may include color displays and lighting, graphic games, music reproduc- tion and browsing the Internet. The way you use the display and the features will affect the performance of the battery and how long it lasts between charge cycles. The quoted standby times and talk times show the minimum and maximum per- formance that can be expected from the battery under normal network conditions and with the default settings as set by the factory. However, playing games (particu- larly with the backlight continuously switched on) and listening to music will shorten the…

Text truncated - open the document above for the full version.

Non-Conformities FCC ID: PWXA L21A (Ref # E05-000105-1) The items listed below represent requests for information following review of this application. Further question may arise pen ding review of responses to these items. OK # Non-Conformity or Co mment Submitted Response Respondent / Date of Response x 1 The FCC ID used in conjunction with this filing does not meet the proper format. Please remove references to lowe r case letters. 2.926(d) states, ”(d) The equipment product code assigned by the grantee shall consist of a series of Arabic numerals, capital letters , or a combination thereof, ...” Updated Label provided. Cetecom 4/21/06 X 2 NOTE: Operational description has TBD listed for antenna gain and EIRP information. An updated operational description is highly recommended. Updated operational description provided. Cetecom 4/21/06 x 3 In accordance with 2.1033(c)(8), Pl ease provide the dc voltages applied to and dc currents into the several elements of the final radio frequency amplifying device for normal operation over the power range provided. Updated operational description provided. Cetecom 4/21/06 x 4 Please explain the mechanism by which the device is prohibited from using European frequencies while operating within the United States or Canada. The GSM phone only transmits on networks it get synchronized with. The phone cannot be forced to transmit without a base station present. Cetecom 4/21/06 x 5 Need signed copy of general agreement. (submitted blank copy to Lothar 4/20/06) GA provided. Cetecom 4/21/06

BenQ Mobile GmbH & Co OHG Haidenauplatz 1 81667 München Germany Tel. +49 89 722 37148 April 07, 2006 Letter of Authorization Re: Application for BenQ Mobile device AL21a To whom it may concern, We the undersigned, hereby authorize CETECOM Inc. (411 Dixon Landing Road, Milpitas, CA 95035, Tel.408 586 6214) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CETECOM Inc., on our behalf shall have the same effect as acts of our own. The authorization from BenQ Mobile GmbH & Co OHG is valid 365 days from the date of this letter. Sincerely, Dr. Martin Weinberger Engineering Manager

BenQ Mobile GmbH & Co OHG Haidenauplatz 1 81667 München Germany Tel. +49 89 722 37148 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 April 07, 2006 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and §0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, BenQ Mobile requests confidentiality for the following products: FCC ID Number Product Title/Model PWX–AL21a Tri -Band/AL21a For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Technical Description Required for section 2.1003 (c) • Operational Description 5) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain BenQ Mobile trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dr. Martin Weinberger Engineering Manager

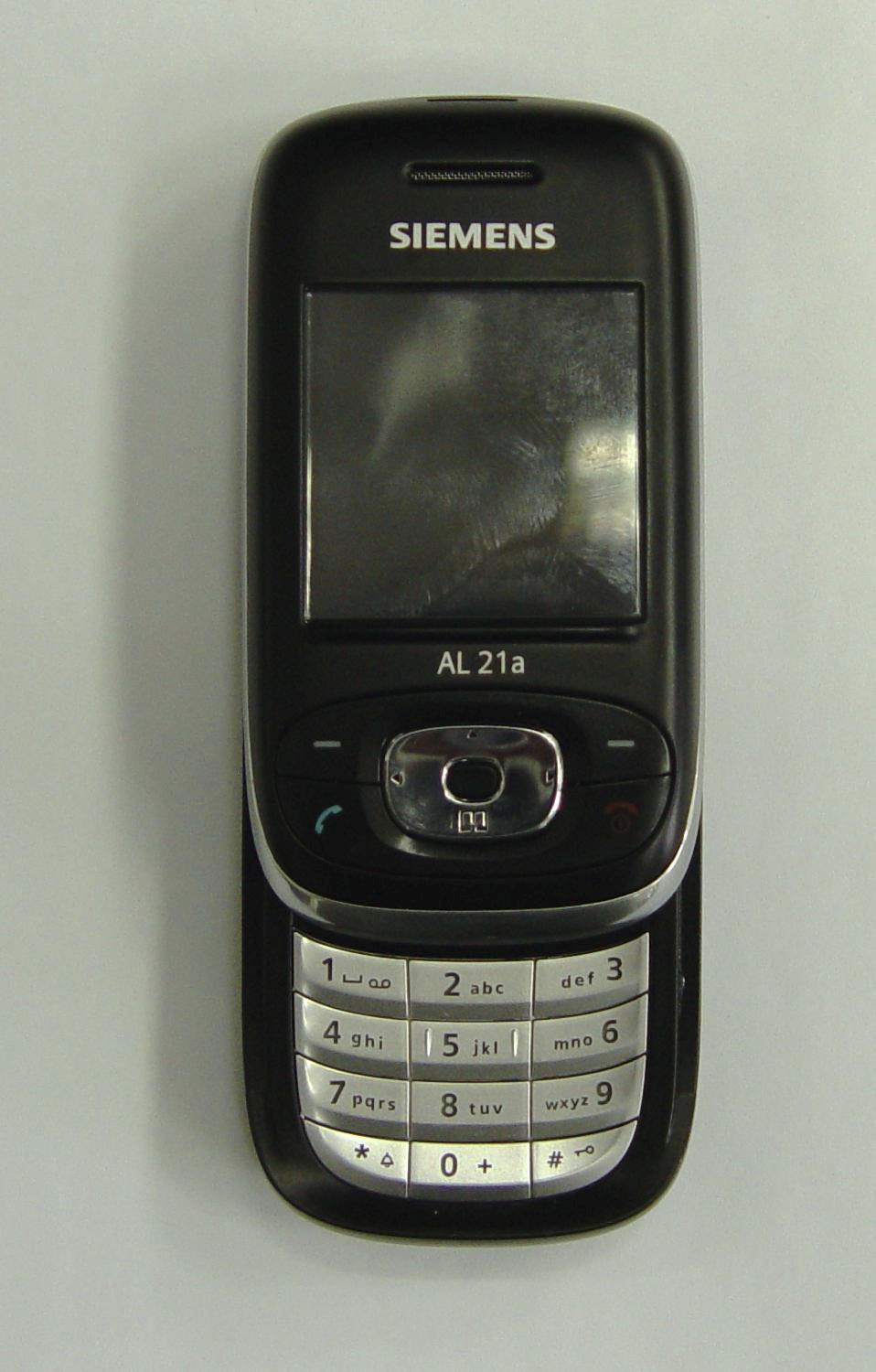

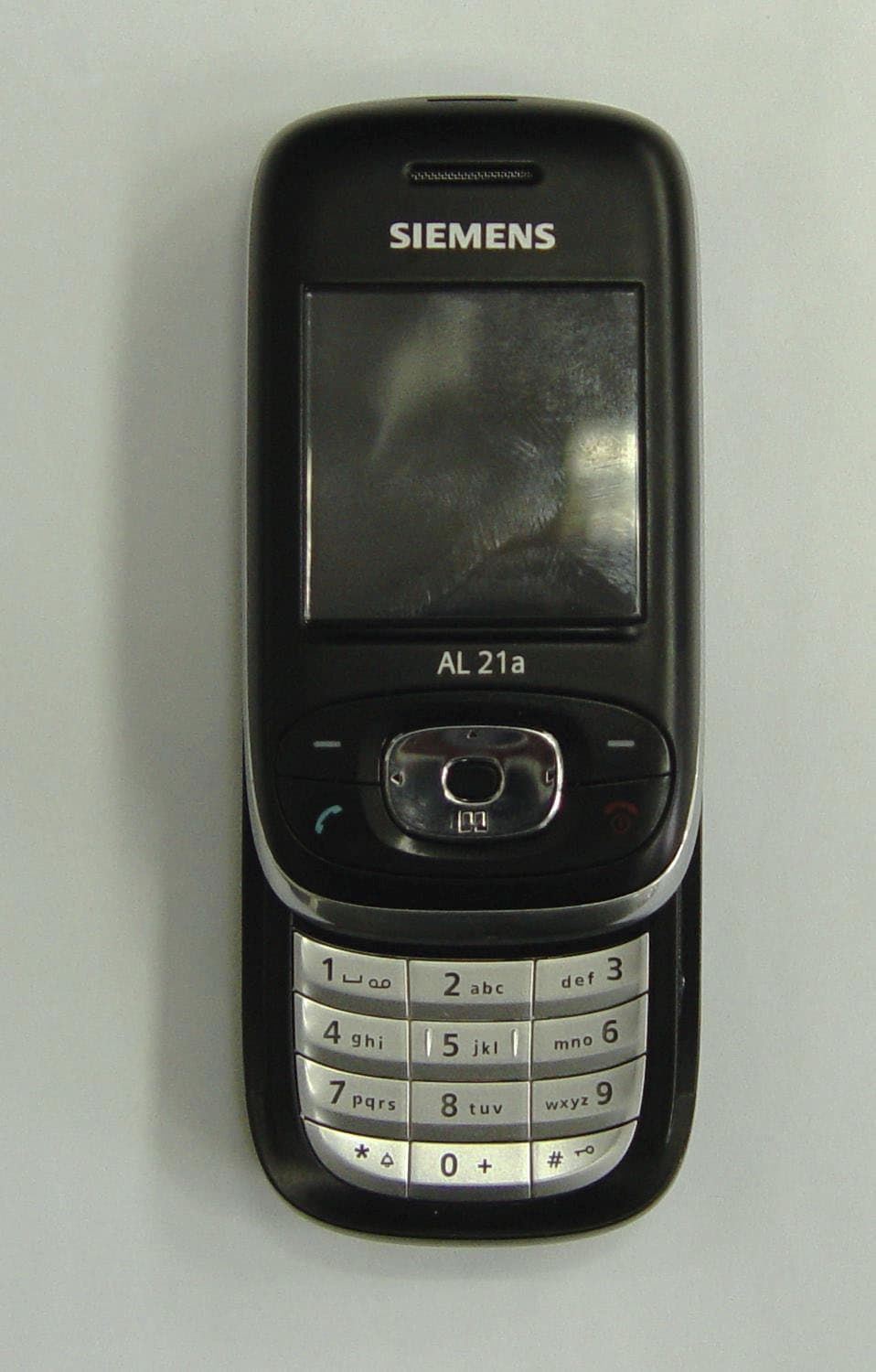

Mobile AL21a External Pictures BENQ Page:1 of 6 AL21a Front View (Slider Closed) Mobile AL21a External Pictures BENQ Page:2 of 6 AL21a Back View (Slider Closed) Mobile AL21a External Pictures BENQ Page:3 of 6 AL21a Side View (Slider Closed) Mobile AL21a External Pictures BENQ Page:4 of 6 AL21a Front View (Slider open) Mobile AL21a External Pictures BENQ Page:5 of 6 AL21a Back View (Slider open) Mobile AL21a External Pictures BENQ Page:6 of 6 AL21a Side View (Slider open)

BENQ Mobile AL21a IMEI Label Mobile Page:1 of 3 BENQ Mobile AL21a IMEI Label Mobile Page:2 of 3 BENQ Mobile AL21a IMEI Label Mobile Page:3 of 3 Actual label on an AL21a Mobile

Statement The FCC and IC labels include a a small a at the end of the ID. This will be changed to a capital letter before the device goes into production. A modified label will be provided as soon as possible.

Mobile AL21a Internal Pictures BENQ Page:1 of 10 AL21a Open Battery Cover (Final label: See extra exhibit) Mobile AL21a Internal Pictures BENQ Page:2 of 10 AL21a Disassembly Step 1 Mobile AL21a Internal Pictures BENQ Page:3 of 10 Mobile AL21a Internal Pictures BENQ Page:4 of 10 AL21a Disassembly Step 2 Mobile AL21a Internal Pictures BENQ Page:5 of 10 AL21a Disassembly Step 3 Mobile AL21a Internal Pictures BENQ Page:6 of 10 AL21a Disassembly Step 4 Mobile AL21a Internal Pictures BENQ Page:7 of 10 AL21a Disassembly Step 5 Mobile AL21a Internal Pictures BENQ Page:8 of 10 AL21a Back view BB (rep. Lid) Mobile AL21a Internal Pictures BENQ Page:9 of 10 AL21a Front view RF Mobile AL21a Internal Pictures BENQ Page:10 of 10 AL21a Antenna

DAT-P-152/98-01 SAR_Report_BenQ_6620_587_Cal Data_AL21a dasy_report_fcc_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Portable Device BenQ AL21a (FCC ID: PWX-AL21a) According to the FCC Requirements Calibration Data March 29, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark a/s Siemens Kaj 1 DK-9400 Norresundby This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, BenQ_6620_587_FCC_850_1900_AL21a Page 1 of 47 Report Dosimetric Assessment of the Portable DeviceBenQ Siemens AL21a (FCC ID: PWX-AL21a) According to the FCC Requirements March 27, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark a/s Siemens Kaj 1 DK-9400 Norresundby The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_850_1900_4.5.doc/22.02.2006/CH SAR Report, BenQ_6620_587_FCC_850_1900_AL21a Page 2 of 47 dasy_report_fcc_850_1900_4.5.doc/22.02.2006/CH Executive Summary The Siemens AL21a is a mobile phone (Portable Device) from BenQ operating in the 835 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 850, GSM 1800 and PCS 1900 standards including GPRS Class 8 capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards with slider up and slider down. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The BenQ Siemens AL21a mobile phone (FCC ID: PWX-AL21a) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • GSM with and without headset (20 mm distance) • GPRS (Class 8) with data cable (20 mm distance) prepared by: ........................................... reviewed by: ..................................... Alexander Rahn André van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR Report, BenQ_6620_587_FCC_850_1900_AL21a Page 3 of 47 dasy_report_fcc_850_1900_4.5.doc/22.02.2006/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC POSITION........................................................................................................................................... 9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 19 8 APPENDIX....................................................................................................................................................... 22 8.1 ADMINISTRATIVE DATA............................................................................................................................ 22 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 22 8.3 TISSUE RECIPES...................................................................................................................................... 23 8.4 MATERIAL PARAMETERS......................................................................................................................... 23 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 24 8.6 ENVIRONMENT..…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, BenQ_6620_587_FCC_850_1900_SAR Plots_AL21a Page 1 of 34 Appendix for the Report Dosimetric Assessment of the BenQ Siemens AL21a (FCC ID: PWX-AL21a) According to the FCC Requirements SAR Distribution Plots March 28, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark a/s Siemens Kaj 1 DK-9400 Norresundby The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH SAR Report, BenQ_6620_587_FCC_850_1900_SAR Plots_AL21a Page 2 of 34 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM 850 HEAD, SLIDER UP.................................................................. 3 2 SAR DISTRIBUTION PLOTS, GSM 850 HEAD, SLIDER DOWN........................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, SLIDER UP............................................................... 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, SLIDER DOWN........................................................ 15 5 SAR DISTRIBUTION PLOTS, GSM 850 BODY, WITHOUT ACCESSORY........................................ 19 6 SAR DISTRIBUTION PLOTS, PCS 1900 BODY, WITHOUT ACCESSORY....................................... 21 7 SAR DISTRIBUTION PLOTS, GSM 850 BODY, WITH HEADSET....................................................... 23 8 SAR DISTRIBUTION PLOTS, PCS 1900 BODY, WITH HEADSET...................................................... 25 9 SAR DISTRIBUTION PLOTS, GPRS 850 (CLASS 8) BODY, WITH DATA CABLE......................... 27 10 SAR DISTRIBUTION PLOTS, GPRS 1900 (CLASS 8) BODY, WITH DATA CABLE....................... 29 11 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 31 12 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 33 SAR Report, BenQ_6620_587_FCC_850_1900_SAR Plots_AL21a Page 3 of 34 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, GSM 850 Head, slider up Test Laboratory: Imst GmbH; File Name: 268yalm_1_su.da4 DUT: BenQ; Type: AL21a; Serial: 004401430049268 Program Name: Cheek Left Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.92 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.72, 9.72, 9.72); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Cheek Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.313 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = -0.171 dB Peak SAR (extrapolated) = 0.399 W/kg SAR(1 g) = 0.305 mW/g; SAR(10 g) = 0.215 mW/g Maximum value of SAR (measured) = 0.326 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.1 V/m; Power Drift = -0.171 dB Peak SAR (extrapolated) = 0.366 W/kg SAR(1 g) = 0.278 mW/g; SAR(10 g) = 0.200 mW/g Maximum value of SAR (measured) = 0.311 mW/g Fig. 1: SAR distribution for GSM 850, channel 190, cheek position, left side of head, March 24, 2006; Ambient Temperature: 21.7°C; Liquid Temperature: 21.1°C). SAR Report, BenQ_6620_587_FCC_850_1900_SAR Plots_AL21a Page 4 of 34 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: 268yalm_2_su.da4 DUT: BenQ; Type: AL21a; Serial: 004401430049268 Program Name: Tilted Left Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.92 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.72, 9.72, 9.72); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Tilted Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.142 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.74 V/m; Power Drift = 0.013 dB Peak SAR (extrapolated) = 0.187 W/kg SAR(1 g) = 0.141 mW/g; SAR(10 g) = 0.101 mW/g Maximum value of SAR (measured) = 0.151 mW/g Fig. 2: SAR distribution for GSM 850, channel 190, tilted position, left side of head (March 24, 2006; Ambient Temperature: 21.6°C; Liquid Temperature: 21.0°C). SAR Report, BenQ_6620_587_FCC_850_1900_SAR Plots_AL21a Page 5 of 34 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: 268yarm_1_su.da4 DUT: BenQ; Type: AL21a; Serial: 004401430049268 Program Name: Cheek Right Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 836.6 MHz; σ = 0.92 mho/m; ε r = 41.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.72, 9.72, 9.72); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Cheek Right/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.332 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.0 V/m; Power Drift = -0.125 dB Peak SAR (…

Text truncated - open the document above for the full version.

Mobile Test Report Conducted Output Power GSM850 and PCS1900 Siemens A21a Report No: AL21a_Conducted_Power.doc Issue date: March. 20, 2006 Test Sites: EA BEJ Phone: +86 10 64748800-7865 Signed Peter Loeber EMC/Antenna Engineer, EA AL21a - Conducted Output Power Page 2 / 6 Contents 1 Objective and Method............................................................................... 3 2 Device under test....................................................................................... 3 3 Measurement Set-up................................................................................. 3 4 Test Result ................................................................................................. 5 Annex 1 Calibration Certificate..................................................................... 7 AL21a - Conducted Output Power Page 3 / 6 1 Objective and Method FCC approval for mobile phone requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. BenQ devices use special test fixtures with 50 Ohm connection suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Device under test Mobile Phone: Siemens AL21a (GSM850/GSM1800/PCS1900) Frequency Range GSM 850: 824 – 895 MHz Frequency Range PCS 1900: 1850 – 1990 MHz There are 6 devices has been tested listed in “Chapter 4 Test Result”. 3 Measurement Set-up Figure 1: Block Diagram of set-up for conducted power measurement Base Station Simulator CMU 200 Serial Number 106672 Software Version Base 3.81 / GSM 3.80 Calibration Certification Annex 1 Test Voltage: 4.0 V Temperature: Room Temperature Base Station Simulator DUT Special Adapter AL21a - Conducted Output Power Page 4 / 6 Figure 2: Set-up for conducted power measurement AL21a - Conducted Output Power Page 5 / 6 4 Test Result Conducted Output Power (GSM 850 Band) EUTs Average Power during burst at phone connector (dBm) AL21a IMEI Ch. 128 824.2 MHz Ch. 190 836.6 MHz Ch. 251 848.8 MHz SAR approval Sample #1 004401430049276 31.7 31.8 31.9 SAR approval Sample #2 004401430049268 31.7 31.8 31.9 FCC Emission Sample #3 004401430045134 31.7 31.7 31.8 FCC Emission Sample #4 004401430048526 31.7 31.8 31.9 FCC Emission Sample #5 004401430049474 31.7 31.8 32.0 FCC Emission Sample #6 004401430048807 31.7 31.8 31.9 Conducted Output Power (GSM 1900 Band) EUTs Average Power during burst at phone connector (dBm) AL21a IMEI Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz SAR approval Sample #1 004401430049276 29.2 29.2 29.0 SAR approval Sample #2 004401430049268 29.2 29.2 29.0 FCC Emission Sample #3 004401430045134 29.2 29.2 29.1 FCC Emission Sample #4 004401430048526 29.1 29,2 29,0 FCC Emission Sample #5 004401430049474 29.1 29.2 29.0 FCC Emission Sample #6 004401430048807 29.2 29.2 29.0 AL21a - Conducted Output Power Page 6 / 6 Annex 1 Calibration Certificate
