PWX-C61GSM 850/1900 Mobile Phone

gpg(),g() © Siemens AG 2003, W:\ICM_MP_CCQ_S_UM\03FL00440 C61 Korrekturen von Tony\Work\Ueberarbeitung_24. 11.2003\C61\US\C60_LionIVZ.fm Table of Contents1 See also Index at the end of this User Guide VAR Language: American; VAR issue date: 10-September-2003 Safety precautions ..................... 3 Safety Information ..................... 4 Antenna care ........................... 4 Phone operation ...................... 4 Electronic devices .................... 5 SAR (Cell Phone Designation) .... 8 Phone overview ....................... 10 Display symbols (selection) ..... 12 Getting started ......................... 14 Insert SIM card/battery ........... 15 Charge battery ....................... 16 Switch on/off/ PIN ..................... 17 Switching on your phone for the first time ..................... 17 Without SIM card ................... 18 Standby mode ....................... 18 General Instructions ................ 19 User guide ............................. 19 Menu Control ......................... 19 Security .................................... 21 Codes .................................... 21 My phone ................................. 23 Making a phone call ................. 24 Dialing with number keys ....... 24 End call .................................. 24 Set volume ............................ 24 Redial previous numbers ........ 24 Sendcontrol code (DTMF) ...... 24 When a number is busy .......... 25 Accept call ............................. 26 Mute call ................................ 26 Speakerphone ........................ 26 Swapping between 2 calls ...... 27 Multi Party .............................. 28 Direct Call ............................... 29 Text entry ................................. 31 Predef. Texts .......................... 34 Phonebook ............................... 35 <New Entry> .......................... 35 Call (search for an entry) ........ 36 Edit entry ............................... 36 Assign picture ........................ 37 <Special Books> ..................... 38 Groups ................................... 39 Control codes (DTMF) ............. 40 Call log ...................................... 41 Camera (Accessories) ............................ 42 Voice mail/mailbox ................... 44 SMS ........................................... 46 Writing and sending text messages (SMS) .............. 46 Picture&Sound ....................... 47 SMS to group ......................... 48 Receiving SMS ........................ 49 Lists ....................................... 50 SMS Archive ........................... 51 SMS Profiles ........................... 51 MMS ......................................... 53 Writing/sending MMS messages ............................... 53 Receive MMS .......................... 56 Table of Con- tents See also Index at the end of this User Guide See also Index at the end of this User Guide © Siemens AG 2003, W:\ICM_MP_CCQ_S_UM\03FL00440 C61 Korrekture n von Tony\Work\Ueberarbeitun g_24.11.2003\C61\US\C60_LionIVZ.fm pg (),g,() 2Table of Contents VAR Language: American; VAR issue date: 10-September-2003 Lists ....................................... 57 MMS Profiles .......................... 58 T9 settings ............................. 59 CB Services ............................... 60 Surf & Fun ................................ 61 Internet browser (WAP) .......... 61 Games & More ....................... 64 Setup ........................................ 67 Profiles .................................. 67 Display ................................... 69 Screensaver ........................... 70 Call Setup .............................. 71 Call Forward .......................... 72 Clock ..................................... 74 Connectivity .......................... 75 Security ................................. 77 Network ................................ 79 Tones/Alerts ............................. 81 Extras ....................................... 83 SIM services (optional) .............................. 83 Alarm Clock ........................... 83 Calculator .............................. 84 Stopwatch ............................. 84 Fast access key ......................... 85 Own Stuff ................................. 87 Questions & Answers ............... 88 Customer care .......................... 91 Care and maintenance ............. 93 Product data ............................. 94 Accessories ............................... 96 U.S. FDA .................................... 98 FCC/Industry Canada Notice ... 104 Ten Driving Safety Tips ........... 105 Intellectual Property ............... 107 Battery quality statement ...... 108 Menu tree ............................... 109 Index ....................................... 113 Table of Con- tents See also Index at the end of this User Guide gpg(),g,() © Siemens AG 2003, W:\ICM_MP_CCQ_S_UM\03F L00440 C61 Korrekturen von Tony\Work\Uebera rbeitung_24.11.2003\C61\US\C60_Security.fm 3Safety precautions VAR Language: American; VAR issue date: 10-September-2003 Safety precautions Please note: Note for parents Read the operating instructions and safety precautions carefully before use. Explain to your children the contents and the hazards associated with using the phone. Do not use mobile phone in hos- pitals or in the vicinity of medical devices, such as pacemakers or hearing aids. Mobile phones may interfere with the operation of these devices. Keep a minimum distance of 8" between pacemak- er and mobile phone. When us- ing the mobile phone hold it to the ear farthest from the pacemaker. Always use the handsfree kit (p. 96) with an external antenna for calls while driving! Mobile phones must be switched off at all times in an aircraft. To prevent accidental activation, see (p. 68). Switch off near service stations, fuel depots, chemical plants or blasting operations. Mobile phones can interfere with the operation of technical installations. Acoustic Shock Warning The ringt…

Text truncated - open the document above for the full version.

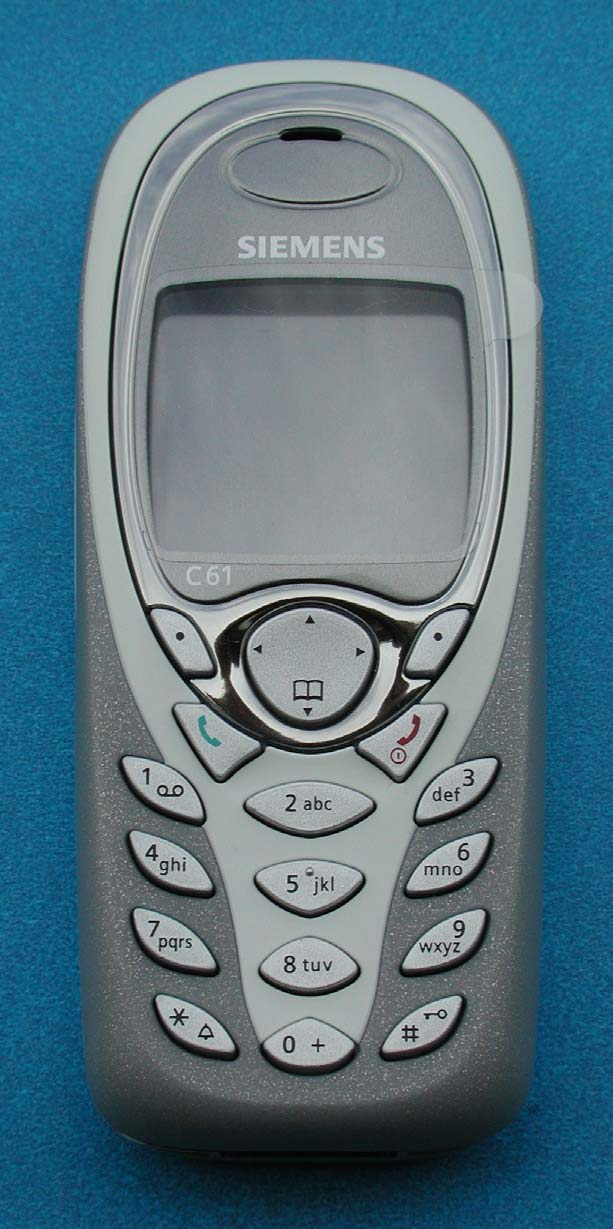

C61 Front View C61 Back View C61 Side View C61 Side View

Date 01.08.03 Approval label Name Li Long Jun Standard IMEI-Label/C61 2 08.08.03 Li RD MP VC BJ 1 01.08.03 Li LETTERING PLAN Version Date Token SIEMENS AG DIS 46297 Page 1 From 1 A24850-V1-A4-2 VORSTD.DOC White label with black lettering SIEMENS S30880-SXXXX-XXXX-1 YY AAAAAAAA yyyyyy zz Made xx Xxxxxxx 3) C61 Barcode: Typ 128, table C and B Characteristic: IMEI-No. has 16 digits Digit 1-14 is generated as Barcode with table C . Digit 15-16 is printed with table B. 1)2) 4) 5) 7) 8) 11) 12) AAAAAAAA Typ-Approval Code TAC yyyyyy Current serial number, Assigned by PICS zz Software versions number 10) FCC ID: PWX-C61 IC:267E-C61 13) Ink ribbon: TTR-Band Ricoh 110-A Font: Title blocks concentric 1) Corporate logo: 1.5 SN 66324 2) Product name: Internal font D, size 4 3) Made xx Xxxxxxx Bitmap 4) Code of date: Internal font D, size 4 e.g. F3 ⎯ March └⎯─1995 5) Code number: Internal font D, size 4 7) Barcode IMEI-No.: Code: 128 Size: 2 Ratio: 3.0 Height: 3 mm 8) IMEI-No. (plain writing): Internal font D, size 4, space between TAC, serial no. and 15-16.digit AAAAAAAA Typ-Approval Code TAC yyyyyy Current serial number (6 digits), Assigned by PICS zz Software version number 10) Document for IMEI-No. allocation: DIS 46759 BOM 000 xx Valid is the highest level in the system 11) Code number: Corresponding to the number of the transceiver unit part list 12) Made xx Xxxxxxx Internal font B, size 3 / Depending on production location 13) Canada IC and US FCC font: B3 Date 01.08.03 Approval label Name Li Long Jun Standard IMEI-Label/C61 2 08.08.03 Li RD MP VC BJ 1 01.08.03 Li LETTERING PLAN Version Date Token SIEMENS AG DIS 46297 Page 2 From 1 A24850-V1-A4-2 VORSTD.DOC

C61 Open battery cover (Final label: see extra exhibit) C61 Disassembly step 1 C61 Disassembly step 2 C61 Disassembly step 3 C61 GSM Dual-band Antenna C61 Board without shield

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_370a: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens C61 (FCC ID: PWX-C61) According to the FCC Requirements Calibration Data November 20, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_370a_SAR Distribution Plots Page 1 of 34 Appendix for the Report Dosimetric Assessment of the Siemens C61 (FCC ID: PWX-C61) According to the FCC Requirements SAR Distribution Plots November 24, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_370a_SAR Distribution Plots Page 2 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM 850 HEAD WITHOUT QUICKPIC CAMERA ............................. 3 2 SAR DISTRIBUTION PLOTS, GSM 850 HEAD WITH QUICKPIC CAMERA...................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT QUICKPIC CAMERA........................... 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH QUICKPIC CAMERA ................................... 15 5 SAR DISTRIBUTION PLOTS, GSM 850 BODY WITH HEADSET ........................................................ 19 6 SAR DISTRIBUTION PLOTS, GSM 850 BODY WITH DATACABLE .................................................. 20 7 SAR DISTRIBUTION PLOTS, GSM 850 BODY ........................................................................................ 21 8 SAR DISTRIBUTION PLOTS, GSM 850 PTT FUNCTION...................................................................... 22 9 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 23 10 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATACABLE.................................................. 24 11 SAR DISTRIBUTION PLOTS, PCS 1900 BODY........................................................................................ 25 12 SAR DISTRIBUTION PLOTS, PCS 1900 PTT FUNCTION ..................................................................... 26 13 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 27 14 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................31 DASY Test-Report, Siemens_ 6575_370a_SAR Distribution Plots Page 3 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, GSM 850 Head without QuickPic Camera Test Laboratory: IMST File Name: 61oglm_1.da4 DUT: Siemens; Type: C61; Serial: 001002000295076 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.89 mho/m, ε r = 41.4, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(6.7, 6.7, 6.7); Calibrated: 15.05.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 24.1 V/m Power Drift = 0.01 dB Maximum value of SAR = 0.682 mW/g cheek left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.86 W/kg SAR(1 g) = 0.656 mW/g; SAR(10 g) = 0.454 mW/g Reference Value = 24.1 V/m Power Drift = 0.01 dB Maximum value of SAR = 0.691 mW/g Fig. 1: SAR distribution for GSM 850, channel 190, cheek position, left side of head. (21.11.2003; Ambient Temperature: 20.9° C; Liquid Temperature : 20.1° C). DASY Test-Report, Siemens_ 6575_370a_SAR Distribution Plots Page 4 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: 61oglm_2.da4 DUT: Siemens; Type: C61; Serial: 001002000295076 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.89 mho/m, ε r = 41.4, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(6.7, 6.7, 6.7); Calibrated: 15.05.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilted left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 22.6 V/m Power Drift = 0.05 dB Maximum value of SAR = 0.433 mW/g tilted left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.598 W/kg SAR(1 g) = 0.428 mW/g; SAR(10 g) = 0.293 mW/g Reference Value = 22.6 V/m Power Drift = 0.05 dB Maximum value of SAR = 0.453 mW/g Fig. 2: SAR distribution for GSM 850, channel 190, tilted position, left side of head. (21.11.2003; Ambient Temperature: 20.9° C; Liquid Temperature : 20.0° C). DASY Test-Report, Siemens_ 6575_370a_SAR Distribution Plots Page 5 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: 61ogrm_1.da4 DUT: Siemens; Type: C61; Serial: 001002000295076 Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.89 mho/m, ε r = 41.4, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(6.7, 6.7, 6.7); Calibrated: 15.05.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 21.8 V/m Power Drift = -0.03 dB Maximum value of SAR = 0.648 mW/g cheek right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.814 W/kg SAR(1 g) = 0.629 mW/g; SAR(10 g) = 0.435 mW/g Reference Value = 21.8 V/m Power Drift = …

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6575_370a Page 1 of 41 Report Dosimetric Assessment of the Portable Device Siemens C61 (FCC ID: PWX-C61) According to the FCC Requirements November 24, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Siemens_6575_370a Page 2 of 41 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The C61 is a mobile phone (Portable Device) from Siemens operating in the 800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 850 and PCS 1900 standards including GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards. Depending on the mobile network operator, Push to Talk will be offered as an option, and the phone was tested on this mode of operation, according with the FCC exposure guidelines. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens C61 mobile phone (FCC ID: PWX-C61) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested for the following configurations: • Body Worn with the following accessories and combination with 1.5 cm distance: GSM mode (1 TX slot) with headset GPRS mode (1 TX slot) with datacable • Push-to-Talk operation (1 TX slot) with 2.5 cm distance prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6575_370a Page 3 of 41 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 20 7 APPENDIX ...................................................................................................................................................... 22 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 22 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 22 7.3 TISSUE RECIPES......................................................................................................................................... 23 7.4 MATERIAL PARAMETERS............................................................................................................................. 23 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 24 7.6 ENVIRONMENT........................................................................................................................................... 30 7.7 TEST EQUIPMENT..........................…

Text truncated - open the document above for the full version.

Siemens Mobile Phones A/S Project: C61 Siemens Kaj 1 Date: 27-10-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 1 of 6 ________________________________________________________________________________ Test Report Conducted Output power GSM 850 / 1900 Report No: EMC_C61 Issue date: October 27th, 2003 Test Site: Siemens Mobile Phones Siemens ICM MP RD EA AAL DK-9400 Noerresundby Denmark Tel.: +45 72 19 50 00 Fax.: +45 72 19 50 02 Alexander Friederich EMC & Antenna Morten Christensen Line Manager EMC / Antenna - 1 - Report No: FCC_C61_cond_report Siemens Mobile Phones A/S Project: C61 Siemens Kaj 1 Date: 27-10-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 2 of 6 ________________________________________________________________________________ Contents 1 Objective and Method..............................................................................3 2 Results.......................................................................................................3 2.1 GSM 850..................................................................................................................3 2.2 GSM 1900................................................................................................................3 3 Minutes of Test.........................................................................................4 3.1 Description of device under test..................................................................................4 3.2 Measurement Set-up.................................................................................................4 4 Calibration Certificate..............................................................................6 - 2 - Report No: FCC_C61_cond_report Siemens Mobile Phones A/S Project: C61 Siemens Kaj 1 Date: 27-10-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 3 of 6 ________________________________________________________________________________ 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices use special test fixtures with 50 Ohm connection suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Results 2.1 GSM 850 Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens C61, ”FCC Sample 1” IMEI:00 1002 00 0 29573 8 + 32.0 dBm + 32.0 dBm + 32.1 dBm Siemens C61, ”FCC Sample 2” IMEI: 00 1002 00 0 29460 8 + 32.0 dBm + 32.0 dBm + 32.0 dBm Siemens C61, ”FCC Sample 3” IMEI: 00 1002 00 0 29509 2 + 32.0 dBm + 32.1 dBm + 32.0 dBm Siemens C61, ”SAR Sample 1” IMEI: 00 1002 00 0 29507 6 + 32.0 dBm + 32.0 dBm + 32.1 dBm Siemens C61, ”SAR Sample 2” IMEI: 00 1002 00 0 29499 6 + 32.0 dBm + 32.0 dBm + 32.0 dBm Table 2: Results of power measurements at connector in the GSM 850 Band 2.2 GSM 1900 Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens C61, ”FCC Sample 1” IMEI: 00 1002 00 0 29573 8 + 29.4 dBm + 29.4 dBm + 29.3 dBm Siemens C61, ”FCC Sample 2” IMEI: 00 1002 00 0 29460 8 + 29.4 dBm + 29.4 dBm + 29.3 dBm Siemens C61, ”FCC Sample 3” IMEI: 00 1002 00 0 29509 2 + 29.4 dBm + 29.5 dBm + 29.4 dBm Siemens C61, ”SAR Sample 1” IMEI: 00 1002 00 0 29507 6 + 29.5 dBm + 29.5 dBm + 29.5 dBm Siemens C61, ”SAR Sample 2” IMEI: 00 1002 00 0 29499 6 + 29.4 dBm + 29.4 dBm + 29.3 dBm Table 2: Results of power measurements at connector in the GSM 1900 Band - 3 - Report No: FCC_C61_cond_report Siemens Mobile Phones A/S Project: C61 Siemens Kaj 1 Date: 27-10-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 4 of 6 ________________________________________________________________________________ 3 Minutes of Test 3.1 Description of device under test Mobile phone: Siemens C61 Frequency range GSM 850: 824 – 894 MHz Frequency range GSM 1900: 1850 – 1990 MHz Siemens Part number: S30880-S5880-A100-1 FCC ID: PWX-C61 3.2 Measurement Set-up Base Station Simulator DUT Special Adapter Figure 1: Block Diagram of set-up for conducted power measurement - 4 - Report No: FCC_C61_cond_report Siemens Mobile Phones A/S Project: C61 Siemens Kaj 1 Date: 27-10-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 5 of 6 ________________________________________________________________________________ Figure 2: Set-up for conducted power measurement - 5 - Report No: FCC_C61_cond_report Siemens Mobile Phones A/S Project: C61 Siemens Kaj 1 Date: 27-10-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 6 of 6 ________________________________________________________________________________ 4 Calibration Certificate - 6 - Report No: FCC_C61_cond_report

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_585FCC22-24_2003_C61 FCC Part 22,24 / RSS 133 Model: (C61) FCC ID: PWX-C61 IC ID: 267E-C61 Test report no.: EMC_585FCC22-24_2003_C61 Issue date: 2003-12-03 Page 2 (74) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_585FCC22-24_2003_C61 Issue date: 2003-12-03 Page 3 (74) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-11-24 Date of test : 2003-11-24/25/26, 2003-12-01 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : D-47475 Kamp-Lintfort Country : Germany Marketing Name : C61 Model No. : C61 Description : GSM 850/1900 Mobile Phone FCC-ID : PWX-C61 IC-ID : 267E-C61 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Embedded Power supply : Battery or charger (AC Adapter) Output power : 29.77dBm (948.41mW) max. ERP measured in GSM-850 32.9dBm (1.95W) max. EIRP measured in PCS-1900 Extreme vol. Limits : Lower:3.6Vdc Nominal:3.7Vdc Upper:4.5Vdc Extreme temp. Tolerance : Lower:-30 o C Upper: +50 o C 1.6 Test standards FCC Part 22,24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_585FCC22-24_2003_C61 Issue date: 2003-12-03 Page 4 (74) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-12-03 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2003-12-03 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_585FCC22-24_2003_C61 Issue date: 2003-12-03 Page 5 (74) 2.2 Test report TEST REPORT Test report no.: EMC_585FCC22-24_2003_C61 (C61) Test report no.: EMC_585FCC22-24_2003_C61 Issue date: 2003-12-03 Page 6 (74) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 OCCUPIED BANDWIDTH §2.1049(h)(i) 14 EMISSION BANDWIDTH §24.238(b) 21 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 28 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 57 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 62 CONDUCTED EMISSIONS § 15.107/207 70 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 72 BLOCK DIAGRAMS 73 Test report no.: EMC_585FCC22-24_2003_C61 Issue date: 2003-12-03 Page 7 (74) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. Power transmission and proper modulation. This paragraph contains average output power, peak output power, …
