PWX-C65GSM 1900 Mobile Phone

© Siemens AG 2003, E:\Auftrag\Siemens\M obilePhones\C65 Hera\us\LA\C65IVZ.fm Table of Contents1 VAR Language: am; VA R issue date: 040317 See also Index at the end of this User Guide left page (1) of C65 Hera FUG us, A31008-H7800-A40-1-4A19 (01.04.2004, 17:56) Safety precautions ......................3 Antenna care ............................5 Phone operation .......................5 Electronic devices .....................6 Overview of phone (schematic) .................................9 Display symbols ........................11 Getting started .........................13 Insert SIM card/battery ............13 Charge battery ........................14 Changing CLIPIt™ covers .........15 Switch on/off, PIN entry ............16 Entering the PIN .....................16 Emergency number (SOS) .......16 General instructions .................17 Standby mode ........................17 Signal strength .......................17 Digital Rights Mgmt. (DRM) .....17 Main menu .............................17 Standard functions ...................19 Highlighting mode ..................20 Menu speed dialling ...............20 Security .....................................21 Codes .....................................21 Preventing accidental activation ...............................22 Text entry .................................23 My phone ..................................27 Calling .......................................28 Default book .............................33 Address book ............................ 34 New entry .............................. 34 Change entry ......................... 36 Call entry ............................... 36 Groups ................................... 37 Phonebook ............................... 38 New entry .............................. 38 Call (search for an entry) ........ 39 Change entry ......................... 39 <Special books> ..................... 40 Call records .............................. 41 Time/charges ............................ 42 Camera ..................................... 43 Main Inbox ............................... 45 SMS .......................................... 46 Write/send ............................. 46 Read ...................................... 48 Setting ................................... 50 MMS ......................................... 52 Create .................................... 52 Templates .............................. 54 Send ...................................... 55 Receive .................................. 56 Read ...................................... 57 Setting ................................... 58 Voice message/mailbox ........... 60 Start menu ............................. 61 Login ..................................... 62 Contact lists ........................... 62 Start chat room visit ............... 65 Msg. history ........................... 66 Setting ................................... 66 Table of Con- tents See also Index at the end of this User Guide © Siemens AG 2003, E:\Auftrag\Siemens \MobilePhones\C65 He ra\us\LA\C65IVZ.fm 2Table of Contents VAR Language: am; VA R issue date: 040317 See also Index at the end of this User Guide left page (2) of C65 Hera FUG us, A31008-H7800-A40-1-4A19 (01.04.2004, 17:56) CB services ............................... 68 Surf & fun ................................. 69 Internet ................................ 69 Bookmarks ............................. 71 Games and Applications ......... 72 Download wiz. ....................... 73 Setup ........................................ 74 Profiles .................................. 74 Topics .................................... 76 Display ................................... 77 Ring tones ............................. 79 Call setup ............................... 81 Phone setup ........................... 83 Clock ..................................... 85 Connectivity .......................... 86 Security ................................. 88 Network ................................ 90 Accessories ............................ 92 My menu .................................. 93 Fast access ............................... 94 Organizer ................................. 96 Calendar ................................ 96 Appointments ........................ 97 Tasks ..................................... 99 Notes ..................................... 99 Missed appts. ......................... 99 Dictation mac ...................... 100 Time zones .......................... 101 Media player ........................... 102 Extras ...................................... 103 SIM services (optional) ......... 103 Alarm clock .......................... 103 Sound recorder ..................... 104 Calc. ..................................... 105 Unit converter ...................... 105 Stopwatch ............................ 106 Countdown .......................... 107 Remote synchronisation ....... 107 My stuff .................................. 109 Mobile Phone Manager .......... 111 Questions & Answers ............. 114 Customer Care ........................ 117 Care and maintenance ........... 119 Product data ........................... 120 U.S. FDA .................................. 121 FCC/Industry Canada Notice ... 127 Ten driving safety tips ............ 128 Intellectual property .............. 130 Accessories ............................. 131 Quality .................................... 133 SAR (C65) ................................ 134 Menu tree ............................... 136 Index ....................................... 142 © Siemens AG 2003, E:\Auftrag\Siemens\Mobile Phones\C65 Hera\us\LA\C65_SecurityInfo.fm 3Safety precautions VAR Language: am; VA R issue date: 040317 left page (3) of C65 Hera FUG us, A31008-H7800-A40-1-4A19 (01.04.2004, 17:26) Safety precautions Information for parents Please read the operating instructions and safety precautions carefully before use. Explain the content and the hazards associated with using the phone …

Text truncated - open the document above for the full version.

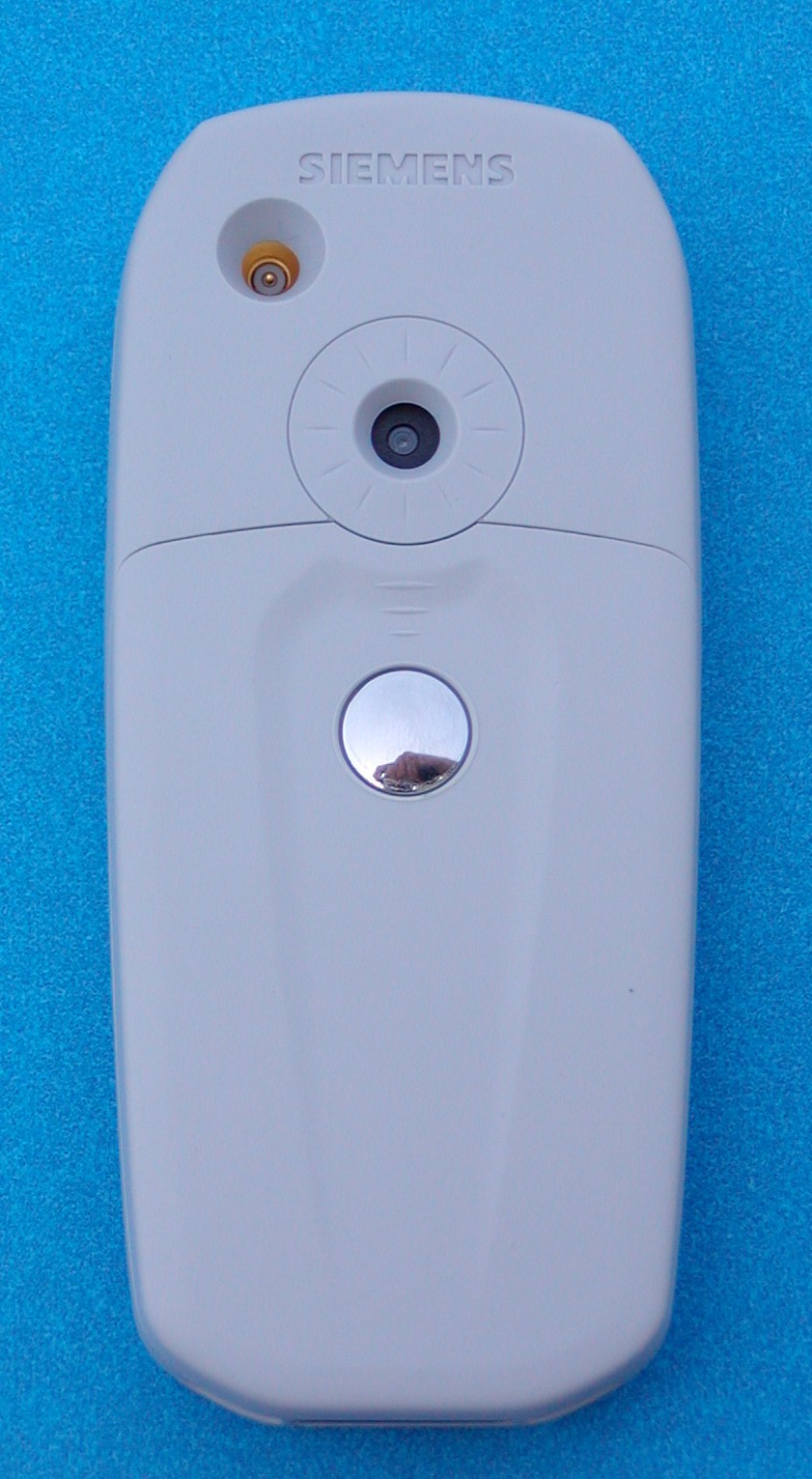

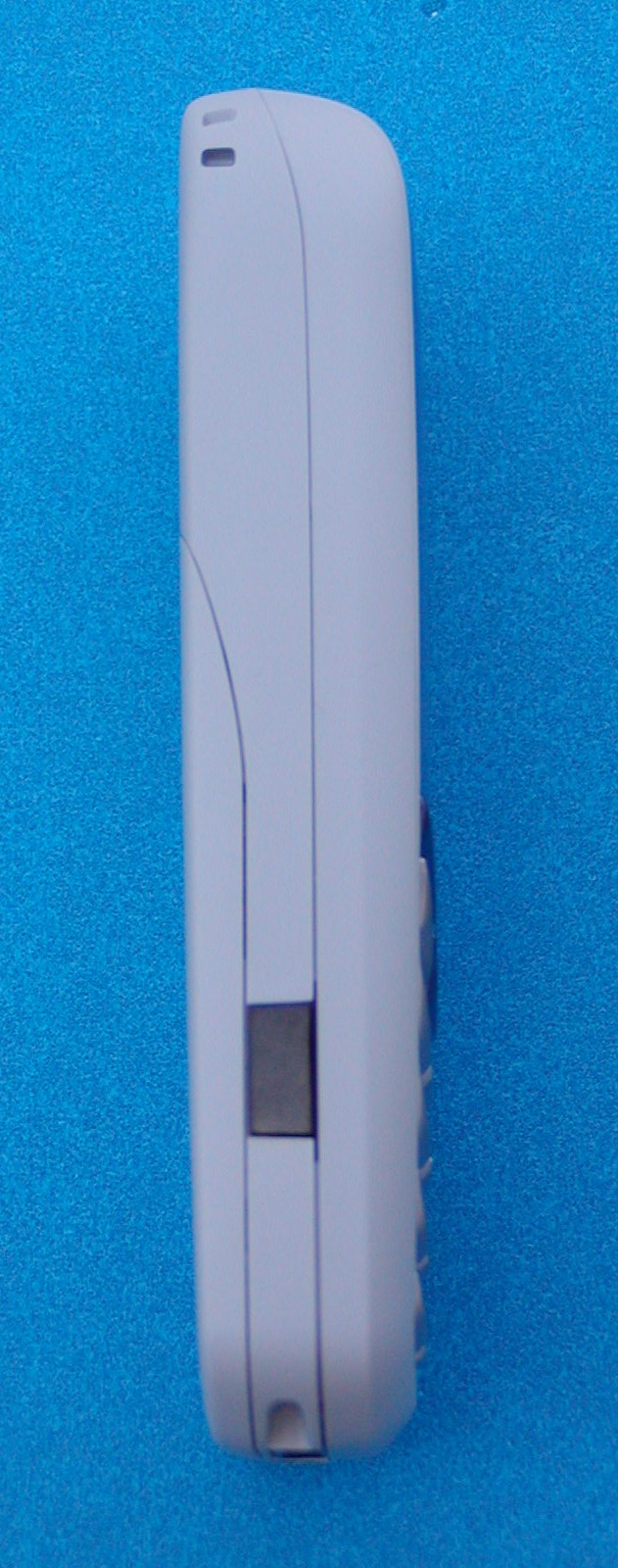

. FCC ID Number Product PWX – C65 C65 Handset Series Models C65 Front View C65 Back View C65 Side View C65 Side View

Confidential Page 1 5/14/2004 C65 IMEI LABEL and LABEL LOCATION Confidential Page 2 5/14/2004 C65 IMEI LABEL and LABEL LOCATION Confidential Page 3 5/14/2004 C65 IMEI LABEL and LABEL LOCATION

C65 Open battery cover (Final label: See Label exhibit) C65 Disassembly step 1 C65 Disassembly step 2 C65 Disassembly step 3 C65 PCB Front View Shields Removed C65 PCB Rear View Shields Removed C65 GSM Tri-band antenna

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6620_412e: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens C65 (FCC ID: PWX-C65) According to the FCC Requirements Calibration Data May 13, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_412e_SAR Distribution Plots Page 1 of 17 Appendix for the Report Dosimetric Assessment of the Siemens C65 (FCC ID: PWX-C65) According to the FCC Requirements SAR Distribution Plots May 13, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6620_412e_SAR Distribution Plots Page 2 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH....................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH FLASH ............................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE................................................. 12 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 13 6 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................16 DASY Test-Report, Siemens_ 6620_412e_SAR Distribution Plots Page 3 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Since all three covers have similar distributions for each position, only the plots for the worst case cover are attached. 1 SAR Distribution Plots, PCS 1900 Head without Flash Test Laboratory: IMST GmbH; File Name: stdplm_1.da4 DUT: Siemens; Type: C65; Serial: 004400005166655 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 26.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 19.3 V/m; Power Drift = -0.0355 dB Maximum value of SAR (measured) = 0.502 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.3 V/m; Power Drift = -0.00355 dB Maximum value of SAR (measured) = 0.494 mW/g Peak SAR (extrapolated) = 0.680 W/kg SAR(1 g) = 0.460 mW/g; SAR(10 g) = 0.285 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head, Standard. (May 11, 2004; Ambient Temperature: 20.1° C; Liquid Temperature: 19.6° C). DASY Test-Report, Siemens_ 6620_412e_SAR Distribution Plots Page 4 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: stdplm_2.da4 DUT: Siemens; Type: C65; Serial: 004400005166655 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 26.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 22 V/m; Power Drift = 0.006 dB Maximum value of SAR (measured) = 0.609 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 22 V/m; Power Drift = 0.006 dB Maximum value of SAR (measured) = 0.645 mW/g Peak SAR (extrapolated) = 0.860 W/kg SAR(1 g) = 0.582 mW/g; SAR(10 g) = 0.341 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head, Standard. (May 11, 2004; Ambient Temperature: 20.1° C; Liquid Temperature : 19.6° C). DASY Test-Report, Siemens_ 6620_412e_SAR Distribution Plots Page 5 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: arcprm_1.da4 DUT: Siemens; Type: C65; Serial: 004400005166655 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 39.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 26.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 18 V/m; Power Drift = 0.04 dB Maximum value of SAR (measured) = 0.461 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18 V/m; Power Drift = 0.04 dB Maximum value of SAR (measured) = 0.496 mW/g Peak SAR (extrapolated) = 0.700 W/kg SAR(1 g) = 0.453 mW/g; SAR(10 g) = 0.279 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head, ARC (May 11, 2004; Ambient Temperature: 20.1° C; Liquid Temperature : 19.6° C). DASY Test-Report, Siemens_ 6620_412e_SAR Distribution Plots Page 6 of 17 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: stdprm_2.da4 DUT: Siemens; Type: C65; Serial: 004400005166655 Program Name: Tilte…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6620_412e Page 1 of 47 Report Dosimetric Assessment of the Portable Device Siemens C65 (FCC ID: PWX-C65) According to the FCC Requirements May 13, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Siemens_6620_412e Page 2 of 47 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The C65 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 2 TX slots (Class 10). The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with three different covers. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens C65 mobile phone (FCC ID: PWX-C65) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested for the following configurations: • Body Worn with the following accessories and combination with 22 mm distance: GSM mode (1 TX slot) with headset GPRS mode (2 TX slots, Class 10) with data cable prepared by: ........................................... reviewed by: .............................................. Dipl.-Ing. Christoph Hennes Dr.-Ing. Achim Bahr test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6620_412e Page 3 of 47 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 18 7 APPENDIX ...................................................................................................................................................... 21 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 21 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 21 7.3 TISSUE RECIPES......................................................................................................................................... 21 7.4 MATERIAL PARAMETERS............................................................................................................................. 22 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 22 7.6 ENVIRONMENT........................................................................................................................................... 27 7.7 TEST EQUIPMENT....................................................................................................................................... 27 7.8 CERTIFICATES OF CONFORMITY...........................................…

Text truncated - open the document above for the full version.

Siemens Mobile Project: C65 Siemens Kaj 1 Date: 06-05-2004 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 1 of 5 ________________________________________________________________________________ Test Report Conducted Output power GSM 1900 Report No: EMC_C65 Issue date: May 06, 2004 Test Site: Siemens Mobile Phones ICM MP PD HW 1 AAL 1 DK-9400 Noerresundby Denmark Tel.: +45 72 19 50 00 Fax.: +45 72 19 50 02 Arne Bisgaard Kristensen Part Project Leader EMC & Antenna Morten Christensen Line Group Manager EMC & Antenna - 1 - Report No: FCC_C65.doc Siemens Mobile Project: C65 Siemens Kaj 1 Date: 06-05-2004 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 2 of 5 ________________________________________________________________________________ Contents 1 Objective and Method..............................................................................3 2 Results.......................................................................................................3 2.1 GSM 1900................................................................................................................3 3 Minutes of Test.........................................................................................3 3.1 Description of device under test..................................................................................3 3.2 Measurement Set-up.................................................................................................3 4 Calibration Certificate..............................................................................5 - 2 - Report No: FCC_C65.doc Siemens Mobile Project: C65 Siemens Kaj 1 Date: 06-05-2004 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 3 of 5 ________________________________________________________________________________ 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Results 2.1 GSM 1900 Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens C65, ”FCC Sample 1” IMEI: 004400005165434 + 29.3 dBm + 29.2 dBm + 29.0 dBm Siemens C65, ”FCC Sample 2” IMEI: 004400005165616 + 29.3 dBm + 29.3 dBm + 29.2 dBm Siemens C65, ”FCC Sample 3” IMEI: 004400005181845 + 29.3 dBm + 29.3 dBm + 29.2 dBm Siemens C65, ”FCC Sample 4” IMEI: 004400005166655 + 29.2 dBm + 29.1 dBm + 29.1 dBm Table 2: Results of power measurements at connector in the GSM 1900 Band 3 Minutes of Test 3.1 Description of device under test Mobile phone: Siemens C65 Frequency range GSM 1900: 1850 – 1990 MHz Siemens Part number: L36880-N7800-Axxx Siemens Part number: L36880-N7810-Axxx Siemens Part number: L36880-N7820-Axxx FCC ID: PWX-C65 3.2 Measurement Set-up Base Station Simulator DUT - 3 - Report No: FCC_C65.doc Special Adapter Siemens Mobile Project: C65 Siemens Kaj 1 Date: 06-05-2004 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 4 of 5 ________________________________________________________________________________ Figure 1: Block Diagram of set-up for conducted power measurement Figure 2: Set-up for conducted power measurement - 4 - Report No: FCC_C65.doc Siemens Mobile Project: C65 Siemens Kaj 1 Date: 06-05-2004 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 5 of 5 ________________________________________________________________________________ 4 Calibration Certificate - 5 - Report No: FCC_C65.doc

Test setup photos C65 Test setup – Radiated Emissions Test setup photos C65 Test setup – Conducted measurements Test setup photos C65 Test setup – AC Line Conducted Emissions
