PWX-C75GSM 900/1800/1900 Mobile Phone

Table of Contents1 See also Index at the end of this User Guide © Siemens AG 2003, C:\Siemens\ DTP-Satz\Produkte\C75_Arie s_1\Output\FUG\C75_FUG_FCC_ us-en_050608_te\Aries_IVZ.fm Template: X75, Version 2.2; VAR Language: am; VAR issue date: 050524 right page (1) of C75 FCC, us-en FUG am, (09.06.2005, 09:17) Legal notices .............................. 3 Safety precautions ..................... 5 Antenna care ........................... 6 Phone operation ...................... 6 Electronic devices .................... 7 Overview of phone .................. 11 Display symbols ....................... 13 Getting started ......................... 15 Inserting the SIM card/ battery ................................... 15 Charging the battery .............. 16 Switching on/off/ entering PIN ............................. 18 Enter PIN ............................... 18 Emergency number (SOS) ...... 18 General instructions ................ 19 Standard functions .................. 21 Highlighting mode ................. 22 Menu speed dialling ............... 22 Security .................................... 23 PIN code ................................ 23 Text entry ................................. 25 Calling ...................................... 29 Tone sequences (DTMF) ......... 34 My phone ................................. 35 Default book ............................ 36 Address book ........................... 37 New entry .............................. 37 Change entry ......................... 39 Dialling an entry .................... 39 Groups ................................... 40 Phonebook ............................... 41 New entry .............................. 41 Call (search for an entry) ........ 42 Change entry ......................... 42 <Special books> ..................... 43 Call records ............................... 44 Dur./charges ............................. 45 Camera ..................................... 46 Photo mode ........................... 46 Video mode ............................ 47 Main Inbox ............................... 48 SMS ........................................... 49 Write/send .............................. 49 Read ....................................... 51 Setting ................................... 53 MMS ......................................... 55 Create .................................... 55 Templates .............................. 57 Sending an MMS .................... 58 Receiving an MMS .................. 59 Reading an MMS .................... 60 Setting ................................... 61 E-mail ........................................ 63 Write ...................................... 63 Receive/read ........................... 64 Setting ................................... 65 Chat room ................................. 67 Start menu ............................. 67 Login ..................................... 68 Contact lists ........................... 68 Start chat ............................... 71 Msg. history ........................... 72 Setting ................................... 72 Table of Contents See also In- dex at the end of this User Guide 2Table of Contents See also Index at the end of this User Guide © Siemens AG 2003, C:\Siemens\ DTP-Satz\Produkte\C75_Arie s_1\Output\FUG\C75_FUG_FCC_ us-en_050608_te\Aries_IVZ.fm Template: X75, Version 2.2; VAR Language: am; VAR issue date: 050524 left page (2) of C75 FCC, us-en FUG am, (09.06.2005, 09:17) Voice message/mailbox ........... 74 CB services ............................... 75 Surf & fun ................................. 76 Internet ................................ 76 Bookmarks ............................. 78 Games and Applications ......... 79 Download wiz. ....................... 79 Settings .................................... 81 Profiles .................................. 81 Topics .................................... 83 Display ................................... 84 Ring tones ............................. 86 Call setup ............................... 89 Phone setup ........................... 91 Clock ..................................... 93 Connectivity .......................... 94 Security ................................. 97 Network ................................ 99 Accessories .......................... 101 My menu ................................ 102 Fast access key ....................... 103 Speed keys ........................... 104 Organizer ............................... 105 Calendar .............................. 105 Appointments ...................... 106 Tasks ................................... 108 Notes ................................... 108 Missed appts. ....................... 108 Dictat.machine .................... 109 Time zones .......................... 110 Extras ...................................... 111 SIM services (optional) ......... 111 Alarm clock .......................... 111 Sound recorder ..................... 112 Calculator ............................. 112 Unit converter ...................... 113 Stopwatch ............................ 115 Countdown .......................... 115 Remote synchronisation ....... 116 Device manag. ..................... 117 Media player ........................... 119 My stuff .................................. 120 Mobile Phone Manager .......... 122 Questions & Answers ............. 125 Customer Care ........................ 129 Care and maintenance ........... 131 Product data ........................... 132 SAR (C75) ................................ 133 Accessories ............................. 135 Quality .................................... 137 U.S. FDA .................................. 138 FCC/Industry Canada Notice ........................ 144 Ten Driving Safety Tips ........... 145 Intellectual property .............. 147 End user license agreement .................. 148 Menu tree ............................... 152 Index ....................................... 158 3Legal notices © Siemens AG 2003,…

Text truncated - open the document above for the full version.

Siemens Communications, Inc. Siemens Communications, Inc. 16745 West Bernardo Drive Suite 120 San Diego, CA 92127 Tel. 858-521-3200 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 June 10, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Siemens Communications, Inc requests confidentiality for the following products: FCC ID Number Product Title/Model PWX – C75 Tri -Band/C75 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Technical Description Required for section 2.1003 (c) • Operational Description 5) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Siemens Communications, Inc trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Kevin Wolentarski Regulatory Engineer

Siemens Communications, Inc. Siemens Communications, Inc. 16745 West Bernardo Drive Suite 120 San Diego, CA 92127 Tel. 858-521-3200 June 10, 2005 Letter of Authorization Re: Application for Siemens mobile device C75. To whom it may concern, We the undersigned, hereby authorize CETECOM Inc. (411 Dixon Landing Road, Milpitas, CA 95035, Tel.408 586 6214) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CETECOM Inc., on our behalf shall have the same effect as acts of our own. The authorization from Siemens Communications, Inc. is valid 365 days from the date of this letter. Sincerely, Kevin Wolentarski Regulatory Engineer

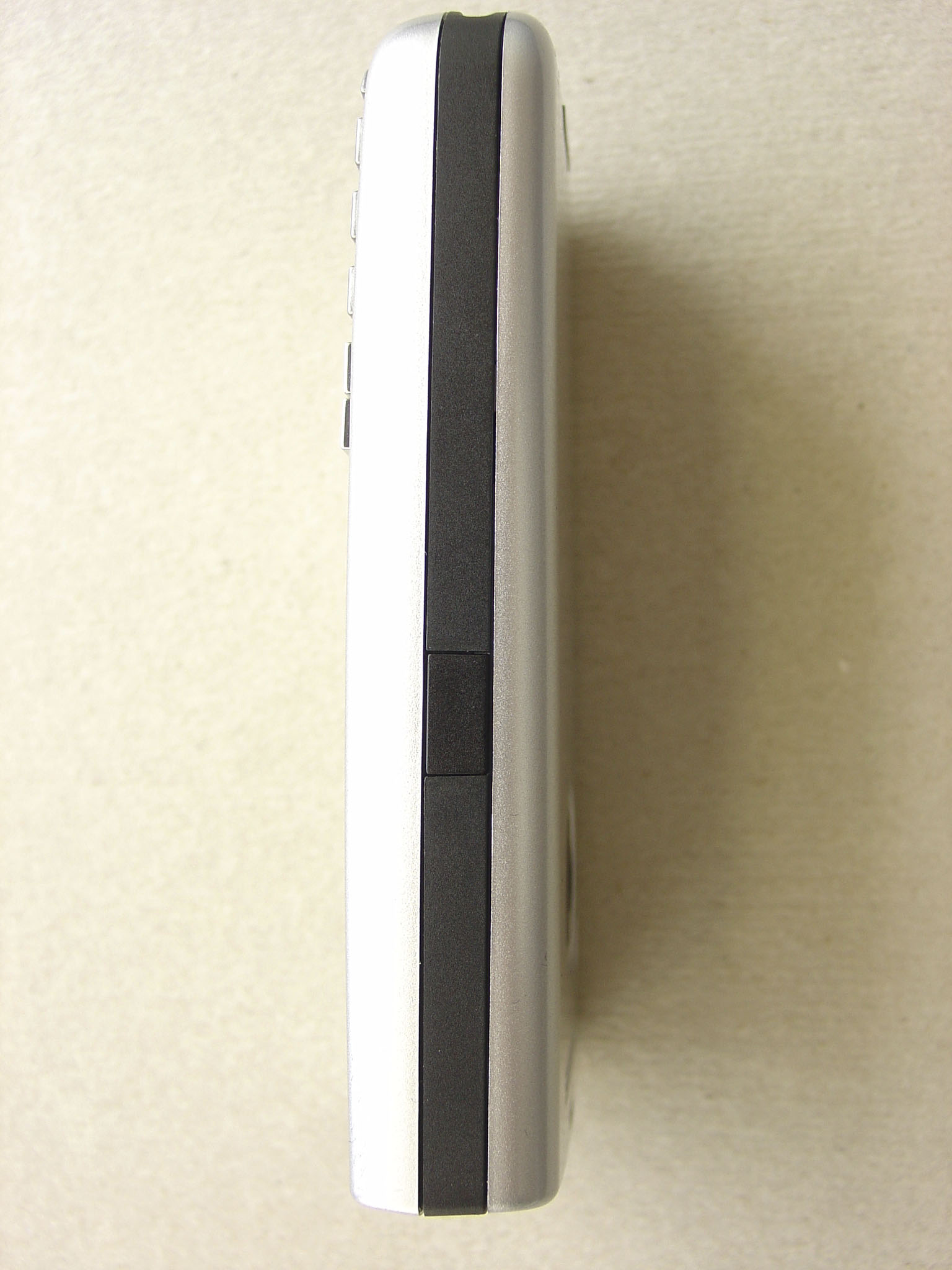

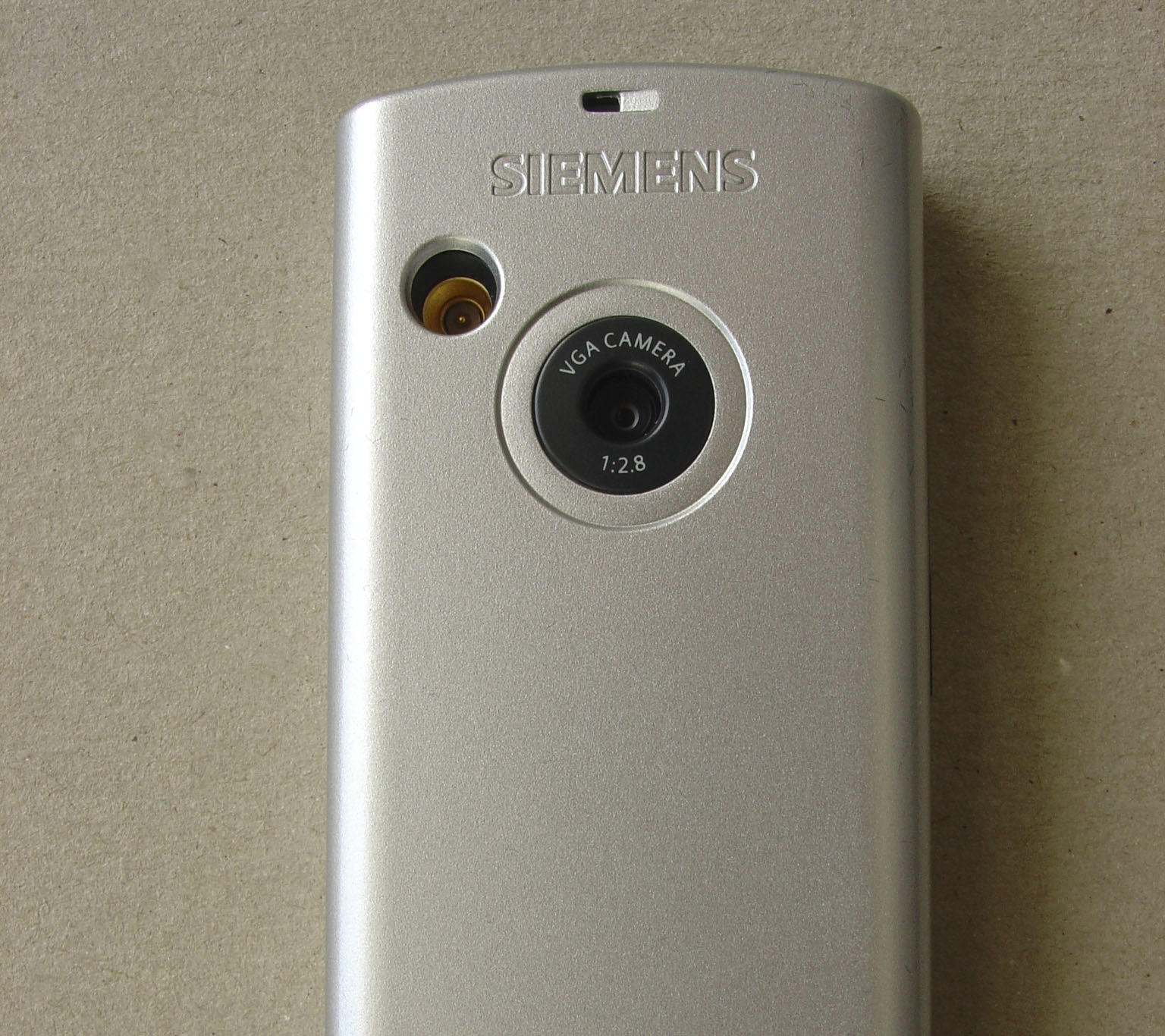

C75 External Pictures Communications, Inc. Page:1 of 4 C75 Front View C75 External Pictures Communications, Inc. Page:2 of 4 C75 Back View C75 External Pictures Communications, Inc. Page:3 of 4 C75 Side View C75 External Pictures Communications, Inc. Page:4 of 4 CX70E Side View

Communications, Inc. Communications, Inc. C75 IMEI label placement

C75 Internal Pictures Communications, Inc. Page:1 of 9 C75 Open Battery Cover (Final label: See extra exhibit) C75 Internal Pictures Communications, Inc. Page:2 of 9 C75 Disassembly Step 1 C75 Internal Pictures Communications, Inc. Page:3 of 9 C75 Disassembly Step 2 C75 Internal Pictures Communications, Inc. Page:4 of 9 C75 Disassembly Step 3 C75 Internal Pictures Communications, Inc. Page:5 of 9 C75 Disassembly Step 4 C75 Internal Pictures Communications, Inc. Page:6 of 9 CX75 PCB Front View Shields Removed C75 Internal Pictures Communications, Inc. Page:7 of 9 C75 PCB Back View Shields Removed C75 Internal Pictures Communications, Inc. Page:8 of 9 C75 Back view repair lid mounted C75 Internal Pictures Communications, Inc. Page:9 of 9 CX75 Tri-Band Antenna

DAT-P-152/98-01 SAR Report, Siemens_6620_501_FCC_1900_Caldata_C75_2 Appendix for the Report Dosimetric Assessment of the Siemens C75 (FCC ID: PWX-C75) According to the FCC Requirements Calibration Data June 10, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Dirve, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Siemens_6620_501_FCC_1900_SAR Plots_C75 Page 1 of 15 Appendix for the Report Dosimetric Assessment of the Siemens C75 (FCC ID: PWX-C75) According to the FCC Requirements SAR Distribution Plots June 06, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort dasy_report_fcc_ 1900_plots_1.0.d o c/05.01.2005/A B o Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego, CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR Report, Siemens_6620_501_FCC_1900_SAR Plots_C75 Page 2 of 15 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WITHOUT FLASH.................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WITH FLASH.............................................................. 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WORN (GAP = 20 MM).......................................... 11 4 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 14 5 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 15 SAR Report, Siemens_6620_501_FCC_1900_SAR Plots_C75 Page 3 of 15 dasy_report_fcc_ 1900_plots_1.0.d o c/05.01.2005/A B o 1 SAR Distribution Plots, PCS 1900 head, without flash Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 802yplm_1.da4 DUT: Siemens; Type: Aries; Serial: 004400011069802 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.19, 8.19, 8.19); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.528 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.8 V/m; Power Drift = 0.112 dB Peak SAR (extrapolated) = 0.852 W/kg SAR(1 g) = 0.513 mW/g; SAR(10 g) = 0.299 mW/g Maximum value of SAR (measured) = 0.571 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (05.24.2005; Ambient Temperature: 21.8° C; Liquid Temperature: 21.1° C). SAR Report, Siemens_6620_501_FCC_1900_SAR Plots_C75 Page 4 of 15 dasy_report_fcc_ 1900_plots_1.0.d o c/05.01.2005/A B o Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 802yplm_2.da4 DUT: Siemens; Type: Aries; Serial: 004400011069802 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.19, 8.19, 8.19); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.601 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.2 V/m; Power Drift = 0.160 dB Peak SAR (extrapolated) = 1.01 W/kg SAR(1 g) = 0.575 mW/g; SAR(10 g) = 0.320 mW/g Maximum value of SAR (measured) = 0.642 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (05.24.2005; Ambient Temperature: 21.8° C; Liquid Temperature : 21.1° C). SAR Report, Siemens_6620_501_FCC_1900_SAR Plots_C75 Page 5 of 15 dasy_report_fcc_ 1900_plots_1.0.d o c/05.01.2005/A B o Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 802yprm_1.da4 DUT: Siemens; Type: Aries; Serial: 004400011069802 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.39 mho/m; ε r = 40.3; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.19, 8.19, 8.19); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.377 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = 0.147 dB Peak SAR (extrapolated) = 0.725 W/kg SAR(1 g) = 0.394 mW/g; SAR(10 g) = 0.243 mW/g Maximum value of SAR (measured) = 0.420 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 16.9 V/m; Power Drift = 0.147 dB Peak SAR (extrapolated) = 0.436 W/kg SAR(1 g) = 0.296 mW/g; SAR(10 g) = 0.203 mW/g Maximum value of SAR (measured) = 0.344 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (05.24.2005; Ambient Temperature: 21.9° C; Liquid Temperature : 21.1° C). SAR Report, Siemens_6620_501_FCC_1900_SAR Plots_C75 Page 6 of 15 dasy_report_fcc_ 1900_plots_1.0.d o c/05.01.2005/A B o Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 802yprm_2.da4 DUT: Siemens; Type: Aries; Serial: 004400011069802 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Siemens_6620_501_FCC_1900_C75_2 Page 1 of 37 Report Dosimetric Assessment of the Portable Device Siemens C75 (FCC ID: PWX-C75) According to the FCC Requirements June 24, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West bernado Drive, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.1.doc/07.01..2005/CH SAR Report, Siemens_6620_501_FCC_1900_C75_2 Page 2 of 37 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Executive Summary The C75 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 10. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens C75 mobile phone (FCC ID: PWX-C75) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: • Body worn with the following accessories and 20 mm distance: GSM without accessory GSM with headset GPRS (Class 10) with data cable prepared by: ........................................... reviewed by: ..................................... André van den Bosch Dipl.- Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, Siemens_6620_501_FCC_1900_C75_2 Page 3 of 37 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 17 8 APPENDIX....................................................................................................................................................... 19 8.1 ADMINISTRATIVE DATA............................................................................................................................ 19 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 19 8.3 TISSUE RECIPES...................................................................................................................................... 20 8.4 MATERIAL PARAMETERS......................................................................................................................... 20 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 21 8.6 ENVIRONMENT..............................................…

Text truncated - open the document above for the full version.

Page: 1 of 4 ________________________________________________________________________________ Communications, Inc. - 1 - Report No: FCC_C75_conducted_power Test Report Conducted Output power GSM 1900 Report No: EMC_C75 Issue date: May 20, 2005 Test Site: Siemens A/S Mobile Phones Development ICM MP PD HW 1 AAL 1 DK-9400 Noerresundby Denmark Tel.: +45 72 19 50 00 Fax.: +45 72 19 50 02 Peer Wolfsen Part Project Leader EMC & Antenna Morten Christensen Line Group Manager EMC & Antenna Page: 2 of 4 ________________________________________________________________________________ Communications, Inc. - 2 - Report No: FCC_C75_conducted_power Contents 1 Objective and Method............................................................................... 2 2 Results........................................................................................................ 2 2.1 GSM 1900 .............................................................................................................. 2 3 Minutes of Test .......................................................................................... 2 3.1 Description of device under test ............................................................................. 2 3.2 Measurement Set-up .............................................................................................. 3 4 Calibration Certificate ............................................................................... 4 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Results 2.1 GSM 1900 Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens C75, ”SAR Sample 1” IMEI: 004400 01 106980 2 29.2 29.1 29.2 Siemens C75, “SAR Sample 2” IMEI: 004400 01 107227 7 29.1 29,0 29.0 Siemens C75, ”x Sample 1” IMEI: 004400 01 107196 4 29.2 29.0 29.1 Siemens C75, ”x Sample 2” IMEI: 004400 01 107199 8 29.2 29.0 29.2 Table 2: Results of power measurements at connector in the GSM 1900 Band 3 Minutes of Test 3.1 Description of device under test Mobile phone: Siemens C75 Frequency range GSM 1900: 1850 – 1990 MHz Siemens Part number: S30880-S6970-xxxx FCC ID: PWX-C75 IC ID: 267E-C75 Page: 3 of 4 ________________________________________________________________________________ Communications, Inc. - 3 - Report No: FCC_C75_conducted_power 3.2 Measurement Set-up Figure 1: Block Diagram of set-up for conducted power measurement Figure 2: Set-up for conducted power measurement Base Station Simulator DUT Special Adapter Page: 4 of 4 ________________________________________________________________________________ Communications, Inc. - 4 - Report No: FCC_C75_conducted_power 4 Calibration Certificate

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_957FCC-24_2005_C75 FCC Part 24 / RSS 133 FCC ID: PWX-C75 IC ID: 267E-C75 CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 2 (51) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 3 (51) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-06-08 Date of test : 2005-06-09/10/11 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : C75 Model No. : C75 Description : GSM 1900 Mobile Phone FCC-ID : PWX-C75 IC ID : 267E-C75 Additional information Test Sample for GSM : IMEI: 00-4400-01-107196-4 Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : Patch Antenna Power supply : Battery or Charger (AC Adaptor) Output power : 27.73dBm (592.92mW) max. EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 Issue 3 CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 4 (51) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2005-06-16 EMC & Radio Lothar Schmidt (EMC Manager) Date Section Name Signature Responsible for test report and project leader: 2005-06-16 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 5 (51) 2.2 Test report TEST REPORT Test report no.: EMC_957FCC-24_2005_C75 CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 6 (51) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 10 OCCUPIED BANDWIDTH §2.1049(h)(i) 12 EMISSION BANDWIDTH §24.238(b) 16 EMISSIONS LIMITS §24.238 20 BAND EDGE COMPLIANCE §24.238(b) 35 RECEIVER RADIATED EMISSIONS § 15.209 37 CONDUCTED SPURIOUS EMISSIONS 43 CONDUCTED EMISSIONS § 15.107/207 47 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 49 BLOCK DIAGRAMS 50 CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 7 (51) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_957FCC-24_2005_C75 Issue date: 2005-06-16 Page 8 (51) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 …

Text truncated - open the document above for the full version.
