PWX-C81GSM Mobile Phone with Bluetooth

Table of Contents1 See also Index at the end of this User Guide right page (1) of C81 PHILLIPPE FCC FUG am, (03.05.2006, 11:24) © BenQ Mobile 2006, Z:\C81_PHILIPPE_1\output\FU G\PHILIPPE_FCC_am_060503_te_vz\PHILIPPE_FUGIVZ.fm Template: X75, 143x105 mm, Version 2.2;VA R Language: am; VAR issue date: 060119 Legal notices .............................. 3 Safety precautions ..................... 6 Antenna care ........................... 9 Phone operation ...................... 9 Electronic devices .................. 10 Phone overview ....................... 13 Display symbols ....................... 15 Getting started ......................... 17 Inserting SIM card/battery ...... 17 RS MultiMediaCard™ .............. 18 Charging the battery .............. 19 Switching on/off, PIN entry ...... 20 General instructions ................ 21 Standby mode ....................... 21 Receiving signal ..................... 21 Digital Rights Mgmt. (DRM) .... 21 Main menu ............................ 22 Tabs ...................................... 22 Menu controls ........................ 23 Centre key ............................. 23 Standard functions ................. 24 Security .................................... 25 Text input ................................. 27 Calling ...................................... 31 Ending a call .......................... 31 Setting the volume ................ 31 Accepting a call ...................... 32 Rejecting a call ....................... 32 Handsfree .............................. 33 Swapping between 2 calls ...... 33 Conference ............................ 34 Call options ............................ 35 Direct call ............................... 35 Tone sequences (DTMF) ......... 36 Contacts .................................... 37 All contacts ............................ 37 Groups ................................... 38 Online status .......................... 38 SIM ........................................ 39 Filter ...................................... 39 General functions ................... 40 Call records ............................... 42 Time/charges ............................ 43 Camera ..................................... 44 SMS/MMS .................................. 46 Writing an SMS ....................... 46 Writing an MMS ...................... 47 Receiving/reading ................... 49 Draft ...................................... 50 Outbox ................................... 50 Sent ....................................... 50 Msg. archive ........................... 50 Templates .............................. 51 SMS settings ........................... 51 MMS settings ......................... 52 Zoom in ................................. 53 Emoticons .............................. 53 Save aft. send ......................... 53 E-mail ........................................ 54 Writing/sending ...................... 54 Receiving/reading ................... 55 Draft ...................................... 56 Table of Contents See also In- dex at the end of this User Guide 2Table of Contents See also Index at the end of this User Guide © BenQ Mobile 2006, Z:\C81_PHILIPPE_1\output\FU G\PHILIPPE_FCC_am_060503_te_vz\PHILIPPE_FUGIVZ.fm left page (2) of C81 PHILLIPPE FCC FUG am, (03.05.2006, 11:24) Template: X75, 143x105 mm, Version 2.2;VA R Language: am; VAR issue date: 060119 Outbox .................................. 56 Msg. archive .......................... 56 Setting ................................... 56 WAP push ................................. 58 Chat room ................................ 59 Voice mailbox/Mailbox ............ 64 CB services ............................... 65 Internet .................................... 66 Settings .................................... 69 Profiles .................................. 69 Ringtones .............................. 71 Topics .................................... 72 Display ................................... 72 Silent alert ............................. 73 Connectivity .......................... 74 Shortcuts ............................... 77 Call settings ........................... 79 Phone settings ....................... 80 Clock ..................................... 83 Security ................................. 84 Network ................................ 86 Accessories ............................ 88 Organizer ................................. 89 Calendar ................................ 89 Appointments ........................ 90 Tasks ..................................... 92 Notes ..................................... 92 Dictat.machine ...................... 93 Time zones ............................ 94 Remote synchronisation ......... 95 Extras ........................................ 97 SIM services (optional) ........... 97 My applications ...................... 97 Calculator ............................... 97 Unit converter ........................ 98 Online status .......................... 99 Sound recorder ..................... 100 Stopwatch ............................ 101 Countdown .......................... 102 Date calculator ..................... 102 My menu .............................. 102 Alarm clock ............................. 104 Media player ........................... 105 My stuff .................................. 109 Mobile Phone Manager .......... 112 Questions & Answers ............. 115 Customer Care ........................ 119 Care and maintenance ........... 121 Product data ........................... 122 SAR ........................................ 123 U.S. FDA .................................. 124 FCC/Industry Canada Notice ... 130 Intellectual property .............. 131 Ten Driving Safety Tips ........... 132 End user license agreement ...... 134 Accessories ............................. 139 Menu tree ............................... 141 Index ....................................... 147 See also In- dex at the end of this User Guide 3Legal notices right page …

Text truncated - open the document above for the full version.

Appendix A Non-Conformities for US Radio Equipment Authorization Non-Conformities FCC ID: PWX-C81 (Ref # E06-000125-1) The items listed below represent requests for information following review of this application. Further question may arise pending review of responses to these items. OK # Non-Conformity or Comment Submitted Response Y 1 Please provide a label with labeling requirements in accordance with 15.19. “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation..” It is already on page 130 of the man Y 2 Please provide a users manual incorporating the statement required by 15.21. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. It is located on page 130 of the man Y 3 Why was 20 mm selected as the test distance on the GPRS Class 10 with data cable for SAR measurement? Explained in response Y 4 Please note that TIA-603C is to be used instead of TIA-603B. N/A The items indicated above must be submitted before processing can continue on the referenced application. Failure to provide the requested information within 60 days may result in application dismissal pursuant to Section 2.917(c) and forfeiture of the filing fee pursuant to Section 1.1106.

BenQ Mobile GmbH & Co OHG Haidenauplatz 1 81667 München Germany Tel. +49 89 722 37148 April 07, 2006 Letter of Authorization Re: Application for BenQ Mobile device C81 To whom it may concern, We the undersigned, hereby authorize CETECOM Inc. (411 Dixon Landing Road, Milpitas, CA 95035, Tel.408 586 6214) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CETECOM Inc., on our behalf shall have the same effect as acts of our own. The authorization from BenQ Mobile GmbH & Co OHG is valid 365 days from the date of this letter. Sincerely, Dr. Martin Weinberger Engineering Manager

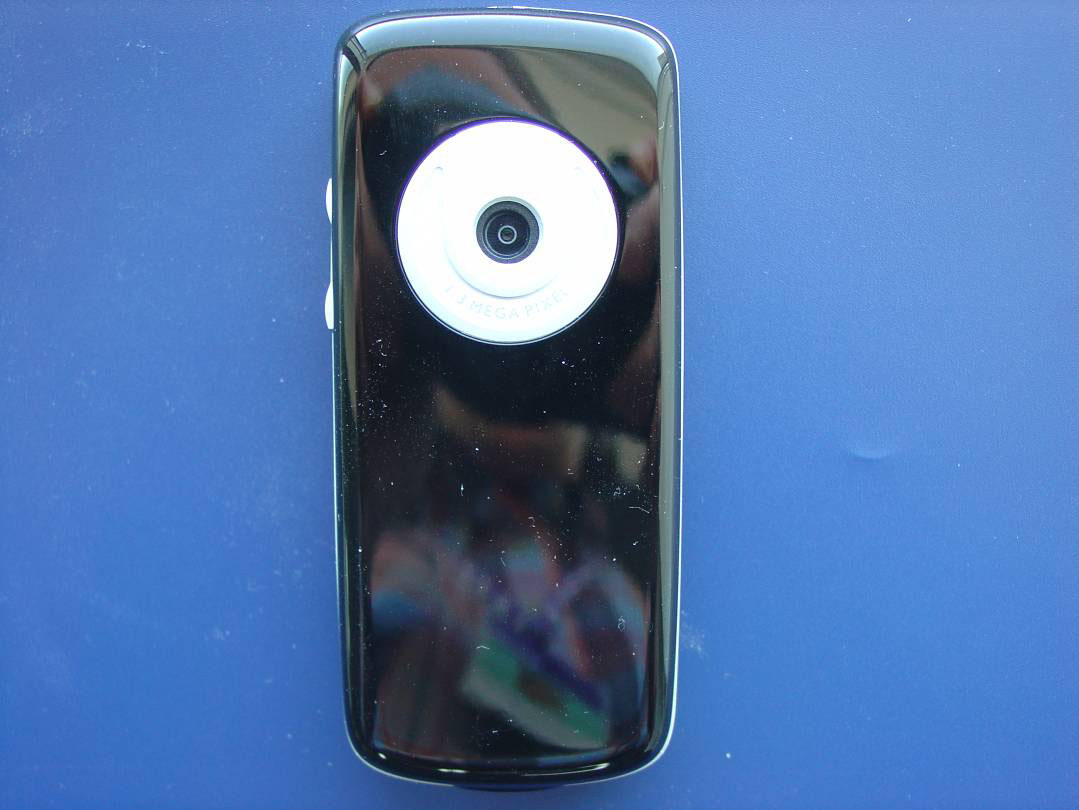

BMG PHE RD HW AAL Department: BMQ PHE RD HW AAL C81 Date: 10/04/2006 Author: Arne Bisgaard Kristensen External pictures Page: 1/2 C81 Front View C81 Back View BMG PHE RD HW AAL Department: BMQ PHE RD HW AAL C81 Date: 10/04/2006 Author: Arne Bisgaard Kristensen External pictures Page: 2/2 C81 Right Side View C81 Left Side View

Department: BMQ PHE RD HWAAL C81 Date: 10/05/2006 Author: Arne Bisgaard Kristensen IMEI label Page: 1/3 Department: BMQ PHE RD HWAAL C81 Date: 10/05/2006 Author: Arne Bisgaard Kristensen IMEI label Page: 2/3 Figure 1 FCC ID and IC ID label position in C81 product from BenQ-Siemens Label according to BOM-264534-01-000 Department: BMQ PHE RD HWAAL C81 Date: 10/05/2006 Author: Arne Bisgaard Kristensen IMEI label Page: 3/3 Figure 2. Example of C81 label.

BMG PHE RD HW AAL Department: BMQ PHE RD HW AAL C81 Date: 10/04/2006 Author: Arne Bisgaard Kristensen Internal pictures Page: 1/4 C81 Battery Lid opened Disassemble Step 1: Lower Case opened BMG PHE RD HW AAL Department: BMQ PHE RD HW AAL C81 Date: 10/04/2006 Author: Arne Bisgaard Kristensen Internal pictures Page: 2/4 Disassemble Step 2: PCB separated from front cover Disassemble Step 3: Front Cover disassembled BMG PHE RD HW AAL Department: BMQ PHE RD HW AAL C81 Date: 10/04/2006 Author: Arne Bisgaard Kristensen Internal pictures Page: 3/4 Disassemble Step 4: Display separated from PCB Disassemble Step 5: Front Side of main PCB Power management BMG PHE RD HW AAL Department: BMQ PHE RD HW AAL C81 Date: 10/04/2006 Author: Arne Bisgaard Kristensen Internal pictures Page: 4/4 Disassemble Step 6: Back Side of main PCB GSM RF module Bluetooth module Micro Processor

DAT-P-152/98-01 SAR_Report_BenQ_6620_583_Cal Data_C81 dasy_report_fcc_1900_cal_data_2.0.doc/08.01.2005/CH Appendix for the Report Dosimetric Assessment of the Portable Device BenQ C81 (FCC ID: PWX-C81) According to the FCC Requirements Calibration Data March 30, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark a/s Siemens Kaj 1 DK-9400 Norresundby This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, BenQ_6620_583_FCC_1900_SAR Plots_C81 Page 1 of 13 Appendix for the Report Dosimetric Assessment of the BenQ Siemens C81 (FCC ID: PWX-C81) According to the FCC Requirements SAR Distribution Plots March 31, 2006 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer BenQ Denmark asp Siemens Kaj 1 DK-9400 Norresundby The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH SAR Report, BenQ_6620_583_FCC_1900_SAR Plots_C81 Page 2 of 13 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD........................................................................................ 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WORST CASE WITH BT ACTIVATED................. 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY, GSM MODE................................................................ 8 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE, GPRS MODE..................... 11 5 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 12 6 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 13 SAR Report, BenQ_6620_583_FCC_1900_SAR Plots_C81 Page 3 of 13 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, PCS 1900 Head Test Laboratory: Imst GmbH; File Name: 561yplm_1.da4 DUT: BenQ; Type: C81; Serial: 004401490002561 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.25, 8.25, 8.25); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.417 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 12.5 V/m; Power Drift = 0.003 dB Peak SAR (extrapolated) = 0.818 W/kg SAR(1 g) = 0.427 mW/g; SAR(10 g) = 0.226 mW/g Maximum value of SAR (measured) = 0.476 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (March 28, 2006; Ambient Temperature: 22.3° C; Liquid Temperature : 21.5° C). SAR Report, BenQ_6620_583_FCC_1900_SAR Plots_C81 Page 4 of 13 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: 561yplm_2.da4 DUT: BenQ; Type: C81; Serial: 004401490002561 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.25, 8.25, 8.25); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.407 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.5 V/m; Power Drift = -0.026 dB Peak SAR (extrapolated) = 0.679 W/kg SAR(1 g) = 0.362 mW/g; SAR(10 g) = 0.191 mW/g Maximum value of SAR (measured) = 0.404 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (March 28, 2006; Ambient Temperature: 22.2°C; Liquid Temperature: 21.4°C). SAR Report, BenQ_6620_583_FCC_1900_SAR Plots_C81 Page 5 of 13 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: 561yprm_1.da4 DUT: BenQ; Type: C81; Serial: 004401490002561 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.25, 8.25, 8.25); Calibrated: 23.09.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 09.03.2006 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.6 Build 23; Postprocessing SW: SEMCAD, V1.8 Build 161 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.237 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 0.432 W/kg SAR(1 g) = 0.248 mW/g; SAR(10 g) = 0.141 mW/g Maximum value of SAR (measured) = 0.272 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.6 V/m; Power Drift = -0.011 dB Peak SAR (extrapolated) = 0.323 W/kg SAR(1 g) = 0.178 mW/g; SAR(10 g) = 0.100 mW/g Maximum value of SAR (measured) = 0.198 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (March 28, 2006; Ambient Temperature: 22.3° C; Liquid Temperature : 21.5° C). SAR Report, BenQ_6620_583_FCC_1900_SAR Plots_C81 Page 6 of 13 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: Imst GmbH; File Name: 561yprm_2.da4 DUT: BenQ; Type: C81; Serial: 004401490002561 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 38.9; ρ = 1000 kg/m 3 Phantom section: Right Section …

Text truncated - open the document above for the full version.

BENQ DENMARK APS BML TESTING LABORATORY (NO. 1) for Electro-Magnetic Compatibility BenQ Denmark ApS Lindholm Brygge 35 Switchboard CVR No. 20.04.06 /bmlpkn DK-9400 Nr.Sundby +45 7219 5000 27963706 Revision: 1.0, Page 1 of 26 Denmark C81 - CISPR 22 (FCC 15) EMI 20-04-2006 TEST REPORT NO.: BML – FC 009.2006 Test specification: CFR47 part 15 Radio Frequency Devices. Sub standard: FCC 15 subpart B/C Unintentional/Intentional Radiators. Ordered by: C81 Philippe project team – ABK Address: Lindholm Brygge 35, 9400 Nr.Sundby Denmark Subject: BenQ-Siemens C81 Verification: Travel Charger – Friwo type – A5BHTN00 180751, sample FR_WR85_US_B2_06 Desktop Stand – EDS-100 – S30880-S2611-A115-1, B1-v.2.* (Not all scenarios) Headset Basic – HHS-100 - S30880-S2611-A515, v. 1.5.1 Headset – HHS-110 - S30880-S2611-A525, v.1.5.1 Headset Purestyle - HHS-120 - S30880-S2611-A555, v.1.6.1 Headset Stereo – HHS-150 – S30880-S2611-A535, v.1.5.1 Car Kit Portable – HKP-100 – S30880-S2611-A305-1, B2-v.3.4.1 Car Charger Plus – ECC-100 – C39280-Z4-C459, v.1.1.1 Data Cable – DCA-100 (RS232) – S30880-S2611-A805-1 Data Cable – DCA-140 (USB) – S30880-S2611-S835 Sync station – DSC-100 (DCA-140+EDS-100) – S30880-S2611-Axxx (Not selected for test) Spare battery – V30145-K1310-X326-NT – 3.7V/820 mAh Spare battery – V30145-K1310-X329-SM – 3.7V/820 mAh Serial numbers: Sample #52, IMEI: 004401490002512 and sample #177, IMEI: 004401490002504 HW revision: B2 SW revision: 00 baseline 1.0_V79.1.9.1 Manufacturer: Manufacturer BenQ Mobile GmbH & Co OHG Street Address Südstrasse 9 City/Zip Code D-47475 Kamp-Lintfort Country Germany BENQ DENMARK APS BML TESTING LABORATORY (NO. 1) for Electro-Magnetic Compatibility BenQ Denmark ApS Lindholm Brygge 35 Switchboard CVR No. 20.04.06 /bmlpkn DK-9400 Nr.Sundby +45 7219 5000 27963706 Revision: 1.0, Page 2 of 26 Denmark C81 - CISPR 22 (FCC 15) EMI 20-04-2006 Internal Order No.: PKN – 27.03.2006.009 Date(s) of test: 28.03.2006 -> 18.04.2006 Technical responsibility Per K. Nielsen Date: 20.04.2006 Test performed by: Jan Clausen Number of pages: 26 All test results are valid only and exclusive for the equipment under test, (EUT). Summary: The equipment tested is compliant to the above mentioned specification. BENQ DENMARK APS BML TESTING LABORATORY (NO. 1) for Electro-Magnetic Compatibility BenQ Denmark ApS Lindholm Brygge 35 Switchboard CVR No. 20.04.06 /bmlpkn DK-9400 Nr.Sundby +45 7219 5000 27963706 Revision: 1.0, Page 3 of 26 Denmark C81 - CISPR 22 (FCC 15) EMI 20-04-2006 TEST REPORT NO.: BML – FC 009.2006 Radiated and Conducted Emission References CFR 47 FCC 15 subpart B, Unintentional Radiator. FCC 15 subpart C, Intentional Radiator. CISPR 22 Information Technology Equipment – Radio disturbance characteristics Limits and Methods of measurement, CISPR 22:1997, modified + Amendment 1 (EN 55022/A1 (October 2000)) + Amendment 2 (EN55022/A2 (2002)) ANSI C63.4 Methods of Measurements of Radio-Noise Emissions from Low-voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz, ANSI C63.4-2000. CISPR/ I/WG4/02-02 CISPR 22 and IEC 61000-6-3 emission limits above 1 GHz, September 2002 Enclosures Conversion factors.doc Field strength conversion factors and other data formats and exchange of formats. Revision Information Created: Revision Name Comments 19.08.03 0.1 Nielsen Per Klaus Initial revision in PVCS Modified 20.04.06 1.0 Nielsen Per Klaus Measurement results added BENQ DENMARK APS BenQ Denmark ApS Lindholm Brygge 35 Switchboard CVR No. 20.04.06 /bmlpkn DK-9400 Nr.Sundby +45 7219 5000 27963706 Revision: 1.0, Page 5 of 26 Denmark C81 - CISPR 22 (FCC 15) EMI 20-04-2006 Contents 1 Introduction................................................................................................ 5 2 Description of test set up ......................................................................... 6 2.1 GSM 1900 specific ................................................................................................. 8 2.2 Bluetooth specific ................................................................................................... 8 2.3 Environmental conditions ....................................................................................... 9 2.4 Test equipment ....................................................................................................... 9 2.5 Calibration ............................................................................................................ 11 3 Emission detection ................................................................................. 11 4 Pass criteria for the test ......................................................................... 12 4.1 Exceptions ............................................................................................................ 13 5 Test and evaluation conditions............................................................. 13 6 Results...................................................................................................... 14 6.1 Environmental conditions ..................................................................................... 14 6.2 Detected emissions .............................................................................................. 14 6.2.1 The FCC §15.209 Intentional Radiators – Standby mode....................................... 15 6.2.2 The FCC §15.247(c) Operation within the band 2400 – 2483.5 MHz..................... 15 6.2.3 The FCC §15.31(h) combined GSM and Bluetooth test ......................................... 15 6.2.4 The FCC §15.109(g) Charger tests ........................................................................ 15 6.2.5 The FCC §15.107/207 Conducted emission ........................................................... 17 6.2.6 The FCC §15.109(g) Accessory tests..................................................................... 19 6.2.6.1 Mobile with headsets .................................................................…

Text truncated - open the document above for the full version.

Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM FCC Test Report FCC Part 15.247 for FHSS systems/ CANADA RSS-210 FOR: Tri-band GSM/EDGE Mobile Phone with Bluetooth MODEL #: C81 BenQ Mobile GmbH & Co OHG Haidenauplatz 181667 München GERMANY FCC ID: PWX-C81 IC ID: 6175C-C81 TEST REPORT #: EMC_BENQ0_009_06001_C81_Bluetooth DATE: May 10th, 2006 Test Report #: EMC_BENQ0_009_06001_C81_Bluetooth Date of Report: 5/10/2006 Page 2 of 55 TABLE OF CONTENTS 1 Assessment_____________________________________________________________________ 4 2 Administrative Data _____________________________________________________________ 5 2.1 Identification of the Testing Laboratory Issuing the EMC Test Report _____________________ 5 2.2 Identification of the Client __________________________________________________________ 5 2.3 Identification of the Manufacturer ___________________________________________________ 5 3 Equipment under Test (EUT) ______________________________________________________ 6 3.1 Identification of the Equipment under Test____________________________________________ 6 4 Subject Of Investigation __________________________________________________________ 7 5 Measurements __________________________________________________________________ 8 5.1 MAXIMUM PEAK OUTPUT POWER § 15.247 (RADIATED) ___________________________ 8 5.1.1 LIMIT SUB CLAUSE § 15.247 (b) (1) (2) (3) (4)_______________________________________________ 8 5.1.2 RESULTS: _____________________________________________________________________________ 8 5.2 MAXIMUM PEAK OUTPUT POWER § 15.247 (CONDUCTED) ________________________ 12 5.2.1 LIMIT SUB CLAUSE § 15.247 (b) (1) ______________________________________________________ 12 5.2.2 RESULTS: ____________________________________________________________________________ 12 5.3 20dB BANDWIDTH ______________________________________________________________ 16 5.3.1 LIMIT SUB CLAUSE § 15.247 (a) (1) (i) (ii) (iii) _____________________________________________ 16 5.3.2 RESULTS: ____________________________________________________________________________ 16 5.4 CARRIER FREQUENCY SEPARATION____________________________________________ 20 5.4.1 LIMIT SUB CLAUSE § 15.247 (a) (1) (i) (ii) (iii) _____________________________________________ 20 5.4.2 RESULTS: ____________________________________________________________________________ 20 5.5 NUMBER OF HOPPING CHANNELS ______________________________________________ 22 5.5.1 LIMIT SUB CLAUSE § 15.247 (a) (1) (iii)___________________________________________________ 22 5.5.2 RESULTS: ____________________________________________________________________________ 22 5.6 TIME OF OCCUPANCY (DWELL TIME)___________________________________________ 24 5.6.1 LIMIT SUB CLAUSE § 15.247 (a) (1) (i) (ii) (iii) _____________________________________________ 24 5.6.2 RESULTS: ____________________________________________________________________________ 24 5.7 CONDUCTED SPURIOUS EMISSIONS_____________________________________________ 28 5.7.1 LIMIT SUB CLAUSE § 15.247 (d) _________________________________________________________ 28 5.7.2 RESULTS _____________________________________________________________________________ 29 5.8 RESTRICTED BAND EDGE COMPLIANCE RADIATED §15.247/15.205 ________________ 32 5.8.1 LIMITS _______________________________________________________________________________ 32 5.8.2 RESULTS (2402MHz) ___________________________________________________________________ 33 5.8.3 RESULTS (2480MHz) ___________________________________________________________________ 35 5.9 TRANSMITTER SPURIOUS EMISSIONS RADIATED § 15.247/15.205/15.209 ____________ 37 5.9.1 LIMITS _______________________________________________________________________________ 37 5.9.2 RESULTS _____________________________________________________________________________ 38 5.10 RECEIVER SPURIOUS RADIATION § 15.209/RSS210 ________________________________ 46 5.10.1 LIMITS ____________________________________________________________________________ 46 5.10.2 RESULTS __________________________________________________________________________ 47 Test Report #: EMC_BENQ0_009_06001_C81_Bluetooth Date of Report: 5/10/2006 Page 3 of 55 5.11 AC POWER LINE CONDUCTED EMISSIONS § 15.107/207 ___________________________ 51 5.11.1 LIMITS ____________________________________________________________________________ 51 5.11.2 RESULTS __________________________________________________________________________ 52 5.12 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS _________________________ 53 5.13 BLOCK DIAGRAMS _____________________________________________________________ 54 Test Report #: EMC_BENQ0_009_06001_C81_Bluetooth Date of Report: 5/10/2006 Page 4 of 55 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Part 15.247 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS210. Company Description Model # BenQ Mobile GmbH & Co OHG T Tri-band GSM/EDGE Mobile Phone with Bluetooth C81 The test results of this test report relate exclusively to the test item specified in Identification of the Equipment under Test. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. Michael Grings Deputy Test Lab Manage…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed# 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM FCC Test Report FCC Part 24 / RSS 133 . FOR: Tri-band GSM/EDGE Mobile Phone with Bluetooth MODEL #: C81 BenQ Mobile GmbH & Co OHG Haidenauplatz 181667 München GERMANY FCC ID: PWX-C81 IC ID: 6175C-C81 TEST REPORT #: EMC_BENQ0_009_06001_C81_FCC24 DATE: May 10th, 2006 Test Report #: EMC_BENQ0_009_06001_C81_FCC24 Date of Report: 5/10/2006 Page 2 of 64 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .................................................................................................................................... 3 2 ADMINISTRATIVE DATA............................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT......................... 4 2.2 IDENTIFICATION OF THE CLIENT................................................................................................... 4 2.3 IDENTIFICATION OF THE MANUFACTURER...........................................…
