PWX-CF110GSM 900/1800/1900 Mobile Phone

Contents 1 See also Index at the end of this User Guide right page (1) of CF110 FCC us-en (02.09.2005, 13:56) © Siemens AG 2004, C:\Siemens\DTP-Satz\Produkte\CF110_Flam ingo\output\FUG\CF110_FLAMINGO _1_FCC_us-en_DTC_050902_te\Fla- VAR Language: am; VAR issue date: 050711 Legal notices ...................................... 2 Safety precautions ............................. 4 Antenna care ................................... 5 Phone operation .............................. 5 Electronic devices ............................ 6 Overview of the phone ...................... 9 Display symbols ................................ 10 Getting started ................................. 11 Switch on/off, PIN ............................. 12 General instructions ......................... 13 Standard functions ........................... 14 Security ............................................ 15 Codes ............................................ 15 Calling .............................................. 16 Text entry ......................................... 18 Preferred directory ........................... 20 Phonebook ....................................... 20 <New entry> .................................. 20 Call (search for an entry) ................ 20 Change entry ................................. 20 Address book .................................... 21 <New entry> .................................. 21 Change entry ................................. 21 Call (search for an entry) ................ 21 Voice dialing .................................. 21 Groups .......................................... 21 Records ............................................. 22 Dur./charges ..................................... 22 Voice message/mailbox .................... 23 SMS ................................................... 24 MMS ................................................. 25 Message lists/settings ...................... 26 Ring tones ........................................ 26 Surf & fun ......................................... 27 Games & more .............................. 28 Setup ................................................ 29 Organizer ......................................... 35 Alarm clock ................................... 35 Calendar ....................................... 35 Appointments ............................... 35 Notes ............................................ 36 Missed alarms ............................... 36 Time zones .................................... 36 Calend. setup ................................ 36 Extras ............................................... 37 SIM services (optional) .................. 37 Calculator ...................................... 37 Currency conv ............................... 37 Stopwatch ..................................... 37 Countdown ................................... 37 Voice comm. ................................. 38 Fast access key ................................. 38 Own stuff ......................................... 39 Customer Care ................................. 40 Care and maintenance ..................... 42 Battery quality statement .............. 42 Display quality declaration ............. 42 Product data ..................................... 43 Accessories ...................................... 44 SAR ................................................. 45 U.S. FDA ........................................... 46 FCC/Industry Canada Notice ............ 50 Intellectual property ........................ 51 Ten Driving Safety Tips .................... 52 End user license agreement ............ 54 Index ................................................ 57 Contents See also In- dex at the end of this User Guide Legal notices 2 © Siemens AG 2004, C:\Siemens\DTP-Satz\Produkte\C F110_Flamingo\output\FUG\CF110_FLAMINGO_1_FCC_us- left page (2) of CF110 FCC us-en, (02.09.2005, 08:27) VAR Language: am; VAR issue date: 050711 Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS net- works operating on the GSM 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2005 Siemens Information and Communication Mobile, LLC. All rights reserved. Siemens and the CF110 model phone are trademarks or registered trademarks of Siemens AG and/or its affiliates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Disclaimer The information contained in the User Guide is written for the CF110 phone. Siemens reserves the right to make changes and improvements to the products and any of the features of the products described in this document without prior notice. The contents of the user guide are provided "AS IS". Except as required by applicable law, no warranties of any kind, either ex- press or implied, including, but not limited to, the implied warranties of merchantabili- ty and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Siemens re- serves the right to revise the user guide or withdraw it at any time without prior no- tice. Under no circumstances shall Siemens be responsible for any loss of data or in- come or any special, incidental, consequen- tial or indirect damages howsoever caused. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is pro- hibited. You must comply with all applica- ble export laws, restrictions and regulations of the United States foreign agencies or au- thorities, and may not export, or transfer for the purpose of re-e…

Text truncated - open the document above for the full version.

Siemens Communications, Inc. Siemens Communications, Inc. 16745 West Bernardo Drive Suite 120 San Diego, CA 92127 Tel. 858-521-3200 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 August 22, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Siemens Communications, Inc requests confidentiality for the following products: FCC ID Number Product Title/Model PWX – CF110 Tri -Band/CF110 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Technical Description Required for section 2.1003 (c) • Operational Description 5) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Siemens Communications, Inc trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Kevin Wolentarski Regulatory Engineer

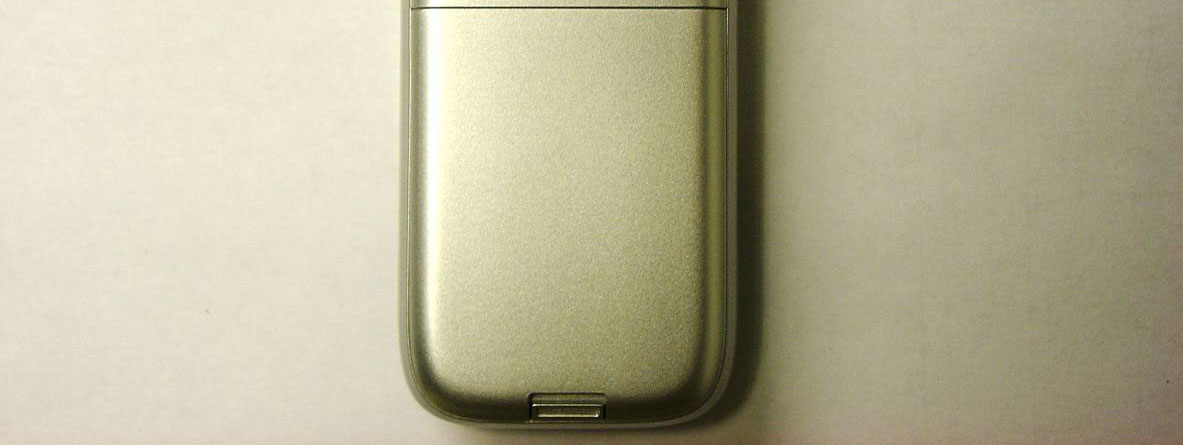

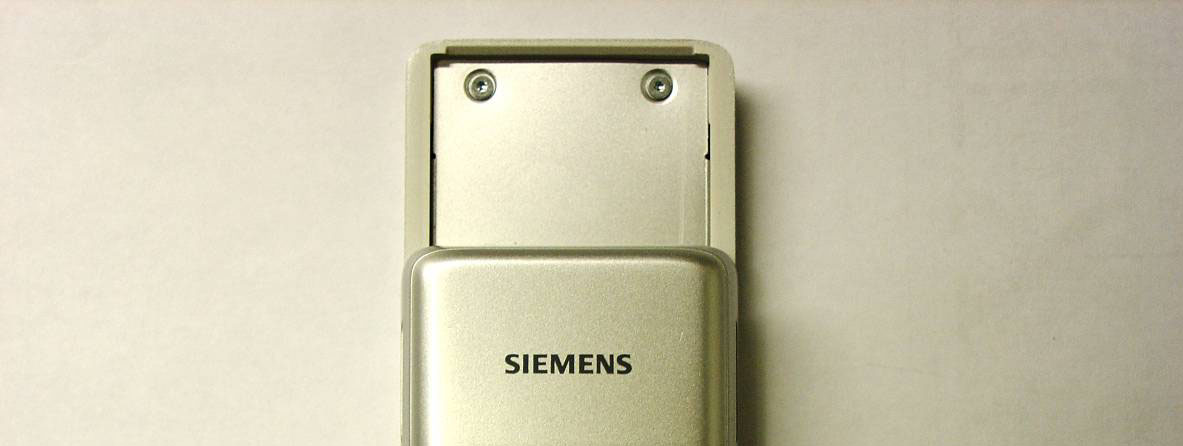

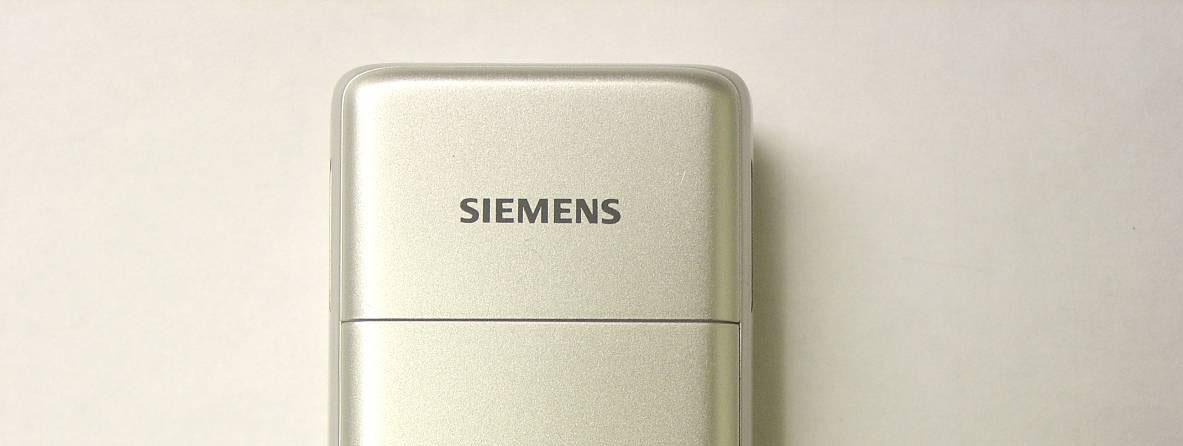

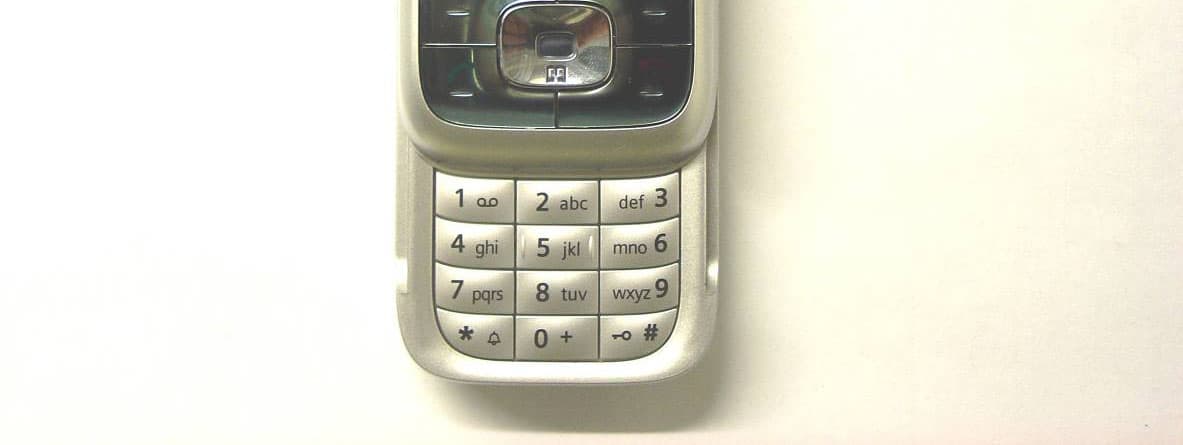

CF110 External Pictures Communications, Inc. Page:1 of 6 CF110 Front View (Slider Closed) CF110 External Pictures Communications, Inc. Page:2 of 6 CF110 Back View (Slider Closed) CF110 External Pictures Communications, Inc. Page:3 of 6 CF110 Side View (Slider Closed) CF110 External Pictures Communications, Inc. Page:4 of 6 CF110 Front View (Slider open) CF110 External Pictures Communications, Inc. Page:5 of 6 CF110 Back View (Slider open) CF110 External Pictures Communications, Inc. Page:6 of 6 CF110 Side View (Slider open)

Siemens CF110 IMEI Label Communications, Inc. Page:1 of 2 Siemens CF110 IMEI Label Communications, Inc. Page:2 of 2

CF110 Internal Pictures Communications, Inc. Page:1 of 11 CF110 Open Battery Cover (Final label: See extra exhibit) CF110 Internal Pictures Communications, Inc. Page:2 of 11 CF110 Disassembly Step 1 CF110 Internal Pictures Communications, Inc. Page:3 of 11 CF110 Internal Pictures Communications, Inc. Page:4 of 11 CF110 Disassembly Step 2 CF110 Internal Pictures Communications, Inc. Page:5 of 11 CF110 Disassembly Step 3 CF110 Internal Pictures Communications, Inc. Page:6 of 11 CF110 Disassembly Step 4 CF110 Internal Pictures Communications, Inc. Page:7 of 11 CF110 Disassembly Step 5 CF110 Internal Pictures Communications, Inc. Page:8 of 11 CF110 PCB Back View Shields Removed CF110 Internal Pictures Communications, Inc. Page:9 of 11 CF110 Back view BB (rep. Lid) CF110 Internal Pictures Communications, Inc. Page:10 of 11 CF110 Front view RF CF110 Internal Pictures Communications, Inc. Page:11 of 11 CF110 Antenna

DAT-P-152/98-01 Appendix for the Report Dosimetric Assessment of the Portable Device Siemens CF110 (FCC ID: PWX-CF110) According to the FCC Requirements Calibration Data August 24, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 1900_cal_data_2 .0.doc/08.01.200 5/CH D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego-CA 92127 DASY Test-Report, Siemens_6620_532_FCC_1900_Cal Data_CF110 dasy_report_fcc_ This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Siemens_6620_532_FCC_1900_SAR Plots_CF110 Page 1 of 30 Appendix for the Report Dosimetric Assessment of the Siemens CF110 (FCC ID: PWX-CF110) According to the FCC Requirements SAR Distribution Plots August 23, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Communication Inc. 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH SAR Report, Siemens_6620_532_FCC_1900_SAR Plots_CF110 Page 2 of 30 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD SLIDER UP.................................................................. 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD SLIDER DOWN........................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITHOUT ACCESSORY........................................ 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET....................................................... 17 5 SAR DISTRIBUTION PLOTS, PCS 1900 BODY, GPRS CLASS 8 WITH DATCABLE.................... 23 6 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 29 7 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 30 SAR Report, Siemens_6620_532_FCC_1900_SAR Plots_CF110 Page 3 of 30 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, PCS 1900 Head slider up Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 058bplm_1(Slider up).da4 DUT: Siemens Flamingo (Slider up); Type: CF110; Serial: 004400013590058 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Left/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.247 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = 0.039 dB Peak SAR (extrapolated) = 0.409 W/kg SAR(1 g) = 0.249 mW/g; SAR(10 g) = 0.140 mW/g Maximum value of SAR (measured) = 0.282 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.8 V/m; Power Drift = 0.039 dB Peak SAR (extrapolated) = 0.325 W/kg SAR(1 g) = 0.189 mW/g; SAR(10 g) = 0.113 mW/g Maximum value of SAR (measured) = 0.229 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (August 08, 2005; Ambient Temperature: 21.7∞ C; Liquid Temperature : 20.1∞ C). SAR Report, Siemens_6620_532_FCC_1900_SAR Plots_CF110 Page 4 of 30 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 058bplm_2(Slider up).da4 DUT: Siemens Flamingo (Slider up); Type: CF110; Serial: 004400013590058 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilted Left/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.232 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14.9 V/m; Power Drift = -0.080 dB Peak SAR (extrapolated) = 0.441 W/kg SAR(1 g) = 0.268 mW/g; SAR(10 g) = 0.146 mW/g Maximum value of SAR (measured) = 0.307 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (August 08, 2005; Ambient Temperature: 21.7∞ C; Liquid Temperature : 20.1∞ C). SAR Report, Siemens_6620_532_FCC_1900_SAR Plots_CF110 Page 5 of 30 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 058bprm_1(Slider up).da4 DUT: Siemens Flamingo (Slider up); Type: CF110; Serial: 004400013590058 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.46 mho/m; ε r = 39.6; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 17.03.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Right/Area Scan (6x9x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.281 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = -0.105 dB Peak SAR (extrapolated) = 0.514 W/kg SAR(1 g) = 0.317 mW/g; SAR(10 g) = 0.173 mW/g Maximum value of SAR (measured) = 0.350 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.5 V/m; Power Drift = -0.105 dB Peak SAR (extrapolated) = 0.248 W/kg SAR(1 g) = 0.177 mW/g; SAR(10 g) = 0.104 mW/g Maximum value of SAR (measured) = 0.200 mW/g Fig. 3: SAR distribution f…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Siemens_6620_532_FCC_1900_CF110 Page 1 of 40 Report Dosimetric Assessment of the Portable Device Siemens CF110 (FCC ID: PWX-CF110) According to the FCC Requirements August 19, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West bernado Drive, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.3.doc/22.07.2005/CH SAR Report, Siemens_6620_532_FCC_1900_CF110 Page 2 of 40 dasy_report_fcc_1900_4.3.doc/22.07.2005/CH Executive Summary The CF110 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 8. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with slider up and down. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens CF110 mobile phone (FCC ID: PWX-CF110) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • GSM without accessory, slider up and down (15 mm distance) • GSM with headset, slider up and down (15 mm distance) • GPRS (Class 8) with data cable, slider up and down (15 mm distance) prepared by: ........................................... reviewed by: ..................................... Alexander Rahn AndrÈ van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR Report, Siemens_6620_532_FCC_1900_CF110 Page 3 of 40 dasy_report_fcc_1900_4.3.doc/22.07.2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 18 8 APPENDIX....................................................................................................................................................... 20 8.1 ADMINISTRATIVE DATA............................................................................................................................ 20 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 20 8.3 TISSUE RECIPES...................................................................................................................................... 21 8.4 MATERIAL PARAMETERS......................................................................................................................... 21 8.5 SIMPLIFIED PERFORMANCE CHECKING............................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM FCC Test Report FCC Part 24 / RSS 133 FOR: TRI-BAND GSM MOBILE PHONE MODEL #: CF110 SIEMENS COMMUNICATIONS, INC. 16745 WEST BERNARDO DRIVE SUITE 120 SAN DIEGO, CALIFORNIA 92127 U.S.A FCC ID: PWX-CF110 IC ID: 267E-CF110 TEST REPORT #: EMC_1019_2005_FCC24 DATE: SEPTEMBER 07, 2005 Test Report #: EMC_1019_2005_FCC24 Date of Report: 2005-09-07 Page 2 of 57 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .................................................................................................................................... 3 2 ADMINISTRATIVE DATA............................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT......................... 4 2.2 IDENTIFICATION OF THE CLIENT................................................................................................... 4 2.3 IDENTIFICATION OF THE MANUFACTURER.................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................ 5 3.1 IDENTIFICATION OF THE EQUIPMENT UNDER TEST....................................................................... 5 4 SUBJECT OF INVESTIGATION..................................................................................................... 6 5 MEASUREMENTS............................................................................................................................. 7 5.1 RF POWER OUTPUT....................................................................................................................... 7 5.1.1 FCC 2.1046 Measurements required: RF power output....................................................... 7 5.1.2 Limits: ................................................................................................................................... 7 5.1.2.1 FCC 24.232 (b)(c) Power limits. ....................................................................................... 7 5.1.3 Conducted Output Power Measurement procedure:............................................................. 7 5.1.4 Results 1900 MHz band(conducted): .................................................................................... 8 5.1.5 Radiated Output Power Measurement procedure:................................................................ 9 5.1.6 EIRP Results 1900 MHz band:............................................................................................ 10 5.2 OCCUPIED BANDWIDTH/EMISSION BANDWIDTH........................................................................ 11 5.2.1 FCC 2.1049 Measurements required: Occupied bandwidth............................................... 11 5.2.2 Occupied / emission bandwidth measurement procedure:.................................................. 11 5.2.3 Occupied / Emission bandwidth results 1900 MHz band: .................................................. 12 5.3 FREQUENCY STABILITY............................................................................................................... 19 5.3.1 Limit .................................................................................................................................... 19 5.3.2 FREQUENCY STABILITY (PCS-1900) .............................................................................. 20 5.4 SPURIOUS EMISSIONS CONDUCTED............................................................................................. 21 5.4.1 FCC 2.1051 Measurements required: Spurious emissions at antenna terminals. .............. 21 5.4.2 Limits: ................................................................................................................................. 21 5.4.2.1 FCC 24.238 Emission limitations for Broadband PCS equipment. ............................... 21 5.4.3 Conducted out of band emissions measurement procedure: ............................................... 21 5.4.4 Bandedge Results PCS-1900 ............................................................................................... 23 5.4.5 Conducted Spurious Results PCS-1900 .............................................................................. 25 5.5 SPURIOUS EMISSIONS RADIATED................................................................................................ 29 5.5.1 FCC 2.1053 Measurements required: Field strength of spurious radiation....................... 29 5.5.2 Limits: ................................................................................................................................. 29 5.5.2.1 FCC 24.238 Emission limitations for Broadband PCS equipment. ............................... 29 5.5.3 Radiated out of band measurement procedure: .................................................................. 30 5.6 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 .................................................... 47 5.6.1 Receiver Spurious on EUT .................................................................................................. 48 5.7 AC POWERLINE CONDUCTED EMISSIONS § 15.107/207 ................................................. 53 5.7.1 Results EUT......................................................................................................................... 54 6 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS .........................…

Text truncated - open the document above for the full version.

Siemens Communications, Inc. CF76 - Conducted Output Power Contents 1 Objective and Method..............................................................................3 2 Device under test......................................................................................3 3 Measurement Set-up................................................................................3 4 Test Result................................................................................................5 Annex 1 Calibration Certificate.....................................................................7 Page 2 / 7 Siemens Communications, Inc. CF76 - Conducted Output Power 1 Objective and Method FCC approval for mobile phone requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices use special test fixtures with 50 Ohm connection suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Device under test Mobile Phone: Siemens CF76 (GSM850/PCN1800/PCS1900) Frequency Range GSM 850: 824– 894 MHz Frequency Range GSM 1800: 1710 – 1880 MHz Frequency Range GSM 1900: 1850 – 1990 MHz Siemens Part Number: S30880-S6090-* There are 10 devices has been tested listed in “Chapter 4 Test Result”. 3 Measurement Set-up Figure 1: Block Diagram of set-up for conducted power measurement Base Station Simulator DUT Special Adapter Base Station Simulator CMU 200 Serial Number 105851 Software Version Base 3.61 / GSM 3.61 Calibration Certification Annex 1 Test Voltage: 4.0 V Temperature: Room Temperature Page 3 / 7 Siemens Communications, Inc. CF76 - Conducted Output Power Figure 2: Set-up for conducted power measurement Page 4 / 7 Siemens Communications, Inc. CF76 - Conducted Output Power 4 Test Result Conducted Output Power (GSM850 Band) EUTs Average Power during burst at phone connector (dBm) CF76 IMEI Ch. 128 824.2 MHz Ch. 190 836.6 MHz Ch. 251 848.8 MHz FCC Emission Sample #1 004400014518219 31.6 31.5 31.5 FCC Emission Sample #2 004400014517500 31.6 31.4 31.4 FCC Emission Sample #3 004400014517179 31.6 31.5 31.5 FCC Emission Sample #4 004400014517153 31.6 31.5 31.5 FCC Emission Sample #5 004400014518318 31.6 31.5 31.6 FCC Emission Sample #6 004400014516874 31.6 31.4 31.5 FCC Emission Sample #7 004400014516965 31.6 31.5 31.5 FCC Emission…
