PWX-CF75GSM 900/1800/1900 Mobile Phone

right page (1) of CF75 FCC us-en (06.06.2005, 11:15) © Siemens AG 2003, C:\Siemens\DTP-Satz\Produkte\CF75_ Adonis_1\Output\CF75_FCC_us-en_050606_te\S_ADONIS_IVZ.fm Table of Contents 1 VAR Language: am; VAR issue date: 050524 Legal notices ...................................... 2 Safety precautions ............................. 4 Telephone list ..................................... 9 Display symbols ................................ 11 Getting started ................................. 12 Switch on/off, PIN ............................. 13 General instructions ......................... 14 Standard features ............................. 15 Security ............................................ 16 Text entry ......................................... 17 Calling .............................................. 19 Default book ..................................... 20 Address book .................................... 20 Phonebook ....................................... 21 Call records ....................................... 22 Dur./charges ..................................... 22 Camera ............................................. 23 Message list ...................................... 24 SMS ................................................... 24 MMS ................................................. 25 E-mail ............................................... 27 Voice message/CB ............................ 28 Surf & fun ......................................... 28 Setup ................................................ 30 Fast access key ................................. 36 Organizer ......................................... 37 Extras ............................................... 38 My stuff ............................................ 41 Mobile Phone Manager ................... 42 Accessories ...................................... 42 Customer Care ................................. 43 Care and maintenance ..................... 44 Product data ..................................... 45 SAR (CF75) ....................................... 46 U.S. FDA ........................................... 48 FCC/Industry Canada Notice ............ 52 Ten Driving Safety Tips .................... 53 Intellectual property ........................ 55 End user license agreement ............ 56 Menu tree ........................................ 59 Index ................................................ 61 Table of Contents © Siemens AG 2003, C:\Siemens\DTP-Satz\ Produkte\CF75_Adonis_1\Output\CF75_FCC_us- left page (2) of CF75 FCC us-en, (06.06.2005, 11:15) Legal notices 2 VAR Language: am; VAR issue date: 050524 Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS net- works operating on the GSM 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2005 Siemens Information and Communication Mobile, LLC. All rights reserved. Siemens and the CF75 model phone are trademarks or registered trademarks of Siemens AG and/or its affiliates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Disclaimer The information contained in the User Guide is written for the CF75 phone. Siemens reserves the right to make changes and improvements to the products and any of the features of the products described in this document without prior notice. The contents of the user guide are provided "AS IS". Except as required by applicable law, no warranties of any kind, either express or im- plied, including, but not limited to, the im- plied warranties of merchantability and fit- ness for a particular purpose, are made in relation to the accuracy, reliability or con- tents of this document. Siemens reserves the right to revise the user guide or with- draw it at any time without prior notice. Un- der no circumstances shall Siemens be re- sponsible for any loss of data or income or any special, incidental, consequential or in- direct damages howsoever caused. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is pro- hibited. You must comply with all applica- ble export laws, restrictions and regulations of the United States foreign agencies or au- thorities, and may not export, or transfer for the purpose of re-export, the mobile phone or any part of the phone in violation of any applicable restrictions, laws or regu- lations, or without all necessary approvals. Network Services A number of features included in this guide are called Network Services. They are special services provided by wireless service providers. In order to use any of these Network Services, you must sub- scribe to these service(s) from your ser- vice provider and obtain instructions for their use. Some of these Network Servic- es may not be available when roaming on a network other than your home network. Standby and Talk Time Information The mobile phone incorporates features that are new to the mobile phone world. These may include color displays and lighting, graphic games, music reproduc- tion and browsing the Internet. The way you use the display and the features will affect the performance of the battery and how long it lasts between charge cycles. The quoted standby times and talk times show the minimum and maximum per- formance that can be expected from the right page (3) of CF75 FCC us-en, (06.06.2005, 11:15) © Siemens AG 2003, C:\Siemens\DTP-Satz\Produkte\CF75_Ad onis_1\Output\CF75_FCC_us-en_050606_te\STD_FCC_LegalNotices.fm 3 Legal notices VAR Language: am; VAR issue date: 050524 battery under normal network conditions and…

Text truncated - open the document above for the full version.

Siemens Communications, Inc. Siemens Communications, Inc. 16745 West Bernardo Drive Suite 120 San Diego, CA 92127 Tel. 858-521-3200 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 June 10, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Siemens Communications, Inc requests confidentiality for the following products: FCC ID Number Product Title/Model PWX – CF75 Tri -Band/CF75 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Technical Description Required for section 2.1003 (c) • Operational Description 5) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Siemens Communications, Inc trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Kevin Wolentarski Regulatory Engineer

Siemens Communications, Inc. Siemens Communications, Inc. 16745 West Bernardo Drive Suite 120 San Diego, CA 92127 Tel. 858-521-3200 June 10, 2005 Letter of Authorization Re: Application for Siemens mobile device CF75 To whom it may concern, We the undersigned, hereby authorize CETECOM Inc. (411 Dixon Landing Road, Milpitas, CA 95035, Tel.408 586 6214) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CETECOM Inc., on our behalf shall have the same effect as acts of our own. The authorization from Siemens Communications, Inc. is valid 365 days from the date of this letter. Sincerely, Kevin Wolentarski Regulatory Engineer

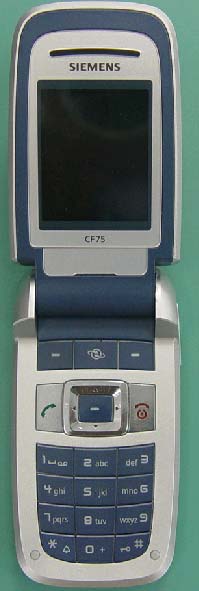

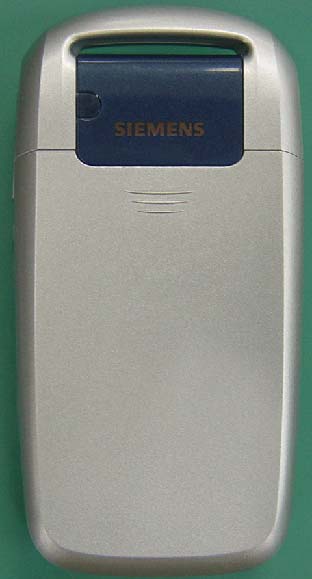

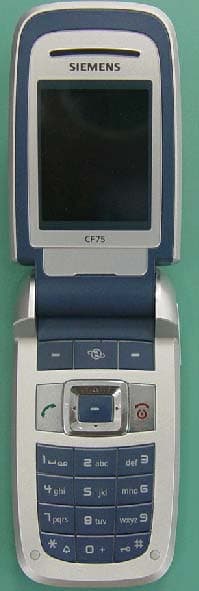

Siemens Communications, Inc. Front View Rear View CF75 Clamshell Opened Confidential Page 1 of 3 Siemens Communications, Inc. CF75 Side View Confidential Page 2 of 3 Siemens Communications, Inc. CF75 Clamshell Closed Confidential Page 3 of 3

27CC Z30880-Z9999-Z27-* IMEI LPT1 300DPI Labelname Partno. baselabel Description Resolution T y p e Printer STANDARD / NO BAND / CE 0682 / NO BITMAPS / NO SPECIAL Add. information (# INFO 4 #) FCC ID: PWX-CF75 Add.information (# INFO 5 #) IC:267E-CF75 Produkttyp (# INFO 2 #) CF75 Devicepartnumber S30XXX-SXXXX-XXXX-1 CE_0682_SYMBOL BMP SIEMENS BMP Datecode assignment by PICS IMEI as barcode assignment by PICS IMEI as plain writing assignment by PICS Made in text depending on product location BOM-108190-01-000 19/05/2005 1 Page 1 of LabelDocument V7.03 22/04/2005 Name Wang_Zhi Documentnumber

Siemens Communications, Inc. CF75 Open Battery Cover Confidential Page 1 of 6 Siemens Communications, Inc. CF75 Disassembly Step 1 Confidential Page 2 of 6 Siemens Communications, Inc. CF75 Disassembly Step 2 Confidential Page 3 of 6 Siemens Communications, Inc. CF75 Disassembly Step 3 Confidential Page 4 of 6 Siemens Communications, Inc. CF75 Disassembly Step 4 Confidential Page 5 of 6 Siemens Communications, Inc. CF75 Disassembly Step 5 Confidential Page 6 of 6

DAT-P-152/98-01 SAR Report, Roke_6620_510_FCC_1900_Caldata_CF75_2 Appendix for the Report Dosimetric Assessment of the Siemens CF75 (FCC ID: PWX-CF75) According to the FCC Requirements Calibration Data June 10, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Roke Manor Research Limited Romsey Hampshire UK, SO51 0ZN The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Roke_6620_510_FCC_1900_SAR_Plots_CF75 Page 1 of 17 Appendix for the Report Dosimetric Assessment of the Siemens CF75 (FCC ID: PWX-CF75) According to the FCC Requirements SAR Distribution Plots May 25, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Roke Manor Research Limited Romsey Hampshire UK SO51 0ZN The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo SAR Report, Roke_6620_510_FCC_1900_SAR_Plots_CF75 Page 2 of 17 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WITHOUT FLASH..................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WITH FLASH.............................................................. 9 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WORN (GAP = 15 MM)........................................... 13 4 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 16 5 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 17 SAR Report, Roke_6620_510_FCC_1900_SAR_Plots_CF75 Page 3 of 17 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo 1 SAR Distribution Plots, PCS 1900 head, without flash Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 085yplm_1.da4 DUT: Siemens; Type: CF75; Serial: 004400008886085 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.19, 8.19, 8.19); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Left/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.764 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.86 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.955 W/kg SAR(1 g) = 0.672 mW/g; SAR(10 g) = 0.364 mW/g Maximum value of SAR (measured) = 0.762 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.86 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 0.948 W/kg SAR(1 g) = 0.669 mW/g; SAR(10 g) = 0.377 mW/g Maximum value of SAR (measured) = 0.757 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (05.23.2005; Ambient Temperature: 21.8° C; Liquid Temperature: 21.0° C). SAR Report, Roke_6620_510_FCC_1900_SAR_Plots_CF75 Page 4 of 17 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 085yplm_2.da4 DUT: Siemens; Type: CF75; Serial: 004400008886085 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.19, 8.19, 8.19); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Tilted Left/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.476 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.0 V/m; Power Drift = -0.132 dB Peak SAR (extrapolated) = 0.595 W/kg SAR(1 g) = 0.453 mW/g; SAR(10 g) = 0.281 mW/g Maximum value of SAR (measured) = 0.492 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (05.23.2005; Ambient Temperature: 21.7° C; Liquid Temperature: 21.0° C). SAR Report, Roke_6620_510_FCC_1900_SAR_Plots_CF75 Page 5 of 17 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 085yprm_1.da4 DUT: Siemens; Type: CF75; Serial: 004400008886085 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(8.19, 8.19, 8.19); Calibrated: 27.08.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.07.2004 - Phantom: SAM Glycol 1340; Type: QD 000 P40 CB; Serial: TP-1340 - Measurement SW: DASY4, V4.5 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 146 Cheek Right/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.947 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.24 V/m; Power Drift = -0.059 dB Peak SAR (extrapolated) = 1.80 W/kg SAR(1 g) = 0.949 mW/g; SAR(10 g) = 0.515 mW/g Maximum value of SAR (measured) = 1.06 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (05.23.2005; Ambient Temperature: 21.8° C; Liquid Temperature : 21.0° C). SAR Report, Roke_6620_510_FCC_1900_SAR_Plots_CF75 Page 6 of 17 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH, DASY Yellow (II); File Name: 085yprm_2.da4 DUT: Siemens; Type: CF75; Serial: 004400008886085 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Right Sect…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Roke_6620_510_FCC_1900_CF75_2 Page 1 of 37 Report Dosimetric Assessment of the Portable Device Siemens CF75 (FCC ID: PWX-CF75) According to the FCC Requirements June 27, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Roke Manor Research Limited Romsey Hampshire UK SO51 0ZN The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_ r eport_fcc_1900_4.1.doc/07.01..2005/CH SAR Report, Roke_6620_510_FCC_1900_CF75_2 Page 2 of 37 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Executive Summary The CF75 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 10. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with open flip. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens CF75 mobile phone (FCC ID: PWX-CF75) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: • Body worn with the following accessories and 15 mm distance: GSM with headset GPRS (Class 10) with data cable prepared by: ....................................... reviewed by: ........................................ Alexander Rahn Dipl.- Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, Roke_6620_510_FCC_1900_CF75_2 Page 3 of 37 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION ..........................................................................................................4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA.............................................4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES..........4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................5 2.3 SAR LIMIT.....................................................................................................................................5 3 THE FCC MEASUREMENT PROCEDURE .........................................................................................6 3.1 GENERAL REQUIREMENTS..............................................................................................................6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR................................................................................6 4 BODY-WORN CONFIGURATIONS .....................................................................................................9 4.1 POC (PTT) POSITION.....................................................................................................................9 4.2 PHANTOM REQUIREMENTS............................................................................................................10 4.3 TEST TO BE PERFORMED..............................................................................................................10 5 THE MEASUREMENT SYSTEM........................................................................................................10 5.1 PHANTOM....................................................................................................................................12 5.2 PROBE.........................................................................................................................................12 5.3 MEASUREMENT PROCEDURE........................................................................................................13 5.4 UNCERTAINTY ASSESSMENT.........................................................................................................14 6 SAR RESULTS...................................................................................................................................15 7 EVALUATION.....................................................................................................................................17 8 APPENDIX..........................................................................................................................................19 8.1 ADMINISTRATIVE DATA..................................................................................................................19 8.2 DEVICE UNDER TEST AND TEST CONDITIONS.................................................................................19 8.3 TISSUE RECIPES..........................................................................................................................20 8.4 MATERIAL PARAMETERS...............................................................................................................20 8.5 SIMPLIFIED PERFORMANCE CHECKING..........................................................................................21 8.6 ENVIRONMENT..............................................................................................................................25 8.7 TEST EQUIPMENT.........................................................................................................................25 8.8 CERTIFICATES OF CONFORMITY.............................................................…

Text truncated - open the document above for the full version.

CF75 - Conducted Output Power Page 2 / 6 Contents 1 Objective and Method ..............................................................................3 2 Device under test......................................................................................3 3 Measurement Set-up ................................................................................3 4 Test Result ................................................................................................5 Annex 1 Calibration Certificate.....................................................................6 CF75 - Conducted Output Power Page 3 / 6 1 Objective and Method FCC approval for mobile phone requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices use special test fixtures with 50 Ohm connection suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Device under test Mobile Phone: Siemens CF75 (GSM900/PCN1800/PCS1900) Frequency Range GSM 900: 880 – 915 MHz Frequency Range GSM 1800: 1710 – 1785 MHz Frequency Range GSM 1900: 1850 – 1990 MHz Siemens Part Number: S30880-S6010-* There are 5 devices has been tested listed in “Chapter 4 Test Result”. 3 Measurement Set-up Figure 1: Block Diagram of set-up for conducted power measurement Base Station Simulator CMU 200 Serial Number 106672 Software Version Base 3.61 / GSM 3.61 Calibration Certification Annex 1 Test Voltage: 4.0 V Temperature: Room Temperature Base Station Simulator DUT Special Adapter CF75 - Conducted Output Power Page 4 / 6 Figure 2: Set-up for conducted power measurement CF75 - Conducted Output Power Page 5 / 6 4 Test Result Conducted Output Power (PCS1900 Band) EUTs Average Power during burst at phone connector (dBm) CF75 IMEI Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz SAR Sample #1 00440000888608528.9 29.0 29.0 SAR Sample #2 00440000888628328.9 28.9 28.9 SAR Sample #3 00440000890983829.0 29.0 29.0 FCC Emission Sample #4 00440000888579828.9 28.9 29.0 FCC Emission Sample #5 00440000888589728.9 29.0 29.0 FCC Emission Sample #6 00440000888590529.0 29.0 29.0 CF75 - Conducted Output Power Page 6 / 6 Annex 1 Calibration Certificate

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_956FCC-24_2005_CF75_rev1 FCC Part 24 / RSS 133 FCC ID: PWX-CF75 IC ID: 267E-CF75 CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 2 (51) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 3 (51) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-06-08 Date of test : 2005-06-08/09 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : CF75 Model No. : CF75 Description : GSM 1900 Mobile Phone FCC-ID : PWX-CF75 IC ID : 267E-CF75 Additional information Test Sample for GSM : IMEI: 00-4400-00-888589-7 Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : Patch Antenna Power supply : Battery or Charger (AC Adaptor) Output power : 29.44dBm (879mW) max. EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 Issue 3 June 2005 CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 4 (51) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2005-06-20 EMC & Radio Lothar Schmidt (EMC Manager) Date Section Name Signature Responsible for test report and project leader: 2005-06-20 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 5 (51) 2.2 Test report TEST REPORT Test report no.: EMC_956FCC-24_2005_CF75 CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 6 (51) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 10 OCCUPIED BANDWIDTH §2.1049(h)(i) 12 EMISSION BANDWIDTH §24.238(b) 16 EMISSIONS LIMITS §24.238 20 BAND EDGE COMPLIANCE §24.238(b) 35 RECEIVER RADIATED EMISSIONS § 15.209 37 CONDUCTED SPURIOUS EMISSIONS 43 CONDUCTED EMISSIONS § 15.107/207 47 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 49 BLOCK DIAGRAMS 50 CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 7 (51) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 8 (51) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to attached document: “CF75_Conducted_Power” (Page 5, section 4, Siemens CF75, “IMEI: 004400008909838”) Frequency (MHz) Burst Peak Power (dBm) 1850.2 29.0 1880.0 29.0 1909.8 29.0 CETECOM Inc. Test report no.: EMC_956FCC-24_2005_CF75_rev1 Issue date: 2005-06-20 Page 9 (51) Radiated: EIRP Measurements Limits: Power Step Burst Peak EIRP (dBm) 0 ≤33dBm (1W…
