PWX-CL75Tri-Band GSM/GPRS Cellular Phone

© Siemens AG 2003, D:\Werkstatt\CL75 am fcc\S_WEGA_TOC.fm 1 VAR Language: en; VAR issue date: 050210 left page (1) of S_Wega CL75 am, A31008-H1550-A40-1-7619 (10.03.2005, 15:16) Legal notices .............................. 2 Safety precautions ..................... 4 Phone Overview ......................... 6 Display symbols ......................... 8 Getting started ........................... 9 General instructions ................ 13 Standard functions .................. 15 Security .................................... 16 Text entry ................................. 18 Calling ...................................... 20 Contacts ................................... 22 Phonebook ............................... 24 Call records .............................. 26 Internet .................................... 28 Camera ..................................... 30 Message ................................... 32 SMS .......................................... 33 MMS ......................................... 35 Voice mailbox/CB ..................... 40 Organiser .................................. 41 Games & App ............................ 43 Ringtones ................................. 43 Alarm clock ............................... 43 Extra ......................................... 44 Settings .................................... 46 Fast dial .................................... 55 My Stuff .................................... 57 Customer Care .......................... 58 Care and maintenance ............. 60 Product Data ............................. 61 U.S. FDA .................................... 63 FCC/Industry Canada Notice ..... 69 Ten driving safety tips .............. 70 Intellectual property ................ 72 End user license agreement ..... 73 SAR (CL75) ................................ 78 Menu tree ................................. 80 Index ......................................... 86 © Siemens AG 2003, D:\Werkstatt\CL75 am fcc\LegalNotices.fm Legal notices2 VAR Language: en; VAR issue date: 050210 left page (2) of S_Wega CL75 am, A31008-H1550-A40-1-7619 (10.03.2005, 14:32) Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS networks operating on the GSM 850, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2004 Siemens Information and Communication Mobile, LLC. All rights reserved. Siemens and the CL75 model phone are trademarks or registered trademarks of Siemens AG and/or its affiliates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trademarks and logos are trade- marks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and products mentioned herein may be the trademarks of their respective owners. Disclaimer The information contained in the User Guide is written for the CL75 phone. Siemens reserves the right to make changes and improvements to the products and any of the features of the products described in this document without prior notice. The contents of the user guide are provided "AS IS". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fit- ness for a particular purpose, are made in relation to the accuracy, reliability or con- tents of this document. Siemens reserves the right to revise the user guide or withdraw it at any time without prior notice. Under no circumstances shall Siemens be responsible for any loss of data or income or any special, incidental, consequential or indirect dam- ages howsoever caused. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is pro- hibited. You must comply with all applicable export laws, restrictions and regulations of the United States foreign agencies or authorities, and may not export, or transfer for the purpose of re-export, the mobile phone or any part of the phone in violation of any applicable restrictions, laws or regula- tions, or without all necessary approvals. Network Services A number of features included in this guide are called Network Services. They are spe- cial services provided by wireless service providers. In order to use any of these Net- work Services, you must subscribe to these service(s) from your service provider and obtain instructions for their use. Some of these Network Services may not be avail- able when roaming on a network other than your home network. © Siemens AG 2003, D:\Werkstatt\CL75 am fcc\LegalNotices.fm 3Legal notices VAR Language: en; VAR issue date: 050210 left page (3) of S_Wega CL75 am, A31008-H1550-A40-1-7619 (10.03.2005, 14:32) Standby and Talk Time Information The mobile phone incorporates features that are new to the mobile phone world. These may include color displays and lighting, graphic games, music reproduction and browsing the Internet. The way you use the display and the features will affect the perfor- mance of the battery and how long it lasts between charge cycles. The quoted standby times and talk times show the minimum and maximum performance that can be expected from the battery under normal network con- ditions and with the default settings as set by the factory. However, playing games (partic- ularly with the backlight continuously switched on) and listening to music will shorten the time available for standby and to make and receive telephone calls. Operation times also vary depending on network condi- tions, SIM settings, charging and battery condition, how you use your phone and other factors. Memory The mobile phone contains an internal mem- ory device that stores the software required to operate the mobile phone, communicate with the GSM/GPRS network and provi…

Text truncated - open the document above for the full version.

Mike Kuo From: [email protected] on behalf of [email protected] Sent: Wednesday, April 06, 2005 8:02 PM To: Mike Kuo Subject: FW: Siemens Communications, Inc./Siemens Mobile LLC, FCC ID: PWX-CL75, Assessment NO.: AN05T4676, Notice#1 Attachments: CL75 OpDes revised 0407.pdf; CL75 RF TestRpt revised 0407.pdf; CL75 UserMan revised 0407.pdf; CL75 SAR TestRpt revised 0407.pdf 4/8/2005 Please refer to below for our reply. -----Original Message----- From: Compliance Certification Services [mailto:[email protected]] Sent: Monday, April 04, 2005 2:04 PM To: Mike Kuo Subject: Siemens Communications, Inc./Siemens Mobile LLC, FCC ID: PWX-CL75, Assessment NO.: AN05T4676, Notice#1 Question #1: In the theory of operation, the PA is capable of supporting GPRS Class 12 but in the tune up procedure and test report, only GPRS Class 10 was mentioned and tested. Please inform what is the GPRS class that this phone is capable of operating. Ans: After confirm with client, GPRS Class shoule be "10". Pleaser refer the revised Theory of Operation. Question #2: Please inform what is the exact operating frequency range of this device. Ans: The operating frequency range is 1850.20~1909.80MHz. Question #3: In the TCB application form, the output power listed is .912W. Please note for Part 24 device with integral antenna, the output power is EIRP. Ans: The one listed in TCB application form is the max. conducted output power. Its EIRP value of GSM is 32.06dBm , and GPRS is 31.9dBm Question #4: Page 3 of Part 24 test report, EIA/TIA 603 version is out dated. Please make necessary correction. "Mike Kuo" <[email protected]> 2005/04/05 05:08 AM <[email protected]> <[email protected]> Ans: Pleaser refer the RF report as below. Question #5: Page 4 of Part 24 test report, the transmitting power is indicated as 29.6dBm. Is it RF conducted or ERP ? Ans: Yes, it 's RF conducted value. Question #6: What is the GSM class of this phone ? Ans: Ths GSM class is B class. Question #7: Page 3 and 4 of SAR test report, the modulation type is listed as TDMA but this is GSM phone based upon the Part 24 test report and theory of operation. Please explain. Ans: It's typo and has been revised as attached revised SAR report. Question #8:Please explain the differences in RF conducted average power measured in Part 24 and in SAR. The highest RF conducted average output power is 29.6dBm but in the SAR test report, 31.14dBm was measured. Ans: It was caused by deviation of different test equipment. Power meter was used during RF testing and Agilent 8960 Series 10 was used during SAR test. Question #9:Please explain the test position used for page 26 and page 27 for body worn operation. Is this device designed to be used as held to face operation ? If it is , then head liquid shall be used with flat phantom to simulate held to face operation. Ans: After double checking, the EUT doesn't has speaker phone function and can't be operated with held to face position. Question #10: In the user manual, there are two separation distance are mentioned, one is 2.2 cm and 1.5 cm. Please explain in which conditions that both separation distance will be applied. Ans: The correct is 1.5cm, please refer the user manual as below. Best Regards Mike Kuo The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. 4/8/2005

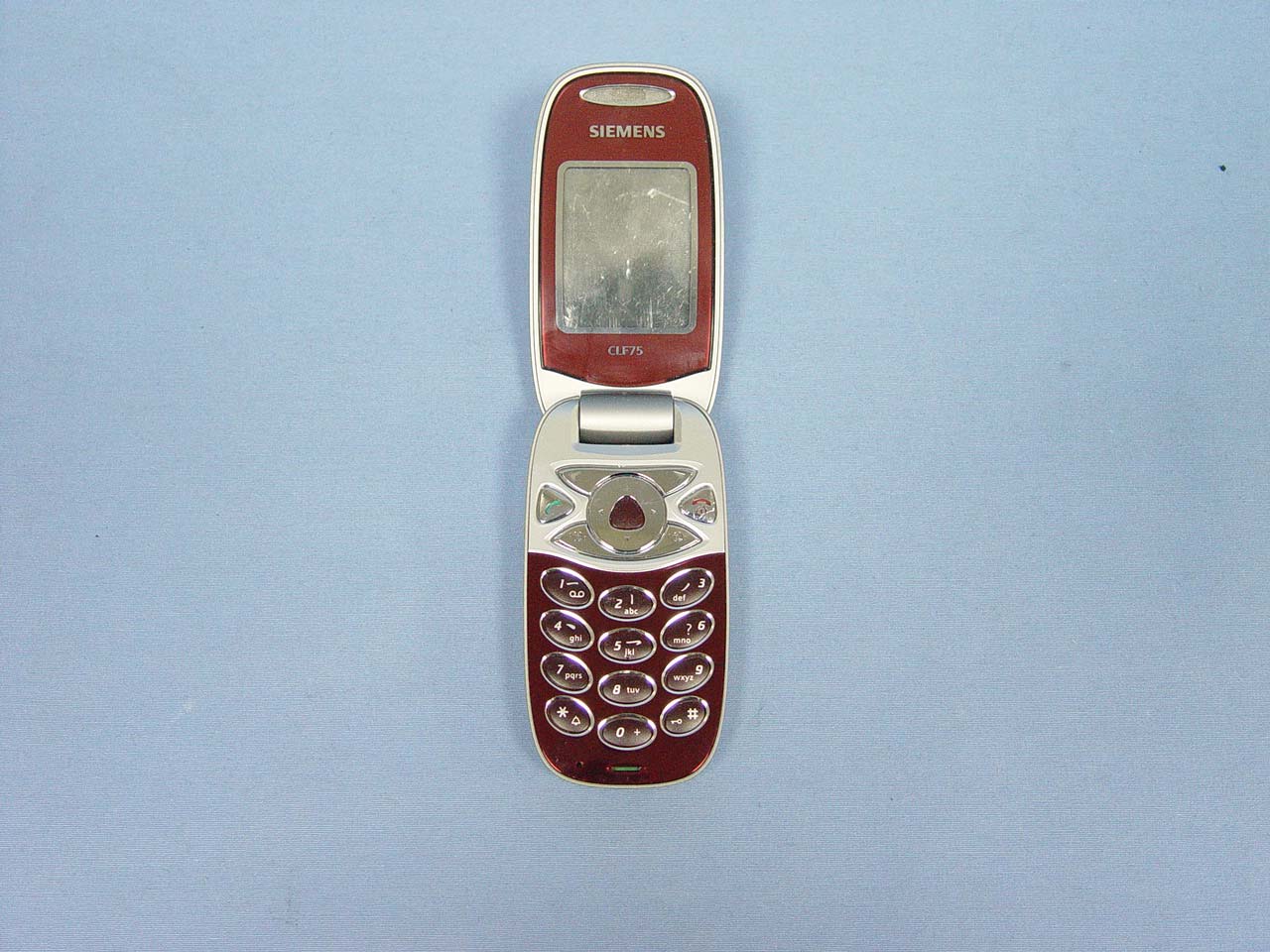

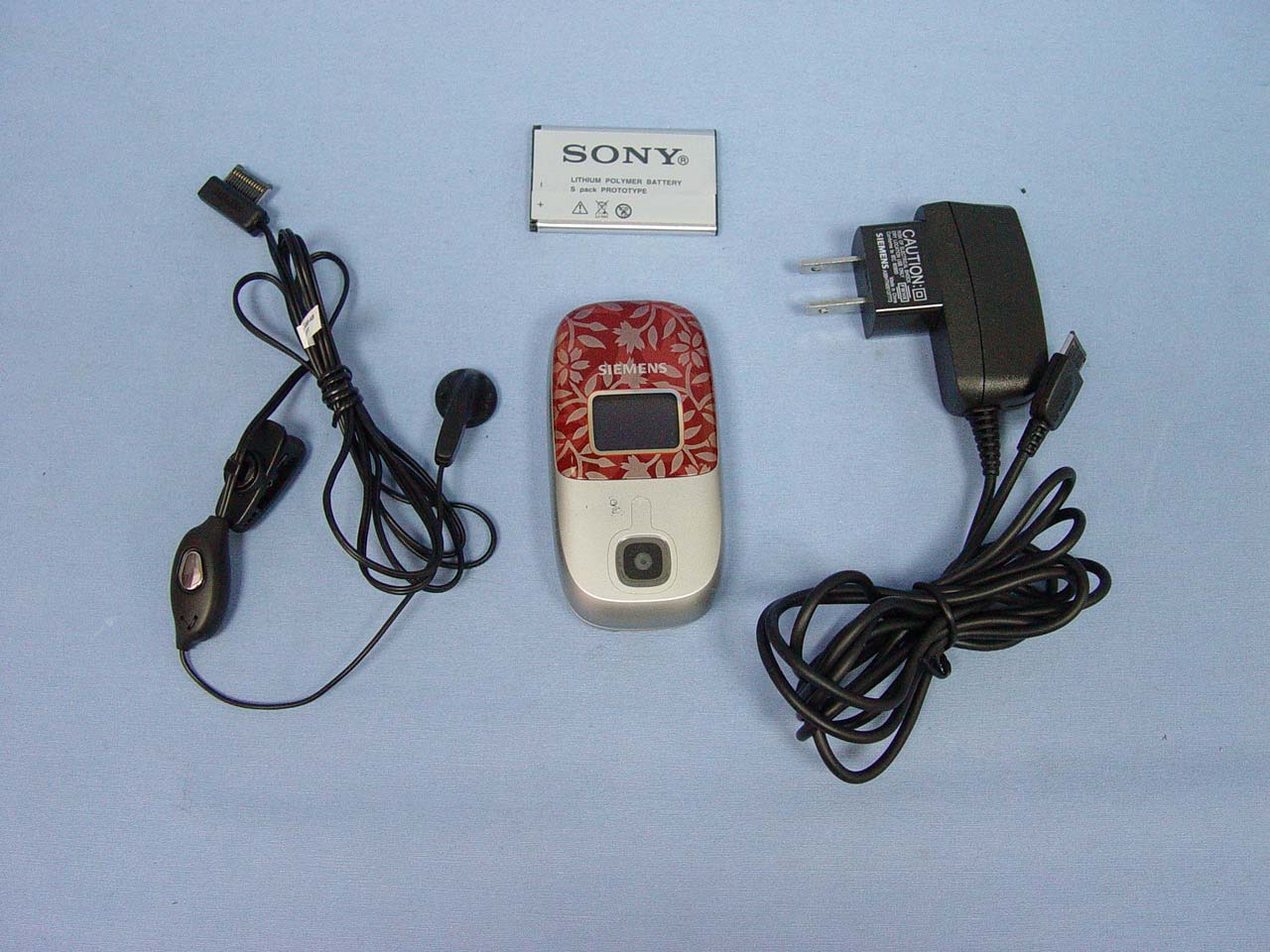

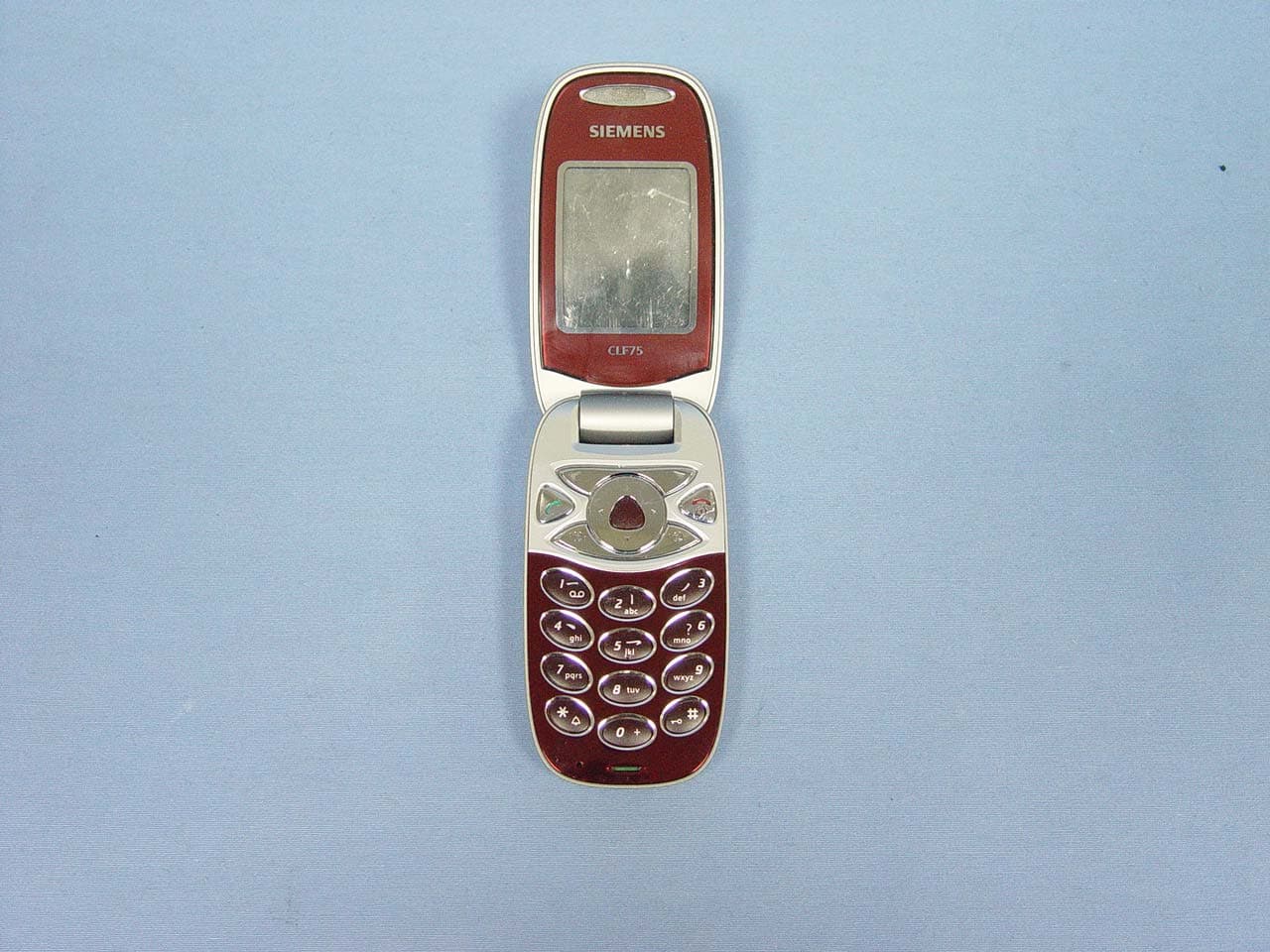

Compliance Certification Services Inc. Report No: 50218006 Date of Issue: March 3, 2005 Page 1 Total Page: 7 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50218006 Date of Issue: March 3, 2005 Page 2 Rev.00 Compliance Certification Services Inc. Report No: 50218006 Date of Issue: March 3, 2005 Page 3 Rev.00

Date 04.11.2003MOBILE PHONE BNR Name ButtermannIMEI-LABEL/M65 PD HW4 KLF 1 04.11.03 Bu LETTERING PLAN Version Memorandum Date Token SIEMENS AG DIS 48649 BLATT 1 VON 1 A24850-V1-A4-2 VORSTD.DOC White label with black lettering S30880-SXXXX-XXXX-1 XXXXXXXX SSSSSS C Made xx xxxxxxxxx 3) 1)2) 4) 5) 6) 7) 8) 9) M65 YY FCC ID: PWX-M65 IC: 10) XXXXXXXX Typ-Approval Code TAC 10) SSSSSS Current serial number (6 digits), Assigned by PICS 10) C CHECK DIGIT 15. digit space between TAC, serial no. and 15.digit Ink ribbon: TTR-Band Ricoh 110-C Font: Title blocks concentric 1) Corporate logo: 1.5 SN 66324 2) Product name: Internal font B, size 3 3) Made xx xxxxxxx Internal font A, size 4 / Depending on production location 4) Code of date: Internal font D, size 4 e.g. F3  March └─1995 5) Code number: Internal font D, size 4 Corresponding to the number of the transceiver unit part list 6) CE - indentification: Height: 5mm 7) Barcode IMEI-no.: Code: 128 Size 2 Ratio: 3.0 Height: 3mm Typ 128, table C and B Characteristic: IMEI-No. has 15 digits Digit 1-14 is generated as Barcode with table C. Digit 15 is printed with table B. 8) IMEI-no. (plain writing): Internal font D, size 4, space between TAC,serial no. and 15.digit 9) Canada IC and US FCC: Internal font B, size 3 10) Document for IMEI-no. allocation: DIS - 58476-* BOM 000 xx Valid is the highest level in the system CL75 PWX-CL75 267E-CL75

Compliance Certification Services Inc. Report No: 50218006 Date of Issue: March 3, 2005 Page 4 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50203002 Date of Issue: February 15, 2005 Page 5 Rev.00 Compliance Certification Services Inc. Report No: 50203002 Date of Issue: February 15, 2005 Page 6 Rev.00 Compliance Certification Services Inc. Report No: 50203002 Date of Issue: February 15, 2005 Page 7 Rev.00

03/19/2004 1 Antenna Specification 1.1 Frequency Bands EGSM 880~960 MHz DCS 1710~1880 MHz PCS 1850~1990 MHz 1.2 Polarization Linear polarization 1.3 Antenna Type Embedded antenna 1.7 Maximum antenna gain VU1 GAIN Open Close GSM900 0 -2 DCS1800 1 -2 PCS1900 1 -2

Compliance Certification Services Inc. Report No: 50218006-SF FCC ID: PWX-CL75 Date of Issue: Mar. 01, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Tri-band mobile phone Model: CL75 Trade Name: Siemens Issued to SIEMENS Limited 8F, No. 19-13, Sanchoung Rd., Nan Gang District, Taipei, 115 Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Kung 6 Rd, Wu-Ku Hsiang, Wu-Ku Industrial District, Taipei Hsien, (248) Taiwan. TEL: 886-2-2299-9720 FAX: 886-2-2299-9721 Compliance Certification Services Inc. Report No: 50218006-SF Date of Issue: Mar. 01, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ........................................................3 2. EUT DESCRIPTIONS........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ........................5 4. DOSIMETRIC ASSESSMENT SETUP...........................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................6 4.2 SYSTEM COMPONENTS............................................................................................................7 5. EVALUATION PROCEDURES.......................................................................................................9 6. MEASUREMENT UNCERTAINTY..............................................................................................13 7. EXPOSURE LIMIT .........................................................................................................................14 8. EUT ARRANGEMENT ...................................................................................................................15 8.1 ANTHROPOMORPHIC HEAD PHANTOM.............................................................................15 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................16 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................17 9. MEASUREMENT RESULTS .........................................................................................................18 9.1 SYSTEM PERFORMANCE CHECK .........................................................................................18 9.2 TEST LIQUIDS CONFIRMATION............................................................................................20 9.3 EUT TUNE-UP PROCEDURES .................................................................................................21 9.4 SAR MEASUREMENT RESULTS ............................................................................................22 10. EUT PHOTOS ..................................................................................................................................28 11. EQUIPMENT LIST & CALIBRATION STATUS .......................................................................29 12. FACILITIES .....................................................................................................................................30 13. REFERENCES .................................................................................................................................30 14. ATTACHMENTS .............................................................................................................................31 Compliance Certification Services Inc. Report No: 50218006-SF Date of Issue: Mar. 01, 2005 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) DATES OF TEST: Feb. 23, 2005 APPLICANT: SIEMENS Limited 8F, No. 19-13, Sanchoung Rd., Nan Gang District, Taipei, 115 Taiwan, R.O.C. Model Number / Trade Name: CL75 / Siemens Device Category: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Modulation type: GSM (PCS), GPRS Operating Mode: Maximum continuous output Tx Frequency: GSM1900 PCS band: 1850.2 MHz to1909.8 MHz Max. O/P Power: (Conducted/Average) GSM1900: 31.14 dBm GPRS1900: 31.13 dBm Max. SAR (1g): Head: GSM1900: 0.861W/kg (Right head Cheek position) Body: GSM1900: 0.188W/kg (Body position Front Panel parallel Phantom) GPRS1900: 0.306W/kg (Body position Front Panel parallel Phantom) Application Type: Certification This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Approved by: Reviewed by: Harris W. Lai Chris Hsieh Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 50218006-SF Date of Issue: Mar. 01, 2005 Page 4 Rev. 00 2. EUT DESCRIPTIONS APPLICANT: SIEMENS Limited 8F, No. 19-13, Sanchoung Rd., Nan Gang District, Taipei, 115 Taiwan, R.O.C. Model Number / Trade Name: CL75 / Siemens Device Category: PORTABLE DEVICES EXPOSUR…

Text truncated - open the document above for the full version.

Date/Time: 02/23/05 13:15:43 Test Laboratory: Compliance Certification Services Inc. D1900V2 SN-5d056 Head DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d056 Communication System: CW1900; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; ı = 1.46 mho/m; İ r = 38.7; ȡ = 1000 kg/m 3 Air Temperature:24.8 deg C;Liquid Temperature:23.8deg C Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.61, 6.61, 6.61); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 7.94 mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 9.5 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 85.8 V/m; Power Drift = 0.006 dB Peak SAR (extrapolated) = 19.4 W/kg SAR(1 g) = 9.66 mW/g; SAR(10 g) = 4.76 mW/g Maximum value of SAR (measured) = 10.9 mW/g Page1 Page2 Date/Time: 02/23/05 13:15:43 Test Laboratory: Compliance Certification Services Inc. D1900V2 SN-5d056 Body DUT: Dipole 1900 MHz; Type: D1900V2; Serial: 5d056 Communication System: CW1900; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium parameters used: f = 1900 MHz; ı = 1.59 mho/m; İ r = 51.6; ȡ = 1000 kg/m 3 Air Temperature:24.8 deg C;Liquid Temperature:23.8deg C Phantom section: Flat Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.24, 6.24, 6.24); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection)Sensor-Surface: 0mm (Fix Surface) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Pin=250mW,d=10mm/Area Scan (6x6x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 8.16mW/g Pin=250mW,d=10mm/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 10.4 mW/g Pin=250mW,d=10mm/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 87.3 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 20.1W/kg SAR(1 g) =10.4 mW/g; SAR(10 g) = 5.28 mW/g Maximum value of SAR (measured) = 11.9 mW/g Page1 Page2 Date/Time: 02/23/05 10:29:40 Test Laboratory: Compliance Certification Services Inc. Left Head Page1 Date/Time: 02/23/05 10:29:40 Test Laboratory: Compliance Certification Services Inc. GSM 1900-Left DUT: CL75; Type: Tri-Band Mobile Phone; Serial: N/A Communication System: PCS 1900; Frequency: 1850.2 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1850.2 MHz; ı = 1.46 mho/m; İ r = 38.7;ȡ= 1000 kg/m 3 Air Temperature:24.8deg C;Liquid Temperature:23.8deg C Area scan setting: Find secondary maxima within 2 dB, and with a peak SAR value greater than 0.1 mW/g Zoom scan setting: Maximum number of cubes to measure is 2 Phantom section: Left Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.61, 6.61, 6.61); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Left Cheek Low CH512/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.729 mW/g Left Cheek Low CH512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 14.6 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.719 mW/g; SAR(10 g) = 0.448 mW/g Maximum value of SAR (measured) = 0.770 mW/g Left Cheek Low CH512/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 14.6 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 1.05 W/kg SAR(1 g) = 0.621 mW/g; SAR(10 g) = 0.344 mW/g Maximum value of SAR (measured) = 0.697 mW/g Page1 Date/Time: 02/23/05 10:29:40 Test Laboratory: Compliance Certification Services Inc. GSM 1900-Left DUT: CL75; Type: Tri-Band Mobile Phone; Serial: N/A Communication System: PCS 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1880 MHz; ı = 1.46 mho/m; İ r = 38.7;ȡ= 1000 kg/m 3 Air Temperature:24.8 deg C;Liquid Temperature:23.8deg C Area scan setting: Find secondary maxima within 2 dB, and with a peak SAR value greater than 0.1 mW/g Zoom scan setting: Maximum number of cubes to measure is 2 Phantom section: Left Section DASY4 Configuration: z Probe: EX3DV4 - SN3554; ConvF(6.61, 6.61, 6.61); Calibrated: 11/19/2004 z Sensor-Surface: 4mm (Mechanical Surface Detection) z Electronics: DAE3 Sn558; Calibrated: 8/24/2004 z Phantom: SAM 12; Type: SAM V4.0; Serial: TP-1150 z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 Left Cheek Middle CH661/Area Scan (6x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.730 mW/g Left Cheek Middle CH661/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 15.5 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.07 W/kg SAR(1 g) = 0.712 mW/g; SAR(10 g) = 0.442 mW/g Maximum value of SAR (measured) = 0.757 mW/g Left Cheek Middle CH661/Zoom Scan (5x5x7)/Cube 1: Measurement grid: dx=7.5mm, dy=7.5mm, dz=5mm Reference Value = 15.5 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 1.11 W/kg SAR(1 g) = 0.646 mW/g; SAR(10 g) = 0.356 mW/g Maximum value of SAR (measured) = 0.722 mW/g Page1 Date/Time: 02/23/05 10:29:40 Test Laboratory: Compliance Certification Services Inc. GSM 1900-Left DUT: CL75; Type: Tri-Band Mobile Phone; Serial: N/A Communication System: PCS 1900; Frequency: 1909.8 MHz;Duty Cycle: 1:8 Medium parameters used: f = 1909.8 MHz; ı = 1.46 mho/m; İ r …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50218006-RP2 FCC ID: PWX-CL75 Date of Issue: March 3, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 47 Rev. 00 FCC 47 CFR PART 24 SUBPART E TEST REPORT For Tri-band Mobile Phone Model: CL75 Trade Name: Siemens Issued to SIEMENS Limited 8F, No. 19-13, Sanchoung Rd., Nan Gang District, Taipei, 115 Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50218006-RP2 FCC ID: PWX-CL75 Date of Issue: March 3, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.5 DESCRIPTION OF TEST MODES................................................................................................. 5 4. INSTRUMENT CALIBRATION................................................................................................. 6 5. FACILITIES AND ACCREDITATIONS ................................................................................... 7 5.1 FACILITIES.............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................. 7 5.3 LABORATORY ACCREDITATIONS AND LISTING....................................................................... 7 5.4 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................. 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT ...................................................................................................... 9 7. FCC PART 24 REQUIREMENTS............................................................................................. 10 7.1 PEAK POWER......................................................................................................................... 10 7.2 ERP & EIRP MEASUREMENT ......................................................................................... 12 7.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 15 7.4 OUT OF BAND EMISSION AT ANTENNA TERMINALS ............................................. 20 7.5 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................ 30 7.6 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ........................... 39 7.7 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ..................................... 41 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................... 43 Compliance Certification Services Inc. Report No.: 50218006-RP2 FCC ID: PWX-CL75 Date of Issue: March 3, 2005 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: SIEMENS Limited 8F, No. 19-13, Sanchoung Rd., Nan Gang District, Taipei, 115 Taiwan, R.O.C. Equipment Under Test: Tri-band Mobile Phone Trade Name: Siemens Model Number: CL75 Date of Test: February 24 ~ March 2, 2005 APPLICABLE STANDARDS STANDARD TEST RESULT FCC PART 24 SUBPART E No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-A-2001 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rule FCC PART 24 Subpart E. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Harris W. Lai Gavin Lim Executive Vice President Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 50218006-RP2 FCC ID: PWX-CL75 Date of Issue: March 3, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product Tri-band Mobile Phone Trade Name Siemens Model Number CL75 Model Discrepancy N/A Power Supply Model Number: T45/E IP40 I/P: AC 100-240, 50-60Hz, 100mA, O/P: DC 5V, 620mA Frequency Range TX: 1850 MHz – 1910 MHz RX: 1930 MHz – 1989.8 MHz Transmit Power 29.60 dBm (Max) Cellular Phone Protocol GSM (PCS), GPRS Type of Emission 247KGXW-- Antenna Gain 1 dBi Antenna Type Embedded Antenna Remark: This submittal(s) (test report) is intended for FCC ID: PWX-CL75 filing to comply with Part 24 of the FCC 47…

Text truncated - open the document above for the full version.
