PWX-CX70GSM 900/1800/1900 Mobile Phone

© Siemens AG 2003, D:\Werkstatt\cx70 am fug\ULYR_IVZ.fm Table of Contents1 VAR Language: am; VAR issue date: 040819 See also Index at the end of this User Guide left page (1) of CX70 Ulysses refresh , am, A31008-H7103-A40-1-4A19 (25.08.2004, 15:44) Legal notices .............................. 4 Safety precautions ..................... 6 Antenna care ........................... 8 Phone operation ...................... 8 Electronic devices .................... 9 Telephone list (schematic) ....... 13 Display symbols ....................... 15 Getting started ......................... 17 Inserting the SIM card/battery 17 Charging the battery .............. 18 Changing CLIPIt™ covers ........ 19 Switching phone on and off/enter- ing PIN ...................................... 20 Enter PIN ............................... 20 Emergency number (SOS) ...... 20 General instructions ................ 21 Standby mode ....................... 21 Signal strength ...................... 21 Digital Rights Mgmt. (DRM) .... 21 Main menu ............................ 21 Standard functions .................. 23 Highlighting mode ................. 24 Menu speed dialling ............... 24 Security .................................... 25 Codes .................................... 25 Preventing accidental activation .............. 26 Text entry ................................. 27 Calling ...................................... 31 My phone ................................. 37 Default book ............................ 38 Address book ............................ 39 New entry .............................. 39 Change entry ......................... 41 Dialling an entry ..................... 41 Groups ................................... 42 Phonebook ............................... 43 New entry .............................. 43 Call (search for an entry) ........ 44 Change entry ......................... 44 <Special books> ..................... 45 Call records ............................... 46 Dur./charges ............................. 47 Camera ..................................... 48 Photo mode ........................... 48 Video mode ............................ 49 Inbox ........................................ 50 SMS ........................................... 51 Write/send .............................. 51 Read ....................................... 53 Setting ................................... 55 MMS ......................................... 57 Create ................................... 57 Templates .............................. 59 Sending an MMS .................... 60 Receiving an MMS .................. 61 Reading an MMS .................... 62 Setting ................................... 63 E-mail ........................................ 65 Write ...................................... 65 Receive/read ........................... 66 Setting ................................... 67 Table of Con- tents See also In- dex at the end of this User Guide © Siemens AG 2003, D:\Werkstatt\cx70 am fug\ULYR_IVZ.fm 2Table of Contents VAR Language: am; VAR issue date: 040819 See also Index at the end of this User Guide left page (2) of CX70 Ulysses refresh , am, A31008-H7103-A40-1-4A19 (25.08.2004, 15:44) Chat room ................................ 69 Start menu ............................. 69 Login ..................................... 70 Contact lists ........................... 70 Start chat ............................... 73 Msg. history ........................... 74 Setting ................................... 74 Voice message/mailbox ........... 76 CB services ............................... 77 Surf & fun ................................. 78 Internet ................................ 78 Bookmarks ............................. 80 Emoty .................................... 80 Games and Applications ......... 81 Download wiz. ....................... 81 Setup ........................................ 83 Profiles .................................. 83 Topics .................................... 85 Dynamic light ........................ 86 Display ................................... 87 Ring tones ............................. 89 Phone Pilot ............................ 91 Call setup ............................... 92 Phone setup ........................... 94 Clock ..................................... 96 Connectivity .......................... 97 Security ............................... 101 Network .............................. 103 Accessories .......................... 105 My menu ................................ 106 Fast access key ....................... 107 Organizer ................................ 109 Calendar .............................. 109 Appointments ...................... 110 Tasks .................................... 111 Notes ................................... 112 Missed appts. ....................... 112 Dictation mac ....................... 113 Time zones ........................... 114 Extras ...................................... 115 Walky Talky .......................... 115 SIM services (optional) ......... 120 Alarm clock .......................... 120 Sound recorder ..................... 121 Calculator ............................. 122 Unit converter ...................... 123 Stopwatch ............................ 124 Countdown .......................... 124 Remote synchronisation ....... 125 Device manag. ..................... 126 Media player ........................... 128 My stuff .................................. 129 Mobile Phone Manager .......... 131 Questions & Answers ............. 133 Care and maintenance ........... 136 U.S. FDA .................................. 137 FCC/Industry Canada Notice ... 143 Ten driving safety tips ............ 144 Intellectual property .............. 146 Product data ........................... 147 SAR (CX70) ............................. 148 © Siemens AG 2003, D:\Werkstatt\cx70 am fug\ULYR_IVZ.fm Table of Contents3 VAR Language: am; VAR issue date: 040819 See als…

Text truncated - open the document above for the full version.

FCC ID Number Product PWX – CX70 CX70 Handset Series Models CXI70 CXV70 CX70 CXT70

September 1, 2004 Federal Communications Commission Equipment Authorization Division Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Re: Declaration of Electrically Identical Mobile Phone Models Dear Sir or Madam: Pursuant to Part 2.924 of the Commission’s Rules (47 C.F.R. 2.924), Siemens Information and Communication Mobile LLC hereby affirms that the CX70 series handset models are electrically identical. The model numbers include CX70, CXT70, CXV70 and CXI70. If you have any questions or require additional information, please feel free to contact me directly at (858) 521-3382 or at the address shown below. Sincerely, Manager, EMC/Antenna Siemens Information and Communications Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego, CA 92127 Tel. 858-521-3200

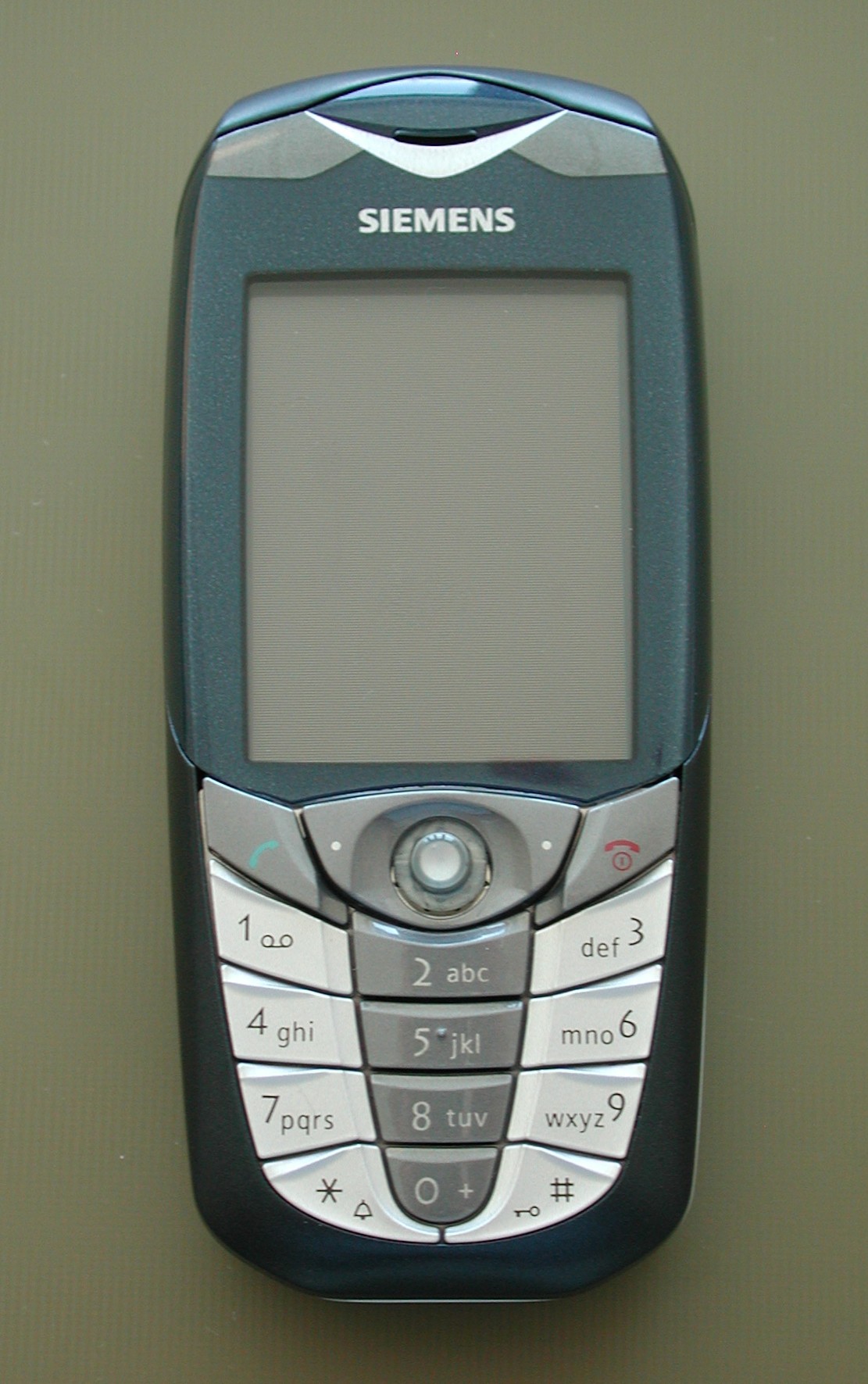

CX70 Front View CX70 Back View CX70 Side View CX70 Side View

CX70 IMEI Label Label according with DIS 71677 Label according with DIS75486

CX70 Open Battery Cover (Final label: See extra exhibit) CX70 Disassembly Step 1 CX70 Disassembly Step 2 CX70 Disassembly Step 3 CX70 PCB Front View Shields Removed CX70 PCB Back View Shields Removed CX70 Tri-Band Antenna

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6620_434e: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens CX70 FCC ID: PWX-CX70) According to the FCC Requirements Calibration Data August 16, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_434e_SAR Distribution Plots Page 1 of 51 Appendix for the Report Dosimetric Assessment of the Siemens CX70 (FCC ID: PWX-CX70) According to the FCC Requirements SAR Distribution Plots August 16, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6620_434e_SAR Distribution Plots Page 2 of 51 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH....................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH FLASH ............................................................. 19 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET (GAP = 22 MM) ........................... 35 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE (GAP = 22 MM) .................... 39 5 SAR DISTRIBUTION PLOTS, PCS 1900 BODY PTT MODE (GAP = 25 MM) ..................................... 43 6 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 47 7 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................50 DASY Test-Report, Siemens_ 6620_434e_SAR Distribution Plots Page 3 of 51 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without Flash Test Laboratory: IMST GmbH; File Name: stdplm_1.da4 DUT: Siemens; Type: CX 70; Serial: 004999003279147 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 22.07.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 18.8 V/m; Power Drift = -0.117 dB Maximum value of SAR (measured) = 0.595 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.8 V/m; Power Drift = -0.117 dB Maximum value of SAR (measured) = 0.631 mW/g Peak SAR (extrapolated) = 0.943 W/kg SAR(1 g) = 0.586 mW/g; SAR(10 g) = 0.340 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head, Standard. (11.08.2004; Ambient Temperature: 22.7∞ C; Liquid Temperature: 21.4∞ C). DASY Test-Report, Siemens_ 6620_434e_SAR Distribution Plots Page 4 of 51 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: stdplm_2.da4 DUT: Siemens; Type: CX 70; Serial: 004999003279147 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 22.07.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 21.5 V/m; Power Drift = 0.007 dB Maximum value of SAR (measured) = 0.630 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.5 V/m; Power Drift = 0.007 dB Maximum value of SAR (measured) = 0.703 mW/g Peak SAR (extrapolated) = 1.02 W/kg SAR(1 g) = 0.627 mW/g; SAR(10 g) = 0.357 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head, Standard. (11.08.2004; Ambient Temperature: 22.7∞ C; Liquid Temperature : 21.4∞ C). DASY Test-Report, Siemens_ 6620_434e_SAR Distribution Plots Page 5 of 51 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: stdprm_1.da4 DUT: Siemens; Type: CX 70; Serial: 004999003279147 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.2; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 22.07.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 20.2 V/m; Power Drift = -0.032 dB Maximum value of SAR (measured) = 0.492 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 20.2 V/m; Power Drift = -0.032 dB Maximum value of SAR (measured) = 0.525 mW/g Peak SAR (extrapolated) = 0.700 W/kg SAR(1 g) = 0.481 mW/g; SAR(10 g) = 0.294 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head, Standard. (11.08.2004; Ambient Temperature: 22.7∞ C; Liquid Temperature : 21.5∞ C). DASY Test-Report, Siemens_ 6620_434e_SAR Distribution Plots Page 6 of 51 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: stdprm_2.da4 DUT: Siemens; Type: CX 70; Serial: 004999003279147 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Dut…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6620_434e Page 1 of 60 Report Dosimetric Assessment of the Portable Device Siemens CX70 (FCC ID: PWX-CX70) According to the FCC Requirements August 13, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Siemens_6620_434e Page 2 of 60 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The CX70 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 2 TX slots (Class 10). The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with four different covers. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens CX70 mobile phone (FCC ID: PWX-CX70) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested for the following configurations: • Body Worn with the following accessories and combination with 22 mm distance: GSM mode (1 TX slot) with headset GPRS mode (2 TX slots, Class 10) with data cable • Push-to-Talk operation (2 TX slots) with 25 mm distance prepared by: ........................................... reviewed by: .............................................. AndrÈ van den Bosch Dr. Ing. Achim Bahr test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6620_434e Page 3 of 60 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 20 7 APPENDIX ...................................................................................................................................................... 26 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 26 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 26 7.3 TISSUE RECIPES......................................................................................................................................... 26 7.4 MATERIAL PARAMETERS............................................................................................................................. 27 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 28 7.6 ENVIRONMENT........................................................................................................................................... 33 7.7 TEST EQUIPMENT....................................................................................................................................... 33 7.8 CERTI…

Text truncated - open the document above for the full version.

Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 1 of 7 ________________________________________________________________________________ - 1 - Report No: CX70_conducted_output_power.doc Test Report Conducted Output power GSM 1900 Report No: Issue date: July 22 th , 2004 Test Sites: ICM MP PD HW1 Ulm1 Development Center Ulm Germany ICM MP PD HW1 AAL1 Development Center Aalborg Denmark Tel.: +49 731/95 33 1521 Fax.: +49 731/95 33 1612 Stefan Siebinger EA PPL Harald Ebner Line Manager RF Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 2 of 7 ________________________________________________________________________________ - 2 - Report No: CX70_conducted_output_power.doc Contents 1 Objective and Method ..............................................................................2 2 Results.......................................................................................................3 2.1 Test Site Aalborg (Denmark)................................................................................... 3 2.2 Test Site Ulm (Germany) ........................................................................................ 3 3 Minutes of Test .........................................................................................4 Description of device under test ...................................................................................... 4 Measurement Set-up ....................................................................................................... 4 4 Calibration Certificates ............................................................................5 1 Objective and Method Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 3 of 7 ________________________________________________________________________________ - 3 - Report No: CX70_conducted_output_power.doc FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices use special test fixtures with 50 Ohm connection suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Results 2.1 Test Site Aalborg (Denmark) Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens CX70, ”FCC Sample 1” IMEI: 00499900 326716 7 29.0 29.0 29.0 Siemens CX70, ”FCC Sample 2” IMEI: 00499900 326632 6 29.0 29.0 29.0 Siemens CX70, ”FCC Sample 3” IMEI: 00499900 326622 7 29.0 29.0 29.0 Table 1: Results of power measurements at connector in the GSM 1900 Band 2.2 Test Site Ulm (Germany) Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens CX70, ”SAR Sample 1” IMEI: 00499900 327968 3 29.2 29.1 29.0 Siemens CX70, ”SAR Sample 2” IMEI: 00499900 327914 7 29.1 29.0 29.0 Table 2: Results of power measurements at connector in the GSM 1900 Band Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 4 of 7 ________________________________________________________________________________ - 4 - Report No: CX70_conducted_output_power.doc 3 Minutes of Test Description of device under test Mobile phone: Siemens CX70 Frequency range GSM 900: 880 – 915 MHz Frequency range GSM 1800: 1710 – 1785 MHz Frequency range GSM 1900: 1850 – 1990 MHz Siemens Part number: S30880-S7100-A100-1 FCC ID PWX-CX-70 Measurement Set-up Figure 1: Block Diagram of set-up for conducted power measurement Base Station Simulator DUT Special Adapter Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 5 of 7 ________________________________________________________________________________ - 5 - Report No: CX70_conducted_output_power.doc Figure 2: Set-up for conducted power measurement 4 Calibration Certificates Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 6 of 7 ________________________________________________________________________________ - 6 - Report No: CX70_conducted_output_power.doc Calibration Certificate Test Site Aalborg (Denmark) Siemens Mobile Project: CX70 Date: 2004-07-22 Test case: Conducted pow. Page: 7 of 7 ________________________________________________________________________________ - 7 - Report No: CX70_conducted_output_power.doc Calibration Certificate Test Site Ulm (Germany)

Test setup CX70 Test setup – Radiated Emissions Test setup CX70 Test setup – AC Line Conducted Emissions Test setup CX70 Test setup – RF conducted measurements
