PWX-HKWCar Kit with Bluetooth Transceiver

right page (1) of HKW-600 en, A31008-H6551-A102-1-4W28 (12.08.2004, © S i emens A G 2 0 0 3 , W : \ I C M _ M P _ C C Q _ S _ U M \ 0 3 F L 0 0 4 4 3 C ar K i t 6 5 \ C K _ F i na l \ C ar_ K i t_ B l uetoot h _ 2 \ F rame \ H K W - 6 0 0 _en. f m 1 V A R L anguage: un k nown; V A R i ssue d ate: 1 2 - M arc h - 2 0 0 3 Car Kit Blue- tooth (en) Compatibility The Car Kit Bluetooth (hereafter referred to as "Car Kit") is intend- ed for the following phones: • Siemens mobile phones with a Bluetooth interface. • Siemens mobile phones S55, SX1 and mobile phones with a Bluetooth interface from other manufacturers can also be used with limited functionality. • Siemens mobile phones of the 65 Series or later without a Bluetooth interface (use with optional holder possible). Safety precautions These installation instructions only provide basic information. Because the different car makes and car radio connections require different installa- tions, the assembly must be per- formed in line with the individual circumstances. Please read the operating instructions and the safety precautions carefully before use! Remember to comply with legal requirements and lo- cal restrictions when using the phone. This could ap- ply e.g. when driving or at petrol stations. General and vehicle-spe- cific guidelines for the in- stallation of add-on devices must be observed; where applicable, profes- sional assistance should be sought (in the case of electrical fusing, wiring, contact with hot compo- nents, contact with fuel, etc.). The installation of the com- ponents must not impede: • The driver's freedom of movement, safety or line of vision • The safety of any pas- senger (especially in the event of an accident) • The vehicle's safety mechanisms (airbag, seat belts, etc.) Take care during installa- tion! Young children may choke on small parts. © Siemens AG 2003, W:\ICM_MP_CCQ_S_UM \03FL00443 Car Kit 65\CK_Final\Car_K it_Bluetooth_2\Frame\HKW-600_en.fm left page (2) of HKW-600 en, A31008-H6551-A102-1-4W28 (12.08.2004, 2 VAR Language: unknown; VA R issue date: 12-March-2003 Before using Bluetooth ® accessories, or a mobile phone inside a vehicle, check the vehicle user guide for any limitations on the use of these products. For further details, please refer to the operating instructions for your mobile phone. The device is only suitable for 12V operation. Do not install the device in environments where there is danger of explosion. If your car is fitted with met- allised windows, this may impair the reception of the phone. For optimum signal reception, always use an external antenna. Your phone and the Car Kit must be equipped with an exter- nal antenna for installation. Improper use and opening of the components invali- dates the warranty. Please note: Please dispose of unwant- ed telephones and acces- sories in accordance with the relevant legislation. Only use Siemens original accessories. In this way you will avoid possible health risks and damage to the product and ensure compliance with the rele- vant provisions. right page (3) of HKW-600 en, A31008-H6551-A102-1-4W28 (12.08.2004, © S i emens A G 2 0 0 3 , W : \ I C M _ M P _ C C Q _ S _ U M \ 0 3 F L 0 0 4 4 3 C ar K i t 6 5 \ C K _ F i na l \ C ar_ K i t_ B l uetoot h _ 2 \ F rame \ H K W - 6 0 0 _en. f m 3 V A R L anguage: un k nown; V A R i ssue d ate: 1 2 - M arc h - 2 0 0 3 Installation Microphone, Display, Loudspeaker * Antenna and mobile holder are not included in the scope of supply. Run the cable for the external microphone :, the display 6 and the loudspeaker 8 correctly to suit the individual require- ments of your vehicle. Avoid damaging, bending or squashing the cables. Microphone First clean the area where you want to attach the external mi- crophone : using a suitable grease-dissolving cleaning agent. The adhesive pad will on- ly adhere permanently to a grease-free surface. Secure the external microphone : pointing towards the speaker at the required loca- tion using the adhesive pads. Display Make sure you mount the dis- play 6 in a position that allows the driver optimal visual contact and access. You can attach the display 6 directly to the dashboard or fix it with the help of the display holder 7. When performing the installation, please note the following: • Distance from the microphone : to the loudspeaker 8 preferably >1 m • Distance from microphone :/ microphone cable to the phone >50cm • Distance from the microphone : to the user's mouth < 80 cm Avoid installing the microphone di- rectly in the air flow of the sunroof, window or ventilation. > 5 0 c m ‹ 8 0 c m >1 m * * © Siemens AG 2003, W:\ICM_MP_CCQ_S_UM \03FL00443 Car Kit 65\CK_Final\Car_K it_Bluetooth_2\Frame\HKW-600_en.fm left page (4) of HKW-600 en, A31008-H6551-A102-1-4W28 (12.08.2004, 4 VAR Language: unknown; VA R issue date: 12-March-2003 Direct installation of the display First clean the area where you want to attach the display 6 us- ing a suitable grease-dissolving cleaning agent. The adhesive pad will only adhere permanent- ly to a grease-free surface. Mount the display 6 using the adhesive pads. Installation using the display holder Mount the display holder 7 on- to the dashboard with the adhe- sive pad supplied or with appro- priate screws*. Then press the display 6 into the display holder 7 until it clicks into place. Loudspeaker The inclination and the rotation of the loudspeaker 8 can be adjusted. Loosen the set screw in the base, install the loudspeaker 8 and tighten the screw. Secure the loudspeaker 8 in a suitable location (such as the passenger-side footwell). The screws can be found in the base of the loudspeaker 8. Wiring loom Electrical connections When connecting the Car Kit to the wiring loom 3 ensure that the function and operation of other devices are not compro- mised (e.g. voltage drop). Disconnect the car battery cor- rectly before installing the wir- ing loom 3 and the electronics box 1. Connect the §B§ 12V+ line (red) to the positive terminal of the…

Text truncated - open the document above for the full version.

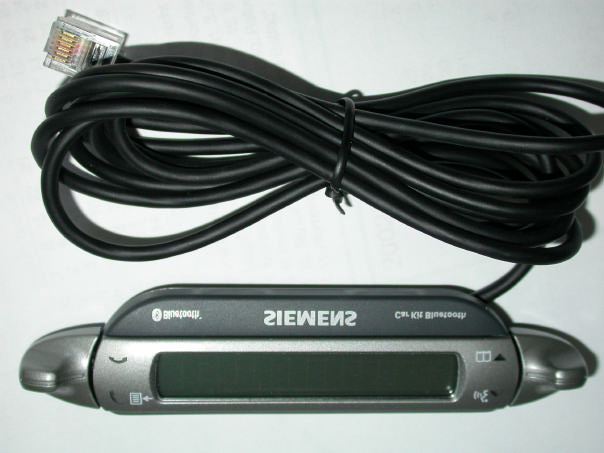

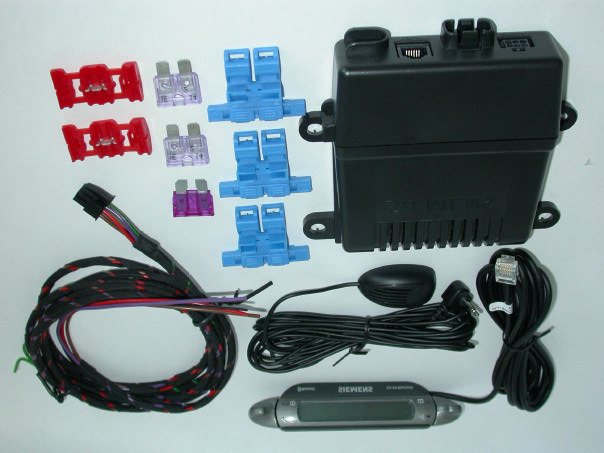

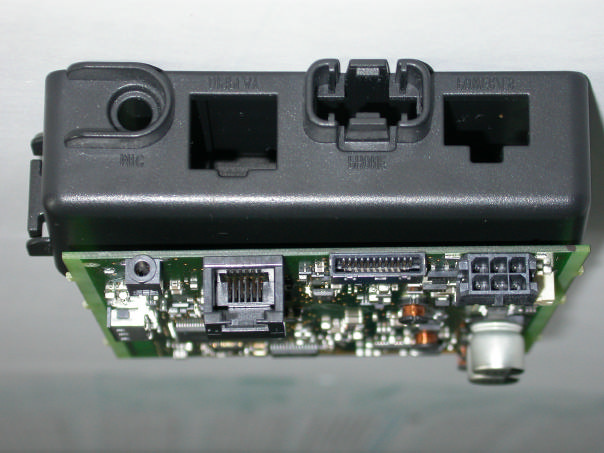

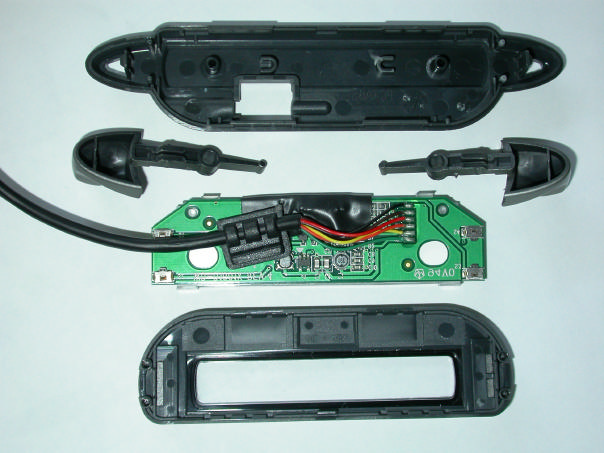

Car Kit Bluetooth HKW-600 System Overview Display Open Display Display Connector E-Box Open E-Box Open E-Box Connector View

Car Kit Bluetooth HKW-600 System Overview Display Open Display Display Connector E-Box Open E-Box Open E-Box Connector View

ICM MP AD PM Status: March 2004 © Siemens, 2004 Car Kit Bluetooth HKW-600 S55, S65 State-of-the-art BluetoothTM Car Kit with external display for safe and convenient handsfree use of a mobile phone in the car. Type:Box Material: Cardboard Weight:appr. 110 g Size:20.5 x 14.1 x 7.5 cm Total weight: appr. 715 g Compatible Positioning Product description Packaging Optional accessories Technical data Power supply:10.8 - 16 V Ignition voltage:10.8 - 24 V Power consumption:1 mA quiescent current max. 2 A Loudspeaker:power 3 W Weight of E-Box:appr. 110 g E-Box housing:12.0 x 11.0 x 3.0 cm • BluetoothTM high-tech handsfree kit without cable connection to the mobile phone • External display with extensive functions for remote control of the mobile phone: - displays names or numbers of incoming and outgoing calls - selection of names and numbers from mobile phone address -/telephonebook - adjustment of volume - shows different modes of mobile phone • high audio quality device with full-duplex, echo compensation, noise suppression and radio mute • Intelligent switchon and -off automatic by using ignition recognition • Compatibility* to other Bluetooth TM phones supporting handsfree profile *The feature set of the external display might be restricted General information Car Kit Comfort should be installed only by specialist dealers or garages. • Car Cradle without PTT button ( secure mounting, charging, connector for external antenna) • Mobile Holder • VDA Adapter Cable • Phone-In Adapter Pleaseobservethesafetyprecautions in theinstallationand operating instructions. Order number / EAN Code Content • E-Box, wiring loom cable, loudspeaker • Display with cable, western plug and holder • External active microphone • Connectors, fuses • Installation and operating instructions • Warranty Order No.: L36880-N6551-A100 EANcode: 4025515352341 Country of Origin: Germany

TECHNICAL DESCRIPTION Appliciant Company name: Siemens AG. Street: Haidenauplatz, 1 P.O.Box: Postal code/City: 81677 - München Contact person: Michael Stadler Telephone: +49 89 722 46248 Telefax: +49 89 722 49274 e-mail: [email protected] Manufacturer Company name: Siemens AG. Street: Haidenauplatz, 1 P.O.Box: Postal code/City: 81677 - München Contact person: Michael Stadler Telephone: +49 89 722 46248 Telefax: +49 89 722 49274 e-mail: [email protected] 3. Information on the radio equipment Manufacturer: Siemens AG Type designation: Car Kit Bluetooth HKW-600 Use of the equipment: Accessory for GSM phones Equipment category: short range device Frequency / Frequency range: 2400 - 2483.5 MHz Maximum transmitter output power: 1,43 mW Number of channels and channel separation: 78, 1 MHz Modulation: FHSS Information on antenna: internal Duty cycle: 0,377 Power supply: 13,5 V DC Applicable standards: EN 300328-2 ITU Class: 78MOF1D

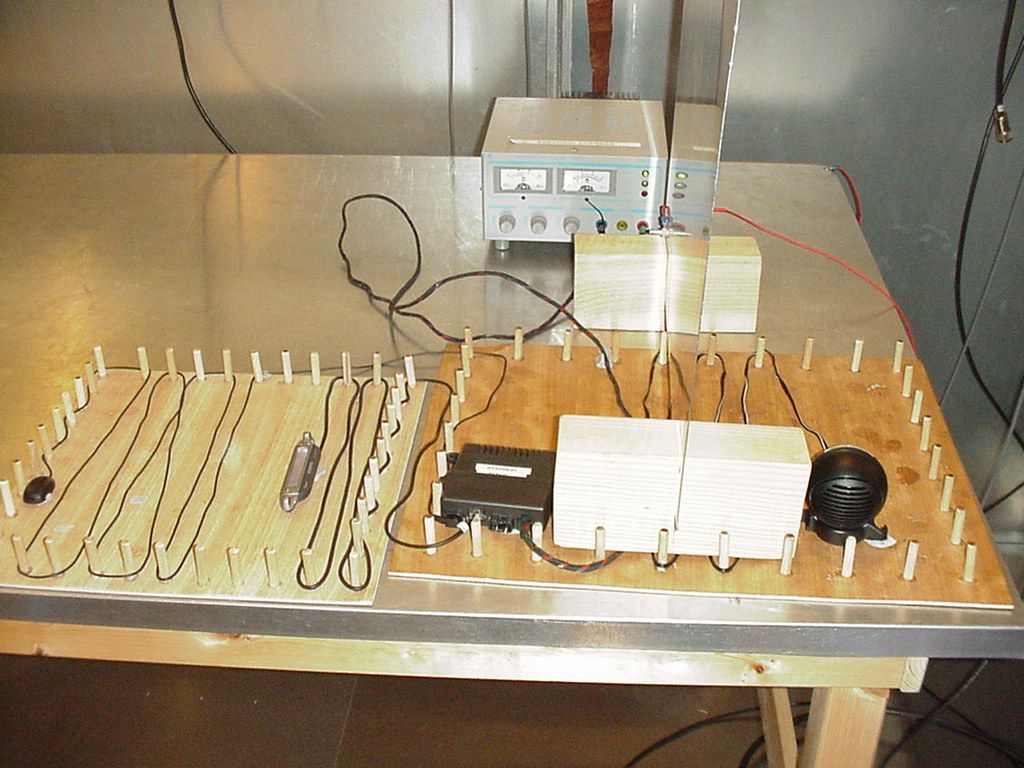

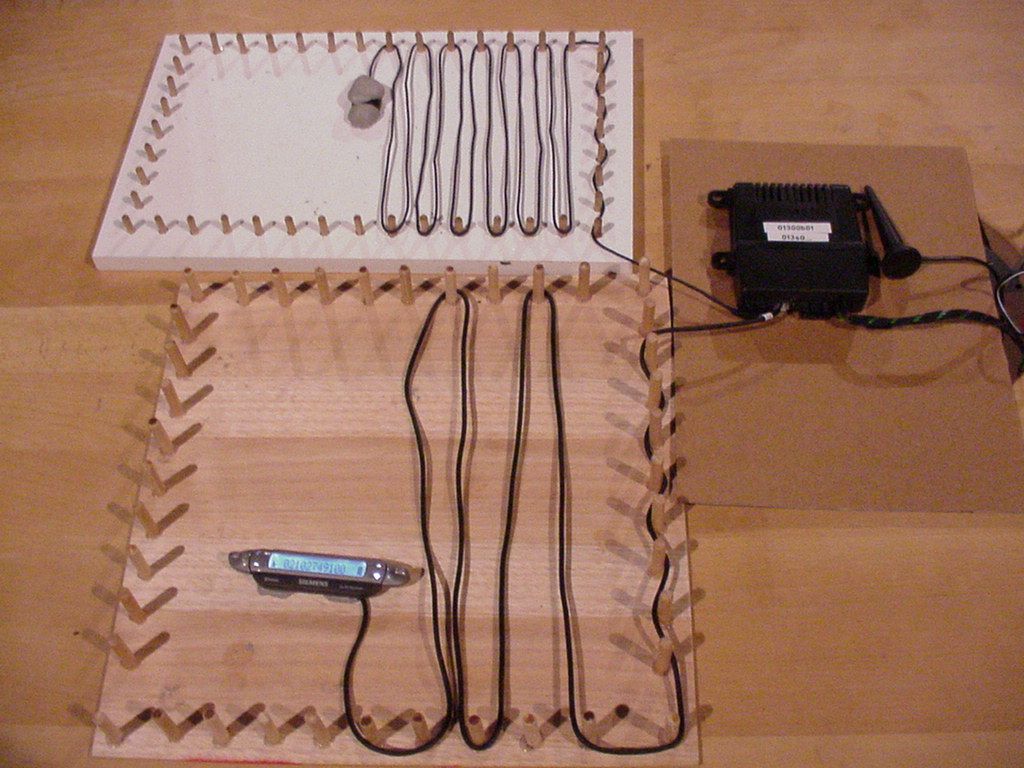

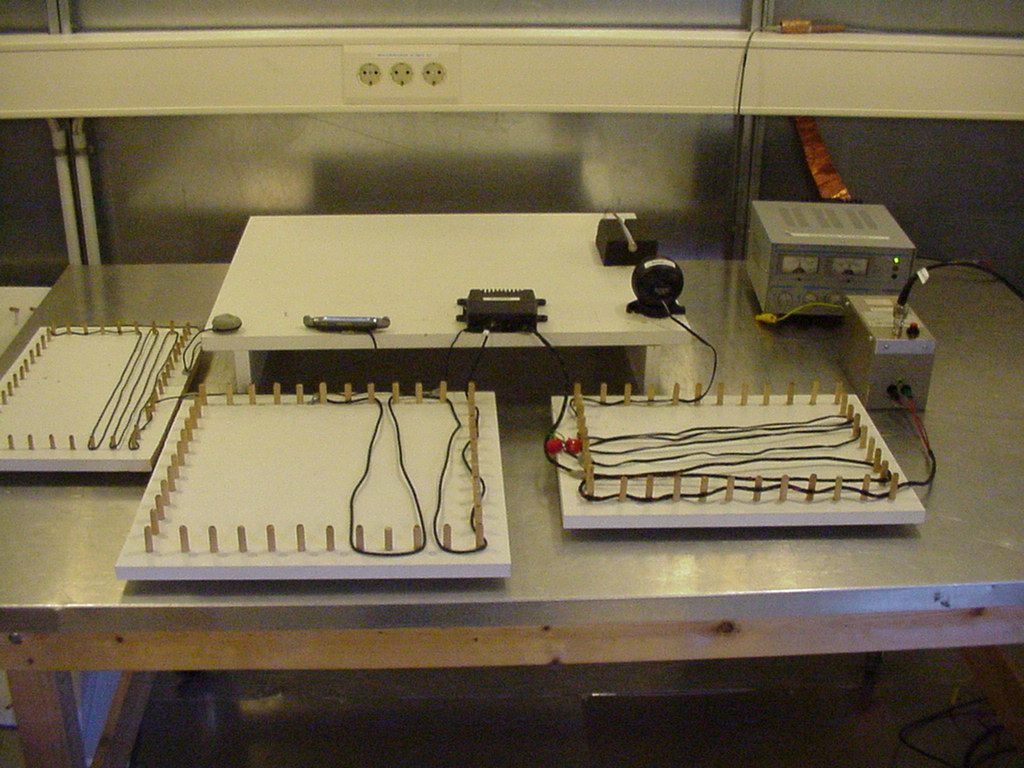

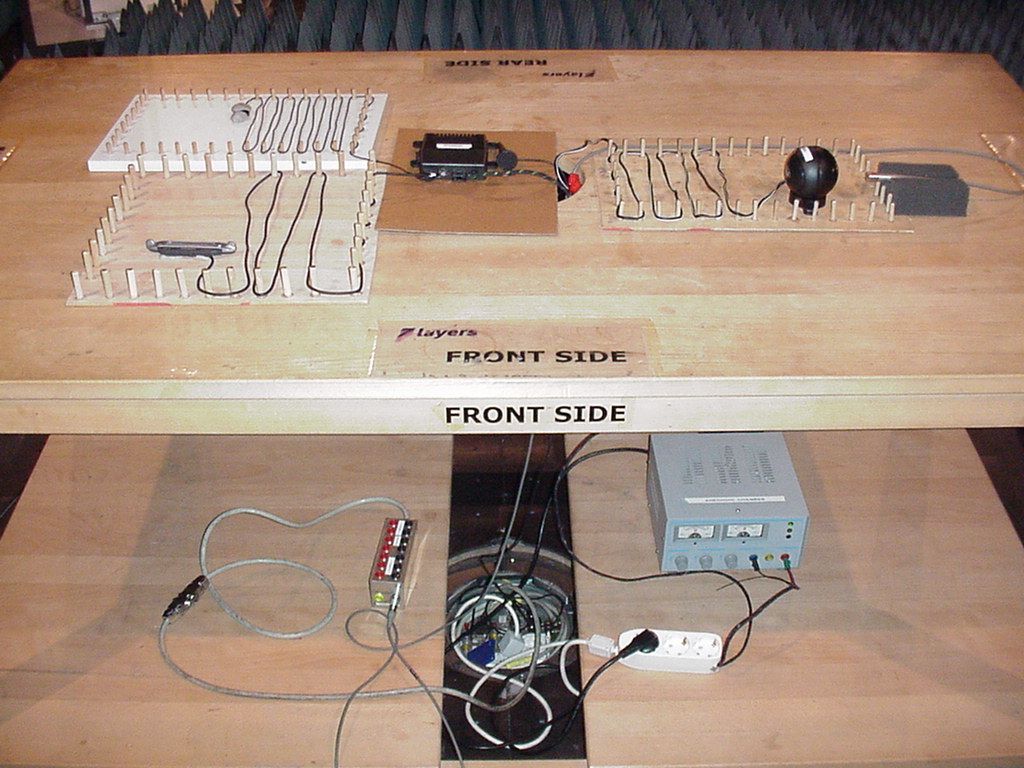

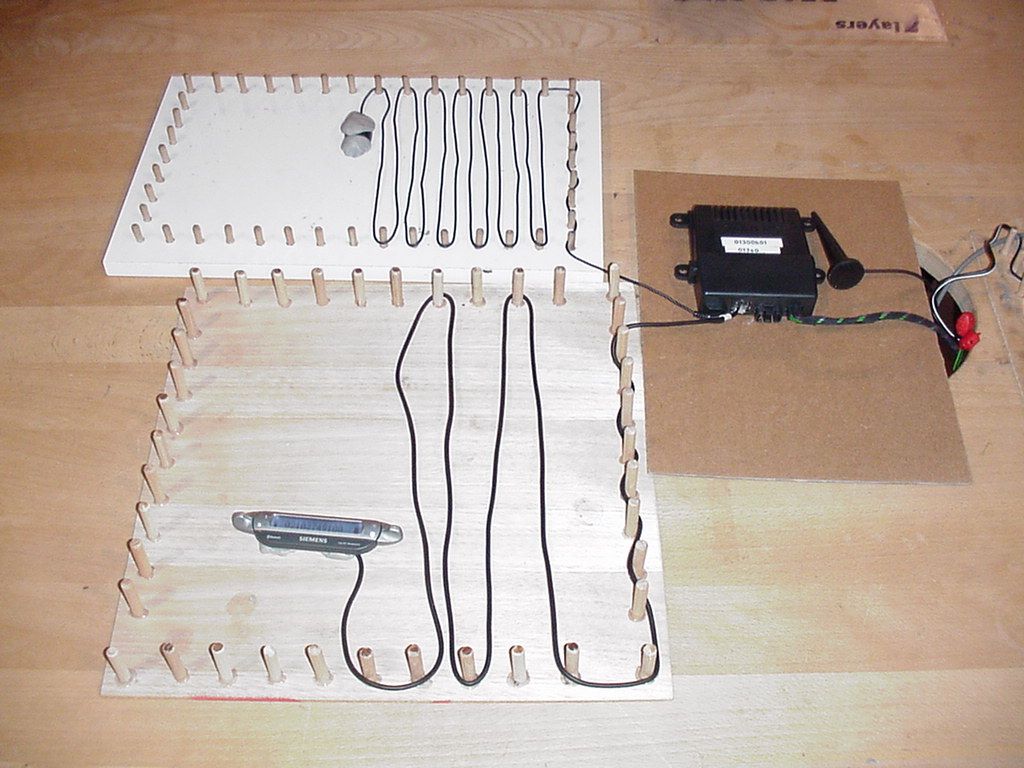

EMC Measurement/Technical Report on 4_Siem_0804_BTT_FCCa 7 Layers AG Borsigstr. 11 40880 Ratingen Germany Note: The following test results relate only to the devices specified in this document. This report shall not be reproduced in parts without the written approval of the testing laboratory. Car kit with Bluetooth® Transceiver HKW-600 Registergericht - registered in: Düsseldorf, HRB 44096 Aufsichtratsvorsitzende - Chairman of the Supervisory Board: Dr. Sabine Grobecker Vorstand - Board of Directors: Dr. Hans-Jürgen Meckelburg 7 layers AG, Borsigstrasse 11 40880 Ratingen, Germany Phone: +49 (0) 2102 749 0 Fax: +49 (0) 2102 749 350 http://www.7Layers.com Report Reference: TTI-P-G 178/99 Test Laboratory (Headquarter): Interlab is a registered trademark of 7 layers AG Table of Contents 0. Summary 0.1 Technical Report Summary 0.2 Measurement Summary 1. Administrative Data 1.1 Testing Laboratory 1.2 Project Data 1.3 Applicant Data 1.4 Manufacturer Data 3. Testobject Data 3.1 General EUT Description 3.2 EUT Main Components 3.3 Ancillary Equipment 3.4 EUT Setups 3.5 Operating Modes 4. Test Results Occupied Bandwidth Peak Power Output Spurious RF Conducted Emissions 5. Testequipment 6. Foto Report 7. Setup Drawings 3 3 4 6 6 6 6 6 8 8 9 9 9 10 11 11 13 15 24 27 28 30 Spurious RF Radiated Emissions 17 2. Product Labeling 2.1 FCC ID Label 2.2 Location of Label on the EUT 7 7 7 Dwell Time Power Density Channel Separation 21 22 23 4.1 4.2 4.3 4.4 4.5 4.6 4.7 8. Annex measurement plots19 Pages Page 2 of 48 Testreport Reference: 4_Siem_0804_BTT_FCCa 0 Summary 0.1 Technical Report Summary Type of Authorization Certification for an Intentional Radiator (Frequency Hopping Spread Spectrum) Applicable FCC Rules: Prepared in accordance with the requirements of FCC Rules and Regulations as listed in 47 CFR Ch.1 Parts 0 to 19 (10-1-98 Edition). The following subparts are applicable to the results in this test report. Part 2, Subpart J - Equipment Authorization Procedures, Certification Sections Part 15, Subpart C - Intentional Radiators § 15.201 Equipment authorization requirement § 15.207 Conducted limits § 15.209 Radiated emission limits; general requirements § 15.247 Operation within the bands 902-928 MHz, 2400-2483,5 MHZ and 5725-5850 MHz Summary Test Results: The EUT complied with all performed tests as listed in chapter 0.2 Measurement Summary. Note: The tests were selected and performed with reference to the FCC Public Notice DA 00- 705, released March 30, 2000 Page 3 of 48 Testreport Reference: 4_Siem_0804_BTT_FCCa 0.2 Measurement Summary § 15.247 (a) (1) (ii)FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Occupied Bandwidth OP-ModeSetupPortFinal Result 013s0b01op-mode 1antenna connectorpassed 013s0b01op-mode 2antenna connectorpassed 013s0b01op-mode 3antenna connectorpassed 013s0b01op-mode 4antenna connectorpassed § 15.247 (b) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Peak Power Output OP-ModeSetupPortFinal Result 013s0b01op-mode 1antenna connectorpassed 013s0b01op-mode 2antenna connectorpassed 013s0b01op-mode 3antenna connectorpassed 013s0b01op-mode 4antenna connectorpassed § 15.247 (c)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Spurious RF Conducted Emissions OP-ModeSetupPortFinal Result 013s0b01op-mode 1antenna connectorpassed 013s0b01op-mode 2antenna connectorpassed 013s0b01op-mode 3antenna connectorpassed § 15.247 (c), §15.35 (b), § 15.209FCC Part 15, Subpart C ANSI C63.41992 The measurement was performed according to Spurious Radiated Emissions OP-ModeSetupPortFinal Result 013s0a01op-mode 1Enclosurepassed 013s0a01op-mode 2Enclosurepassed 013s0a01op-mode 3Enclosurepassed § 15.247(f)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Dwell Time OP-ModeSetupPortFinal Result 013s0b01op-mode 4antenna connectorpassed § 15.247 (d)FCC Part 15, Subpart C Page 4 of 48 Testreport Reference: 4_Siem_0804_BTT_FCCa FCC §15.3110-1-1998 The measurement was performed according to Power Density OP-ModeSetupPortFinal Result 013s0b01op-mode 4antenna connectorpassed § 15.247 (a) (1)FCC Part 15, Subpart C FCC §15.3110-1-1998 The measurement was performed according to Channel Separation OP-ModeSetupPortFinal Result 013s0b01op-mode 5antenna connectorpassed Responsible for Accreditation Scope: Responsible for Test Report: Page 5 of 48Testreport Reference: 4_Siem_0804_BTT_FCCa 1. Administrative Data 1.1 Testing Laboratory Company Name: Address: The test facility is also accredited by the following accreditation organisation: Responsible for Accreditation Scope: 7 Layers AG Borsigstr. 11 40880 Ratingen Germany DAR-Registration no. TTI-P-G 178/99 Dipl.-Ing Bernhard Retka Dipl.-Ing Arndt Stöcker Dipl.-Ing Thomas Hoell This facility has been fully described in a report submitted to the FCC and accepted under the registration number 96716. - Deutscher Akkreditierungs Rat 08.06.2004 Dipl.-Ing. Robert Machulec 05.07.2004 11.06.2004 - 16.06.2004 Responsible for testing and report: Receipt of EUT: Date of Test(s): Date of Report: 1.2 Project Data Siemens AG Michael Stadler Haidenauplatz 1 81667 Muenchen Germany please see Applicant data 1.4 Manufacturer Data Company Name: Address: Contact Person: Company Name: Address: Contact Person: 1.3 Applicant Data Page 6 of 48 Testreport Reference: 4_Siem_0804_BTT_FCCa 2.0 Product Labeling 2.1 FCC ID Label: At the time of the report there was no FCC label available. 2.2 Location of Label on the EUT: see above Page 7 of 48Testreport Reference: 4_Siem_0804_BTT_FCCa 3. Testobject Data Type Designation: Kind of Device: (optional) Voltage Type: Voltage level: Equipment under Test: HKW-600 Accessory for GSM phones Car kit with Bluetooth® Transceiver DC 12 V Ports 3.1 General EUT Description General product description: Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Blu…

Text truncated - open the document above for the full version.
