PWX-M46PCS GSM Phone

M46 AM English, A31008-H7600-A1-1 (19. April 2002, 09:34) © Siemens AG 2001, I:\MOBIL\M46-US A\am_ohne Balken\MT50_ClipIt.fm Thank you for buying a Siemens mobile phone. This user guide is designed to familiarize you with all the functions of your new phone. While reviewing this guide, please pay particular attention to the safety (p. 3) and PIN/Security precautions (p. 17). The wireless phone described in this guide is approved for use in GSM 1900. The front and back covers of the casing (CLIPit™ Covers, my-CLIPit™: p. 19 and p. 95) can be changed in a matter of seconds - no tools required: To attach To remove Note Your phone's display and the display cover of the upper shell are delivered with a protective film. Remove this film before getting started. In rare cases the static discharge may cause discolouration at the edges of the display. However this will disappear within 10 minutes. Contents 1 See also Index at the end of this user guide M46 AM English, A31008-H7600-A1-1 (19. April 2002, 09:34) © Siemens AG 2001, I:\MOBIL\M46- USA\am_ohne Balken\MT50IVZ.FM Safety precautions ..................... 3 Safety Information ..................... 4 Antenna care ........................... 4 Phone operation ...................... 4 Electronic devices ..................... 5 SAR (Specific Absorption Rate) .. 9 Overview phone ....................... 11 General instructions ................. 12 User guide ............................. 12 Soft keys ................................ 12 Getting started ......................... 14 Insert SIM card/battery ........... 14 Switch on, off/PIN entry ........... 16 Security .................................... 17 Codes .................................... 17 My phone ................................. 19 Making a phone call ................. 20 Dialling with number keys ...... 20 End call .................................. 20 Set volume ............................. 20 Reject call .............................. 21 Call waiting/Swap ................... 22 Records .................................. 24 Phonebook ............................... 26 <New entry> .......................... 26 Call/search for an entry ........... 26 Assign picture ........................ 30 Message (SMS) ......................... 31 Read messages ....................... 31 Archive ...................................32 Compose a message ...............33 SMS to group ..........................34 Surf & fun ................................. 39 Internet (WAP) ........................39 Bitmap viewer ........................44 Select bitmap style ................. 45 Own greeting ......................... 45 Voice message/Mailbox ............ 49 Cell broadcast ........................... 50 Duration/charges ......................51 Display ................................... 51 Charge settings ......................51 Divert ........................................52 Groups ......................................54 SMS to group ..........................54 Organiser ..................................57 Diary ...................................... 57 Greetings ............................... 58 Notes .....................................59 Missed alarms ......................... 60 Alarm clock ............................ 60 Clock ......................................... 61 Time zones .............................61 Time/Date ............................... 61 Format time ...........................61 Format date ............................ 61 Auto display ...........................61 Auto off .................................. 61 See also In- dex at the end of this user guide Contents Contents 2 See also Index at the end of this user guide M46 AM English, A31008-H7600-A1-1 (19. April 2002, 09:34) © Siemens AG 2001, I:\MOBIL\M46- USA\am_ohne Balken\MT50IVZ.FM Profiles ..................................... 62 Car Kit .................................... 63 Headset ................................. 63 My menu .................................. 64 Fast access key ......................... 65 Audio ........................................ 67 Ringer setting ........................ 67 Volume .................................. 67 Call screening ........................ 67 Silent alert ............................. 67 Key tones ............................... 67 Minute beep .......................... 68 Information tones .................. 68 Melody manager .................... 68 Ringer tones ........................... 68 Setup ........................................ 69 User group ............................. 74 Clock ..................................... 75 Fax/data mode using a PC ........ 80 Notes A-Z .................................. 81 Display symbols (selection) ..... 87 Troubleshooting ....................... 89 Siemens Service ....................... 92 Specifications ........................... 93 Exposure to radiofrequency sig- nals ........................................ 93 Technical data ....................... 93 Maintenance ............................ 94 Accessories ............................... 95 Basics ..................................... 95 Car Solutions .......................... 95 LIMITED WARRANTY ................. 97 U.S. FDA .................................... 99 FCC/Industry Canada Notice ...105 Ten Driving Safety Tips ........... 107 Intellectual Property ............... 109 Index ....................................... 110 Safety precautions 3 M46 AM English, A31008-H7600-A1-1 (19. April 2002, 09:34) © Siemens AG 2001, I:\MOBIL\M46-USA\ am_ohne Balken\MT50_Security.fm Safety precautions Please note: Switch off in hospitals or in the vicinity of medical devices, e.g. pacemakers or hearing aids. Mobile phones can interfere with the function of these devices. Always use the handsfree kit for calls while driving (p. 78)! Mobile phones must be switched off at all times in an aircraft. Switch off near petrol stations, fuel depots, chemical plants or blasting o…

Text truncated - open the document above for the full version.

M46 – Front View M46 – Back View (with battery cover)

M46 – Back View (without battery cover) M46 – Side View

M46 – Label Location M46 – Battery

M46 – Front Frame, Keypad, and speaker M46 – Front Frame, Keypad, and speaker (back view)

M46 – Antenna M46 – Display M46 – Back Frame with antenna

TTI-P-G 158 Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 1 of 26 Calibration Data and Phantom Information for the Report Dosimetric Assessment of the Siemens M46 (FCC ID: PWX-M46) According to the FCC Requirements April 16, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information and Communication Mobile LCC 16745 West Bernardo Drive Suite 400 San Diego, CA 92127 USA This report shall not be reproduced except in full without the written approval of the testing laboratory. calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 2 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 3 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 4 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 5 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 6 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 7 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 8 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 9 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 10 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 11 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 12 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 13 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 14 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 15 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 16 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 17 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 18 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 19 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 20 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 21 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 22 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 23 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 24 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 25 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH Calibration Data for DASY Test-Report, Siemens_ 6575_235 Page 26 of 26 calibration_data_fcc_supplement_c _2.1.doc/22.02.2002/CH

TTI-P-G 158 DASY Test-Report, Siemens_6575_235 Page 1 of 30 Report Dosimetric Assessment of the Siemens M46 (FCC ID: PWX-M46) According to the FCC Requirements April 19, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information and Communication Mobile LLC 16745 West Bernado Drive Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.1.doc/25.02.2002/CH DASY Test-Report, Siemens_6575_235 Page 2 of 30 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Executive Summary The M46 is a new mobile phone from Siemens operating in the 1900 MHz frequency range. The device has an integrated antenna. The system concept used is the PCS 1900 standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY3“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. The Siemens M46 mobile phone (FCC ID: PWX-M46) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configurations with the following accessories and combinations: “Belt Clip” with “Headset” and “Belt Clip” with “MP3 Player”. prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6575_235 Page 3 of 30 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 MEASUREMENT PROCEDURE...................................................................................................................... 11 4.2 UNCERTAINTY ASSESSMENT........................................................................................................................ 12 5 SAR RESULTS ................................................................................................................................................ 13 6 EVALUATION ................................................................................................................................................ 14 7 APPENDIX ...................................................................................................................................................... 15 7.1 ADMINISTRATIVE DATA...............................................................................................................................15 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 15 7.3 TISSUE RECIPES......................................................................................................................................... 15 7.4 MATERIAL PARAMETERS............................................................................................................................. 16 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 16 7.6 ENVIRONMENT........................................................................................................................................... 19 7.7 TEST EQUIPMENT....................................................................................................................................... 19 7.8 PICTURES OF THE DEVICE UNDER TEST....................................................................................................... 20 7.9 TEST POSITIONS FOR THE DEVICE UNDER TEST........................................................................................... 24 7.10 PICTURES TO DEMONSTRATE THE REQUIRED LIQUID DEPTH........................................................................ 30 8 REFERENCES ................................................................................................................................................ 30 DASY Test-Report, Siemens_6575_235 Page 4 of 30 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 Subject of Investigation Th…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_235_Leather Case Page 1 of 12 Appendix for the Report Dosimetric Assessment of the Siemens M46 (FCC ID: PWX-M46) According to the FCC Requirements Body worn configuration: Measurements with “Leather Case” April 19, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information and Communication Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_235_Leather Case Page 2 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Executive Summary The M46 is a new mobile phone from Siemens operating in the 1900 MHz frequency range. The device has an integrated antenna. The system concept is the PCS 1900 standard. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY3“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. The Siemens M46 mobile phone (FCC ID: PWX-M46) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessory: “Leather Case“. prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_235_Leather Case Page 3 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR RESULTS .................................................................................................................................................. 4 2 EVALUATION .................................................................................................................................................. 5 2.1 PICTURES OF THE DEVICE UNDER TEST......................................................................................................... 6 2.2 TEST POSITIONS FOR THE DEVICE UNDER TEST............................................................................................. 7 2.3 SAR DISTRIBUTION PLOTS............................................................................................................................ 9 2.4 SAR Z-AXIS SCAN....................................................................................................................................... 11 3 REFERENCES ................................................................................................................................................ 12 DASY Test-Report, Siemens_ 6575_235_Leather Case Page 4 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Results The Tables below contain the measured SAR values averaged over a mass of 1 g. SAR 1g [W/kg] (Drift[dB]) Temperature M46 with leather case (Liquid depth = 15.4 cm) Channel 512 1850.20 MHz 29.9 dBm Channel 661 1880.00 MHz 29.8 dBm Channel 810 1909.80 MHz 29.8 dBm Ambient Liquid Display towards the phantom 0.173* (0.03) 0.161* (0.01) 0.150* (-0.03) 22.5/22.8/22.9 21.1/21.2/21.4 Display towards the ground 0.276* (-0.04) 0.266* (0.04) 0.288* (-0.02)22.8/22.5/22.9 21.2/21.1/21.4 Table 1: Measurement results in body-worn configuration for PCS 1900 for the Siemens M46 with leather case (* Cube 1). The “Cube 1” labeling indicates that during the grid scanning an additionally peak was found which was within 2.0 dB of the highest peak. The value of the highest cube can be found in the above tables, the value from the second assessed cube can be found in the SAR distribution plot. The above mentioned power values are conducted measured values. The power output was measured in the IMST GmbH. Before the measurements the test side ambient conditions were checked performing SAR measurements with the phone powered off. The highest noise level was 0.0008 W/kg (1g cube) for the body positions. DASY Test-Report, Siemens_ 6575_235_Leather Case Page 5 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 2 Evaluation In Fig. 1 the SAR results in body-worn configuration for PCS 1900 given in Table 1 are summarized and compared to the limit. 0 0,5 1 1,5 2 M46 with leather case, display towards the phantom M46 with leather case, display towards the ground SAR 1g [W/kg] Channel 512Channel 661Channel 810 FCC Guideline Fig. 1: The measured SAR values in body-worn configuration with leather case for the Siemens M46 for PCS 1900 in comparison to the FCC exposure limit. The Siemens M46 mobile phone (FCC ID: PWX-M46) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessory: “Leather Case“. DASY Test-Report, Siemens_ 6575_235_Leather Case Page 6 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 2.1 Pictures of the device under test Fig. 2 – 3 show the device under test and the used accessories. Fig. 2: leather case Fig. 3: Phone with leather case in the configuration: Display towards the phantom (left) and Display towards the ground (right). DASY Test-Report, Siemens_ 6575_235_Leather Case Page 7 of 12 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 2.2 Test Positions for the Device under Test Fig. 4 – Fig. 5 shown the test positions for the SAR measurements. Fi…

Text truncated - open the document above for the full version.

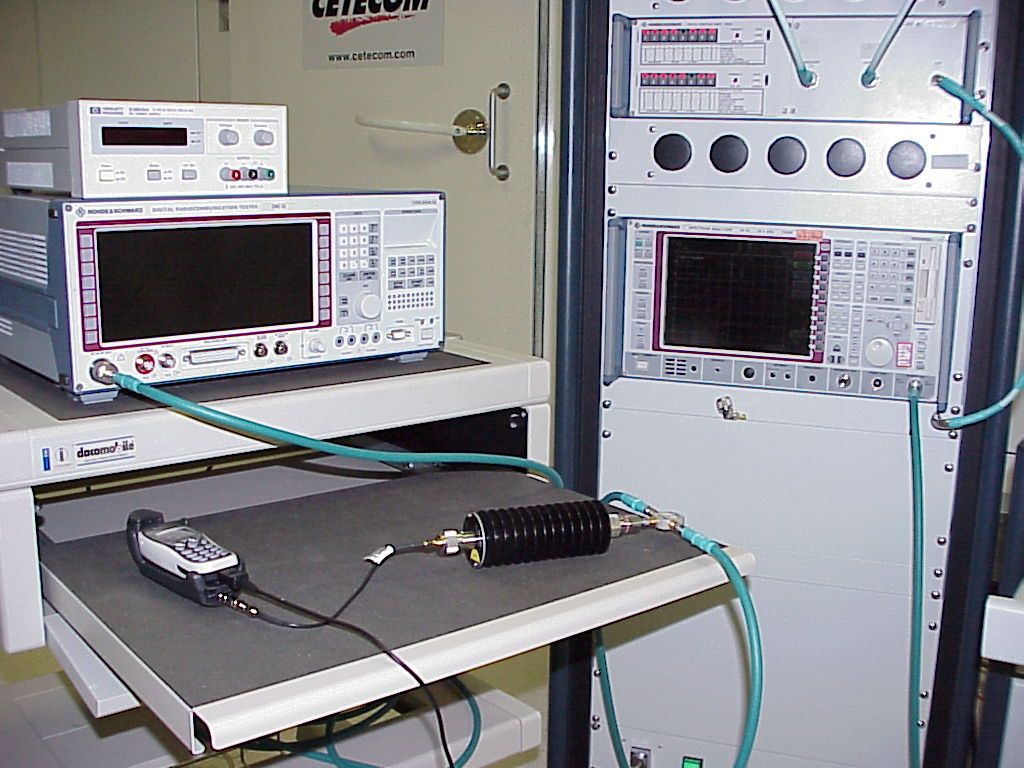

TTI-P-G 158 Test-Report, Siemens_ 6575_235_Conducted Power Page 1 of 5 Appendix for the Report Dosimetric Assessment of the Siemens M46 (FCC ID: PWX-M46) According to the FCC Requirements Conducted Power Measurements April 19, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information and Communication Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. Conducted Power.doc/18.04.2002/CH Test-Report, Siemens_ 6575_235_Conducted Power Page 2 of 5 Conducted Power.doc/18.04.2002/CH 1 Executive Summary The M46 is a new mobile phone from Siemens operating in the 1900 MHz frequency range. The device has an integrated antenna and the system concept used is the PCS 1900 standard. The objective of the measurements done by IMST was the measurement of the Conducted Power in the PCS 1900 band (Power Level: 0). 2 Measurement Procedure For the measurements a Rohde & Schwarz Radio Communication Tester CMU 200 was used. The output power was measured using a mobile phone test cradle with integrated RF connector and attached RF cable. 3 Measurement Results Averaged Burst Power Channel 512 1850.20 MHz Averaged Burst Power Channel 661 1880.00 MHz Averaged Burst Power Channel 810 1909.80 MHz Ambient Temperature [° C] 29.9 dBm 29.8 dBm 29.8 dBm 22 Table 1: Conducted Power, PCS 1900, Siemens M46 (IMEI: 099999001234561). Mobile Phone in test cradle Radio Tester CMU 200 Test-Report, Siemens_ 6575_235_Conducted Power Page 3 of 5 Conducted Power.doc/18.04.2002/CH 4 Device under Test MTE: Siemens M46, Production Line Unit IMEI: 099999001234561 FCC ID: PWX-M46 Equipment class: Portable device Power Class (PCS 1900): 1, tested with power level 0 Power supply: Internal Battery (Other batteries not available) Antenna: Antenna Typ: integrated Measured Standards: PCS 1900 Modulation: GMSK TX range: PCS 1900 : 1850.2 MHz – 1909.8 MHz RX range: PCS 1900 : 1930.2 MHz – 1989.8 MHz Used TX Channels: PCS 1900: low: ch. 512, center: ch. 661, high: ch. 810 5 Test Equipment Test Equipment Model Serial Number Last Calibration Next Calibration Radio Tester, Rohde & Schwarz CMU200 837586/043 01/2002 01/2003 prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] Test-Report, Siemens_ 6575_235_Conducted Power Page 4 of 5 Conducted Power.doc/18.04.2002/CH Test-Report, Siemens_ 6575_235_Conducted Power Page 5 of 5 Conducted Power.doc/18.04.2002/CH

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 1 of 10 Appendix for the Report Dosimetric Assessment of the Siemens M46 (FCC ID: PWX-M46) According to the FCC Requirements SAR Distribution Plots April 19, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information and Communication Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c 2.1_SAR-Plots.doc/22.02.2002/CH DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 2 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 ...................................................................................................... 3 2 SAR Z-AXIS SCAN........................................................................................................................................... 9 DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 3 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH 1 SAR Distribution Plots, PCS 1900 Fig. 1: SAR distribution, PCS 1900, channel 661, cheek position, left head side, Cube 2: 0.531 W/kg. DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 4 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Fig. 2: SAR distribution, PCS 1900, channel 661, tilted position, left head side DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 5 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Fig. 3: SAR distribution, PCS 1900, channel 661, cheek position, right head side, Cube 2: 0.578 W/kg. DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 6 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Fig. 4: Worst case SAR distribution, PCS 1900, channel 512, tilted position, right head side DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 7 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Fig. 5: Worst case SAR distribution, PCS 1900, channel 512, body worn configuration, belt clip with headset DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 8 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Fig. 6: Worst case SAR distribution, PCS 1900, channel 512, body worn configuration, belt clip with MP3 player, Cube 2: 0.158 W/kg. DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 9 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH 2 SAR z-axis scan The following pictures shown the plot of SAR versus liquid depth for the worst case values. Fig. 7: SAR versus liquid depth at the location with the highest value: PCS 1900, channel 512, tilted position, right head side. DASY Test-Report, Siemens_ 6575_235_SAR Distribution Plots Page 10 of 10 dasy_report_fcc_supplement_c 2.1_SA R -Plots.doc/22.02.2002/CH Fig. 8: SAR versus liquid depth at the location with the highest value: PCS 1900, channel 512, body worn configuration, belt clip with headset

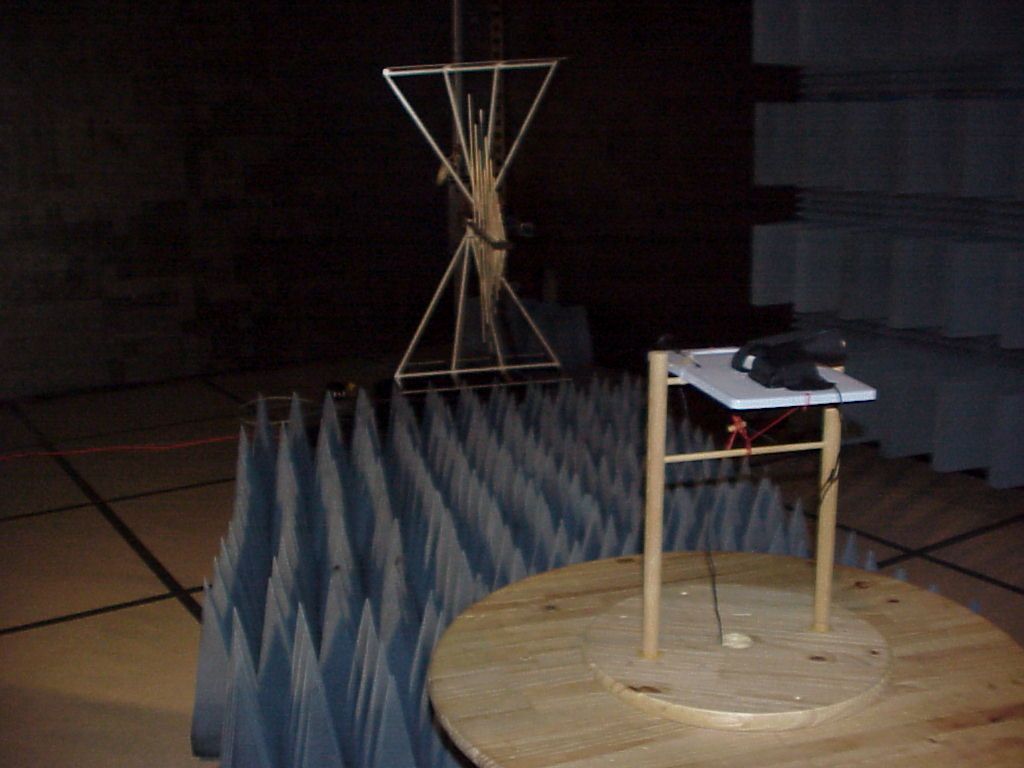

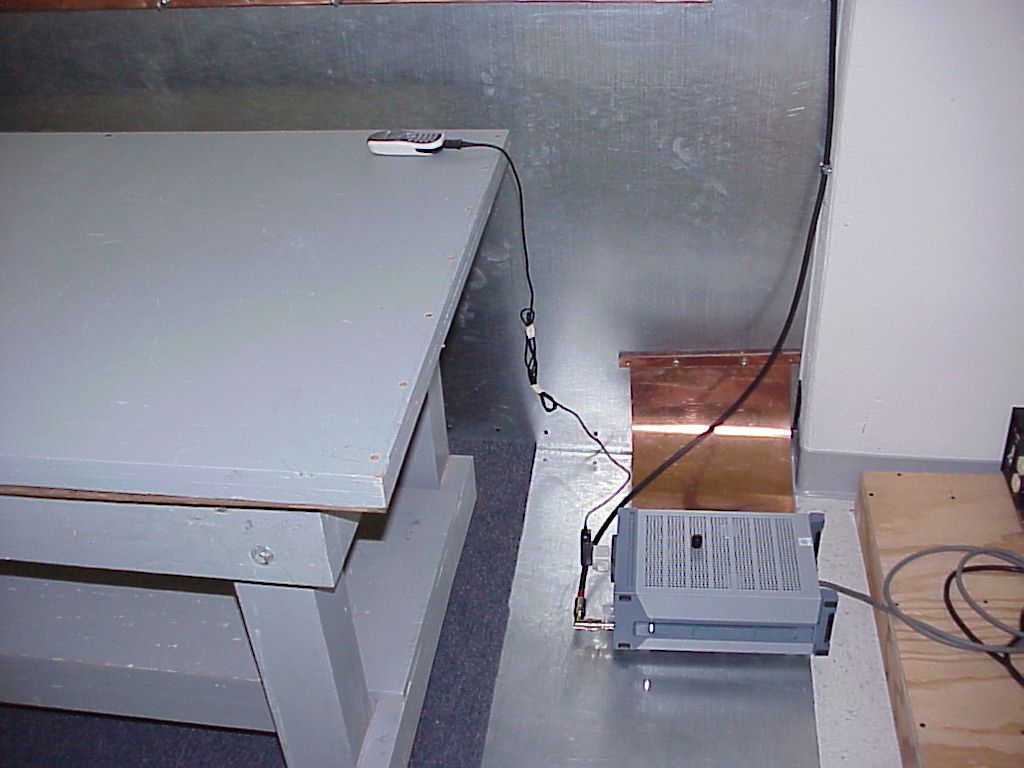

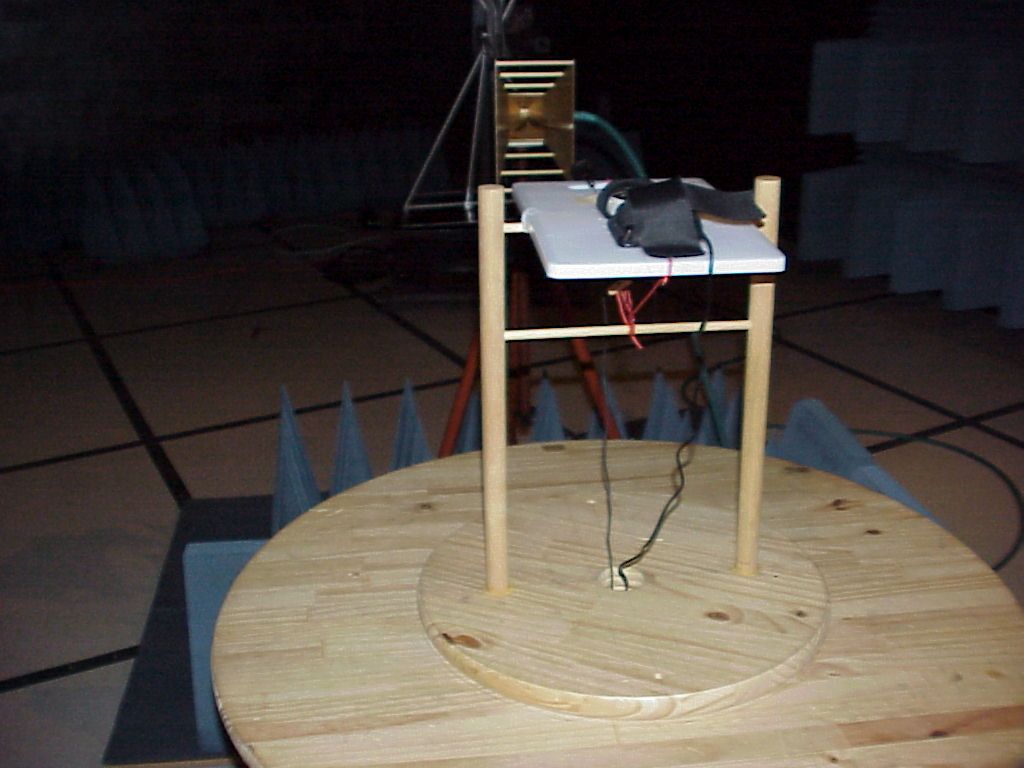

SIEMENS AGSubject: M46 ICM MPTest case: Output Power EMC SAN DIEGOPage: 1/4 Testreport \\EMC_DOCU\EMC_M46_12 Test Report Conducted Output Power GSM1900 SIEMENS M46 Report no: EMC_M46_12 Issue date: April 19, 2002 Test Site SIEMENS ICM MP SAN Information and Communication Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego, CA 92127-1903, U.S.A. Tel.: 858-521-3282 Fax.: 858-521-3106 Test Engineers Ulrich Bettin Ricky L. Simpkins Sr. Supervisor Dr. Peter Nevermann RF Manager EMC+Antenna SIEMENS AGSubject: M46 ICM MPTest case: Output Power EMC SAN DIEGOPage: 2/4 Testreport \\EMC_DOCU\EMC_M46_12 Contents: 1 Objective and Method.................................................... 2 2 Results................................................................. 2 3 Minutes of Test......................................................... 2 3.1 Description of Device under Test ..................................... 2 3.2 Measurement Set Up ................................................... 3 4 Calibration Certificate................................................. 4 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurement. Using a special adapter and connecting to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting. 2 Results Average Power during burst at connector Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens M46, “FCC1” IMEI: 00499951102994 29.8 dBm 29.9 dBm 29.9 dBm Siemens M46, “FCC2” IMEI: 00499951102993 29.7 dBm 29.8 dBm 29.8 dBm Tab. 1: Results of power measurements at connector for Siemens M46. 3 Minutes of Test 3.1 Description of Device under Test Siemens Mobile Phone: M46 Frequency range: 1850-1990 MHz…

Text truncated - open the document above for the full version.
