PWX-M55PCS Mobile Phone

Contents 1 See also Index at the end of this User Guide M55 Barracuda fug am, A31008-H6300-A40-1-4A19 (19. May 2003, 16:31) © Siemens AG 2001, I:\Mobil\L55\M55_Barracuda\am\M55\fug\M55_BarracIVZ.fm SAR (Cell Phone Designation) .... 4 Safety precautions ..................... 6 Safety Information ..................... 7 Antenna care ........................... 7 Phone operation ...................... 7 Electronic devices ..................... 8 Overview of the phone ............ 11 Display symbols (selection) ..... 13 Getting started ......................... 15 Insert SIM card/battery ........... 15 Charge battery ....................... 16 Switch on, off / PIN entry ......... 17 Switching on your phone for the first time ................................ 17 Standby mode ........................ 18 General instructions ................. 19 User guide ............................. 19 Menu controls ........................ 19 Security .................................... 21 Codes .................................... 21 Preventing accidental activation .............. 22 My phone ................................. 23 Calling ...................................... 24 Dialling with number keys ...... 24 End call .................................. 24 Set volume ............................. 24 Redial previous numbers ........ 24 If the number is busy .............. 25 Accept call ............................. 25 Reject call .............................. 26 Speakerphone ........................26 Swapping between 2 calls ......26 Multi Party ..............................28 Babysitter ............................... 29 Text entry ................................. 30 è Default book ........................ 34 Phonebook ................................ 35 <New entry> ..........................35 Call (search for an entry) ......... 36 Change entry ..........................36 Addressbook .............................38 <New entry> ..........................38 Change entry ..........................39 Call (search for an entry) ......... 40 Addressbook menu ................. 40 Voice dialing ........................... 41 Groups ......................................42 Z Call log ................................... 43 Z Durat/charges ........................44 ] Voice mail/mailbox ............45 ] SMS ..................................... 46 Writing and sending text messages (SMS) .....................46 Picture&Sound ....................... 47 SMS to group ..........................48 Read SMS .............................. 48 Ringtones, icons ... ................. 49 Archive ...................................50 ] MMS .................................... 51 Writing/sending MMS messages ....................... 51 Contents See also In- dex at the end of this User Guide Contents 2 M55 Barracuda fug am, A31008-H6300-A40-1-4A19 (19. May 2003, 16:31) © Siemens AG 2001, I:\Mobil\L55\M55_Barracuda\am\M55\fug\M55_BarracIVZ.fm Receive MMS .......................... 54 Read MMS .............................. 54 ] E-mail .................................. 57 Write/send e-mails .................. 57 Receive e-mail ........................ 58 Read new e-mail .................... 58 ] Message profiles ............... 61 SMS profiles ........................... 61 MMS profile ........................... 62 E-mail settings ....................... 63 ] CB services .......................... 65 É Surf & fun ............................ 66 Internet browser (WAP) .......... 66 Games & more ....................... 69 m Setup ................................. 72 Display ................................... 72 Tones/Alerts ........................... 74 Night design .......................... 76 Keys ....................................... 77 Phone setup ........................... 78 Clock ..................................... 81 Connectivity ........................... 82 Security ................................. 84 Network ................................. 86 Accessories ............................ 88 ~ Profiles ............................... 90 Favorites .................................. 92 ç Organizer ........................... 93 Calendar ................................ 93 Alarm ..................................... 95 Tasks ..................................... 97 Notes .....................................98 Missed appointments .............99 Voice notes .......................... 100 Time zones ...........................101 [ Extras .................................. 102 Alarm clock .......................... 102 Calculator ............................. 102 Currency conv ......................103 Stopwatch ............................ 104 Countdown ......................... 104 Camera (accessories) ............105 Voice command .................... 107 Remote synchronisation ....... 108 SIM services (optional) .......... 109 Fast access key ....................... 110 Ñ File manager ....................112 Send/Print... ............................114 Notes A-Z ................................115 Siemens Data Suite ................. 123 Questions & Answers ..............125 Customer Care ........................128 Care and maintenance ...........130 Specifications .........................131 Exposure to radiofrequency signals .................................. 131 Technical data ..................... 131 Trademarks .......................... 131 Maintenance ........................... 132 Accessories ............................. 133 U.S. FDA .................................. 135 Contents 3 M55 Barracuda fug am, A31008-H6300-A40-1-4A19 (19. May 2003, 16:31) © Siemens AG 2001, I:\Mobil\L55\M55_Barracuda\am\M55\fug\M55_BarracIVZ.fm FCC/Industry Canada Notice ... 141 Ten Driving Safety Tips .......... 142 Intellectual Property .............. 144 Battery quality statement ...... 145 Index ...................................... 146 SAR (Cell Phone Designation) 4 M55 Barracuda fug am, A31008-H6300-A40-1-4A19 …

Text truncated - open the document above for the full version.

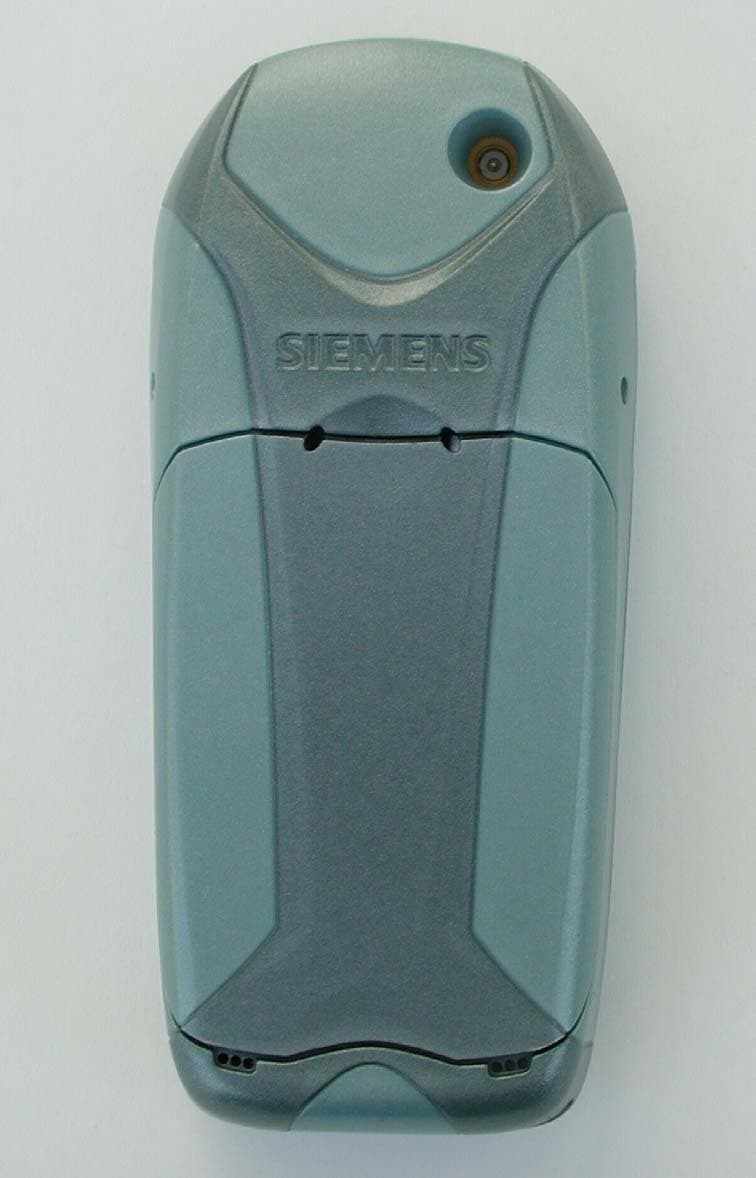

M55 Front View M55 Back View M55 Side Views

M55 Label Location

Date 13.02.2003Approval label Name Buttermann Standard IMEI-Label/M55 UC RD ED KLF 1 13.02.03 Bu LETTERING PLAN Version Date Token SIEMENS AG DIS 26669 Page 1 . From 1 A24850-V1-A4-2 VORSTD.DOC 5) 1) 2) 11) 3) 4) 9) 14) 8) 6) 7) XXXXXX Typ-Approval Code TAC 10) FF Final-Assembly Code FAC 10) SSSSSS Current serial number (6 digits), Assigned by PICS 10) C CHECK DIGIT 15. digit space between TAC, FAC, serial no. and 15.digit Ink ribbon: TTR-Band Ricoh 110-C Font: Title blocks concentric 1) Corporate logo: 1.5 SN 66324 2) Product name: Internal font D, size 4 3) Made xx Xxxxxxx Bitmap 4) Code of date: Internal font D, size 4 e.g. F3  March └─1995 5) Code number: Internal font D, size 4 6) CE- identification: Height: 5 mm according to BABT-Document 556 26/93 7) Barcode IMEI-No.: Code: 128 Size: 2 Ratio: 3.0 Height: 3 mm Typ 128, table C and B Characteristic: IMEI-No. has 15 digits Digit 1-14 is generated as Barcode with table C. Digit 15 is printed with table B. 8) IMEI-No. (plain writing): Internal font D, size 4, space between TAC, FAC, serial no. and 15.digit 9) Triangle: Height: 4 mm 10) Document for IMEI-No. allocation: DIS xxxxx BOM 000 xx Valid is the highest level in the system 11) Code number: Corresponding to the number of the transceiver unit part list 14) Canada IC and US FCC font: B3 SIEMENS M55 Made in Germany S30880-S6300-XXXX-1 YY XXXXXX FF SSSSSS C 0168 FCC ID: PWX-M55 IC: 267E-M55

M55 Open battery cover (Final label: see extra exhibit) M55 Disassembly step 1 M55 Disassembly step 2 M55 Disassembly step 3 M55 Board with shielding, side 1 M55 Board with shielding, side 2 M55 Board without shielding and without display, side 1 M55 Board without shielding, side 2

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_310: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens M55 (FCC ID: PWX-M55) According to the FCC Requirements Calibration Data April 10, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory. Page 2 of 2May 8, 2002 Dosimetric E-Field Probe ET3DV6 SN:1579 Conversion factor (± standard deviation) 835 MHzConvF6.8 ± 8% εε εε r = 41.5 ± 5% σσ σσ = 0.90 ± 5% mho/m (head tissue) 835 MHzConvF6.6 ± 8% εε εε r = 55.2 ± 5% σσ σσ = 0.97 ± 5% mho/m (body tissue) 1900 MHzConvF5.2 ± 8% εε εε r = 40.0 ± 5% σσ σσ = 1.40 ± 5% mho/m (head tissue) 1900 MHzConvF4.8 ± 8% εε εε r = 53.3 ± 5% σσ σσ = 1.52 ± 5% mho/m (body tissue)

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_310_SAR Distribution Plots Page 1 of 18 Appendix for the Report Dosimetric Assessment of the Siemens M55 (FCC ID: PWX-M55) According to the FCC Requirements SAR Distribution Plots April 10, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_310_SAR Distribution Plots Page 2 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT QUICKPIC CAMERA............................. 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH QUICKPIC CAMERA ..................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATACABLE.................................................. 13 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 15 6 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................17 DASY Test-Report, Siemens_ 6575_310_SAR Distribution Plots Page 3 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without QuickPic Camera Test Laboratory: IMST File Name: 55oplm_1.da4 DUT: Siemens M55; Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.46 mho/m, ε r = 38.8, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(5.2, 5.2, 5.2); Calibrated: 03.05.2002 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 15.05.2002 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 33; Postprocessing SW: SEMCAD, V1.6 Build 109 cheek left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm cheek left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14 V/m Peak SAR = 0.51 W/kg SAR(1 g) = 0.296 mW/g; SAR(10 g) = 0.167 mW/g Power Drift = -0.04 dB cheek left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 14 V/m Peak SAR = 0.416 W/kg SAR(1 g) = 0.275 mW/g; SAR(10 g) = 0.169 mW/g Power Drift = -0.04 dB Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (09.04.2003; Liquid Temperature: 19.8∞ C; Ambient Temperature : 21.5∞ C). 0 1 DASY Test-Report, Siemens_ 6575_310_SAR Distribution Plots Page 4 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: 55oplm_2.da4 DUT: Siemens M55; Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.46 mho/m, ε r = 38.8, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(5.2, 5.2, 5.2); Calibrated: 03.05.2002 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 15.05.2002 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 33; Postprocessing SW: SEMCAD, V1.6 Build 109 tilted left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm tilted left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 13.8 V/m Peak SAR = 0.583 W/kg SAR(1 g) = 0.342 mW/g; SAR(10 g) = 0.191 mW/g Power Drift = 0.001 dB Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (09.04.2003; Liquid Temperature: 19.9∞ C; Ambient Temperature : 21.5∞ C). DASY Test-Report, Siemens_ 6575_310_SAR Distribution Plots Page 5 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: m5oprm_1_wdh.da4 DUT: Siemens M55; Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.46 mho/m, ε r = 38.8, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(5.2, 5.2, 5.2); Calibrated: 03.05.2002 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 15.05.2002 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 33; Postprocessing SW: SEMCAD, V1.6 Build 109 cheek right/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm cheek right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.8 V/m Peak SAR = 1.13 W/kg SAR(1 g) = 0.556 mW/g; SAR(10 g) = 0.284 mW/g Power Drift = -0.006 dB Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head. (09.04.2003; Liquid Temperature: 19.7∞ C; Ambient Temperature : 21.5∞ C). DASY Test-Report, Siemens_ 6575_310_SAR Distribution Plots Page 6 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: m5oprm_2_wdh.da4 DUT: Siemens M55; Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.46 mho/m, ε r = 38.8, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1579; ConvF(5.2, 5.2, 5.2); Calibrated: 03.05.2002 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 15.05.2002 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 33; Postprocessing SW: SEMCAD, V1.6 Build 109 tilted right/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm tilted right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_310 Page 1 of 37 Report Dosimetric Assessment of the Portable Device Siemens M55 (FCC ID: PWX-M55) According to the FCC Requirements April 10, 2003 IMST GmbH Carl-Friedrich-Gaufl-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.1.doc/04.04.2003/CH DASY Test-Report, Siemens_ 6575_310 Page 2 of 37 dasy_report_fcc_supplement_c _3.1.doc/04.04.2003/CH Executive Summary The M55 is a new mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. The Siemens M55 mobile phone (FCC ID: PWX-M55) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in Head configuration without and with connected QuickPic Camera. In the Body Worn configuration with the following accessories and combinations: Talk mode (1 TX slot) with leather case FCL-500 and head set GPRS mode (1 TX slot) with leather case FCL-500 and data cable Based on the above mentioned measurements the maximum SAR values found are: head: 0.56 W/kg. body worn with 1 TX time slot: 0.50 W/kg. Based on measurements described, for a phone version featuring GPRS class 10 (with 2 TX time slots) the maximum body SAR value is determined to be 0.99 W/kg. prepared by: ........................................... reviewed by: .............................................. AndrÈ van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_310 Page 3 of 37 dasy_report_fcc_supplement_c _3.1.doc/04.04.2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSONíS EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 19 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 19 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 19 7.3 TISSUE RECIPES......................................................................................................................................... 19 7.4 MATERIAL PARAMETERS............................................................................................................................. 20 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 20 7.6 ENVIRONMENT...................................................................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_469FCC-24_2003_M55 FCC Part 24 / RSS 133 FCC ID: PWX-M55 CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 2 (63) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 3 (63) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : David McPherson Telephone : +1 858-521-3387 Tele-fax : +1 858-521-3106 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-04-3 Date of receipt test item : 2003-04-11 Date of test : 2003-04-25/26 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : M55 Model No. : Barracuda 55 Description : GSM Triband 900/1800/1900 Mobile Phone FCC-ID : PWX-M55 Additional information Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : Embedded Triband Power supply : Battery or Charger (AC Adaptor) Output power : 29.03dBm (799.83mW) maximum EIRP measured for PCS 1900 Extreme vol. Limits : 3.8VDC to 4.5VDC Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 4 (63) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-05-28 EMC & Radio Lothar Schmidt (EMC Manager) Date Section Name Signature Responsible for test report and project leader: 2003-05-28 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 5 (63) 2.2 Test report TEST REPORT Test report no.: EMC_469FCC-24_2003_M55 (FCC ID: PWX-M55) CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 6 (63) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 13 OCCUPIED BANDWIDTH §2.1049(h)(i) 15 EMISSION BANDWIDTH §24.238(b) 19 EMISSIONS LIMITS §24.238 23 BAND EDGE COMPLIANCE §24.238(b) 37 RECEIVER RADIATED EMISSIONS § 15.209 / RSS-133 49 CONDUCTED SPURIOUS EMISSIONS 54 CONDUCTED EMISSIONS § 15.107/207 59 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 61 BLOCK DIAGRAMS 62 CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 7 (63) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 8 (63) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to attached document: “EMC_M55_1” (Page 4, section 2.3, Siemens M55, “FCC Sample 1”, IMEI: 004999.51.206583.9) Frequency (MHz) Burst Average Power (dBm) 1850.2 29.4 1880.0 29.2 1909.8 29.1 CETECOM Inc. Test report no.: EMC_469FCC-24_2003_M55 Issue date: 2003-05-28 Page 9 (63) Radiated: EIRP Measurements Description: This is the test for the maximum radiated power from the EUT. Rule Part 24.232(b) specifies, "Mobile/portable stations are limited to 2 watts e.i.r.p. Peak power" and 24.232(c) specifies that "Peak transmit power must be measured over any interval of continuous transmission using instrumentation calibrated in terms of an rms-equivalent voltage." Method of Measurement: 1. In an anechoic a…

Text truncated - open the document above for the full version.

SIEMENS AG Subject: M55 ICM MP UC RD IT KLF Test case: Output Power Page: 1/6 File: EMC_M55_1.doc Test Report Conducted Output Power GSM 900, GSM 1800 and GSM 1900 SIEMENS M55 Report no: tbf Issue date: March 06, 2003 Test Site SIEMENS ICM MP UC RD IT KLF Information and Communication Mobile Südstraße 9 D-47475 Kamp-Lintfort Federal Republic of Germany Tel.: +49-2842-95-4081 Fax.: +49-2842-95-4717 Test Engineer: Roland Göhringer Supervisor: Wolfgang Kösters RF Manager EMC and Antenna SIEMENS AG Subject: M55 ICM MP UC RD IT KLF Test case: Output Power Page: 2/6 File: EMC_M55_1.doc Contents: 1 Objective and Method .................................................. 2 2 Results ............................................................... 3 3 Minutes of Test ....................................................... 4 3.1 Description of Device under Test .................................... 4 3.2 Measurement Set Up.................................................. 5 4 Calibration Certificate ............................................... 6 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurement. Using a special adapter and connecting to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting. SIEMENS AG Subject: M55 ICM MP UC RD IT KLF Test case: Output Power Page: 3/6 File: EMC_M55_1.doc 2 Results 2.1 GSM 900 Band Average Power during burst at connector Device ARFCN 975 880.2 MHz ARFCN 38 897.6 MHz ARFCN 124 914.8 MHz Siemens M55, “FCC Sample 1” IMEI: 004999.51.206583.9 +32.0 dBm +32.0 dBm +31.8 dBm Siemens M55, “FCC Sample 2” IMEI: 004999.51.206591.2 +32.0 dBm +31.9 dBm +31.9 dBm Siemens M55, “SAR Sample 3” IMEI: 004999.51.206257.0 +31.8 dBm +31.8 dBm +31.8 dBm Siemens M55, “SAR Sample 4” IMEI: 004999.51.206578.9 +32.0 dBm +32.0 dBm +31.8 dBm Tab. 1: Results of power measurements at connector for Siemens M55. 2.2 GSM 1800 Band Average Power during burst at connector Device ARFCN 512 1710.2 MHz ARFCN 698 1747.4 MHz ARFCN 885 1784.8 MHz Siemens M55, “FCC Sample 1” IMEI: 004999.51. 206583.9 +29.8 dBm +29.4 dBm +29.2 dBm Siemens M55, “FCC Sample 2” IMEI: 004999.51. 206591.2 +29.8 dBm +29.4 dBm +29.1 dBm Siemens M55, “SAR Sample 3” IMEI: 004999.51. 206257.0 +30.0 dBm +29.5 dBm +29.3 dBm Siemens M55, “SAR Sample 4” IMEI: 004999.51. 206578.9 +30.0 dBm +29.3 dBm +29.2 dBm Tab. 2: Results of power measurements at connector for Siemens M55 SIEMENS AG Subject: M55 ICM MP UC RD IT KLF Test case: Output Power Page: 4/6 File: EMC_M55_1.doc 2.3 GSM 1900 Band Average Power during burst at connector Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens M55, “FCC Sample 1” IMEI: 004999.51. 206583.9 +29.4 dBm +29.2 dBm +29.1 dBm Siemens M55, “FCC Sample 2” IMEI: 004999.51. 206591.2 +29.3 dBm +29.1 dBm +29.0 dBm Siemens M55, “SAR Sample 3” IMEI: 004999.51. 206257.0 +29.4 dBm +29.2 dBm +29.1 dBm Siemens M55, “SAR Sample 4” IMEI: 004999.51. 206578.9 +29.4 dBm +29.3 dBm +29.2 dBm Tab. 3: Results of power measurements at connector for Siemens M55 3 Minutes of Test 3.1 Description of Device under Test Mobile P…

Text truncated - open the document above for the full version.
