PWX-M56GSM 850/1900 Mobile Phone

Contents 1 See also Index at the end of this User Guide M56 Barracuda long, am english, A31008-H6350-A40-1-4A19 (28. July 2003, © Siemens AG 2001, I:\Mobil\L55\M56_Barracuda\fug\Anlieferung_220703\M56_BarracIVZ.fm Safety precautions ..................... 4 Safety Information ..................... 5 Antenna care ........................... 5 Phone operation ...................... 5 Electronic devices ..................... 6 SAR (Cell Phone Designation) .... 9 Overview of the phone ............ 11 Display symbols (selection) ..... 13 Getting started ......................... 15 Insert SIM card/battery ........... 15 Charge battery ....................... 16 Switch on, off / PIN entry ......... 17 Switching on for the first time 17 Standby mode ........................ 18 General instructions ................. 19 User guide ............................. 19 Menu controls ........................ 19 Security .................................... 21 Codes .................................... 21 Preventing accidental activation ............................... 22 My phone ................................. 23 Calling ...................................... 24 Dialing with number keys ....... 24 End call .................................. 24 Set volume ............................. 24 Redial previous numbers ........ 24 If the number is busy .............. 25 Accept call ............................. 25 Reject call .............................. 26 Speakerphone ........................ 26 Swapping between 2 calls ......26 Multi Party ..............................28 Babysitter ............................... 29 Text entry ................................. 30 ̄ Default book ........................34 Phonebook ................................35 <New entry> ..........................35 Call (search for an entry) ......... 36 Change entry ..........................36 0 Voice mail/mailbox .............38 Addressbook .............................39 <New entry> ..........................39 Change entry ..........................40 Call (search for an entry) ......... 41 Addressbook menu ................. 41 Voice dialing ...........................42 Groups ...................................... 43 - Call log ...................................44 - Durat/charges ........................45 0 SMS ..................................... 46 Writing and sending text messages (SMS) .....................46 Picture&Sound ....................... 47 SMS to group ..........................48 Read SMS ..............................48 Ring tones, icons ... ................49 SMS archive ............................ 50 0 MMS ....................................51 Writing/sending MMS messages ............................... 51 Receive MMS ..........................54 Contents See also Index at the end of this User Guide Contents 2 M56 Barracuda long, am english, A31008-H6350-A40-1-4A19 (28. July 2003, © Siemens AG 2001, I:\Mobil\L55\M56_Barracuda\fug\Anlieferung_220703\M56_BarracIVZ.fm Read MMS .............................. 54 0 E-mail .................................. 57 Write/send e-mails .................. 57 Receive e-mail ........................ 58 Read new e-mail .................... 58 0
Message profiles ............... 61 SMS profiles ........................... 61 MMS profile ........................... 62 E-mail settings ....................... 63 0 CB services .......................... 65 ‘ Surf & fun ............................ 66 Internet browser (WAP) .......... 66 Games & more ....................... 69 @ Setup ................................. 72 Display ................................... 72 Tones/Alerts ........................... 74 Dynamic Light ........................ 76 Keys ....................................... 77 Phone setup ........................... 77 Clock ..................................... 80 Connectivity ........................... 81 Security ................................. 84 Network ................................. 86 Accessories ............................ 88 Q Profiles ............................... 89 Favorites .................................. 91 ® Organizer ........................... 92 Calendar ................................ 92 Alarm ..................................... 94 Tasks ..................................... 96 Notes ..................................... 97 Missed appointments .............98 Voice notes ............................ 99 Time zones ...........................100 . Extras .................................. 101 Alarm clock .......................... 101 Calculator ............................. 101 Currency conv ......................102 Stopwatch ............................103 Countdown .........................103 Camera (Accessories) ............104 Voice command ....................106 Remote synchronization ....... 107 SIM services (optional) .......... 108 Fast access key ....................... 109 ˜ File manager ....................111 Send... ..................................... 113 Notes A-Z ................................114 Siemens Data Suite .................122 Questions & Answers ..............124 Customer care ........................127 Specifications .........................129 Exposure to radiofrequency signals .................................. 129 Technical data ..................... 129 Trademarks .......................... 129 Care and maintenance ...........130 Accessories ............................. 131 U.S. FDA .................................. 133 FCC/Industry Canada Notice ...139 Ten Driving Safety Tips ...........140 Contents 3 M56 Barracuda long, am english, A31008-H6350-A40-1-4A19 (28. July 2003, © Siemens AG 2001, I:\Mobil\L55\M56_Barracuda\fug\Anlieferung_220703\M56_BarracIVZ.fm Intellectual Property .............. 142 Battery quality statement ...... 143 Index ...................................... 144 Safety precautions 4 M56 Barracuda long, am english, A31008-H6350-A40-1-4A19 (28. July 2003, © Siemen…

Text truncated - open the document above for the full version.

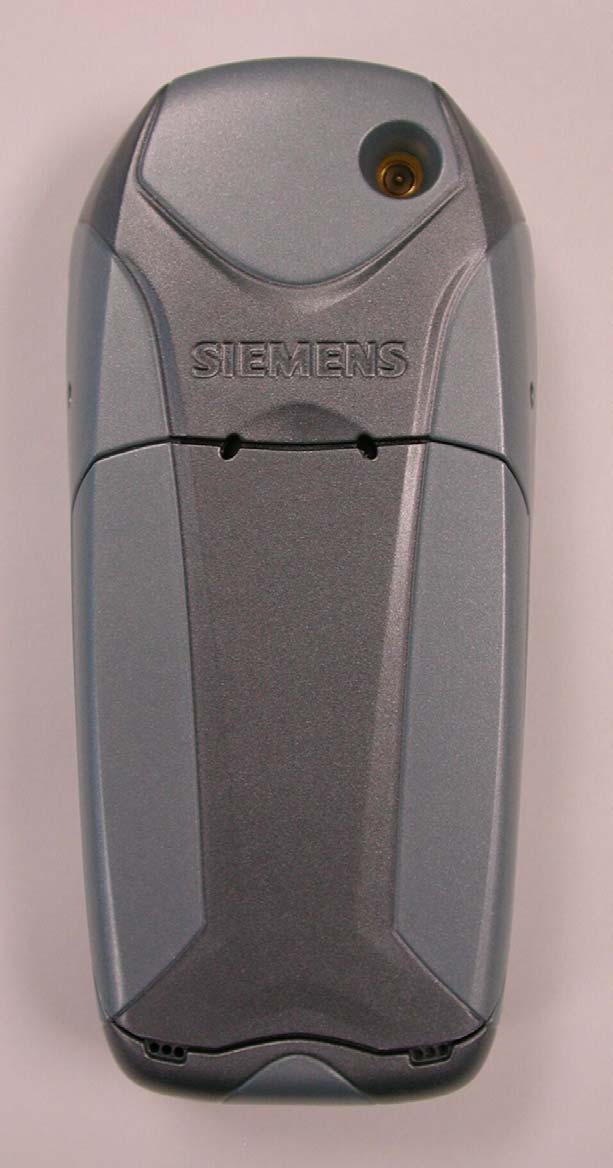

M56 Front View Siemens strictly Confidential ¤ FCC External pictures for M56 Version 1.0 Page 1 of 3 M56 Back View (with battery cover) Siemens strictly Confidential ¤ FCC External pictures for M56 Version 1.0 Page 2 of 3 Siemens strictly Confidential ¤ FCC External pictures for M56 Version 1.0 Page 3 of 3 M56 Side View

Date 03.03.2003Approval label Name Pieper Standard IMEI-Label/M56 2 17.06.03 Pie UC RD ED KLF 1 03.03.03 Pie LETTERING PLAN Version Date Token SIEMENS AG DIS 33927 Page 1 5) 1) 2) 3) 4) 14) 8) 7) SIEMENS M56 Made xx Xxxxxxx S30880-SXXXX-XXXX-1 YY XXXXXXXX SSSSSS C FCC ID: PWX-M56 IC: 267E-M56 10) XXXXXXXX Typ-Approval Code TAC 10) SSSSSS Current serial number (6 digits), Assigned by PICS 10) C CHECK DIGIT 15. digit space between TAC, serial no. and 15.digit Ink ribbon: TTR-Band Ricoh 110-C Font: Title blocks concentric 1) Corporate logo: 1.5 SN 66324 2) Product name: Internal font D, size 4 3) Made xx Xxxxxxx Internal font B, size 3 / Depending on production location 4) Code of date: Internal font D, size 4 e.g. F3  March └─1995 5) Code number: Internal font D, size 4 Corresponding to the number of the transceiver unit part list 7) Barcode IMEI-No.: Code: 128 Size: 2 Ratio: 3.0 Height: 3 mm Typ 128, table C and B Characteristic: IMEI-No. has 15 digits Digit 1-14 is generated as Barcode with table C. Digit 15 is printed with table B. 8) IMEI-No. (plain writing): Internal font D, size 4, space between TAC, serial no. and 15.digit 10) Document for IMEI-No. allocation: DIS 33995 BOM 000 xx Valid is the highest level in the system 14) Canada IC and US FCC Internal font B, size 3 . From 1 A24850-V1-A4-2 VORSTD.DOC M56 Open battery cover Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 1 of 10

M56 Open battery cover Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 1 of 10 M56 Disassembly step 1: Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 2 of 10 M56 Disassembly step 2: GSM Dual-band Antenna Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 3 of 10 GSM Dual-band Antenna detail Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 4 of 10 M56 Disassembly step 3 Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 5 of 10 M56 Disassembly step 4 Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 6 of 10 M56 Board with shielding, side 1 Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 7 of 10 M56 Board with shielding, side 2 Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 8 of 10 M56 Board without shielding and without display, side 1 Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 9 of 10 Siemens strictly Confidential ¤ FCC Internal pictures M56 Version 1.0 Page 10 of 10 M56 Board without shielding, side 2

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_331 Page 1 of 42 Report Dosimetric Assessment of the Portable Device Siemens M56 (FCC ID: PWX-M56) According to the FCC Requirements July 24, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH DASY Test-Report, Siemens_ 6575_331 Page 2 of 42 dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH H Executive Summary The M56 is a mobile phone (Portable Device) from Siemens operating in the 800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 850 and PCS 1900 standards including GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG (Fig. 17). The Siemens M56 mobile phone (FCC ID: PWX-M56) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessories and combinations with 1.5 cm distance: • GSM mode (1 TX slot) with headset • GPRS mode (1 TX slot) with datacable prepared by: ........................................... reviewed by: .............................................. Dipl.-Ing. Christoph Hennes Dr.-Ing. Frank Gustrau test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_331 Page 3 of 42 dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH H Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 19 7 APPENDIX ...................................................................................................................................................... 22 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 22 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 22 7.3 TISSUE RECIPES......................................................................................................................................... 23 7.4 MATERIAL PARAMETERS............................................................................................................................. 23 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 24 7.6 ENVIRONMENT........................................................................................................................................... 30 7.7 TEST EQUIPMENT....................................................................................................................................... 30 7.8 CERTIFICATES OF CONFORMITY................................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_331_SAR Distribution Plots Page 1 of 34 Appendix for the Report Dosimetric Assessment of the Siemens M56 (FCC ID: PWX-M56) According to the FCC Requirements SAR Distribution Plots July 25, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_331_SAR Distribution Plots Page 2 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM850 WITHOUT QUICKPIC CAMERA........................................... 3 2 SAR DISTRIBUTION PLOTS, GSM850 WITH QUICKPIC CAMERA ................................................... 7 3 SAR DISTRIBUTION PLOTS, GSM 850 BODY WITH HEADSET ........................................................ 11 4 SAR DISTRIBUTION PLOTS, GSM850 BODY WITH DATA CABLE .................................................. 13 5 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT QUICKPIC CAMERA........................... 15 6 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH QUICKPIC CAMERA ................................... 19 7 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 23 8 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE................................................. 25 9 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 27 10 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................31 DASY Test-Report, Siemens_ 6575_331_SAR Distribution Plots Page 3 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, GSM850 without QuickPic Camera Test Laboratory: IMST File Name: m56glh_1.da4 DUT: Siemens ; Type: M56; Serial: 001002000244843 Program: Measurement Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.89 mho/m, ε r = 41.3, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(6.8, 6.8, 6.8); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; Type: SAM; Serial: 1059 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 27.3 V/m Power Drift = -0.007 dB Maximum value of SAR = 0.954 mW/g cheek left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.32 W/kg SAR(1 g) = 0.962 mW/g; SAR(10 g) = 0.644 mW/g Reference Value = 27.3 V/m Power Drift = -0.007 dB Maximum value of SAR = 1.03 mW/g Fig. 1: SAR distribution for GSM 850, channel 251, cheek position, left side of head. (17.07.2003; Liquid Temperature: 20.8° C; Ambient Temperature : 21.8° C). DASY Test-Report, Siemens_ 6575_331_SAR Distribution Plots Page 4 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: m56glm_2.da4 DUT: Siemens ; Type: M56; Serial: 001002000244843 Program: Measurement Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.89 mho/m, ε r = 41.3, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(6.8, 6.8, 6.8); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; Serial: 1059 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilted left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 25 V/m Power Drift = -0.0004 dB Maximum value of SAR = 0.546 mW/g tilted left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.764 W/kg SAR(1 g) = 0.539 mW/g; SAR(10 g) = 0.354 mW/g Reference Value = 25 V/m Power Drift = -0.0004 dB Maximum value of SAR = 0.58 mW/g Fig. 2: SAR distribution for GSM 850, channel 190, tilted position, left side of head. (17.07.2003; Liquid Temperature: 20.8° C; Ambient Temperature : 21.6°C). DASY Test-Report, Siemens_ 6575_331_SAR Distribution Plots Page 5 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: m56grh_1_wdh1.da4 DUT: Siemens ; Type: M56; Serial: 001002000244843 Program: Measurement Communication System: GSM 850; Frequency: 848.8 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.89 mho/m, ε r = 41.3, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(6.8, 6.8, 6.8); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; Serial: 1059 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 27.7 V/m Power Drift = -0.05 dB Maximum value of SAR = 1.03 mW/g cheek right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.33 W/kg SAR(1 g) = 0.982 mW/g; SAR(10 g) = 0.661 mW/g Reference Value = 27.7 V/m Power Drift = -0.05 dB Maximum value of SAR = 1.04 mW/g Fig. 3: SAR distribution for GSM 850, channel 251, cheek position, right side of head. (17.07.2003; Liquid Temperature: 20.8° C; Ambient Temperature : 21.7 C). DASY Test-Report, Siemens_ 6575_331_SAR Distribution Plots Page 6 of 34 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: m56grm_2.da4 DUT: Siemens …

Text truncated - open the document above for the full version.

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_331: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens M56 (FCC ID: PWX-M56) According to the FCC Requirements Calibration Data July 25, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_518FCC22-24_2003_M56 FCC Part 22,24 / RSS 133 Model: (M56) FCC ID: PWX-M56 IC ID: 267E-M56 Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 2 (94) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 3 (94) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Milton de Leon Telephone : +1 858-521-3382 Tele-fax : +1 858-521-3106 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-07-15 Date of test : 2003-07-15/16/24/28 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : D-47475 Kamp-Lintfort Country : Germany Marketing Name : M56 Model No. : M56 Description : GSM 850/1900 Mobile Phone FCC-ID : PWX-M56 IC-ID : 267E-M56 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Embedded Power supply : Battery or charger (AC Adapter) Output power : 29.98dBm (995.4mW) max. ERP measured in GSM-850 30.41dBm (1.1W) max. EIRP measured in PCS-1900 Extreme vol. Limits : Lower:3.6Vdc Nominal:3.7Vdc Upper:4.5Vdc Extreme temp. Tolerance : Lower:-30 o C Upper: +50 o C 1.6 Test standards FCC Part 22,24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 4 (94) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-08-14 EMC & Radio Lothar Schmidt (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2003-08-14 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 5 (94) 2.2 Test report TEST REPORT Test report no.: EMC_518FCC22-24_2003_M56 (M56) Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 6 (94) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT 22.913(a) / § 24.232 (b) 7 OCCUPIED BANDWIDTH 2.1049(h)(i) 14 EMISSION BANDWIDTH §24.238(b) 21 MOBILE EMISSIONS IN BASE FREQUENCY §22.917(f) 28 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 32 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 77 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 82 CONDUCTED EMISSIONS § 15.107/207 90 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 92 BLOCK DIAGRAMS 93 Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 7 (94) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. Power transmission and proper modulation. This paragraph contains average output power, peak output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_518FCC22-24_2003_M56 Issue date: 2003-08-14 Page 8 (94) Conducted (GSM-850) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 5 ≤33dBm (2W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to document: “FCC_M56_FCC_conducted_power” (Page 3, section 2.1, Siemens M56, IMEI: 1002000247408) Frequency (MHz) Average Power during burst (dBm) 824.2 32.3 836.6 32.1 848.8 32.0 Conducted (PCS-1900) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version…

Text truncated - open the document above for the full version.

SIEMENS Subject: M56 ICM MP Test case: Output Power Page: 1/7 Test Report Conducted Output Power GSM 850, GSM 1900 SIEMENS M56 Report no: Issue date: July 14, 2003 Test Site SIEMENS ICM MP SAN Information and Communication Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego, CA 92127-1903, U.S.A Tel.: 858-521-3382 Fax.: 858-521-3106 Engineer Testreport M56 SIEMENS Subject: M56 ICM MP Test case: Output Power Page: 2/7 Contents: 1 Objective and Method..................................................2 2 Results...............................................................3 2.1 GSM 850 Band.......................................................3 2.2 GSM 1900 Band......................................................3 3 Minutes of Test.......................................................4 3.1 Description of Device under Test...................................4 3.2 Measurement Set Up.................................................4 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurement. Using a special adapter and connecting to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting. Testreport M56 SIEMENS Subject: M56 ICM MP Test case: Output Power Page: 3/7 2 Results 2.1 GSM 850 Band Average Power during burst at connector Device ARFCN 128 824.2 MHz ARFCN 190 836.6 MHz ARFCN 251 848.8 MHz Siemens M56, “SAR #1” IMEI: 1002000244835 +32.2 dBm +32.1 dBm +31.9 dBm Siemens M56, “SAR #2” IMEI: 1002000244843 +32.3 dBm +32.1 dBm +31.9 dBm Siemens M56, “Emission #1” IMEI: 1002000247408 +32.3 dBm +32.1 dBm +31.9 dBm Siemens M56, “Emission #2” IMEI: 1002000247408 +32.3 dBm +32.1 dBm +32.0 dBm Tab. 1: Results of power measurements at connector for Siemens M56 2.2 GSM 1900 Band Average Power during burst at connector Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens M56, “SAR #1” IMEI: 1002000244835 +29.4 dBm +29.1 dBm +28.8 dBm Siemens M56, “SAR #2” IMEI: 1002000244843 +29.4 dBm +29.1 dBm +28.8 dBm Siemens M56, “FCC #1” IMEI: 1002000247549 +29.6 dBm +29.4 dBm +29.1 dBm Siemens M56, “FCC #2” IMEI: 1002000247408 +29.6 dBm +29.4 dBm +29.1 dBm Tab. 2: Results of power measurements at connector for Siemens M56 Testreport M56 SIEMENS Subject: M56 ICM MP Test case: Output Power Page: 4/7 3 Minutes of Test 3.1 Description of Device under Test Siemens Mobile Phone: M56 Frequency …

Text truncated - open the document above for the full version.
