PWX-M65GSM/PCS 900/1800/1900 MHz Mobile Phone

© Siemens AG 2003, M:\Mobil\R65\M65_X-cite\am\fug\_von_itl\M65IVZ.fm Table of Contents1 VAR Language: American; VAR issue date: 16-Februar-2004 See also Index at the end of this User Guide left page (1) of M65 X-Cite FUG us, A31008-H7150-A40-1-4A19 (14.04.2004, 17:30) Safety precautions ..................... 3 Antenna care ........................... 5 Phone operation ...................... 5 Electronic devices .................... 6 Overview of the phone .............. 9 Display symbols ....................... 11 Getting started ......................... 13 Charge battery ....................... 15 Switching phone on and off/ entering PIN ............................. 16 Entering the PIN ..................... 16 Emergency number (SOS) ...... 16 General instructions ................ 17 Standby mode ....................... 17 Signal strength ...................... 17 Digital Rights Mgmt. (DRM) .... 17 Main menu ............................ 17 Standard functions .................. 19 Highlighting mode ................. 20 Menu speed dialling ............... 20 Security .................................... 21 Codes .................................... 21 Preventing accidental activation .............. 22 Text entry ................................. 23 My phone ................................. 27 Calling ...................................... 28 Default book ............................ 34 Address book ........................... 35 New entry .............................. 35 Change entry ......................... 37 Call entry ................................ 37 Groups ................................... 38 Phonebook ............................... 39 New entry .............................. 39 Call (search for an entry) ........ 40 Change entry ......................... 40 <Special books> ..................... 41 Call records ............................... 42 Time/charges ............................ 43 Camera ..................................... 44 Photo mode ........................... 44 Video mode ............................ 45 Main Inbox ............................... 46 SMS ........................................... 47 Write/send .............................. 47 Read ....................................... 49 Setting ................................... 51 MMS ......................................... 53 Create ................................... 53 Templates .............................. 55 Send ...................................... 56 Receive .................................. 57 Read ....................................... 58 Setting ................................... 59 E-mail ........................................ 61 Write ...................................... 61 Receive/read ........................... 62 Setting ................................... 63 Voice message/mailbox ............ 64 Start menu ............................. 65 Login ..................................... 66 Table of Contents See also Index at the end of this User Guide © Siemens AG 2003, M:\Mobil\R65\M65_ X-cite\am\fug\_von_itl\M65IVZ.fm 2Table of Contents VAR Language: American; VAR issue date: 16-Februar-2004 See also Index at the end of this User Guide left page (2) of M65 X-Cite FUG us, A31008-H7150-A40-1-4A19 (14.04.2004, 17:30) Contact lists ........................... 66 Start chat ............................... 68 Msg. history ........................... 69 Setting ................................... 69 CB services ............................... 71 Surf & fun ................................. 72 Internet ................................ 72 Bookmarks ............................. 74 Games and Applications ......... 75 Download wiz. ....................... 75 Setup ........................................ 77 Profiles .................................. 77 Topics .................................... 79 Display ................................... 80 Dynamic light ........................ 82 Ring tones ............................. 83 Call setup ............................... 85 Phone setup ........................... 87 Clock ..................................... 89 Connectivity .......................... 90 Security ................................. 93 Network ................................ 95 Accessories ............................ 97 My menu .................................. 98 Fast access ............................... 99 Organizer ............................... 101 Calendar .............................. 101 Appointments ...................... 102 Tasks ................................... 103 Notes ................................... 104 Missed appts. ....................... 104 Dictation mac ....................... 105 Time zones ........................... 106 Extras ...................................... 107 SIM services (optional) ......... 107 Alarm clock .......................... 107 Sound recorder ..................... 108 Calc. ..................................... 109 Unit converter ...................... 109 Stopwatch ............................ 110 Countdown .......................... 111 Remote synchronisation ....... 111 Media player ........................... 113 My stuff .................................. 114 Mobile Phone Manager .......... 116 Questions & Answers ............. 118 Customer Care ........................ 121 Care and maintenance ........... 123 Product data ........................... 124 U.S. FDA .................................. 125 FCC/Industry Canada Notice ... 131 Ten driving safety tips ............ 132 Intellectual property .............. 134 Accessories ............................. 135 Quality .................................... 137 SAR (M65) ............................... 138 Menu tree ............................... 140 Index ....................................... 146 See also Index at the end of this User Guide © Siemens AG 2003, M:\Mobil\R65\M65_X-ci te\am\fug\_von_itl\M65_SecurityInfo.fm 3Safety precautions VAR Language: Americ…

Text truncated - open the document above for the full version.

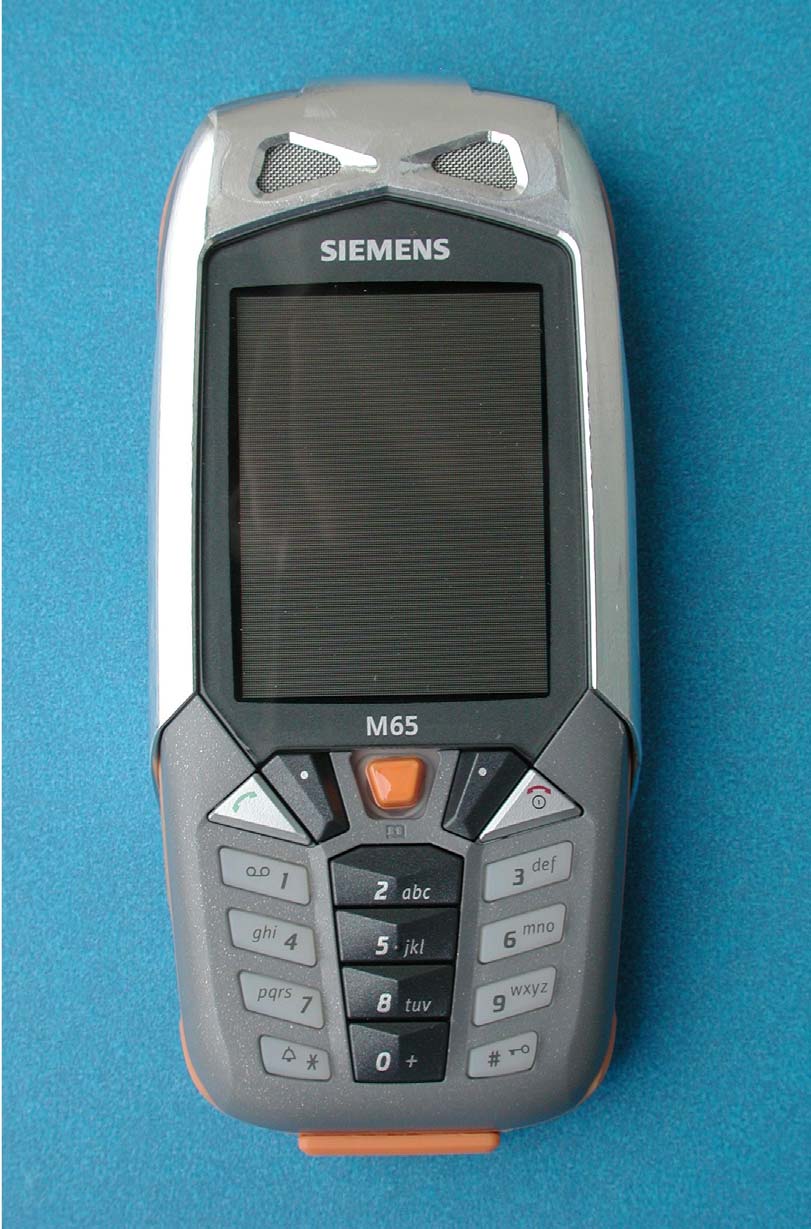

M65 Front View M65 Back View M65 Side View M65 Side View

Date 04.11.2003MOBILE PHONE BNR Name Buttermann IMEI-LABEL/M65 PD HW4 KLF 1 04.11.03 Bu LETTERING PLAN Version Memorandum Date Token SIEMENS AG DIS 48649 BLATT 1 White label with black lettering S30880-SXXXX-XXXX-1 XXXXXXXX SSSSSS C Made xx xxxxxxxxx 3) 1)2) 4) 5) 6) 7) 8) 9) M65 YY FCC ID: PWX-M65 IC: 267E-M65 10) XXXXXXXX Typ-Approval Code TAC 10) SSSSSS Current serial number (6 digits), Assigned by PICS 10) C CHECK DIGIT 15. digit space between TAC, serial no. and 15.digit Ink ribbon: TTR-Band Ricoh 110-C Font: Title blocks concentric 1) Corporate logo: 1.5 SN 66324 2) Product name: Internal font B, size 3 3) Made xx xxxxxxx Internal font A, size 4 / Depending on production location 4) Code of date: Internal font D, size 4 e.g. F3  March └─1995 5) Code number: Internal font D, size 4 Corresponding to the number of the transceiver unit part list 6) CE - indentification: Height: 5mm 7) Barcode IMEI-no.: Code: 128 Size 2 Ratio: 3.0 Height: 3mm Typ 128, table C and B Characteristic: IMEI-No. has 15 digits Digit 1-14 is generated as Barcode with table C. Digit 15 is printed with table B. 8) IMEI-no. (plain writing): Internal font D, size 4, space between TAC,serial no. and 15.digit 9) Canada IC and US FCC: Internal font B, size 3 10) Document for IMEI-no. allocation: DIS - 58476-* BOM 000 xx Valid is the highest level in the system VON 1 A24850-V1-A4-2 VORSTD.DOC M65 Open battery cover (Final label: see extra exhibit)

M65 Open battery cover (Final label: see extra exhibit) M65 Disassembly step 1 M65 Disassembly step 2 M65 Disassembly step 3 M65 GSM Tri-band Antenna M65 Board without shield (front) M65 board without shield (back)

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6620_404e: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens M65 (FCC ID: PWX-M65) According to the FCC Requirements Calibration Data March 26, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_404e_SAR Distribution Plots Page 1 of 16 Appendix for the Report Dosimetric Assessment of the Siemens M65 (FCC ID: PWX-M65) According to the FCC Requirements SAR Distribution Plots March 26, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6620_404e_SAR Distribution Plots Page 2 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH....................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH FLASH ............................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE................................................. 12 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 13 6 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................15 DASY Test-Report, Siemens_ 6620_404e_SAR Distribution Plots Page 3 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without Flash Test Laboratory: IMST GmbH; File Name: m65plm_1.da4 DUT: Siemens; Type: M65; Serial: 004400004796627 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 17.7 V/m; Power Drift = 0.0144 dB Maximum value of SAR (measured) = 0.513 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.7 V/m; Power Drift = 0.0144 dB Maximum value of SAR (measured) = 0.546 mW/g Peak SAR (extrapolated) = 0.803 W/kg SAR(1 g) = 0.504 mW/g; SAR(10 g) = 0.316 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 17.7 V/m; Power Drift = 0.0144 dB Maximum value of SAR (measured) = 0.415 mW/g Peak SAR (extrapolated) = 0.566 W/kg SAR(1 g) = 0.374 mW/g; SAR(10 g) = 0.229 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (24.03.2004; Ambient Temperature: 20.8° C; Liquid Temperature : 19.9° C). DASY Test-Report, Siemens_ 6620_404e_SAR Distribution Plots Page 4 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: m65plm_2.da4 DUT: Siemens; Type: M65; Serial: 004400004796627 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 23.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.762 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 23.1 V/m; Power Drift = -0.0 dB Maximum value of SAR (measured) = 0.827 mW/g Peak SAR (extrapolated) = 1.17 W/kg SAR(1 g) = 0.745 mW/g; SAR(10 g) = 0.427 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (24.03.2004; Ambient Temperature: 20.8° C; Liquid Temperature : 20.0° C). DASY Test-Report, Siemens_ 6620_404e_SAR Distribution Plots Page 5 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: m65prm_1.da4 DUT: Siemens; Type: M65; Serial: 004400004796627 Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.43 mho/m; ε r = 40.4; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 21.1 V/m; Power Drift = -0.086 dB Maximum value of SAR (measured) = 0.525 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.086 dB Maximum value of SAR (measured) = 0.561 mW/g Peak SAR (extrapolated) = 0.696 W/kg SAR(1 g) = 0.512 mW/g; SAR(10 g) = 0.328 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 21.1 V/m; Power Drift = -0.086dB Maximum value of SAR (measured) = 0.490 mW/g Peak SAR (extrapolated) = 0.649 W/kg SAR(1 g) = 0.451 mW/g; SAR(10 g) = 0.287 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head. (24.03.2004; Ambient Tem…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6620_404e Page 1 of 33 Report Dosimetric Assessment of the Portable Device Siemens M65 (FCC ID: PWX-M65) According to the FCC Requirements March 26, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH DASY Test-Report, Siemens_6620_404e Page 2 of 33 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Executive Summary The M65 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 2 TX slots (Class 10). The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens M65 mobile phone (FCC ID: PWX-M65) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested for the following configurations: • Body Worn with the following accessories and combinations with 2.2 cm distance: GSM mode (1 TX slot) with headset GPRS mode (2 TX slots, Class 10) with data cable prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6620_404e Page 3 of 33 dasy_report_fcc_supplement_c _3.3.doc/28.10..2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 18 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 18 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 18 7.3 TISSUE RECIPES......................................................................................................................................... 18 7.4 MATERIAL PARAMETERS............................................................................................................................. 19 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 19 7.6 ENVIRONMENT........................................................................................................................................... 23 7.7 TEST EQUIPMENT....................................................................................................................................... 23 7.8 CERTIFICATES OF CONFORMITY...................................................................…

Text truncated - open the document above for the full version.

SIEMENS AG Subject: M65 ICM MP PD ST 2 KLF 1 Test case: Output Power Page: 1/5 Test Report Conducted Output Power GSM 1900 SIEMENS M65 Issue date: March 24, 2004 Test Site SIEMENS ICM MP PD ST 2 KLF 1 Information and Communication Mobile Südstraße 9 D-47475 Kamp-Lintfort Federal Republic of Germany Tel.: +49-2842-95-4081 Fax.: +49-2842-95-4717 Test Engineer: Roland Göhringer File: M65_Conducted SIEMENS AG Subject: M65 ICM MP PD ST 2 KLF 1 Test case: Output Power Page: 2/5 Contents: 1 Objective and Method..................................................2 2 Results...............................................................3 3 Minutes of Test.......................................................4 3.1 Description of Device under Test....................................4 3.2 Measurement Set Up..................................................5 4 Calibration Certificate...............................................6 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurement. Using a special adapter and connecting to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting. File: M65_Conducted SIEMENS AG Subject: M65 ICM MP PD ST 2 KLF 1 Test case: Output Power Page: 3/5 2 Results 2.1 GSM 1900 Band Average Power during burst at connector Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens M65, “Emission 1” IMEI: 004400.00.489123.7 +29.0 dBm +29.2 dBm +29.4 dBm Siemens M65, “Emission 2” IMEI: 004400.00.480148.4 +29.0 dBm +29.2 dBm +29.4 dBm Siemens M65, “SAR 1” IMEI: 004400.00.489662.7 +29.1 dBm +29.3 dBm +29.3 dBm Siemens M65, “SAR 2” IMEI: 004400.00.480665.0 +29.0 dBm +29.2 dBm +29.2 dBm Tab. 3: Results of power measurements at connector for Siemens M65 3 Minutes of Test 3.1 Description of Device under Test Mobile Phone: Siemens M65 Frequency range GSM 900: 880 - 960 MHz Frequency range GSM 1800: 1710 - 1880 MHz Frequency range GSM 1900: 1850 - 1990 MHz Siemens part number: S30880-S7150-* FCC ID: PWX-M65 IC IC: 267E-M65 File: M65_Conducted SIEMENS AG Subject: M65 ICM MP PD ST 2 KLF 1 Test case: Output Power Page: 4/5 3.2 Measurement Set Up base station Simulator and Tester DUT Special Adapter Fig. 1: Block diagram of set up for conducted power measurement. Fig. 2: Set up for conducted power measurement. File: M65_Conducted SIEMENS AG Subject: M65 ICM MP PD ST 2 KLF 1 Test case: Output Power Page: 5/5 File: M65_Conducted 4 Calibration Certificate

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_641FCC-24_2004_M65 FCC Part 24 / RSS 133 FCC ID: PWX-M65 IC ID: 267E-M65 CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 2 (56) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 3 (56) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-04-05 Date of test : 2004-04-05/13/14 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : M65 Model No. : M65 Description : GSM 1900 Mobile Phone FCC-ID : PWX-M65 IC ID : 267E-M65 Additional information Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : External Power supply : Battery or Charger (AC Adaptor) Output power : 29.76dBm (946.23mW) max. EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 4 (56) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-04-15 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-04-15 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 5 (56) 2.2 Test report TEST REPORT Test report no.: EMC_641FCC-24_2004_M65 CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 6 (56) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 13 OCCUPIED BANDWIDTH §2.1049(h)(i) 15 EMISSION BANDWIDTH §24.238(b) 19 EMISSIONS LIMITS §24.238 23 BAND EDGE COMPLIANCE §24.238(b) 39 RECEIVER RADIATED EMISSIONS § 15.209 41 CONDUCTED SPURIOUS EMISSIONS 47 CONDUCTED EMISSIONS § 15.107/207 52 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 54 BLOCK DIAGRAMS 55 CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 7 (56) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 8 (56) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to attached document: “FCC_M65_Conducted_Power” (Page 3, section 2.1, Siemens M65, Sample “Emission 2”IMEI: 004400.00.480148.4) Frequency (MHz) Burst Average Power (dBm) 1850.2 29.0 1880.0 29.2 1909.8 29.4 CETECOM Inc. Test report no.: EMC_641FCC-24_2004_M65 Issue date: 2004-04-15 Page 9 (56) Radiated: EIRP Measurements Description: This is the test for the maximum radiated power from the EUT. Rule Part 24.232(b) specifies, "Mobile/portable stations are limited to 2 watts e.i.r.p. Peak power" and 24.232(c) specifies that "Peak transmit power must be measured over any interval of continuous transmission using instrumentation calibrated in terms of an rms-equivalent voltage." Method of Measurement: 1. In an anechoic antenna test chamber, a half-wave dipole a…

Text truncated - open the document above for the full version.

Siemens M65 Test setup – Radiated Emissions Siemens M65 Test setup – Conducted Measurements Siemens M65 Test setup – AC Line conducted emissions
