PWX-ME75GSM 900/1800/1900 Mobile Phone

Table of Contents1 This is a summarised version of the Operating Manual. The complete version can be found in the Internet at this address: www.siemens.com/me75 right page (1) of SUG, ME75 CONDOR,140mm, us-en A31008-H6980-A1-1-7619 (12.10.2005, © Siemens AG 2003, E:\Auftrag\Siemens\Mobil ePhones\ME75 Condor\us FCC\sug\S_CondorIVZ.fm Template: X75, 140x105, Version 2.2; VAR Language: am; VAR issue date: 050718 Legal notices .............................. 2 Safety precautions ..................... 4 Display symbols ....................... 11 Overview of phone .................. 12 Getting started ......................... 14 Switching on/off/entering PIN ...17 General instructions ................ 18 Standard functions .................. 20 Security .................................... 21 Text entry ................................. 23 Calling ...................................... 25 Default book ............................ 27 Address book ........................... 28 Phonebook ............................... 30 Call records .............................. 32 Camera ..................................... 33 Message list ............................. 35 SMS .......................................... 36 MMS ......................................... 39 E-mail ........................................ 43 Voice message/CB ..................... 45 Surf & fun ................................. 46 Settings .................................... 49 Fast access key ......................... 59 Organizer .................................. 60 Extras ........................................ 62 My stuff .................................... 65 Customer Care .......................... 66 Care and maintenance ............. 68 Product data ............................. 69 SAR ........................................... 70 U.S. FDA .................................... 71 FCC/Industry Canada Notice ..... 77 Intellectual Property ................. 78 Ten Driving Safety Tips ............. 79 End user license agreement ..... 81 Index ......................................... 85 Table of Contents This is a sum- marised ver- sion of the Operating Manual. The complete ver- sion can be found in the Internet at this address: www.sie- mens.com/ me75- Legal notices2 © Siemens AG 2003, E:\Auftrag\S iemens\MobilePhones\ME75 Condor\us FCC\sug\am_LegalNotices.fm left page (2) of SUG, ME75 CONDOR,140mm, us-en, A31008-H6980-A1-1-7619 (12.10.2005, Template: X75, 140x105, Version 2.2; VAR Language: am; VAR issue date: 050718 Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS net- works operating on the GSM 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2005 Siemens Information and Communication Mobile, LLC. All rights reserved. Siemens and the ME75 model phone are trademarks or registered trade- marks of Siemens AG and/or its affili- ates in the United States and/or oth- er countries. T9® is a registered trademark of Amer- ica Online, Inc. in the United States. Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S and other countries. The names of actual companies and prod- ucts mentioned herein may be the trademarks of their respective owners. Disclaimer THE INFORMATION CONTAINED IN THE USER GUIDE IS WRITTEN FOR THE ME75 PHONE. SIEMENS RE- SERVES THE RIGHT TO MAKE CHANG- ES AND IMPROVEMENTS TO THE PRODUCTS AND ANY OF THE FEA- TURES OF THE PRODUCTS DE- SCRIBED IN THIS DOCUMENT WITH- OUT PRIOR NOTICE. THE CONTENTS OF THE USER GUIDE ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY AP- PLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IM- PLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURA- CY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SIEMENS RE- SERVES THE RIGHT TO REVISE THE USER GUIDE OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUMSTANCES SHALL SIEMENS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUEN- TIAL OR INDIRECT DAMAGES HOW- SOEVER CAUSED. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion con- trary to law is prohibited. You must comply with all applicable export laws, restrictions and regulations of the United States foreign agencies or authorities, and may not export, or transfer for the purpose of re-export, the mobile phone or any part of the phone in violation of any applicable 3Legal notices right page (3) of SUG, ME75 CONDOR,140mm, us-en A31008-H6980-A1-1-7619 (12.10.2005, © Siemens AG 2003, E:\Auftrag\S iemens\MobilePhones\ME75 Condor\us FCC\sug\am_LegalNotices.fm Template: X75, 140x105, Version 2.2; VAR Language: am; VAR issue date: 050718 restrictions, laws or regulations, or without all necessary approvals. Network Services A number of features included in this guide are called Network Services. They are special services provided by wireless service providers. In order to use any of these Network Servic- es, you must subscribe to these serv- ice(s) from your service provider and obtain instructions for their use. Some of these Network Services may not be available when roaming on a network other than your home net- work. Standby and Talk Time Information The mobile phone incorporates fea- tures that are new to the mobile phone world. These may include color displays and lighting, graphic games, music reproduction and browsing the Internet. The way you use the display and the features will affect the performance of the bat- tery and how long it lasts between charge cycles. The quoted standby times and talk times show the mini- mum and maximum performance that can be expected from the bat- tery under normal network condi- tions and with the default settings as set by…

Text truncated - open the document above for the full version.

Siemens Communications Haidenauplatz 1 81667 München Germany Tel. +49 89 722 37148 Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 12, 2005 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and §0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Siemens Communications requests confidentiality for the following products: FCC ID Number Product Title/Model PWX–ME75 Tri -Band/ME75 For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Parts List 4) Technical Description Required for section 2.1003 (c) • Operational Description 5) Tune-up Procedure No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Siemens Communications trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dr. Martin Weinberger Engineering Manager

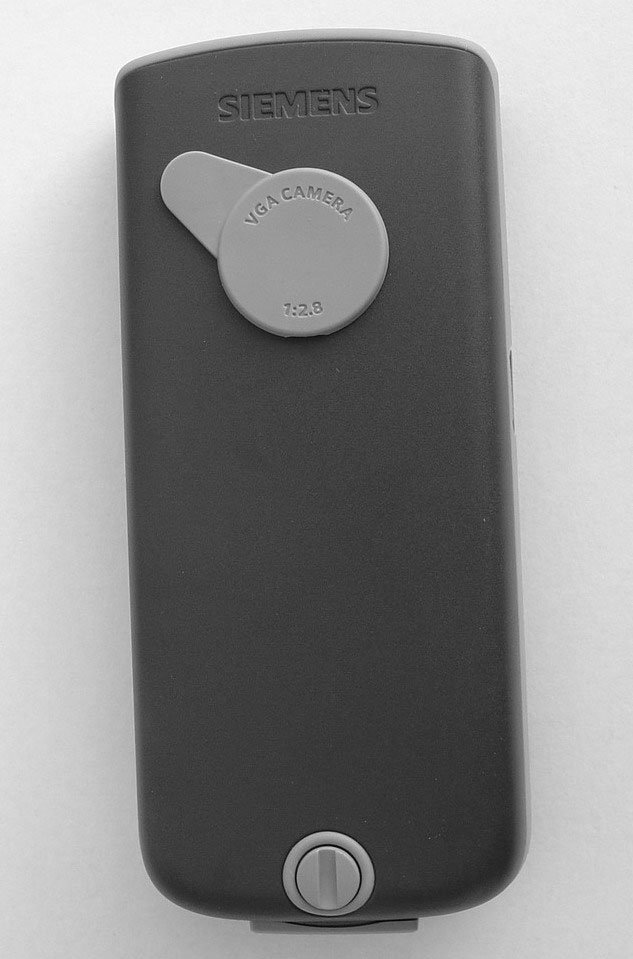

ME75 External Pictures Communications, Inc. Page:1 of 4 ME75 Front View ME75 External Pictures Communications, Inc. Page:2 of 4 ME75 Back View ME75 External Pictures Communications, Inc. Page:3 of 4 ME75 Side View ME75 External Pictures Communications, Inc. Page:4 of 4 ME75 Side View

Communications, Inc. Communications, Inc. ME75 IMEI label placement

ME75 Internal Pictures Communications, Inc. Page:1 of 9 ME75 Open Battery Cover (Final label: See extra exhibit) ME75 Internal Pictures Communications, Inc. Page:2 of 9 MEP75 Disassembly Step 1 ME75 Internal Pictures Communications, Inc. Page:3 of 9 ME75 Disassembly Step 2 ME75 Internal Pictures Communications, Inc. Page:4 of 9 ME75 Disassembly Step 3 ME75 Internal Pictures Communications, Inc. Page:5 of 9 ME75 Disassembly Step 4 ME75 Internal Pictures Communications, Inc. Page:6 of 9 ME75 PCB Front View Shields Removed ME75 Internal Pictures Communications, Inc. Page:7 of 9 ME75 PCB Back View Shields Removed ME75 Internal Pictures Communications, Inc. Page:8 of 9 ME75 Back view repair lid mounted ME75 Internal Pictures Communications, Inc. Page:9 of 9 ME75 Tri-Band Antenna

DAT-P-152/98-01 SAR Report Siemens_6620_543_FCC_1900_Cal Data_ME75 Appendix for the Report Dosimetric Assessment of the Portable Device Siemens ME75 (FCC ID: PWX-ME75) According to the FCC Requirements Calibration Data October 07, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR_Report_Siemens_6620_543_FCC_1900_SAR Plots_ME75 Page 1 of 16 Appendix for the Report Dosimetric Assessment of the Siemens ME75 (FCC ID: PWX-ME75) According to the FCC Requirements SAR Distribution Plots October 07, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Communication Inc. 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH SAR_Report_Siemens_6620_543_FCC_1900_SAR Plots_ME75 Page 2 of 16 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH...................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH FLASH............................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY IN GSM MODE.......................................................... 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY IN GPRS MODE........................................................ 13 5 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 15 6 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 16 SAR_Report_Siemens_6620_543_FCC_1900_SAR Plots_ME75 Page 3 of 16 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH 1 SAR Distribution Plots, PCS 1900 Head without flash Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 480bplm_1_ohne.da4 DUT: Siemens; Type: ME75 ; Serial: 004400015156480 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 07.07.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.654 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.1 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 1.06 W/kg SAR(1 g) = 0.618 mW/g; SAR(10 g) = 0.355 mW/g Maximum value of SAR (measured) = 0.677 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.1 V/m; Power Drift = 0.033 dB Peak SAR (extrapolated) = 0.540 W/kg SAR(1 g) = 0.342 mW/g; SAR(10 g) = 0.191 mW/g Maximum value of SAR (measured) = 0.388 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (October 04, 2005; Ambient Temperature: 21.2∞C; Liquid Temperature: 20.4∞C). SAR_Report_Siemens_6620_543_FCC_1900_SAR Plots_ME75 Page 4 of 16 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 480bplm_2_ohne.da4 DUT: Siemens; Type: ME75 ; Serial: 004400015156480 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 07.07.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.535 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 19.7 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 0.851 W/kg SAR(1 g) = 0.505 mW/g; SAR(10 g) = 0.285 mW/g Maximum value of SAR (measured) = 0.565 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (October 04, 2005; Ambient Temperature: 21.3∞C; Liquid Temperature: 20.4∞C). SAR_Report_Siemens_6620_543_FCC_1900_SAR Plots_ME75 Page 5 of 16 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 480bprm_1_ohne.da4 DUT: Siemens; Type: ME75 ; Serial: 004400015156480 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 41.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(5.11, 5.11, 5.11); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 07.07.2005 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.6 Build 19; Postprocessing SW: SEMCAD, V1.8 Build 159 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.456 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 18.3 V/m; Power Drift = -0.077 dB Peak SAR (extrapolated) = 0.686 W/kg SAR(1 g) = 0.437 mW/g; SAR(10 g) = 0.281 mW/g Maximum value of SAR (measured) = 0.476 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (October 04, 2005; Ambient Temperature: 21.3∞C; Liquid Temperature: 20.5∞C). SAR_Report_Siemens_6620_543_FCC_1900_SAR Plots_ME75 Page 6 of 16 dasy_report_fcc_1900_plots_1.1.doc/08.07.2005/CH Test Laboratory: IMST GmbH, DASY Blue (I); File Name: 480bprm_2_ohne.da4 DUT: Siemens; Type: ME75 ; Serial: 004400015156480 Program Name: Tilted Right Communication System: GSM 190…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR_Report_Siemens_6620_543_FCC_1900_ME75 Page 1 of 39 Report Dosimetric Assessment of the Portable Device Siemens ME75 (FCC ID: PWX-ME75) According to the FCC Requirements October 07, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West bernado Drive, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.4.doc/14.09.2005/ABo SAR_Report_Siemens_6620_543_FCC_1900_ME75 Page 2 of 39 dasy_report_fcc_1900_4.4.doc/14.09.2005/ABo Executive Summary The ME75 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 10. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with and without flash. The examinations have been carried out with the dosimetric assessment system ÑDASY4ì. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens ME75 mobile phone (FCC ID: PWX-ME75) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in addition to the head positions in the following configurations: Body worn with the following accessories: • GSM with and without headset (20mm distance) • GPRS (Class 10) with and without data cable (20mm distance) prepared by: ........................................... reviewed by: ..................................... Alexander Rahn AndrÈ van den Bosch test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gaufl-Strafle 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 378 Fax +49- 2842-981 399 email: [email protected] SAR_Report_Siemens_6620_543_FCC_1900_ME75 Page 3 of 39 dasy_report_fcc_1900_4.4.doc/14.09.2005/ABo Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 18 8 APPENDIX....................................................................................................................................................... 20 8.1 ADMINISTRATIVE DATA............................................................................................................................ 20 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 20 8.3 TISSUE RECIPES...................................................................................................................................... 21 8.4 MATERIAL PARAMETERS......................................................................................................................... 21 8.5 SIMPLIFIED PERFORMANCE CHECKING................................................................................................... 22 8.6 ENVIRONMENT...........…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM FCC Test Report FCC Part 24 / RSS 133 FOR: TRI-BAND GSM MOBILE PHONE MODEL #: ME75 SIEMENS COMMUNICATIONS HAIDENAUPLATZ 1 81667 MUNCHEN GERMANY FCC ID: PWX-ME75 IC ID: 267E-ME75 TEST REPORT #: EMC_1059_2005_FCC24 DATE: OCTOBER 12, 2005 Test Report #: EMC_1059_2005_FCC24 Date of Report: 2005-10-12 Page 2 of 62 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. Table of Contents 1 ASSESSMENT .................................................................................................................................... 3 2 ADMINISTRATIVE DATA............................................................................................................... 4 2.1 IDENTIFICATION OF THE TESTING LABORATORY ISSUING THE EMC TEST REPORT......................... 4 2.2 IDENTIFICATION OF THE CLIENT................................................................................................... 4 2.3 IDENTIFICATION OF THE MANUFACTURER.................................................................................... 4 3 EQUIPMENT UNDER TEST (EUT) ................................................................................................ 5 3.1 IDENTIFICATION OF THE EQUIPMENT UNDER TEST....................................................................... 5 4 SUBJECT OF INVESTIGATION..................................................................................................... 6 5 MEASUREMENTS............................................................................................................................. 7 5.1 RF POWER OUTPUT....................................................................................................................... 7 5.1.1 FCC 2.1046 Measurements required: RF power output....................................................... 7 5.1.2 Limits: ................................................................................................................................... 7 5.1.2.1 FCC 24.232 (b)(c) Power limits. ....................................................................................... 7 5.1.3 Conducted Output Power Measurement procedure:............................................................. 7 5.1.4 Results 1900 MHz band(conducted): .................................................................................... 8 5.1.5 Radiated Output Power Measurement procedure:.............................................................. 12 5.1.6 EIRP Results 1900 MHz band:............................................................................................ 13 5.2 OCCUPIED BANDWIDTH/EMISSION BANDWIDTH........................................................................ 17 5.2.1 FCC 2.1049 Measurements required: Occupied bandwidth............................................... 17 5.2.2 Occupied / emission bandwidth measurement procedure:.................................................. 17 5.2.3 Occupied / Emission bandwidth results 1900 MHz band: .................................................. 18 5.3 FREQUENCY STABILITY............................................................................................................... 25 5.3.1 Limit .................................................................................................................................... 25 5.3.2 FREQUENCY STABILITY (PCS-1900) .............................................................................. 26 5.4 SPURIOUS EMISSIONS CONDUCTED............................................................................................. 27 5.4.1 FCC 2.1051 Measurements required: Spurious emissions at antenna terminals. .............. 27 5.4.2 Limits: ................................................................................................................................. 27 5.4.2.1 FCC 24.238 Emission limitations for Broadband PCS equipment. ............................... 27 5.4.3 Conducted out of band emissions measurement procedure: ............................................... 27 5.4.4 Bandedge Results PCS-1900 ............................................................................................... 29 5.4.5 Conducted Spurious Results PCS-1900 .............................................................................. 31 5.5 SPURIOUS EMISSIONS RADIATED................................................................................................ 35 5.5.1 FCC 2.1053 Measurements required: Field strength of spurious radiation....................... 35 5.5.2 Limits: ................................................................................................................................. 35 5.5.2.1 FCC 24.238 Emission limitations for Broadband PCS equipment. ............................... 35 5.5.3 Radiated out of band measurement procedure: .................................................................. 36 5.6 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 .................................................... 53 5.6.1 Receiver Spurious on EUT .................................................................................................. 54 5.7 AC POWERLINE CONDUCTED EMISSIONS § 15.107/207 ................................................. 59 5.7.1 Results EUT......................................................................................................................... 60 6 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS ................................................ 61 7 REFERENCES ....…

Text truncated - open the document above for the full version.

PAGE 1 OF 7 FCC Test Setup Photos FCC Part 24 / RSS 133 FOR: TRI-BAND GSM MOBILE PHONE MODEL #: ME75 SIEMENS COMMUNICATIONS HAIDENAUPLATZ 1 81667 MUNCHEN GERMANY FCC ID: PWX-ME75 IC ID: 267E-ME75 REFERENCE TEST REPORT #: EMC_1059_2005_FCC24 DATE: OCTOBER 12, 2005 TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May © Copyright by CETECOM PAGE 2 OF 7 Table of Contents 1 ASSESSMENT....................................................................................................................................3 2 TEST SETUP PHOTOS.....................................................................................................................4 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 3 OF 7 1 Assessment The following is in compliance with the applicable criteria specified in FCC rules Parts 2, and 24 of Title 47 of the Code of Federal Regulations and in compliance with the applicable criteria specified in Industry Canada rules RSS133. Company Description Model # SIEMENS COMMUNICATIONS TRI-BAND GSM MOBILE PHONE ME75 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 4 OF 7 2 TEST SETUP PHOTOS RADIATED EMISSIONS This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 5 OF 7 AC LINE CONDUCTION This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 6 OF 7 ANTENNA PORT CONDUCTED MEASURMENTS This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. PAGE 7 OF 7 This report shall not be reproduced except in full without the written approval of: CETECOM, Inc. TEMP/FREQ
