Part 24 EMC 1) Confirmation that the term "average power" on page 7 of 54 is equivalent to the term "average power during burst" on page 4 of 6. Also, confirmation that 29.5 dBm is the maximum expected burst average power (factory target plus tolerance). The power was measured on different devices. The first unit was measured right after being switched on. After a very short time of warming up the value is going down by 0.2 dBm. All the other units were switched on at the same time, as one can see the level is stabilized. The setting in the factory during the manufacturing process guarantees the same out put for all devices, since each device is calibrated to the right level. 2) Clarification if the Blue Tooth component was active during spurious emission testing. Provide new spurious emission with BT active if not active. The BT device was active SAR 1) New SAR data corresponding to the following -Body-worn with camera The phone function in the body worn position with the camera cannot be used. It is not possible to plug in the headset at the same time. The configuration was tested in head position with the camera plugged in. Note: it is not possible to use the camera while the phone is in active mode. -With BT active. Per April TCB training. Please also provide new corresponding SAR data with BT inactive for comparison. Test results at highest SAR configuration for both head and body is considered sufficient. A determination was done prior to the SAR tests, that the BT portion does not change the SAR values if switched on or not. Therefore no additional plot were added for the BT inactive / active comparison. -With device transmitting maximum power (target power plus factory tolerance). See explanation at #1. After a few minutes of operation the output power was max 29.3 dBm like the sample we tested. EMC report page 4 of 6 suggests that the maximum power is greater (29.5 dBm) than that tested. Alternatively, scaling of SAR values up to .2 dB is acceptable according to Supplement C procedures. See explanation under item#1 EMC. Scaling is not necessary since the warming up time ids very short 2) Confirmation that the untested belt clip has no metal components. Provide SAR data if metal components are present. Confirmation from Siemens that no metal part on the belt clip 3) New Summary data table. Please include "with camera" measurement results. Also, please update the grant comment. It appears that "with camera" measurements provide a higher SAR value than stated in the comments. Please see result table 3 and 4 of page 13 of the SAR report. On is showing results without and the other one with camera. 4) New SAR distribution plots. Please include date, and temperatures. Result tables on Page 13 showing the temperatures during testing for the environment and the liquids.

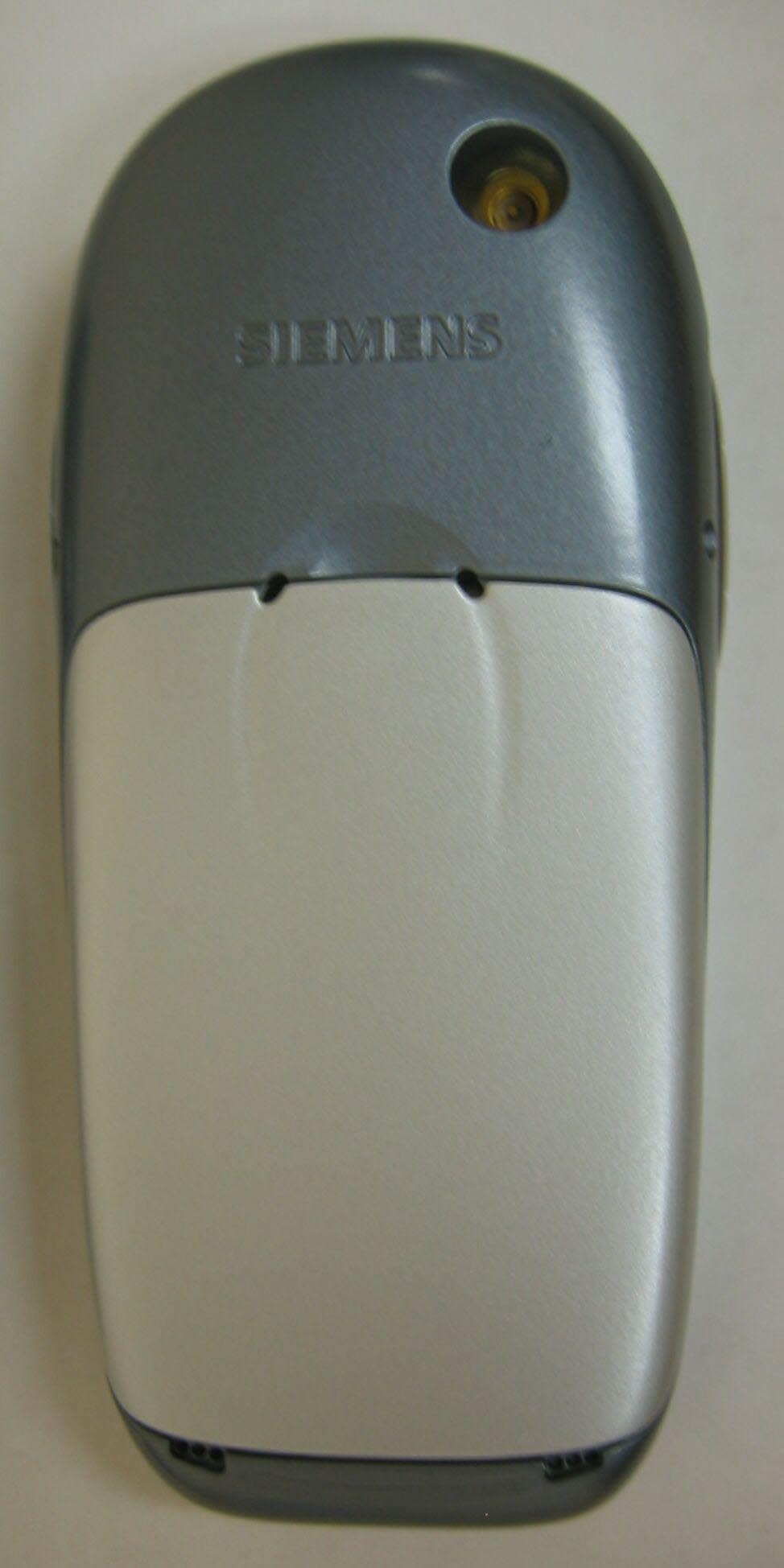

S55 Front View S55 Back View (with battery cover) S55 Side View’s

S55 USA Version Label S55 Canada Version Label

S55 open battery cover (Final label: see extra exhibit) S55 Disassembly step 1: BlueTooth Antenna BlueTooth Antenna S55 Disassembly step 2: GSM Triband Antenna GSM Triband Antenna GSM Antenna S55 Disassembly step 3 S55 Disassembly step 4 S55 Board with shielding, side 1 S55 Board with shielding, side 2 S55 Board without shielding and without display, side 1 S55 Board without shielding, side 2

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_240: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens S55 (FCC ID: PWX-S55) According to the FCC Requirements Calibration Data July 17, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LCC 16745 West Bernardo Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory. Probe ET3DV6 SN:1579 Manufactured:May 7, 2001 Last calibration:January 29, 2002 Repaired:April 26, 2002 Recalibrated:May 3, 2002 Calibrated for System DASY3 Page 1 of 9 ET3DV6 SN:1579May 3, 2002 DASY3 - Parameters of Probe: ET3DV6 SN:1579 Sensitivity in Free SpaceDiode Compression NormX1.61 mV/(V/m) 2 DCP X93mV NormY1.58 mV/(V/m) 2 DCP Y93mV NormZ1.59 mV/(V/m) 2 DCP Z93mV Sensitivity in Tissue Simulating Liquid Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.7 ± 9.5% (k=2)Boundary effect: ConvF Y6.7 ± 9.5% (k=2)Alpha0.32 ConvF Z6.7 ± 9.5% (k=2)Depth2.54 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.4 ± 9.5% (k=2)Boundary effect: ConvF Y5.4 ± 9.5% (k=2)Alpha0.45 ConvF Z5.4 ± 9.5% (k=2)Depth2.48 Boundary Effect Head900MHzTypical SAR gradient: 5 % per mm Probe Tip to Boundary1 mm2 mm SAR be [%] Without Correction Algorithm8.34.9 SAR be [%] With Correction Algorithm0.30.4 Head1800MHzTypical SAR gradient: 10 % per mm Probe Tip to Boundary1 mm2 mm SAR be [%] Without Correction Algorithm11.27.6 SAR be [%] With Correction Algorithm0.20.3 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection1.5 ± 0.2mm Page 2 of 9 ET3DV6 SN:1579May 3, 2002 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 9 ET3DV6 SN:1579May 3, 2002 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 9 ET3DV6 SN:1579May 3, 2002 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 9 ET3DV6 SN:1579May 3, 2002 Dynamic Range f(SAR brain ) ( Waveguide R22 ) ET3DV6 SN:1579May 3, 2002 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 9 Conversion Factor Assessment Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.7 ± 9.5% (k=2)Boundary effect: ConvF Y6.7 ± 9.5% (k=2)Alpha0.32 ConvF Z6.7 ± 9.5% (k=2)Depth2.54 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.4 ± 9.5% (k=2)Boundary effect: ConvF Y5.4 ± 9.5% (k=2)Alpha0.45 ConvF Z5.4 ± 9.5% (k=2)Depth2.48 ET3DV6 SN:1579May 3, 2002 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 9 Conversion Factor Assessment Body900MHz ε r =55.0 ± 5% σ = 1.05 ± 5% mho/m Body835MHz ε r =55.2 ± 5% σ = 0.97 ± 5% mho/m ConvF X6.4 ± 9.5% (k=2)Boundary effect: ConvF Y6.4 ± 9.5% (k=2)Alpha0.33 ConvF Z6.4 ± 9.5% (k=2)Depth2.60 Body1800MHz ε r =53.3 ± 5% σ = 1.52 ± 5% mho/m Body1900MHz ε r =53.3 ± 5% σ = 1.52 ± 5% mho/m ConvF X5.1 ± 9.5% (k=2)Boundary effect: ConvF Y5.1 ± 9.5% (k=2)Alpha0.56 ConvF Z5.1 ± 9.5% (k=2)Depth2.39 ET3DV6 SN:1579May 3, 2002 f = 900 MHz, WG R9 (body) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (body) 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 8 of 9 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 9 of 9 Page 2 of 2May 8, 2002 Dosimetric E-Field Probe ET3DV6 SN:1579 Conversion factor (± standard deviation) 835 MHzConvF6.8 ± 8% εε εε r = 41.5 ± 5% σσ σσ = 0.90 ± 5% mho/m (head tissue) 835 MHzConvF6.6 ± 8% εε εε r = 55.2 ± 5% σσ σσ = 0.97 ± 5% mho/m (body tissue) 1900 MHzConvF5.2 ± 8% εε εε r = 40.0 ± 5% σσ σσ = 1.40 ± 5% mho/m (head tissue) 1900 MHzConvF4.8 ± 8% εε εε r = 53.3 ± 5% σσ σσ = 1.52 ± 5% mho/m (body tissue)

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 1 of 22 Appendix for the Report Dosimetric Assessment of the Siemens S55 (FCC ID: PWX-S55) According to the FCC Requirements SAR Distribution Plots July 17, 2001 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 2 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, TEST SIDE AMBIENT CONDITIONS.................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS1900 (HEAD) ........................................................................................ 5 3 SAR DISTRIBUTION PLOTS, PCS1900 (BODY) ...................................................................................... 13 4 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 17 5 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................19 DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 3 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, Test side ambient conditions. Fig. 1: Test side ambient measurements, 1900 MHz, head position. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 4 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 2: Test side ambient measurements, 1900 MHz, body worn position. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 5 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 2 SAR Distribution Plots, PCS1900 (Head) Fig. 3: SAR distribution, PCS1900, channel 661, cheek position, left side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 6 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 4: SAR distribution, PCS1900, channel 661, tilted position, left side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 7 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 5: SAR distribution, PCS1900, channel 661, cheek position, right side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 8 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 6: SAR distribution, PCS1900, channel 661, tilted position, right side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 9 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 7: SAR distribution, PCS1900 with QuickPic Camera, channel 661, cheek position, left side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 10 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 8: SAR distribution, PCS1900 with QuickPic Camera, channel 661, tilted position, left side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 11 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 9: SAR distribution, PCS1900 with QuickPic Camera, channel 661, cheek position, right side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 12 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 10: SAR distribution, PCS1900 with QuickPic Camera, channel 661, tilted position, right side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 13 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 3 SAR Distribution Plots, PCS1900 (Body) Fig. 11: SAR distribution, PCS1900, channel 512, body worn configuration, Belt Clip with Headset (Talk mode, 1 TX slot), Cube 2: 0.101 W/kg. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 14 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 12: SAR distribution, PCS1900, channel 661, body worn configuration, Belt Clip with Headset (Talk mode, 1 TX slot), Cube 2: 0.138 W/kg. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 15 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 13: SAR distribution, PCS1900, channel 810, body worn configuration, Belt Clip with Headset (Talk mode, 1 TX slot). DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 16 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 14: Worst case SAR distribution, PCS1900, channel 512, body worn configuration, Belt Clip without Headset (GPRS mode, 2 TX slots), Cube 2: 0.113 W/kg. Since the plots are similar for this configuration, only the worst case is shown. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 17 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 4 SAR z-axis scans (Validation) The following pictures show the plots of SAR versus liquid depth for the worst case values. Fig. 15: SAR versus liquid depth, 1900 MHz, Validation Head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 18 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 16: SAR versus liquid depth, 1900 MHz, Validation Body DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 19 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 5 SAR z-axis scans (Measurements) The following pictures show the plots of SAR versus liquid depth for the worst case values. Fig. 17: SAR versus liquid depth, PCS 1900, channel 661, cheek position, right side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 20 of 22 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 18: SAR versus liquid depth, PCS 1900 with QuickPic Camera, channel 661, cheek position, right side of head. DASY Test-Report, Siemens_ 6575_240a_SAR Distribution Plots Page 21 of 22 dasy_rep…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_240a Page 1 of 40 Report Dosimetric Assessment of the Portable Device Siemens S55 (FCC ID: PWX-S55) According to the FCC Requirements July 17, 2002 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.2.doc/19.06.2002/CH DASY Test-Report, Siemens_ 6575_240a Page 2 of 40 dasy_report_fcc_supplement_c _2.2.doc/19.06.2002/CH Executive Summary The S55 is a new mobile phone (Portable Device) from Siemens operating in 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. Since the GPRS software was not available for the SAR test, the measurement results for the GPRS position were multiplied by 2 (to simulate GPRS Class 10). The examinations have been carried out with the dosimetric assessment system „DASY3“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. The Siemens S55 mobile phone (FCC ID: PWX-S55) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in Head configuration without and with QuickPic Camera. In the Body Worn configuration with the following accessories and combinations: “Belt Clip” with “Headset” for normal Talk mode (1 TX slot) and “Belt Clip” without “Headset” for GPRS mode (2 TX slots). An larger Belt Clip is also available, but since it dictates an larger distance then the tested one, additionally measurements are not required. prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_240a Page 3 of 40 dasy_report_fcc_supplement_c _2.2.doc/19.06.2002/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 11 4.2 PROBE....................................................................................................................................................... 11 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 11 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 12 5 SAR RESULTS ................................................................................................................................................ 13 6 EVALUATION ................................................................................................................................................ 15 7 APPENDIX ...................................................................................................................................................... 17 7.1 ADMINISTRATIVE DATA...............................................................................................................................17 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 17 7.3 TISSUE RECIPES......................................................................................................................................... 17 7.4 MATERIAL PARAMETERS............................................................................................................................. 18 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 18 7.6 ENVIRONMENT........................................................................................................................................... 21 7.7 TEST EQU…

Text truncated - open the document above for the full version.

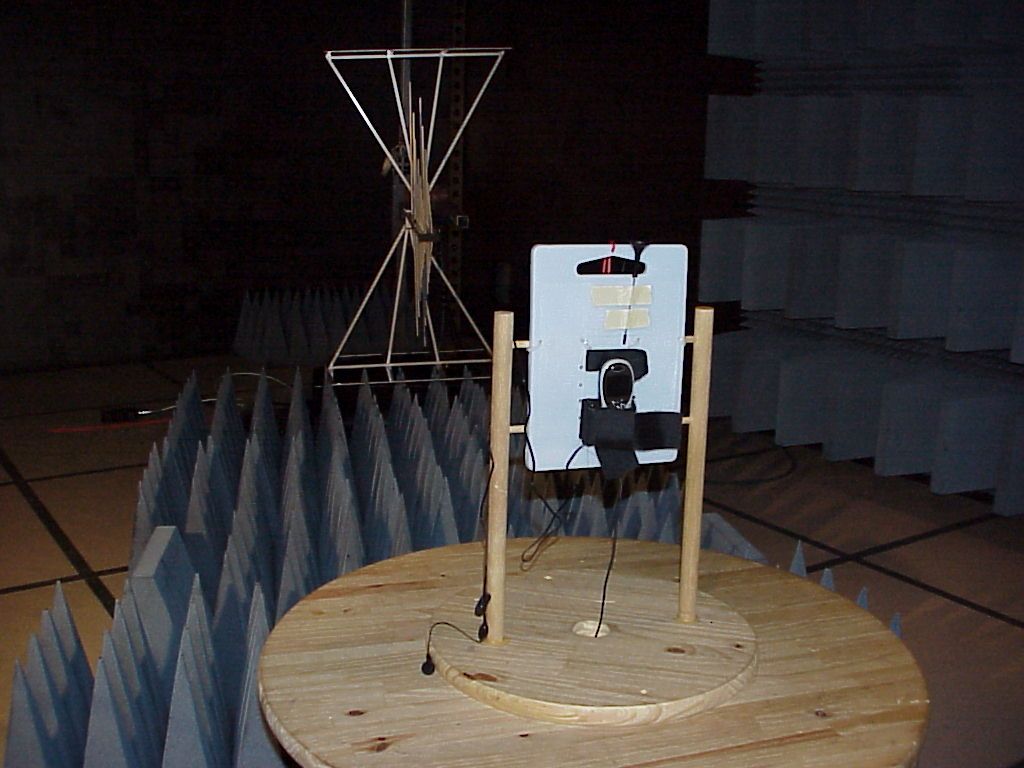

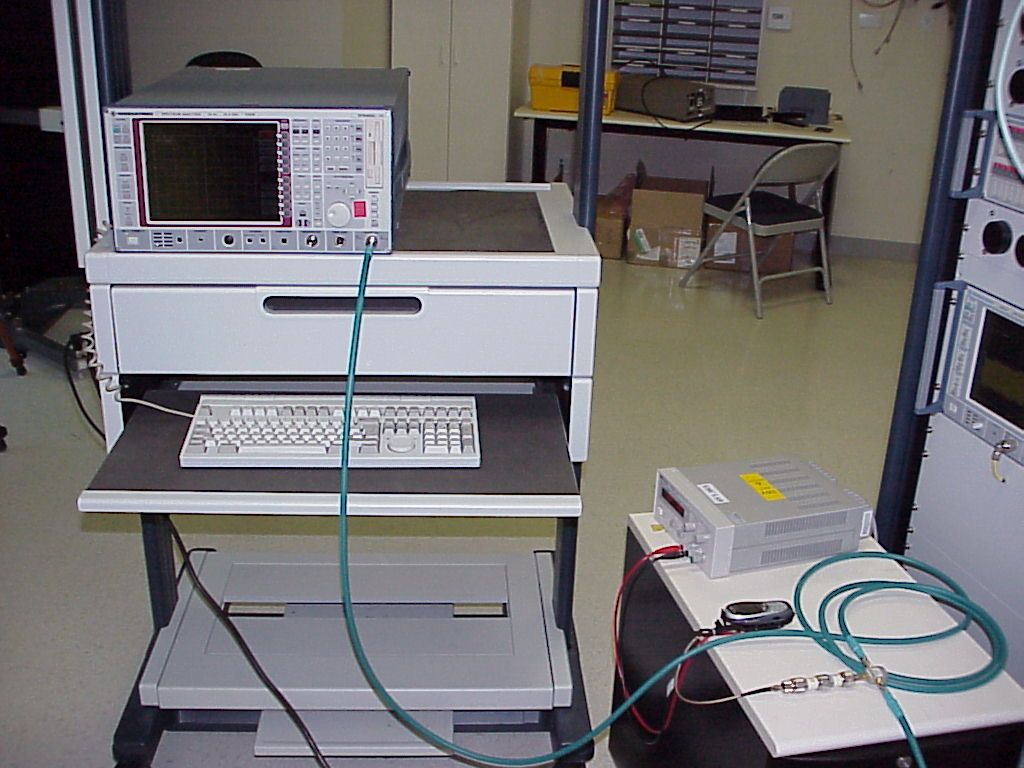

CETECOM Inc. CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 www.cetecom.com Issued test report consists of 54 Pages Page 1 (54) FCC LISTED, REG. NO.: 101450 & RECOGNIZED BY INDUSTRY CANADA IC – 3925 Test report no.: 304FCC24/2002 FCC Part 24 / RSS 133 (S55) CETECOM Inc. Test report no.: 304FCC24/2002 Issue date: 2002-07-09 Page 2 (54) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: 304FCC24/2002 Issue date: 2002-07-09 Page 3 (54) 1.3 Details of applicant Name : SIEMENS Mobile LLC Street : 16745 West Bernardo Dr. City / Zip Code : San Diego, CA 92129 Country : U.S.A Contact : Dr. Peter Nevermann Telephone : (858) 521 3282 Tele-fax : (858) 521 3105 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2002-07-01 Date of receipt test item : 2002-07-02 Date of test : 2002-07-02 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : S55 Model No. : L55 Marlin Description : GSM 1900 PCS mobile phone + Bluetooth FCC-ID : PWX-S55 Additional information Frequency : 1850.2MHz-1909.8MHz for PCS Type of modulation : GMSK for PCS Number of channels : 299 for PCS Antenna : embedded Power supply : Battery or charger (AC adaptor) Output power : 32.43dBm (1.75W) Extreme vol. Limits : 3.6 VDC – 5.2 VDC Extreme temp. Tolerance : -30 C to +50 C 1.6 Test standards FCC Part 24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. CETECOM Inc. Test report no.: 304FCC24/2002 Issue date: 2002-07-09 Page 4 (54) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2002-07-09 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for…
