PWX-S65GSM 1900 Mobile phone with Bluetooth

© Siemens AG 2003, E:\Auftrag\Siemens\M obilePhones\S65 Penelo pe\us\LA\S65IVZ.fm Table of Contents1 VAR Language: am; VA R issue date: 040517 See also Index and Menu tree at the end of this User Guide left page (1) of S65 FUG us, A31008-H7400-A40-1-4A19 (19.05.2004, 14:01) Legal notices .............................. 3 Safety precautions ..................... 5 Antenna care ........................... 7 Phone operation ...................... 7 Electronic devices .................... 8 Overview of phone .................. 12 Display symbols ....................... 14 Getting started ......................... 16 Insert SIM card/battery ........... 16 Inserting an RS MultiMediaCard .............. 17 Charge battery ....................... 18 Switch on/off, PIN entry ........... 21 Entering the PIN ..................... 21 Emergency number (SOS) ...... 21 General instructions ................ 23 Standby mode ....................... 23 Signal strength ...................... 23 Digital Rights Mgmt. (DRM) .... 23 Main menu ............................ 23 Standard functions .................. 25 Highlighting mode ................. 26 Menu speed dialing ................ 26 Security .................................... 27 Codes .................................... 27 Preventing accidental activation ............................ 28 Text entry ................................. 29 Calling ...................................... 33 Call options ............................ 37 Direct call ............................... 37 My items .................................. 39 Default book ............................ 40 Addressbook ............................. 41 New entry .............................. 41 Change entry ......................... 43 Call entry ................................ 43 Groups ................................... 44 Phonebook ............................... 45 New entry .............................. 45 Call (search for an entry) ........ 46 Change entry ......................... 46 <Special books> ..................... 47 Call records ............................... 48 Dur./charges ............................. 49 Camera ..................................... 50 Photo mode ........................... 51 Video mode ............................ 51 Flash (accessories) .................. 51 Main Inbox ............................... 53 SMS ........................................... 54 Write/send .............................. 54 Read ....................................... 56 Setting ................................... 58 MMS ......................................... 60 Create .................................... 60 Templates .............................. 62 Send ...................................... 63 Receive .................................. 64 Read ....................................... 65 Setting ................................... 66 E-mail ........................................ 68 Write ...................................... 68 Receive/read ........................... 69 Setting ................................... 70 Voice message/mailbox ............ 71 Table of Contents See also In- dex and Menu tree at the end of this User Guide © Siemens AG 2003, E:\Auftrag\Siemens\M obilePhones\S65 Penelope\us\LA\S65IVZ.fm 2Table of Contents VAR Language: am; VA R issue date: 040517 See also Index and Menu tree at the end of this User Guide left page (2) of S65 FUG us, A31008-H7400-A40-1-4A19 (19.05.2004, 14:01) Chat room ................................ 72 Start menu ............................. 72 Login ..................................... 73 Contact lists ........................... 73 Start Chat room ..................... 76 Msg. history ........................... 77 Setting ................................... 77 CB services 79 Zoom in ................................. 79 Surf & fun ................................. 80 Internet ................................. 80 Bookmarks ............................. 82 Games and Applications ......... 83 Download wiz. ....................... 83 Setup ........................................ 85 Profiles .................................. 85 Topics .................................... 87 Display ................................... 88 Ring tones ............................. 90 Call setup ............................... 92 Phone setup ........................... 94 Clock ..................................... 96 Connectivity .......................... 97 Security ............................... 103 Network .............................. 105 Accessories .......................... 107 My menu ................................ 108 Fast access ............................. 109 Speed dialing keys ............... 110 Organizer ............................... 111 Calendar .............................. 111 Appointments ...................... 112 Tasks ................................... 113 Notes ................................... 114 Missed appts. ....................... 114 Dictation mac ....................... 115 Time zones ........................... 116 Extras ...................................... 117 SIM services (optional) ......... 117 Alarm clock .......................... 117 Sound recorder ..................... 118 Calc. ..................................... 119 Unit converter ...................... 119 Stopwatch ............................ 120 Countdown .......................... 121 Remote synchronization ....... 121 Media player ........................... 123 Options ................................ 123 My stuff .................................. 124 RS MultiMediaCard ............... 125 Mobile Phone Manager .......... 126 Questions & Answers ............. 128 Customer Care ........................ 131 Care and maintenance ........... 133 Product data ........................... 134 Accessories ............................. 135 Quality .................................... 137 U.S. FDA .................................. 138 FCC/Industry C…

Text truncated - open the document above for the full version.

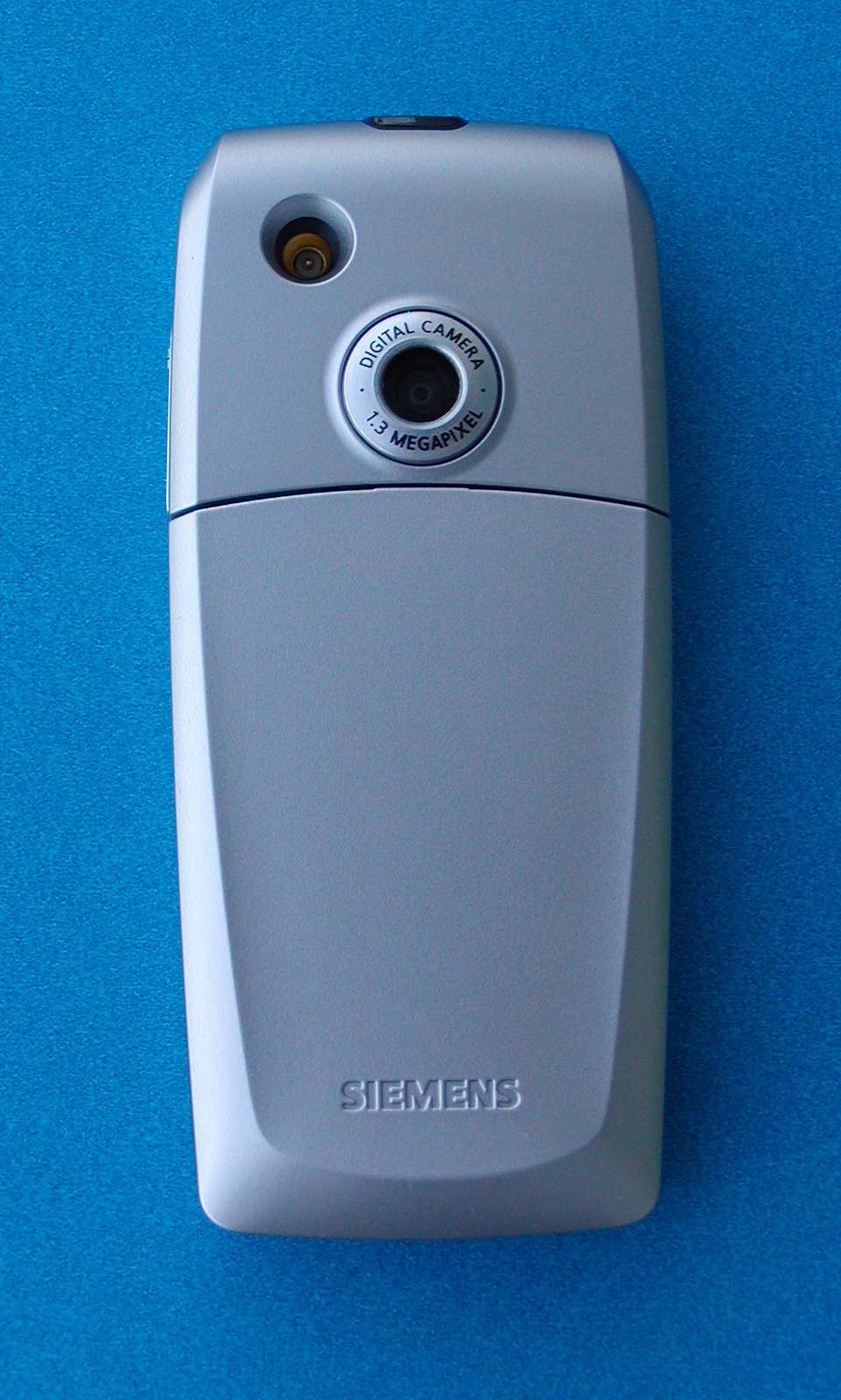

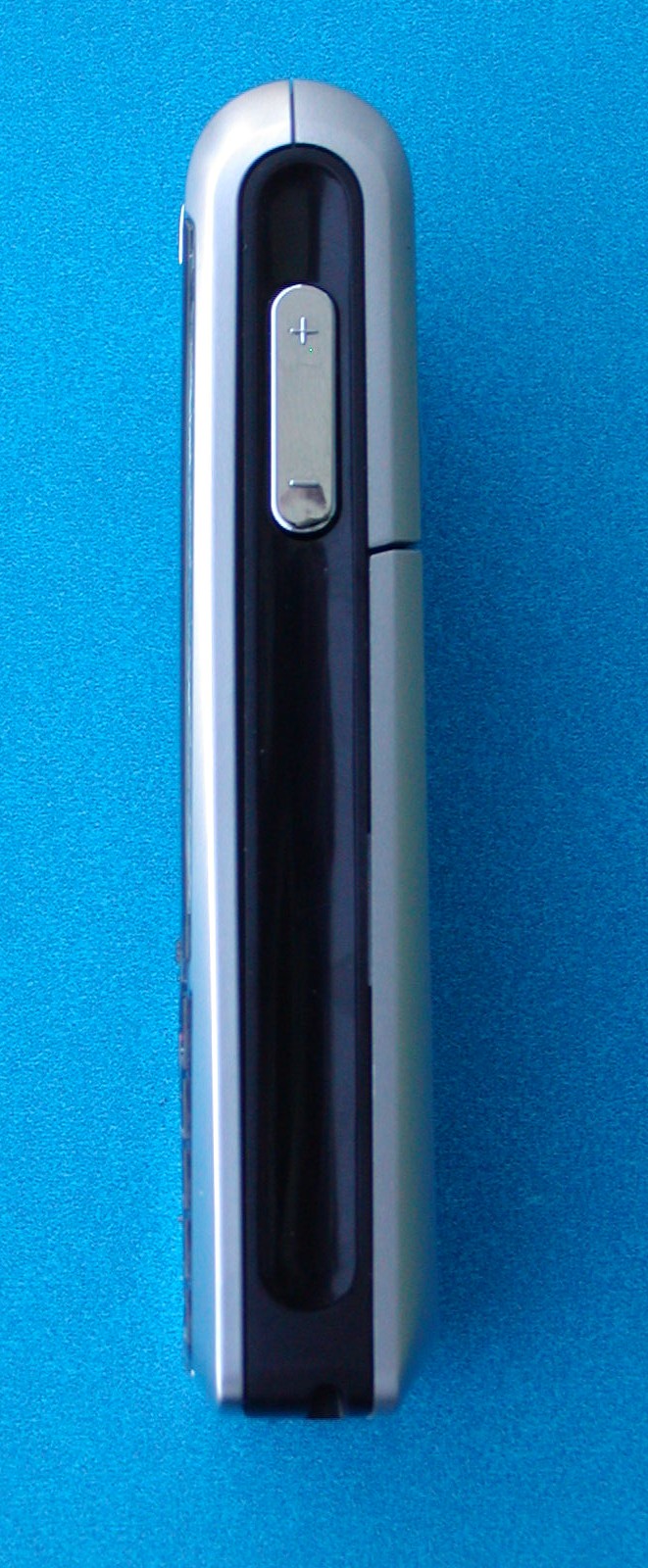

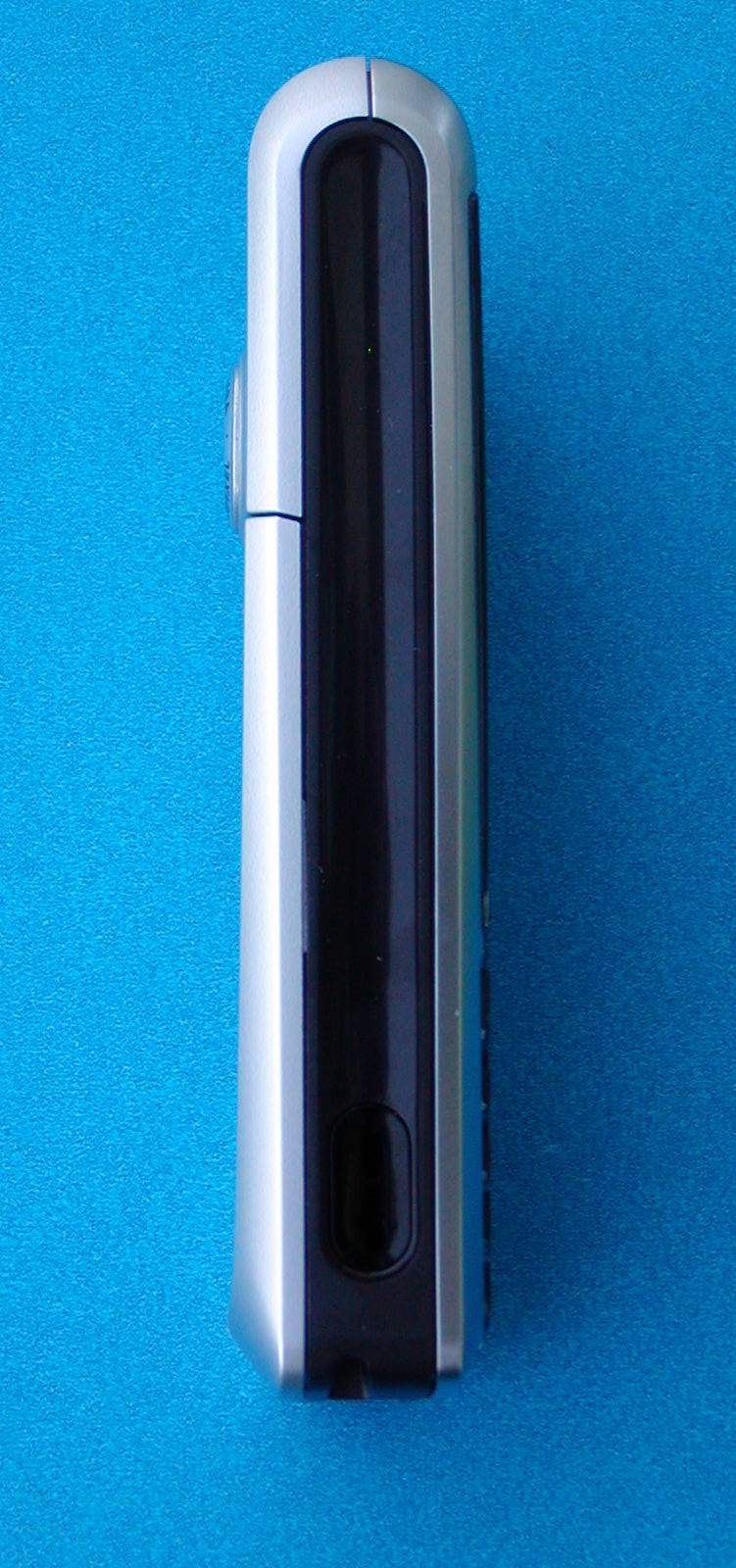

S65 Front View S65 Back View S65 Side View S65 Side View

Confidential Page 1 5/27/2004 S65 IMEI LABEL and LABEL LOCATION Confidential Page 2 5/27/2004 S65 IMEI LABEL and LABEL LOCATION

S65 Open battery cover (Final label: See extra exhibit) S65 Disassembly step 1 S65 Disassembly step 2 S65 Disassembly step 3 S65 PCB Front View Shields Removed S65 PCB Rear View Shields Removed S65 GSM Tri-band antenna

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6620_413d: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens S65 (FCC ID: PWX-S65) According to the FCC Requirements Calibration Data May 05, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_413g_SAR Distribution Plots Page 1 of 18 Appendix for the Report Dosimetric Assessment of the Siemens S65 (FCC ID: PWX-S65) According to the FCC Requirements SAR Distribution Plots May 06, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6620_413g_SAR Distribution Plots Page 2 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH....................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH FLASH ............................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WORST CASE HEAD WITH BLUETOOTH ......... 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 12 5 SAR DISTRIBUTION PLOTS, PCS 1900 BODY GPRS ............................................................................ 13 6 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 15 7 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................17 DASY Test-Report, Siemens_ 6620_413g_SAR Distribution Plots Page 3 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without Flash Test Laboratory: IMST GmbH; File Name: 310plm_1.da4 DUT: Siemens; Type: S65; Serial: 004999002869310 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 26.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.92 V/m; Power Drift = 0.00788 dB Maximum value of SAR (measured) = 0.318 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.92 V/m; Power Drift = 0.00788 dB Maximum value of SAR (measured) = 0.451 mW/g Peak SAR (extrapolated) = 0.727 W/kg SAR(1 g) = 0.375 mW/g; SAR(10 g) = 0.189 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (03.05.2004; Ambient Temperature: 20.4° C; Liquid Temperature : 19.5° C). DASY Test-Report, Siemens_ 6620_413g_SAR Distribution Plots Page 4 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 310plm_2.da4 DUT: Siemens; Type: S65; Serial: 004999002869310 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 26.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 11 V/m; Power Drift = 0.0841 dB Maximum value of SAR (measured) = 0.233 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11 V/m; Power Drift = 0.0841 dB Maximum value of SAR (measured) = 0.256 mW/g Peak SAR (extrapolated) = 0.404 W/kg SAR(1 g) = 0.233 mW/g; SAR(10 g) = 0.127 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (03.05.2004; Ambient Temperature: 20.5° C; Liquid Temperature : 19.5° C). DASY Test-Report, Siemens_ 6620_413g_SAR Distribution Plots Page 5 of 18 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 310prm_1.da4 DUT: Siemens; Type: S65; Serial: 004999002869310 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.45 mho/m; ε r = 39.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 26.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 8.87 V/m; Power Drift = 0.0305 dB Maximum value of SAR (measured) = 0.327 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.87 V/m; Power Drift = 0.0305 dB Maximum value of SAR (measured) = 0.452 mW/g Peak SAR (extrapolated) = 0.753 W/kg SAR(1 g) = 0.388 mW/g; SAR(10 g) = 0.176 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 8.87 V/m; Power Drift = 0.0305 dB Maximum value of SAR (measured) = 0.348 mW/g Peak SAR (extrapolated) = 66514.8 W/kg SAR(1 g) = 0.292 mW/g; SAR(10 g) = 0.155 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head. (03.05.2004; Ambient Temperature: 20.6° C; Liquid Temperature : 19.5° C). DASY Test-Report, Siemens_…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6620_413d Page 1 of 33 Report Dosimetric Assessment of the Portable Device Siemens S65 (FCC ID: PWX-S65) According to the FCC Requirements May 06, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.4.doc/30.04..2004/CH DASY Test-Report, Siemens_6620_413d Page 2 of 33 dasy_report_fcc_supplement_c _3.4.doc/30.04..2004/CH Executive Summary The S65 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including Bluetooth and GPRS capability with 2 TX slots (Class 10). The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens S65 mobile phone (FCC ID: PWX-S65) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested for the following configurations: • Body Worn with the following accessories and combinations with 2.2 cm distance: GSM mode (1 TX slot) with headset GPRS mode (2 TX slots, Class 10) prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_6620_413d Page 3 of 33 dasy_report_fcc_supplement_c _3.4.doc/30.04..2004/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 18 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 18 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 18 7.3 TISSUE RECIPES......................................................................................................................................... 18 7.4 MATERIAL PARAMETERS............................................................................................................................. 19 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 19 7.6 ENVIRONMENT........................................................................................................................................... 23 7.7 TEST EQUIPMENT....................................................................................................................................... 23 7.8 CERTIFICATES OF CONFORMITY.......................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_669FCC15.247_2004_S65 FCC Part 15.247 for FHSS systems / CANADA RSS-210 Model: S65 FCC ID: PWX-S65 IC: 267E-S65 Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 2 (54) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. USA does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc USA. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 3 (54) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-06-04 Date of test : 2004-06-04/08 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : S65 Model No. : S65 Description : GSM 1900 Mobile Phone with BT FCC-ID : PWX-S65 IC ID : 267E-S65 Additional information Test Sample : IMEI: 00-4999-00-2 86950-0 Frequency : 2402MHz – 2480MHz for BT Type of modulation : GFSK Number of channels : 79 Antenna : Internal Power supply : Battery or Charger (AC Adaptor) Output power : 2.11dBm (1.63mW) max. conducted peak power Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards: FCC Part 15 §15.247 (DA00-705) / RSS 210 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 4 (54) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-06-16 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-06-16 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 5 (54) 2.2 Test report TEST REPORT Test report no.: EMC_669FCC15.247_2004_S65 Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 6 (54) TEST REPORT REFERENCE LIST OF MEASUREMENTS PAGE CARRIER FREQUENCY SEPERATION §15.247(a) 7 NUMBER OF HOPPING CHANNELS §15.247(a) 8 TIME OF OCCUPANCY (DWELL TIME) §15.247(a) 12 SPECTRUM BANDWIDTH OF FHSS SYSTEM §15.247(a) 15 MAXIMUM PEAK OUTPUT POWER § 15.247 (b) (1) 19 BAND EDGE COMPLIANCE §15.247 (c) 27 EMISSION LIMITATIONS § 15.247 (c) (1) 31 CONDUCTED EMISSIONS § 15.107/207 46 RECEIVER SPURIOUS RADIATION § 15.209 47 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 52 BLOCK DIAGRAMS 53 Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 7 (54) A Unit dBm 16.1 dB Offset 1MA RBW 30 kHz SWT 8.5 ms VBW 100 kHz IN1 1MAX RF Att 30 dB 300 kHz/Center 2.441 GHzSpan 3 MHz Ref Lvl 36.1 dBm Ref Lvl 36.1 dBm -60 -50 -40 -30 -20 -10 0 10 20 30 -63.9 36.1 1 2 3 Marker 1 [T1] -0.52 dBm 2.44000000 GHz 1 [T1] -0.52 dBm 2.44000000 GHz 2 [T1] -0.68 dBm 2.44100000 GHz 3 [T1] -1.30 dBm 2.44200000 GHz Date: 8.JUN.2004 18:09:38 CARRIER FREQUENCY SEPERATION §15.247(a) Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 8 (54) A Unit dBm 16.1 dB Offset 1MA1MAX SWT 5 ms Start 2.4 GHzStop 2.425 GHz2.5 MHz/ Ref Lvl 36.1 dBm Ref Lvl 36.1 dBm RBW 300 kHz VBW 300 kHz RF Att 30 dB IN1 -60 -50 -40 -30 -20 -10 0 10 20 30 -63.9 36.1 12 Marker 1 [T1] 1.65 dBm 2.40200401 GHz 1 [T1] 1.65 dBm 2.40200401 GHz 2 [T1] 1.82 dBm 2.42409820 GHz F1 F2 Date: 8.JUN.2004 18:17:57 NUMBER OF HOPPING CHANNELS §15.247(a) The number of hopping channels is 79 (see next 4 plots) The right red line corresponds to the left red line from the next plot. Plot 1: Total 23 Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 9 (54) A Unit dBm 16.1 dB Offset 1MA1MAX SWT 5 ms Start 2.423 GHzStop 2.45 GHz2.7 MHz/ Ref Lvl 36.1 dBm Ref Lvl 36.1 dBm RBW 300 kHz VBW 300 kHz RF Att 30 dB IN1 -60 -50 -40 -30 -20 -10 0 10 20 30 -63.9 36.1 12 Marker 2 [T1] 1.95 dBm 2.42409820 GHz 2 [T1] 1.95 dBm 2.42409820 GHz 1 [T1] 2.01 dBm 2.44805210 GHz F2 F1 Date: 8.JUN.2004 18:19:25 Plot 2: Total 24 Test report no.: EMC_669FCC15.247_2004_S65 Issue date: 2004-06-16 Page 10 (54) A Unit dBm 16.1 dB Offset 1MA1MAX SWT 5 ms Start 2.445 GHzStop 2.47 GHz2.5 MHz/ Ref Lvl 36.1 dBm Ref Lvl 36.1 dBm RBW 30…

Text truncated - open the document above for the full version.

Test setup photos S65 Test setup – Radiated Emissions Test setup photos S65 Test setup – Conducted measurements GSM Test setup photos S65 Test setup – Conducted measurements BT Test setup photos S65 Test setup – AC Line Conducted Emissions
