PWX-SL55GSM 900/1800/1900 Mobile Phone

Contents 1 See also Index at the end of this User Guide SL55 Fugu, long am. english, A31008-H4910-A40-1-7619 (13. June 2003, © Siemens AG 2001, I:\Mobil\L55\SL55_Fugu\am\long\SL55_FuguIVZ.fm Safety precautions ..................... 4 Safety Information ..................... 5 Antenna care ........................... 5 Phone operation ...................... 5 Electronic devices ..................... 6 SAR (Cell Phone Designation) .... 9 Overview of the phone ............ 11 Display symbols (selection) ..... 15 Getting started ......................... 17 Insert SIM card/battery ........... 17 Charge battery ....................... 18 Switch on, off / PIN entry ......... 19 Switching on your phone for the first time ................................ 19 Signal strength. ...................... 20 Standby mode ........................ 20 General instructions ................. 21 User guide ............................. 21 Menu controls ........................ 21 Security .................................... 23 Prevent accidental activation .. 24 My phone ................................. 25 Calling ...................................... 26 Dialing with number keys ....... 26 End call .................................. 26 Set volume ............................. 26 Redial previous numbers ........ 26 When the number is busy ....... 27 Accept call ............................. 27 Reject call .............................. 28 Speakerphone ........................ 28 Swap ...................................... 28 Multi Party ..............................30 Babysitter ............................... 31 Text entry ................................. 32 Text modules ..........................35 è Default book ....................... 36 Phonebook ................................ 37 <New entry> ..........................37 Call (search for an entry) ......... 38 Change entry ..........................38 Addressbook .............................40 <New entry> ..........................40 Read/change an entry .............41 Call, search for an entry .......... 42 Addressbook menu ................. 42 Voice dialing ........................... 43 Groups ......................................44 Z Call log ...................................45 Z Durat/charges ........................46 ] Voice mail/Mailbox ............ 47 ] SMS .................................... 48 Writing and sending text messages (SMS) .....................48 Picture&Sound ........................49 SMS to group ..........................50 Read SMS ............................... 50 Ring tones, icons ... ................51 Lists .......................................51 Archive ...................................52 ] MMS ................................... 53 Writing/sending MMS messages .......................53 Contents See also Index at the end of this User Guide Contents 2 See also Index at the end of this User Guide SL55 Fugu, long am. english, A31008-H4910-A40-1-7619 (13. June 2003, © Siemens AG 2001, I:\Mobil\L55\SL55_Fugu\am\long\SL55_FuguIVZ.fm Receive MMS .......................... 56 Read MMS .............................. 56 Lists ....................................... 57 ] E-mail ................................. 59 Write/send e-mails .................. 59 Receive e-mail ........................ 60 Read new e-mail .................... 60 Lists ....................................... 61 ]Message profiles ................ 63 SMS profile ............................ 63 MMS profile ........................... 64 E-mail settings ....................... 65 Voice message ....................... 66 CB services ............................. 66 ] CB services ......................... 67 É Surf & fun ............................ 68 Internet browser (WAP) .......... 68 Games & more ....................... 71 m Setup .................................. 74 Display ................................... 74 Tones/Alerts ........................... 76 Keys ....................................... 78 Phone setup ........................... 79 Clock ..................................... 82 Connectivity ........................... 83 Security ................................. 86 Network ................................. 88 Accessories ............................ 90 ProSlide ................................. 91 ~ Profiles ............................... 92 Favorites .................................. 94 ç Organizer ............................ 95 Calendar ................................. 95 Alarm .....................................97 Tasks ...................................... 99 Notes ...................................100 Missed appointments ...........101 Voice notes .......................... 102 Time zones ...........................103 [ Extras ................................104 Alarm clock .......................... 104 Calculator ............................. 104 Currency conv ......................105 Stopwatch ............................ 106 Countdown .......................... 106 Camera (Accessories) ............107 Voice command .................... 109 Remote synchronization ....... 110 Fast access key .......................112 Ñ File manager ......................114 Print via.../Send via .... ............116 Notes A-Z ................................ 117 Siemens Data Suite .................125 Questions & Answers .............. 127 Customer Care ........................130 Specifications .........................131 Exposure to radiofrequency signals .................................. 131 Technical data ..................... 131 Trademarks .......................... 131 Care and maintenance ...........132 Accessories ............................. 133 U.S. FDA .................................. 135 Contents 3 See also Index at the end of this User Guide SL55 Fugu, long am. english, A31008-H4910-A40-1-7619 (13. June 2003, © Siemens AG 2001, I:\Mobil\L55\SL55_Fugu\am\long\SL55_FuguIVZ.fm FCC/Industry Canada Notice ... 141 Ten …

Text truncated - open the document above for the full version.

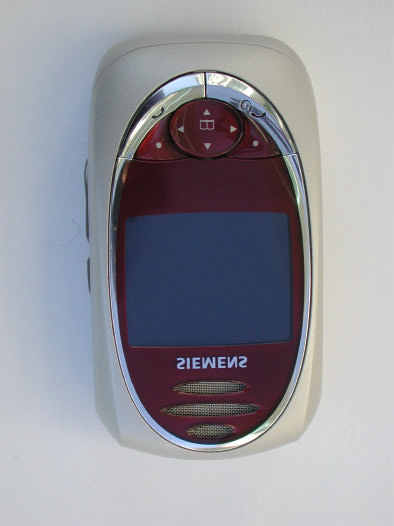

SL55 Front View SL55 Front View (Keypad Extracted) SL55 Back View SL55 Back View (Keypad Extracted) SL55 Side View SL55 Side View (Keypad Extracted)

SL55 DATUM 14.06.02 Approval label BNR NAME Bartenschlager SL55 / IMEI ICM MP PO8 MCH LETTERING PLAN 1 29.01.03 Bar Z30880-S4910-A-1-5 ZUST MITTEILUNG DATUM KURZZ Siemens AG 28697 BLATT 1 I:\Schilder\projekte\SL55 VON 1 A24850-V1-A4-2 VORSTD.DOC White label with black lettering S30880-S4910-XXXX-1 XXXXXX FF SSSSSSC MADE xx xxxxxxxxx SL55 YX FCC ID: PWX-SL55 IC: 267E-SL55

SL55 Open battery cover (Final label: see extra exhibit) SL55 Disassembly step 1 GSM Antenna SL55 Disassembly step 2 SL55 board with shielding, side1 SL55 board without shielding, side1 SL55 board with shielding, side2 SL55 board without shielding, side2

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_297 Page 1 of 46 Report Dosimetric Assessment of the Portable Device Siemens SL55 (FCC ID: PWX-SL55) According to the FCC Requirements February 24, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.0.doc/06.12.2002/CH DASY Test-Report, Siemens_ 6575_297 Page 2 of 46 dasy_report_fcc_supplement_c _3.0.doc/06.12.2002/CH Executive Summary The SL55 is a new mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard with slider down and slider up. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. The Siemens SL55 mobile phone (FCC ID: PWX-SL55) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in Head configuration without and with connected QuickPic Camera. In the Body Worn configuration with the following accessories and combinations: Talk mode (1 TX slot) with headset (direct contact with the phantom) GPRS mode (1 TX slot) with data cable (direct contact with the phantom) prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_297 Page 3 of 46 dasy_report_fcc_supplement_c _3.0.doc/06.12.2002/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 19 7 APPENDIX ...................................................................................................................................................... 23 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 23 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 23 7.3 TISSUE RECIPES......................................................................................................................................... 24 7.4 MATERIAL PARAMETERS............................................................................................................................. 24 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 25 7.6 ENVIRONMENT........................................................................................................................................... 29 7.7 TEST EQUIPMENT....................................................................................................................................... 29 7.8 PHANTOM CERTIFICATE................................................…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 1 of 29 Appendix for the Report Dosimetric Assessment of the Siemens SL55 (FCC ID: PWX-SL55) According to the FCC Requirements SAR Distribution Plots February 25, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 2 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT QUICKPIC CAMERA............................. 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH QUICKPIC CAMERA ................................... 11 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 19 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATACABLE.................................................. 23 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 25 6 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................28 DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 3 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without QuickPic Camera Fig. 1: SAR distribution for slider up, PCS 1900, channel 661, cheek position, left side of head. (18.02.2002; Liquid Temperature: 19.1° C; Ambient Temperature : 20.7° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 4 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 2: SAR distribution for slider up, PCS 1900, channel 661, tilted position, left side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 20.6° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 5 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 3: SAR distribution for slider up, PCS 1900, channel 661, cheek position, right side of head ( 18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 20.7° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 6 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 4: SAR distribution for slider up, PCS 1900, channel 661, tilted position, right side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 20.7° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 7 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 5: SAR distribution for slider down, PCS 1900, channel 661, cheek position, left side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 21.1° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 8 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 6: SAR distribution for slider down, channel 661, tilted position, left side of head. (18.02.2002; Liquid Temperature: 18.9° C; Ambient Temperature : 21.1° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 9 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 7: SAR distribution for slider down, channel 661, cheek position, right side of head (18.02.2002; Liquid Temperature: 18.9° C; Ambient Temperature : 21.3° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 10 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 8: SAR distribution for slider down, PCS 1900, channel 661, tilted position, right side of head. (18.02.2002; Liquid Temperature: 18.9° C; Ambient Temperature : 21.5° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 11 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 2 SAR Distribution Plots, PCS 1900 Head with QuickPic Camera Fig. 9: SAR distribution for slider up, PCS 1900, channel 661, cheek position, left side of head. (18.02.2002; Liquid Temperature: 18.9° C; Ambient Temperature : 21.2° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 12 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 10: SAR distribution for slider up, PCS 1900, channel 661, tilted position, left side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 21.2° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 13 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 11: SAR distribution for slider up, PCS 1900, channel 661, cheek position, right side of head (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 21.1° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 14 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 12: SAR distribution for slider up, PCS 1900, channel 661, tilted position, right side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 21.1° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 15 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 13: SAR distribution for slider down, PCS 1900, channel 661, cheek position, left side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 21.2° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 16 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 14: SAR distribution for slider down, PCS 1900, channel 661, tilted position, left side of head. (18.02.2002; Liquid Temperature: 19.0° C; Ambient Temperature : 21.2° C). DASY Test-Report, Siemens_ 6575_297_SAR Distribution Plots Page 17 of 29 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Fig. 15: SAR distribution for slider down, PCS 1900, channel 661, cheek position, right side of head (18.02.2002; Liquid Temperature: 19…

Text truncated - open the document above for the full version.

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_297: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens SL55 (FCC ID: PWX-SL55) According to the FCC Requirements Calibration Data February 25, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory. Probe ET3DV6 SN:1579 Manufactured:May 7, 2001 Last calibration:January 29, 2002 Repaired:April 26, 2002 Recalibrated:May 3, 2002 Calibrated for System DASY3 Page 1 of 9 ET3DV6 SN:1579May 3, 2002 DASY3 - Parameters of Probe: ET3DV6 SN:1579 Sensitivity in Free SpaceDiode Compression NormX1.61 mV/(V/m) 2 DCP X93mV NormY1.58 mV/(V/m) 2 DCP Y93mV NormZ1.59 mV/(V/m) 2 DCP Z93mV Sensitivity in Tissue Simulating Liquid Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.7 ± 9.5% (k=2)Boundary effect: ConvF Y6.7 ± 9.5% (k=2)Alpha0.32 ConvF Z6.7 ± 9.5% (k=2)Depth2.54 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.4 ± 9.5% (k=2)Boundary effect: ConvF Y5.4 ± 9.5% (k=2)Alpha0.45 ConvF Z5.4 ± 9.5% (k=2)Depth2.48 Boundary Effect Head900MHzTypical SAR gradient: 5 % per mm Probe Tip to Boundary1 mm2 mm SAR be [%] Without Correction Algorithm8.34.9 SAR be [%] With Correction Algorithm0.30.4 Head1800MHzTypical SAR gradient: 10 % per mm Probe Tip to Boundary1 mm2 mm SAR be [%] Without Correction Algorithm11.27.6 SAR be [%] With Correction Algorithm0.20.3 Sensor Offset Probe Tip to Sensor Center2.7mm Optical Surface Detection1.5 ± 0.2mm Page 2 of 9 ET3DV6 SN:1579May 3, 2002 Receiving Pattern (φ), θ = 0° f = 30 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 100 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 300 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 900 MHz, TEM cell ifi110 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 3 of 9 ET3DV6 SN:1579May 3, 2002 Isotropy Error (φ), θ = 0° -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 060120180240300360 error[dB] 30 MHz 100 MHz 300 MHz 900 MHz 1800 MHz 2500 MHz f = 1800 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot f = 2500 MHz, WG R22 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 XYZTot Page 4 of 9 ET3DV6 SN:1579May 3, 2002 Frequency Response of E-Field ( TEM-Cell:ifi110, Waveguide R22) 0.50 0.60 0.70 0.80 0.90 1.00 1.10 1.20 1.30 1.40 1.50 050010001500200025003000 f [MHz] frequency response TEMR22 Page 5 of 9 ET3DV6 SN:1579May 3, 2002 Dynamic Range f(SAR brain ) ( Waveguide R22 ) ET3DV6 SN:1579May 3, 2002 1.E+0 1.E+1 1.E+2 1.E+3 1.E+4 1.E+5 1.E+6 1.E+7 0.00010.0010.010.11.10.100. mW/cm 3 μ V not compensatedcompensated -2.0 -1.0 0.0 1.0 0.0010.010.1110100 mW/cm 3 errror[dB] Page 6 of 9 Conversion Factor Assessment Head900MHz ε r =41.5 ± 5% σ = 0.97 ± 5% mho/m Head835MHz ε r =41.5 ± 5% σ = 0.90 ± 5% mho/m ConvF X6.7 ± 9.5% (k=2)Boundary effect: ConvF Y6.7 ± 9.5% (k=2)Alpha0.32 ConvF Z6.7 ± 9.5% (k=2)Depth2.54 Head1800MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m Head1900MHz ε r =40.0 ± 5% σ = 1.40 ± 5% mho/m ConvF X5.4 ± 9.5% (k=2)Boundary effect: ConvF Y5.4 ± 9.5% (k=2)Alpha0.45 ConvF Z5.4 ± 9.5% (k=2)Depth2.48 ET3DV6 SN:1579May 3, 2002 f = 900 MHz, WG R9 (head) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0.90 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (head) 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 7 of 9 Conversion Factor Assessment Body900MHz ε r =55.0 ± 5% σ = 1.05 ± 5% mho/m Body835MHz ε r =55.2 ± 5% σ = 0.97 ± 5% mho/m ConvF X6.4 ± 9.5% (k=2)Boundary effect: ConvF Y6.4 ± 9.5% (k=2)Alpha0.33 ConvF Z6.4 ± 9.5% (k=2)Depth2.60 Body1800MHz ε r =53.3 ± 5% σ = 1.52 ± 5% mho/m Body1900MHz ε r =53.3 ± 5% σ = 1.52 ± 5% mho/m ConvF X5.1 ± 9.5% (k=2)Boundary effect: ConvF Y5.1 ± 9.5% (k=2)Alpha0.56 ConvF Z5.1 ± 9.5% (k=2)Depth2.39 ET3DV6 SN:1579May 3, 2002 f = 900 MHz, WG R9 (body) 0.00 0.10 0.20 0.30 0.40 0.50 0.60 0.70 0.80 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets f = 1800 MHz, WG R22 (body) 0.00 0.50 1.00 1.50 2.00 2.50 3.00 3.50 4.00 0204060 z[mm] SAR[mW/cm 3 ] / W AnalyticalMeasuremets Page 8 of 9 Deviation from Isotropy in HSL Error (θ,φ), f = 900 MHz 0 40 80 120 160 200 240 280 320 0 10 20 30 40 50 60 -1.00 -0.80 -0.60 -0.40 -0.20 0.00 0.20 0.40 0.60 0.80 1.00 Error [dB] θ φ -1.00--0.80-0.80--0.60-0.60--0.40-0.40--0.20-0.20-0.00 0.00-0.200.20-0.400.40-0.600.60-0.800.80-1.00 Page 9 of 9 Page 2 of 2May 8, 2002 Dosimetric E-Field Probe ET3DV6 SN:1579 Conversion factor (± standard deviation) 835 MHzConvF6.8 ± 8% εε εε r = 41.5 ± 5% σσ σσ = 0.90 ± 5% mho/m (head tissue) 835 MHzConvF6.6 ± 8% εε εε r = 55.2 ± 5% σσ σσ = 0.97 ± 5% mho/m (body tissue) 1900 MHzConvF5.2 ± 8% εε εε r = 40.0 ± 5% σσ σσ = 1.40 ± 5% mho/m (head tissue) 1900 MHzConvF4.8 ± 8% εε εε r = 53.3 ± 5% σσ σσ = 1.52 ± 5% mho/m (body tissue)

Statement Page 1 of 1 CETECOM Inc. 411 Dixon Landing Road Milpitas, CA 95035 U.S.A. Phone: + 1 408 586 6200 Fax: + 1 408 586 6299 e-mail: [email protected] URL: www.cetecom.com Statement FCC ID: PWX-SL55 SAR measurement conducted measurements. The following was confirmed with the SAR Lab and the device manufacturer. This phone has no connector, which can be used for conducted measurements during SAR tests. For this reason Siemens made a “coupler” as show in figure 8 of the SAR report, which has a defined coupling factor. This factor plus the cable loss was used as a correction factor in the CMU. The readings were showing the actual values. This coupler was used by the SAR lab to measure the conducted power of the SAR sample. According the last paragraph of page 18 of the main SAR report and after verification with the manufacturer and the SAR lab the following measurements were done. 1. Siemens tuned the devices to their maximum out put power in the factory. The devices were sent to the SAR Lab together with the coupling device. 2. The SAR lab measured the output power levels, in order to verify the phone and coupler prior to testing. Identical levels were measured compared to the factory data.. 3. During SAR testing the ‘conducted” output power was measured (using the coupling device) before and after the SAR test. Additionally the power drift is reported in the relevant result tables. 4. Frequent battery changes guaranteed identical levels during the entire testing. Lothar Schmidt Technical Manager

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Phone: + 1 (408) 586 6200
Fax: + 1 (408) 586 6299
E-mail: [email protected]
http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_432FCC-24_2003_SL55 FCC Part 24 / RSS 133 FCC ID: PWX-SL55 CETECOM Inc. Test report no.: EMC_432FCC-24_2003_SL55 Issue date: 2003-03-17 Page 2 (54) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_432FCC-24_2003_SL55 Issue date: 2003-03-17 Page 3 (54) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : David McPherson Telephone : +1 858-521-3387 Tele-fax : +1 858-521-3106 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-02-10 Date of receipt test item : 2003-02-22 Date of test : 2003-02-24 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : SL55 Model No. : Fugu 55 Description : GSM Triband (900/1800/1900) Mobile Phone FCC-ID : PWX-SL55 Additional information Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : Embedded Tri-band Power supply : Battery or Charger (AC Adaptor) Output power : 30.69dBm (1.17W) maximum EIRP measured for PCS 1900 Extreme vol. Limits : 3.2VDC to 4.5VDC Extreme temp. Tolerance : -20°C to +40°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_432FCC-24_2003_SL55 Issue date: 2003-03-17 Page 4 (54) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-03-17 EMC & Radio Siegfried Lehmann (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2003-03-17 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_432FCC-24_2003_SL55 Issue date: 2003-03-17 Page 5 (54) 2.2 Test report TEST REPORT Test report no.: EMC_432FCC-24_2003_SL55 (FCC ID: PWX-SL55) CETECOM Inc. Test report no.: EMC_432FCC-24_2003_SL55 Issue date: 2003-03-17 Page 6 (54) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 13 OCCUPIED BANDWIDTH §2.1049(h)(i) 15 EMISSION BANDWIDTH §24.238(b) 19 EMISSIONS LIMITS §24.238 23 BAND EDGE COMPLIANCE §24.238(b) 37 RECEIVER RADIATED EMISSIONS § 15.209…

Text truncated - open the document above for the full version.
