PWX-SL56GSM 850/1900 Mobile Phone

Contents 1 See also Index at the end of this User Guide SL56 fug am. english, A31008-H4920-A40-1-4A19 (16. June 2003, 11:25) © Siemens AG 2001, I:\Mobil\L55\SL56\long\von_[itl]\SL55_FuguIVZ.fm Safety precautions ..................... 3 Safety Information ..................... 5 Antenna care ........................... 5 Phone operation ...................... 5 Electronic devices ..................... 6 SAR (Cell Phone Designation) .... 9 Overview of the phone ............ 11 Display symbols (selection) ..... 15 Getting started ......................... 17 Insert SIM card/battery ........... 17 Charge battery ....................... 18 Switch on, off/PIN entry ........... 19 Switching on your phone for the first time ..................... 19 Signal strength. ...................... 20 Standby mode ........................ 20 General instructions ................. 21 User guide ............................. 21 Menu controls ........................ 21 Security .................................... 23 My phone ................................. 25 Calling ...................................... 26 Dialing with number keys ....... 26 End call .................................. 26 Set volume ............................. 26 Redial previous numbers ........ 26 When the number is busy ....... 27 Accept call ............................. 27 Reject call .............................. 28 Speakerphone ........................ 28 Swap ..................................... 28 Multi Party ............................. 30 Text entry ................................. 31 Text Modules ..........................34 è Default Book .......................35 Phonebook ................................ 36 <New Entry> ..........................36 Call (search for an entry) .........37 Change entry ..........................37 Addressbook .............................39 <New Entry> ..........................39 Read/change an entry .............40 Call, search for an entry ..........41 Addressbook menu .................41 Voice dialing ........................... 42 Groups ......................................43 Z Call Log .................................. 44 ] Voice mail/Mailbox ............45 Z Durat/Charges ........................46 ] SMS .................................... 47 Writing and sending text messages (SMS) ...............47 Picture&Sound ........................48 SMS to group ..........................49 Read SMS ............................... 49 Ring tones, icons ... ................50 Lists .......................................50 Archive ...................................51 ] MMS ................................... 53 Writing/ sending MMS messages ..........53 Receive MMS ..........................56 Read MMS .............................. 56 Lists .......................................57 Contents See also Index at the end of this User Guide Contents 2 See also Index at the end of this User Guide SL56 fug am. english, A31008-H4920-A40-1-4A19 (16. June 2003, 11:25) © Siemens AG 2001, I:\Mobil\L55\SL56\long\von_[itl]\SL55_FuguIVZ.fm ] E-mail ................................. 59 Write/send e-mails .................. 59 Receive e-mail ........................ 60 Read new e-mail .................... 60 Lists ....................................... 61 ]Message profiles ............... 63 SMS profile ............................ 63 MMS profile ........................... 64 E-mail settings ....................... 65 ] CB Services ........................ 67 É Surf & Fun ............................ 68 Internet browser (WAP) .......... 68 Games & More ....................... 71 m Setup .................................. 74 Display ................................... 74 Tones/Alerts ........................... 76 Keys ....................................... 78 Phone Setup .......................... 79 Clock ..................................... 82 Connectivity ........................... 83 Security ................................. 86 Network ................................. 87 Accessories ............................ 89 ProSlide ................................. 90 ~ Profiles ............................... 91 Favorites .................................. 93 ç Organizer ............................ 94 Calendar ................................ 94 Appointments ........................ 96 Tasks ..................................... 98 Notes ..................................... 99 Missed Alarms ......................100 Voice Memo ......................... 101 Time Zones ...........................102 [ Extras ................................103 Alarm Clock ..........................103 Calculator ............................. 103 Stopwatch ............................ 104 Countdown .......................... 105 Camera (Accessories) ............105 Voice command .................... 107 Remote synchronization .......108 Fast access key .......................110 Ñ File Manager ......................112 Print via.../Send via .... ............114 Notes A-Z ................................ 115 Siemens Data Suite ................. 123 Questions & Answers .............. 124 Customer Care ........................127 Specifications .........................128 Exposure to radiofrequency signals ..................................128 Technical data ..................... 128 Trademarks ..........................128 Care and maintenance ...........129 Accessories ............................. 130 U.S. FDA .................................. 132 FCC/Industry Canada Notice ...138 Ten Driving Safety Tips ........... 139 Intellectual Property ............... 141 Index ....................................... 142 Safety precautions 3 SL56 fug am. english, A31008-H4920-A40-1-4A19 (18. June 2003, 18:19) © Siemens AG 2001, I:\Mobil\L55\SL56\long\von_[itl]\SL55_Security.fm Safety pre- cautions NOTE: Review these operating instructions and safety precautions carefully before use. Do not use mobile phone in hos- pitals or in t…

Text truncated - open the document above for the full version.

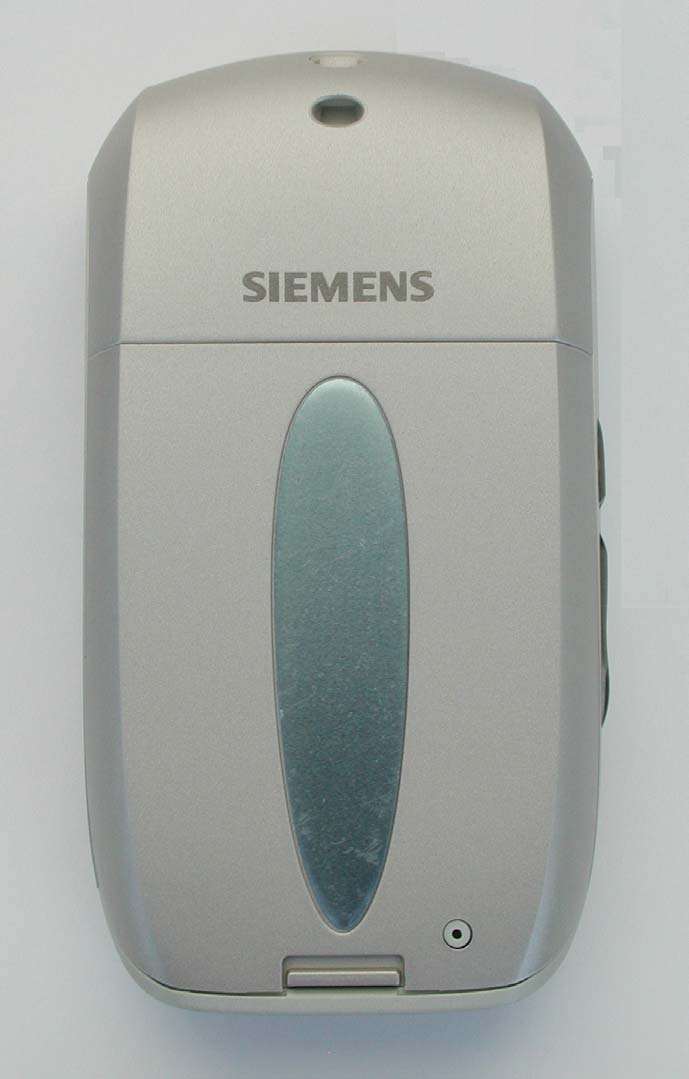

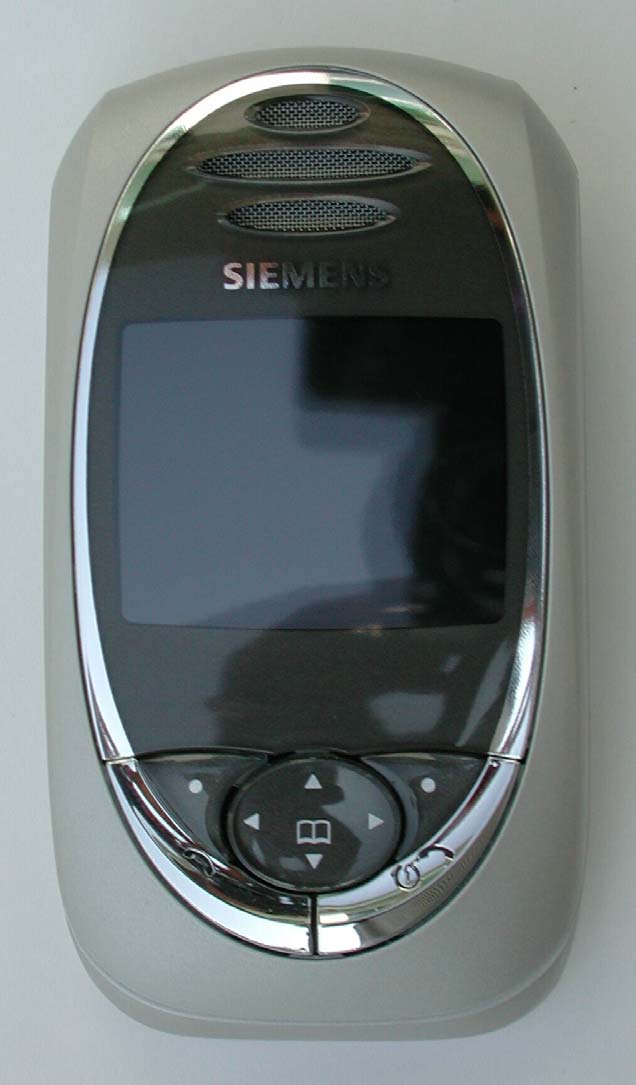

SL56 Front View SL56 Front View (Keypad Extracted) SL56 Back View SL56 Back View (Keypad Extracted) SL56 Side View SL56 Side View (Keypad Extracted)

White label with black lettering S30880-S4920-XXXX-1 XXXXXX FF SSSSSSC MADE xx xxxxxxxxx SL56 YX FCC ID: PWX-SL56 IC:267E-SL56 SL56 ID Label Location

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_318d Page 1 of 52 Report Dosimetric Assessment of the Portable Device Siemens SL56 (FCC ID: PWX-SL56) According to the FCC Requirements June 18, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.1.doc/04.04.2003/CH DASY Test-Report, Siemens_ 6575_318d Page 2 of 52 dasy_report_fcc_supplement_c _3.1.doc/04.04.2003/CH Executive Summary The SL56 is a mobile phone (Portable Device) from Siemens operating in the 800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 850 and PCS 1900 standards including GPRS capability with 1 TX slot. The objective of the measurements done by IMST was the dosimetric assessment of one device in the GSM 850 and PCS 1900 standards with slider down and slider up. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG (Fig. 25). The Siemens SL56 mobile phone (FCC ID: PWX-SL56) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in Head configuration without and with connected QuickPic Camera, in the Body Worn configuration with head set and direct contact to the phantom. prepared by: ........................................... reviewed by: .............................................. André van den Bosch Dipl.-Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_318d Page 3 of 52 dasy_report_fcc_supplement_c _3.1.doc/04.04.2003/CH Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 21 7 APPENDIX ...................................................................................................................................................... 26 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 26 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 26 7.3 TISSUE RECIPES......................................................................................................................................... 27 7.4 MATERIAL PARAMETERS............................................................................................................................. 27 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 28 7.6 ENVIRONMENT........................................................................................................................................... 35 7.7 TEST EQUIPMENT....................................................................................................................................... 35 7.8 CERTIFICATES OF CONFORMITY..............................................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_318: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens SL56 (FCC ID: PWX-SL56) According to the FCC Requirements Calibration Data June 18, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_318d_SAR Distribution Plots Page 1 of 52 Appendix for the Report Dosimetric Assessment of the Siemens SL56 (FCC ID: PWX-SL56) According to the FCC Requirements SAR Distribution Plots June 18, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_318d_SAR Distribution Plots Page 2 of 52 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, GSM 850 HEAD WITHOUT QUICKPIC CAMERA ............................. 3 2 SAR DISTRIBUTION PLOTS, GSM 850 HEAD WITH QUICKPIC CAMERA.................................... 11 3 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT QUICKPIC CAMERA........................... 19 4 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH QUICKPIC CAMERA ................................... 27 5 SAR DISTRIBUTION PLOTS, GSM 850 BODY ........................................................................................ 35 6 SAR DISTRIBUTION PLOTS, PCS 1900 BODY........................................................................................ 39 7 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 43 8 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................49 DASY Test-Report, Siemens_ 6575_318d_SAR Distribution Plots Page 3 of 52 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, GSM 850 Head without QuickPic Camera Test Laboratory: IMST; File Name: upogll_1.da4 DUT: Siemens; Type: SL56; Serial: 001002000150057 Program: Measurement Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.9 mho/m, ε r = 41.3, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(6.8, 6.8, 6.8); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; Serial: 1059 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 13.5 V/m Power Drift = -0.08 dB Maximum value of SAR = 0.93 mW/g cheek left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.38 W/kg SAR(1 g) = 0.921 mW/g; SAR(10 g) = 0.604 mW/g Reference Value = 13.5 V/m Power Drift = -0.08 dB Maximum value of SAR = 0.949 mW/g Fig. 1: Worst case SAR distribution for slider up, GSM 850, channel 128, cheek position, left side of head. (18.06.2003; Ambient Temperature: 21.1° C; Liquid Temperature : 20.0° C). DASY Test-Report, Siemens_ 6575_318d_SAR Distribution Plots Page 4 of 52 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: upoglm_2.da4 DUT: Siemens; Type: SL56; Serial: 001002000150057 Program: Measurement Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.9 mho/m, ε r = 41.3, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(6.8, 6.8, 6.8); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; Serial: 1059 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilted left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 12.7 V/m Power Drift = 0.004 dB Maximum value of SAR = 0.325 mW/g tilted left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.442 W/kg SAR(1 g) = 0.325 mW/g; SAR(10 g) = 0.226 mW/g Reference Value = 12.7 V/m Power Drift = 0.004 dB Maximum value of SAR = 0.344 mW/g Fig. 2: SAR distribution for slider up, GSM 850, channel 190, tilted position, left side of head. (18.06.2003; Ambient Temperature: 21.7° C; Liquid Temperature : 20.3° C). DASY Test-Report, Siemens_ 6575_318d_SAR Distribution Plots Page 5 of 52 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: upogrl_1.da4 DUT: Siemens; Type: SL56; Serial: 001002000150057 Program: Measurement Communication System: GSM 850; Frequency: 824.2 MHz;Duty Cycle: 1:8 Medium: Head 835 MHz (σ = 0.9 mho/m, ε r = 41.3, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(6.8, 6.8, 6.8); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1059; Serial: 1059 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14.5 V/m Power Drift = -0.06 dB Maximum value of SAR = 1.15 mW/g cheek right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.77 W/kg SAR(1 g) = 1.13 mW/g; SAR(10 g) = 0.724 mW/g Reference Value = 14.5 V/m Power Drift = -0.06 dB Maximum value of SAR = 1.18 mW/g Fig. 3: Worst case SAR distribution for slider up, GSM 850, channel 128, cheek position, right side of head ( 18.06.2003; Ambient Temperature: 21.1° C; Liquid Temperature : 20.0° C). DASY Test-Report, Siemens_ 6575_318d_SAR Distribution Plots Page 6 of 52 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: upogrm_2.da4 DUT: Siemens; Type: SL56; Serial: 001002000150057 Program: Measurement Communication System: GSM 850; Frequency: 836.6 MHz;Duty Cycle: 1:8 Medium: Head 835 M…

Text truncated - open the document above for the full version.

SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 1/7 FCC_SL56_FCC_conducted_power_2.doc Test Report Conducted Output Power GSM 850, GSM 1900 SIEMENS SL56 Report no: SL56_Ref.E and Ref.F Issue date: May 12, 2003 Test Site SIEMENS ICM MP SAN Information and Communication Mobile LLC 16745 West Bernardo Drive Suite 400 San Diego, CA 92127-1903, U.S.A. Tel.: 858-521-3382 Fax.: 858-521-3106 Test Engineer SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 2/7 FCC_SL56_FCC_conducted_power_2.doc Contents: 1 Objective and Method ................................................... 2 2 Results ................................................................ 3 2.1 GSM 850 Band.......................................................... 3 2.2 GSM 1900 Band......................................................... 4 3 Minutes of Test ........................................................ 5 3.1 Description of Device under Test...................................... 5 3.2 Measurement Set Up.................................................... 5 3.3 Measurement Set Up Picture............................................ 5 3.4 Equipment Calibration Certificate..................................... 6 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. For SL56 an special 50 Ohm cable was mounted to provide the means for such measurement. The MS is connected to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting. SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 3/7 FCC_SL56_FCC_conducted_power_2.doc 2 Results 2.1 GSM 850 Band Average Power during burst at cable Device ARFCN 128 824.2 MHz ARFCN 190 836.6 MHz ARFCN 251 848.8 MHz Siemens SL56 IMEI: 001002000156302 +32.9 dBm+32.4 dBm+31.7 dBm Siemens SL56 IMEI: 001002000156476 +32.8 dBm+32.3 dBm+31.7 dBm Tab. 1: Results of power measurements at cable connector for Siemens SL56 SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 4/7 FCC_SL56_FCC_conducted_power_2.doc 2.2 GSM 1900 Band Average Power during burst at cable Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens SL56 IMEI: 001002000156302 +29.1 dBm+29.1 dBm+28.9 dBm Siemens SL56 IMEI: 001002000156476 +28.9 dBm+28.8 dBm+28.7 dBm Tab. 2: Results of power measurements at cable connector for Siemens SL56 SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 5/7 FCC_SL56_FCC_conducted_power_2.doc 3 Minutes of Test 3.1 Description of Device under Test Siemens Mobile Phone: SL56 Frequency range GSM 850: 824-849 MHz Frequency range GSM 1900: 1850-1990 MHz Vbat: 3.8 volt Temperature: 25 Cels. 3.2 Measurement Set Up base station Simulator and Tester DUT Special Adapter Fig. 1: Block diagram of set up for conducted power measurement 3.3 Measurement Set Up Picture SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 6/7 FCC_SL56_FCC_conducted_power_2.doc 3.4 Equipment Calibration Certificate SIEMENS AG Subject: SL56 ICM MP UC RD EA SD Test case Output Power FCC/Antenna Approval Lab SAN DIEGO Page: 7/7 FCC_SL56_FCC_conducted_power_2.doc

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test Report Test report no.: EMC_484FCC22-24_2003_SL56 FCC Part 22,24 / RSS 133 Model: (SL56) FCC ID: PWX-SL56 Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 2 (91) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 3 (91) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : David McPherson Telephone : +1 858-521-3387 Tele-fax : +1 858-521-3106 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2003-05-08 Date of receipt test item : 2003-05-12 Date of test : 2003-05-26/27 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : SL56 Description : GSM 850/1900 Mobile Phone FCC-ID : PWX-SL56 Additional information Frequency : 824.2MHz – 848.8MHz for GSM 850, 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 124 for GSM-850, 299 for PCS-1900 Antenna : Embedded Power supply : Battery or charger (AC Adapter) Output power : 28.79 dBm (756.83mW) max. ERP measured in GSM-850 30.85 dBm (1216 mW) max. EIRP measured in PCS-1900 Extreme vol. Limits : Lower:3.6Vdc Nominal:3.8Vdc Upper:4.5Vdc Extreme temp. Tolerance : Lower:-30 o C Upper: +50 o C 1.6 Test standards FCC Part 22,24 / RSS133 r1 Note: All radiated measurements were made in all three orthogonal planes. The values reported are the maximum values. Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 4 (91) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-08-13 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2003-08-13 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 5 (91) 2.2 Test report TEST REPORT Test report no.: EMC_484FCC22-24_2003_SL56_rev2 (SL56) FCC ID: PWX-SL56 Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 6 (91) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 22.913(a) / § 24.232 (b) 7 OCCUPIED BANDWIDTH §2.1049(h)(i) 14 EMISSION BANDWIDTH §24.238(b) 21 MOBILE EMISSIONS IN BASE FREQUENCY §22.917(f) 28 EMISSION LIMITS TRANSMITTER §2.1051 / §24.238 32 RECEIVER RADIATED EMISSIONS § 2.1053 / RSS-133 74 CONDUCTED SPURIOUS EMISSIONS § 2.1057 / §24.238 79 CONDUCTED EMISSIONS § 15.107/207 87 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 89 BLOCK DIAGRAMS 90 Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 7 (91) POWER OUTPUT § 22.913(a) / § 24.232 (b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Universal Radio Communication tester (CMU 200) to ensure max. Power transmission and proper modulation. This paragraph contains average output power, peak output power, EIRP & ERP measurements for the EUT. In all cases, the peak output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 824.2 MHz, 836.6 MHz and 848.8 MHz (bottom, middle and top of operational frequency range) for GSM-850 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) for PCS-1900 Test report no.: EMC_484FCC22-24_2003_SL56_rev2 Issue date: 2003-08-13 Page 8 (91) Conducted (GSM-850) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 5 ≤33dBm (2W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to document: “FCC_SL56_FCC_conducted_power” (Page 3, section 2.1, Siemens SL56, IMEI: 001002000156302) Frequency (MHz) Average Power during burst (dBm) 824.2 32.9 836.6 32.4 848.8 31.7 Conducted (PCS-1900) Limits: Power Control Level Nominal Peak Output Power Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification …

Text truncated - open the document above for the full version.

Test setup for Mobile Emissions in base band for SL56
