PWX-SL65GSM 1900 Mobile Phone

© Siemens AG 2003, M:\Mobil\R65\SL65_Iris\am\fug\SL65IVZ.fm Table of Contents1 VAR Language: am; VAR issue date: 040317 See also Index and Menu tree at the end of this User Guide left page (1) of SL65 Iris FUG us, A31008-H7700-A40-1-4A19 (24.05.2004, 17:17) Safety precautions ..................... 3 Antenna care ........................... 5 Phone operation ...................... 5 Electronic devices .................... 6 Telephone list ............................ 9 Display symbols ....................... 12 Getting started ......................... 14 Inserting the SIM card/battery ....14 Charging the battery .............. 15 Switching phone on and off/ entering PIN ............................. 16 Enter PIN ............................... 16 Emergency number (SOS) ...... 16 General instructions ................ 17 Standby mode ....................... 17 Signal strength ...................... 17 Digital Rights Mgmt. (DRM) .... 17 Main menu ............................ 17 Standard functions .................. 19 Highlighting mode ................. 20 Menu speed dialling ............... 20 Security .................................... 21 Codes .................................... 21 Preventing accidental activation ............................... 22 Text entry ................................. 23 My phone ................................. 27 Calling ...................................... 28 Default book ............................ 34 Address book ........................... 35 New entry .............................. 35 Change entry ......................... 37 Dialling an entry ..................... 37 Groups ................................... 38 Phonebook ............................... 39 New entry .............................. 39 Call (search for an entry) ........ 40 Change entry ......................... 40 <Special books> ..................... 41 Call records ............................... 42 Dur./charges ............................. 43 Camera ..................................... 44 Photo mode ........................... 45 Video mode ............................ 45 Main Inbox ............................... 47 SMS ........................................... 48 Write/send .............................. 48 Read ....................................... 50 Setting ................................... 52 MMS ......................................... 54 Create ................................... 54 Templates .............................. 56 Sending an MMS .................... 57 Receiving an MMS .................. 58 Reading an MMS .................... 59 Setting ................................... 60 E-mail ........................................ 62 Write ...................................... 62 Receive/read ........................... 63 Setting ................................... 64 Voice message/mailbox ............ 65 Inst. Msg. .................................. 66 Start menu ............................. 66 Table of Contents See also Index and Menu tree at the end of this User Guide © Siemens AG 2003, M:\Mobil\R65\ SL65_Iris\am\fug\SL65IVZ.fm 2Table of Contents VAR Language: am; VAR issue date: 040317 See also Index and Menu tree at the end of this User Guide left page (2) of SL65 Iris FUG us, A31008-H7700-A40-1-4A19 (24.05.2004, 17:17) Login ..................................... 67 Contact lists ........................... 67 Starting to Inst. Message ........ 70 Msg. history ........................... 71 Setting ................................... 71 CB services ............................... 73 Zoom in ................................. 74 Surf & fun ................................. 75 Internet ................................. 75 Bookmarks ............................. 77 Games and Applications ......... 78 Download wiz. ....................... 78 Setup ........................................ 80 Profiles .................................. 80 Topics .................................... 82 Display ................................... 83 Ring tones ............................. 85 Call setup ............................... 87 Phone setup ........................... 89 Clock ..................................... 91 Connectivity .......................... 92 Security ................................. 95 Network ................................ 97 Accessories ............................ 99 ProSlide ............................... 100 My menu ................................ 101 Fast access key ....................... 102 Organizer ............................... 104 Calendar .............................. 104 Appointments ...................... 105 Tasks ................................... 106 Notes ................................... 107 Missed appts. ....................... 107 Dictation mac ....................... 108 Time zones ........................... 109 Extras ...................................... 110 SIM services (optional) ......... 110 Alarm clock .......................... 110 Sound recorder ..................... 111 Calculator ............................. 112 Unit converter ...................... 112 Stopwatch ............................ 113 Countdown .......................... 114 Remote synchronisation ....... 114 Media player ........................... 116 My stuff .................................. 117 Mobile Phone Manager .......... 119 Questions & Answers ............. 122 Customer Care ........................ 125 Care and maintenance ........... 127 Product data ........................... 128 U.S. FDA .................................. 129 FCC/Industry Canada Notice ... 135 Ten driving safety tips ............ 136 Intellectual property .............. 138 Accessories ............................. 139 Quality .................................... 141 Battery quality statement ...... 141 Display quality declaration .... 141 SAR (SL65) .............................. 142 Menu tree ............................... 144 Index .........................…

Text truncated - open the document above for the full version.

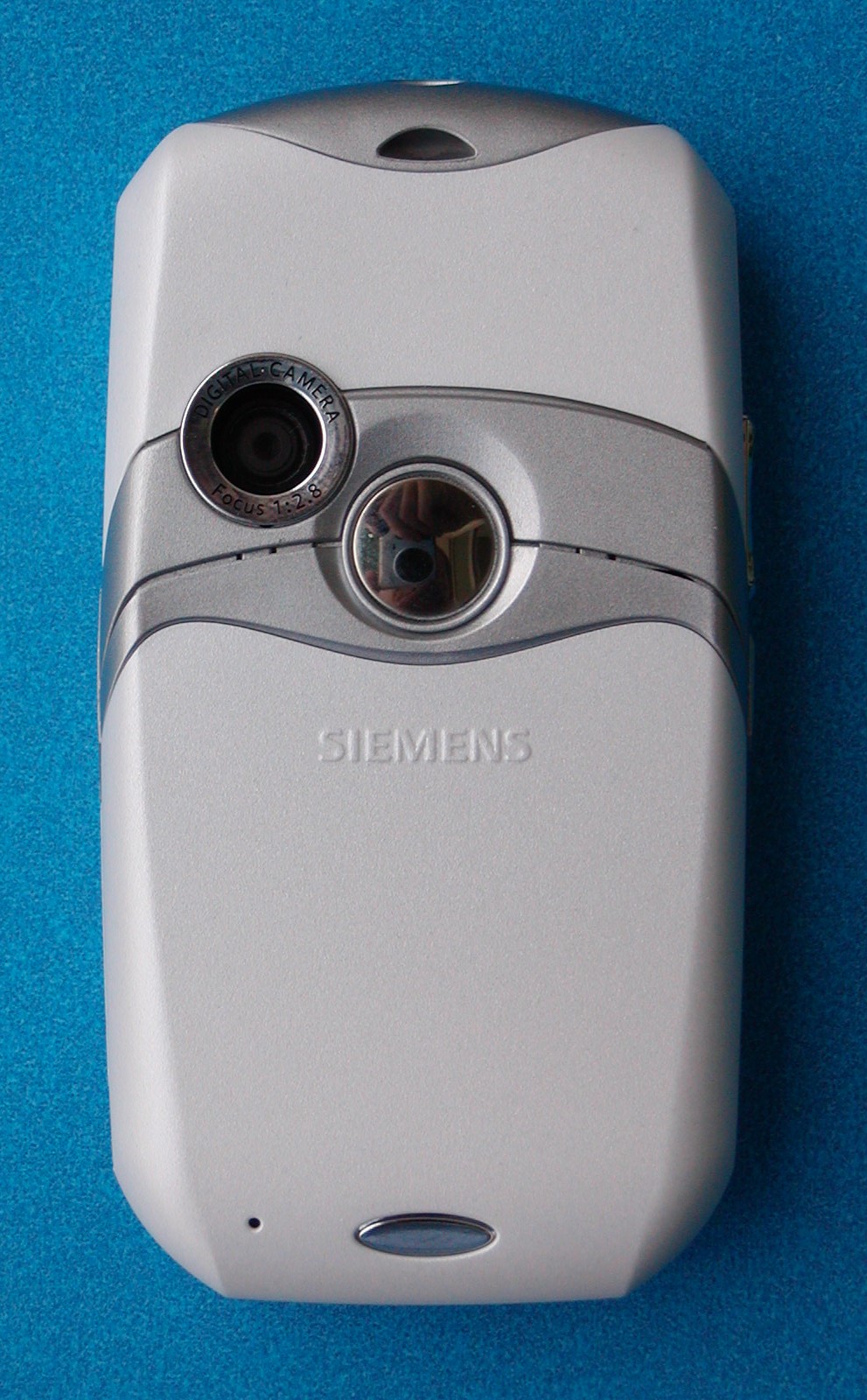

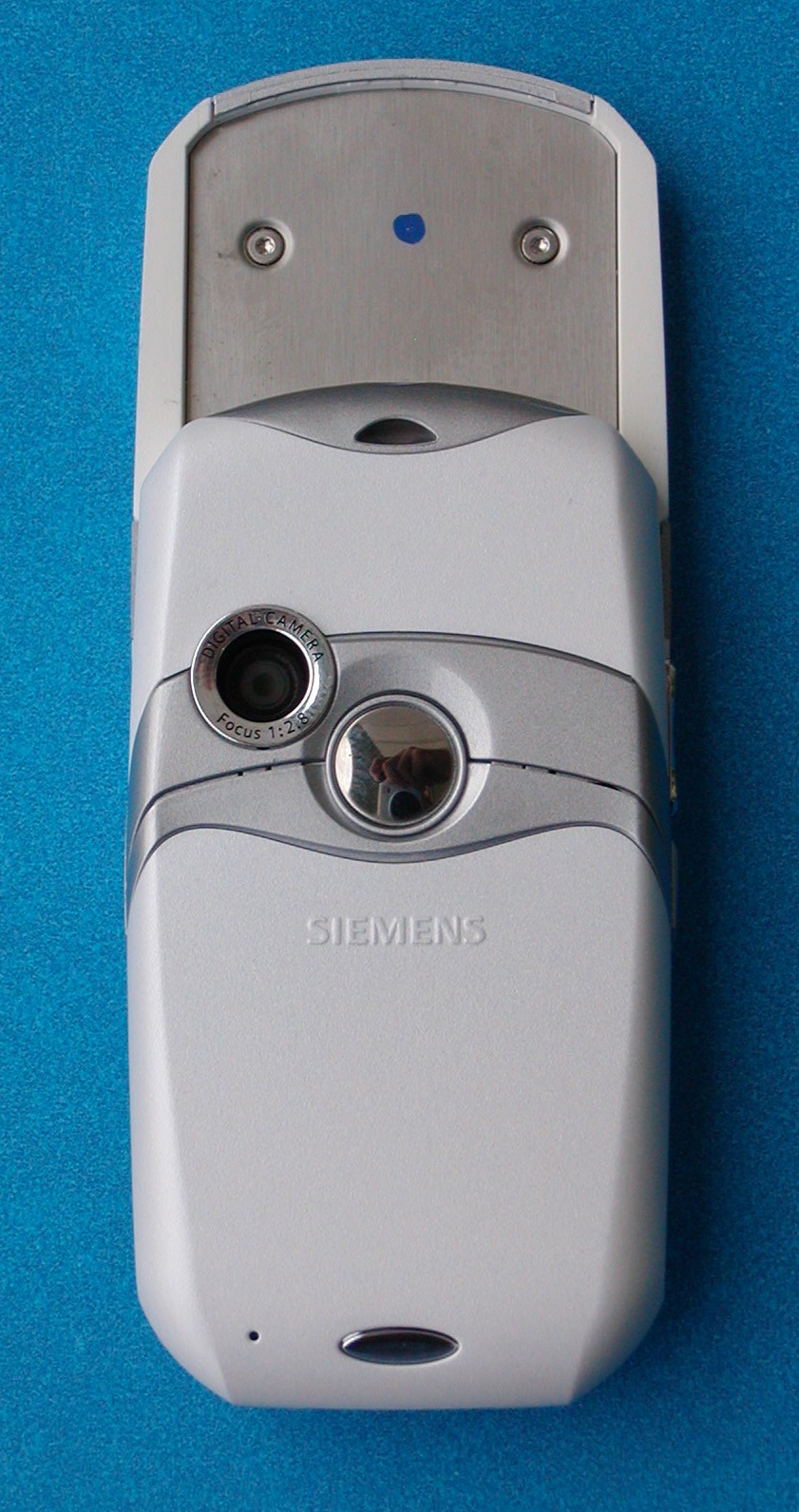

SL65 Front View SL65 Front View Open SL65 Back View SL65 Back View Open SL65 Side View SL65 Side View SL65 Side View Open SL65 Side View Open

Confidential Page 1 6/24/2004 SL65 IMEI LABEL and LABEL LOCATION Confidential Page 2 6/24/2004 SL65 IMEI LABEL and LABEL LOCATION

SL65 Open battery cover (Final label: See extra exhibit) SL65 Disassembly step 1 SL65 Disassembly step 2 SL65 Disassembly step 3 SL65 PCB Front View Shields Removed SL65 PCB Rear View Shields Removed SL65 GSM Tri-band antenna

TTI-P-G 158 DASY Test-Report, Siemens_ 6620_420g_SAR Distribution Plots Page 1 of 16 Appendix for the Report Dosimetric Assessment of the Siemens SL65 (FCC ID: PWX-SL65) According to the FCC Requirements SAR Distribution Plots June 07, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6620_420g_SAR Distribution Plots Page 2 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITHOUT FLASH....................................................... 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD WITH FLASH ............................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET........................................................ 11 4 SAR DISTRIBUTION PLOTS, PCS 190 BODY GPRS .............................................................................. 12 5 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 13 6 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................15 DASY Test-Report, Siemens_ 6620_420g_SAR Distribution Plots Page 3 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head without Flash Test Laboratory: IMST GmbH; File Name: 904plm_1.da4 DUT: Siemens; Type: SL65; Serial: 004999002790904 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 29.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.78 V/m; Power Drift = -0.189 dB Maximum value of SAR (measured) = 0.229 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.78 V/m; Power Drift = -0.189 dB Maximum value of SAR (measured) = 0.248 mW/g Peak SAR (extrapolated) = 0.326 W/kg SAR(1 g) = 0.222 mW/g; SAR(10 g) = 0.129 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.78 V/m; Power Drift = -0.189 dB Maximum value of SAR (measured) = 0.236 mW/g Peak SAR (extrapolated) = 0.329 W/kg SAR(1 g) = 0.210 mW/g; SAR(10 g) = 0.120 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (03.06.2004; Ambient Temperature: 21.0∞ C; Liquid Temperature : 19.9∞ C). DASY Test-Report, Siemens_ 6620_420g_SAR Distribution Plots Page 4 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 904plm_2.da4 DUT: Siemens; Type: SL65; Serial: 004999002790904 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 29.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Tilted Left/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 9.27 V/m; Power Drift = -0.0076 dB Maximum value of SAR (measured) = 0.107 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.27 V/m; Power Drift = -0.0076 dB Maximum value of SAR (measured) = 0.108 mW/g Peak SAR (extrapolated) = 2.88 W/kg SAR(1 g) = 0.099 mW/g; SAR(10 g) = 0.0621 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.27 V/m; Power Drift = -0.0076 dB Maximum value of SAR (measured) = 0.106 mW/g Peak SAR (extrapolated) = 19.8 W/kg SAR(1 g) = 0.114 mW/g; SAR(10 g) = 0.0621 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (03.06.2004; Ambient Temperature: 21.0∞ C; Liquid Temperature : 20.0∞ C). DASY Test-Report, Siemens_ 6620_420g_SAR Distribution Plots Page 5 of 16 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST GmbH; File Name: 904prm_1.da4 DUT: Siemens; Type: SL65; Serial: 004999002790904 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: f = 1880 MHz; σ = 1.44 mho/m; ε r = 40.1; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.19, 5.19, 5.19); Calibrated: 18.03.2004 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE4 Sn906; Calibrated: 29.04.2004 - Phantom: SAM Glycol; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.2 Build 44; Postprocessing SW: SEMCAD, V1.8 Build 112 Cheek Right/Area Scan (6x11x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 7.75 V/m; Power Drift = -0.176 dB Maximum value of SAR (measured) = 0.240 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 7.75 V/m; Power Drift = -0.176 dB Maximum value of SAR (measured) = 0.264 mW/g Peak SAR (extrapolated) = 0.588 W/kg SAR(1 g) = 0.240 mW/g; SAR(10 g) = 0.137 mW/g Fig.…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_6620_420d: Calibration Data Appendix for the Report Dosimetric Assessment of the Portable Device Siemens SL65 (FCC ID: PWX-SL65) According to the FCC Requirements Calibration Data June 07, 2004 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego CA-92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.4.doc/30.04..2004/CH

SIEMENS AG Subject: SL65 ICM MP PD HW1 MCH2 Test case Output Power R&D RF Lab Munich, Germany Page: 1/6 SL65_PCS_conducted_power.doc Test Report Conducted Output Power GSM 1900 SIEMENS SL65 Report no: SL65_Power_PCS_conducted Issue date: May 27, 2004 Test Site SIEMENS ICM MP PD HW1 MCH2 Information and Communication Mobile Haidenauplatz 1 D-81617 München Federal Republic of Germany Tel.: +49-89-722-53058 Fax.: +49-89-722-58775 Stefan H. Schmalzl R&D Engineer RF SIEMENS AG Subject: SL65 ICM MP PD HW1 MCH2 Test case Output Power R&D RF Lab Munich, Germany Page: 2/6 SL65_PCS_conducted_power.doc Contents: 1 Objective and Method....................................................2 2 Results.................................................................3 3 Minutes of Test.........................................................4 3.1 Description of Device under Test ....................................4 3.2 Measurement Set Up ..................................................4 3.3 Measurement Set Up Picture ..........................................4 3.4 Equipment Calibration Certificate ...................................5 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. The output power was measured at the internal RF connector (Impedance 50 Ohm) of the SIEMENS SL65 which is also used for production tests. The MS is connected to an appropriate load in terms of the input port of measurement equipment used, we report hereby the values for highest power setting (Power Level 0). SIEMENS AG Subject: SL65 ICM MP PD HW1 MCH2 Test case Output Power R&D RF Lab Munich, Germany Page: 3/6 SL65_PCS_conducted_power.doc 2 Results Average Power during burst at internal RF connector, Mobile commanded to PCL0 Device ARFCN 512 1850.2 MHz ARFCN 661 1880.0 MHz ARFCN 810 1909.8 MHz Siemens SL65 “SAR SAMPLE” IMEI: 004999.00.2790946 29.1 dBm 29.2 dBm 29.2 dBm Siemens SL65 “SAR SAMPLE BACKUP” IMEI: 004999.00.2790904 29.2 dBm 29.3 dBm 29.2 dBm Siemens SL65 “RADIATED TEST SAMPLE” IMEI: 004999.00.2790086 29.2 dBm 29.2 dBm 29.0 dBm Siemens SL65 “RADIATED TEST SAMPLE BACKUP” IMEI: 004999.00.2790912 29.1 dBm 29.2 dBm 29.1 dBm Siemens SL65 “CONDUCTED TEST SAMPLE” IMEI: 004999.00.2790995 29.3 dBm 29.3 dBm 29.3 dBm Siemens SL65 “CONDUCTED TEST SAMPLE BACKUP” IMEI: 004999.00.2790920 29.3 dBm 29.3 dBm 29.2 dBm Tab. 2: Results of power measurements at internal RF connector for Siemens SL65 SIEMENS AG Subject: SL65 ICM MP PD HW1 MCH2 Test case Output Power R&D RF Lab Munich, Germany Page: 4/6 SL65_PCS_conducted_power.doc 3 Minutes of Test 3.1 Description of Device under Test Siemens Mobile Phone: SL65 Supported Standards: GSM900, GSM1800, GSM1900 Frequency range GSM 1900: 1850-1990 MHz Vbat: 3.8 volt Temperature: 25 Cels. 3.2 Measurement Set Up base station Simulator and Tester DUT Special Adapter Fig. 1: Block diagram of set up for conducted power measurement 3.3 Measurement Set Up Picture SIEMENS AG Subject: SL65 ICM MP PD HW1 MCH2 Test case Output Power R&D RF Lab Munich, Germany Page: 5/6 SL65_PCS_conducted_power.doc 3.4 Equipment Calibration Certificate SIEMENS AG Subject: SL65 ICM MP PD HW1 MCH2 Test case Output Power R&D RF Lab Munich, Germany Page: 6/6 SL65_PCS_conducted_power.doc

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_675FCC-24_2004_SL65 FCC Part 24 / RSS 133 FCC ID: PWX-SL65 IC ID: 267E-SL65 CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 2 (53) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 3 (53) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2004-06-14 Date of test : 2004-06-14/17/18 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : SL65 Model No. : SL65 Description : GSM 1900 Mobile Phone FCC-ID : PWX-SL65 IC ID : 267E-SL65 Additional information Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : External Power supply : Battery or Charger (AC Adaptor) Output power : 27.85dBm (609.53mW) max. EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 4 (53) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2004-06-28 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2004-06-28 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 5 (53) 2.2 Test report TEST REPORT Test report no.: EMC_675FCC-24_2004_SL65 CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 6 (53) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 10 OCCUPIED BANDWIDTH §2.1049(h)(i) 12 EMISSION BANDWIDTH §24.238(b) 16 EMISSIONS LIMITS §24.238 20 BAND EDGE COMPLIANCE §24.238(b) 36 RECEIVER RADIATED EMISSIONS § 15.209 38 CONDUCTED SPURIOUS EMISSIONS 44 CONDUCTED EMISSIONS § 15.107/207 49 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 51 BLOCK DIAGRAMS 52 CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 7 (53) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 8 (53) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted power measurements are provided by SIEMENS Please refer to attached document: “SL65_PCS_conducted_power” (Page 3, section 2, Siemens SL65, “CONDUCTED TEST SAMPLE ” IMEI: 004999.00.2790995) Frequency (MHz) Burst Power (dBm) 1850.2 29.3 1880.0 29.3 1909.8 29.3 CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 9 (53) Radiated: EIRP Measurements Limits: Power Step Burst Peak EIRP (dBm) 0 ≤33dBm (1W) Power Measurements: This measurement was done in Antenna pattern measurement chamber. No plots are available. Radiated: Burst Peak EIRP (dBm) Frequency (MHz) Power Step EIRP 1850.2 0 27.85 1880.0 0 26.10 1909.8 0 24.20 ±0.5 dB ANALYZER SETTINGS: RBW = VBW = 3MHz CETECOM Inc. Test report no.: EMC_675FCC-24_2004_SL65 Issue date: 2004-06-28 Page 10 (53) FREQUENCY STABILITY § 2.1055 / …
