PWX-SX1GSM 1900 Mobile Phone with Bluetooth

Contents 1 See also Index at the end of this User Guide SX1 K1 am-en, A31008-H6500-A5-1-7619 (29. July 2003, 19:32) © Siemens AG 2001, I:\Mobil\SX1_(K1)\am\ex_sdl\K1gbIVZ.fm Safety precautions ..................... 4 Safety Information ..................... 6 Antenna care ........................... 6 Phone operation ...................... 6 Electronic devices ..................... 7 SAR (Cell Phone Designation) .. 10 Overview of the phone ............ 12 Getting started ......................... 14 Insert SIM card/battery ........... 14 Emergency number (SOS) ...... 15 Charge battery ....................... 15 User guide ............................. 16 Navigation ............................. 16 Menu ..................................... 17 Searching ............................... 17 Switch on, off / PIN entry ......... 18 Standby mode ........................ 18 Security .................................... 19 Making a phone call ................. 20 Dialing with number keys ....... 20 Dialing using Contacts ............ 20 Accept call ............................. 20 End call .................................. 20 Dialing options ....................... 20 Decline call ............................ 21 Call waiting ............................ 21 Conference ............................ 21 Volume control ...................... 23 Handsfree .............................. 23 Writing text .............................. 24 Contacts ................................... 27 Open the Contacts ..................27 Insert SIM card entries ............ 27 Call an entry ...........................29 View an entry ......................... 29 Groups ................................... 30 Voice dialing ........................... 31 Add a ring tone ....................... 32 Business card ..........................33 Log ............................................ 34 Recent calls ............................ 34 Log list ...................................34 Call timers ..............................34 Call costs ................................35 GPRS data counter ..................35 Log options ............................35 Messages .................................. 36 Message options .....................36 New messages ....................... 36 Inbox ...................................... 39 Viewing a message ................. 40 View options ..........................40 My folders ..............................41 Mailbox .................................. 42 Drafts ..................................... 43 Sent ....................................... 43 Outbox ...................................44 Reports ...................................44 Settings .................................. 44 SIM messages ......................... 49 Cell broadcast ......................... 49 Service commands ..................50 Contents See also Index at the end of this User Guide Contents 2 See also Index at the end of this User Guide SX1 K1 am-en, A31008-H6500-A5-1-7619 (29. July 2003, 19:32) © Siemens AG 2001, I:\Mobil\SX1_(K1)\am\ex_sdl\K1gbIVZ.fm Internet .................................... 51 Settings ................................. 51 Bookmarks view ..................... 51 WAP connection ..................... 52 WAP browser settings ............. 54 Connection security ............... 54 Camera ..................................... 55 Snapshot ............................... 55 Images ................................... 56 Music ........................................ 60 Radio ..................................... 60 Composer .............................. 61 Organizer ................................. 63 Calendar ................................ 63 Tasks ..................................... 65 Notes ..................................... 66 Voice memo ........................... 66 Calculator .............................. 67 Converter ............................... 67 Extras ....................................... 69 File Manager .......................... 69 Java applications .................... 71 Alarm clock ............................ 73 Favorites ................................ 74 SIM phonebook ...................... 74 SIM fixed dial ......................... 74 Service numbers .................... 74 SIM services ........................... 75 PC connection ........................ 75 Profiles ..................................... 76 Select ................................................. 76 Setup ..................................... 77 Setup ........................................ 78 Phone .................................... 78 Call ......................................... 79 Connection .............................80 Date and time settings ............ 82 Security .................................. 83 Call restriction ........................84 System ................................... 85 Accessory settings ..................86 Call forwarding ....................... 87 Bluetooth™ ............................ 88 IrDA ........................................ 91 Modem .................................. 91 Audio ..................................... 92 Screen saver ........................... 92 Voice mailbox ......................... 93 Manager ................................. 95 Shortcut ................................. 97 Questions & Answers ................ 98 Customer Care ........................101 Care and maintenance ...........102 Product data ...........................103 Accessories ............................. 104 U.S. FDA .................................. 105 FCC/Industry Canada Notice ...111 Ten Driving Safety Tips ...........112 Intellectual Property ............... 114 Battery quality statement ......115 Battery quality statement ......115 Display quality statement ......115 See also Index at the end of this User Guide Contents 3 See also Index at the end of this User Guide SX1 K1 am-en, A31008-H6500-A5-1-7619 (29. July 2003, 19:32) © Siemens AG 2001, I:\Mobil…

Text truncated - open the document above for the full version.

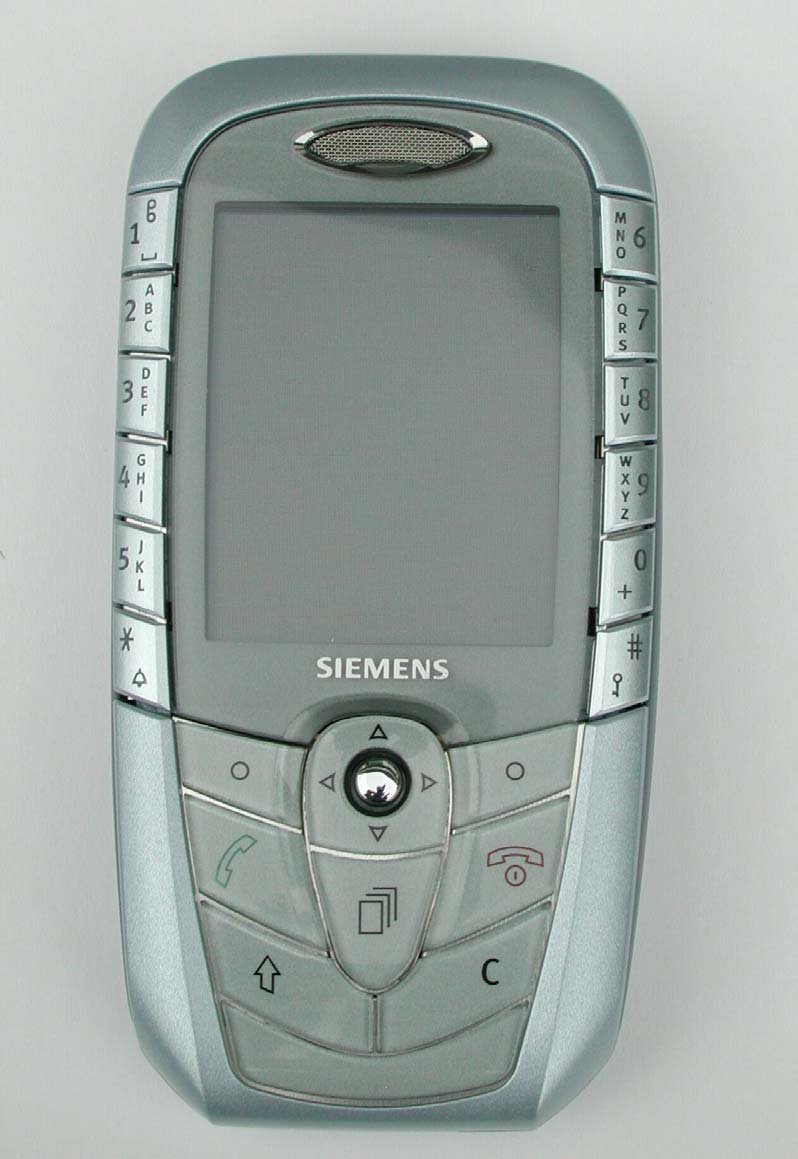

Page 1 of 3 SX1 Front View Page 2 of 3 SX1 Rear View Page 3 of 3 SX1 Side View

Page 1 of 2 White label with black lettering SIEMENS S30880-S6500-XXXX-1 YY XXXXXX FF SSSSSS C Made xx xxxxxxx SX1 0168 FCC ID:PWX-SX1 Page 2 of 2 Label Location

Page 1 of 8 SX1 Open Battery Cover (Final Label: see extra exhibit) Page 2 of 8 SX1 Disassembly step 1 Page 3 of 8 BlueTooth Antenna GSM Tri-band Antenna SX1 Disassembly step 2 Page 4 of 8 SX1 Main Board (Side 1) Page 5 of 8 SX1 Main Board (Side 2) Page 6 of 8 SX1 Main Board without Shielding (Side 2) Page 7 of 8 SX1 Auxiliary Board with Keypad & Display (Side 1) Page 8 of 8 SX1 Auxiliary Board with Keypad & Display (Side 2)

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_330a Page 1 of 37 Report Dosimetric Assessment of the Portable Device Siemens SX1 (FCC ID: PWX-SX1) According to the FCC Requirements July 24, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH DASY Test-Report, Siemens_ 6575_330a Page 2 of 37 dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH H Executive Summary The SX1 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna. The system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including Bluetooth and GPRS capability with 2 TX slots. The objective of the measurements done by IMST was the dosimetric assessment of two devices in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [FCC 2001] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG (Fig. 13). The Siemens SX1 mobile phone (FCC ID: PWX-SX1) is in compliance with the Federal Communications Commission (FCC) Guidelines [FCC 2001] for uncontrolled exposure. The phone was tested in the Body Worn configuration with the following accessories and combinations: • GSM mode (1 TX slot) with headset • GPRS mode (2 TX slots) without and with beltcase prepared by: ........................................... reviewed by: .............................................. Dipl.-Ing. Christoph Hennes Dr.-Ing. Frank Gustrau test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] DASY Test-Report, Siemens_ 6575_330a Page 3 of 37 dasy_report_fcc_supplement_c _3.2.doc/16.06.2003/CH H Table of Contents 1 SUBJECT OF INVESTIGATION ................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES...................... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS................................................ 5 2.3 SAR LIMIT................................................................................................................................................... 5 3 THE FCC MEASUREMENT PROCEDURE ................................................................................................ 6 3.1 GENERAL REQUIREMENTS............................................................................................................................ 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR............................................................................................. 6 3.3 BODY-WORN AND OTHER CONFIGURATIONS................................................................................................. 9 4 THE MEASUREMENT SYSTEM ................................................................................................................ 10 4.1 PHANTOM.................................................................................................................................................. 12 4.2 PROBE....................................................................................................................................................... 12 4.3 MEASUREMENT PROCEDURE...................................................................................................................... 13 4.4 UNCERTAINTY ASSESSMENT........................................................................................................................ 14 5 SAR RESULTS ................................................................................................................................................ 15 6 EVALUATION ................................................................................................................................................ 17 7 APPENDIX ...................................................................................................................................................... 19 7.1 ADMINISTRATIVE DATA.............................................................................................................................. 19 7.2 DEVICE UNDER TEST AND TEST CONDITIONS.............................................................................................. 19 7.3 TISSUE RECIPES......................................................................................................................................... 19 7.4 MATERIAL PARAMETERS............................................................................................................................. 20 7.5 SIMPLIFIED PERFORMANCE CHECKING...................................................................................................... 20 7.6 ENVIRONMENT........................................................................................................................................... 24 7.7 TEST EQUIPMENT....................................................................................................................................... 24 7.8 CERTIFICATES OF CONFORMITY...............................................................................…

Text truncated - open the document above for the full version.

TTI-P-G 158 DASY Test-Report, Siemens_ 6575_330a_SAR Distribution Plots Page 1 of 14 Appendix for the Report Dosimetric Assessment of the Siemens SX1 (FCC ID: PWX-SX1) According to the FCC Requirements SAR Distribution Plots July 25, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 San Diego CA 92127 The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH DASY Test-Report, Siemens_ 6575_330a_SAR Distribution Plots Page 2 of 14 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD..........................................................................................3 2 SAR DISTRIBUTION PLOTS, PCS 1900 BODY, GSM MODE ................................................................. 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY , GPRS MODE 2TX SLOTS......................................... 8 4 SAR Z-AXIS SCANS (VALIDATION) ......................................................................................................... 11 5 SAR Z-AXIS SCANS (MEASUREMENTS) .................................................................................................13 DASY Test-Report, Siemens_ 6575_330a_SAR Distribution Plots Page 3 of 14 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH 1 SAR Distribution Plots, PCS 1900 Head Test Laboratory: IMST File Name: sx1plm_1.da4 DUT: Siemens; Type: SX1; Serial: 004400532665955 Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.37 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.2, 5.2, 5.2); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek left/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 15.5 V/m Power Drift = 0.02 dB Maximum value of SAR = 0.346 mW/g cheek left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.51 W/kg SAR(1 g) = 0.344 mW/g; SAR(10 g) = 0.208 mW/g Reference Value = 15.5 V/m Power Drift = 0.02 dB Maximum value of SAR = 0.376 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head. (22.07.2003; Liquid Temperature: 19.7° C; Ambient Temperature : 22.4° C). DASY Test-Report, Siemens_ 6575_330a_SAR Distribution Plots Page 4 of 14 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST; File Name: sx1plm_2.da4; DUT: Siemens; Type: SX1; Serial: 004400532665955 Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.37 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.2, 5.2, 5.2); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 tilted left/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 17.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.343 mW/g tilted left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 0.591 W/kg SAR(1 g) = 0.381 mW/g; SAR(10 g) = 0.221 mW/g Reference Value = 17.1 V/m Power Drift = -0.02 dB Maximum value of SAR = 0.412 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head. (17.07.2003; Liquid Temperature: 19.7° C; Ambient Temperature : 22.4°C). DASY Test-Report, Siemens_ 6575_330a_SAR Distribution Plots Page 5 of 14 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: sx1prm_1.da4 DUT: Siemens; Type: SX1; Serial: 004400532665955 Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.37 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.2, 5.2, 5.2); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1176; Type: SAM 4.0; Serial: 1176 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 cheek right/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14.1 V/m Power Drift = 0.005 dB Maximum value of SAR = 0.577 mW/g cheek right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.13 W/kg SAR(1 g) = 0.594 mW/g; SAR(10 g) = 0.317 mW/g Reference Value = 14.1 V/m Power Drift = 0.005 dB Maximum value of SAR = 0.621 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head. (22.07.2003; Liquid Temperature: 19.7° C; Ambient Temperature : 22.8 C). DASY Test-Report, Siemens_ 6575_330a_SAR Distribution Plots Page 6 of 14 dasy_report_fcc_supplement_c _2.0.doc/25.09.2001/CH Test Laboratory: IMST File Name: sx1prm_2.da4 DUT: Siemens; Type: SX1; Serial: 004400532665955 Program: Measurement Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8 Medium: Head 1900 MHz (σ = 1.37 mho/m, ε r = 40.2, ρ = 1000 kg/m 3 ) Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6 - SN1669; ConvF(5.2, 5.2, 5.2); Calibrated: 21.03.2003 - Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.05.2003 - Phantom: SAM TP:1176; Type: SAM 4.…

Text truncated - open the document above for the full version.

TTI-P-G 158 Appendix for DASY Test-Report, Siemens_ 6575_330a: Calibration Data Appendix for the Report Dosimetric Assessment of the Siemens SX1 (FCC ID: PWX-SX1) According to the FCC Requirements Calibration Data July 25, 2003 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16745 West Bernado Drive, Suite 400 San Diego-CA 92127 This report shall not be reproduced except in full without the written approval of the testing laboratory.

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_521FCC-24_2003_SX1 FCC Part 24 / RSS 133 FCC ID: PWX-SX1 IC ID: 267E-SX1 CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 2 (63) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 3 (63) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : David McPherson Telephone : +1 858-521-3387 Tele-fax : +1 858-521-3106 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2003-07-16 Date of test : 2003-07-16/18/21 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : SX1 Model No. : SX1 Description : GSM 1900 Mobile Phone with Bluetooth FCC-ID : PWX-SX1 IC ID : 267E-SX1 Additional information Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : Embedded Tri-band Power supply : Battery or Charger (AC Adaptor) Output power : 30.63dBm (1.16W) maximum EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 4.0VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 4 (63) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2003-03-30 EMC & Radio Siegfried Lehmann (Technical Manager) Date Section Name Signature Responsible for test report and project leader: 2003-03-30 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 5 (63) 2.2 Test report TEST REPORT Test report no.: EMC_521FCC-24_2003_SX1 (Model: SX1) CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 6 (63) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 13 OCCUPIED BANDWIDTH §2.1049(h)(i) 15 EMISSION BANDWIDTH §24.238(b) 19 EMISSIONS LIMITS §24.238 23 BAND EDGE COMPLIANCE §24.238(b) 37 RECEIVER RADIATED EMISSIONS § 15.209 49 CONDUCTED SPURIOUS EMISSIONS 54 CONDUCTED EMISSIONS § 15.107/207 59 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 61 BLOCK DIAGRAMS 62 CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 7 (63) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 8 (63) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to attached document: FCC_SX1_coducted_power (Page 3, section 2.1, Siemens SX1, “FCC Sample 4”, IMEI: 4400592667548) Frequency (MHz) Burst Average Power (dBm) 1850.2 29.6 1880.0 29.8 1909.8 29.3 CETECOM Inc. Test report no.: EMC_521FCC-24_2003_SX1 Issue date: 2003-07-30 Page 9 (63) Radiated: EIRP Measurements Description: This is the test for the maximum radiated power from the EUT. Rule Part 24.232(b) specifies, "Mobile/portable stations are limited to 2 watts e.i.r.p. Peak power" and 24.232(c) specifies that "Peak transmit power must be measured over any interval of continuous transmission using instrumentation calibrated in terms of an rms-equivalent voltage." Method of Measurement: 1. In an anechoic ant…

Text truncated - open the document above for the full version.

Siemens Mobile Phones A/S Project: SX1 Siemens Kaj 1 Date: 02-07-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 1 of 6 ________________________________________________________________________________ - 1 - Report No: FCC_SX11 Test Report Conducted Output power GSM 1900 Report No: EMC_SX1 Issue date: July 1, 2003 Test Site: Siemens Mobile Phones Siemens ICM MP RD EA AAL DK-9400 Noerresundby Denmark Tel.: +45 72 19 50 00 Fax.: +45 72 19 50 02 Peter Loeber EMC & Antenna Georg Fässler Global Line Manager EMC & Antenna Siemens Mobile Phones A/S Project: SX1 Siemens Kaj 1 Date: 02-07-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 2 of 6 ________________________________________________________________________________ - 2 - Report No: FCC_SX11 Contents 1 Objective and Method.................................................................................3 2 Results..........................................................................................................3 2.1 GSM 1900..............................................................................................................................3 3 Minutes of Test............................................................................................4 3.1 Description of device under test............................................................................................4 3.2 Measurement Set-up.............................................................................................................4 4 Calibration Certificate.................................................................................6 Siemens Mobile Phones A/S Project: SX1 Siemens Kaj 1 Date: 02-07-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 3 of 6 ________________________________________________________________________________ - 3 - Report No: FCC_SX11 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices feature a special 50 Ohm RF connector suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Results 2.1 GSM 1900 Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens SX1, ”FCC Sample 1” IMEI: 4400532666573 + 29.4 dBm + 29.7 dBm + 29.2 dBm Siemens SX1, ”FCC Sample 2” IMEI: 4400532665955 + 29.5 dBm + 29.8 dBm + 29.2 dBm Siemens SX1, ”FCC Sample 3” IMEI: 4400532666953 + 29.4 dBm + 29.6 dBm + 29.2 dBm Siemens SX1, ”FCC Sample 4” IMEI: 4400592667548 + 29.6 dBm + 29.8 dBm + 29.3 dBm Table 2: Results of power measurements at connector in the GSM 1900 Band Siemens Mobile Phones A/S Project: SX1 Siemens Kaj 1 Date: 02-07-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 4 of 6 ________________________________________________________________________________ - 4 - Report No: FCC_SX11 3 Minutes of Test 3.1 Description of device under test Mobile phone: Siemens SX1 Frequency range GSM 1900: 1850 – 1990 MHz Siemens Part number: S30880-S6500-A100 FCC ID: PWX-SX1 3.2 Measurement Set-up Figure 1: Block Diagram of set-up for conducted power measurement Base Station Simulator DUT Special Adapter Siemens Mobile Phones A/S Project: SX1 Siemens Kaj 1 Date: 02-07-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 5 of 6 ________________________________________________________________________________ - 5 - Report No: FCC_SX11 Figure 2: Set-up for conducted power measurement Siemens Mobile Phones A/S Project: SX1 Siemens Kaj 1 Date: 02-07-2003 DK-9400 Noerresundby Test case: Conducted pow. Denmark Page: 6 of 6 ________________________________________________________________________________ - 6 - Report No: FCC_SX11 4 Calibration Certificate
