PWXA65GSM 900/1800/1900 Mobile Phone

© Siemens AG 2003, D:\Werkstatt\A65 am v2\PumaIVZ.fm Table of Contents1 VAR Language: am; VAR issue date: 041104 See also Index at the end of this User Guide left page (1) of A65_PUMA am, A31008-H5810-A40-1-4A19 (11.03.2005, 11:02) Legal notices ...................................... 2 Safety precautions ............................. 4 Phone overview .................................. 5 Display symbols (selection) ................ 7 Getting started ................................... 8 Using the SIM card/battery ............... 8 Charging the battery ........................ 8 Switching on/off, PIN .......................... 9 Enter PIN ......................................... 9 Strong reception signal .................... 9 Emergency number (SOS) .............. 10 Without a SIM card ........................ 10 General information ......................... 10 User guide ..................................... 10 Menu control ................................. 10 Standby mode ............................... 10 Security ............................................ 10 Codes ............................................ 10 Clear SIM card barring .................... 11 Making a phone call ......................... 11 Text entry ......................................... 12 Text entry without T9 .................... 12 Text entry with T9 .......................... 13 Predef. texts .................................. 14 Phonebook ....................................... 14 <New entry> .................................. 14 Call (search for an entry) ................ 14 Edit entry ....................................... 14 Assign picture ................................ 15 Groups .......................................... 15 Call log .............................................. 15 Durat/charges ................................... 15 Camera ............................................. 16 Voicemail/CB services ....................... 16 SMS ................................................... 17 MMS ................................................. 18 Message lists/ Message settings ............................. 19 Surf & fun ......................................... 19 Internet browser (WAP) ................. 19 Games & more .............................. 20 Setup ................................................ 21 Profiles .......................................... 21 Display .......................................... 21 Call setup ...................................... 22 Clock ............................................. 23 Connectivity .................................. 23 Security ......................................... 23 Network ........................................ 24 Accessories ................................... 24 Ringtones ......................................... 25 Extras ............................................... 25 Alarm clock ................................... 25 Calculator ...................................... 25 Stopwatch ..................................... 25 SIM services (optional) .................. 26 Fast access ....................................... 26 Own stuff ......................................... 26 Questions & Answers ....................... 27 Customer Care ................................. 30 Care and maintenance ..................... 31 Product data ..................................... 32 U.S. FDA ........................................... 33 FCC/Industry Canada Notice ............ 39 Ten driving safety tips ..................... 40 Intellectual property ........................ 42 Accessories ...................................... 43 SAR (A65) ......................................... 44 End user license agreement ............ 46 Menu tree ........................................ 51 Index ................................................ 55 Table of Contents See also In- dex at the end of this User Guide © Siemens AG 2003, D:\Werksta tt\A65 am v2\LegalNotices.fm Legal notices2 VAR Language: am; VAR issue date: 041104 left page (2) of A65_PUMA am, A31008-H5810-A40-1-4A19 (11.03.2005, 11:02) Legal notices The mobile phone described in this guide is approved for use on the GSM and GPRS networks operating on the GSM 900, 1800 (DCS/PCN) and 1900 (PCS) bands. It is approved for use in the country where it was originally sold and may be approved for use in other countries. © 2004 Siemens Information and Communication Mobile, LLC. All rights reserved. Siemens and the A65 model phone are trademarks or registered trade- marks of Siemens AG and/or its affili- ates in the United States and/or other countries. T9® is a registered trademark of America Online, Inc. in the United States. Java and all Java-based trade- marks and logos are trademarks or registered trademarks of Sun Micro- systems, Inc. in the U.S and other countries. The names of actual com- panies and products mentioned herein may be the trademarks of their respective owners. Disclaimer THE INFORMATION CONTAINED IN THE USER GUIDE IS WRITTEN FOR THE A65 PHONE. SIEMENS RESERVES THE RIGHT TO MAKE CHANGES AND IMPROVEMENTS TO THE PRODUCTS AND ANY OF THE FEATURES OF THE PRODUCTS DESCRIBED IN THIS DOC- UMENT WITHOUT PRIOR NOTICE. THE CONTENTS OF THE USER GUIDE ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS DOCUMENT. SIEMENS RESERVES THE RIGHT TO REVISE THE USER GUIDE OR WITH- DRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. UNDER NO CIRCUM- STANCES SHALL SIEMENS BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. Export Information The mobile phone may be subject to export regulation of the United States and other countries. Diversion contrary to law is prohibited. You must comply with all appl…

Text truncated - open the document above for the full version.

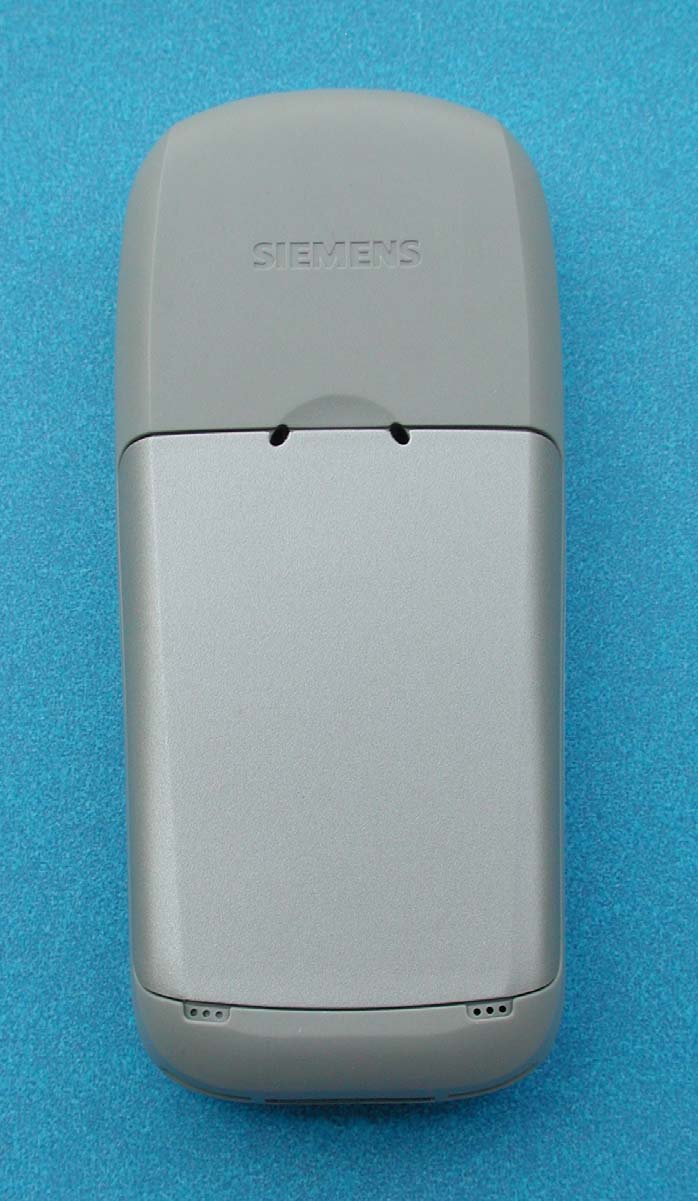

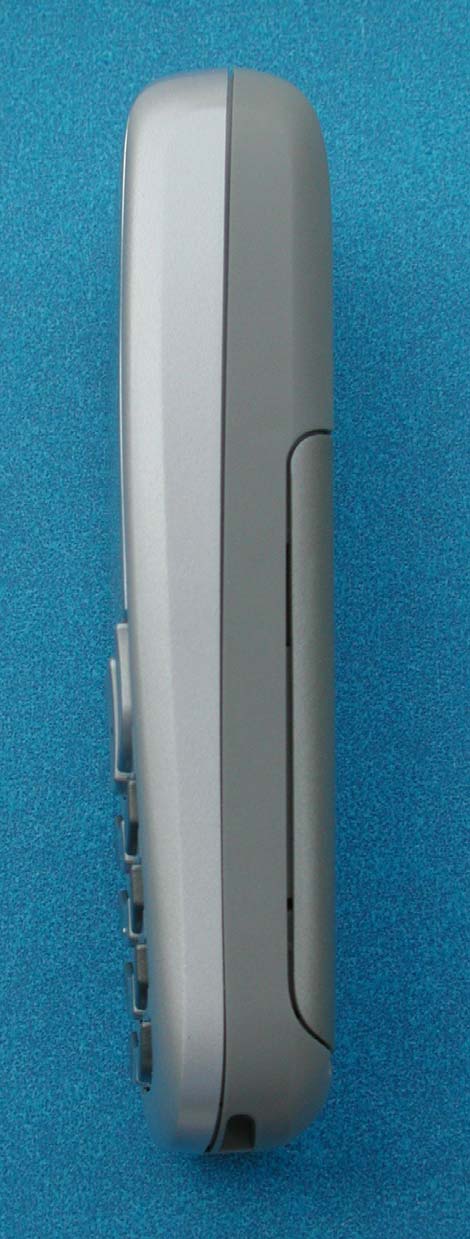

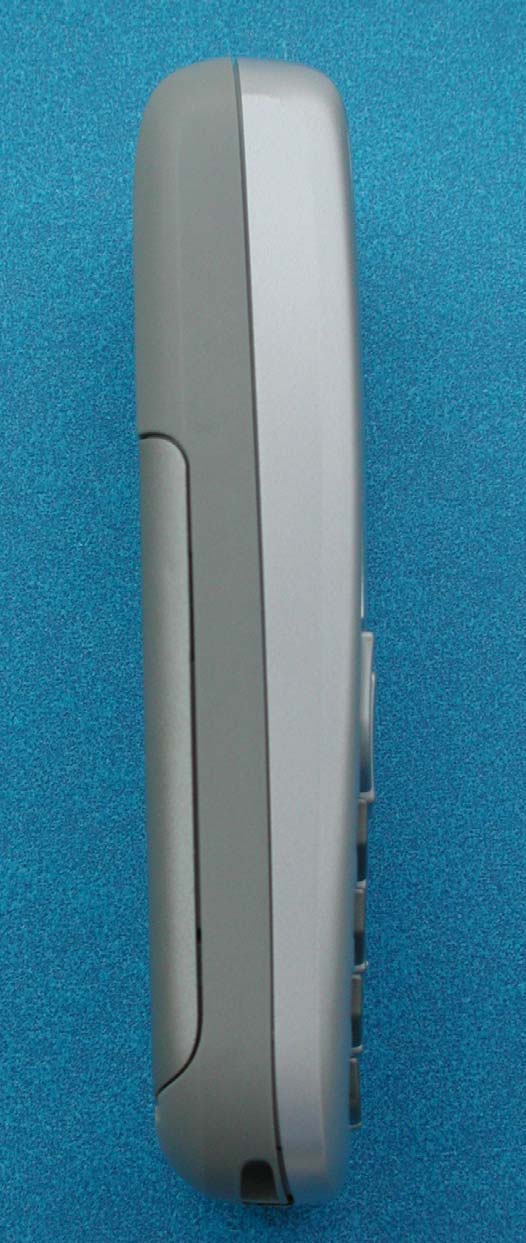

Siemens Communications, Inc. A65 Front View Siemens Communications, Inc. A65 Back View Siemens Communications, Inc. A65 Side View Siemens Communications, Inc. A65 Side View

Siemens Communications, Inc. A65 IMEI LABEL and LABEL LOCATION Siemens Communications, Inc. A65 IMEI LABEL and LABEL LOCATION

Siemens Communications, Inc. A65 Open battery cover (Final label: see extra exhibit) Siemens Communications, Inc. A65 Disassembly step 1 Siemens Communications, Inc. A65 Disassembly step 2 Siemens Communications, Inc. A65 Board Without Shield Siemens Communications, Inc. A65 GSM Tri-band Antenna

DAT-P-152/98-01 SAR Report, Siemens_6620_466_FCC_1900_Caldata_A65_2 Appendix for the Report Dosimetric Assessment of the Siemens A 65 (FCC ID: PWXA65) According to the FCC Requirements Calibration Data March 14, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Dirve, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory.

DAT-P-152/98-01 SAR Report, Siemens_6620_466_FCC_1900_SAR Plots_A65_2 Page 1 of 15 Appendix for the Report Dosimetric Assessment of the Siemens A65 (FCC ID: PWXA65) According to the FCC Requirements SAR Distribution Plots March 14, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Dirve, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo SAR Report, Siemens_6620_466_FCC_1900_SAR Plots_A65_2 Page 2 of 15 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Table of Contents 1 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WITHOUT CAMERA................................................ 3 2 SAR DISTRIBUTION PLOTS, PCS 1900 HEAD, WITH CAMERA......................................................... 7 3 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH HEADSET IN GSM MODE.......................... 11 4 SAR DISTRIBUTION PLOTS, PCS 1900 BODY WITH DATA CABLE, GPRS CLASS 8............... 13 5 SAR Z-AXIS SCANS (VALIDATION)......................................................................................................... 14 6 SAR Z-AXIS SCANS (MEASUREMENTS)................................................................................................ 15 SAR Report, Siemens_6620_466_FCC_1900_SAR Plots_A65_2 Page 3 of 15 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo 1 SAR Distribution Plots, PCS 1900 head, without camera Test Laboratory: IMST GmbH; File Name: 944bplm_1.da4 DUT: Siemens; Type: A65; Serial: 004400006010944 Program Name: Cheek Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.41; mho/m, ε r = 40; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.08.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.306 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.455 W/kg SAR(1 g) = 0.285 mW/g; SAR(10 g) = 0.170 mW/g Maximum value of SAR (measured) = 0.311 mW/g Cheek Left/Zoom Scan (7x7x7)/Cube 1: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = -0.2 dB Peak SAR (extrapolated) = 0.473 W/kg SAR(1 g) = 0.284 mW/g; SAR(10 g) = 0.157 mW/g Maximum value of SAR (measured) = 0.325 mW/g Fig. 1: SAR distribution for PCS 1900, channel 661, cheek position, left side of head (19.01.2005; Ambient Temperature: 21.5° C; Liquid Temperature: 20.5° C). SAR Report, Siemens_6620_466_FCC_1900_SAR Plots_A65_2 Page 4 of 15 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH; File Name: 944bplm_2.da4 DUT: Siemens; Type: A65; Serial: 004400006010944 Program Name: Tilted Left Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.41; mho/m, ε r = 40; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.08.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Tilted Left/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.335 mW/g Tilted Left/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.1 V/m; Power Drift = 0.018 dB Peak SAR (extrapolated) = 0.498 W/kg SAR(1 g) = 0.307 mW/g; SAR(10 g) = 0.177 mW/g Maximum value of SAR (measured) = 0.336 mW/g Fig. 2: SAR distribution for PCS 1900, channel 661, tilted position, left side of head (19.01.2005; Ambient Temperature: 21.5° C; Liquid Temperature : 20.5° C). SAR Report, Siemens_6620_466_FCC_1900_SAR Plots_A65_2 Page 5 of 15 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH; File Name: 944bprm_1.da4 DUT: Siemens; Type: A65; Serial: 004400006010944 Program Name: Cheek Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.41; mho/m, ε r = 40; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: - Probe: ET3DV6R - SN1579; ConvF(5.28, 5.28, 5.28); Calibrated: 13.01.2005 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 05.08.2004 - Phantom: SAM Glycol 1176; Type: Speag; Serial: 1176 - Measurement SW: DASY4, V4.3 Build 16; Postprocessing SW: SEMCAD, V1.8 Build 127 Cheek Right/Area Scan (6x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.466 mW/g Cheek Right/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 11.8 V/m; Power Drift = -0.024 dB Peak SAR (extrapolated) = 0.782 W/kg SAR(1 g) = 0.433 mW/g; SAR(10 g) = 0.233 mW/g Maximum value of SAR (measured) = 0.483 mW/g Fig. 3: SAR distribution for PCS 1900, channel 661, cheek position, right side of head (19.01.2005; Ambient Temperature: 21.5° C; Liquid Temperature : 20.6° C). SAR Report, Siemens_6620_466_FCC_1900_SAR Plots_A65_2 Page 6 of 15 dasy_report_fcc_1900_plots_1.0.doc/05.01.2005/ABo Test Laboratory: IMST GmbH; File Name: 944bprm_2.da4 DUT: Siemens; Type: A65; Serial: 004400006010944 Program Name: Tilted Right Communication System: GSM 1900; Frequency: 1880 MHz;Duty Cycle: 1:8.3 Medium parameters used: σ = 1.41; mho/m, ε r = 40; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: -…

Text truncated - open the document above for the full version.

DAT-P-152/98-01 SAR Report, Siemens_6620_466_FCC_1900_A65_2 Page 1 of 35 Report Dosimetric Assessment of the Portable Device Siemens A65 (FCC ID: PWXA65) According to the FCC Requirements March 14, 2005 IMST GmbH Carl-Friedrich-Gauß-Str. 2 D-47475 Kamp-Lintfort Customer Siemens Information & Communication Mobile LLC 16475 West Bernado Drive, Suite 400 CA 92127 San Diego The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. dasy_report_fcc_1900_4.1.doc/07.01..2005/CH SAR Report, Siemens_6620_466_FCC_1900_A65_2 Page 2 of 35 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Executive Summary The A65 is a mobile phone (Portable Device) from Siemens operating in the 900 MHz, 1800 MHz and 1900 MHz frequency range. The device has an integrated antenna and the system concepts used are the GSM 900, GSM 1800 and PCS 1900 standards including GPRS Class 8 capability. The objective of the measurements done by IMST was the dosimetric assessment of one device in the PCS 1900 standard. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the Supplement C to OET Bulletin 65 of the Federal Communications Commission (FCC) Guidelines [OET 65] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. All measurements have been performed in accordance to the recommendations given by SPEAG. The Siemens A65 mobile phone (FCC ID: PWXA65) is in compliance with the Federal Communications Commission (FCC) Guidelines [OET 65] for uncontrolled exposure. The phone was tested in Head configuration without and with connected QuickPic Camera. In the Body Worn configuration with the following accessories and combinations: • GSM mode with headset and FCT 650 carry case (10 mm distance) • GSM mode with headset and FCL 600 carry case (13 mm distance) • GPRS mode (Class 8) with data cable and FCL 600 carry case (13 mm distance) prepared by: ........................................... reviewed by: ..................................... André van den Bosch Dipl.- Ing. Christoph Hennes test engineer quality assurance engineer IMST GmbH Carl-Friedrich-Gauß-Straße 2 D-47475 Kamp-Lintfort Tel. +49- 2842-981 373 Fax +49- 2842-981 399 email: [email protected] SAR Report, Siemens_6620_466_FCC_1900_A65_2 Page 3 of 35 dasy_report_fcc_1900_4.1.doc/07.01..2005/CH Table of Contents 1 SUBJECT OF INVESTIGATION.................................................................................................................... 4 2 THE IEEE STANDARD C95.1 AND THE FCC EXPOSURE CRITERIA................................................. 4 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES........... 4 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS....................................... 5 2.3 SAR LIMIT.................................................................................................................................................. 5 3 THE FCC MEASUREMENT PROCEDURE................................................................................................. 6 3.1 GENERAL REQUIREMENTS......................................................................................................................... 6 3.2 DEVICE OPERATING NEXT TO A PERSON’S EAR....................................................................................... 6 4 BODY-WORN CONFIGURATIONS.............................................................................................................. 9 4.1 POC (PTT) POSITION...............................................................................................................................9 4.2 PHANTOM REQUIREMENTS...................................................................................................................... 10 4.3 TEST TO BE PERFORMED......................................................................................................................... 10 5 THE MEASUREMENT SYSTEM................................................................................................................. 10 5.1 PHANTOM................................................................................................................................................. 12 5.2 PROBE...................................................................................................................................................... 12 5.3 MEASUREMENT PROCEDURE.................................................................................................................. 13 5.4 UNCERTAINTY ASSESSMENT................................................................................................................... 14 6 SAR RESULTS............................................................................................................................................... 15 7 EVALUATION................................................................................................................................................. 17 8 APPENDIX....................................................................................................................................................... 19 8.1 ADMINISTRATIVE DATA............................................................................................................................ 19 8.2 DEVICE UNDER TEST AND TEST CONDITIONS......................................................................................... 19 8.3 TISSUE RECIPES...................................................................................................................................... 20 8.4 MATERIAL PARAMETERS......................................................................................................................... 20 8.5 SIMPLIFIED PERFORMANCE CHECKING....…

Text truncated - open the document above for the full version.

Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 1 of 7 ________________________________________________________________________________ - 1 - Report No: A65_conducted_power.doc Test Report Conducted Output power GSM 900 / 1800 / 1900 Report No: t.b.f. Issue date: Janury 24 th , 2005 Test Sites: COM MP PD ST2 KLF Development Center Kamp-Lintfort Phone: +49 28 42/95 56 47 Fax: +49 28 42/95 47 17 Andreas Zimmer RF Test Engineer, System Test Gerhard Maurer Subproject leader RF Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 2 of 7 ________________________________________________________________________________ - 2 - Report No: A65_conducted_power.doc Contents 1 Objective and Method..................................................................................3 2 Results...........................................................................................................3 2.1 GSM 900................................................................................................................................3 2.2 GSM 1800..............................................................................................................................4 2.3 GSM 1900..............................................................................................................................4 3 Minutes of Test.............................................................................................5 3.1 Description of device under test............................................................................................5 3.2 Measurement Set-up.............................................................................................................5 4 Calibration Certificate..................................................................................7 Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 3 of 7 ________________________________________________________________________________ - 3 - Report No: A65_conducted_power.doc 1 Objective and Method FCC approval for mobile phones requires reporting output power at RF output terminal pursuant to title 47 CFR part 2.1046. SIEMENS devices use special test fixtures with 50 Ohm connection suitable for such measurements. Using a special adapter and connecting the phone to an appropriate load in terms of the input port of the measurement equipment used, we hereby report the values for highest power setting. 2 Results 2.1 GSM 900 Average Power during burst at connector Device Ch. 975 880.2 MHz Ch. 63 902.6 MHz Ch. 124 914.8 MHz Siemens A65, ”SAR Sample 1” IMEI: 004400 00 601094 4 32.3 32.3 32.3 Siemens A65, “SAR Sample 2” IMEI: 004400 00 601158 7 32.1 32.1 32.2 Siemens A65, ”x Sample 1” IMEI: 004400 00 601092 8 32.1 32.1 32.2 Siemens A65, ”x Sample 2” IMEI: 004400 00 601085 2 32.0 32.0 32.1 Table 1: Results of power measurements at connector in the GSM 900 Band Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 4 of 7 ________________________________________________________________________________ - 4 - Report No: A65_conducted_power.doc 2.2 GSM 1800 Average Power during burst at connector Device Ch. 512 1710.2 MHz Ch. 698 1747.4 MHz Ch. 885 1784.8 MHz Siemens A65, ”SAR Sample 1” IMEI: 004400 00 601094 4 29.6 29.7 29.5 Siemens A65, “SAR Sample 2” IMEI: 004400 00 601158 7 29.4 29.6 29.4 Siemens A65, ”x Sample 1” IMEI: 004400 00 601092 8 29.6 29.7 29.5 Siemens A65, ”x Sample 2” IMEI: 004400 00 601085 2 29.5 29.6 29.4 Table 2: Results of power measurements at connector in the GSM 1800 Band 2.3 GSM 1900 Average Power during burst at connector Device Ch. 512 1850.2 MHz Ch. 661 1880.0 MHz Ch. 810 1909.8 MHz Siemens A65, ”SAR Sample 1” IMEI: 004400 00 601094 4 29.3 29.4 29.3 Siemens A65, “SAR Sample 2” IMEI: 004400 00 601158 7 29.2 29.3 29.3 Siemens A65, ”x Sample 1” IMEI: 004400 00 601092 8 29.3 29.4 29.4 Siemens A65, ”x Sample 2” IMEI: 004400 00 601085 2 29.3 29.4 29.4 Table 3: Results of power measurements at connector in the GSM 1900 Band Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 5 of 7 ________________________________________________________________________________ - 5 - Report No: A65_conducted_power.doc 3 Minutes of Test 3.1 Description of device under test Mobile Phone: Siemens A65 Frequency Range GSM 900: 880 – 915 MHz Frequency Range GSM 1800: 1710 – 1785 MHz Frequency Range GSM 1900: 1850 – 1990 MHz Siemens Part Number: S30880-S5810-****-* FCC ID PWX-A65 3.2 Measurement Set-up Base Station Simulator: CMU 200 Serial Number: 103958 Software Version: Base 3.52 / GSM 3.52 Figure 1: Block Diagram of set-up for conducted power measurement Base Station Simulator DUT Special Adapter Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 6 of 7 ________________________________________________________________________________ - 6 - Report No: A65_conducted_power.doc Figure 2: Set-up for conducted power measurement Siemens Mobile Project: A65 Date: 24-01-2005 Test case: Cond. Power Page: 7 of 7 ________________________________________________________________________________ - 7 - Report No: A65_conducted_power.doc 4 Calibration Certificate

TTI-P-G 081/94-A0 Accredited according to ISO/IEC 17025 Bluetooth Qualification Test Facility (BQTF) FCC listed # 101450 IC recognized # 3925 CETECOM Inc. 411 Dixon Landing Road Š Milpitas, CA 95035 Š U.S.A. Phone: + 1 (408) 586 6200 Š Fax: + 1 (408) 586 6299 Š E-mail: [email protected] Š http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V1.1 2003-03-01 The BLUETOOTH trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to CETECOM Inc. © Copyright by CETECOM FCC Test report Test report no.: EMC_704FCC-24_2005_A65 FCC Part 24 / RSS 133 FCC ID: PWXA65 IC ID: 267E-A65 CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 2 (52) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM Inc. does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM Inc. TEST REPORT PREPARED BY: EMC Engineer: Harpreet Sidhu 1.2 Testing laboratory CETECOM Inc. 411 Dixon Landing Road, Milpitas, CA-95035, USA Phone: +1 408 586 6200 Fax: +1 408 586 6299 E-mail: [email protected] Internet: www.cetecom.com CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 3 (52) 1.3 Details of applicant Name : SIEMENS ICM Street : 16745 West Bernardo Drive City / Zip Code : San Diego CA 92127 Country : U.S.A Contact : Kevin Wolentarski Telephone : +1 858-521-3352 Tele-fax : +1 858-521-3105 e-mail : [email protected] 1.4 Application details Date of receipt test item : 2005-02-01 Date of test : 2005-02-01/04 1.5 Test item Manufacturer : SIEMENS Street Address : Suedstr. 9 City / Zip Code : 47475 Kamp-Lintfort Country : Germany Marketing Name : A65 Model No. : A65 Description : GSM 1900 Mobile Phone FCC-ID : PWXA65 IC ID : 267E-A65 Additional information Test Sample for GSM : IMEI: 00-4400-00-601092-8 radiated sample IMEI: 00-4400-00-601085-2 conducted sample Frequency : 1850.2MHz – 1909.8MHz for PCS 1900 Type of modulation : GMSK Number of channels : 299 for PCS 1900 Antenna : External Power supply : Battery or Charger (AC Adaptor) Output power : 31.77dBm (1.5W) max. EIRP measured for PCS 1900 Extreme vol. Limits : 3.6VDC to 4.5VDC (nominal: 3.7VDC) Extreme temp. Tolerance : -30°C to +50°C 1.6 Test standards FCC Part 24 / RSS133 r1 CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 4 (52) 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests Performed Final Verdict: (only “passed” if all single measurements are “passed”) Passed Technical responsibility for area of testing: 2005-03-21 EMC & Radio Lothar Schmidt (Manager) Date Section Name Signature Responsible for test report and project leader: 2005-03-21 EMC & Radio Harpreet Sidhu (EMC Engineer) Date Section Name Signature CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 5 (52) 2.2 Test report TEST REPORT Test report no.: EMC_704FCC-24_2005_A65_update-1 CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 6 (52) TEST REPORT REFERENCE PARAMETER TO BE MEASURED PARAGRAPH PAGE POWER OUTPUT § 24.232(b) 7 FREQUENCY STABILITY § 2.1055 / § 24.235 10 OCCUPIED BANDWIDTH §2.1049(h)(i) 12 EMISSION BANDWIDTH §24.238(b) 16 EMISSIONS LIMITS §24.238 20 BAND EDGE COMPLIANCE §24.238(b) 35 RECEIVER RADIATED EMISSIONS § 15.209 37 CONDUCTED SPURIOUS EMISSIONS 43 CONDUCTED EMISSIONS § 15.107/207 48 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 50 BLOCK DIAGRAMS 51 CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 7 (52) POWER OUTPUT § 24.232(b) Summary: During the process of testing, the EUT was controlled via Rhode & Schwarz Digital Radio Communication tester (CMD-55) to ensure max. Power transmission and proper modulation. This paragraph contains Burst Average conducted output power and EIRP measurements for the EUT. In all cases, output power is within the specified limits. Method of Measurements: The EUT was set up for the max. Output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer ESIB 40 (peak) These measurements were done at 3 frequencies, 1850.2 MHz, 1880.0 MHz and 1909.8 MHz (bottom, middle and top of operational frequency range) CETECOM Inc. Test report no.: EMC_704FCC-24_2005_A65_update1 Issue date: 2005-03-21 Page 8 (52) Conducted: Limits: Power Step Nominal Peak Output Power (dBm) Tolerance (dB) 0 ≤30dBm (1W)* ± 2 *GSM Specification – ETSI EN 300 910 V8.5.0 (2000-07) Section 4.1 {GSM05.05 Version 8.5.0 Release 1999} Power Measurements: Conducted Average power measurements are provided by SIEMENS Please refer to attached document: “A65_Conducted_Power_udpate-1” (Page 4, section 2.3, Siemens A65, “IMEI: 004400 00 601092 8”) Frequency (MHz) Burst Peak Power (dBm) 1850.2 29.3 1880.0 29.4 1909.8 29.4 CETECOM Inc. Test report no.: EMC_704FCC-24_200…
