PX8LRU-6100ComFlex 600 Series DAS

USER MANUAL FOR COMFLEX 6100 1W D D I I S S T T R R I I B B U U T T E E D D A A N N T T E E N N N N A A S S Y Y S S T T E E M M USER MANUAL ComFlex 6100 1W QE: 1-0-0 Comba Telecom Ltd. ComFlex 600 Series USER MANUAL FOR COMFLEX 6100 1W The information contained herein is the responsibility of and is approved by the following, to whom all enquiries should be directed in the first instance: This is an unpublished work the copyright in which vests in Comba International ("Comba"). All rights reserved. The information contained herein is confidential and the property of Comba and is supplied without liability for errors or omissions. No part may be reproduced, disclosed or used except as authorised by contract or other written permission. The copyright and the foregoing restriction on reproduction and use extend to all media in which the information may be embodied. USER MANUAL FOR COMFLEX 6100 1W ENU STATUS : 1-0-0 Copyright - refer to title page Page 3 0.1 CONTENTS Section Page 0.1 CONTENTS ....................................................................................................................................................... 3 0.2 INDEX TO FIGURES AND TABLES ...................................................................................................................... 4 0.3 HISTORY ........................................................................................................................................................... 6 0.4 GLOSSARY OF TERMS ....................................................................................................................................... 7 0.5 SAFETY NOTICES AND ADMONISHMENTS ....................................................................................................... 8 1 GENERAL INFORMATION .............................................................................................................................. 9 2 EQUIPMENT DESCRIPTION .......................................................................................................................... 11 2.1 SYSTEM DIAGRAM ......................................................................................................................................... 11 2.2 TYPICAL APPLICATION ................................................................................................................................... 11 2.3 EQUIPMENT CONSTITUTION ......................................................................................................................... 12 2.4 KIT OF PART ................................................................................................................................................... 13 3 INSTALLATION ............................................................................................................................................ 15 3.1 WARNINGS AND ALERTS ................................................................................................................................ 15 3.2 SITE PLANNING CONSIDERATIONS ................................................................................................................ 16 3.3 INSTALLATION PROCEDURES ......................................................................................................................... 18 3.4 EQUIPMENT CONNECTORS ........................................................................................................................... 26 3.5 EQUIPMENT CONNECTION ............................................................................................................................. 29 4 COMMISSIONING ....................................................................................................................................... 34 4.1 PRE-COMMISSIONING TASKS ........................................................................................................................ 34 4.2 LED INDICATORS ............................................................................................................................................ 34 4.3 DIGITAL DISPLAY INDICATORS ....................................................................................................................... 35 4.3.1 DIGITAL DISPLAY ON RFU .......................................................................................................................... 35 4.3.2 DIGITAL DISPLAY ON FOU.......................................................................................................................... 35 5 WEB GUI ..................................................................................................................................................... 37 5.1 WEB GUI CONNECTION ............................................................................................................................... 37 5.2 WEB GUI INTRODUCTION ........................................................................................................................... 38 5.2.1 [DEVICES] ............................................................................................................................................... 38 5.2.2 [COMMISSIONING] ................................................................................................................................ 42 5.2.3 [FIRMWARE] .......................................................................................................................................... 43 5.2.4 [MANAGEMENT] .................................................................................................................................... 44 5.3 COMMISSIONING PROCEDURE ................................................................................................................... 50 6 ALARMS AND TROUBLESHOOTING ............................................................................................................. 58 6.1 ALARMS .....................…

Text truncated - open the document above for the full version.

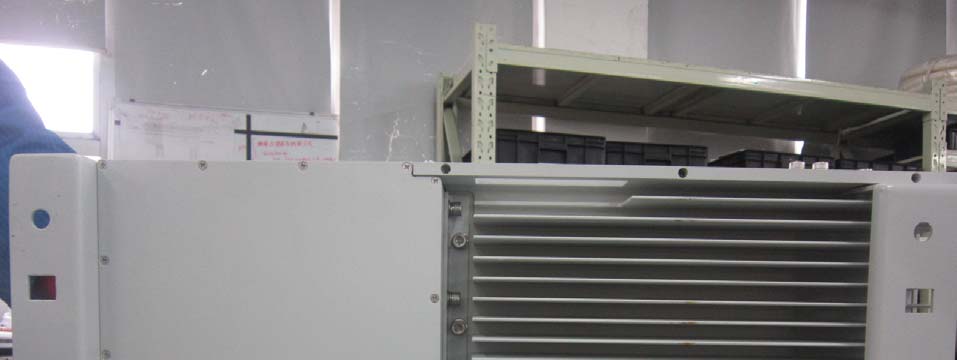

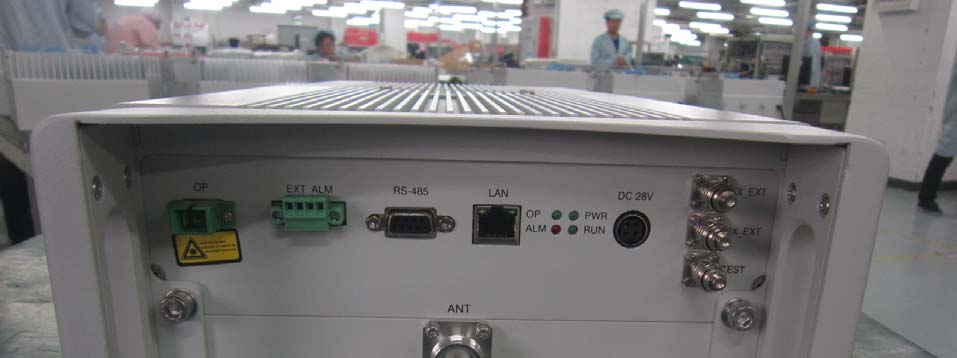

PX8ComFlex-6100 FCC ID:PX8COMFLEX-6100 FCC ID:PX8LRU-6100

FCC ID: PX8ComFlex-6100 FCC ID:PX8LRU-6100 180

FCC§1.1307(b)(1) &§2.1091-RF EXPOSURE 1. Applicable Standard According to FCC§part 1.1310 and §Part 2.1091 (Mobile Devices)RF exposure is calculated. Frequency Range(MHz) Electric Field Stength(V/m) Magnetic Field Stength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f=frequency in MHz *=Plane-wave equivalent power density 2. Prediction of MPE limit at given distance, equations from OET Bulletin 65, Edition 97‐01: S = (1.64 * P * G) / (4 * π * R²) (where PG = ERP) S = (P * G) / (4 * π * R²) (where PG = EIRP) Where: S = power density P= power input to antenna G= numeric gain of the antenna R= distance to the center of radiation of the antenna a 700MHz Lower ABC Band (Downlink 728~746MHz): Maximum peak output power at antenna input terminal (dBm): 31.55 Ma ximum peak output power at antenna input terminal (mW): 1429 Prediction frequency (MHz): 739.3 Maximum antenna gain (dBi): 12.5 Maximum antenna gain (dBd): 10.35 Maximum antenna gain (numeric): 10.84 Maximum RF output power (ERP, mW): 15489 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 0.493 Prediction distance (cm) R= 14.3*4* **64.1 S GP : 64 b 700MHz Upper C Band (Downlink 746~757MHz): Maximum peak output power at antenna input terminal (dBm): 30.75 Ma ximum peak output power at antenna input terminal (mW): 1188 Prediction frequency (MHz): 751.5 Maximum antenna gain (dBi): 12.5 Maximum antenna gain (dBd): 10.35 Maximum antenna gain (numeric): 10.84 Maximum RF output power (ERP, mW): 12883 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 0.501 Prediction distance (cm) R= 14.3*4* **64.1 S GP : 57.94 c 850MHz Band (Downlink 869~894MHz): Maximum peak output power at antenna input terminal (dBm): 31.01 Ma ximum peak output power at antenna input terminal (mW): 1261.8 Prediction frequency (MHz): 881.5 Maximum antenna gain (dBi): 12.5 Maximum antenna gain (dBd): 10.35 Maximum antenna gain (numeric): 10.84 Maximum RF output power (ERP, mW): 13677.9 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 0.588 Prediction distance (cm) R= 14.3*4* **64.1 S GP : 55.11 d 1900MHz Broadband PCS (Downlink 1930~1995MHz): Maximum peak output power at antenna input terminal (dBm): 30.80 Ma ximum peak output power at antenna input terminal (mW): 1202.2 Prediction frequency (MHz): 1985 Maximum antenna gain (dBi): 12.5 Maximum antenna gain (dBd): 10.35 Maximum antenna gain (numeric): 10.84 Maximum RF output power (ERP, mW): 13032.5 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 1 Prediction distance (cm) R= 14.3*4* **64.1 S GP : 41.25 e AWS-1 Band (Downlink 2110~2155MHz): Maximum peak output power at antenna input terminal (dBm): 30.43 Ma ximum peak output power at antenna input terminal (mW): 1104.1 Prediction frequency (MHz): 2112.5 Maximum antenna gain (dBi): 12.5 Maximum antenna gain (dBd): 10.35 Maximum antenna gain (numeric): 10.84 Maximum RF output power (ERP, mW): 11968.2 MPE limit for uncontrolled exposure at predication frequency (mW/ cm²): 1 Prediction distance (cm) R= 14.3*4* **64.1 S GP : 39.53 3. Test Results The above all, when the Maximum antenna gain is 12.5dBi and the shortest distance from the human Specific is 64cm, then the device is compliant with the requirement MPE limit for uncontrolled exposure.

Page 1 of 442 TEST REPORT Report No.: EM201300924 Application No.: ZJ00035225 Client: Comba Telecom Ltd. Address: 611 East Wing, No. 8 Science Park West Avenue, Hong Kong Science Park Tai Po, Hong Kong Sample Description: ComFlex 600 Series DAS Model number: LRU-6100 Test Location: EMC Laboratory of Guangzhou GRG Metrology and Test Co., Ltd. Test Specification: FCC PART 27, FCC PART 22, FCC PART 24, FCC PART 2 Test Date: 2013-10-10 to 2013-11-19 Issue Date: 2013-11-23 Test Result: Pass. Prepared By: Reviewed By: Approved By: Jacky Zhang / Test Engineer Jane Cao / Technical Support Gavin Wu / Manager Date:2013-11-23 Date:2013-11-23 Date:2013-11-23 Other Aspects: None Abbreviations: ok / P = passed; fail / F = failed; n.a. / N = not applicable The test result in this test report refers exclusively to the presented test sample. This report shall not be reproduced except in full, without the written approval of GRGT. GRG Metrology and Test Co., Ltd. Address: 163, Pingyun Road, West of Huangpu Avenue, Guangzhou, Guangdong, P.R. China Tel:+86-20-38699960 Fax:+86-20-38695185 Email: [email protected] http://www.grgtest.com Ver.:2011.1.1 Report No.:EM201300924 Application No.: ZJ00035225 Page 2 of 442 FCC ID: PX8LRU-6100 DIRECTIONS OF TEST 1. This station carries out test task according to the national regulation of verifications which can be traced to National Primary Standards and BIPM. 2. The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. 3. If there is any objection concerning the test, the client should inform the laboratory within 15 days from the date of receiving the test report. Report No.:EM201300924 Application No.: ZJ00035225 Page 3 of 442 FCC ID: PX8LRU-6100 TABLE OF CONTENTS 1．TEST SUMMARY .................................................................................................................................................... 4 2．GENERAL INFORMATION .................................................................................................................................. 7 2.1 CLIENT INFORMATION ....................................................................................................................................... 7 2.2 MANUFACTURER AND FACTORY ....................................................................................................................... 7 2.3 BASIC DESCRIPTION OF EUT ............................................................................................................................. 7 2.4 SIGNAL CONTROL PROCESS ............................................................................................................................... 8 2.5 STANDARDS APPLICABLE FOR TESTING ............................................................................................................. 8 3. LABORATORY AND ACCREDITATIONS ........................................................................................................... 9 3.1 TEST LOCATION ....................................................................................................................................................... 9 3.2 ACCREDITATION ...................................................................................................................................................... 9 3.3 OTHER INFORMATION REQUESTED BY THE CUSTOMER ............................................................................................ 9 4 EQUIPMENTS USED DURING TEST ................................................................................................................... 10 5 TEST RESULTS .................................................................................................................................................. 11 5.1 EUT OPERATION .............................................................................................................................................. 11 5.2 TEST PROCEDURE & MEASUREMENT DATA ................................................................................................... 14 5.2.1 RF Output Power .................................................................................................................................... 14 5.3.2 Conducted Spurious Emissions .............................................................................................................. 31 5.3.3 Band Edge ............................................................................................................................................. 171 5.3.5 Frequency Stability ............................................................................................................................... 282 5.3.6 Occupied Bandwidth ............................................................................................................................ 290 5.3.7 Out of Band Rejection .......................................................................................................................... 431 5.3.8 Radiated Spurious Emissions ............................................................................................................... 436 Report No.:EM201300924 Application No.: ZJ00035225 Page 4 of 442 FCC ID: PX8LRU-6100 1．Test summary Test Item Frequency Band Test Requirement Test Method Result Output Power 700MHz Lower ABC Band FCC part 27.50 FCC part 2. 1046& 935210 D02 Signal Boosters Certification v01r01 PASS 700MHz Upper C Band FCC part 27.50 PASS 850MHz Band FCC part 22.913 PASS 1900MHz Broadband PCS FCC part 24.232 PASS AWS-1 Band FCC part 27.50 PASS Conducted Spurious Emission 700MHz Lower ABC Band FCC part 27.53 FCC part 2. 1051& 935210 D02 Signal Boosters Certification v01r01 PASS 700MHz Upper C Band FCC part 27.53 PASS 850MHz Band FCC part 22.917 PASS 1900MHz Broadband PCS FCC part 24.238 PASS AWS-1 Band FCC part 27.53 PASS Band Edge 700MHz Lower ABC Band FCC…

Text truncated - open the document above for the full version.

Report No.:EM201300924 Application No.: ZJ00035225 Page 148 of 442 FCC ID: PX8LRU-6100 (c) Middle frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 8 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -48.92 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 18:52:14 (d) Middle frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 149 of 442 FCC ID: PX8LRU-6100 (e) Highest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 8 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -49.29 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 18:52:54 (f) Highest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 150 of 442 FCC ID: PX8LRU-6100 1.3) Test for LTE 5MHz (a) Lowest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 9 dBm Center 500.0045 MHzSpan 0.999991 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -47.64 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 18:59:35 (b) Lowest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 151 of 442 FCC ID: PX8LRU-6100 (c) Middle frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 9 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -48.78 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 18:59:12 (d) Middle frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 152 of 442 FCC ID: PX8LRU-6100 (e) Highest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 9 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -49.67 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 18:58:48 (f) Highest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 153 of 442 FCC ID: PX8LRU-6100 1.4) Test for LTE 10MHz (a) Lowest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 9 dBm Center 500.0045 MHzSpan 0.999991 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -46.92 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:00:26 (b) Lowest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 154 of 442 FCC ID: PX8LRU-6100 (c) Middle frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 9 dBm Center 500.0045 MHzSpan 0.999991 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -48.07 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:00:58 (d) Middle frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 155 of 442 FCC ID: PX8LRU-6100 (e) Highest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 9 dBm Center 500.0045 MHzSpan 0.999991 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -49.46 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:01:21 (f) Highest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 156 of 442 FCC ID: PX8LRU-6100 1.5) Test for LTE 15MHz (a) Lowest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 11 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -49.08 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:07:01 (b) Lowest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 157 of 442 FCC ID: PX8LRU-6100 (c) Middle frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 11 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -49.79 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:06:39 (d) Middle frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 158 of 442 FCC ID: PX8LRU-6100 (e) Highest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 11 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -50.16 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:06:17 (f) Highest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 159 of 442 FCC ID: PX8LRU-6100 1.6) Test for LTE 20MHz (a) Lowest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * 3DB RBW 100 kHz SWT 100 ms * VBW 300 kHz Ref 11 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -80 -70 -60 -50 -40 -30 -20 -10 0 10 1 Marker 1 [T1 ] -48.96 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:07:39 (b) Lowest frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 160 of 442 FCC ID: PX8LRU-6100 (c) Middle frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * * 3DB RBW 100 kHz VBW 300 kHz SWT 100 ms Ref 5 dBm Start 9 kHzStop 1 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -49.95 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:08:21 (d) Middle frequency: 1 GHz to 26.5 GHz Report No.:EM201300924 Application No.: ZJ00035225 Page 161 of 442 FCC ID: PX8LRU-6100 (e) Highest frequency: 9 kHz to 1 GHz Att 15 dB * Offset 31.5 dB A LVL * * 3DB RBW 100 kHz VBW 300 kHz SWT 100 msRef 5 dBm Center 500.0045 MHzSpan 0.999991 GHz99.9991 MHz/ *1 RM MAXH -90 -80 -70 -60 -50 -40 -30 -20 -10 0 1 Marker 1 [T1 ] -48.66 dBm 1.611549679 MHz D1 -13 dBm Date: 11.OCT.2013 19:08:51 (f) Highest frequency: 1 GHz to 26.5 GHz Report No.:…

Text truncated - open the document above for the full version.

Report No.:EM201300924 Application No.: ZJ00035225 Page 295 of 442 FCC ID: PX8LRU-6100 1.2) Test for LTE 3 MHz 1.2.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 296 of 442 FCC ID: PX8LRU-6100 1.2.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 297 of 442 FCC ID: PX8LRU-6100 1.2.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 298 of 442 FCC ID: PX8LRU-6100 1.3) Test for LTE 5 MHz 1.3.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 299 of 442 FCC ID: PX8LRU-6100 1.3.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 300 of 442 FCC ID: PX8LRU-6100 1.3.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 301 of 442 FCC ID: PX8LRU-6100 2) Test Lower B(734MHz~740MHz) 2.1) Test for LTE 1.4MHz 2.1.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 302 of 442 FCC ID: PX8LRU-6100 2.1.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 303 of 442 FCC ID: PX8LRU-6100 2.1.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 304 of 442 FCC ID: PX8LRU-6100 2.2) Test for LTE 3 MHz 2.2.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 305 of 442 FCC ID: PX8LRU-6100 2.2.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 306 of 442 FCC ID: PX8LRU-6100 2.2.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 307 of 442 FCC ID: PX8LRU-6100 2.3) Test for LTE 5 MHz 2.3.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 308 of 442 FCC ID: PX8LRU-6100 2.3.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 309 of 442 FCC ID: PX8LRU-6100 2.3.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 310 of 442 FCC ID: PX8LRU-6100 3) Test Lower C(740MHz~746MHz) 3.1) Test for LTE 1.4MHz 3.1.1) Lowest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 311 of 442 FCC ID: PX8LRU-6100 b) Output signal 3.1.2) Middle frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 312 of 442 FCC ID: PX8LRU-6100 b) Output signal 3.1.3) Highest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 313 of 442 FCC ID: PX8LRU-6100 b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 314 of 442 FCC ID: PX8LRU-6100 3.2) Test for LTE 3 MHz 3.2.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 315 of 442 FCC ID: PX8LRU-6100 3.2.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 316 of 442 FCC ID: PX8LRU-6100 3.2.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 317 of 442 FCC ID: PX8LRU-6100 3.3) Test for LTE 5 MHz 3.3.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 318 of 442 FCC ID: PX8LRU-6100 3.3.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 319 of 442 FCC ID: PX8LRU-6100 3.3.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 320 of 442 FCC ID: PX8LRU-6100 4) Test Lower ABC(728MHz~746MHz) 4.1) Test for LTE 10MHz 4.1.1) Lowest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 321 of 442 FCC ID: PX8LRU-6100 b) Output signal 4.1.2) Middle frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 322 of 442 FCC ID: PX8LRU-6100 b) Output signal 4.1.3) Highest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 323 of 442 FCC ID: PX8LRU-6100 b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 324 of 442 FCC ID: PX8LRU-6100 4.2) Test for LTE 15 MHz 4.2.1) Lowest frequency a) Input signal b) Output signal

Report No.:EM201300924 Application No.: ZJ00035225 Page 325 of 442 FCC ID: PX8LRU-6100 4.2.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 326 of 442 FCC ID: PX8LRU-6100 4.2.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 327 of 442 FCC ID: PX8LRU-6100 5.3.6.1.2 700MHz(Upper C) Band 1) Test for LTE 1.4MHz 1.1) Lowest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 328 of 442 FCC ID: PX8LRU-6100 b) Output signal 1.2) Middle frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 329 of 442 FCC ID: PX8LRU-6100 b) Output signal 1.3) Highest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 330 of 442 FCC ID: PX8LRU-6100 b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 331 of 442 FCC ID: PX8LRU-6100 2) Test for LTE 3 MHz 2.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 332 of 442 FCC ID: PX8LRU-6100 2.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 333 of 442 FCC ID: PX8LRU-6100 2.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 334 of 442 FCC ID: PX8LRU-6100 3) Test for LTE 5 MHz 3.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 335 of 442 FCC ID: PX8LRU-6100 3.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 336 of 442 FCC ID: PX8LRU-6100 3.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 337 of 442 FCC ID: PX8LRU-6100 4) Test for LTE 10 MHz 4.1) Lowest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 338 of 442 FCC ID: PX8LRU-6100 b) Output signal 4.2) Middle frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 339 of 442 FCC ID: PX8LRU-6100 b) Output signal 4.3) Highest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 340 of 442 FCC ID: PX8LRU-6100 b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 341 of 442 FCC ID: PX8LRU-6100 5.3.6.1.3 850MHz Band 1) LTE modulation 1.1) Test for LTE 1.4MHz 1.1.1) Lowest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 342 of 442 FCC ID: PX8LRU-6100 b) Output signal 1.1.2) Middle frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 343 of 442 FCC ID: PX8LRU-6100 b) Output signal 1.1.3) Highest frequency a) Input signal Report No.:EM201300924 Application No.: ZJ00035225 Page 344 of 442 FCC ID: PX8LRU-6100 b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 345 of 442 FCC ID: PX8LRU-6100 1.2) Test for LTE 3 MHz 1.2.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 346 of 442 FCC ID: PX8LRU-6100 1.2.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 347 of 442 FCC ID: PX8LRU-6100 1.2.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 348 of 442 FCC ID: PX8LRU-6100 1.3) Test for LTE 5 MHz 1.3.1) Lowest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 349 of 442 FCC ID: PX8LRU-6100 1.3.2) Middle frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 350 of 442 FCC ID: PX8LRU-6100 1.3.3) Highest frequency a) Input signal b) Output signal Report No.:EM201300924 Application No.: ZJ00035225 Page 351 of …
