PY7-07452GGSM/WCDMA/LTE/5G Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPC and NFC

OR https://rd1.sony.net/help/ mobile/xperia-1m3/h_zz/ 1 SIM 2 PWR ON XQ- xxxx/XQ-xxxx Startup guide Ръководство „Бърз старт“ Úvodní příručka Kurzanleitung Installationsvejledning Alustusjuhend Guía de inicio Aloitusopas Guide de démarrage Οδηγός εκκίνησης Priručnik Használatbavételi útmutató Ræsihandbók Guida introduttiva Paleisties vadovas Sākšanas ceļvedis Opstartgids Oppstartsveiviser Instrukcja obsługi Manual de Iniciação Ghid de pornire Starthandbok Vodič za začetek uporabe Úvodná príručka Руководство по запуску Бастапқы нұсқаулық คู่มือเริ ่ มต้นการใช้งาน 用戶指南 * Назначение клавиши может отличаться в зависимости от страны/региона. Перейдите в [Настройки] > [Система] > [Жесты] > [Клавиша быстрого вызова] для получения дополнительной информации. Printed in XXX (Printers logotype) Declaration of Conformity [GB] Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu [GB] Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives This product has been manufactured by or on behalf of Sony Corporation EU Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Supported frequency bands 5GNR (Bands n1, n3, n5, n7, n8, n28, n38, n40, n41, n77, n78, n79), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29, 34, 38, 39, 40, 41, 46, 66), UMTS HSPA+ (Bands 1, 2, 4, 5, 6, 8, 19), GSM GPRS/EDGE (Bands 850, 900, 1 800, 1 900), Bluetooth (2.4GHz), WLAN (2.4GHz/5GHz), NFC (13.56MHz), Wireless Power Charging (110-148kHz) 5GNR : 23dBm, LTE : 23dBm, UMTS : 24dBm, GSM 850/900 : 33dBm, DCS(1 800)/PCS(1 900) : 30dBm, Bluetooth/WLAN (2.4GHz) : <100mW, WLAN (5.15-5.35GHz, 5.47-5.725GHz) : <200mW, WLAN (5.735-5.835GHz) : <25mW, NFC : < 42dBμA/m at 10m, Wireless Power Charging : < 42dBμA/m at 10m [GB] For customers in countries/regions other than the United States and Singapore: The 5 150 – 5 350MHz band is restricted to indoor use only. [CT] 美國及新加坡以外之國家／地區的客戶： 5 150 – 5 350MHz兆赫段只限於室內使用。 [GB] Supported frequency bands Some frequency bands might be turned off in certain markets or by certain operators. You can find your model number under Settings > About phone. [ES] Bandas de frecuencia admitidas Es posible que algunas bandas de frecuencia estén desactivadas en determinados mercados o por operadores específicos. Puede consultar el número de modelo en Ajustes > Información del teléfono. [RU] Поддерживаемые диапазоны частот Доступные диапазоны частот зависят от конкретной страны и оператора. Чтобы выяснить номер модели, выберите Настройки > О телефоне. [KZ] Қолдау көрсетілетін жиілік диапазондары Кейбір жиілік диапазондары кейбір нарықтарда өшірілген болуы мүмкін немесе кейбір операторлар тарапынан өшірілуі мүмкін. Үлгі нөмірін Параметрлер > Телефон туралы тармағынан таба аласыз. [TH] ย่ านความถี่ที่รองรับ ย่ านความถี่บางย่ านอาจปิ ดใช้ งานในบางประเทศหรือโดยผู้ ให้ บริการบางราย คุณสามารถค้ นหาหมายเลขรุ่ นได้ ที่ การตั ้ งค่ า > เกี่ยวกับโทรศัพท์ [ CT] 支援的頻段 某 些市場或服務商可能會關閉部分頻段。 您可以在設定>關於手機中找到您裝置的型號。 [GB] Remarks on using wireless functions •Use of the Bluetooth function may be restricted in some countries/ regions. When you use the product outside of the country/region where you purchased it, check the laws and regulations of the local country/ region before use. • Use of wireless LANs may be restricted in some countries/regions. When you use the product outside of the country/region where you purchased it, check the laws and regulations of the local country/region before use. • The NFC reader/writer function of the product complies with the regulations of the country/region of sale. When you use the product outside of the country/region where you purchased it, check the laws and regulations of the local country/region before use. [RU] Замечания по использованию беспроводных функций • Использование функции Bluetooth может быть ограничено в некоторых странах/регионах. Если вы используете этот продукт за пределами страны/региона его приобретения, перед использованием ознакомьтесь с законами и постановлениями страны/региона использования. • Использование беспроводных ЛВС может быть ограничено в некоторых странах/регионах. Если вы используете этот продукт за пределами страны/региона его приобретения, перед использованием ознакомьтесь с законами и постановлениями страны/региона использования. • Функция чтения/записи NFC продукта соответствует стандартам беспроводной связи страны/региона продажи. Если вы используете этот продукт за пределами страны/региона его приобретения, перед использованием ознакомьтесь с законами и постановлениями страны/региона использования. [KZ] Сымсыз функцияларды пайдалануға қатысты ескертулер • Кей елдерде/өңірлерде Bluetooth функциясын пайдалануға тыйым салынуы мүмкін. Өнімді сатылған елінен/өңірінен тыс жерлерде пайдаланбай тұрып, сол елдің/өңірдің заңдары мен нормаларын тексеріп алу керек. • Кей елдерде/өңірлерде сымсыз жергілікті желілерді пайдалануға тыйым салынуы мүмкін. Өнімді сатылған елінен/өңірінен тыс жерлерде пайдаланбай тұрып, сол елдің/өңірдің заңдары мен нормаларын тексеріп алу керек. • Өнімнің NFC оқығыш/жазғыш функциясы сатқан елдің/өңірдің сымсыз байланысқа қатысты стандарттарына сәйкес келеді. Өнімді сатылған елінен/өңірінен тыс жерлерде пайдаланбай тұрып, сол елдің/өңірдің заңдары мен нормаларын тексеріп алу керек. [TH] หมายเหตุเกี่ยวกับการใช้ฟังก์ชันไร้สาย • ฟังก์ชัน Bluetooth อาจใช้งานได้อย่างจ�ากัดในบางประเทศ/ภูมิภาค เมื ่ อคุณใช้ ผลิตภัณฑ์ภายนอกประเทศ/ภูมิภาคที่คุณซื ้ อเครื ่ อง โปรดตรวจสอบกฎหมายและ ระเบียบข้อบังคับของประเทศ/ภูมิภาคนั ้ น ๆ ก่อนใช้งาน • LAN แบบไร้สายอาจใช้งานได้อย่างจ�ากัดในบางประเทศ/ภูมิภาค เมื ่ อคุณใช้ ผลิตภัณฑ์ภา…

Text truncated - open the document above for the full version.

sar_j8170_1_us SAR Information XXXXX sar_j8170_1_us Radio wave exposure and Specific Absorption Rate (SAR) information United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The XXXXX mobile phone has been designed to comply with the applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy exposure for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation in scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardised methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.30 W/kg and when worn on the body is 0.74 W/kg and for WiFi hotspot mode is 1.07 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 10 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. When using the device as a charger, you need to put the phone on a flat surface and 20 cm separation distance from user during the charging mode. Use of third-party accessories may result in different SAR levels than those reported. 2 sar_j8170_1_us 3 Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid/ after searching on FCC ID PY7-07452G. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http:// www.emfexplained.info/. *In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements.

Sony Corproation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: April 1, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Authorization Letter for FCC applications To Whom It May Concern: Below individual is hereby authorized to sign applications, attestations and cover letters in regards of Sony Corporation applications, Grantee Code PY7. Tomonori Nagano Senior Manager Mobile Communications Business Group Sony Corporation Tel: +81367103241 Address: 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-mail: [email protected] Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation Tel: +81 3 6710 3225 Address: 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-mail: [email protected]

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: April 7, 2021 SPORTON INTERNATIONAL, INC No. 52, Hwa Ya 1st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan R.O.C Authorization Letter for Sporton FCC ID: PY7-07452G To Whom It May Concern: I, the undersigned, hereby authoriz e Sporton to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Sporton on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Sporton as our representative, we still recognize that we are responsible to: a)c omply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and per sonnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillanc e, r eassessment) and resolution of complaints; c)m ake claims regarding certification only in respect of the scope for which certification has been granted; d)do not us e our product certification in such a manner as to bring the Certification Division i nto di srepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon s uspension or cancellation of certification, discontinue use of all advertising matter that c ontains any reference thereto and return any certification documents as required by t he C ertification Division; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeav or to ensure that no certificate or report nor any part thereof is used in a misleadi ng m anner; h)ens ure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification D ivision; i)k eep a record of all complaints made known to the us relating to the product’s compliance wi th r equirements of the relevant standard and to make these records available to the w hen r equested; j)tak e appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)doc ument the actions taken. Yours sincerely, ________________________________ Tomonori Nagano Head of Type Approval, Quality Assurance Quality Assurance & Customer Services Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: April 7, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter § FCC ID: PY7-07452G To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR § 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. -Schematic Diagram -Block Diagram -Theory of Operation -Antenna Specification -Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. -External Photos -Internal Photos -Test Setup Photos - User Manual It i s our understanding that all measurement test reports, FCC ID label form at and c orrespondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Tomonori Nagano Head of Type Approval, Quality Assurance Quality Assurance & Customer Services Mobile Communications Business Group Sony Corporation

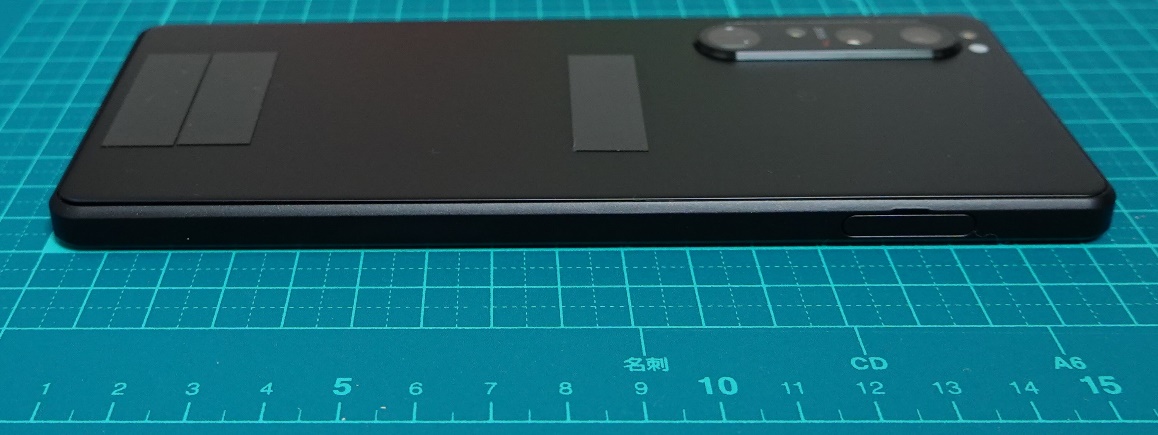

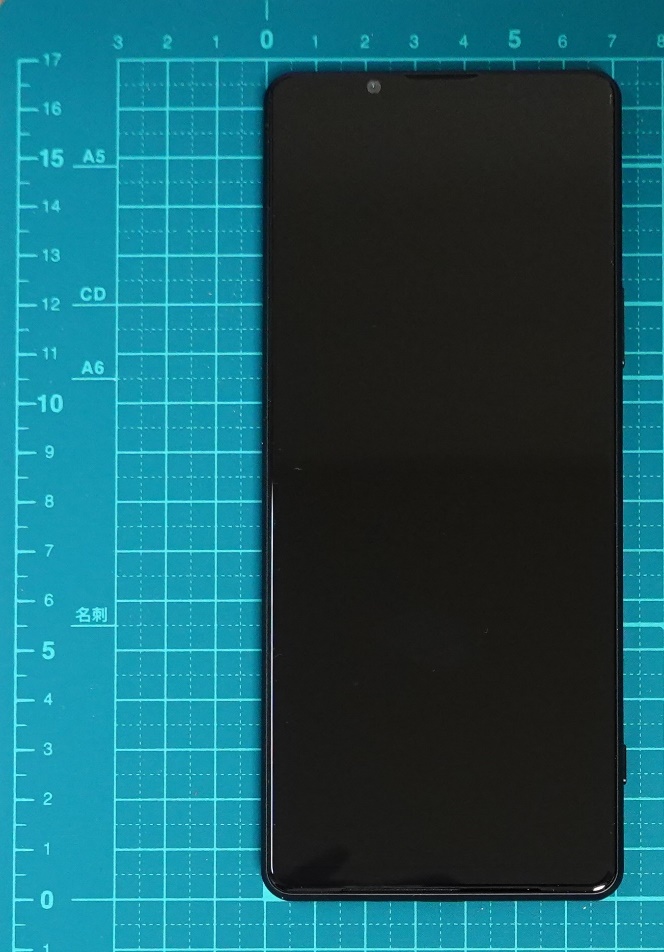

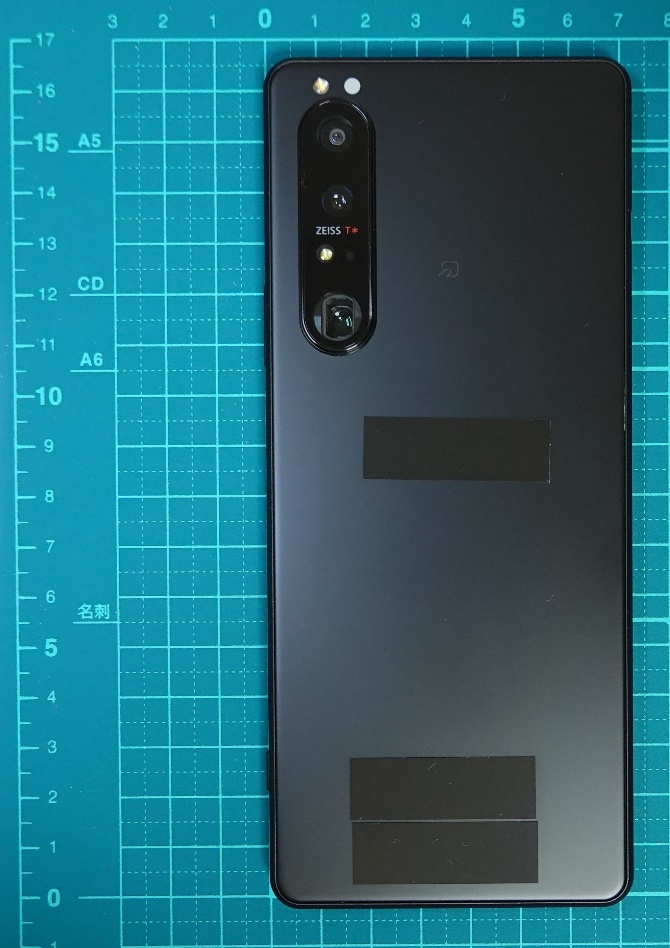

Confidential REPORT 1(3) Document number Revision PA1 Date 2021-03-15 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-07452G External Photo Front Rear Confidential REPORT 2(3) Document number Revision PA1 Side view: Top/Bottom view: Confidential REPORT 3(3) Document number Revision PA1 SIM SLOT:

Sony Corporation Confidential General 1(1) Document number: Revision: 000335184 4 Prepared by: Date: 12 Contents responsible if other than preparer: Remarks: Approved by: It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. E- Label and Label Location PY7-07452G 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates FCC ID: PY7-07452G 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual.

Confidential REPORT 1(5) Document number Revision PA1 Date 2021-3-15 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-07452G Internal Photo Without Rear panel Rear panel Without PBA and Battery Confidential REPORT 2(5) Document number Revision PA1 I nternal Main-PWB Front with Shield cases(Front-side) I nternal Main-PWB Front without Shield cases (Front-side) Internal Main-PWB Front (Rear-side) Confidential REPORT 3(5) Document number Revision PA1 Internal Main-PWB Rear with Shield cases (Rear-side) Internal Main-PWB Rear without Shield cases (Rear-side) Internal Main-PWB Rear with Shield cases (Front-side) Confidential REPORT 4(5) Document number Revision PA1 I nternal Main-PWB Rear without Shield cases (Front-side) Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) Confidential REPORT 5(5) Document number Revision PA1 Battery:

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/4 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_210304 Medium parameters used: f = 750 MHz; σ = 0.882 S/m; ε r = 42.952; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(11.05, 11.05, 11.05) @ 750 MHz; Calibrated: 2020/4/14 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2020/11/23 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.78 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 57.67 V/m; Power Drift = -0.00 dB Peak SAR (extrapolated) = 3.66 W/kg SAR(1 g) = 2.1 W/kg; SAR(10 g) = 1.36 W/kg Maximum value of SAR (measured) = 2.79 W/kg 0 dB = 2.79 W/kg = 4.46 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/6 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_210306 Medium parameters used: f = 750 MHz; σ = 0.899 S/m; ε r = 43.706; ρ = 1000 kg/m 3 Ambient Temperature：23.8 °C; Liquid Temperature：22.8 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(10.19, 10.19, 10.19) @ 750 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn316; Calibrated: 2021/1/19 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.547 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 22.42 V/m; Power Drift = 0.07 dB Peak SAR (extrapolated) = 0.691 W/kg SAR(1 g) = 0.425 W/kg; SAR(10 g) = 0.279 W/kg Maximum value of SAR (measured) = 0.561 W/kg 0 dB = 0.561 W/kg = -2.51 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/4 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_210304 Medium parameters used: f = 835 MHz; σ = 0.891 S/m; ε r = 41.811; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(10.63, 10.63, 10.63) @ 835 MHz; Calibrated: 2020/4/14 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2020/11/23 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.84 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.82 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 3.79 W/kg SAR(1 g) = 2.41 W/kg; SAR(10 g) = 1.57 W/kg Maximum value of SAR (measured) = 2.81 W/kg 0 dB = 2.81 W/kg = 4.49 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/5 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_210305 Medium parameters used: f = 835 MHz; σ = 0.917 S/m; ε r = 42.671; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(9.81, 9.81, 9.81) @ 835 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn316; Calibrated: 2021/1/19 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.678 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 28.52 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.775 W/kg SAR(1 g) = 0.494 W/kg; SAR(10 g) = 0.317 W/kg Maximum value of SAR (measured) = 0.677 W/kg 0 dB = 0.677 W/kg = -1.69 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/10 System Check_Head_1750MHz DUT: D1750V2 - SN1112 Communication System: CW ; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210310 Medium parameters used: f = 1750 MHz; σ = 1.361 S/m; ε r = 40.635; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: ES3DV3 - SN3115; ConvF(5.24, 5.24, 5.24) @ 1750 MHz; Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2020/7/21 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.46 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 43.59 V/m; Power Drift = -0.12 dB Peak SAR (extrapolated) = 3.29 W/kg SAR(1 g) = 1.93 W/kg; SAR(10 g) = 1.06 W/kg Maximum value of SAR (measured) = 2.35 W/kg 0 dB = 2.35 W/kg = 3.71 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/9 System Check_Head_1900MHz DUT: D1900V2-5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210309 Medium parameters used: f = 1900 MHz; σ = 1.449 S/m; ε r = 40.07; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.15, 8.15, 8.15) @ 1900 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn316; Calibrated: 2021/1/19 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/4 #01_GSM850_GPRS (4 Tx slots)_Left Cheek_Ch189 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_210304 Medium parameters used : f = 836.4 MHz; σ = 0.892 S/m; ε r = 41.8; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(10.63, 10.63, 10.63) @ 836.4 MHz; Calibrated: 2020/4/14 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2020/11/23 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.147 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 13.58 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 0.160 W/kg SAR(1 g) = 0.134 W/kg; SAR(10 g) = 0.104 W/kg Maximum value of SAR (measured) = 0.152 W/kg 0 dB = 0.152 W/kg = -8.18 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/9 #02_GSM1900_GPRS (4 Tx slots)_Left Cheek_ch661 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900_210309 Medium parameters used: f = 1880 MHz; σ = 1.432 S/m; ε r = 40.177; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.15, 8.15, 8.15) @ 1880 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn316; Calibrated: 2021/1/19 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0179 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.049 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.0260 W/kg SAR(1 g) = 0.015 W/kg; SAR(10 g) = 0.00707 W/kg Maximum value of SAR (measured) = 0.0168 W/kg 0 dB = 0.0168 W/kg = -17.75 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/9 #03_WCDMA II_RMC 12.2Kbps_Left Cheek_Ch9262 Communication System: WCDMA; Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210309 Medium parameters used: f = 1852.4 MHz; σ = 1.404 S/m; ε r = 40.261; ρ = 1000 kg/m 3 Ambient Temperature：23.3 °C; Liquid Temperature：22.3 °C DASY5 Configuration: - Probe: EX3DV4 - SN3931; ConvF(8.15, 8.15, 8.15) @ 1852.4 MHz; Calibrated: 2020/10/22 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn316; Calibrated: 2021/1/19 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0275 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.001 V/m; Power Drift = -0.19 dB Peak SAR (extrapolated) = 0.0270 W/kg SAR(1 g) = 0.018 W/kg; SAR(10 g) = 0.011 W/kg Maximum value of SAR (measured) = 0.0234 W/kg 0 dB = 0.0234 W/kg = -16.31 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/10 #04_WCDMA IV_RMC 12.2Kbps_Left Cheek_Ch1513 Communication System: WCDMA; Frequency: 1752.6 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210310 Medium parameters used: f = 1753 MHz; σ = 1.364 S/m; ε r = 40.62; ρ = 1000 kg/m 3 23.4 22.4 DASY5 Configuration: - Probe: ES3DV3 - SN3115; ConvF(5.24, 5.24, 5.24) @ 1752.6 MHz; Calibrated: 2020/11/23 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE3 Sn495; Calibrated: 2020/7/21 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.0266 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.542 V/m; Power Drift = 0.18 dB Peak SAR (extrapolated) = 0.0330 W/kg SAR(1 g) = 0.022 W/kg; SAR(10 g) = 0.014 W/kg Maximum value of SAR (measured) = 0.0259 W/kg 0 dB = 0.0259 W/kg = -15.87 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/3/4 #05_WCDMA V_RMC 12.2Kbps_Left Cheek_Ch4233 Communication System: WCDMA; Frequency: 846.6 MHz;Duty Cycle: 1:1 Medium: HSL_850_210304 Medium parameters used: f = 847 MHz; σ = 0.899 S/m; ε r = 41.715; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration: - Probe: EX3DV4 - SN7590; ConvF(10.63, 10.63, 10.63) @ 846.6 MHz; Calibrated: 2020/4/14 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn376; Calibrated: 2020/11/23 - Phantom: SAM_Left; Type: SAM; Serial: 1796 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (81x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.222 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 16.76 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.243 W/kg SAR(1 g) = 0.201 W/kg; SAR(10 g) = 0.157 W/kg Maximum value of SAR (measured) = 0.230 W/kg 0 dB = 0.230 W/kg =…

Text truncated - open the document above for the full version.
