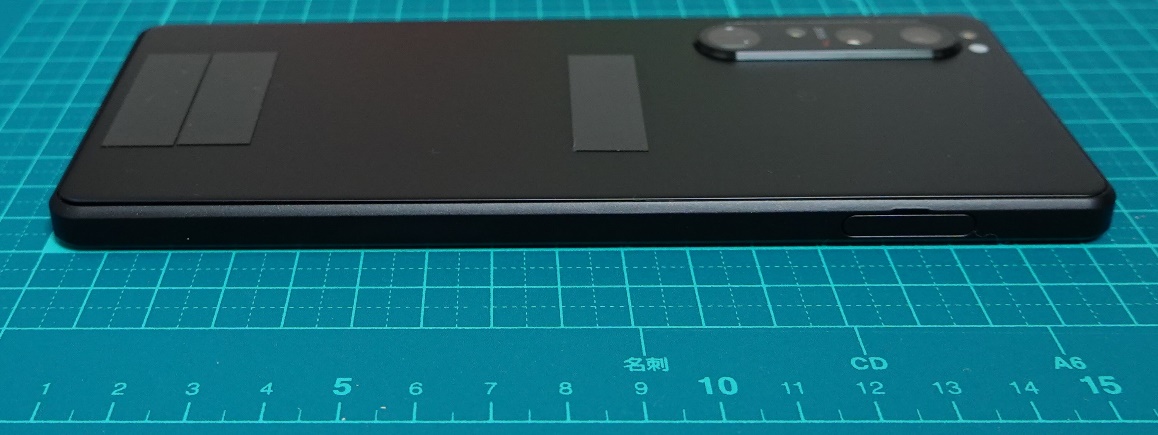

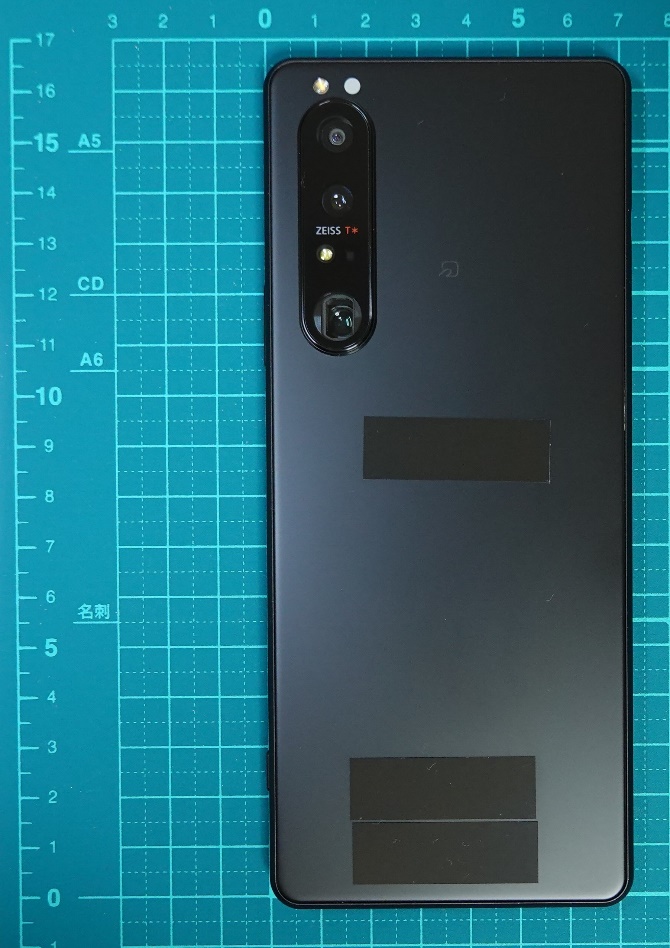

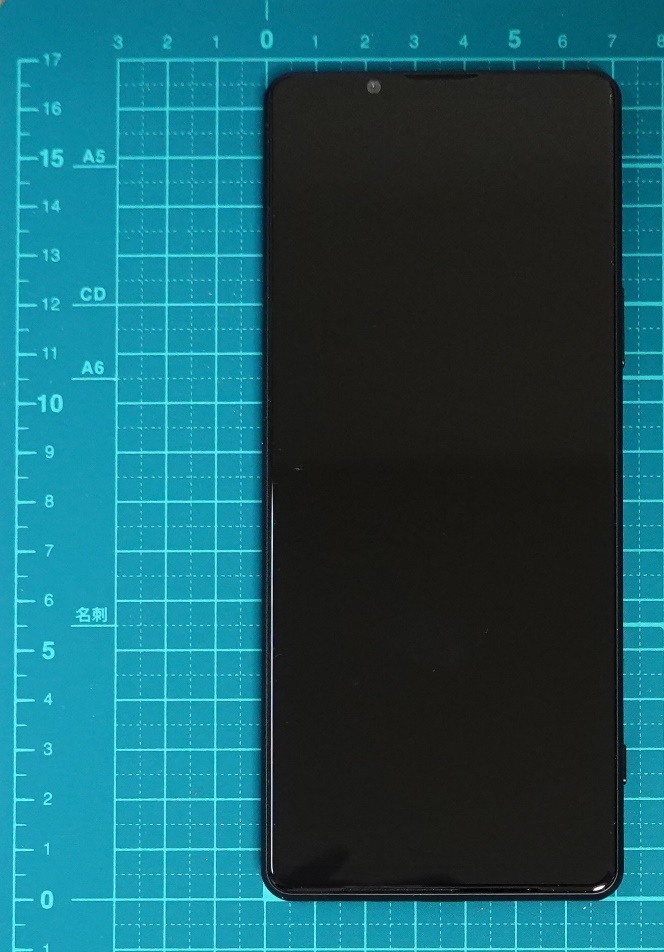

Sony Mobile Communications Confidential REPORT 1(3) Document number Revision PA1 Date 2021-03-15 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-26726G External Photo Front Rear Confidential REPORT 2(3) Document number Revision PA1 Side view: Top/Bottom view: Confidential REPORT 3(3) Document number Revision PA1 SIM SLOT:

Sony Corporation Confidential General 1(1) Document number: Revision: 000335184 4 Prepared by: Date: 12 Contents responsible if other than preparer: Remarks: Approved by: It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. E- Label and Label Location PY7-26726G 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates FCC ID: PY7-26726G 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual.

Sony Mobile Communications Confidential REPORT 1(5) Document number Revision PA1 Date 2021-3-15 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-26726G Internal Photo Without Rear panel Rear panel Without PBA and Battery Confidential REPORT 2(5) Document number Revision PA1 Internal Main-PWB Front with Shield cases(Front-side) Internal Main-PWB Front without Shield cases (Front-side) Internal Main-PWB Front (Rear-side) Confidential REPORT 3(5) Document number Revision PA1 Internal Main-PWB Rear with Shield cases (Rear-side) Internal Main-PWB Rear without Shield cases (Rear-side) Internal Main-PWB Rear with Shield cases (Front-side) Confidential REPORT 4(5) Document number Revision PA1 Internal Main-PWB Rear without Shield cases (Front-side) Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) Confidential REPORT 5(5) Document number Revision PA1 Battery:

TEL : 886-3-327-3456 Page 1 of 5 FAX : 886-3-328-4978 Issued Date Apr. 15, 2021 FCC RF Exposure Report Report No. : FA0D2215B WPT Evaluation Report FCC ID : PY7-26726G Equipment : GSM/WCDMA/LTE/5G Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPC and NFC Brand Name : Sony Applicant : Sony Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Standard : FCC CFR 47 part 1, 1.1307(b) and 1.1310 KDB 680106 D01v03r01 The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. Sporton International Inc. EMC & Wireless Communications Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 5 FAX : 886-3-328-4978 Issued Date Apr. 15, 2021 FCC RF Exposure Report Report No. : FA0D2215B Table of Contents 1. DESCRIPTION OF EQUIPMENT UNDER TEST (EUT) ............................................................................. 4 2. RF EXPOSURE LIMIT INTRODUCTION .................................................................................................... 4 3. TEST MODE ................................................................................................................................................ 5 4. MEASUREMENT EQUIPMENT ................................................................................................................... 5 5. RF EXPOSURE EVALUATION ................................................................................................................... 5 Appendix A. Test Setup Photo Appendix B. Calibration Report TEL : 886-3-327-3456 Page 3 of 5 FAX : 886-3-328-4978 Issued Date Apr. 15, 2021 FCC RF Exposure Report Report No. : FA0D2215B Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE FA0D2215B Rev. 01 Initial issue of report Mar. 24, 2021 FA0D2215B Rev. 02 Update section5 Apr. 09, 2021 FA0D2215B Rev. 03 Update section5 Apr. 13, 2021 FA0D2215B Rev. 04 Update section5 Apr. 15, 2021 TEL : 886-3-327-3456 Page 4 of 5 FAX : 886-3-328-4978 Issued Date Apr. 15, 2021 FCC RF Exposure Report Report No. : FA0D2215B 1. Description of Equipment Under Test (EUT) Product Feature & Specification EUT Type GSM/WCDMA/LTE/5G Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPC and NFC Brand Name Sony FCC ID PY7-26726G Frequency Range 110KHz ~ 148KHz Moudlation Type ASK Date of Test Mar. 23, 2021 ~ Apr. 12, 2021 2. RF Exposure Limit Introduction § 1.1310 The criteria listed in table 1 shall be used to evaluate the environmental impact of human exposure to radio frequency(RF) radiation as specified in § 1.1307(b), except in the case of portable devices which shall be evaluated according to the provisions of § 2.1093 of this chapter. (1) Occupational/controlled exposure limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when a person is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. The phrase fully aware in the context of applying these exposure limits means that an exposed person has received written and/or verbal information fully explaining the potential for RF exposure resulting from his or her employment. With the exception of transient persons, this phrase also means that an exposed person has received appropriate training regarding work practices relating to controlling or mitigating his or her exposure. Such training is not required for transient persons, but they must receive written and/or verbal information and notification (for example, using signs) concerning their exposure potential and appropriate means available to mitigate their exposure. The phrase exercise control means that an exposed person is allowed to and knows how to reduce or avoid exposure by administrative or engineering controls and work practices, such as use of personal protective equipment or time averaging of exposure. (2) General population/uncontrolled exposure limits apply in situations in which the general public may be exposed, or in which persons who are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. TEL : 886-3-327-3456 Page 5 of 5 FAX : 886-3-328-4978 Issued Date Apr. 15, 2021 FCC RF Exposure Report Report No. : FA0D2215B 3. Test Mode This device has been tested in the following charging conditions as below: Test Mode Test Setup Configuration Charging Current Condition TM1 Test w/ Client Device installed < 1% Battery status TM2 Test w/ Client Device installed 50% Battery status TM3 Test w/ Client Device installed Near 100% Battery status 4. Measurement Equipment Instrument Manufacturer Model No. Serial No. Freq Rang Last Cal. Due Date Electric and Magnetic field Probe-Analyzey Narda S.T.S / PMM EHP 200AC 170WX80309 3KHz~30MHz Sep. 12, 2020 Sep. 11, 2021 5. RF Exposure Evaluation 1. The device support Wireless Power Consortium (WPC or commonly referred to as Qi) standard EPP (Extended Power Profile) as a receiver, with a maximum power transfer of 15W to the phone. It also supports the WPC standard Basic Power Profile (BPP) as a receiver. In addition, the device can be used in reverse, as a transmitter to another wireless charging receiver. In this case can be transmitted to the external receiver. 2. According to 201910 TCBC workshop, for portable devices that do not physically attach to phone, desktop WPT testing guidance from FCC KDB 680106 D01v03r01. 3. There is no mechanical / magnetic connection mechanism between client a…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 14 FAX : 886-3-328-4978 Issued Date : Apr. 13, 2021 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR0D2215H FCC RADIO TEST REPORT FCC ID : PY7-26726G Equipment : GSM/WCDMA/LTE/5G Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPC and NFC Brand Name : Sony Applicant : Sony Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Manufacturer : Sony Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Standard : FCC Part 15 Subpart C §15.209 The product was received on Feb. 19, 2021 and testing was started from Mar. 02, 2021 and completed on Mar. 31, 2021. We, Sporton International Inc. EMC & Wireless Communications Laboratory, would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of Sporton International Inc. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. Approved by: Louis Wu Sporton International Inc. EMC & Wireless Communications Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) TEL : 886-3-327-3456 Page Number : 2 of 14 FAX : 886-3-328-4978 Issued Date : Apr. 13, 2021 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR0D2215H Table of Contents History of this test report ....................................................................................................................................3 Summary of Test Result......................................................................................................................................4 1. General Description ........................................................................................................................................5 1.1 Product Feature of Equipment Under Test ............................................................................................................. 5 1.2 Modification of EUT ................................................................................................................................................ 5 1.3 Testing Location ..................................................................................................................................................... 6 1.4 Applicable Standards.............................................................................................................................................. 6 2. Test Configuration of Equipment Under Test ...............................................................................................7 2.1 Descriptions of Test Mode ...................................................................................................................................... 7 2.2 Connection Diagram of Test System ...................................................................................................................... 7 2.3 Support Unit used in test configuration and system ............................................................................................... 7 2.4 EUT Operation Test Setup ..................................................................................................................................... 7 3. Test Results .....................................................................................................................................................8 3.1 20dB and 99% OBW Spectrum Bandwidth Measurement ...................................................................................... 8 3.2 Radiated Emissions Measurement ......................................................................................................................... 9 3.3 Antenna Requirements ......................................................................................................................................... 12 4. List of Measuring Equipment ...................................................................................................................... 13 5. Uncertainty of Evaluation ............................................................................................................................ 14 Appendix A. Test Results of Conducted Test Items A1. Test Result Appendix B. Test Results of Radiated Test Items B1. Test Result of Field Strength of Fundamental Emissions B2. Results of Radiated Emissions (9 kHz~30MHz) B3. Results of Radiated Emissions (30MHz~1GHz) TEL : 886-3-327-3456 Page Number : 3 of 14 FAX : 886-3-328-4978 Issued Date : Apr. 13, 2021 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR0D2215H History of this test report Report No. Version Description Issued Date FR0D2215H 01 Initial issue of report Apr. 01, 2021 FR0D2215H 02 1. Add description in section 3.2.6 2. Revise test date of radiated emissions (9 kHz~30MHz) Apr. 13, 2021 TEL : 886-3-327-3456 Page Number : 4 of 14 FAX : 886-3-328-4978 Issued Date : Apr. 13, 2021 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR0D2215H Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark - 15.207 AC Power Line Conducted Emissions Not Required - 3.1 15.215(c) 20dB Spectrum Bandwidth Reporting only - 2.1049 99% OBW Spectrum Bandwidth Reporting only - 3.2 15.209 Field Strength of Fundamental Emissions Pass Max level -14.47 dBμV/m at 0.150 MHz Radiated Spurious Emissions Pass Under limit 12.87 dB at 954.410MHz 3.3 15.203 Antenna Requirements Pass - Note: Not required means after assessing, test items are not necessary to carry out. Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requireme…

Text truncated - open the document above for the full version.

TEL : 886-3-327-3456 Page Number : 1 of 1 FAX : 886-3-328-4978 Issued Date : Apr. 13, 2021 Report Template No.: BU5-FR15CWPC Version 2.4 Report Version : 02 FCC RADIO TEST REPORT Report No. : FR0D2215H Setup Photographs <Radiated Emission> X Plane From 9 kHz ~ 30 MHz From 30 MHz ~ 1 GHz ─────THE END─────

TEL : 886-3-327-3456 Page 1 of 2 FAX : 886-3-328-4978 Issued Date Apr. 13, 2021 FCC RF Exposure Report Report No. :FA0D2215B Appendix A. Test Setup Photos Position A, test separation 15 cm Position B, test separation 15 cm Position C, test separation 15 cm Position D, test separation 15 cm Position E, test separation 15 cm Position F, test separation 15 cm TEL : 886-3-327-3456 Page 2 of 2 FAX : 886-3-328-4978 Issued Date Apr. 13, 2021 RF Exposure Evaluation Report Report No. :FA0D2215B Position G, test separation 15 cm Position H, test separation 15 cm
