PY7-43624KGSM/WCDMA/LTE/5G Phone w/ BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPT & NFC

SOGXX Quick Start Guide Be sure to read this manual before use •Always update the software to the most recent one. For details on how to update the software, refer to " (Full instruction manual)" (Japanese). • In this manual, "Xperia XX" is usually referred to as "the product" or "main unit". •In this manual, "Quick Start Guide" (this manual) and " (Full instruction manual)" (Japanese) are collectively referred to as "Instruction Manual". •In this manual, "microSD™ memory card (commercially available)", "microSDHC™ memory card (commercially available)" and "microSDXC™ memory card (commercially available)" are abbreviated as "microSD memory card". •Company names and product names referred to in this manual are trademarks or registered trademarks of respective companies. The TM and ® marks may be omitted in this manual. When using the product Before you start using the product, make sure to read the "Safety Precautions" to ensure correct use. Before you assume that the product is malfunctioning, refer to " (Check here first)" in " (Full Instruction Manual)" (Japanese). •Communication is not possible even inside of the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor signal reception areas. Communication is sometimes interrupted if you move into poor signal reception area during communication. •Since the product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though 5G/LTE/WiMAX 2+/GSM/UMTS system has highly secure confidential communication features.) •For connecting to the emergency call acceptance organization, only VoLTE (LTE network) can be used. • Since the product is a radio station under the Radio Law, you may be asked to temporarily submit the product for inspection in accordance with the Radio Law. •The IMEI information of your mobile phone is automatically sent to your carrier for maintenance and monitoring operational status of your mobile phone. •Before you start using the product overseas, check the relevant laws and regulations of the country/region you visit. •The Company is not liable for any damages or lost income arising from earthquakes, lightning, storms, floods or other natural disasters, as well as fires, actions by third parties, other accidents, intentional, mistaken, or incorrect use by the customer, or use under other unusual conditions outside the responsibility of the Company. •The Company is not liable for any incidental damages (change/disappearance of described content, loss of business income, disruption of business, etc.) arising from use of the product or inability to use the product. •The Company is not liable for any damages or lost income arising from failure to observe the described content of the "Instruction Manual". •You cannot use information obtained from the measuring sensor or GPS equipped with the product for the purpose which requires high reliability, as the obtained information is just used for a guide. Note that the Company is not liable for any damage or lost income arising from the difference caused by measurement. •The Company is not liable for any damages or lost income arising, for example, from malfunction caused by combination with connected devices or software not related to the Company. Do not place the product on an unstable or inclined platform. Be careful especially when vibrator is set. The product might fall and cause injury etc. Do not use or keep in a place that is very humid, dusty, or subject to high temperature. Doing so might cause fire, burns, electric shock, etc. For waterproofness/dustproofness, refer to "Notes on waterproof and dustproof properties" (P. 29). If children use the product, parents or guardians should give them proper instructions and do not allow them to use the product in the wrong way. Use of the product in the wrong way might cause accidental ingestion, injury, electric shock, etc. Keep the equipment out of the reach of babies or infants, and store it where pets cannot touch it. In particular, be careful where small parts are stored, such as the microSD memory card/SIM card tray. Failure to do so might cause accidental ingestion, injury, electric shock, etc. Be careful about the temperature when using the product continuously or while charging because it might become warm. Also, be careful not to keep touching it unintentionally in a pocket of clothes, when you fall asleep, etc. The product or the specified charging equipment (sold separately) might become warm when using an app, a call, data communication, watching video, playing a game, etc. continuously or while charging. If you are directly in contact with warmed part continuously, it might cause a redness of skin, itch, rash, low- temperature burn, etc. depending on your physical condition. Main unit Danger Be sure to read the following hazards before use. Do not throw the product into fire or apply heat. Doing so might cause fire, burns, injury, etc. Do not put excessive force such as sticking with a sharp object (nail etc.), hitting with a hard object (hammer etc.), or stepping on it. Doing so might cause fire, burns, injury, etc. Packaged items Before you start using the product, make sure that you have all these packaged items with the product. •Main unit • These items are not included in the package. •microSD memory card •AC adapter •Earphones •USB Type-C™ cable Information Purchase a specified charger (sold separately). The battery is built into the product. Illustrations used in this manual are just images for explanations. They may be different from actual ones. •Captured image data or downloaded data may sometimes be altered or lost due to faults, repair or other handling of the product. The Company is not liable for any damage or lost income resulting from recovery of these data. •It is recommended you keep a copy of important data on your PC's hard disk etc. Whatever the cause of the defect or…

Text truncated - open the document above for the full version.

Sony Corporation CFR 47 §2.903 and §2.911(d)(5) Attestation Date: August 10, 2023 FCC ID: PY7-43624K To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Applicant Information Sony Corporation FRN 0018919456 Mika Kaneko 1-7-1 Konan Minato-ku Tokyo, 108-0075, Japan [email protected] 1. Sony Corporation (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Sony Corporation (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Mika Kaneko Chief Regulatory Compliance Manager Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: August 10, 2023 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA Authorization Letter for UL Verification Services Inc. FCC ID: PY7-43624K To Whom It May Concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: August 10, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-43624K To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: August 24 , 2023 PY7-43624K Data Reuse Justification and Summary To Whom It May Concern: We are applying data reuse for; FCC ID: PY7-43624K (variant) based on the parent model FCC ID: PY7-76732V (Parent). Regarding WLAN/Bluetooth/WPT/NFC, both models share the same PCB layout, antennas, and components. The unlicensed band data for the parent model remains representative for the variant model (equipment classes DSS, DTS, NII, DCD and DXX) and test reports for the parent model plus test reports with the spot check data for the variant model have been submitted. The power to be listed on the F-731 and FCC grants for these bands are the values detailed in the parent reports as the spot check data shows all values within expected tolerances of the parent model. For SAR, WLAN and Bluetooth SAR data and WPT RF Exposure data are referenced from the parent model FCC ID: PY7-76732V and are leveraged to cover the variant FCC ID: PY7-43624K. SAR the data reuse test plan was approved via manufacturer KDB inquiry. The variant model SAR report has full tested data for the licensed bands. Regarding the licensed bands (equipment code PCE), both models share the same PCB layout, antennas, and components. Therefore, the conducted test data of licensed bands for PY7-76732V can be reused to PY7-43624K. The supported cellular bands for PY7-76732V and PY7-43624K is defined by the SW and it is stated in the “PY7-43624K_TheoryOfOperatin_Appendix_B”. DFS has been fully tested on the variant model. FCC ID Bluetooth DTS Bluetooth DSS 802.11 DTS 802.11 NII WPT DCD NFC DXX PY7-76732V Parent R14777340-E2 R14777340-E3 R14777340-E4 R14777340-E5 R14777340-E8 R14777340-E10 PY7-43624K Variant R14777408-E2 FCC ID WPT RF Exposure SAR (WLAN/BT) WWAN PCE (conducted) PY7-76732V Parent 1 R14777340-E9 R14777340-S1 R14777340-E11 PY7-43624K Variant R14777408-E3 R14777408-S1 R14777408-E4 Indicates full set of test data. Values in this report to be listed on the grant for these bands. Partial test data used to confirm that the parent model data is representative for the variant model. Data for these bands is for reference only Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

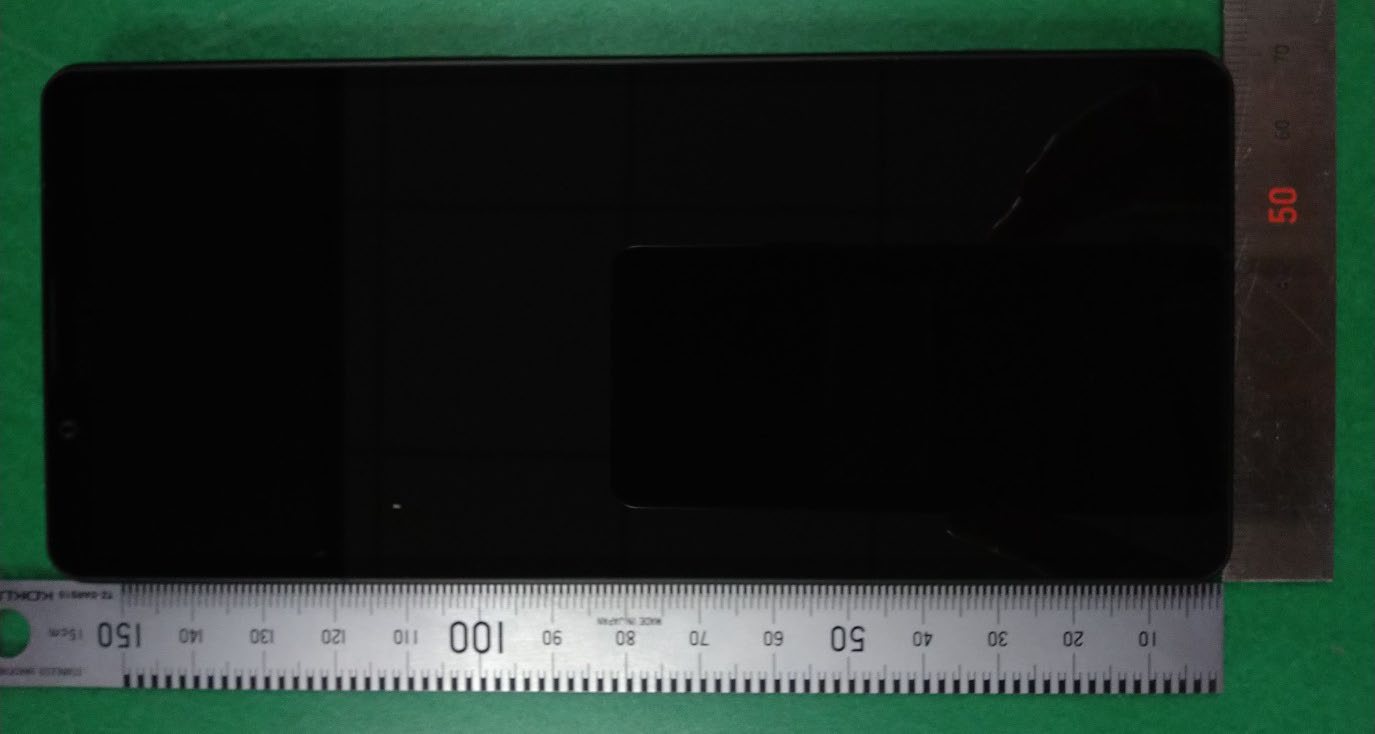

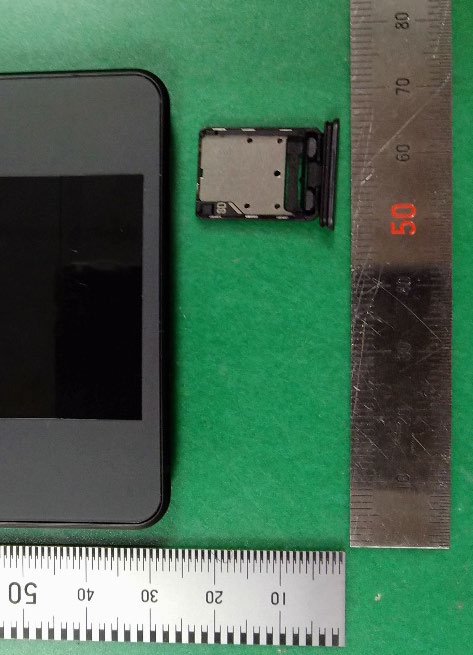

Sony Corporation 1(2) Document number Revision PA1 Date 2023-08-16 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-43624K External Photo Front Rear 2(2) Document number Revision PA1 Side view: Top/Bottom view: SIM SLOT:

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E- Label and Label Location PY7-43624K 1 2 Find and t ap [Settings]->[About Phone]- >[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2)P roducts must not require special accessories or supplemental plug-ins. (3)The regulatory information is clearly legible without the aid of magnification. (4)The regulatory information is secure. The user can not access and modify the regulatory information. (5)The physical temporary label or the label for purchasing and importation could be found on the packaging of the device sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual. E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu S ettings -> About Phone -> Certificates FCC ID: PY7-43624K Access to the required information on the e-label (1) The user manual directs the user where t o find the FCC ID E-Label. To view the regulatory compliance mark

Sony Corporation 1(4) Document number Revision PA1 Date 2023-08-16 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-43624K Internal Photo Without Rear panel Rear panel Without PBA and Battery 2(4) Document number Revision PA1 Front PBA with Shield cases (Front-side) Front PBA without Shield cases (Front-side) Rear PBA with Shield case (Front-side) Rear PBA without Shield case (Front-side) Front PBA Rear PBA Front side Rear side Rear side Front side 3(4) Document number Revision PA1 Front PBA (Rear-side) Rear PBA with Shield case (Rear-side) Rear PBA without Shield case (Rear-side) Front PBA Rear PBA Front side Rear side Rear side Front side 4(4) Document number Revision PA1 Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) Battery:

SAR EVALUATION REPORT IEEE Std 1528-2013 For GSM/WCDMA/LTE/5G Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPT, & NFC FCC ID: PY7-43624K Report Number: R14777408-S1 v2 Issue Date: 8/23/2023 Prepared for Sony Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075, Japan Prepared by UL LLC 12 LABORATORY DR RTP, NC 27709, U.S.A. TEL: (919) 549-1400 Report No.: R14777408-S1 v2 Issue Date: 8/23/2023 Page 2 of 55 UL LLC Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL LLC Revision History Rev. Date Revisions Revised By V1 8/16/2023 Initial Issue -- V2 8/23/2023 Updated §12.2 estimated SAR title from WWAN to NFC and changed the estimated SAR table from 1-g to 10-g. Lindsay Ryan Report No.: R14777408-S1 v2 Issue Date: 8/23/2023 Page 3 of 55 UL LLC Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL LLC Table of Contents 1. Attestation of Test Results ............................................................................................................ 5 2. Test Specification, Methods and Procedures .............................................................................. 7 3. Facilities and Accreditation ........................................................................................................... 8 4. SAR Measurement System & Test Equipment ............................................................................ 9 4.1. SAR Measurement System .......................................................................................................... 9 4.2. SAR Scan Procedures ................................................................................................................ 10 4.3. Test Equipment .......................................................................................................................... 12 5. Measurement Uncertainty ........................................................................................................... 13 6. Device Under Test (DUT) Information ........................................................................................ 14 6.1. DUT Description ......................................................................................................................... 14 6.2. Wireless Technologies ............................................................................................................... 15 6.3. General LTE SAR Test and Reporting Considerations .............................................................. 16 6.4. LTE (TDD) Considerations ......................................................................................................... 18 6.5. Power Back-off Operation........................................................................................................... 19 7. RF Exposure Conditions (Test Configurations) ........................................................................ 19 8. Dielectric Property Measurements & System Check ................................................................ 20 8.1. Dielectric Property Measurements .............................................................................................. 20 8.2. System Check............................................................................................................................. 22 9. Conducted Output Power Measurements .................................................................................. 24 9.1. GSM ........................................................................................................................................... 24 9.2. W-CDMA .................................................................................................................................... 27 9.3. LTE ............................................................................................................................................. 32 9.4. LTE Down-Link Carrier Aggregation ........................................................................................... 44 9.5. WLAN 2.4GHz & WLAN 5GHz & Bluetooth ................................................................................ 45 10. Measured and Reported (Scaled) SAR Results ......................................................................... 46 10.1. GSM850 .................................................................................................................................. 48 10.2. GSM1900 ................................................................................................................................ 48 10.3. W-CDMA Band II .................................................................................................................... 48 10.4. W-CDMA Band IV ................................................................................................................... 49 10.5. W-CDMA Band V .................................................................................................................... 49 10.6. LTE Band 4 (20MHz Bandwidth)............................................................................................. 49 10.7. LTE Band 5 (10MHz Bandwidth)............................................................................................. 50 10.8. LTE Band 12 (10MHz Bandwidth)........................................................................................... 50 Report No.: R14777408-S1 v2 Issue Date: 8/23/2023 Page 4 of 55 UL LLC Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL LLC 10.9. LTE Band 13 (10MHz Bandwidth)........................................................................................... 50 10.10. LTE Band 41 (20MHz Bandwidth)........................................................................................... 51 10.11. WLAN & Bluetooth Spotcheck Verification.............................................................................. 51 11. SAR Measurement Variability ..........................…

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL LLC SAR 1A Date/Time: 2023-07-10, 09:35 2023-07-10 System Performance Check Report D750V3 - SN1139 Summary Dipole D750V3 - SN1139 Frequency [MHz] 750.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 7.1 Power [dBm] 17.0 Iso. Error [%] 0.7 Exposure Conditions Dipole Distance [mm] 15 TSL Permittivity 41.2 Conversion Factor 10.65 TSL Conductivity [S/m] 0.918 Hardware Setup Probe | Calibration Date EX3DV4 - SN7710 | 2023-02-03 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2084 DAE | Calibration Date DAE4 Sn1715 | 2023-01-23 TSL | Meas. Date HBBL600-10000V6 | 2023-Jul-10 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 85.9 Dist 3dB Peak [mm] > 15.0 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.429 0.430 psSAR10g [W/Kg] 0.285 0.281 Power Drift [dB] n/a 0.02 Plot No. 2 Test Laboratory: UL LLC SAR 1A Date/Time: 2023-07-10, 10:04 2023-07-10 System Performance Check Report D1750V2 - SN1136 Summary Dipole D1750V2 - SN1136 Frequency [MHz] 1750.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] -2.2 Power [dBm] 17.0 Iso. Error [%] 0.8 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 39.1 Conversion Factor 9.11 TSL Conductivity [S/m] 1.38 Hardware Setup Probe | Calibration Date EX3DV4 - SN7710 | 2023-02-03 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2084 DAE | Calibration Date DAE4 Sn1715 | 2023-01-23 TSL | Meas. Date HBBL600-10000V6 | 2023-Jul-10 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 80.7 Dist 3dB Peak [mm] 10.9 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 1.66 1.67 psSAR10g [W/Kg] 0.887 0.885 Power Drift [dB] n/a -0.00 Plot No. 3 Test Laboratory: UL LLC SAR 2A Date/Time: 2023-07-10, 10:18 2023-07-10 System Performance Check Report D2450V2 - SN963 Summary Dipole D2450V2 - SN963 Frequency [MHz] 2450.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 0.8 Power [dBm] 17.0 Iso. Error [%] -0.9 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 38.1 Conversion Factor 7.97 TSL Conductivity [S/m] 1.81 Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2023-03-29 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1716 | 2023-03-16 TSL | Meas. Date HBBL-600-10000 | 2023-Jul-10 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 80.4 Dist 3dB Peak [mm] 9.3 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 2.56 2.58 psSAR10g [W/Kg] 1.20 1.21 Power Drift [dB] n/a -0.01 Plot No. 4 Test Laboratory: UL LLC SAR 2A Date/Time: 2023-07-10, 09:58 2023-07-10 System Performance Check Report D2600V2 - SN1104 Summary Dipole D2600V2 - SN1104 Frequency [MHz] 2600.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 1.0 Power [dBm] 17.0 Iso. Error [%] 0.9 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 37.8 Conversion Factor 7.67 TSL Conductivity [S/m] 1.92 Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2023-03-29 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1716 | 2023-03-16 TSL | Meas. Date HBBL-600-10000 | 2023-Jul-10 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 10.0 5.0 x 5.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 79.2 Dist 3dB Peak [mm] 9.0 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 2.81 2.80 psSAR10g [W/Kg] 1.26 1.27 Power Drift [dB] n/a 0.00 Plot No. 5 Test Laboratory: UL LLC SAR 2A Date/Time: 2023-07-11, 13:09 2023-07-11 System Performance Check Report D750V3 - SN1139 Summary Dipole D750V3 - SN1139 Frequency [MHz] 750.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 2.6 Power [dBm] 17.0 Iso. Error [%] 1.1 Exposure Conditions Dipole Distance [mm] 15 TSL Permittivity 40.6 Conversion Factor 10.14 TSL Conductivity [S/m] 0.891 Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2023-03-29 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1716 | 2023-03-16 TSL | Meas. Date HBBL-600-10000 | 2023-Jul-11 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 87.1 Dist 3dB Peak [mm] > 15.0 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.424 0.424 psSAR10g [W/Kg] 0.282 0.280 Power Drift [dB] n/a 0.01 Plot No. 6 Test Laboratory: UL LLC SAR 2A Date/Time: 2023-07-11, 12:38 2023-07-11 System Performance Check Report D1900V2 - SN5d202 Summary Dipole D1900V2 - SN5d202 Frequency [MHz] 1900.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 7.4 Power [dBm] 17.0 Iso. Error [%] 1.5 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 38.3 Conversion Factor 8.18 TSL Conductivity [S/m] 1.43 Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2023-03-29 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1716 | 2023-03-16 TSL | Meas. Date HBBL-600-10000 | 2023-Jul-11 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 81.8 Dist 3dB Peak [mm] 10.3 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 2.10 2.07 psSAR10g [W/Kg] 1.09 1.08 Power Drift [dB] n/a -0.02 Plot No. 7 Test Laboratory: UL LLC SAR 2B Date/Time: 2023-07-10, 16:18 2023-07-10 System Performance Check Report D5GHzV2 - SN1213 Summary Dipole D5GHzV2 - SN1213 Frequency [MHz] 5600.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] -1.5 Power [dBm] 17.0 Iso. Error [%] 3.5 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 34.1 Conversion Factor 5.09 TSL Conductivity [S/m] 4.90 …

Text truncated - open the document above for the full version.

Plot No. 1 Test Laboratory: UL LLC SAR 2A Date/Time: 2023-07-11, 18:03 Measurement Report for GSM 850, CHEEK, Normal, CELL Main1 Exposure Conditions Band GSM 850 TSL Permittivity 40.3 Frequency [MHz] | Channel Number 836.6 | 190 TSL Conductivity [S/m] 0.921 Group | UID GSM | 10028-DAC Phantom Section | TSL RightHead | HSL Conversion Factor 9.5 Test Distance [mm] 0.00 Communication Configuration GPRS-FDD (TDMA, GMSK, TN 0-1-2-3) Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2023-03-29 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1716 | 2023-03-16 TSL | Meas. Date HBBL-600-10000 | 2023-Jul-11 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 90.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid n/a Yes M2/M1 [%] 95.4 Dist 3dB Peak [mm] 22.8 Measurement Results Area Scan Zoom …
