PY7-58692WPortable Handset

[EN] Startup guide [BG] Ръководство „Бърз старт“ [CZ] Úvodní příručka [DE] Kurzanleitung [DK] Installationsvejledning [EE] Alustusjuhend [ES] Guía de inicio [FI] Aloitusopas [FR] Guide de démarrage [GR] Οδηγός εκκίνησης [HR] Priručnik [HU] Használatbavételi útmutató [IS] Ræsihandbók [IT] Guida introduttiva [LT] Paleisties vadovas [LV] Sākšanas ceļvedis [NL] Opstartgids [NO] Oppstartsveiviser [PL] Instrukcja obsługi [PT] Manual de Iniciação [RO] Ghid de pornire [RU] Руководство по запуску [SE] Starthandbok [SI] Vodič za začetek uporabe [SK] Úvodná príručka https://rd1.sony.net/help/ mobile/xperia-5m4/h_zz/ ©2022 Sony Corporation 504408311_PDX-224_SG leaflet EU_EN BG CZ DE DK EE ES FI FR GR HR HU IS IT LT LV NL NO PL PT RO RU SE SI SK [ES] Advertencia de volumen alto Para evitar posibles daños auditivos, no escuche el sonido a niveles de volumen elevado durante periodos prolongados. [FI] Äänenvoimakkuusvaroitus Älä kuuntele suurella äänenvoimakkuudella liian pitkään, sillä se saattaa vaurioittaa kuuloasi. [FR] Avertissement relatif au volume sonore Afin d’écarter le risque de lésion auditive, l’appareil ne doit pas être utilisé à un volume sonore excessif pendant des périodes prolongées. [GR] Προειδοποίηση έντασης ήχου Για να αποτραπεί ενδεχόμενη βλάβη στην ακοή, μην κάνετε ακρόαση με υψηλά επίπεδα έντασης ήχου για παρατεταμένο χρονικό διάστημα. [HR] Upozorenje o glasnoći Da biste spriječili moguće oštećenje sluha, nemojte dugotrajno slušati glasnu glazbu. [HU] Figyelmeztetés a hangerőre A lehetséges halláskárosodás megelőzése érdekében ne használja túl hosszú ideig magas hangerőn a készüléket. [IS] Viðvörun vegna hávaða Til að koma í veg fyrir hugsanlegar heyrnarskemmdir skal ekki hlusta með stillt á mikinn hljóðstyrk í langan tíma í einu. [IT] Avvertenza sul volume audio Per prevenire possibili problemi all’udito, non ascoltare musica ad alto volume per lunghi periodi. [LT] Įspėjimas dėl garsumo Kad išvengtumėte galimo klausos pažeidimo, neklausykite muzikos dideliu garsumu ilgą laiką. [LV] Brīdinājums par skaļumu Lai novērstu iespējamus dzirdes bojājumus, neklausieties skaļu mūziku ilgstoši. [NL] Waarschuwing voor hoog volume Om eventuele gehoorbeschadiging tegen te gaan, luistert u niet gedurende langere tijd naar muziek op zeer hoog volume. [NO] Advarsel om lydstyrke For å unngå mulig hørselsskade bør du ikke lytte med høyt volum i lengre perioder. [PL] Ostrzeżenie dotyczące głośności Aby zapobiec ewentualnemu uszkodzeniu słuchu, nie należy słuchać dźwięków przy wysokim poziomie głośności przez dłuższy czas. [PT] Aviso de intensidade do som Para evitar possíveis lesões auditivas, não ouça a níveis de volume elevados por períodos prolongados. [RO] Avertizare privind nivelul sonor Pentru a evita eventuala afectare a auzului, nu ascultați la volume ridicate perioade lungi de timp. [RU] Предупреждение об уровне громкости Во избежание нарушений слуха не рекомендуется прослушивать аудиоматериалы на большой громкости в течение длительного периода времени. [SE] Varning om högt ljud Förebygg risken för hörselskador genom att inte lyssna med hög ljudvolym under långa perioder. [SI] Opozorilo glede glasnosti Glasbe ne poslušajte dlje časa pri visoki glasnosti, saj obstaja nevarnost poškodbe sluha. [SK] Upozornenie týkajúce sa hlasitosti Dlhodobé počúvanie pri vysokej hlasitosti môže poškodiť sluch. [EN] Safety precautions • Please note that the temperature may rise during continuous use or during charging. Also, be careful not to touch the device continuously and unintentionally by putting it in your clothes pocket or falling asleep. Continued direct contact with the device in this condition may cause low-temperature burns or other skin irritations. • This product (including accessories) has magnet(s). Swallowing magnet(s) could cause serious harm, such as choking hazard or intestinal injuries. If magnets (or a magnet) were swallowed, consult a doctor immediately. Keep this product away from children or other supervised individuals to prevent accidental ingestion. • This product (including accessories) has magnet(s) which may interfere with pacemakers, programmable shunt valves for hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use such medical devices. Consult your doctor before using this product if you use any such medical device. [EN] Instructions to prevent reasonably foreseeable mishandling of the battery This product has a built-in lithium-ion battery. Do not disassemble or alter the product. Do not expose this product, including the battery, to excessive heat, fire, etc., for an extended period of time. Do not subject this product, including the battery, to extreme low- temperature conditions that may result in overheating and thermal runaway. Disposing of the battery into fire or a hot oven or mechanically crushing or cutting the battery can result in an explosion. Leaving the battery in an extremely high-temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. Subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. The battery must be charged before use. Always use the Sony-branded charger and USB cable. Refer to the manufacturer’s instructions or equipment manual for proper charging instructions. After extended periods of storage, it may be necessary to charge and discharge the battery several times to obtain maximum performance. [IS] Viðvörun vegna mikils hita Þetta tákn birtist þegar yfirborðshiti vörunnar hækkar við notkun. Þegar táknið birtist er hætta á brunasárum ef haldið er áfram að nota vöruna meðan haldið er á henni í höndunum. Í þessu tilfelli skal ekki halda stöðugt á tækinu beint í höndunum við notkun. [IT] Avviso di temperatura elevata Questo simbolo viene visualizzato quando la temperatura superficiale del prodotto aumenta durante l’uso. Quando viene visualizzato il simbolo, sussiste il rischio di ustioni …

Text truncated - open the document above for the full version.

Important information FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: July 4, 2022 Element Materials Technology Washington DC LLC (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Authorization Letter for Element Materials Technology Washington DC LLC (formerly PCTEST) FCC ID: PY7-5 8692W To Whom It May Concern: I, the undersigned, hereby authorize Element Materials Technology Washington DC LLC (formerly PCTEST) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Element Materials Technology Washington DC LLC (formerly PCTEST) on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Element Materials Technology Washington DC LLC (formerly PCTEST) as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: July 28, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-5 8692W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

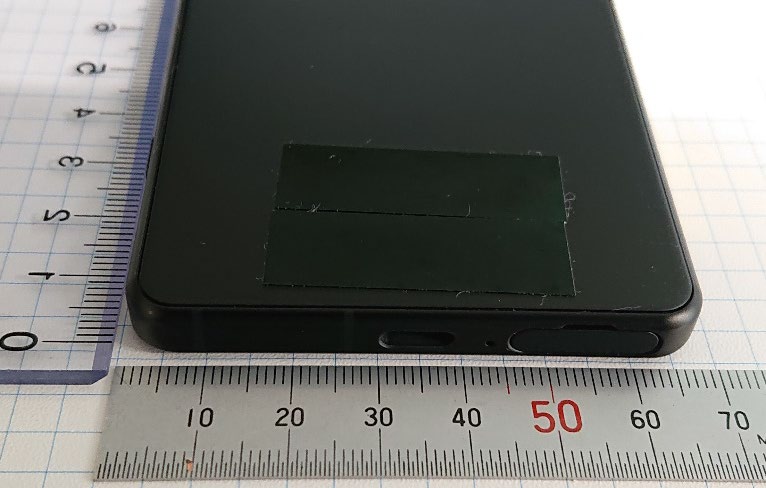

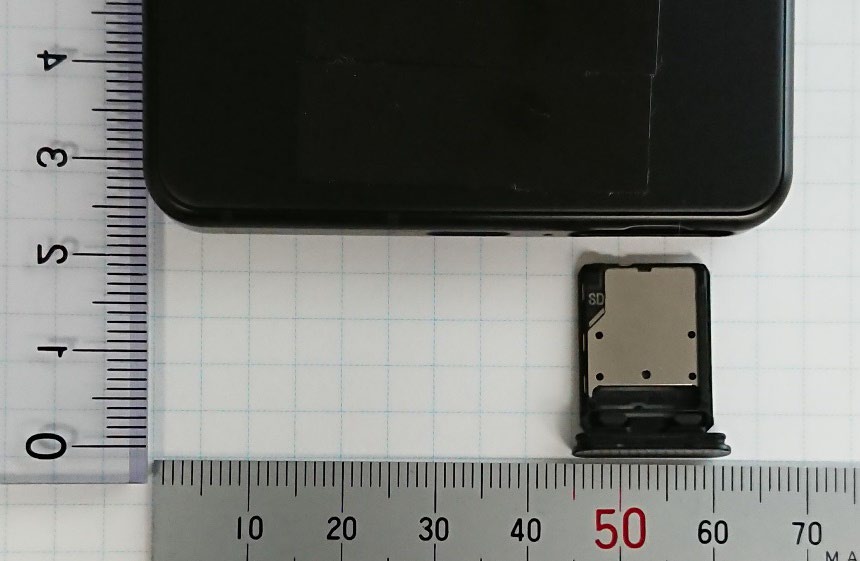

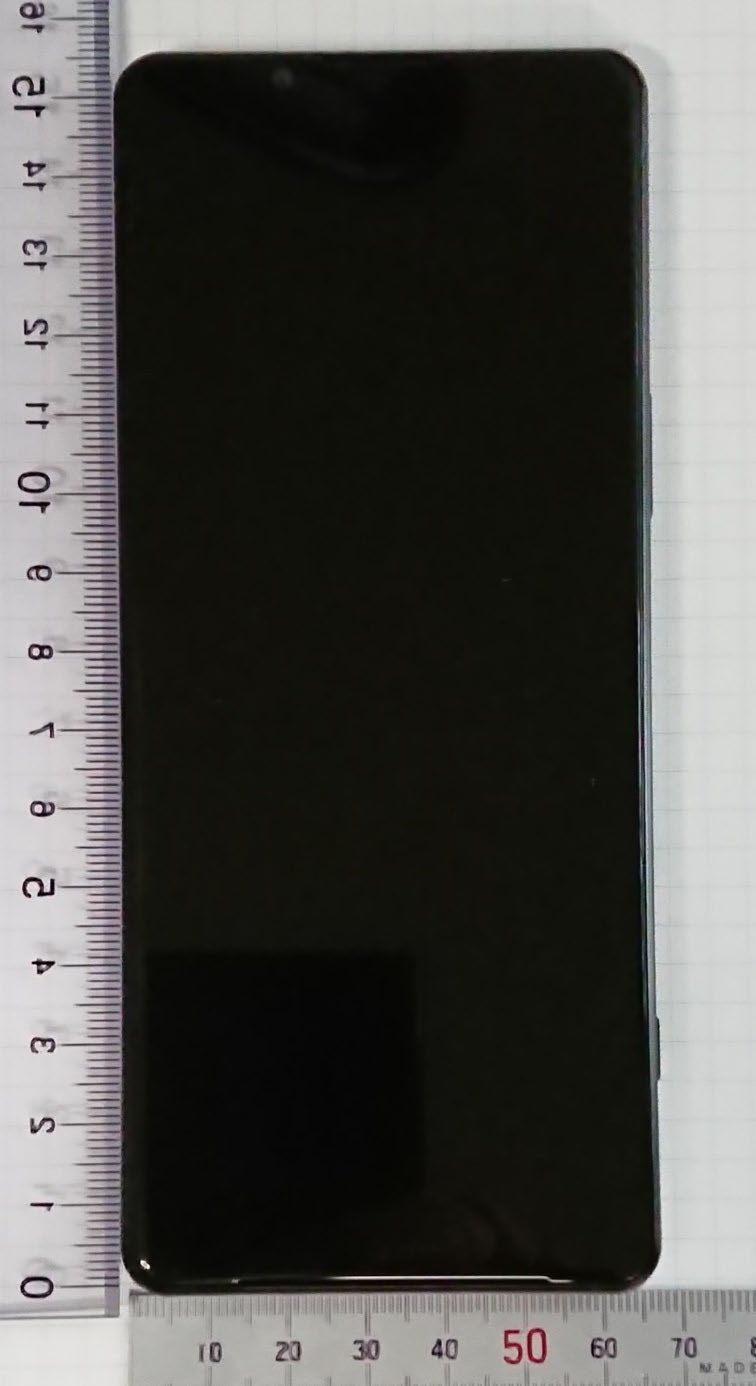

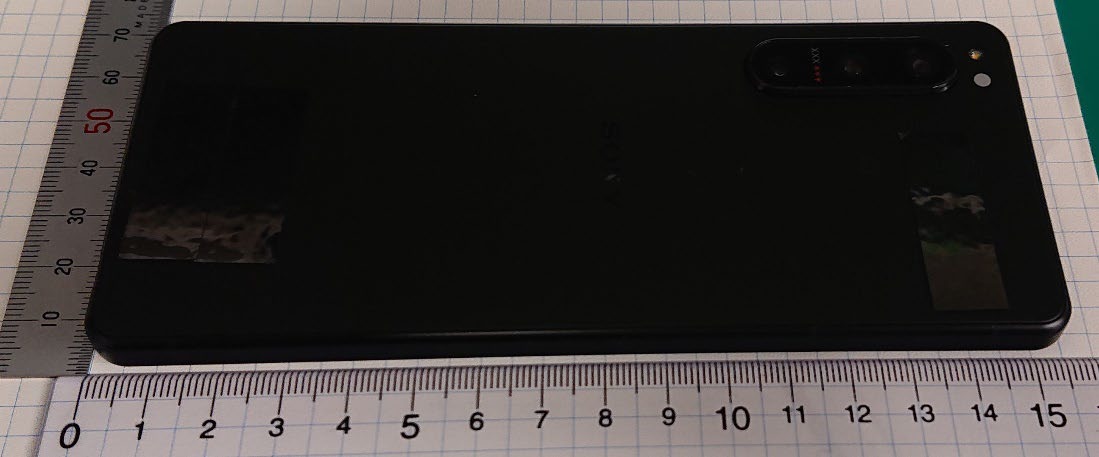

Sony Corporation 1(3) Document number Revision PA1 Date 2022-07-28 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-58692W External Photo Front Rear 2(3) Document number Revision PA1 Side view: Top/Bottom view: 3(3) Document number Revision PA1 SIM SLOT:

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E- Label and Label Location PY7-58692W 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual. FCC ID: PY7-58692W

Sony Corporation 1(6) Document number Revision PA1 Date 2022-7-28 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-58692W Internal Photo Without Rear panel Rear panel Without PBA and Battery 2(6) Document number Revision PA1 Scale (unit : mm) Internal Main-PWB Front with Shield cases(Front-side) Internal Main-PWB Front without Shield cases (Front-side) 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 3(6) Document number Revision PA1 Internal Main-PWB Front (Rear-side) 10 20 30 40 50 10 20 30 40 50 4(6) Document number Revision PA1 Internal Main-PWB Rear with Shield case (Rear-side) Internal Main-PWB Rear without Shield case (Rear-side) Internal Main-PWB Rear with Shield case (Front-side) 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 5(6) Document number Revision PA1 Internal Main-PWB Rear without Shield case (Front-side) Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) 10 20 30 40 50 10 20 30 40 50 6(6) Document number Revision PA1 Battery:

FCC ID: PY7-58692W SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: 1M2207200079-16.PY7 DUT Type: Portable Handset Page 1 of 66 REV 22.0 03/30/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Sony Corporation 06/27/2022 – 07/28/2022 1-7-1 Konan Minato-ku Test Site/Location: Tokyo, 108-0075, Japan Element, Columbia, MD, USA Document Serial No.: 1M2207200079-16.PY7 FCC ID: PY7-58692W APPLICANT: SONY CORPORATION DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. SAR 1g Head (W/kg) 1g Body- Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCEGSM/GPRS/EDGE 850 824.20 - 848.80 MHz0.210.190.22N/A PCE GSM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.230.35N/A PCE UMTS 850826.40 - 846.60 MHz0.130.220.22N/A PCEUMTS 17501712.4 - 1752.6 MHz< 0.10.250.33N/A PCEUMTS 1900 1852.4 - 1907.6 MHz< 0.10.280.38N/A PCELTE Band 12699.7 - 715.3 MHz0.100.200.20N/A PCELTE Band 17 706.5 - 713.5 MHzN/AN/AN/AN/A PCELTE Band 13 779.5 - 784.5 MHz < 0.10.320.32N/A PCELTE Band 5 (Cell) 824.7 - 848.3 MHz0.130.130.13N/A PCELTE Band 66 (AWS)1710.7 - 1779.3 MHz< 0.10.220.30N/A PCELTE Band 4 (AWS) 1710.7 - 1754.3 MHzN/AN/AN/AN/A PCELTE Band 25 (PCS) 1850.7 - 1914.3 MHz< 0.10.230.47N/A PCELTE Band 2 (PCS)1850.7 - 1909.3 MHzN/AN/AN/AN/A PCE LTE Band 412498.5 - 2687.5 MHz< 0.10.120.21N/A DTS2.4 GHz WLAN2412 - 2462 MHz0.650.120.18N/A NIIU-NII-15180 - 5240 MHzN/AN/A0.10N/A NIIU-NII-2A5260 - 5320 MHz0.40< 0.1N/A0.42 NII U-NII-2C5500 - 5720 MHz0.17< 0.1N/A0.52 NII U-NII-35745 - 5825 MHz0.23< 0.10.11N/A DSS/DTS Bluetooth2402 - 2480 MHz0.17< 0.1< 0.1N/A DXX NFC13.56 MHzN/AN/AN/A < 0.1 1.250.670.770.92 Simultaneous SAR per KDB 690783 D01v01r03: Band & Mode Tx Frequency Equipment Class ELEMENT MATERIALS TECHNOLOGY (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com SAR EVALUATION REPORT FCC ID: PY7-58692W SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: 1M2207200079-16.PY7 DUT Type: Portable Handset Page 2 of 66 REV 22.0 03/30/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE AND NR INFORMATION .................................................................................................................... 13 3 INTRODUCTION ........................................................................................................................................ 14 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 15 5 DEFINITION OF REFERENCE POINTS.................................................................................................... 16 6 TEST CONFIGURATION POSITIONS....................................................................................................... 17 7 RF EXPOSURE LIMITS ............................................................................................................................. 21 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 22 9 RF CONDUCTED POWERS ...................................................................................................................... 28 10 SYSTEM VERIFICATION ........................................................................................................................... 41 11 SAR DATA SUMMARY .............................................................................................................................. 45 12 SAR MEASUREMENT VARIABILITY ........................................................................................................ 61 13 EQUIPMENT LIST ...................................................................................................................................... 62 14 MEASUREMENT UNCERTAINTIES.......................................................................................................... 63 15 CONCLUSION .....................................................................................................................................…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST PLOTS A1 ELEMENT DUT: PY7-58692W; Type: Portable Handset; Serial: 00043 Communication System: UID:10021 - DAC, GSM; MAIA: Y; Frequency: 848.8 MHz Medium: 835 Head; Medium parameters used: f = 848.8 MHz; cond = 0.905 S/m; perm = 40.2; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/18/2022; Ambient Temp: 20.7°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7552; ConvF:(9.42,9.42,9.42); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.0.116 Mode: GSM 850, Right Head, Cheek, High Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.20 W/kg; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.297 W/kg SAR(1 g) = 0.176 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 75.3 % A2 ELEMENT DUT: PY7-58692W; Type: Portable Handset; Serial: 99989 Communication System: UID:10027 - DAC, GSM; MAIA: Y; Frequency: 1850.2 MHz Medium: 1900 Head; Medium parameters used: f = 1850.2 MHz; cond = 1.40 S/m; perm = 38.4; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/13/2022; Ambient Temp: 22.2°C; Tissue Temp: 22.3°C Probe: EX3DV4 - SN7552; ConvF:(8.08,8.08,8.08); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.0.116 Mode: GPRS 1900, DTM, Right Head, Cheek, Low Ch., 3 Tx Slots Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.00 W/kg; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.054 W/kg SAR(1 g) = 0.030 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 80.5 % A3 ELEMENT DUT: PY7-58692W; Type: Portable Handset; Serial: 00043 Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 836.6 MHz Medium: 835 Head; Medium parameters used: f = 836.6 MHz; cond = 0.893 S/m; perm = 40.3; density = 1000 kg/m3 Phantom Section: Left Head; Space: 0.00 mm Test Date: 07/18/2022; Ambient Temp: 20.7°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7552; ConvF:(9.42,9.42,9.42); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: UMTS 850, Left Head, Cheek, Mid Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.11 W/kg; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.148 W/kg SAR(1 g) = 0.107 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 88.9 % A4 ELEMENT DUT: PY7-58692W; Type: Portable Handset; Serial: 99948 Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 1752.6 MHz Medium: 1750 Head; Medium parameters used: f = 1752.6 MHz; cond = 1.42 S/m; perm = 39.6; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/17/2022; Ambient Temp: 21.0°C; Tissue Temp: 20.5°C Probe: EX3DV4 - SN7552; ConvF:(8.32,8.32,8.32); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: UMTS 1750, Right Head, Cheek, High Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.04 W/kg; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.064 W/kg SAR(1 g) = 0.037 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 83.4 % A5 ELEMENT DUT: PY7-58692W; Type: Portable Handset; Serial: 99948 Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 1852.4 MHz Medium: 1900 Head; Medium parameters used: f = 1852.4 MHz; cond = 1.40 S/m; perm = 38.4; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/13/2022; Ambient Temp: 22.2°C; Tissue Temp: 22.3°C Probe: EX3DV4 - SN7552; ConvF:(8.08,8.08,8.08); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: UMTS 1900, Right Head, Cheek, Low Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.04 W/kg; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.059 W/kg SAR(1 g) = 0.038 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 86.2 % A6 ELEMENT DUT: PY7-58692W; Type: Portable Handset; Serial: 99989 Communication System: UID:10175 - CAG, LTE-FDD; MAIA: Y; Frequency: 707.5 MHz Medium: 750 Head; Medium parameters used: f = 707.5 MHz; cond = 0.878 S/m; perm = 43.9; density = 1000 kg/m3 Phantom Section: Left Head; Space: 0.00 mm Test Date: 07/20/2022; Ambient Temp: 21.0°C; Tissue Temp: 20.5°C Probe: EX3DV4 - SN7552; ConvF:(9.85,9.85,9.85); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: LTE Band 12, Left Head, Cheek, Mid Ch., 10 MHz Bandwidth, QPSK, 1 RB, 49 RB Offset Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm;…

Text truncated - open the document above for the full version.

APPENDIX B: SAR DIPOLE VERIFICATION PLOTS B1 ELEMENT DUT: Dipole 13.0 MHz; Type: CLA-13 - SN1002 Communication System: UID: 0, CW; Frequency: 13.0 MHz Medium: 30 Head; Medium parameters used: f = 13.0 MHz; cond = 0.758 S/m; perm = 53.1; density = 1000 kg/m3 Phantom Section: Flat; Space: 0 mm Test Date: 07/10/2022; Ambient Temp: 22.1°C; Tissue Temp: 22.0°C Probe: EX3DV4 - SN7527; ConvF:(17.78,17.78,17.78); Calibrated: 2022-03-21 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2022-03-16 Phantom: ELI V8.0; Serial: 2077 Measurement SW: DASY Module SAR V16.0.0.116 13.0 MHz System Verification at 30.0 dBm (1000 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 1.05 W/kg SAR(10 g) = 0.328 W/kg Deviation (10 g) = -4.65% B2 ELEMENT DUT: Dipole 750.0 MHz; Type: D750V3 - SN1054 Communication System: UID: 0, CW; Frequency: 750.0 MHz Medium: 750 Head; Medium parameters used: f = 750.0 MHz; cond = 0.892 S/m; perm = 43.8; density = 1000 kg/m3 Phantom Section: Flat; Space: 15 mm Test Date: 07/20/2022; Ambient Temp: 21.0°C; Tissue Temp: 20.5°C Probe: EX3DV4 - SN7552; ConvF:(9.85,9.85,9.85); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 750 MHz System Verification at 23 dBm (200 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 2.83 W/kg SAR(1 g) = 1.74 W/kg Deviation (1 g) = 2.11% B3 ELEMENT DUT: Dipole 835.0 MHz; Type: D835V2 - SN4d132 Communication System: UID: 0, CW; Frequency: 835.0 MHz Medium: 835 Head; Medium parameters used: f = 835.0 MHz; cond = 0.892 S/m; perm = 40.3; density = 1000 kg/m3 Phantom Section: Flat; Space: 15 mm Test Date: 07/18/2022; Ambient Temp: 20.7°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7552; ConvF:(9.42,9.42,9.42); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 835 MHz System Verification at 23 dBm (200 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 3.13 W/kg SAR(1 g) = 2.00 W/kg Deviation (1 g) = 3.52% B4 ELEMENT DUT: Dipole 1750.0 MHz; Type: D1765V2 - SN1008 Communication System: UID: 0, CW; Frequency: 1750.0 MHz Medium: 1750 Head; Medium parameters used: f = 1750.0 MHz; cond = 1.42 S/m; perm = 39.7; density = 100…

Text truncated - open the document above for the full version.
