PY7-76056FPortable Handset

1 SIM 2PWR ON ©2022 Sony Corporation https://rd1.sony.net/help/ mobile/xperia-5m4/h_zz/ [EN] Startup guide [ES] Guía de inicio 504408322_PDX-224_SG leaflet US_EN ES XQ-CQ62 Loudness warning [EN] Loudness warning To prevent possible hearing damage, do not listen at high volume levels for long periods. [ES] Advertencia de volumen alto Para evitar posibles daños auditivos, no escuche el sonido a niveles de volumen elevado durante periodos prolongados. [EN] Instructions to prevent reasonably foreseeable mishandling of the battery This product has a built-in lithium-ion battery. Do not disassemble or alter the product. Do not expose this product, including the battery, to excessive heat, fire, etc., for an extended period of time. Do not subject this product, including the battery, to extreme low- temperature conditions that may result in overheating and thermal runaway. Disposing of the battery into fire or a hot oven or mechanically crushing or cutting the battery can result in an explosion. Leaving the battery in an extremely high-temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. Subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. The battery must be charged before use. Always use the Sony-branded charger and USB cable. Refer to the manufacturer’s instructions or equipment manual for proper charging instructions. After extended periods of storage, it may be necessary to charge and discharge the battery several times to obtain maximum performance. [ES] Instrucciones para evitar el abuso razonablemente previsible de la batería Este producto tiene una batería de iones de litio incorporada. No desmonte ni altere el producto. No exponga este producto, incluyendo la batería, a calor excesivo, fuego, etc., durante un período de tiempo prolongado. No someta este producto, incluida la batería, a condiciones de temperatura extremadamente bajas que puedan provocar recalentamiento o embalamiento térmico. Si la batería se desecha en el fuego o en un horno caliente o si la batería se aplasta o se corta mecánicamente, la batería puede explotar. Si la batería se deja en un entorno a temperatura extremadamente alta, la batería puede explotar o se pueden producir fugas de líquidos o gases inflamables. Si la batería se somete a presiones de aire extremadamente bajas, la batería puede explotar o se pueden producir fugas de líquidos o gases inflamables. La batería debe cargarse antes de su uso. Utilice siempre el cargador y el cable USB de marca Sony. Consulte las instrucciones del fabricante o el manual del equipo para obtener las instrucciones de carga adecuadas. Después de períodos prolongados de almacenamiento, puede ser necesario cargar y descargar la batería varias veces para obtener el máximo rendimiento. [EN] Legal information This Startup guide is published by Sony Corporation or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Corporation at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. Visit https://www.sony.net/Products/ smartphones/trademarks-and- copyright.html for more information. Warranty, SAR and usage guidelines For information about warranty, SAR (Specific Absorption Rate) and safety guidelines, please read the Important information provided under Settings > About phone > Legal information on your device. Owner’s record The model and IMEI numbers are located on the box of the unit. Record the IMEI number in the space provided below. Refer to them whenever you call upon Sony Customer Support regarding this product. Model No. _______________ IMEI No. _______________ RECYCLING RECHARGEABLE BATTERIES Rechargeable batteries are recyclable. You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, visit www.sony.com/electronics/eco/ environmental-management Caution: Do not handle damaged or leaking rechargeable batteries. Class I Laser Product Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. factory ID: STTB Declaration of Conformity PM-1411-BV (XQ-CQ62) [EN] Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu [EN] Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives This product has been manufactured by or on behalf of Sony Corporation EU Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Supported frequency bands XQ-CQ62 5GNR (Bands n1, n2, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n71, n77, n78), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29, 32, 34, 38, 39, 40, 41, 46, 48, 66, 71), UMTS HSPA+ (Bands 1, 2, 4, 5, 6, 8, 19), GSM GPRS/EDGE (Bands 850, 900, 1 800, 1 900), Bluetooth (2.4GHz), WLAN (2.4GHz/5GHz/6GHz), NFC (13.56MHz), Wireless Power Charging (110-148kHz) 5GNR : 23dBm, LTE : 23dBm, UMTS : 24dBm, GSM 850/900 : 33dBm, DCS(1 800)/PCS(1 900) : 30dBm, Bluetooth/WLAN (2.4GHz) : <100…

Text truncated - open the document above for the full version.

Important information FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: August 3, 2022 Element Materials Technology Washington DC LLC (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Authorization Letter for Element Materials Technology Washington DC LLC (formerly PCTEST) FCC ID: PY7-76056F To Whom It May Concern: I, the undersigned, hereby authorize Element Materials Technology Washington DC LLC (formerly PCTEST) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Element Materials Technology Washington DC LLC (formerly PCTEST) on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Element Materials Technology Washington DC LLC (formerly PCTEST) as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: August 3, 2022 Element Materials Technology Washington DC LLC (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Attestation Letter FCC ID: PY7-76056F To Whom It May Concern: Sony Corporation hereby declares, 1. Bluetooth BDR/EDR Maximum Duty Cycle xDH5: On time = 6255μs x 5 slots, Off time = 625μs Therefore, Maximum Duty Cycle is (On time) / (On-time + Off time) = 83.3% From Duty Cycle measurement result, it is 77%, then Duty Cycle should be scaled to Maximum Duty Cycle 83.3% in reported SAR calculation. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: August 18, 2022 Element Materials Technology Washington DC LLC (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA 5G HAC Authorization Letter FCC ID: PY7-76056F To Whom It May Concern: We attest the handset as designed is expected to exhibit similar audio intensity levels between a OTT VoIP call placed over a 4G LTE and a 5G Sub-6GHz data connection. This device does not currently support VoNR but does not prohibit VoNR after sale when supported by the CMRS service provider. VoLTE may be transported over 5GNR sub 6GHz bands. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: August 8, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-76056F To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to grant long-term confidentiality request on the following attachments. - Schematic Diagram - Block Diagram - Theory of Operation - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

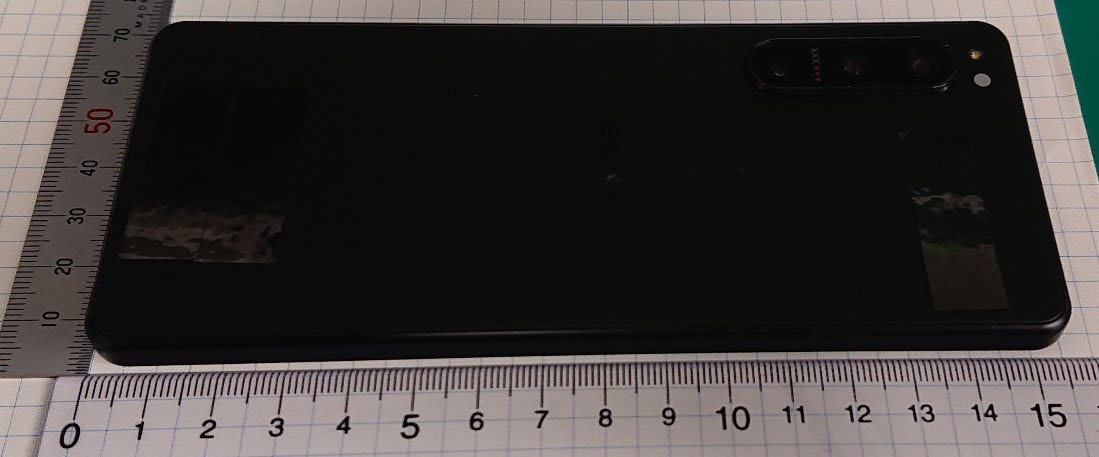

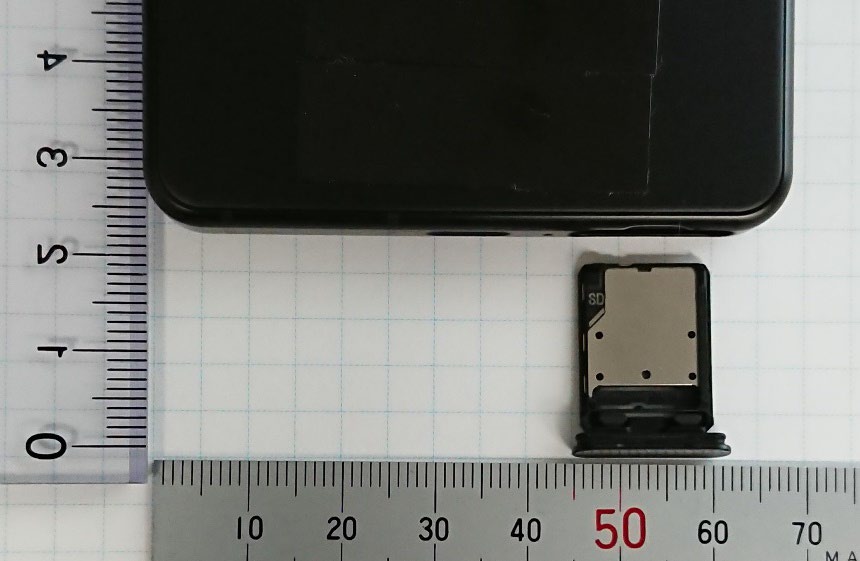

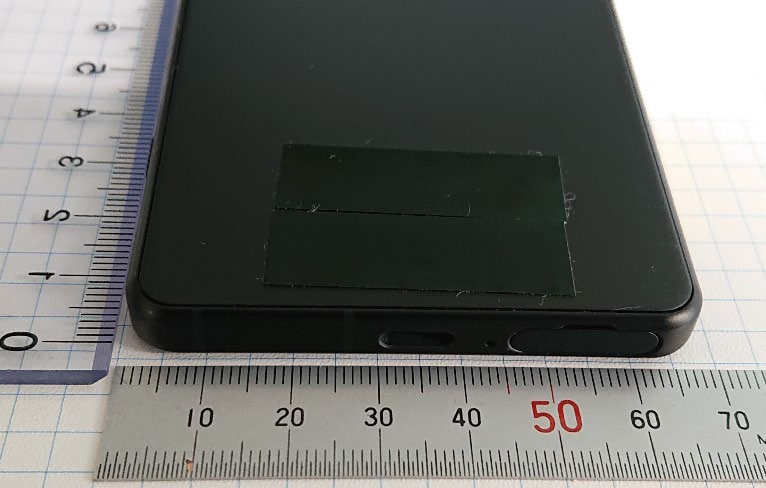

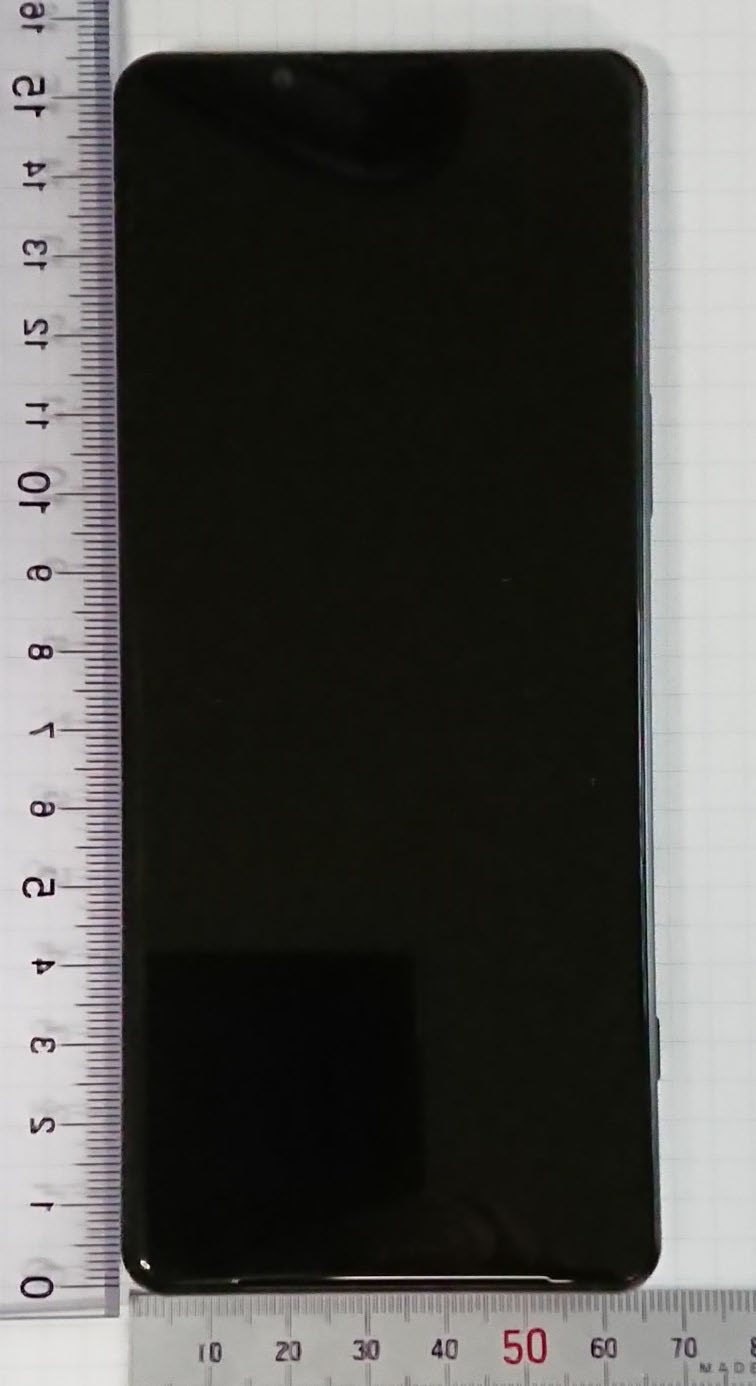

Sony Corporation 1(3) Document number Revision PA1 Date 2022-8-8 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-76056F External Photo Front Rear 2(3) Document number Revision PA1 Side view: Top/Bottom view: 3(3) Document number Revision PA1 SIM SLOT:

Sony Corporation 1(6) Document number Revision PA1 Date 2022-8-8 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-76056F Internal Photo Without Rear panel Rear panel Without PBA and Battery 2(6) Document number Revision PA1 Scale (unit : mm) Internal Main-PWB Front with Shield cases(Front-side) Internal Main-PWB Front without Shield cases (Front-side) 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 3(6) Document number Revision PA1 Internal Main-PWB Front (Rear-side) 10 20 30 40 50 10 20 30 40 50 4(6) Document number Revision PA1 Internal Main-PWB Rear with Shield case (Rear-side) Internal Main-PWB Rear without Shield case (Rear-side) Internal Main-PWB Rear with Shield case (Front-side) 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 5(6) Document number Revision PA1 Internal Main-PWB Rear without Shield case (Front-side) Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) 10 20 30 40 50 10 20 30 40 50 6(6) Document number Revision PA1 Battery:

FCC ID: PY7-76056F SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: 1M2205240063-03.PY7 DUT Type: Portable Handset Page 1 of 111 REV 22.0 03/30/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Date of Testing: Sony Corporation 06/27/2022 – 07/28/2022 1-7-1 Konan Minato-ku Test Site/Location: Tokyo, 108-0075, Japan Element, Columbia, MD, USA Document Serial No.: 1M2205240063-03.PY7 FCC ID: PY7-76056F APPLICANT: SONY CORPORATION DUT Type: Portable Handset Application Type: Certification FCC Rule Part(s): CFR §2.1093 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE C95.1-1992 and has been tested in accordance with the measurement procedures specified in Section 1.7 of this report; for North American frequency bands only. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Test results reported herein relate only to the item(s) tested. The SAR Tick is an initiative of the Mobile & Wireless Forum (MWF). While a product may be considered eligible, use of the SAR Tick logo requires an agreement with the MWF. Further details can be obtained by emailing: [email protected]. SAR 1g Head (W/kg) 1g Body- Worn (W/kg) 1g Hotspot (W/kg) 10g Phablet (W/kg) PCEGSM/DTM/GPRS/EDGE 850824.20 - 848.80 MHz0.210.190.22N/A PCEGSM/DTM/GPRS/EDGE 19001850.20 - 1909.80 MHz< 0.10.230.35N/A PCEUMTS 850826.40 - 846.60 MHz0.130.220.22N/A PCEUMTS 17501712.4 - 1752.6 MHz< 0.10.250.33N/A PCEUMTS 19001852.4 - 1907.6 MHz< 0.10.280.38N/A PCELTE Band 71665.5 - 695.5 MHz0.110.130.13N/A PCELTE Band 12699.7 - 715.3 MHz0.200.290.35N/A PCELTE Band 17706.5 - 713.5 MHzN/AN/AN/AN/A PCELTE Band 13779.5 - 784.5 MHz< 0.10.390.48N/A PCELTE Band 5 (Cell)824.7 - 848.3 MHz0.200.310.38N/A PCELTE Band 66 (AWS)1710.7 - 1779.3 MHz0.510.220.300.67 PCELTE Band 4 (AWS)1710.7 - 1754.3 MHzN/AN/AN/AN/A PCELTE Band 25 (PCS)1850.7 - 1914.3 MHz0.160.230.470.70 PCELTE Band 2 (PCS)1850.7 - 1909.3 MHz0.43< 0.1< 0.1N/A PCELTE Band 412498.5 - 2687.5 MHz< 0.10.120.21N/A CBELTE Band 483552.5 - 3697.5 MHz0.140.140.18N/A PCENR Band n71665.5 - 695.5 MHz0.110.260.26N/A PCENR Band n5 (Cell)826.5 - 846.5 MHz0.280.330.41N/A PCENR Band n66 (AWS)1712.5 - 1777.5 MHz0.200.290.401.03 PCENR Band n2 (PCS)1852.5 - 1907.5 MHz0.180.390.581.29 PCENR Band n412506.02 - 2679.99 MHz0.950.360.532.25 PCENR Band n773710.01 - 3969.99 MHz0.440.460.461.39 DTS2.4 GHz WLAN2412 - 2462 MHz0.650.120.18N/A NIIU-NII-15180 - 5240 MHzN/AN/A< 0.1N/A NIIU-NII-2A5260 - 5320 MHz0.40< 0.1N/A0.42 NIIU-NII-2C5500 - 5720 MHz0.17< 0.1N/A0.52 NIIU-NII-35745 - 5825 MHz0.23< 0.10.11N/A DSS/DTSBluetooth2402 - 2480 MHz0.17< 0.1< 0.1N/A DXXNFC13.56 MHzN/AN/AN/A< 0.1 1.591.211.313.92 Equipment Class Simultaneous SAR per KDB 690783 D01v01r03: Band & ModeTx Frequency ELEMENT MATERIALS TECHNOLOGY (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com SAR EVALUATION REPORT FCC ID: PY7-76056F SAR EVALUATION REPORT Approved by: Technical Manager Document S/N: 1M2205240063-03.PY7 DUT Type: Portable Handset Page 2 of 111 REV 22.0 03/30/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 DEVICE UNDER TEST .................................................................................................................................3 2 LTE AND NR INFORMATION .................................................................................................................... 15 3 INTRODUCTION ........................................................................................................................................ 17 4 DOSIMETRIC ASSESSMENT ................................................................................................................... 18 5 DEFINITION OF REFERENCE POINTS.................................................................................................... 19 6 TEST CONFIGURATION POSITIONS....................................................................................................... 20 7 RF EXPOSURE LIMITS ............................................................................................................................. 24 8 FCC MEASUREMENT PROCEDURES ..................................................................................................... 25 9 RF CONDUCTED POWERS ...................................................................................................................... 31 10 SYSTEM VERIFICATION ........................................................................................................................... 71 11 SAR DATA SUMMARY .............................................................................................................................. 77 12 SAR MEASUREMENT VARIABILITY ...................................................................................................... 106 13 EQUIPMENT LIST ..............…

Text truncated - open the document above for the full version.

APPENDIX A: SAR TEST PLOTS A1 ELEMENT DUT: PY7-76056F; Type: Portable Handset; Serial: 00043 Communication System: UID:10021 - DAC, GSM; MAIA: Y; Frequency: 848.8 MHz Medium: 835 Head; Medium parameters used: f = 848.8 MHz; cond = 0.905 S/m; perm = 40.2; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/18/2022; Ambient Temp: 20.7°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7552; ConvF:(9.42,9.42,9.42); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: GSM 850, Right Head, Cheek, High Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.20 W/kg; Power Drift = 0.08 dB Peak SAR (extrapolated) = 0.297 W/kg SAR(1 g) = 0.176 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 75.3 % A2 ELEMENT DUT: PY7-76056F; Type: Portable Handset; Serial: 99989 Communication System: UID:10027 - DAC, GSM; MAIA: Y; Frequency: 1850.2 MHz Medium: 1900 Head; Medium parameters used: f = 1850.2 MHz; cond = 1.40 S/m; perm = 38.4; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/13/2022; Ambient Temp: 22.2°C; Tissue Temp: 22.3°C Probe: EX3DV4 - SN7552; ConvF:(8.08,8.08,8.08); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: GPRS 1900, DTM, Right Head, Cheek, Low Ch., 3 Tx Slots Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.00 W/kg; Power Drift = -0.12 dB Peak SAR (extrapolated) = 0.054 W/kg SAR(1 g) = 0.030 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 80.5 % A3 ELEMENT DUT: PY7-76056F; Type: Portable Handset; Serial: 00043 Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 836.6 MHz Medium: 835 Head; Medium parameters used: f = 836.6 MHz; cond = 0.893 S/m; perm = 40.3; density = 1000 kg/m3 Phantom Section: Left Head; Space: 0.00 mm Test Date: 07/18/2022; Ambient Temp: 20.7°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7552; ConvF:(9.42,9.42,9.42); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: UMTS 850, Left Head, Cheek, Mid Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.11 W/kg; Power Drift = 0.04 dB Peak SAR (extrapolated) = 0.148 W/kg SAR(1 g) = 0.107 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 88.9 % A4 ELEMENT DUT: PY7-76056F; Type: Portable Handset; Serial: 99948 Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 1752.6 MHz Medium: 1750 Head; Medium parameters used: f = 1752.6 MHz; cond = 1.42 S/m; perm = 39.6; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/17/2022; Ambient Temp: 21.0°C; Tissue Temp: 20.5°C Probe: EX3DV4 - SN7552; ConvF:(8.32,8.32,8.32); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: UMTS 1750, Right Head, Cheek, High Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.04 W/kg; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.064 W/kg SAR(1 g) = 0.037 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 83.4 % A5 ELEMENT DUT: PY7-76056F; Type: Portable Handset; Serial: 99948 Communication System: UID:10011 - CAB, WCDMA; MAIA: Y; Frequency: 1852.4 MHz Medium: 1900 Head; Medium parameters used: f = 1852.4 MHz; cond = 1.40 S/m; perm = 38.4; density = 1000 kg/m3 Phantom Section: Right Head; Space: 0.00 mm Test Date: 07/13/2022; Ambient Temp: 22.2°C; Tissue Temp: 22.3°C Probe: EX3DV4 - SN7552; ConvF:(8.08,8.08,8.08); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: UMTS 1900, Right Head, Cheek, Low Ch. Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Reference Value = 0.04 W/kg; Power Drift = 0.05 dB Peak SAR (extrapolated) = 0.059 W/kg SAR(1 g) = 0.038 W/kg Smallest distance from peaks to all points 3 dB below is > 15.0 mm Ratio of SAR at M2 to SAR at M1 = 86.2 % A6 ELEMENT DUT: PY7-76056F; Type: Portable Handset; Serial: 99948 Communication System: UID:10169 - CAE, LTE-FDD; MAIA: Y; Frequency: 680.5 MHz Medium: 750 Head; Medium parameters used: f = 680.5 MHz; cond = 0.869 S/m; perm = 44.0; density = 1000 kg/m3 Phantom Section: RightHead; Space: 0.00 mm Test Date: 07/20/2022; Ambient Temp: 21.0°C; Tissue Temp: 20.5°C Probe: EX3DV4 - SN7552; ConvF:(9.85,9.85,9.85); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 Mode: LTE Band 71, Right Head, Cheek, Mid Ch., 20 MHz Bandwidth QPSK, 1 RB, 0 RB Offset Area Scan (120.0 x 210.0): Measurement grid: dx=15.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Gr…

Text truncated - open the document above for the full version.

APPENDIX B: SAR DIPOLE VERIFICATION PLOTS B1 ELEMENT DUT: Dipole 13.0 MHz; Type: CLA-13 - SN1002 Communication System: UID: 0, CW; Frequency: 13.0 MHz Medium: 30 Head; Medium parameters used: f = 13.0 MHz; cond = 0.758 S/m; perm = 53.1; density = 1000 kg/m3 Phantom Section: Flat; Space: 0 mm Test Date: 07/10/2022; Ambient Temp: 22.1°C; Tissue Temp: 22.0°C Probe: EX3DV4 - SN7527; ConvF:(17.78,17.78,17.78); Calibrated: 2022-03-21 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1272; Calibrated: 2022-03-16 Phantom: ELI V8.0; Serial: 2077 Measurement SW: DASY Module SAR V16.0.0.116 13.0 MHz System Verification at 30.0 dBm (1000 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 1.05 W/kg SAR(10 g) = 0.328 W/kg Deviation (10 g) = -4.65% B2 ELEMENT DUT: Dipole 750.0 MHz; Type: D750V3 - SN1054 Communication System: UID: 0, CW; Frequency: 750.0 MHz Medium: 750 Head; Medium parameters used: f = 750.0 MHz; cond = 0.892 S/m; perm = 43.8; density = 1000 kg/m3 Phantom Section: Flat; Space: 15 mm Test Date: 07/20/2022; Ambient Temp: 21.0°C; Tissue Temp: 20.5°C Probe: EX3DV4 - SN7552; ConvF:(9.85,9.85,9.85); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 750 MHz System Verification at 23 dBm (200 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded Ratio: 1.5 Peak SAR (extrapolated) = 2.83 W/kg SAR(1 g) = 1.74 W/kg Deviation (1 g) = 2.11% B3 ELEMENT DUT: Dipole 835.0 MHz; Type: D835V2 - SN4d132 Communication System: UID: 0, CW; Frequency: 835.0 MHz Medium: 835 Head; Medium parameters used: f = 835.0 MHz; cond = 0.892 S/m; perm = 40.3; density = 1000 kg/m3 Phantom Section: Flat; Space: 15 mm Test Date: 07/18/2022; Ambient Temp: 20.7°C; Tissue Temp: 20.1°C Probe: EX3DV4 - SN7552; ConvF:(9.42,9.42,9.42); Calibrated: 2021-09-20 Sensor-Surface: 1.4mm (VMS + 6p) Electronics: DAE4 Sn1680; Calibrated: 2021-08-04 Phantom: Twin-SAM V8.0; Serial: 2065 Measurement SW: DASY Module SAR V16.0.2.83 835 MHz System Verification at 23 dBm (200 mW) Area Scan (40.0 x 90.0): Measurement grid: dx=10.0 mm, dy=15.0 mm Zoom Scan (30.0 x 30.0 x 30.0): Measurement grid: dx=6.0 mm, dy=6.0 mm, dz=1.5 mm; Graded…

Text truncated - open the document above for the full version.
