XXX Cautions on using the product Be sure to read this manual before use •In this manual, "Xperia XXX" is usually referred to as "the product" or "main unit". •In this manual, " (Quick Start Guide)" (Japanese), "Basic Manual", "Cautions on using the product" (this manual) and " (Full instruction manual)" (Japanese) are collectively referred to as "Instruction Manual". •Descriptions in this manual are based on Android™ 11. •In this manual, "au Nano IC Card 04" is abbreviated as "au IC card (SIM card)". •In this manual, "microSD™ memory card (commercially available)", "microSDHC™ memory card (commercially available)" and "microSDXC™ memory card (commercially available)" are abbreviated as "microSD memory card". •Company names and product names referred to in this manual are trademarks or registered trademarks of respective companies. The TM and ® marks may be omitted in this manual. Do not attach a metal object (e.g. a sticker whose material contains metal) to the Wireless Charging Pad (sold separately) or the product. Doing so might cause fire, burns, injury, etc. Do not place a metal object (e.g. a strap or clip whose material contains metal) between the Wireless Charging Pad (sold separately) and the product. Doing so might cause fire, burns, injury, etc. Remove the cover etc. from the product when charging with the Wireless Charging Pad (sold separately). Charging may fail depending on material or thickness of cover or foreign object between the product and the cover resulting in fire, burns, injury, etc. Power off the product near electronic devices or equipment operating on high precision control or weak signals. The radio waves from the product might interfere with the operation of electronic devices or equipment. * The following are some electronic devices or equipment that you should be careful of: Hearing aids, implantable cardiac pacemaker, implantable cardioverter defibrillator, other electronic medical equipment, and other automatically controlled devices or equipment. If you use an implantable cardiac pacemaker, implantable cardioverter defibrillator, or other electronic medical equipment, check with the medical electronic equipment manufacturer or vendor whether the operation can be affected by radio waves. If charging does not finish after specified time, stop charging. Failure to do so might cause fire, burns, injury, etc. due to overcharge etc. Always turn off the product before you enter a place where flammable gas may be present, or a place where dusts are generated. Stop charging the product if you are charging it. Ignition of flammable gas might cause explosion, fire, etc. If you hear thunder, do not touch the specified charging equipment (sold separately) or Wireless Charging Pad (sold separately). Doing so might cause electric shock etc. Do not short-circuit the charging terminal while it is connected to an outlet. Do not touch the charging terminal with your hands, fingers, or any part of your body. Doing so might cause fire, burns, electric shock, etc. Do not place heavy objects on a cable of the specified charging equipment (sold separately) or Wireless Charging Pad (sold separately), or do not apply unreasonable force to the cable such as pulling. Doing so might cause fire, burns, electric shock, etc. Do not contact metal objects to the specified charging equipment (sold separately) when connecting the plug to or disconnecting it from an outlet. Doing so might cause fire, burns, electric shock, etc. Do not connect the voltage converter (such as a travel converter for overseas travel) to the specified charging equipment (sold separately). Doing so might cause ignition, overheating, electric shock, etc. Do not put an excessive force to the connection part with the specified charging equipment (sold separately) connected to the product. Doing so might cause fire, burns, injury, electric shock, etc. Do not charge the product when it is wet with liquids such as water (drinking water, sweat, seawater, urine of pet animals, etc.) with the Wireless Charging Pad (sold separately). Doing so might cause fire, burns, injury, electric shock, etc. Never connect the USB Type-C plug to the product or the specified charging equipment (sold separately) when it is wet. Although the product has the waterproof property, inserting USB Type-C plug to the product when it is wet might cause electric shock or short-circuit due to the moisture or foreign substance on the product or USB Type-C plug, or might cause abnormal overheating, fire damage, fire, burns, or a fault if corrosion occurs. When using the product Before you start using the product, make sure to read the "Safety Precautions" to ensure correct use. Before you assume that the product is malfunctioning, visit the following au homepage. https://www.au.com/trouble-check/ (Japanese) Also refer to the "Online Manual" (Japanese) or " (Check here first)" in " (Full Instruction Manual)" (Japanese). https://www.au.com/online-manual/xxxx/ (Japanese) https://www.au.com/support/service/mobile/guide/manual/ (Japanese) •Communication is not possible even inside of the service area in places where the signal does not reach (e.g. tunnels and basements). Also, communication is sometimes not possible in poor signal reception areas. Communication is sometimes interrupted if you move into poor signal reception area during communication. •Since the product uses radio waves, the possibility of communication intercepts by third parties cannot be eliminated. (Though 5G/LTE/WiMAX 2+/ GSM/UMTS system has highly secure confidential communication features.) •For connecting to the emergency call acceptance organization, au VoLTE (LTE network) is used. 3G (Line exchange network) connection is not available. •The product is compatible with the au World Service. Each network service described in "Instruction Manual" varies depending on the area and service content. • Since the product is a radio station under the Radio Law, you may be asked to temporarily…

Text truncated - open the document above for the full version.

12 Quick Start Guide Names and functions of parts ① Headset connection terminal ② Second microphone *1*2 ③ Front camera ④ Earpiece/Speaker *1*2 ⑤ Proximity/Light sensor *2 : Switches the touch panel on and off to prevent from erroneous oper ation du ring a ca ll/ Auto-control fo r di splay brightness. ⑥ Notification LED ⑦ Display (Touch panel) ⑧ Speaker *1*2 ⑨ Mouthpiece/ Microphone *1*2 ⑩ USB Type-C™ connection terminal ⑪ Volume key/Zoom key ⑫ Power key/Fingerprint sensor *2 ⑬ Google Assistant key ⑭ Camera key ⑦ ⑧ ① ③ ④ ⑤ ⑥ ⑨ ⑩ ② ⑫ ⑬ ⑭ ⑪ ⑮ Flash/Photo light ⑯ RGBC-IR sensor *2 : Detects element of lighting source of shooting environment when shooting. ⑰ Main camera ⑱ 5G/4G antenna/ Wi-Fi ® antenna *3 ⑲ 5G/4G antenna *3 ⑳ 5G/4G antenna/ Wi-Fi ® /GPS/ Bluetooth ® antenna *3  au IC card (SIM card) *4  Wi-Fi ® /Bluetooth ® antenna *3  mark  Back cover *5  microSD memory card/au IC card (SIM card) slot ⑮⑯⑱ ⑳ ㉔ ㉕ ㉒ ㉑ ㉓ ⑲ ⑲ ⑲ ⑰ *1 Do not jab with a sharp object such as a needle. Doing so may cause a malfunction. *2 Note that covering these parts with stickers or fingers, etc. may hinder product performance. *3 The antenna is built into the main unit. Covering around the antenna by your hand may affect the quality of call/communication. *4 For details on handling au IC card (SIM card), refer to the "Online Manual" (Japanese) or "取扱説明書 詳細版 (Full instruction manual)" (Japanese) available on au homepage. *5 The back cover is not removable. Removing forcibly might cause damage or a malfunction. Also, battery is built into the main unit and not removable by customers. Online Manual (Japanese) Check "Online Manual" (Japanese) which describes detail explanations on various functions on the product from this procedure. In the Home screen, slide the screen up → [お客さ まサポート (Customer support)] → [取扱説明書 (Online Manual)] (Japanese) Also, you can check "Online Manual" (Japanese) on the au homepage. (https://www.au.com/online-manual/xxxx/(Japanese)) Descriptions in this manual are based on Android™ 11. For the latest edition, refer to the "Online Manual" (Japanese) or "取扱説明書 詳細版 (Full instruction manual)" (Japanese) available on au homepage. (https://www.au.com/support/service/mobile/guide/manual/ (Japanese) For inquiries, call: Customer Center For general information (toll free) From non-au mobile phones/general subscriber phones 0077-7-111 From au mobile phones 157 without area code June 2021, 1st Edition F-540-100-11(1) Business hours 9:00－20:00 (7 days a week) Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY Manufactured by: Sony Corporation Repair and Delivery Support Center In case above numbers are not available (toll free). 0120-977-033 In case above numbers are not available (toll free). 0120-925-314 For theft, loss, or malfunction (toll free) Business hours : 24 hours live support (7 days a week) From au mobile phones 113 without area code From non-au mobile phones/general subscriber phones 0077-7-113 (Repair and Delivery Service for members) Mobile phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing the logo regardless of brand and manufacturer to protect the environment and reuse valuable resources. For repair or replacement cell phone delivery service (toll free) Business hours 9:00－20:00 (7 days a week) From au mobile phones/non-au mobile phones/general subscriber phones 0120-925-919 3 5 4 6 au IC card (SIM card) Your phone number etc. is recorded in au IC card (SIM card). The product is compatible with au Nano IC Card 04. Attaching au IC card (SIM card) Before attaching au IC card (SIM card), make sure to turn off the product. 1 Remove the tray from the main unit Put your fingertip (nail) into the groove of the microSD memory card/au IC card (SIM card) slot and draw the cover straight out. 2 Set au IC card (SIM card) into the tray with the IC (metal) part facing down Pay attention to the location of the notch. Surely se t a u IC c ard (S IM c ard) in to th e tr ay no t to c ome o ff. FrontBack au Nano IC Card 04 IC (metal) part 3 Keep the product horizontal and then push the tray in straight Pay attention to the direction the tray is being pushed in. Firmly pr ess wh ere cir cled 〇, and check that there is no gap between the main unit and the microSD memory ca rd/au IC ca rd (S IM ca rd) sl ot cov er. Turning the power on/off ■ Turning the power on 1 Press and hold Power key until the product vibrates The lock screen appears. When "ようこそ (Welcome)" appears after the product is powered on, follow the onscreen instructions to set the initial settings. Swiping (flicking) the screen up displays the Home screen. ■ Turning the power off 1 Press and hold Power key (over one sec.) 2 [Power] → [Power off] ❖ Information • To restart the product in safe mode (start with almost default state), press and hold Power key (over one sec.) → [Power] → Long-touch "Power off" → [OK]. ■ Forcedly turning the power off 1 Press and hold Power key and the upper part of the volume key at the same time for approximately eight seconds, and release your fingers after the product vibrates three times consecutively FCC ID To view the regulatory compliance mark • In the Home screen, slide the screen up → [Settings] → [About phone] → [Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Packaged items Before you start using the product, make sure that you have all these packaged items with the product. • Xperia XXX • クイックスタートガイド (Quick Start Guide) (Japanese) • ご利用にあたっての注意事項 (Cautions on using the product) (Japanese) These items are not included in the package. • microSD memory card • AC adapter • Earphones • USB Type-C cable ❖ Information • Purchase a specified charger (sold separately). • The battery is built into the product. • Illustrations used in this manual are just images for explanations. They may be different from actual ones.

Sony Corproation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: April 1, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Authorization Letter for FCC applications To Whom It May Concern: Below individual is hereby authorized to sign applications, attestations and cover letters in regards of Sony Corporation applications, Grantee Code PY7. Tomonori Nagano Senior Manager Mobile Communications Business Group Sony Corporation Tel: +81367103241 Address: 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-mail: [email protected] Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation Tel: +81 3 6710 3225 Address: 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-mail: [email protected]

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: Ju ly 8, 2021 SPORTON INTERNATIONAL, INC No. 52, Hwa Ya 1st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan R.O.C Authorization Letter for Sporton FCC ID: PY7-77089S To Whom It May Concern: I, the undersigned, hereby authorize Sporton to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Sporton on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Sporton as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Tomonori Nagano Head of Type Approval, Quality Assurance Quality Assurance & Customer Services Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: Ju ly 8, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-77089S To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Antenna Specification - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Tomonori Nagano Head of Type Approval, Quality Assurance Quality Assurance & Customer Services Mobile Communications Business Group Sony Corporation

We are applying data reuse for FCC ID PY7-77089S(This device) based on lead model FCC ID PY7-45256F(lead1). WLAN and Bluetooth hardware of PY7- 77089S(This device) are HW identical to PY7-45256F(lead1). In addition, PY7-77089S(This device) digital circuit is identical to PY7-45256F(lead1). Therefore the following report of PY7-45256F(lead1) may be used as reference test data for PY7-77089S(This device), along with the spot check verification data. • WLAN • Bluetooth The unlicensed band data for the lead1 model remains representative for this device (equipment classes DSS, DTS and NII) and test reports for the lead model have been submitted. We are applying data reuse for FCC ID PY7-77089S(This device) based on lead model FCC ID PY7-38061M(lead2). NFC hardware of PY7-77089S(This device) are HW identical to PY7-38061M(lead2). In addition, PY7-77089S(This device) digital circuit is identical to PY7-38061M(lead2). Therefore the following report of PY7- 38061M(lead2) may be used as reference test data for PY7-77089S(This device), along with the spot check verification data. • NFC The unlicensed band data for the lead1 model remains representative for this device (equipment classes DXX) and test reports for the lead model have been submitted. FCC ID802.11 DTSBluetooth DTSBluetooth DSS802.11 NII PY7-45256F (lead) Report# FR132425C Report# FR132425BReport# FR132425A Report# FR132425E, FR132425F PY7-77089S This device Report# FR133143CReport# FR133143BReport# FR133143A Report# FR133143E,FR133143F Partial test data used to confirm that parent model data is representative for the variant model. Data for these bands is for reference only Indicates full set of test data. Values in this report to be listed on the grant for these bands. FCC IDNFC DXX PY7-38061M (lead2) Report# FR133140D PY7-77089S This device Report# FR133143D Indicates full set of test data. Values in this report to be listed on the grant for these bands. Partial test data used to confirm that parent model data is representative for the variant model. Data for these bands is for reference only

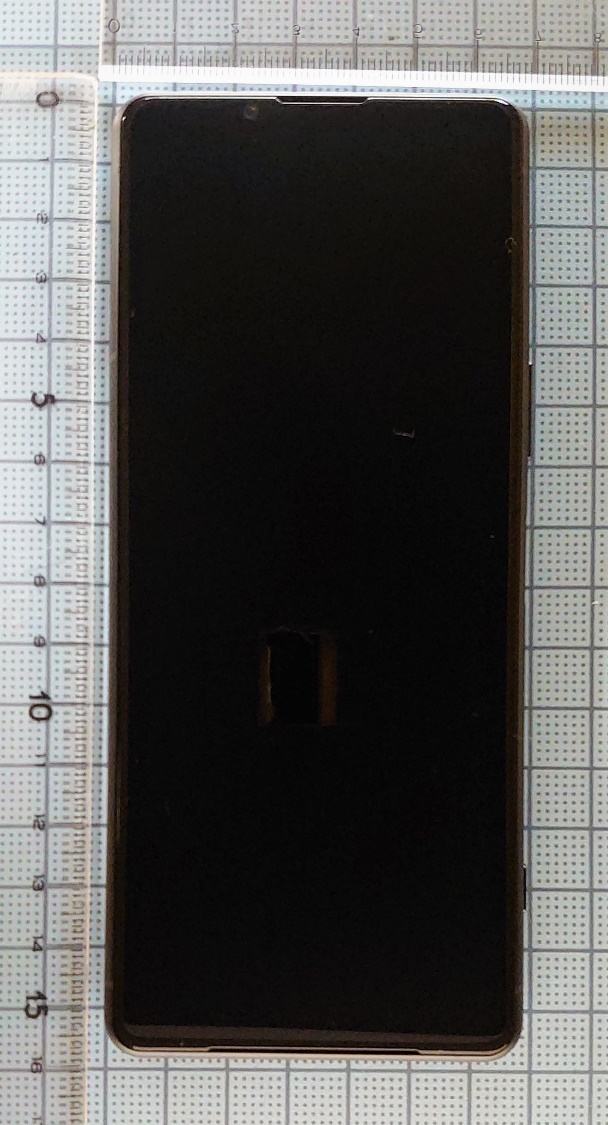

Sony Corporation Confidential REPORT 1(3) Document number Revision PA1 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-77089S External Photo Front Rear Confidential REPORT 2(3) Document number Revision PA1 Side view: Top/Bottom view: Confidential REPORT 3(3) Document number Revision PA1 SIM SLOT:

Confidential General 1(1) Document number: Revision: 4 Date: 12 Remarks: Sony Corporation Prepared by: Contents responsible if other than preparer: Approved by: It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. E- Label and Label Location PY7-77089S 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings - > About Phone - > Certificates 2 Access to the required information on the e-label (1)The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark Find and tap [Settings]->[About Phone]- >[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2)Pr oducts must not require special accessories or supplemental plug-ins. (3)The regulatory information is clearly legible without the aid of magnification. (4)The regulatory information is secure. The user can not access and modify the regulatory information. (5)The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual.

Sony Corporation Confidential REPORT 1(5) Document number Revision PA1 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-77089S Internal Photo Without Rear panel Rear panel Without PBA and Battery Confidential REPORT 2(5) Document number Revision PA1 Internal Main-PWB Front with Shield cases(Front-side) Internal Main-PWB Front without Shield cases (Front-side) Internal Main-PWB Front (Rear-side) Confidential REPORT 3(5) Document number Revision PA1 Internal Main-PWB Rear with Shield cases (Rear-side) Internal Main-PWB Rear without Shield cases (Rear-side) Internal Main-PWB Rear with Shield cases (Front-side) Confidential REPORT 4(5) Document number Revision PA1 Internal Main-PWB Rear without Shield cases (Front-side) Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) Confidential REPORT 5(5) Document number Revision PA1 Battery:

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/25 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_210625 Medium parameters used: f = 750 MHz; σ = 0.893 S/m; ε r = 41.403; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7351; ConvF(10.52, 10.52, 10.52) @ 750 MHz; Calibrated: 2020/7/6 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2021/1/19 - Phantom: Twin-SAM V8.0 (30deg probe tilt)_Left; Type: QD 000 P41 Ax; Serial: 1303 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.93 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.25 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.32 W/kg SAR(1 g) = 2.12 W/kg; SAR(10 g) = 1.39 W/kg Maximum value of SAR (measured) = 2.88 W/kg 0 dB = 2.88 W/kg = 4.59 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/21 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_210621 Medium parameters used: f = 835 MHz; σ = 0.892 S/m; ε r = 42.332; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - SN7351; ConvF(10.16, 10.16, 10.16) @ 835 MHz; Calibrated: 2020/7/6 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2021/1/19 - Phantom: Twin-SAM V8.0 (30deg probe tilt)_Left; Type: QD 000 P41 Ax; Serial: 1303 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.33 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.46 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.83 W/kg SAR(1 g) = 2.4 W/kg; SAR(10 g) = 1.56 W/kg Maximum value of SAR (measured) = 3.30 W/kg 0 dB = 3.30 W/kg = 5.19 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/23 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System:CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_210623 Medium parameters used: f = 1750 MHz; σ = 1.337 S/m; ε r = 39.015; ρ = 1000 kg/m 3 Ambient Temperature：23.5 °C; Liquid Temperature：22.5 °C DASY5 Configuration: - Probe: EX3DV4 - SN7351; ConvF(8.55, 8.55, 8.55) @ 1750 MHz; Calibrated: 2020/7/6 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2021/1/19 - Phantom: Twin-SAM V8.0 (30deg probe tilt)_Left; Type: QD 000 P41 Ax; Serial: 1303 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 13.6 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 103.1 V/m; Power Drift = 0.01 dB Peak SAR (extrapolated) = 16.0 W/kg SAR(1 g) = 8.68 W/kg; SAR(10 g) = 4.64 W/kg Maximum value of SAR (measured) = 13.5 W/kg 0 dB = 13.5 W/kg = 11.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/22 System Check_Head_1900MHz DUT: D1900V2-5d185 Communication System:CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_210622 Medium parameters used: f = 1900 MHz; σ = 1.401 S/m; ε r = 40.25; ρ = 1000 kg/m 3 Ambient Temperature：23.1 °C; Liquid Temperature：22.1 °C DASY5 Configuration: - Probe: EX3DV4 - SN7351; ConvF(8.22, 8.22, 8.22) @ 1900 MHz; Calibrated: 2020/7/6 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2021/1/19 - Phantom: Twin-SAM V8.0 (30deg probe tilt)_Left; Type: QD 000 P41 Ax; Serial: 1303 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.91 W/kg Pin=50mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 46.74 V/m; Power Drift = 0.06 dB Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 1.88 W/kg; SAR(10 g) = 0.983 W/kg Maximum value of SAR (measured) = 2.92 W/kg 0 dB = 2.92 W/kg = 4.65 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/28 System Check_Head_2450MHz DUT: D2450V2-929 Communication System: CW ; Frequency: 2450 MHz;Duty Cycle: 1:1 Medium: HSL_2450_210628 Medium parameters used : f = 2450 MHz; σ = 1.81 S/m; ε r = 38.825; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7351; ConvF(7.66, 7.66, 7.66) @ 2450 MHz; Calibrated: 2020/7/6 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2021/1/19 - Phantom: Twin-SAM V8.0 (30deg probe tilt)_Left; Type: QD 000 P41 Ax; Serial: 1303 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Pin=50mW/Area Scan (71x71x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Maximum value of SAR (interpolated) = 4.17 W/kg Pin=50mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 48.52 V/m; Power Drift = 0.10 dB Peak SAR (extrapolated) = 5.01 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.19 W/kg Maximum value of SAR (measured) = 4.13 W/kg 0 dB = 4.13 W/kg = 6.16 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/24 System Check_Head_2600MHz DUT: D2600V2-1078 Communication System: CW ; Frequency: 2600 MHz;Duty Cycle: 1:1 Medium: HSL_2600_210624 Medium parameters used: f = 2600 MHz; σ = 1.98 S/m; ε r = 39.12; ρ = 1000 kg/m 3 Ambient Temperature：23.4 °C; Liquid Temperature：22.4 °C DASY5 Configuration: - Probe: EX3DV4 - …

Text truncated - open the document above for the full version.

0 dB = 0.166 W/kg = -7.80 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2021/6/21 #01_GSM850_GPRS (4 Tx slots)_Left Cheek_Ch128 Communication System: GSM850; Frequency: 824.2 MHz;Duty Cycle: 1:2.08 Medium: HSL_850_210621 Medium parameters used : f = 824.2 MHz; σ = 0.881 S/m; ε r = 42.46; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuration: - Probe: EX3DV4 - SN7351; ConvF(10.16, 10.16, 10.16) @ 824.2 MHz; Calibrated: 2020/7/6 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1424; Calibrated: 2021/1/19 - Phantom: Twin-SAM V8.0 (30deg probe tilt)_Left; Type: QD 000 P41 Ax; Serial: 1303 - Measurement SW: DASY52, Version 52.10 (4);SEMCAD X Version 14.6.14 (7483) Area Scan (71x121x1): Interpolated grid: dx=1.500 mm, dy=1.…
