PY7-84558EPortable Handset

Important information FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

1 SIM 2 PWR ON ©2023 Sony Corporation https://rd1.sony.net/help/ mobile/xperia-1m5/h_zz/ [EN] Startup guide [ES] Guía de inicio XQ-DQ62 [ES] Advertencia de temperatura alta Esta marca aparece cuando la temperatura superficial del producto aumenta durante su uso. Cuando esta marca aparece, significa que existe el riesgo de quemaduras si se continúa usando y sosteniendo el producto con la mano. En tal caso, no sostenga el producto directamente con la mano de forma continuada durante el uso. Loudness warning [EN] Loudness warning To prevent possible hearing damage, do not listen at high volume levels for long periods. [ES] Advertencia de volumen alto Para evitar posibles daños auditivos, no escuche el sonido a niveles de volumen elevado durante periodos prolongados. [EN] Instructions to prevent reasonably foreseeable mishandling of the battery This product has a built-in lithium-ion battery. Do not disassemble or alter the product. Do not expose this product, including the battery, to excessive heat, fire, etc., for an extended period of time. Do not subject this product, including the battery, to extreme low- temperature conditions that may result in overheating and thermal runaway. Disposing of the battery into fire or a hot oven or mechanically crushing or cutting the battery can result in an explosion. Leaving the battery in an extremely high-temperature surrounding environment can result in an explosion or the leakage of flammable liquid or gas. Subjecting the battery to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. The battery must be charged before use. Always use the Sony-branded charger and USB cable. Refer to the manufacturer’s instructions or equipment manual for proper charging instructions. After extended periods of storage, it may be necessary to charge and discharge the battery several times to obtain maximum performance. [ES] Instrucciones para evitar el abuso razonablemente previsible de la batería Este producto tiene una batería de iones de litio incorporada. No desmonte ni altere el producto. No exponga este producto, incluyendo la batería, a calor excesivo, fuego, etc., durante un período de tiempo prolongado. No someta este producto, incluida la batería, a condiciones de temperatura extremadamente bajas que puedan provocar recalentamiento o embalamiento térmico. Si la batería se desecha en el fuego o en un horno caliente o si la batería se aplasta o se corta mecánicamente, la batería puede explotar. Si la batería se deja en un entorno a temperatura extremadamente alta, la batería puede explotar o se pueden producir fugas de líquidos o gases inflamables. Si la batería se somete a presiones de aire extremadamente bajas, la batería puede explotar o se pueden producir fugas de líquidos o gases inflamables. La batería debe cargarse antes de su uso. Utilice siempre el cargador y el cable USB de marca Sony. Consulte las instrucciones del fabricante o el manual del equipo para obtener las instrucciones de carga adecuadas. Después de períodos prolongados de almacenamiento, puede ser necesario cargar y descargar la batería varias veces para obtener el máximo rendimiento. [EN] Legal information This Startup guide is published by Sony Corporation or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Corporation at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. Visit https://www.sony.net/Products/ smartphones/trademarks-and- copyright.html for more information. Warranty, SAR and usage guidelines For information about warranty, SAR (Specific Absorption Rate) and safety guidelines, please read the Important information provided under Settings > About phone > Legal information on your device. Owner’s record The model and IMEI numbers are located on the box of the unit. Record the IMEI number in the space provided below. Refer to them whenever you call upon Sony Customer Support regarding this product. Model No. _______________ IMEI No. _______________ DISPOSAL OF RECHARGEABLE BATTERIES You can help preserve our environment by returning your used rechargeable batteries to the collection and recycling location nearest you. For more information regarding recycling of rechargeable batteries, visit www.sony.com/ecotrade Caution: Do not handle damaged or leaking rechargeable batteries. Class I Laser Product Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. factory ID: STTB Declaration of Conformity XQ-DQ62 (PM-1432-BV) [EN] Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu [EN] Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives This product has been manufactured by or on behalf of Sony Corporation EU Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Supported frequency bands XQ-DQ62 5GNR (Bands n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29, 30, 32, 34, 38, 39, 40, 41, 46, 48,66, 71), UMTS HSPA+ (Bands 1, 2, 4, 5, 6, 8, 19), GSM…

Text truncated - open the document above for the full version.

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: April 13, 2023 Element Materials Technology Washington DC LLC (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Authorization Letter for Element Materials Technology Washington DC LLC (formerly PCTEST) FCC ID: PY7-84558E To Whom It May Concern: I, the undersigned, hereby authorize Element Materials Technology Washington DC LLC (formerly PCTEST) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Element Materials Technology Washington DC LLC (formerly PCTEST) on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Element Materials Technology Washington DC LLC (formerly PCTEST) as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation CFR 47 §2.903 and §2.911(d)(5) Attestation Date: April 13, 2023 FCC ID: PY7-84558E To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Applicant Information Sony Corporation FRN 0018919456 Mika Kaneko 1-7 -1 Konan Minato-ku Tokyo, 108-0075, Japan [email protected] 1. Sony Corporation (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Sony Corporation (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Mika Kaneko Chief Regulatory Compliance Manager Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: April 13 , 2023 Element Materials Technology Washington DC LLC (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA 5G HAC Authorization Letter FCC ID: PY7-84558E To Whom It May Concern: We attest the handset as designed is expected to exhibit similar audio intensity levels between a OTT VoIP call placed over a 4G LTE and a 5G Sub-6GHz data connection. This device does not currently support VoNR but does not prohibit VoNR after sale when supported by the CMRS service provider. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: April 13, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-84558E To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

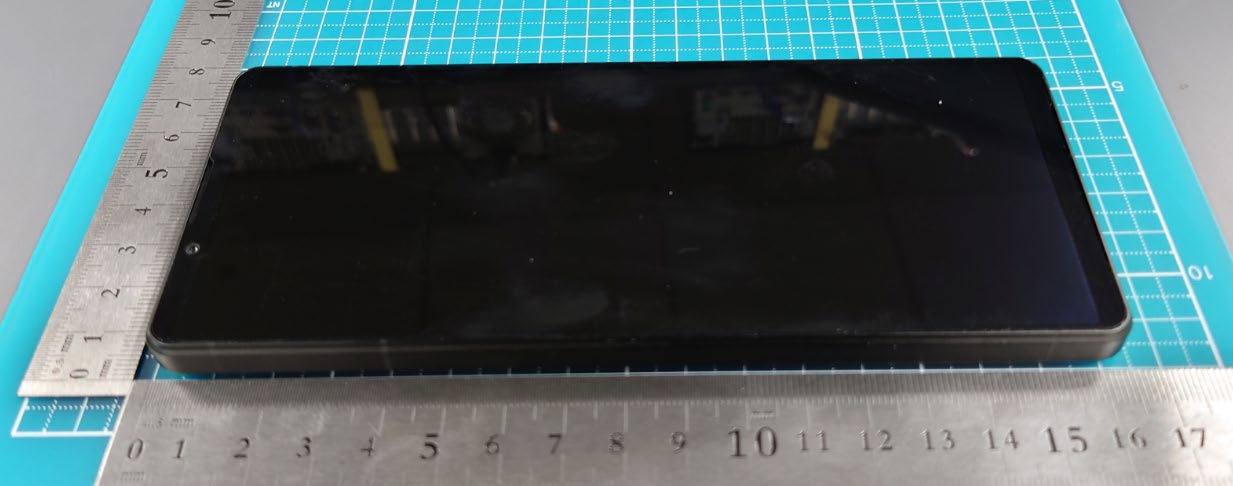

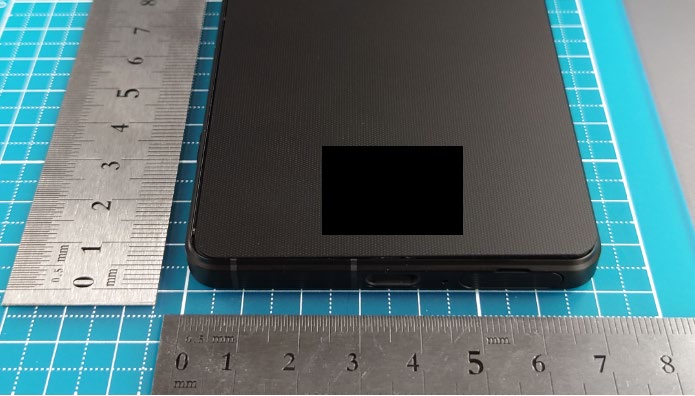

Sony Corporation 1(3) Document number Revision PA1 Date 2023-03-04 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-84558E External Photo Front Rear 2(3) Document number Revision PA1 Side view: Top/Bottom view: 3(3) Document number Revision PA1 SIM SLOT:

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E- Label and Label Location PY7-84558E 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label for purchasing and importation could be found on the packaging of the device sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual. FCC ID: PY7-84558E

Sony Corporation 1(5) Document number Revision PA1 Date 2023-3-22 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-84558E Internal Photo Without Rear panel Rear panel Without PBA and Battery 2(5) Document number Revision PA1 Combined ①Front PBA and ②Rear PBA with Shield cases (Front-side) Combined ①Front PBA and ②Rear PBA without Shield cases (Front-side) 3(5) Document number Revision PA1 Combined ①Front PBA and ②Rear PBA with Shield case (Rear-side) Combined ①Front PBA and ②Rear PBA without Shield case (Rear-side) 4(5) Document number Revision PA1 Only ①Front PBA (Rear-side) Only ②Rear PBA with Shield case (Front-side) Only ②Rear PBA without Shield case (Front-side) 5(5) Document number Revision PA1 Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) Battery:

FCC ID: PY7-84558E MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 6 1M2302060006-16.PY7 02/08/2023 - 03/03/2023 Portable Handset V 9.0 02/01/2019 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: Sony Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075 Japan Date of Testing: 02/08/2023 - 03/03/2023 Test Report Issue Date: 04/14/2023 Test Site/Location: Element Lab., Columbia, MD, USA Test Report Serial No.: 1M2302060006-16.PY7 FCC ID: PY7-84558E APPLICANT: Sony Corporation EUT Type: Portable Handset FCC Classification: PCS Licensed Transmitter Held to Ear (PCE) Citizens Band End User Devices (CBE) Digital Transmission System (DTS) Part 15 Spread Spectrum Transmitter (DSS) Unlicensed National Information Infrastructure TX (NII) 15E 6 GHz Low Power Indoor Client (6XD) FCC Rule Part: FCC Part 1 (§1.1310) and Part 2 (§2.1091) Test Procedure(s): KDB 447498 D01 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in FCC KDB 447498 D01. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RJ Ortanez Executive Vice President ELEMENT WASHINGTON DC LLC 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.element.com RF EXPOSURE EVALUATION Maximum Permissible Exposure (MPE) FCC ID: PY7-84558E MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 6 1M2302060006-16.PY7 02/08/2023 - 03/03/2023 Portable Handset V 9.0 02/01/2019 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................ 3 1.1 Introduction ............................................................................................................................................ 3 1.2 EUT Description ..................................................................................................................................... 3 1.3 Procedure .............................................................................................................................................. 4 2.0 CONCLUSION ................................................................................................................................. 6 FCC ID: PY7-84558E MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 6 1M2302060006-16.PY7 02/08/2023 - 03/03/2023 Portable Handset V 9.0 02/01/2019 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without written permission from Element. If you have any questions about this or have an inquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1.0 R F E X P O S U R E E V A L U A T I O N – M A X I M U M P E R M I S S I B L E E X P O S U R E ( M P E ) 1.1 Introduction This document is prepared to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The Sony FCC ID: PY7-8 4 5 58E is a Portable Handset containing 2.4GHz transmit output ports, 5GHz, and 6GHz transmit output ports capable for transmitting 802.11a/b/g/n/ac/ax modes and GSM/GPRS, WCDMA/HSPA, and Multi-band LTE, Multi-band 5G NR operation. This MPE evaluation will cover RF Exposure for simultaneous transmission modes of transmitters operating at maximum power. EUT: Company Name: Sony Corporation FCC ID: PY7-8 4 5 58E Antenna(s): Please see technical description for list of available antenna options FCC ID: PY7-84558E MAXIMUM PERMISSIBLE EXPOSURE REPORT Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 4 of 6 1M2302060006-16.PY7 02/08/2023 - 03/03/2023 Portable Handset V 9.0 02/01/2019 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic…

Text truncated - open the document above for the full version.

FCC ID: PY7-84558E COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2302060006-23.PY7 DUT Type: Portable Handset Page 1 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. ELEMENT MATERIALS TECHNOLOGY (formerly PCTEST) 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. +1.410.290.6652 / Fax +1.410.290.6654 http://www.element.com COMPLIANCE SUMMARY REPORT Applicant Name: Test Site/Location: Sony Corporation 1-7 -1 Konan Minato-ku Tokyo, 108-0075, Japan Element, Columbia, MD, USA Document Serial No.: 1M2302060006-23.PY7 FCC ID: PY7-84558E APPLICANT: SONY CORPORATION Report Type: DUT Type: Compliance Summary Portable Handset FCC ID: PY7-84558E COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2302060006-23.PY7 DUT Type: Portable Handset Page 2 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. TABLE OF CONTENTS 1 STRATEGY FOR COMPLIANCE DEMONSTRATION 3 1.1 RF Exposure Evaluation Strategy 3 1.2 Nomenclature 4 1.3 Bibliography 4 2 TIME AVERAGING ALGORITHM 5 2.1 Algorithm Description 5 2.2 Basic concept of the algorithm 6 2.3 Configurable Parameters 8 3 DUT DESCRIPTION 9 3.1 Device Overview 9 4 COMPLIANCE SUMMARY 10 4.1 RF Exposure Compliance Summary 10 FCC ID: PY7-84558E COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2302060006-23.PY7 DUT Type: Portable Handset Page 3 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1 STRATEGY FOR COMPLIANCE DEMONSTRATION 1.1 RF Exposure Evaluation Strategy The FCC RF exposure limits defined based on time-averaged RF exposure. The device under test (DUT) uses the Qualcomm Smart Transmit feature to control and manage transmitting power in real time and to ensure at all times the time-averaged RF exposure is in compliance with the FCC requirement for 2G/3G/4G/5G NR operations. Additionally, this device supports WLAN/BT/NFC technologies but the output power of these modems is not controlled by the smart transmit algorithm. Demonstrating compliance of DUT enabled with Qualcomm Smart Transmit feature is completed in three parts: 0. RF Exposure Compliance Test Report Part 0: SAR Characterization The SAR Characterization, denoted as SAR Char, determines the power limit that meets FCC exposure requirement after accounting for device design related uncertainties for each supported radio configuration and RF exposure usage scenario. The determined power limits will be loaded and stored in the EUT via the Embedded File System (EFS), and then used as inputs for Smart Transmit to operate. For 2G/3G/4G, SAR Char is derived from SAR test measurements and conducted power measurements to determine P Limit for each technology/band. The P Limit represents the maximum time- averaged power level for the corresponding radio/antenna configuration. 1. RF Exposure Compliance Test Report Part 1: Test in Static Transmission Condition Part 1 demonstrates that DUT meets FCC SAR limits when transmitting at pre-determined maximum time-averaged power level: P Limit for 2G/3G/4G. The SAR measurement in Part 1 is under static transmission condition. The compliance for WLAN/BT radio is demonstrated at a fixed power level (fixed = maximum RF tune-up level or power-back off level). The exposure from the simultaneous transmission of WWAN and WLAN/BT is evaluated in Part 1 report. 2. RF Exposure Compliance Test Report Part 2: Test in Dynamic Transmission Condition Part 2 demonstrates compliance in Tx varying transmission conditions and validates Qualcomm Smart Transmit algorithm. The test results reported in Part 2 demonstrates that DUT complies with FCC RF exposure requirement under Tx varying transmission scenarios, thereby validity of Qualcomm Smart Transmit algorithm. FCC ID: PY7-84558E COMPLIANCE SUMMARY REPORT Approved by: Technical Manager Document S/N: 1M2302060006-23.PY7 DUT Type: Portable Handset Page 4 of 10 REV 1.1 04/11/2022 Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from Element. If you have any questions or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. 1.2 Nomenclature Applicable Technologies Term Description 2G/3G/4G/5G Sub6 P Limit Power level that corresponds to the exposure design target (SAR_design_target) after accounting for all device design related uncertainties P Max Maximum tune up output power T SAR Defined time averaging window for f < 6 GHz SAR_design_target Target SAR level resulting in maximum time-averaged exposure optimized from total uncertainty SAR Char Table containing Plimit for all technologies reserve_power_margin Margin below P Limit reserved for future transmission P reserve Minimum transmit power with a designated margin below P Limit 1.3 Bibliography Report Type Report…

Text truncated - open the document above for the full version.

FCC ID: PY7-84558E PART 2 RF EXPOSURE EVALUATION REPORT Approved by: Technical Manager DUT Type: APPENDIX F: Page 1 of 2 Portable Handset © 2023 Element REV 1.0 04/06/2020 A P P E N D I X F : T E S T P R O C E D U R E S F O R S U B 6 N R + N R R A D I O Appendix F provides the test procedures for validating Qualcomm Smart Transmit feature for Sub6 NR standalone (SA) and LTE + Sub6 NR non-standalone (NSA) mode transmission scenario, where sub-6GHz LTE link acts as an anchor. SAR exposure switch validation with one simultaneous transmission scenario (i.e., either FR1 NSA or LTE interband ULCA) is sufficient as Smart Transmit operation is the same. NOTE: The antennas selected for the simultaneous transmission evaluation in Appendix F should be in the same antenna group NOTE: If multi_Tx_factor is set to > 1.0 with EFS version 19 (or higher), then in single Tx transmission scenarios, Smart Transmit ensures time-averaged RF exposure is ≤ (SAR_design_target * 10(+ sub6 device uncertainty/10)) < regulatory RF exposure limit for sub6 radio managed by Smart Transmit. In simultaneous Tx transmission scenarios, Smart Transmit ensures time-averaged RF exposure is ≤ (SAR_design_target * multi_Tx_factor * 10(+ sub6 device uncertainty/10)) < regulatory RF exposure limit for sub6 radios managed by Smart Transmit. These simultaneous transmission scenarios are listed below: ▪ 2-or-more radio scenarios within WWAN like EN-DC, LTE ULCA, etc. ▪ 2-or-more-radio acro…

Text truncated - open the document above for the full version.
