PY7-87607SGSM/WCDMA/LTE Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPC and NFC

Basic Manual SOG01 ⑫⑬ ⑰ ⑱ ⑯ ⑲ ⑳ ⑭⑮ ⑯ ㉑ ㉒ ㉓ ⑯ ㉔ ㉕ ㉖ 3 • • • 1 2 3 4 • 12 3 Basic Manual SOG01 ⑫ ⑬ ⑰ ⑱ ⑯ ⑲ ⑳ ⑭ ⑮ ⑯ ㉑ ㉒ ㉓ ⑯ ㉔ ㉕ ㉖ • FrontBack au Nano IC Card 04 IC (metal) part 3 • • • 1 2 3 4 1 2 3 2 3 4 1 2 1 2 • 1 • • • • • • • 1 2 3 1 2 1 2 • 1 1 • 1 • 1 2 • • • • • • • • • • • • • • • • • • • • • • 2 3 1 2 3 1 • 1 • 1 2 • 12 • • • • • • • • • • • • • • • 1 2 3 1 2 3 1 2 • 12 • 1 • • • • • • • • • • • ⑧ ⑨ ③ ① ④ ⑤ ⑥ ⑦ ⑩ ⑪ ② 1 2 3 1 2 • 1 12 12 • 1 • • 12 • 1 • • 12 • • 12 34 56 34 56 78 12 78 12 12 12 12 • • 12 12 • • 12 • • • 12 34 • • 12 12 12 • • 12 • • 12 12 34 1 12 • • 12 • • 12 34 56 1 12 1 2 3 • • • • 12 34 56 78 910 1 2 3 • • • • 12 78 910 • • 12 • 34 1 2 3 1 2 1 2 3 • 34 1 2 1 2 1 2 1 2 12 34 12 34 12 34 12 34 12 34 • • • • • • • • • • • • • • • • 178 71165 7.9 9.1 • For inquiries, call: Customer Service Center For general information (toll free) From non-au mobile phones/general subscriber phones 0077-7-111 From au mobile phones 157 without area code November 2019, 1st Edition 1320-4683.1 Business hours 9:00－20:00 (7 days a week) Mobile phone and PHS operators collect and recycle unused telephones, batteries and battery chargers at stores bearing the logo regardless of brand and manufacturer to protect the environment and reuse valuable resources. Sold by: KDDI CORPORATION, OKINAWA CELLULAR TELEPHONE COMPANY Manufactured by: Sony Mobile Communications Inc. Repair and Delivery Support Center For theft, loss, or malfunction (toll free) Business hours 9:00－20:00 (7 days a week) From au mobile phones/non-au mobile phones/general subscriber phones 0120-925-919 In case above numbers are not available (toll free). 0120-977-033 (except Okinawa) 0120-977-699 (Okinawa) In case above numbers are not available (toll free). 0120-925-314 For theft, loss, or malfunction (toll free) Business hours : 24 hours live support From au mobile phones 113 without area code From non-au mobile phones/general subscriber phones 0077-7-113

FCC Statement for the USA This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However , there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. Radio Wave Exposure and Specific Absorption Rate (SAR) Information ■ United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SOG01 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio tr ansmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a s afety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.35 W/kg*, when worn on the body is 0.27 W/kg* and when WiFi hotspot mode is 0.58 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any m etal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include "WiFi hotspot" functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party accessories may result in different SAR levels than those reported. ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of https://www.fcc. gov/oet/ea/fccid after searching on FCC ID PY7-87607S. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http:// www.emfexplained.info/. * In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. ** This paragraph is only applicable to authorities and customers in the United States.

Sony Mobile Communications, Inc. 4-12-3 Higashi-shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan Remarks This document is managed in Infodoc. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: January 16, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Power of Attorney for FCC applications To Whom It May Concern: Below individual is hereby authorized to sign applications, attestations and cover letters in regards of Sony Mobile Communications INC. applications, Grantee Code PY7. Tomonori Nagano Senior Manager Sony Mobile Communications Inc. Tel: +81367103241 Address: 4-12-3 Higashi-shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan E-mail: [email protected] Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Sony Mobile Communications Inc. Tel: +81 3 6710 3225 Address: 4-12-3 Higashi-shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan E-mail: [email protected]

Sony Mobile Communications, Inc. 4-12-3 Higashi-shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan Remarks This document is managed in Infodoc. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: February 21, 2020 SPORTON INTERNATIONAL, INC No. 52, Hwa Ya 1st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan R.O.C Authorization Letter for Sporton FCC ID: PY7-87607S To Whom It May Concern: I, the undersigned, hereby authorize Sporton to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Sporton on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing Sporton as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Sony Mobile Communications, Inc. 4-12-3 Higashi-shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan Remarks This document is managed in Infodoc. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Tomonori Nagano Head of Type Approval, Product Compliance Quality Assurance & Customer Services Sony Mobile Communications Inc.

Sony Mobile Communications, Inc. 4-12-3 Higashi-shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan Remarks This document is managed in Infodoc. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: February 21, 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-8 7607S To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Antenna Specification - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Tomonori Nagano Head of Type Approval, Product Compliance Quality Assurance & Customer Services Sony Mobile Communications Inc.

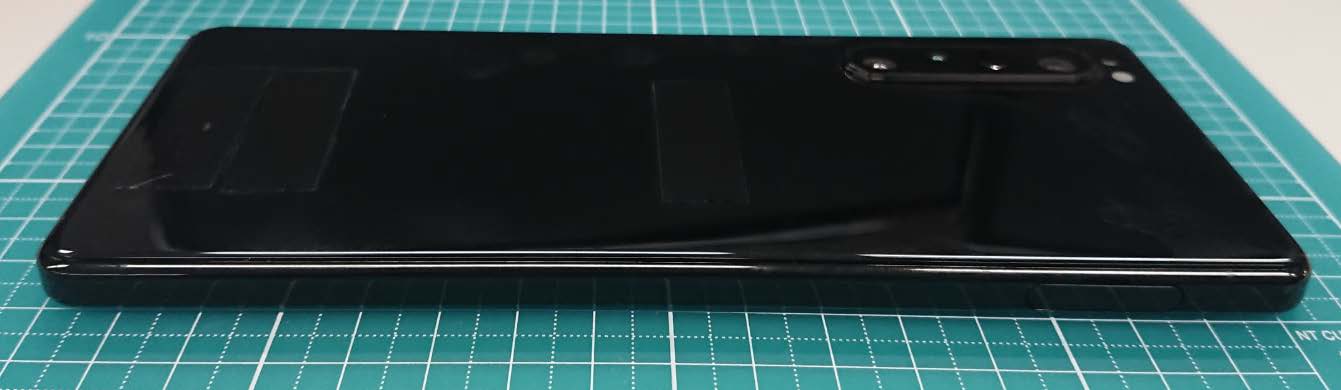

Sony Mobile Communications Confidential REPORT 1(3) Document number Revision PA1 Date 2020-02-19 Remarks This document is managed in Infodoc. It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-87607S External Photo Front Rear Confidential REPORT 2(3) Document number Revision PA1 Side view: Top/Bottom view: Confidential REPORT 3(3) Document number Revision PA1 SIM SLOT:

Sony Mobile Communications Confidential General 1(1) Document number: Revision: 000335176 4 Prepared by: Date: 12 Contents responsible if other than preparer: Remarks: Approved by: It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. E- Label and Label Location PY7-87607S 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual. FCC ID: PY7-87607S

Sony Mobile Communications Confidential REPORT 1(5) Document number Revision PA1 Date 2020-02-20 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-87607S Internal Photo Without Rear panel Rear panel Without PBA and Battery Confidential REPORT 2(5) Document number Revision PA1 Internal Main-PWB with Shield cases (Front-side) Internal Main-PWB without Shield cases (Front-side) Internal Main-PWB of Rear (Front-side) Confidential REPORT 3(5) Document number Revision PA1 Internal Main-PWB with Shield cases (Rear-side) Internal Main-PWB without Shield cases (Rear-side) Internal Main-PWB of Rear (Rear-side) Confidential REPORT 4(5) Document number Revision PA1 Internal Sub-PWB (Front-side) Internal Sub-PWB (Rear-side) Confidential REPORT 5(5) Document number Revision PA1 Battery:

TEL : 886-3-327-3456 Page 1 of 69 FAX : 886-3-328-4978 Issued Date : Feb. 21, 2020 Form version: 181113 FCC SAR TEST REPORT Report No. : FA9O1543-01 FCC SAR TEST REPORT FCC ID : PY7-87607S Brand Name : Sony Applicant : Sony Mobile Communications Inc. 4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan Manufacturer : Sony Mobile Communications Inc. 4-12-3 Higashi-Shinagawa, Shinagawa-ku, Tokyo, 140-0002, Japan Standard : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 The product was received on Jan. 21, 2020 and testing was started from Jan. 22, 2020 and completed on Feb. 11, 2020. We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the test procedures and has been in compliance with the applicable technical standards. The report must not be used by the client to claim product certification, approval, or endorsement by TAF or any agency of government. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory, the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. EMC & Wireless Communications Laboratory No. 52, Huaya 1st Rd., Guishan Dist., Taoyuan City, Taiwan (R.O.C.) Approved by: Cona Huang / Deputy Manager TEL : 886-3-327-3456 Page 2 of 69 FAX : 886-3-328-4978 Issued Date : Feb. 21, 2020 Form version: 181113 FCC SAR TEST REPORT Report No. : FA9O1543-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Guidance Applied .......................................................................................................................................................... 5 3. Equipment Under Test (EUT) Information ................................................................................................................... 5 3.1 General Information ............................................................................................................................................... 5 3.2 Device Serial Number ............................................................................................................................................ 6 3.3 General LTE SAR Test and Reporting Considerations ........................................................................................... 6 4. RF Exposure Limits....................................................................................................................................................... 8 4.1 Uncontrolled Environment ...................................................................................................................................... 8 4.2 Controlled Environment .......................................................................................................................................... 8 5. Specific Absorption Rate (SAR) ................................................................................................................................... 9 5.1 Introduction ............................................................................................................................................................ 9 5.2 SAR Definition ........................................................................................................................................................ 9 6. System Description and Setup ...................................................................................................................................10 6.1 E-Field Probe ........................................................................................................................................................ 11 6.2 Data Acquisition Electronics (DAE) ....................................................................................................................... 11 6.3 Phantom ................................................................................................................................................................12 6.4 Device Holder........................................................................................................................................................13 7. Measurement Procedures ...........................................................................................................................................14 7.1 Spatial Peak SAR Evaluation ................................................................................................................................14 7.2 Power Reference Measurement............................................................................................................................15 7.3 Area Scan .............................................................................................................................................................15 7.4 Zoom Scan ............................................................................................................................................................16 7.5 Volume Scan Procedures ......................................................................................................................................16 7.6 Power Drift Monitoring ...........................................................................................................................................16 8. Test Equipment List .....................................................................................................................................................17 9. System Verification ......................................................................................................................................................18 9.1 Tissue Simulating Liquids ..................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/30 System Check_Head_750MHz DUT: D750V3-1107 Communication System: CW ; Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL_750_200130 Medium parameters used: f = 750 MHz; σ = 0.903 S/m; ε r = 40.705; ρ = 1000 3 kg/m Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642; ConvF(9.16, 9.16, 9.16) @ 750 MHz; Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.72 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 59.35 V/m; Power Drift = -0.02 dB Peak SAR (extrapolated) = 3.24 W/kg SAR(1 g) = 2.18 W/kg; SAR(10 g) = 1.43 W/kg Maximum value of SAR (measured) = 2.89 W/kg 0 dB = 2.89 W/kg = 4.61 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/23 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_835_200123 Medium parameters used: f = 835 MHz; σ = 0.916 S/m; ε r = 40.919; ρ = 1000 3 kg/m Ambient Temperature：23.9 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642; ConvF(9.05, 9.05, 9.05) @ 835 MHz; Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.39 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 63.95 V/m; Power Drift = -0.09 dB Peak SAR (extrapolated) = 3.76 W/kg SAR(1 g) = 2.5 W/kg; SAR(10 g) = 1.64 W/kg Maximum value of SAR (measured) = 3.35 W/kg 0 dB = 3.35 W/kg = 5.25 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/31 System Check_Head_835MHz DUT: D835V2-4d167 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_200131 Medium parameters used: f = 835 MHz; σ = 0.913 S/m; ε r = 40.761; ρ = 1000 3 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642; ConvF(9.05, 9.05, 9.05) @ 835 MHz; Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.38 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 63.95 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 3.74 W/kg SAR(1 g) = 2.49 W/kg; SAR(10 g) = 1.63 W/kg Maximum value of SAR (measured) = 3.34 W/kg 0 dB = 3.34 W/kg = 5.24 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/3 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200203 Medium parameters used: f = 1750 MHz; σ = 1.378 S/m; ε r = 40.711; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(8.5, 8.5, 8.5) @ 1750 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn853; Calibrated: 2019/7/18 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1477 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 14.8 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 101.7 V/m; Power Drift = -0.11 dB Peak SAR (extrapolated) = 16.0 W/kg SAR(1 g) = 8.92 W/kg; SAR(10 g) = 4.8 W/kg Maximum value of SAR (measured) = 13.5 W/kg 0 dB = 13.5 W/kg = 11.30 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/4 System Check_Head_1750MHz DUT: D1750V2-1112 Communication System: CW; Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL_1750_200204 Medium parameters used: f = 1750 MHz; σ = 1.345 S/m; ε r = 40.571; ρ = 1000 3 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(5.45, 5.45, 5.45) @ 1750 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1305; Calibrated: 2019/4/30 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1684 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 11.3 W/kg Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 89.35 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 15.5 W/kg SAR(1 g) = 8.66 W/kg; SAR(10 g) = 4.61 W/kg Maximum value of SAR (measured) = 10.9 W/kg 0 dB = 10.9 W/kg = 10.37 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/4 System Check_Head_1900MHz DUT: D1900V2-5d041 Communication System: CW; Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL_1900_200204 Medium parameters used: f = 1900 MHz; σ = 1.416 S/m; ε r = 40.477; ρ = 1000 kg/m 3 Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: ES3DV3 - SN3184; ConvF(5.23, 5.23, 5.23) @ 1900 MHz; Calibrated: 2019/9/25 - Sensor-Surface: 3mm (Mechanical Surface Detection) - Electronics: DAE4 Sn1305; Calibra…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/1/23 #01_GSM850_GPRS (4 Tx slots)_Left Cheek_Ch189 Communication System: GSM850; Frequency: 836.4 MHz;Duty Cycle: 1:2.08 Medium: HSL_835_200123 Medium parameters used : f = 836.4 MHz; σ = 0.917 S/m; ε r = 40.912; ρ = 1000 kg/m 3 Ambient Temperature：23.9 °C; Liquid Temperature：22.9 °C DASY5 Configuration: - Probe: EX3DV4 - SN3642; ConvF(9.05, 9.05, 9.05) @ 836.4 MHz; Calibrated: 2019/4/29 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn854; Calibrated: 2019/5/21 - Phantom: SAM_Left; Type: QD000P40CD; Serial: TP:1682 - Measurement SW: DASY52, Version 52.10 (2);SEMCAD X Version 14.6.12 (7470) Area Scan (71x131x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.208 W/kg Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 14.85 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.228 W/kg SAR(1 g) = 0.168 W/kg; SAR(10 g) = 0.126 W/kg Maximum value of SAR (measured) = 0.204 W/kg 0 dB = 0.204 W/kg = -6.90 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2020/2/6 #02_GSM1900_GPRS (4 Tx slots)_Right Cheek_Ch661 Communication System: PCS; Frequency: 1880 MHz;Duty Cycle: 1:2.08 Medium: HSL_1900_200206 Medium parameters used: f = 1880 MHz; σ = 1.419 S/m; ε r = 40.407; ρ = 1000 3 kg/m Ambient Temperature：23.6 °C; Liquid Temperature：22.6 °C DASY5 Configuration: - Probe: EX3DV4 - SN7346; ConvF(8.07, 8.07, 8.07) @ 1880 MHz; Calibrated: 2019/4/25 - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Electronics: …

Text truncated - open the document above for the full version.
