PY7-93060RGSM/WCDMA/LTE Phone with BT, DTS/UNII a/b/g/n/ac/ax, GPS, WPT & NFC

INSTRUCTION MANUAL Introduction Thank you for your purchase of "SO-XXX". For proper use of the SO-XXX, read this manual carefully before and while you use the SO-XXX. About manuals " (Quick Start Guide)" (Supplied accessories) Part names and functions are explained. "Instruction Manual" application (Application of the terminal) (in Japanese only) Operations and settings of each function are explained. You can search by free word, open a setting screen or launch an application from a displayed page, etc. Use the terminal more conveniently with this application. [How to use] From the Home screen, u [Instruction Manual]. When using for the first time, download and install the application according to the onscreen instructions. You can also call up "Instruction Manual" application from "my daiz". If you uninstall "Instruction Manual" application, access Google Play from Play Store for installing it again. From the Home screen, tap [Play Store], search " (Instruction Manual)" application to select, then operate it following the onscreen instructions. "Instruction Manual" (PDF file) Operations and settings of each function are explained. It can be downloaded from NTT DOCOMO website. ❖ Note Important information for SO-XXX is posted in the following website. Be sure to check before using. https://xperia.sony.jp/support/ (in Japanese only) Operation descriptions In this manual, key icons (P.58) are described as , , . And operations for selecting icons or items in the key operations on the screens are described as follows. ❖ Information Please note that "SO-XXX" is called as "the terminal" in this manual. In this manual, the description is written based on the default state. "Wi-Fi" no tsukaikata "Wi-Fi" wo setsumeisho apuri de shirabemasu. DescriptionOperation Press and hold the shutter key for at least 1 second. Press and hold the shutter key on the side of the terminal for at least 1 second. From the Home screen, u . From the Home screen, tap , and then tap on the next screen. From the Home screen, u [Settings] u [Display]. From the Home screen, tap , and then tap "Settings" on the next screen and "Display" on the following screen. Touch and hold an icon. Keep touching an icon longer (1- 2 seconds). 1 In this manual, the easier procedure is described for the functions and settings which have multiple operating procedures. The terminal may have a software update of the operating system (OS) for the purpose of quality improvement or addition of functions. In that case, operation procedure may change. For the information about addition of functions or change of operation procedure, refer to NTT DOCOMO website And some applications that used in the previous OS version may not be available or some unintended bugs may occur. Some applications or services may not be available depending on your contract. For details, refer to NTT DOCOMO website. Contact to DOCOMO varies by your contract. For details on Inquiries, refer to the last page. In this manual, explanations for "docomo LIVE UX" as Home application are provided (P.84). If you set the other home application, the operations may differ from the descriptions. The contents of this manual and written URL are subject to change without prior notice. Screens and illustrations used in this manual are just images for explanations and may be different from the actual ones of the product. Reproduction or reprint of all or part of this manual without prior permission is prohibited. SO-XXX (Quick Start Guide) (in Japanese only) (Notes on usage) (in Japanese only) You can check or purchase optional devices (optional) compatible with the terminal in the DOCOMO online shop. https://onlineshop.smt.docomo.ne.jp/ options/search.html (in Japanese only) Supplied accessories Contents 2 Contents Supplied accessories. . . . . . . . . . . . . . . . . 1 Precautions . . . . . . . . . . . . . . . . . . 4 About using the terminal....................................................4 Recommended features ......................................................7 Safety Precautions (Always follow these directions) .....................................................................................8 Handling precautions......................................................... 19 Waterproofness/Dustproofness................................... 27 Before using the terminal . . . . 33 Part names and functions................................................ 33 nano SIM card.......................................................................... 35 microSD card ........................................................................... 38 Charging ..................................................................................... 41 FCC ID........................................................................................... 46 Turning power on/off......................................................... 47 Initial settings........................................................................... 48 Security codes for the terminal .................................... 50 Basic operations . . . . . . . . . . . . 53 Basic operations ..................................................................... 53 Character entry ....................................................................... 62 Notification LED ..................................................................... 68 Screen display and the icons ......................................... 68 Task manager........................................................................... 74 Split screen................................................................................ 75 Pop-up window ..................................................................... 76 SuguApp..................................................................................... 78 One-handed mode .............................................................. 82 Searching website information etc............................ 83 Home screen . . . .…

Text truncated - open the document above for the full version.

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: August 3, 2022 UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA Authorization Letter for UL Verification Services Inc. FCC ID: PY7-93060R To Whom It May Concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: August 3, 2022 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-93060R To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: August 4, 2022 PY7-93060R Data Reuse Justification and Summary To Whom It May Concern: We are applying data reuse for the variant model FCC ID PY7-93060R based on the parent model FCC ID PY7-58692W. Regarding WLAN/Bluetooth/WPT, both models share the same PCB layout, antennas, and components. The unlicensed band data for the parent model remains representative for the variant model (equipment classes DSS, DTS, NII, DFS and DCD) and test reports for the parent model plus test reports with the spot check data for the variant model have been submitted. The power to be listed on the F-731 and FCC grants for these bands are the values detailed in the parent reports as the spot check data shows all values within expected tolerances of the parent model. For RF Exposure, WPT RF Exposure data are referenced from the parent model FCC ID: PY7-58692W and are leveraged to cover the variant FCC ID: PY7-93060R. The variant model SAR report has full tested data for both the licensed bands and WLAN/Bluetooth. FCC ID Bluetooth DSS Bluetooth DTS 802.11 DTS 802.11 NII DFS WPT DCD WPT RF Exposure PY7-58692W Parent 1M2207200079 -05.PY7 1M2207200079 -06.PY7 1M2207200079 -08.PY7 1M2207200079 -09.PY7 1M2207200079 -10.PY7 1M2207200079 -11.PY7 1M2207200079 -12.PY7 1M2207200079 -15.PY7 1M2207200079 -18.PY7 PY7-93060R Variant R14311585-E2 R14311585-S3 Indicates full set of test data. Values in this report to be listed on the grant for these bands. Partial test data used to confirm that the parent model data is representative for the variant model. Data for these bands is for reference only Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation

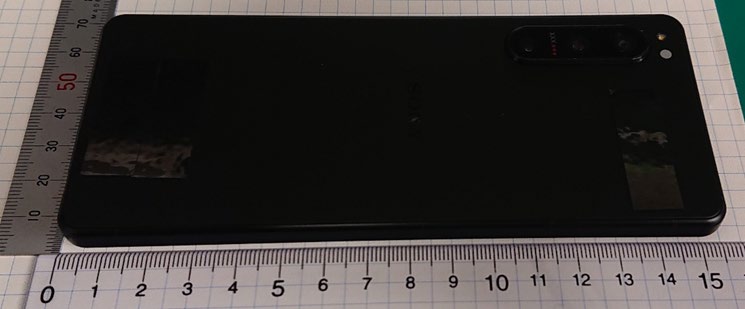

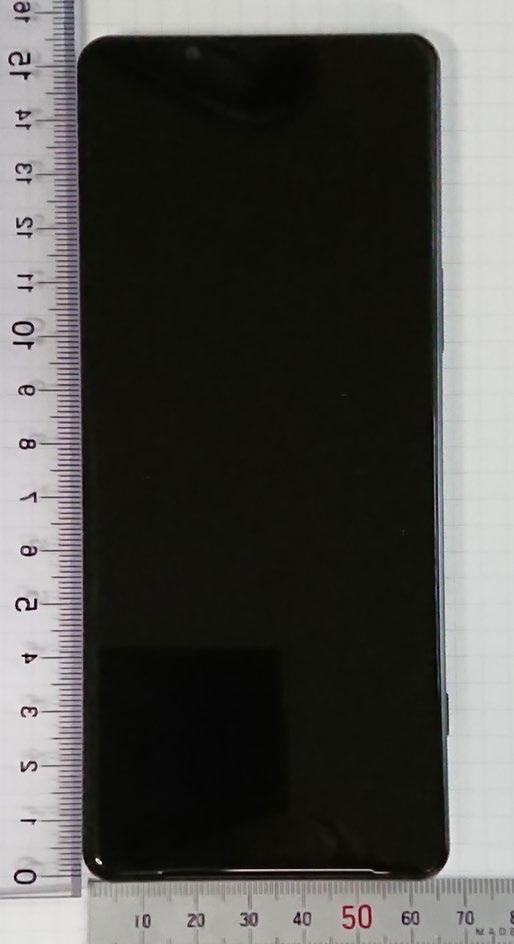

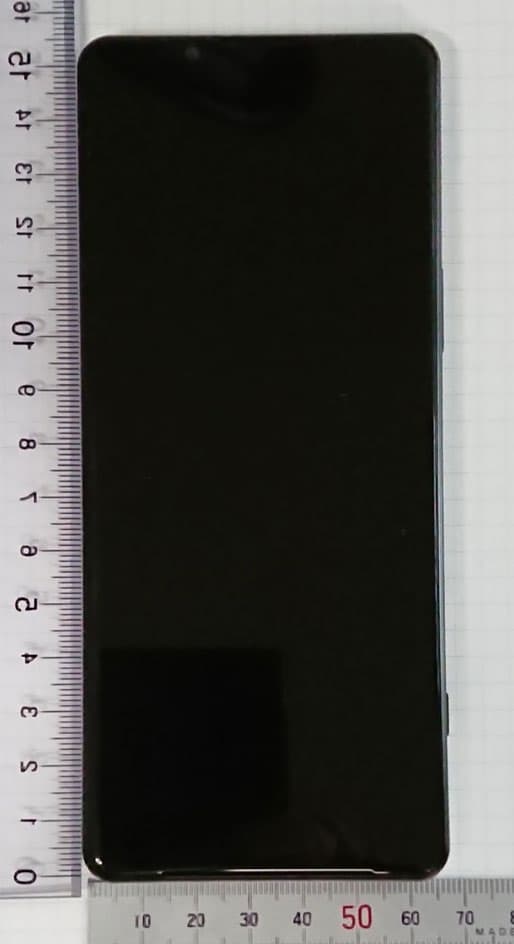

Sony Corporation Confidential REPORT 1(3) Document number Revision PA1 Date 2022-02-22 Remarks It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-93060R External Photo Front Rear Confidential REPORT 2(3) Document number Revision PA1 Side view: Top/Bottom view: Confidential REPORT 3(3) Document number Revision PA1 SIM SLOT:

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-Label and Label Location PY7-93060R 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual.

Sony Corporation Confidential REPORT 1(6) Document number Revision PA1 Date 2022-2-22 It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-93060R Internal Photo Without Rear panel Rear panel Without PBA and Battery Confidential REPORT 2(6) Document number Revision PA1 Scale (unit : mm) Internal Main-PWB Front with Shield cases(Front-side) Internal Main-PWB Front without Shield cases (Front-side) 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 Confidential REPORT 3(6) Document number Revision PA1 Internal Main-PWB Front (Rear-side) 10 20 30 40 50 10 20 30 40 50 Confidential REPORT 4(6) Document number Revision PA1 Internal Main-PWB Rear with Shield case (Rear-side) Internal Main-PWB Rear without Shield case (Rear-side) Internal Main-PWB Rear with Shield case (Front-side) 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 10 20 30 40 50 Confidential REPORT 5(6) Document number Revision PA1 Internal Main-PWB Rear without Shield case (Front-side) Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) 10 20 30 40 50 10 20 30 40 50 Confidential REPORT 6(6) Document number Revision PA1 Battery:

Plot No. 1 Test Laboratory: UL LLC SAR 1A Date/Time: 2022-07-28, 13:30 2022-07-28 System Performance Check Report D5GHzV2 - SN1213 Summary Dipole D5GHzV2 - SN1213 Frequency [MHz] 5750.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] -7.9 Power [dBm] 17.0 Iso. Error [%] 3.1 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 34.0 Conversion Factor 4.7 TSL Conductivity [S/m] 5.08 Hardware Setup Probe | Calibration Date EX3DV4 - SN7549 | 2022-02-21 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2084 DAE | Calibration Date DAE4 Sn1715 | 2022-02-22 TSL | Meas. Date HBBL-600-10000 | 2022-Jul-28 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 22.0 x 22.0 x 22.0 Grid Steps [mm] 10.0 x 10.0 4.0 x 4.0 x 1.4 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 60.5 Dist 3dB Peak [mm] 7.6 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 3.41 3.61 psSAR10g [W/Kg] 0.970 1.02 Power Drift [dB] 0.01 -0.00 Plot No. 2 Test Laboratory: UL LLC SAR 1A Date/Time: 2022-08-01, 14:12 2022-08-01 System Performance Check Report D5GHzV2 - SN1213 Summary Dipole D5GHzV2 - SN1213 Frequency [MHz] 5250.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] -1.5 Power [dBm] 17.0 Iso. Error [%] -2.0 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 35.1 Conversion Factor 5.14 TSL Conductivity [S/m] 4.70 Hardware Setup Probe | Calibration Date EX3DV4 - SN7549 | 2022-02-21 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2084 DAE | Calibration Date DAE4 Sn1715 | 2022-02-22 TSL | Meas. Date HBBL-600-10000 | 2022-Aug-01 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 22.0 x 22.0 x 22.0 Grid Steps [mm] 10.0 x 10.0 4.0 x 4.0 x 1.4 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 65.0 Dist 3dB Peak [mm] 7.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 3.88 4.00 psSAR10g [W/Kg] 1.10 1.14 Power Drift [dB] -0.07 -0.08 Plot No. 3 Test Laboratory: UL LLC SAR 1A Date/Time: 2022-08-01, 14:21 2022-08-01 System Performance Check Report D5GHzV2 - SN1213 Summary Dipole D5GHzV2 - SN1213 Frequency [MHz] 5600.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 3.6 Power [dBm] 17.0 Iso. Error [%] -2.1 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 34.4 Conversion Factor 4.56 TSL Conductivity [S/m] 5.11 Hardware Setup Probe | Calibration Date EX3DV4 - SN7549 | 2022-02-21 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2084 DAE | Calibration Date DAE4 Sn1715 | 2022-02-22 TSL | Meas. Date HBBL-600-10000 | 2022-Aug-01 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 80.0 22.0 x 22.0 x 22.0 Grid Steps [mm] 10.0 x 10.0 4.0 x 4.0 x 1.4 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 62.0 Dist 3dB Peak [mm] 7.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 4.01 4.26 psSAR10g [W/Kg] 1.13 1.20 Power Drift [dB] 0.03 0.01 Plot No. 4 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-07, 16:47 2022-07-07 System Performance Check Report D750V3 - SN1139 Summary Dipole D750V3 - SN1139 Frequency [MHz] 750.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 0.9 Power [dBm] 17.0 Iso. Error [%] -3.5 Exposure Conditions Dipole Distance [mm] 15 TSL Permittivity 40.3 Conversion Factor 10.25 TSL Conductivity [S/m] 0.912 Hardware Setup Probe | Calibration Date EX3DV4 - SN7709 | 2022-02-25 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1714 | 2022-02-23 TSL | Meas. Date HBBL-600-10000 | 2022-Jul-07 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 86.9 Dist 3dB Peak [mm] > 15.0 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.414 0.412 psSAR10g [W/Kg] 0.278 0.268 Power Drift [dB] 0.00 0.01 Plot No. 5 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-11, 08:41 2022-07-11 System Performance Check Report D900V2 - SN1d180 Summary Dipole D900V2 - SN1d180 Frequency [MHz] 900.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 8.5 Power [dBm] 17.0 Iso. Error [%] 3.4 Exposure Conditions Dipole Distance [mm] 15 TSL Permittivity 40.0 Conversion Factor 9.77 TSL Conductivity [S/m] 0.990 Hardware Setup Probe | Calibration Date EX3DV4 - SN7709 | 2022-02-25 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1714 | 2022-02-23 TSL | Meas. Date HBBL-600-10000 | 2022-Jul-11 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 84.5 Dist 3dB Peak [mm] 20.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.541 0.545 psSAR10g [W/Kg] 0.354 0.348 Power Drift [dB] -0.00 0.04 Plot No. 6 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-21, 19:36 2022-07-21 System Performance Check Report D1900V2 - SN5d202 Summary Dipole D1900V2 - SN5d202 Frequency [MHz] 1900.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] 6.3 Power [dBm] 17.0 Iso. Error [%] 3.5 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 38.4 Conversion Factor 8.51 TSL Conductivity [S/m] 1.44 Hardware Setup Probe | Calibration Date EX3DV4 - SN7709 | 2022-02-25 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1714 | 2022-02-23 TSL | Meas. Date HBBL-600-10000 | 2022-Jul-21 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 40.0 x 90.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 10.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 81.1 Dist 3dB Peak [mm] 10.8 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 2.00 2.00 psSAR10g [W/Kg] 1.05 1.03 Power Drift [dB] -0.00 0.00 Plot No. 7 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-28, 19:30 2022-07-28 System Performance Check Report D5GHzV2 - SN1213 Summary Dipole D5GHzV2 - SN1213 Frequency [MHz] 5250.0 Phantom Section | TSL Flat | HSL Dev. Peak [%] -15.0 Power [dBm] 17.0 Iso. Error [%] 4.7 Exposure Conditions Dipole Distance [mm] 10 TSL Permittivity 36.3 Conversion Factor 5.75 TSL Conductivity [S/…

Text truncated - open the document above for the full version.

Head Tissue Simulating Liquids Application Specific absorption rate according to standards (e.g., IEC 62209-x, IEEE 1528) Packaging Plastic container of 10 liters with nozzle Life Time Life time and stability of the liquid depend on usage, storage, and handling of tissue simulating liquid Options Tissue simulating liquids for frequencies outside the below listed ranges are available upon request (please contact [email protected]) Head Tissue Parameters according to IEEE 1528 / IEC 62209-1/ IEC 62209-2 / FCC KDB 865664 Narrow- Band Solutions (±5% Tolerance) Product HSL300V2 HSL450V2 HSL750V2 HSL900V2 Test Frequency (MHz) 300 450 750 835, 900 Main Ingredients Water, Sugar Water, Sugar Water, Sugar Water, Sugar Broad- Band Solutions (±5% Tolerance) Product HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL3500-5800V5 Test Frequency (MHz) 1450 – 1800 1750 – 1850 1950 – 3000 3500 – 5800 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Oil Broad- Band Solutions (±10% Tolerance) Product HBBL4-250V3 HBBL1350-1850V3 HBBL1550-1950V3 HBBL1900-3800V3 HBBL600-10000V6 Test Frequency (MHz) 4 – 250 1300 – 1850 1550 – 1950 1900 – 3800 600 – 10000 Main Ingredients Water, Tween Water, Tween Water, Tween Water, Tween Water, Oil

Plot No. 1 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-09, 14:42 Measurement Report for GSM 850, TOUCH, Main, Normal Exposure Conditions Band GSM 850 TSL Permittivity 40.1 Frequency [MHz] | Channel Number 836.6 | 190 TSL Conductivity [S/m] 0.970 Group | UID GSM | 10090-DAC Phantom Section | TSL RightHead | HSL Conversion Factor 9.77 Test Distance [mm] 0.00 Communication Configuration GPRS-FDD (TDMA, GMSK, TN 0-4) Hardware Setup Probe | Calibration Date EX3DV4 - SN7709 | 2022-02-25 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1714 | 2022-02-23 TSL HBBL-600-10000 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 120.0 50.0 x 50.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 88.0 Dist 3dB Peak [mm] 17.3 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.136 0.139 psSAR10g [W/Kg] 0.092 0.103 Power Drift [dB] 0.02 0.18 Plot No. 2 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-09, 15:55 Measurement Report for GSM 850, REAR, Main, Normal Exposure Conditions Band GSM 850 TSL Permittivity 40.1 Frequency [MHz] | Channel Number 836.6 | 190 TSL Conductivity [S/m] 0.970 Group | UID GSM | 10090-DAC Phantom Section | TSL Flat | HSL Conversion Factor 9.77 Test Distance [mm] 10.00 Communication Configuration GPRS-FDD (TDMA, GMSK, TN 0-4) Hardware Setup Probe | Calibration Date EX3DV4 - SN7709 | 2022-02-25 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1714 | 2022-02-23 TSL HBBL-600-10000 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 120.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 77.5 Dist 3dB Peak [mm] 12.2 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.424 0.419 psSAR10g [W/Kg] 0.261 0.225 Power Drift [dB] -0.02 0.01 Plot No. 3 Test Laboratory: UL LLC SAR 2B Date/Time: 2022-07-12, 23:35 Measurement Report for PCS 1900, TOUCH, Main, Normal Exposure Conditions Band PCS 1900 TSL Permittivity 39.3 Frequency [MHz] | Channel Number 1880.0 | 661 TSL Conductivity [S/m] 1.44 Group | UID GSM | 10090-DAC Phantom Section | TSL RightHead | HSL Conversion Factor 8.42 Test Distance [mm] 0.00 Communication Configuration GPRS-FDD (TDMA, GMSK, TN 0-4) Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2022-03-11 Phantom Twin-SAM V5.0 (30deg probe tilt) - SN1742 DAE | Calibration Date DAE4 Sn1716 | 2022-03-08 TSL HBBL-600-10000 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 120.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 96.3 Dist 3dB Peak [mm] > 15.0 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.013 0.012 psSAR10g [W/Kg] 0.007 0.007 Power Drift [dB] -0.05 -0.06 Plot No. 4 Test Laboratory: UL LLC SAR 2B Date/Time: 2022-07-12, 23:53 Measurement Report for PCS 1900, FRONT, Main, Normal Exposure Conditions Band PCS 1900 TSL Permittivity 39.3 Frequency [MHz] | Channel Number 1880.0 | 661 TSL Conductivity [S/m] 1.44 Group | UID GSM | 10090-DAC Phantom Section | TSL Flat | HSL Conversion Factor 8.42 Test Distance [mm] 10.00 Communication Configuration GPRS-FDD (TDMA, GMSK, TN 0-4) Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2022-03-11 Phantom Twin-SAM V5.0 (30deg probe tilt) - SN1742 DAE | Calibration Date DAE4 Sn1716 | 2022-03-08 TSL HBBL-600-10000 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 120.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 59.6 Dist 3dB Peak [mm] 12.4 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.075 0.078 psSAR10g [W/Kg] 0.044 0.044 Power Drift [dB] 0.02 -0.04 Plot No. 5 Test Laboratory: UL LLC SAR 2B Date/Time: 2022-07-13, 00:35 Measurement Report for PCS 1900, EDGE 3, Main, Normal Exposure Conditions Band PCS 1900 TSL Permittivity 39.3 Frequency [MHz] | Channel Number 1880.0 | 661 TSL Conductivity [S/m] 1.44 Group | UID GSM | 10090-DAC Phantom Section | TSL Flat | HSL Conversion Factor 8.42 Test Distance [mm] 10.00 Communication Configuration GPRS-FDD (TDMA, GMSK, TN 0-4) Hardware Setup Probe | Calibration Date EX3DV4 - SN7711 | 2022-03-11 Phantom Twin-SAM V5.0 (30deg probe tilt) - SN1742 DAE | Calibration Date DAE4 Sn1716 | 2022-03-08 TSL HBBL-600-10000 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 103.2 x 120.0 30.0 x 30.0 x 30.0 Grid Steps [mm] 8.6 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 82.4 Dist 3dB Peak [mm] 12.0 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.148 0.152 psSAR10g [W/Kg] 0.081 0.085 Power Drift [dB] -0.04 -0.06 Plot No. 6 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-07, 13:19 Measurement Report for Band 5, UTRA/FDD, TOUCH, Main, Normal Exposure Conditions Band Band 5, UTRA/FDD TSL Permittivity 40.2 Frequency [MHz] | Channel Number 836.6 | 4183 TSL Conductivity [S/m] 0.966 Group | UID WCDMA | 10011-CAB Phantom Section | TSL RightHead | HSL Conversion Factor 9.77 Test Distance [mm] 0.00 Communication Configuration UMTS-FDD (WCDMA) Hardware Setup Probe | Calibration Date EX3DV4 - SN7709 | 2022-02-25 Phantom Twin-SAM V8.0 (30deg probe tilt) - SN2082 DAE | Calibration Date DAE4 Sn1714 | 2022-02-23 TSL HBBL-600-10000 Scans Setup Area Scan Zoom Scan Grid Extents [mm] 120.0 x 210.0 50.0 x 50.0 x 30.0 Grid Steps [mm] 15.0 x 15.0 6.0 x 6.0 x 1.5 Sensor Surface [mm] 3.0 1.4 Graded Grid Yes Yes M2/M1 [%] 93.9 Dist 3dB Peak [mm] 19.6 Measurement Results Area Scan Zoom Scan psSAR1g [W/Kg] 0.146 0.151 psSAR10g [W/Kg] 0.099 0.113 Power Drift [dB] -0.02 0.00 Plot No. 7 Test Laboratory: UL LLC SAR 2A Date/Time: 2022-07-07, 11:33 Measurement Report for Band 5, UTRA/FDD, REAR, Main, Normal Exposure Conditions Band Band 5, UTRA/FDD TSL Permittivity 40.2 Frequency [MHz] | Channel Number 836.6 | 4183 TSL Conductivity [S/m] 0.966 Group | UID WCDMA | 10011-CAB Phantom Section | TS…

Text truncated - open the document above for the full version.

CERTIFICATE OF CALIBRATION ISSUED BY UL INTERNATIONAL (UK) LTD DATE OF ISSUE: 11/Oct/2021 CERTIFICATE NUMBER : 14030223JD01A 5772 UL INTERNATIONAL (UK) LTD UNIT 1-3 HORIZON KINGSLAND PARK, WADE ROAD BASINGSTOKE, HAMPSHIRE RG24 8AH, UK TEL: +44 (0) 1256 312100 FAX: +44 (0) 1256 312001 Email: [email protected] Page 1 of 6 APPROVED SIGNATORY .................................... Naseer Mirza Customer : UL LLC 12 Laboratory Dr. RTP, NC 27709 USA Equipment Details: Description: Dipole Validation Kit Date of Receipt: 04/Oct/2021 Manufacturer: Speag Type/Model Number: D750V3 Serial Number: 1139 Calibration Date: 06/Oct/2021 Calibrated By: Masoo…

Text truncated - open the document above for the full version.
