PY7-95324MPortable Handset

OR 1 SIM 2 PWR ON Startup guide Ръководство „Бърз старт“ Úvodní příručka Kurzanleitung Installationsvejledning Alustusjuhend Guía de inicio Aloitusopas Guide de démarrage Οδηγός εκκίνησης Priručnik Használatbavételi útmutató Ræsihandbók Guida introduttiva Paleisties vadovas Sākšanas ceļvedis Opstartgids Oppstartsveiviser Instrukcja obsługi Manual de Iniciação Ghid de pornire Starthandbok Vodič za začetek uporabe Úvodná príručka Руководство по запуску Бастапқы нұсқаулық คู่มือเริ ่ มต้นการใช้งาน 用戶指南 ©2021 Sony Corporation https://rd1.sony.net/help/ mobile/xperia-pro-i/h_zz/ 503362731_PDX-217_SG leaflet RoW_GB ES RU KZ TH CT XQ-BE62/XQ-BE72 Printed in XXX (Printers logotype) 503362731_PDX-217_SG leaflet RoW_GB ES RU KZ TH CT Declaration of Conformity PM-1371-BV (XQ-BE62) / PM-1372-BV (XQ-BE72) [GB] Hereby, Sony Corporation declares that this equipment is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu [GB] Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives This product has been manufactured by or on behalf of Sony Corporation EU Importer: Sony Europe B.V. Inquiries to the EU Importer or related to product compliance in Europe should be sent to the manufacturer’s authorized representative, Sony Belgium, bijkantoor van Sony Europe B.V., Da Vincilaan 7-D1, 1930 Zaventem, Belgium. Supported frequency bands XQ-BE62 5GNR (Bands n1, n2, n3, n5, n7, n8, n20, n28, n38, n40, n41, n66, n71, n77, n78), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29, 32, 34, 38, 39, 40, 41, 46, 48, 66, 71), UMTS HSPA+ (Bands 1, 2, 4, 5, 6, 8, 19), GSM GPRS/EDGE (Bands 850, 900, 1 800, 1 900), Bluetooth (2.4GHz), WLAN (2.4GHz/5GHz), NFC (13.56MHz) 5GNR : 23dBm, LTE : 23dBm, UMTS : 24dBm, GSM 850/900 : 33dBm, DCS(1 800)/PCS(1 900) : 30dBm, Bluetooth/WLAN (2.4GHz) : <100mW, WLAN (5.15-5.35GHz, 5.47-5.725GHz) : <200mW, WLAN (5.735-5.835GHz) : <25mW, NFC : < 42dBμA/m at 10m XQ-BE72 5GNR (Bands n1, n3, n5, n7, n8, n28, n38, n40, n41, n77, n78, n79), LTE (Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28, 29, 34, 38, 39, 40, 41, 46, 66), UMTS HSPA+ (Bands 1, 2, 4, 5, 6, 8, 19), GSM GPRS/EDGE (Bands 850, 900, 1 800, 1 900), Bluetooth (2.4GHz), WLAN (2.4GHz/5GHz), NFC (13.56MHz) 5GNR : 23dBm, LTE : 23dBm, UMTS : 24dBm, GSM 850/900 : 33dBm, DCS(1 800)/PCS(1 900) : 30dBm, Bluetooth/WLAN (2.4GHz) : <100mW, WLAN (5.15-5.35GHz, 5.47-5.725GHz) : <200mW, WLAN (5.735-5.835GHz) : <25mW, NFC : < 42dBμA/m at 10m [GB] For customers in countries/regions other than the United States and Singapore: The 5 150 - 5 350MHz band and the tethering mode (AP mode) in the 5GHz band are restricted to indoor use only. [CT] 美國及新加坡以外之國家／地區的客戶： 5 1 50 - 5 3 50 MHz頻段和5 G Hz頻段的網際網路共用模式（AP模式）只限於室內 使用。 [GB] Supported frequency bands Some frequency bands might be turned off in certain markets or by certain operators. You can find your model number under Settings > About phone. [ES] Bandas de frecuencia admitidas Es posible que algunas bandas de frecuencia estén desactivadas en determinados mercados o por operadores específicos. Puede consultar el número de modelo en Ajustes > Información del teléfono. [RU] Поддерживаемые диапазоны частот Доступные диапазоны частот зависят от конкретной страны и оператора. Чтобы выяснить номер модели, выберите Настройки > О телефоне. [KZ] Қолдау көрсетілетін жиілік диапазондары Кейбір жиілік диапазондары кейбір нарықтарда өшірілген болуы мүмкін немесе кейбір операторлар тарапынан өшірілуі мүмкін. Үлгі нөмірін Параметрлер > Телефон туралы тармағынан таба аласыз. [TH] ย่านความถี่ที่รองรับ ย่านความถี่บางย่านอาจปิ ดใช้งานในบางประเทศหรือโดยผู้ให้บริการบางราย คุณสามารถค้นหาหมายเลขรุ่นได้ที่ การตั ้ งค่า > เกี่ยวกับโทรศ ั พท์ [CT] 支援的頻段 某些市場或服務商可能會關閉部分頻段。 您可以在設定>關於手機中找到您裝置的型號。 For the XQ-BE62 FCC Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. For additional information, please read the FCC Statement provided under Settings > About phone > Legal information > Important information > Statements on your device. For the XQ-BE72 [GB] Remarks on using wireless functions • Use of the Blue tooth function may be restricted in some countries/ regions. When you use the product outside of the country/region where you purchased it, check the laws and regulations of the local country/ region before use. • Use of wireless LANs may be restricted in some countries/regions. When you use the product outside of the country/region where you purchased it, check the laws and regulations of the local country/region before use. • The NFC r eader/writer function of the product complies with the regulations of the country/region of sale. When you use the product outside of the country/region where you purchased it, check the laws and regulations of the local country/region before use. [RU] Замечания по использованию беспроводных функций • Испо льзование функции Bluetooth может быть ограничено в некоторых странах/регионах. Если вы используете этот продукт за пределами страны/региона его приобретения, перед использованием ознакомьтесь с законами и постановлениями страны/региона использования. • Использование беспроводных ЛВС может быть ограничено в некоторых странах/регионах. Если вы используете этот продукт за пределами страны/региона его приобретения, перед использованием ознакомьтесь с законами и постановлениями страны/региона использования. • Функция чтения/записи NFC продукта соответствует стандартам беспроводной связи страны/региона продажи. Если вы используете этот продукт за пределами страны/региона его приобретения, перед использованием ознакомьтесь с законами и постановлениями страны/региона использования. …

Text truncated - open the document above for the full version.

501812514 Safety HAC FCC leaflet USCX Safety Guidelines Important information about hearing aid compatibility FCC Statement Safety Guidelines Before a device model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., at the ear and worn on the body) as required by the FCC for each model. Body worn measurements are made while the device is in use and worn on the body with a Sony accessory. The design and composition of an accessory can affect the body worn Specific Absorption Rate (SAR) levels for the device. Sony has not measured, and makes no representation about, the body worn SAR levels when the device is used with non-Sony accessories. Consumer Update on Wireless Devices Supplied by the U.S. Food and Drug Administration (FDA) - Center for Devices and Radiological Health Do wireless devices pose a health hazard? The available scientific evidence does not show that any health problems are associated with using wireless devices. There is no proof, however, that wireless devices are absolutely safe. Wireless devices emit low levels of radio frequency energy (RF) in the microwave range while being used. They also emit very low levels of RF when in the stand-by mode. Whereas high levels of RF can produce health effects (by heating tissue), exposure to low level RF that does not produce heating effects causes no known adverse health effects. Many studies of low level RF exposures have not found any biological effects. Some studies have suggested that some biological effects may occur, but such findings have not been confirmed by additional research. In some cases, other researchers have had difficulty in reproducing those studies, or in determining the reasons for inconsistent results. What is FDA’s role concerning the safety of wireless devices? Under the law, FDA does not review the safety of radiation-emitting consumer products such as wireless devices before they can be sold, as it does with new drugs or medical devices. However, the agency has authority to take action if wireless devices are shown to emit radio frequency energy (RF) at a level that is hazardous to the user. In such a case, FDA could require the manufacturers of wireless devices to notify users of the health hazard and to repair, replace or recall the devices so that the hazard no longer exists. Although the existing scientific data do not justify FDA regulatory actions, FDA has urged the wireless device industry to take a number of steps, including the following: • Support needed research into possible biological effects of RF of the type emitted by wireless devices; • Design wireless devices in a way that minimizes any RF exposure to the user that is not necessary for device function; and • Cooperate in providing users of wireless devices with the best possible information on possible effects of wireless device use on human health. FDA belongs to an interagency working group of the federal agencies that have responsibility for different aspects of RF safety to ensure coordinated efforts at the federal level. The following agencies belong to this working group: • National Institute for Occupational Safety and Health • Environmental Protection Agency • Federal Communications Commission • Occupational Safety and Health Administration • National Telecommunications and Information Administration The National Institutes of Health participates in some interagency working group activities, as well. FDA shares regulatory responsibilities for wireless devices with the Federal Communications Commission (FCC). All devices that are sold in the United States must comply with FCC safety guidelines that limit RF exposure. FCC relies on FDA and other health agencies for safety questions about wireless devices. FCC also regulates the base stations that the wireless device networks rely upon. While these base stations operate at higher power than do the wireless devices themselves, the RF exposures that people get from these base stations are typically thousands of times lower than those they can get from wireless devices. Base stations are thus not the subject of the safety questions discussed in this document. What kinds of devices are the subject of this update? The term wireless device refers here to hand-held wireless devices with built-in antennas, often called “cell,” “mobile,” or “PCS” devices. These types of wireless devices can expose the user to measurable radio frequency energy (RF) because of the short distance between the device and the user’s head. These RF exposures are limited by Federal Communications Commission safety guidelines that were developed with the advice of FDA and other federal health and safety agencies. When the device is located at greater distances from the user, the exposure to RF is drastically lower because a person’s RF exposure decreases rapidly with increasing distance from the source. The so-called “cordless devices,” which have a base unit connected to the telephone wiring in a house, typically operate at far lower power levels, and thus produce RF exposures far below the FCC safety limits. What are the results of the research done already? The research done thus far has produced conflicting results, and many studies have suffered from flaws in their research methods. Animal experiments investigating the effects of radio frequency energy (RF) exposures characteristic of wireless devices have yielded conflicting results that often cannot be repeated in other laboratories. A few animal studies, however, have suggested that low levels of RF could accelerate the development of cancer in laboratory animals. However, many of the studies that showed increased tumor development used animals that had been genetically engineered or treated with cancer-causing chemicals so as to be pre-disposed to develop cancer in the ab…

Text truncated - open the document above for the full version.

sar_xq-bc62_1_us SAR Information XQ-BE62 sar_xq-bc62_1_us Radio wave exposure and Specific Absorption Rate (SAR) information United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The XQ-BE62 mobile phone has been designed to comply with the applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy exposure for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation in scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardised methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.54 W/kg and when worn on the body is 0.42 W/kg and for WiFi hotspot mode is 0. 69 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 10 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party accessories may result in different SAR levels than those reported. Before a phone model is available for sale to the public in the US, it must 2 Internet version. For personal use only. sar_xq-bc62_1_us 3 Internet version. For personal use only. be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ ea/fccid/ after searching on FCC ID PY7-95324M. *In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements.

Sony Corproation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Date: April 1, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Authorization Letter for FCC applications To Whom It May Concern: Below individual is hereby authorized to sign applications, attestations and cover letters in regards of Sony Corporation applications, Grantee Code PY7. Tomonori Nagano Senior Manager Mobile Communications Business Group Sony Corporation Tel: +81367103241 Address: 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-mail: [email protected] Yours sincerely, ________________________________ Mika Kaneko Chief Regulatory Compliance Manager Mobile Communications Business Group Sony Corporation Tel: +81 3 6710 3225 Address: 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E-mail: [email protected]

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: September 24, 2021 PCTEST Engineering Lab., LLC 7185 Oakland Mills Road, Columbia, MD 21046 USA Authorization Letter for PCTEST FCC ID: PY7-95324M To Whom It May Concern: I, the undersigned, hereby authorize PCTEST to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by PCTEST on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing PCTEST as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. Yours sincerely, ________________________________ Tomonori Nagano Head of Product Safety, Quality Assurance Quality Assurance & Customer Services Mobile Communications Business Group Sony Corporation

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan Date: September 24, 2021 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Confidentiality Request Letter FCC ID: PY7-95324M To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Antenna Specification - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely, ________________________________ Tomonori Nagano Head of Product Safety, Quality Assurance Quality Assurance & Customer Services Mobile Communications Business Group Sony Corporation

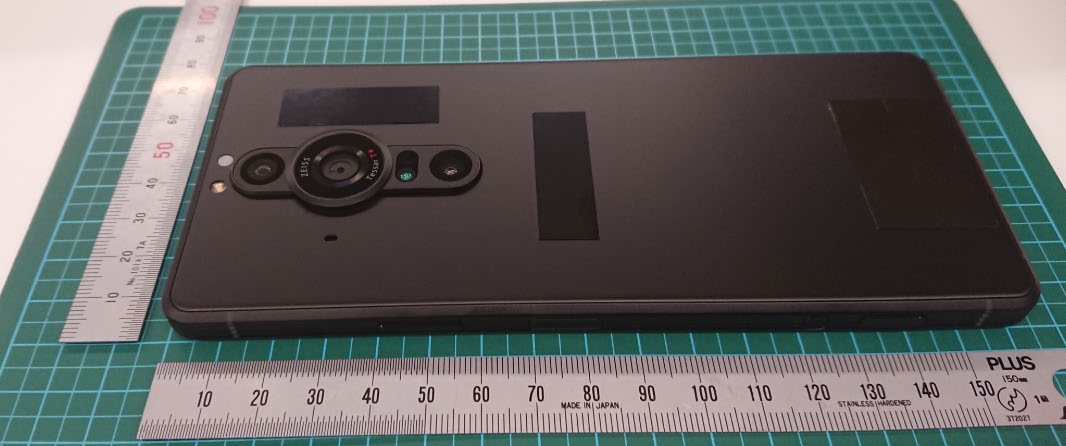

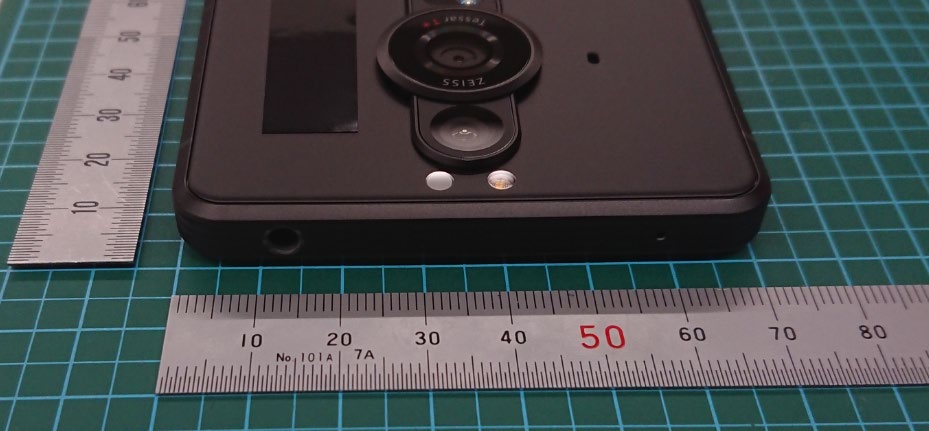

Sony Corporation 1(3) Revision PA1 Date 2021-08-12 FCC ID: PY7-95324M External Photo Front Rear 2(3) Revision PA1 Side view: Top/Bottom view: 3(3) Revision PA1 SIM SLOT:

Sony Corporation 1-7-1 Konan Minato-ku, Tokyo, 108-0075, Japan E- Label and Label Location PY7-95324M 1 E-Label Location Users can access the FCC ID information within 3 step as the followings. Setting from Main Menu Settings -> About Phone -> Certificates 2 Access to the required information on the e-label (1) The user manual directs the user where to find the FCC ID E-Label. To view the regulatory compliance mark  Find and tap [Settings]->[About Phone]->[Certificates] Regulatory compliance mark such as FCC ID is displayed on the screen. Special codes or permissions are not required the above steps beyond the normal security protection to unlock the screen. (2) Products must not require special accessories or supplemental plug-ins. (3) The regulatory information is clearly legible without the aid of magnification. (4) The regulatory information is secure. The user can not access and modify the regulatory information. (5) The physical temporary label or the label on the packaging for purchasing and importation is attached in case of the device is sold in the United States. 3 FCC Statement FCC15.19(a) statement can be seen in the manual. FCC ID: PY7-95324M

Sony Corporation 1(4) Revision PA1 Date 2021-8-12 FCC ID: PY7-95324M Internal Photo Without Rear panel Rear panel Without PBA and Battery 2(4) Revision PA1 Internal Main-PWB with Shield cases Front Side Internal Main-PWB without Shield cases (Front-side) 3(4) Revision PA1 Internal Main-PWB with Shield case (Rear-side) Internal Main-PWB without Shield case (Rear-side) 4(4) Revision PA1 Internal Sub-PWB (Front-side) Internal Sub-PBA (Rear-side) Battery:

FCC ID: PY7-95324M MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 1 of 13 1M2108040087-16.PY7 8/2/2021 - 9/10/2021 Portable Handset © 2021 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. Applicant Name: SONY Corporation 1-7-1 Konan Minato-ku Tokyo, 108-0075, Japan Date of Testing: 8/2/2021 - 9/10/2021 Test Site/Location: PCTEST Lab. Columbia, MD, USA Test Report Serial No.: 1M2108040087-16.PY7 FCC ID: PY7-95324M APPLICANT: SONY Corporation Application Type: EUT Type: FCC Rule Part(s): Test Procedure(s): Certification Portable Handset FCC Part 15 Subpart B ANSI C63.4-2014 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in ANSI C63.4-2014 (See Test Report). These measurements were performed with no deviation from the standards. Test results reported herein relate only to the item(s) tested. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST 7185 Oakland Mills Road, Columbia, MD 21046 USA Tel. 410.290.6652 / Fax 410.290.6654 http://www.pctest.com MEASUREMENT REPORT FCC Part 15B Receiver Spurious Emissions FCC ID: PY7-95324M MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 2 of 13 1M2108040087-16.PY7 8/2/2021 - 9/10/2021 Portable Handset © 2021 PCTEST V 9.0 02/01/2019 All rights reserved. Unless otherwise specified, no part of this report may be reproduced or utilized in any part, form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from PCTEST. If you have any questions about this international copyright or have an enquiry about obtaining additional rights to this report or assembly of contents thereof, please contact [email protected]. T A B L E O F C O N T E N T S 1.0 Introduction ...................................................................................................................................... 3 1.1 Scope..................................................................................................................................................... 3 1.2 PCTEST Test Location .......................................................................................................................... 3 1.3 Test Facility / Accreditations .................................................................................................................. 3 2.0 PRODUCT INFORMATION ............................................................................................................. 4 2.1 Equipment Description ........................................................................................................................... 4 2.2 Device Capabilities ................................................................................................................................ 4 2.3 Test Configuration ................................................................................................................................. 4 2.4 Software and Firmware .......................................................................................................................... 4 2.5 EMI Suppression Device(s)/Modifications .............................................................................................. 4 3.0 DESCRIPTION OF TESTS .............................................................................................................. 5 3.1 Evaluation Procedure............................................................................................................................. 5 3.2 Radiated Emissions ............................................................................................................................... 5 3.3 Environmental Conditions ...................................................................................................................... 5 4.0 SAMPLE CALCULATIONS .............................................................................................................. 6 4.1 Radiated Emission Measurement Sample Calculation .......................................................................... 6 5.0 Measurement Uncertainty ................................................................................................................ 7 6.0 TEST EQUIPMENT CALIBRATION DATA ...................................................................................... 8 7.0 TEST DATA ..................................................................................................................................... 9 7.1 Summary ............................................................................................................................................... 9 7.2 Radiated Measurement Data ............................................................................................................... 10 8.0 CONCLUSION ............................................................................................................................... 13 FCC ID: PY7-95324M MEASUREMENT REPORT (CERTIFICATION) Approved by: Technical Manager Test Report S/N: Test Dates: EUT Type: Page 3 of 13 1M210804…

Text truncated - open the document above for the full version.

SONY Corporation FCC ID: PY7-95324M Test Set-Up Photos EUT Type: Portable Handset Page 1 of 3 © 2021 PCTEST V 9.0 02/01/2019 T E S T S E T U P P H O T O G R A P H S SONY Corporation FCC ID: PY7-95324M Test Set-Up Photos EUT Type: Portable Handset Page 2 of 3 © 2021 PCTEST V 9.0 02/01/2019 SONY Corporation FCC ID: PY7-95324M Test Set-Up Photos EUT Type: Portable Handset Page 3 of 3 © 2021 PCTEST V 9.0 02/01/2019
