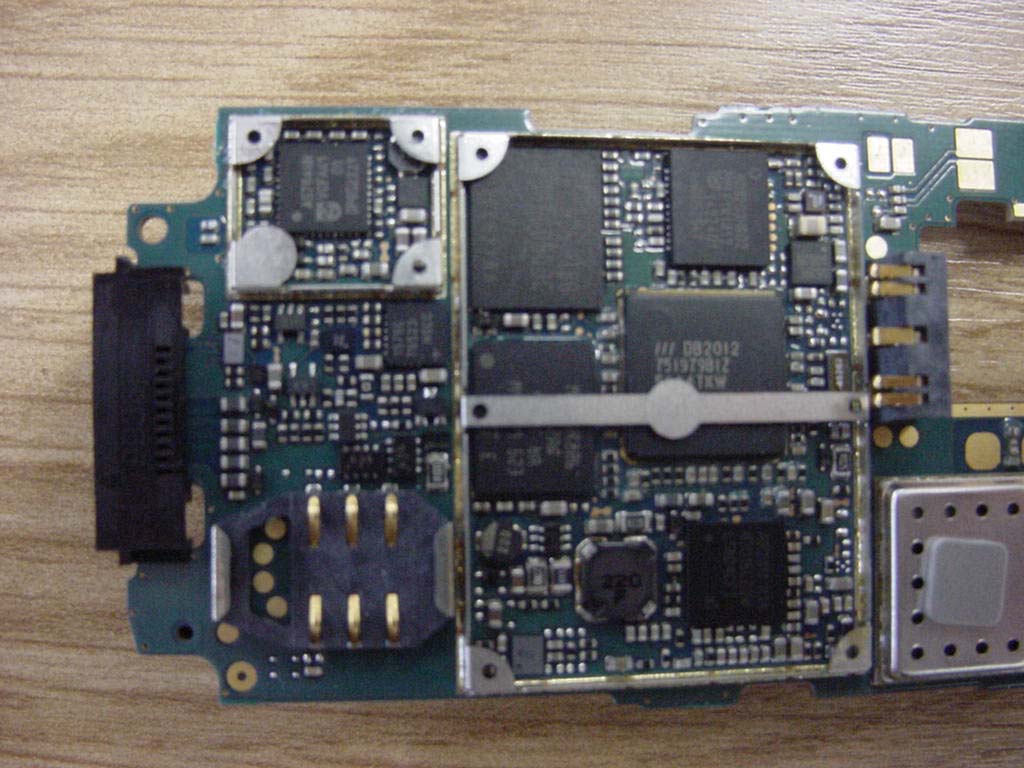

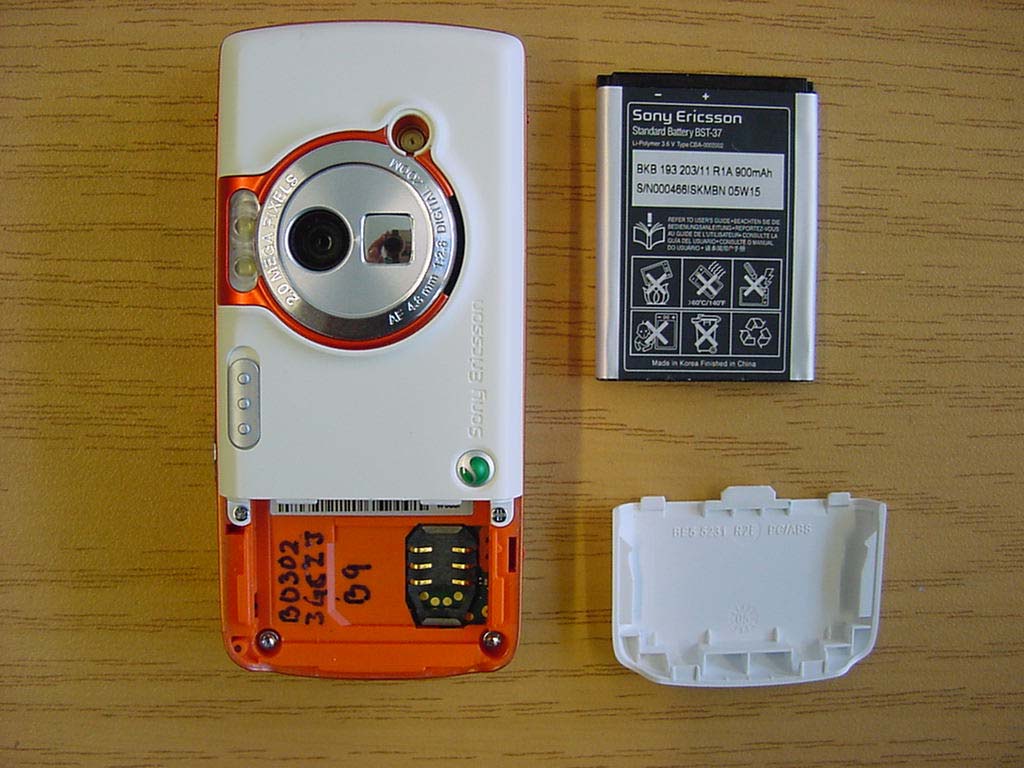

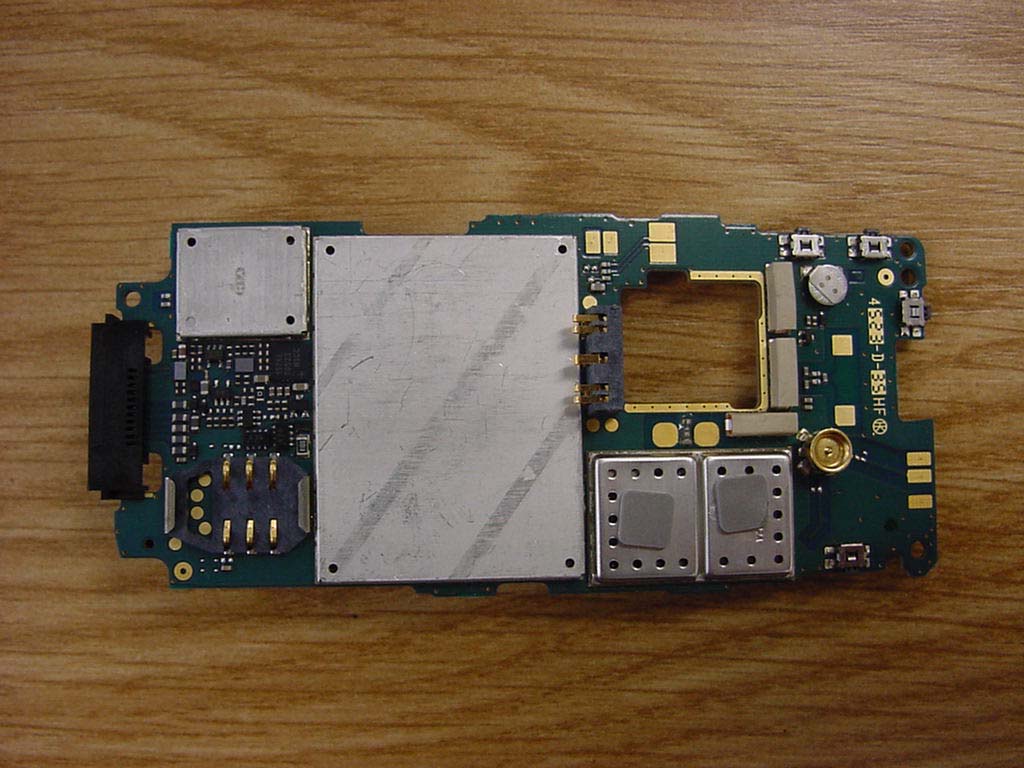

PY7-A1022013Licensed transmitter

1 Contents Getting started ....................... 4 Getting to know your phone 14 Calling ................................... 22 Messaging ............................ 26 Imaging ................................. 28 Entertainment ....................... 30 Connectivity .......................... 33 Important information .......... 34 Index ..................................... 42 Additional user information You can find the Additional information user guide, containing more information about your phone, at www.SonyEricsson.com/support. www.SonyEricsson.com/support At Sony Ericsson Product Support you can find more help getting the most out of your product, including user documentation, troubleshooting, tips & tricks and software, as well as phone settings for Internet/WAP browsing and messaging. Sony Ericsson GSM 900/1800/1900 First edition (May 2005) This user guide is published by Sony Ericsson Mobile Communications AB, without any warranty. Improvements and changes to this user guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Ericsson Mobile Communications AB at any time and without notice. Such changes will, however, be incorporated into new editions of this user guide. All rights reserved. ©Sony Ericsson Mobile Communications AB, 2005 Publication number: AE/LZT 108 7880 R1A Please note: Some of the services in this user guide are not supported by all networks. This also applies to the GSM International Emergency Number 112. Please contact your network operator or service provider if you are in doubt whether you can use a particular service or not. Please read the Guidelines for safe and efficient use and the Limited warranty chapters before you use your mobile phone. Your mobile phone has the capability to download, store and forward additional content, e.g. ringtones. The use of such content may be restricted or prohibited 2 by rights of third parties, including but not limited to restriction under applicable copyright laws. You, and not Sony Ericsson, are entirely responsible for additional content that you download to or forward from your mobile phone. Prior to your use of any additional content, please verify that your intended use is properly licensed or is otherwise authorized. Sony Ericsson does not guarantee the accuracy, integrity or quality of any additional content or any other third party content. Under no circumstances will Sony Ericsson be liable in any way for your improper use of additional content or other third party content. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Ericsson is under license. QuickShare™, PlayNow™, PhotoDJ™, MusicDJ™ and VideoDJ™ are trademarks or registered trademarks of Sony Ericsson Mobile Communications AB. Memory Stick™ and Memory Stick Duo™ are trademarks or registered trademarks of Sony Corporation. Walkman™ is a registered trademark of Sony Corporation. The Walkman™ logo and symbol are registered trademarks of Sony Corporation. Microsoft, Windows and PowerPoint are either registered trademarks or trademarks of Microsoft Corporation in the U.S and other countries. Mac OS is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. Adobe and Photoshop are either trademarks or registered trademarks of Adobe Systems Incorporated in the United States and/or other countries. T9™ Text Input is a trademark or a registered trademark of Tegic Communications. T9™ Text Input is licensed under one or more of the following: U.S. Pat. Nos. 5,818,437, 5,953,541, 5,187,480, 5,945,928, and 6,011,554; Canadian Pat. No. 1,331,057, United Kingdom Pat. No. 2238414B; Hong Kong Standard Pat. No. HK0940329; Republic of Singapore Pat. No. 51383; Euro.Pat. No. 0 842 463(96927260.8) DE/DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional patents are pending worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. End-user license agreement for Sun™ Java™ J2ME™. 1Restrictions: Software is confidential copyrighted information of Sun and title to all copies is retained by Sun and/or its licensors. Customer shall not modify, decompile, disassemble, decrypt, extract, or otherwise reverse engineer Software. Software may not be leased, assigned, or sublicensed, in whole or in part. 2Export Regulations: Software, including technical data, is subject to U.S. export control laws, including the U.S. Export Administration Act and its associated regulations, and may be subject to export or import regulations in other countries. Customer agrees to comply strictly with all such regulations and acknowledges that it has the responsibility to obtain 3 licenses to export, re-export, or import Software. Software may not be downloaded, or otherwise exported or re-exported (i) into, or to a national or resident of, Cuba, Iraq, Iran, North Korea, Libya, Sudan, Syria (as such listing may be revised from time to time) or any country to which the U.S. has embargoed goods; or (ii) to anyone on the U.S. Treasury Department's list of Specially Designated Nations or the U.S. Commerce Department's Table of Denial Orders. 3Restricted Rights: Use, duplication or disclosure by the United States government is subject to the restrictions as set forth in the Rights in Technical Data and Computer Software Clauses in DFARS 252.227-7013(c) (1) (ii) and FAR 52.227-19(c) (2) as applicable. Part of the software in this product is copyright © SyncML initiative Ltd. (1999-2002). All rights reserved. Other product and company names mentioned herein may be the trademarks of their respective owners. Any rights not expressly granted herein are reserved. 4 Getting started Insert battery and SIM card 2Slide the SIM card into its holder. 3Insert the battery with the label side up and the connectors facing each other. 4Slide the battery cover …

Text truncated - open the document above for the full version.

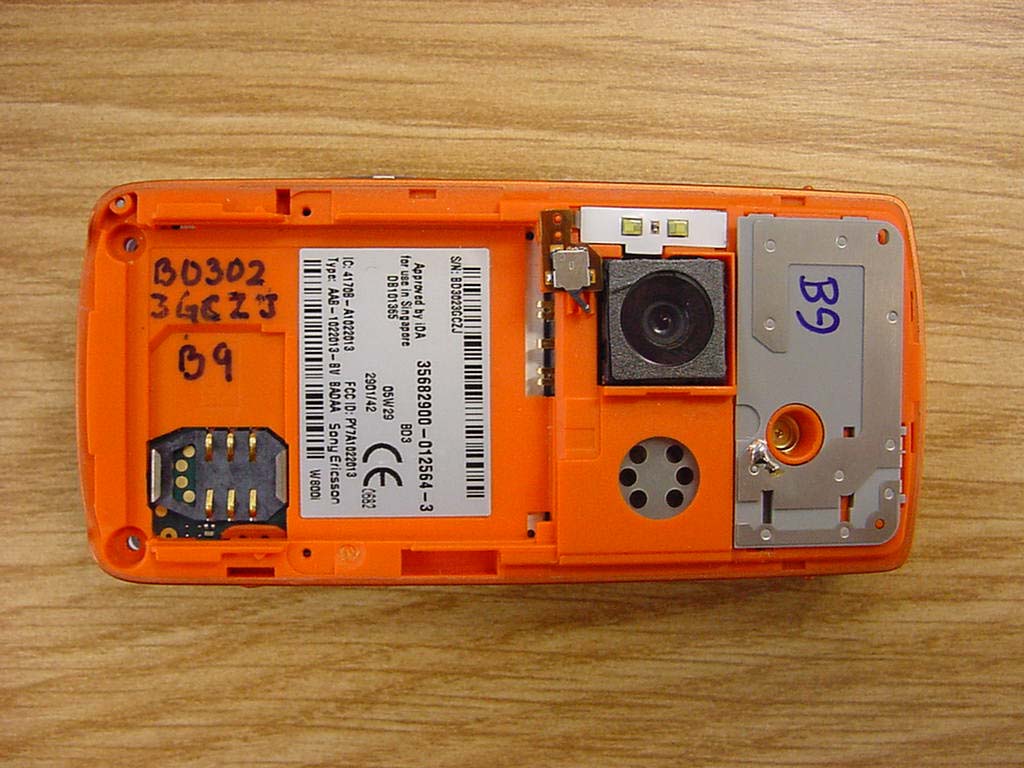

1 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 338/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-12-15 C 5 Approved according to 000 21–LXE 107 42/1 W800i, KRH-label, TYPE: AAB-1022013-BV, Made in... 1 General information The format of the label is based on a label SVF 930 1371. If applicable, or nothing else specified, Zebra printer Scaleable Smooth Font CG Triumvirate Bold Condensed is imposed. When needed, the text is adjusted to fit the label. All bar codes, when applicable, are according to Ericsson corporate standard 102 01–109 Uen. All bar codes shall fulfil minimum print quality C according to ANSI X3.182-1990 as stated in Ericsson corporate standard 102 01–1003 Uen. No bar codes are allowed to be closer to a label edge than 2 mm! (quiet zone). “(x/y)” under each line number specifies the bottom / left alignment for text, graphics and bar codes, x is measured vertically, and y horizontally from the upper left corner of the label (landscape format), both in mm. When needed, the alignment is adjusted to fit the label. The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88-) for the KRH. 2 Printing information Content Format Line 1 (3,5/1,0) Line 2 in bar code. As desired by supplier (e.g. only actual number). Bar code, height 2,5 mm. As desired by supplier (e.g. Code 128 symbology). Line 2 (5,2/1,0) Supplier’s identification for trace- ability of the telephone, as desired by supplier (e.g. “S/N: nnn....” for serial number). Text, height 1,2 mm. Defined by supplier. Line 3 (9,6/12,8) Actual electronic serial number (IMEI) of the phone (KRH), “00000000-000000-0” Text, height 2,0 mm. In the format TAC-SNR-CD. TAC and SNR derived from the 3/151 86- document in the 1095- for the SVV. CD = check digit according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Line 4a (11,5/12,8) Repair week, if applicable. “Ry’W’ww” (y = year, ww = week) Text, height 1,2 mm. 2 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 338/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-12-15 C 5 Content Format Line 4b (11,5/18,0) Location code of where the phone is flashed, if applicable, “XXX” Text, height 1,2 mm. Line 5a (13,0/2,0) WEEE Trashcan without bar Graphics, minimum height 5 mm. According to 1424-SVF 930 1444/1 Ux. Line 5b (13,5/12,8) Production week (flash), “yy’W’ww” (yy = year, ww = week) Text, height 1,2 mm. Line 6a (15,1/0,5) Marking of origin. The line shall be printed as stated in chapter 3 in this document. Text, height 1,2 mm. Line 6b (15,1/11,3) Product number of the DPY kit in which the phone is packed, if applicable. Printed without “DPY 101” and R-state, “0000/000” Text, height 1,2 mm. Line 6c (15,1/20,5) CE approval symbol. Graphics, height 5 mm. According to 1424-SVF 930 52. Line 6d (15,1/27,4) The Notified body number. “0682” Text, height 1,2 mm. Line 7a (16,8/0,5) Country approval mark 2 “IC: 4170B-A1022013” Text, height 1,2 mm. Line 7b (16,8/15,8) Country approval mark 1 “FCC ID: PY7-A1022013” Text, height 1,2 mm. Line 8a (18,4/0,5) Type number of the phone (KRH), “Type: AAB-1022013-BV”. Text, height 1,2 mm. Line 8b (18,4/15,3) ROA and R-state identification field, “GHY 1 Y 2 Y 3 ” Text, height 1,2 mm. According to the 3/151 86- document in the 1095- for the SVV. Line 8c (18,4/19,9) Sony Ericsson stylized name. Graphics, height 1,4 mm. According to 190 89–EN/LZT 108 5347 Line 9a (20,6/0,5) Line 3 in bar code (only actual number, without data identifier). Bar code, height 2,0 mm. Code 128 symbology, code C subset. If uneven number of digits, code B subset shall be used for the last digit. Line 9b (20,6/26,5) Model name, “W800i” Text, height 1,2 mm. 3 (3) Company Internal MARKING DRAWING Prepared (also subject responsible if other) No. SEM/BGUDBB, Niklas Lövberg 151 86–SVV 107 338/1 Uen Approved Checked Date Rev Reference SEM/BGUDBB (Niklas Lövberg) 2005-12-15 C 5 3 Marking of Origin 3.1 Content “Made in Xxx”; “Xxx” = actual country of production of the included telephone, in English 4 Layout The conceptual picture (for Zebra 90XiII printer, or equivalent) should not be considered as specifications, but as an additional help for setting up the label. 4.1 Conceptual picture double underlined = major changes since last revision.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-09-01/05 Date: 2005-10-29 Page 1 of 33 \\ut55\2_PROJEKTE\05\4094_9\Task1(MCP)\Erg\Annex to 2-4094-09-01_05.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Annex to Test report no. : 2-4094-09-01/05 Applicant : Sony Ericsson Mobile Communications AB Test Standard : FCC Part 15 / RSS210 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-09-01/05 Date: 2005-10-29 Page 2 of 33 Table of contents 1 GENERAL INFORMATION ......................................................................................................................................... 3 1.1.A DMINISTRATIVE DATA OF THE TEST FACILITY........................................................................................................... 3 1.1.1Identification of the testing laboratory ............................................................................................................... 3 1.2.N OTES......................................................................................................................................................................... 3 1.3D ETAILS OF APPLICANT............................................................................................................................................... 4 1.4A PPLICATION DETAILS................................................................................................................................................ 4 1.5T ESTSET-UPDESCRIPTION.......................................................................................................................................... 5 1.6T ESTSPECIFICATIONS.................................................................................................................................................. 5 2STATEMENT OF COMPLIANCE ................................................................................................................................ 6 2.1S UMMARY OF MEASUREMENT RESULTS...................................................................................................................... 6 2.1.1CFR 47 Part 15 Radio frequency devices ........................................................................................................... 6 3MEASUREMENTS AND RESULTS ............................................................................................................................. 7 4ANNEX A: FCC PART 15 SUBPART B........................................................................................................................ 8 4.1C ONDUCTED LIMITS.................................................................................................................................................... 8 4.2R ECEIVER SPURIOUS EMISSION RADIATED (IDLE MODE) ............................................................................................ 11 5USED TESTEQUIPMENT ............................................................................................................................................ 14 6ANNEX B: PHOTOGRAPHS OF TEST SITE ........................................................................................................... 15 7ANNEX C: EXTERNAL PHOTOGRAPHS OF THE EQUIPMENT....................................................................... 15 8ANNEX D: INTERNAL PHOTOGRAPHS OF THE EQUIPMENT........................................................................ 15 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-09-01/05 Date: 2005-10-29 Page 3 of 33 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. DAT-P-176/94-D1 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: D. Hausknecht Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. .................................................................................. Responsible for testing (D. Gillmann) .................................................................................. Responsible for laboratory (D. Hausknecht) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 2-4094-09-01/05 Date: 2005-10-29 Page 4 of 33 1.3 Details of Applicant Name : Sony Ericsson Mobile Communications AB Address : Nya Vattentornet City : 22188 Lund Country : Sweden Phone : + 46 46 193 242 Fax : + 46 46 193 295 Contact : Mr. Bo Johansson Phone : + 46 46 193 242 Fax : + 46 46 19…

Text truncated - open the document above for the full version.

Company Internal REPORT 1 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:300 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 051013 051012 A File Report issued by Accredited SAR Laboratory For PY7 -A1022013 Date of test: 5,6 and 10 October, 2005 Laboratory: Sony Ericsson SAR Test Laboratory Sonyericsson Mobile Communications AB Nya Vattentornet SE-221 82 LUND, Sweden Testing Engineer: Ramadan Plicanic [email protected] +46 46 19 38 62 Testing Approval Mats Hansson [email protected] +46 46 19 33 57 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type: AAB-1022013-BV; FCC ID: PY7-A1022013; IC: 4170B-A1022013 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) This laboratory is accredited to ISO/IEC 17025 (SWEDAC accreditation no. 1847). Laboratories are accredited by the Swedish Board for Accreditation and Conformity Assessment (SWEDAC) under the terms of Swedish legislation. The accredited laboratory activities meet the requirements in SS-EN ISO/IEC 17025 (2000). This report may not be reproduced other than in full, except with the prior written approval of the issuing laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. © Sony Ericsson Mobile Communication AB, 2005 Company Internal REPORT 2 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:300 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 051013 051012 A File 1 Table of contents 2 INTRODUCTION..................................................................................................................................................................3 3 DEVICE UNDER TEST........................................................................................................................................................3 3.1 A NTENNA DESCRIPTION.......................................................................................................................................................3 3.2 D EVICE DESCRIPTION...........................................................................................................................................................3 4 TEST EQUIPMENT ..............................................................................................................................................................4 4.1 D OSIMETRIC SYSTEM............................................................................................................................................................4 4.2 A DDITIONAL EQUIPMENT.....................................................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE SIMULATING LIQUID ..............................................................5 6 SYSTEM ACCURACY VERIFICATION..........................................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .........................................................................................................................6 8 TEST RESULTS ....................................................................................................................................................................7 9 REFERENCES .......................................................................................................................................................................8 10 APPENDIX .............................................................................................................................................................................9 10.1 P HOTOGRAPHS OF THE DEVICE UNDER TEST..................................................................................................................10 10.2 D EVICE POSITION ON SAM TWINS PHANTOM...............................................................................................................11 Company Internal REPORT 3 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:300 Approved Checked Date Rev Reference LD/SEMC/BGGI/NMC Mats Hansson 051013 051012 A File 2 Introduction In this test report, compliance of the Sony Ericsson PY7 -A1022013 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device under Test 3.1 Antenna Description Type Build in Location Up on the back side Max length 32mm Dimensions Max width 20mm Configuration PIFA 3.2 Device description Device model PY7 -A1022013 Serial number CB3023NYSV (#3376) Mode GSM1900 GSM1900GPRS Multiple Access Scheme TDMA TDMA Maximum Output Power Setting 30.0dBm 28.5dBm Factory Tolerance in Power Setting ±0.5 dB ±0.5 dB Maximum Peak Output Power for GPRS 30.5dBm 29dBm Crest Factor 8 4 Transmitting Frequency Range(MHz) 1850.2 – 1909.8 Prototype or Production Unit Preproduction HW R2A Device Category Portable RF exposure environment General population / uncontrolled Company Internal REPORT 4 (12) Prepared (also subject responsible if other) No. LD/SEMC/BGGI/NM Ramadan Plicanic BGGIN05:300 Approved Checked Date Rev Referen…

Text truncated - open the document above for the full version.

PY7-A1022013 SAM 1 Phantom; Flat Section; Position: (90°,90°); Frequency: 1850 MHz Probe: ET3DV6 - SN1569; ConvF(4.67,4.67,4.67); Crest factor: 8.0; 1900MHz - Body: σ = 1.56 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 1.00 mW/g, SAR (10g): 0.531 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.10 dB SAR Tot [mW/g] 9.65E-2 2.89E-1 4.83E-1 6.75E-1 8.69E-1 10/10/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB Dipole 1900 MHz SAM 2 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 1.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 4.09 mW/g, SAR (10g): 2.08 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.00 dB P=100mW, d=10mm Calibrated values: 1g mass 39,2mW/g, 10g mass 20,6mW/g Measured values: 1g mass 40,9mW/g(+4,3%), 10g mass 20,8mW/g(+1%) Ambient temprature:23(C-degree),Humidity: 40% SAR Tot [mW/g] 4.48E-1 8.95E-1 1.34E+0 1.79E+0 2.24E+0 2.69E+0 3.13E+0 3.58E+0 4.03E+0 4.48E+0 10/05/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB Dipole 1900 MHz SAM 1 Phantom; Flat Section; Position: (90°,90°); Frequency: 1900 MHz Probe: ET3DV6 - SN1569; ConvF(4.67,4.67,4.67); Crest factor: 1.0; 1900MHz - Body: σ = 1.56 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 4.04 mW/g, SAR (10g): 2.09 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.02 dB P=100mW, d=10mm Calibrated values: 1g mass 39,6mW/g, 10g mass 20,9mW/g Measured values: 1g mass 40,4mW/g(+2%), 10g mass 20,9mW/g(+0%) Ambient temprature:23(C-degree),Humidity: 40% SAR Tot [mW/g] 4.45E-1 1.33E+0 2.22E+0 3.11E+0 4.00E+0 10/10/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 2 Phantom; Righ Hand Section; Position: (107°,300°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 8.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.287 mW/g, SAR (10g): 0.161 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.15 dB SAR Tot [mW/g] 2.99E-2 8.97E-2 1.49E-1 2.09E-1 2.69E-1 10/06/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 2 Phantom; Righ Hand Section; Position: (90°,300°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 8.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.237 mW/g, SAR (10g): 0.133 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.10 dB SAR Tot [mW/g] 2.59E-2 5.18E-2 7.77E-2 1.04E-1 1.30E-1 1.55E-1 1.81E-1 2.07E-1 2.33E-1 2.59E-1 10/05/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 2 Phantom; Left Hand Section; Position: (105°,60°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 8.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.278 mW/g, SAR (10g): 0.157 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.10 dB SAR Tot [mW/g] 2.88E-2 8.64E-2 1.44E-1 2.02E-1 2.59E-1 10/06/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 2 Phantom; Left Hand Section; Position: (90°,60°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 8.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.203 mW/g, SAR (10g): 0.116 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz = 10.0 Powerdrift: -0.15 dB SAR Tot [mW/g] 2.17E-2 6.51E-2 1.09E-1 1.52E-1 1.95E-1 10/06/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 1 Phantom; Flat Section; Position: (90°,90°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(4.67,4.67,4.67); Crest factor: 8.0; 1900MHz - Body: σ = 1.56 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.0866 mW/g, SAR (10g): 0.0533 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.12 dB SAR Tot [mW/g] 8.60E-3 2.58E-2 4.30E-2 6.02E-2 7.74E-2 10/10/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 1 Phantom; Flat Section; Position: (90°,90°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(4.67,4.67,4.67); Crest factor: 8.0; 1900MHz - Body: σ = 1.56 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.483 mW/g, SAR (10g): 0.268 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.08 dB SAR Tot [mW/g] 4.61E-2 1.38E-1 2.31E-1 3.23E-1 4.15E-1 10/10/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 1 Phantom; Flat Section; Position: (90°,90°); Frequency: 1910 MHz Probe: ET3DV6 - SN1569; ConvF(4.67,4.67,4.67); Crest factor: 8.0; 1900MHz - Body: σ = 1.56 mho/m ε r = 51.1 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.627 mW/g, SAR (10g): 0.338 mW/g, (Worst-case extrapolation) Coarse: Dx = 20.0, Dy = 20.0, Dz = 10.0 Powerdrift: -0.04 dB SAR Tot [mW/g] 6.28E-2 1.88E-1 3.14E-1 4.40E-1 5.65E-1 10/10/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB PY7-A1022013 SAM 2 Phantom; Righ Hand Section; Position: (107°,300°); Frequency: 1880 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 8.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.356 mW/g, SAR (10g): 0.201 mW/g, (Worst-case extrapolation) Cube 5x5x7: Dx = 8.0, Dy = 8.0, Dz = 5.0 10/06/05 Ramadan Plicanic Sony Ericsson Mobile Communications AB 0.00 0.02 0.04 0.06 0.08 0.10 0.12 0.14 0.16 0.18 0 10203040 SAR tot [mW/g] [mm] Carola SAM 2 Phantom; Righ Hand Section; Position: (107°,300°); Frequency: 1880 MHz Probe: ET3DV6 - SN1569; ConvF(5.11,5.11,5.11); Crest factor: 8.0; 1900MHz - Head: σ = 1.47 mho/m ε r = 38.0 ρ = 1.00 g/cm 3 Cube 5x5x7: SAR (1g): 0.356 mW/g, SAR (10g): 0.201 mW/g, (Worst-case extrapolation) Coarse: Dx = 15.0, Dy = 15.0, Dz =…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 2-4094-09-01/05 Date: 2005-10-19 Page 1 of 46 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 2-4094-09-01/05 Applicant : Sony Ericsson Mobile Communications AB Type : AAB-1022013-BV Test Standard : FCC Part 24 RSS 133 FCC ID : PY7-A1022013 Certification No. IC : 4170B-A1022013 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 2-4094-09-01/05 Date: 2005-10-19 Page 2 of 46 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES....................................................................…

Text truncated - open the document above for the full version.
