PY7-PM0632Smart phone

Important Information Before you use your device, please read the Important Information provided in your device regarding warranty, safety and handling information. Overview 13 5 6 24 7 810 11 9 12 1. Charging/Notification light 2. Front camera lens 3. Proximity/Light sensor 4. Ear Speaker 5. Power key 6. Volume/Zoom key 7. Microphone 8. Headset jack 9. Main camera lens 10. Camera light 11. Port for charger/USB cable 12. Loudspeaker Assembly To remove the back cover To insert the micro SIM card If you insert a micro SIM card while the device is powered on, the device restarts automatically. SIM 1 To insert a memory card SIM 1 To attach the back cover Basics Turning on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. To turn on the device 1 Press and hold down the power key until the notification light flashes once. 2 Wait a while for the device to start. Waking up the screen To activate the screen • Briefly press the power key . Setting up your device Setup guide The first time you start your device, a setup guide opens to help you configure basic settings, sign in to some accounts (for example, your Google™ account), and personalise your device. You can also manually access the setup guide at a later stage. To access the setup guide manually 1 From the Home screen, tap . 2 Tap > Setup guide. Accessing settings View and change settings for your device from the Settings menu. The Settings menu is accessible from both the Application screen and the Quick settings panel. To access your device settings 1 From your Home screen, tap . 2 Find and tap . Transferring your contacts Xperia™ Transfer is an application that helps you to collect contacts from your old device and transfer them to your new device. Xperia™ Transfer, which you can access from within the PC Companion and the Sony Bridge for Mac computer programs, supports mobile devices that run on several operating systems, including iOS, Android™, Windows® and BlackBerry™. To use Xperia™ Transfer, you need: • An Internet-connected computer. • A USB cable for your old device. • A USB cable for your new Android™ device. • Your old device. • Your new Android™ device. To transfer contacts to your new device 1 Search and download PC Companion (on a PC) or Bridge for Mac (on a Mac computer) from www.sonymobile.com if the application is not already installed. 2 After successful installation, open the PC Companion application or the Sony Bridge for Mac application, then click Xperia™ Transfer and follow the relevant instructions to transfer your contacts. Finding your way Using the keys Back navigation key • Go back to the previous screen within an application or close the application. Home navigation key • Exit an application and go back to the Home screen. Task navigation key • Open the recently used applications window and the small apps bar. Application screen • Open the Application screen. Basic applications and settings Make phone calls by dialling the number manually or by using the smart dial function. Use the Messaging application to send and receive text and multimedia messages. Go to Google Play™ to download free and paid applications for your device. Optimise the device settings to suit your own requirements. Notifications and quick settings To open or close the Notification panel To open the Notification panel, drag the status bar downwards. Support on the web Visit www.sonymobile.com/support to access a range of support options for your device, including downloads, troubleshooting tips and a User guide. Legal information Sony E2104/E2105 Publication number: xxxx-xxxx.2 This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. Remove the battery to see regulatory information such as the CE mark. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. Visit www.sonymobile.com/us/ legal/ for more information. Product compliance: This product has been manufactured by or on behalf of Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Inquiries related to product compliance based on national legislation shall be addressed to Sony Mobile Quality Office, Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. For any service or guarantee matters, please refer to the contact details provided in the separate service or guarantee documents. © 2014 Sony Mobile Communications Inc. All rights reserved. To view the CE mark SIM 1 • Remove the back cover. To view the regulatory compliance mark • Open the phone dialer, then enter *#07#. Startup guide Xperia ™ XX E2104/E2105 Sony Mobile Communications Inc. 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan xxxx-xxxx.2

SAR Information FCC Statement Declaration of Conformity Sony E2104 UMTS HSPA Band 1 2 5 GSM GPRS/EDGE 850/900/1800/1900 Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S R EQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The E2104 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the Important Information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 1.11 W/kg*, and when worn on the body is 1.24 W/kg*. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. **Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7-PM0632. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTAL ES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la E2104 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites* d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Pour en savoir plus sur le DAS, reportez-vous au chapitre sur les renseignements importants du guide de l'utilisateur. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 1.11 W/kg* lorsqu'il est testé en utilisation près de l'oreille, et de 1.24 W/kg* lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate 4 avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. **Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit l…

Text truncated - open the document above for the full version.

Sony Mobile Communications Inc Nya Vattentornet, Lund 22188, Sweden Tel: +46 10 802 33 57 ; Fax: +46 10 800 24 41 Date: December 25, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD2046 Subject: Request for Confidentiality FCC ID: PY7‐PM0632 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune‐up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot‐term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04‐1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, ______________________ Jones Tsai [email protected]

Letter of Authority One behalf of Sony Mobile Communications Inc, I, Yusheng Wu, manager hereby give: Name Representative of agent: Jones Tsai Agent Company name: SPORTON INTERNATIONAL, INC Address: No.52, Hwa Ya 1 st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C Authority to apply for NB opinion and FCC certification only in respect of product identified below, Type Number FCC ID PM-0633-BV PY7-PM0633 PM-0631-BV PY7-PM0631 PM-0632-BV PY7-PM0632 PM-0630-BV PY7-PM0630 PM-0634-BV PY7-PM0634 This authorization will be only effective to filing, answering inquiring from Notify Body “ CETECOM ( Germany ) “or TCB reviewer “ TIMCO Engineering Inc.” , any associative matter involving application of this NB opinion and FCC certification, and it will not be extended beyond the aforementioned scope. Regards ______________ Yusheng Wu Manager, No.16, Guangshun South street, Chaoyang District Beijing, China, 100102

Arima Communications Corp. 6F,No.866,Jhongjheng Rd., Jhonghe Dist., New Taipei City 23586, Taiwan Variation Attestation We hereby declares Type Name: PM‐0632‐BV, FCC ID: PY7‐PM0632, Type Name: PM‐0634‐BV, FCC ID: PY7‐PM0634, Type Name: PM‐0631‐BV, FCC ID: PY7‐PM0631, Type Name: PM‐0630‐BV, FCC ID: PY7‐PM0630, use the exact same BT/WLAN/GPS hardware and software solution as Type Name: PM‐0633‐BV, FCC ID: PY7‐PM0633. Base on the similarities between these devices, FCC Part 15 subpart C report (FR4O2136A, FR4O2136B, FR4O2136C), CE EN 300440 report (EQ4O2136) and CE EN300328 (ER4O2136), by Sporton International Inc. issued for Type Name: PM‐0633‐BV, FCC ID: PY7‐PM0633 also applies for Type Name: PM‐0632‐BV, FCC ID: PY7‐PM0632, Type Name: PM‐0634‐BV, FCC ID: PY7‐PM0634, Type Name: PM‐0631‐BV, FCC ID: PY7‐PM0631, Type Name: PM‐0630‐BV, FCC ID: PY7‐PM0630, Sincerely Yours, Jay Chiang [email protected]

Arima Communications Corp. 6F,No.866,Jhongjheng Rd., Jhonghe Dist., New Taipei City 23586, Taiwan Variation Attestation We hereby declare Type Name: PM‐0632‐BV, FCC ID: PY7‐PM0632 and Type Name: PM‐0634‐BV, FCC ID: PY7‐PM0634, are the variants of Type Name: PM‐0633‐BV, FCC ID: PY7‐PM0633.  The differences as following, Type Name FCC ID Differences PM‐0633‐BV PY7‐PM0633 Dual SIM slot design PM‐0632‐BV PY7‐PM0632 Single SIM slot design PM‐0634‐BV PY7‐PM0634 Dual SIM slot and additional DTV function design  PCB/trace layouts, product form factor and antenna between the three versions remain identical. We hereby request to leverage the test data of Type Name: PM‐0633‐BV, FCC ID: PY7‐PM0633 to demonstrate the compliance of Type Name: PM‐0632‐BV, FCC ID: PY7‐PM0632 and Type Name: PM‐0634‐BV, FCC ID: PY7‐PM0634 regarding to FCC Part 15 Subpart B/ 22(H)/ 24(E)/ Part 2 (2.1093)/ EN 301908‐1/ EN 301511/ EN 301489 / EN 50360/ EN 50566/ EN 62311/ EN 62209‐1‐2/ EN 62479 requirements. The test worst cases found in Type Name: PM‐0633‐BV, FCC ID: PY7‐PM0633 are verified on Type Name: PM‐0632‐BV, FCC ID: PY7‐PM0632 and Type Name: PM‐0634‐BV, FCC ID: PY7‐PM0634 to ensure the compliance is kept. Sincerely Yours, Jay Chiang [email protected]

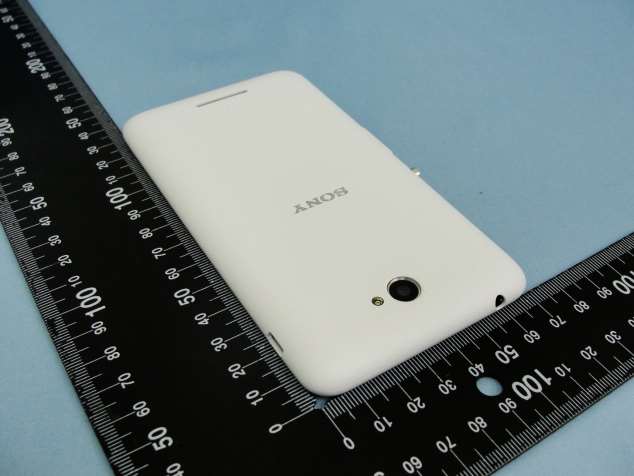

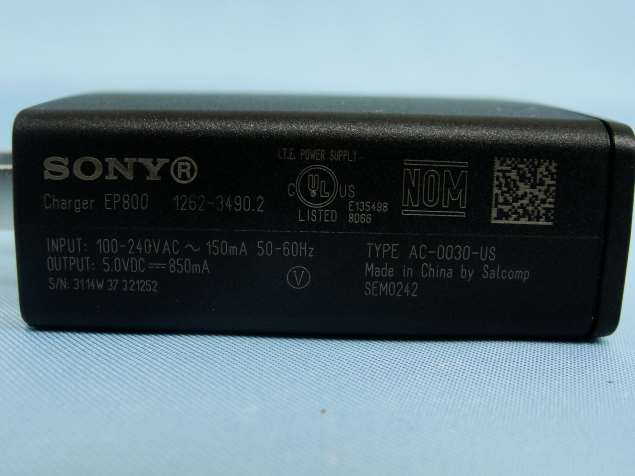

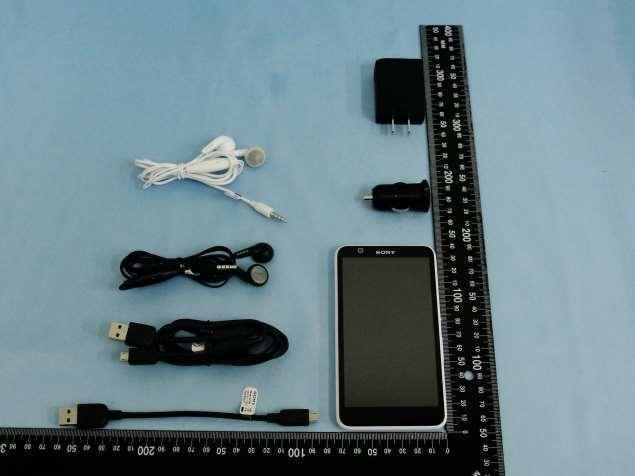

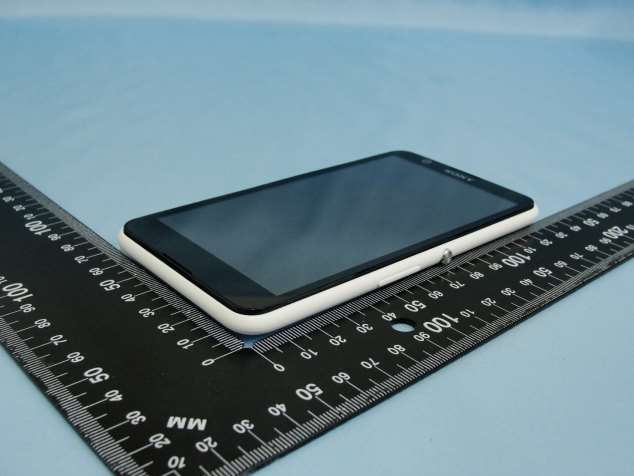

Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 1 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 1. External Photograph of EUT Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 2 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 720510 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 3 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Specification of Accessory AC Adapter Brand Name Sony Model Name EP800 Car Charger Brand Name Sony Model Name AN400 Battery Brand Name Sony Model Name Charles Earphone 1 Brand Name Sony Model Name MH410c Type Name AG-1103 Earphone 2 Brand Name Sony Model Name MH410c Type Name AG-1100 USB Cable 1 Brand Name Sony Model Name EC450 USB Cable 2 Brand Name Sony Model Name EC300 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 4 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 5 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 AC Adapter Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 6 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Car Charger Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 7 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Battery Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 8 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 720510

The label is under the back cover and is visible to the users as the users remove the back cover to install the SIM card. Label Location Back cover Back of the Phone

TYPE:PM-0632-BV FCC ID:PY7-PM0632

Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 9 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 3. Internal Photograph of EUT Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 10 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 11 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 12 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 13 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 14 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 15 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 16 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 17 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 18 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 WWAN Antenna Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 19 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 20 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 GPS & Bluetooth & WLAN Antenna Photographs of EUT Report No.: EP4O2137 Brand Name: SONY / Type Name : PM-0632-BV SPORTON INTERNATIONAL INC. Page Number : 21 of 21 TEL : 886-3-327-3456 Report Issued Date : Dec. 24, 2014 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0632 720510

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Dec. 19, 2014 FCC ID : PY7-PM0632 Page 1 of 39 Form version. : 141020 FCC SAR Test Report Report No. : FA4O2137 FCC SAR Test Report APPLICANT : Sony Mobile Communications Inc. EQUIPMENT : Smart phone BRAND NAME : SONY TYPE NAME : PM-0632-BV FCC ID : PY7-PM0632 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No. 52, Hwa Ya 1 st Rd., Hwa Ya Technology Park, Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C. Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Dec. 19, 2014 FCC ID : PY7-PM0632 Page 2 of 39 Form version. : 141020 FCC SAR Test Report Report No. : FA4O2137 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Device Serial Number ............................................................................................................................................ 6 4.3 Maximum Tune-up Limit ......................................................................................................................................... 7 5. RF Exposure Limits....................................................................................................................................................... 8 5.1 Uncontrolled Environment ...................................................................................................................................... 8 5.2 Controlled Environment .......................................................................................................................................... 8 6. Specific Absorption Rate (SAR) ................................................................................................................................... 9 6.1 Introduction ............................................................................................................................................................ 9 6.2 SAR Definition ........................................................................................................................................................ 9 7. System Description and Setup ...................................................................................................................................10 8. Measurement Procedures ...........................................................................................................................................11 8.1 Spatial Peak SAR Evaluation ................................................................................................................................ 11 8.2 Power Reference Measurement............................................................................................................................12 8.3 Area Scan .............................................................................................................................................................12 8.4 Zoom Scan ............................................................................................................................................................13 8.5 Volume Scan Procedures ......................................................................................................................................13 8.6 Power Drift Monitoring ...........................................................................................................................................13 9. Test Equipment List .....................................................................................................................................................14 10. System Verification ....................................................................................................................................................15 10.1 Tissue Verification ...............................................................................................................................................15 10.2 System Performance Check Results ...................................................................................................................16 11. RF Exposure Positions ..............................................................................................................................................17 11.1 Ear and handset reference point .........................................................................................................................17 11.2 Definition of the cheek position ............................................................................................................................18 11.3 Definition of the tilt position........…
