INSTRUCTION MANUAL Introduction Thank you for your purchase of "SO-03G". For proper use of the SO-03G, read this manual carefully before and while you use the SO-03G. About manuals of SO-03G In addition to this manual, the operations of SO-03G are described in " (Quick Start Guide)" (in Japanese only) and "Instruction Manual" application of the terminal (in Japanese only). " (Quick Start Guide)" (Supplied accessories) The initial operations and settings after purchasing the terminal, screen view contents and operations of main function are explained. "Instruction Manual" (Application of the terminal) Operations and settings of each function are explained. To use "Instruction Manual" application, from the Home screen, u [Instruction Manual]. When using for the first time, download and install the application according to the onscreen instructions. If you uninstall "Instruction Manual" application, access to Google Play from Play Store to download it again. From the Home screen, tap [Play Store], search " (Instruction Manual)" application to select, then install it following the onscreen instructions. You can use the application as an electronic book. You can also shift to actual operations by tapping the description in the contents or view reference contents. "Instruction Manual" (PDF file) Operations and settings of each function are explained. It can be downloaded from NTT DOCOMO website. https://www.nttdocomo.co.jp/english/support/ trouble/manual/download/index.html * You can download the latest information of " (Quick Start Guide)". The URL and contents are subject to change without prior notice. ❖ Note Reproduction or reprint of all or part of this manual without prior permission is prohibited. Important information for SO-03G is posted in the following website. Be sure to check before using. http://www.sonymobile.co.jp/support/use_support/ product/so-03g/ (In Japanese only) 1 Operation descriptions In this manual, each key (key icon) operation is described with P , k , x , y , r . And selection operations of the icons or function items on the touch screen are described as follows. ❖ Information In this manual, the instructions are described with the default Home screen. If you set the other application to the home screen, the operations may differ from the descriptions. Display examples and illustrations used in this manual are just images for explanations and may be different from actual ones. In this manual, the easier procedure is described for the functions and settings which have multiple operating procedures. Please note that "SO-03G" is called "the terminal" in this manual. In this manual, explanations for "docomo" as Home application are provided (P.64). DescriptionOperation From the Home screen, u [Settings] u [About phone]. From the Home screen, tap (Apps button), and then tap "Settings" on the next screen and "About phone" on the following screen in order. Touch and hold an icon. Keep touching an icon longer (1-2 seconds). 2 SO-03G (with warranty) Desktop Holder SO23 (with warranty) (Quick Start Guide) (In Japanese only) SO-03G (Notes on usage Safety/Handling precautions) (In Japanese only) TV/Mobacas antenna cable SO02 For optional accessories compatible with the terminal (optional) , refer to NTT DOCOMO website. https://www.nttdocomo.co.jp/product/ option/ (In Japanese only) Supplied accessories Contents/Precautions 3 Contents Supplied accessories. . . . . . . . . . . . . . . . . 2 About using the terminal . . . . . . . . . . . . 5 Safety Precautions (Always follow these directions) . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Handling precautions . . . . . . . . . . . . . . . 17 Waterproofness/Dustproofness . . . . . 24 Before Using the Terminal . . . 30 Part names and functions................................................ 30 docomo nano UIM card.................................................... 31 CE mark and FCC ID............................................................. 33 Charging ..................................................................................... 34 Turning power on/off......................................................... 39 Initial settings........................................................................... 41 Basic operations ..................................................................... 42 Notification LED ..................................................................... 46 Status bar ................................................................................... 47 Notification panel ................................................................. 49 Home screen............................................................................ 50 Xperia ™ Application screen .......................................... 56 Task manager........................................................................... 62 Switching Home application ......................................... 64 Searching information in the terminal and web pages ............................................................................................ 64 Character entry ....................................................................... 65 Setting character entry ...................................................... 71 docomo LIVE UX . . . . . . . . . . . . 72 Home screen............................................................................ 72 Managing the Home screen .......................................... 72 Application screen................................................................ 74 Backing up and restoring the Home screen ........ 76 Using My Magazine ............................................................. 77 Checking Home application information.............. 77 Phone . . . . . . . . . . . . . . . . . . . . . . 78 Making/Receiving a call .................................................... 78 Operations during a call ................................................... 82 Call history ..................…

Text truncated - open the document above for the full version.

©2014 Important information Sony Consumer Web site At www.sonymobile.com/support there is a support section where help and tips are only a few clicks away. Here you will find the latest computer software updates and tips on how to use your product more efficiently. Service and support You have access to a portfolio of exclusive service advantages such as: • Global and local Web sites providing support. • A global network of Contact Centers. • An extensive network of Sony service partners. • A warranty period. Learn more about the warranty conditions in the Limited Warranty section. At www.sonymobile.com/support or www.sonymobile.com/contact, you can find the latest support tools and information. For operator-specific services and features, please contact your network operator. You can also contact our Contact Centers or contact your local dealer. (Calls are charged according to national rates, including local taxes, unless it is a toll-free number.) If your product needs service, please contact the dealer from whom it was purchased, or one of our service partners. To make a claim under the limited warranty, proof of purchase is required. Guidelines for Safe and Efficient Use Please follow these guidelines. Failure to do so might entail a potential health risk or product malfunction. If in doubt as to its proper function, have the product checked by a certified service partner before charging or using it. Recommendations for care and safe use of our products • Handle with care and keep in a clean and dust-free place. • Warning! May explode if disposed of in fire. • Do not use in environments where relevant IP rating limitations, if applicable, are exceeded (including excess depths and/or pressures of liquid and/or dust) or expose to excess humidity. • For optimum performance, the product should not be operated in temperatures below -10°C(+14°F) or above +45°C(+113°F). Do not expose the battery to temperatures above +60°C(+140°F). • Do not expose to flames or lit tobacco products. • Do not drop, throw or try to bend the product. 2 This is an Internet version of this publication. © Print only for private use. • Do not paint or attempt to disassemble or modify the product. Only Sony authorised personnel should perform service. • Consult with authorised medical staff and the instructions of the medical device manufacturer before using the product near pacemakers or other medical devices or equipment. • Discontinue use of electronic devices, or disable the radio transmitting functionality of the device, where required or requested to do so. • Do not use where a potentially explosive atmosphere exists. • Do not place the product, or install wireless equipment, in the area above an air bag in a car. • Caution: Cracked or broken displays may create sharp edges or splinters that could be harmful upon contact. • Do not use a Bluetooth Headset in positions where it is uncomfortable or will be subject to pressure. Children Warning! Keep out of the reach of children. Do not allow children to play with mobile devices or accessories. They could hurt themselves or others. Products may contain small parts that could become detached and create a choking hazard. Power supply (Charger) Connect the charger to power sources as marked on the product. Do not use outdoors or in damp areas. Do not alter or subject the cord to damage or stress. Unplug the unit before cleaning it. Never alter the plug. If it does not fit into the outlet, have a proper outlet installed by an electrician. When a power supply is connected there is a small drain of power. To avoid this small energy waste, disconnect the power supply when the product is fully charged. Use of charging devices that are not Sony branded may pose increased safety risks. Battery New or idle batteries can have short-term reduced capacity. Fully charge the battery before initial use. Use for the intended purpose only. Charge the battery in temperatures between +5°C(+41°F) and +45°C(+113°F). Do not put the battery into your mouth. Do not let the battery contacts touch another metal object. Turn off the product before removing the battery. Performance depends on temperatures, signal strength, usage patterns, features selected and voice or data transmissions. Only Sony service partners should remove or replace built-in batteries. Use of batteries that are not Sony branded may pose increased safety risks. Replace the battery only with another Sony battery that has been qualified with the product per the standard IEEE-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard. 3 This is an Internet version of this publication. © Print only for private use. Personal medical devices Mobile devices / devices with radio transmitters may affect implanted medical equipment. Reduce risk of interference by keeping a minimum distance of 15 cm(6 inches) between the Sony product and the medical device. Use the Sony device at your right ear, when applicable. Do not carry the device in your breast pocket. Turn off the device if you suspect interference. For use in proximity to personal medical devices, please consult a physician and the device manufacturer. Driving In some cases, vehicle manufacturers may forbid the use of mobile devices in their vehicles unless a handsfree kit with an external antenna supports the installation. Check with the vehicle manufacturer's representative to be sure that a mobile device or Bluetooth handsfree will not affect the electronic systems in the vehicle. Full attention should be given to driving at all times and local laws and regulations restricting the use of wireless devices while driving must be observed. GPS/Location based functions Some products provide GPS/Location based functions. Location determining functionality is provided “As is” and “With all faults”. Sony does not make any representation or warranty as to the accuracy of such location information. Use of location-based information by the de…

Text truncated - open the document above for the full version.

Important Information United States THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The SO-03G Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits* of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. For more information on SAR, please refer to the important information chapter in the User Guide. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.60 W/kg*, and when worn on the body is 0.57 W/ kg*. For body-worn operation, this phone has been tested and meets the FCC RF exposure guidelines. Please use an accessory designated for this product or an accessory which contains no metal and which positions the handset a minimum of 15mm from the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party accessories may result in different SAR levels than those reported. Radio Wave Exposure and Specific Absorption Rate (SAR) Information ** Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure*. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http:// transition.fcc.gov/oet/ea/fccid/ after searching on FCCID PY7-PM0793. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. *In the United States, the SAR limit for mobile phones used by the public is 1.6 watts/ kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. **This paragraph is only applicable to authorities and customers in the United States. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: Any change or modification not expressly approved by Sony may void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can FCC Statement for the USA (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. We, Sony Mobile Communications AB of Nya Vattentornet SE-221 88 Lund, Sweden declare under our sole responsibility that our product Sony type PM-0793-BV and in combination with our accessories, to which this declaration relates is in conformity with the appropriate standards EN 301 489-3:V1.6.1, EN 301 489-7:V1.3.1, EN 301 489-17:V2.2.1, EN 301 489-24:V1.5.1, EN 300 328:V1.8.1, EN 300 440-2:V1.4.1, EN 301 511:V9.0.2, EN 301 893:V1.7.1, EN 301 908-1:V6.2.1, EN 301 908-2:V6.2.1, EN 301 908-13:V6.2.1, EN 302 291-2:V1.1.1, EN 62209-1:2006, EN 62209-2:2010 and EN 60950- 1:2006+A11:2009+A1:2010+A12:2011+ A2:2013 following the provisions of, Radio Equipment and Telecommunication Terminal Equipment directive 1999/5/EC. Lund, December 2014 Declaration of Conformity for SO-03G P ä r Thuresson, Quality Officer, SVP, Quality & Customer Services R TTE 1999/5/EC We fulfill the requirements of the R&TTE Directive (1999/5/EC)

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 50/0061-LXE 108 828 Uen A Prepared by Date SEM/CGQTAGC CAROL LI 2015-04-14 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (YUSHENG WU) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Confidential LETTER 2(2) Document number Revision 50/0061-LXE 108 828 Uen A f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely Yusheng Wu (武予生) Manager Global Type Approval China Sony Mobile Communications (China) Co., Ltd

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 2/0061-22/FCP 119 1516 Uen A Prepared by Date SEM/CGQTAGC LEI 3 CHEN 2015-03-09 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (YUSHENG WU) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: PY7-PM0793 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Antenna Specification - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential Confidential LETTER 2(2) Document number Revision 2/0061-22/FCP 119 1516 Uen A documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely Yusheng Wu Manager Global Type Approval China Sony Mobile Communications (China) Co., Ltd

Sony Mobile Communications Confidential LETTER 1(1) Document number Revision 24/0061-FCP 101 2600 Uen A Prepared by Date SEM/CGQTAGC CAROL LI 2015-04-13 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (YUSHENG WU) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. UL Verification Services 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern Sony Mobile Communications Inc, herby declares that for the device which applies to FCC ID: PY7-PM0793 LTE Rel 10 implementation is limited. The network enhancement features and downlink carrier aggregation are supported only. The uplink does not support carrier aggregation nor enhanced SC-FDMA. Features such as CoMP, HetNet, Relay, SON, cross carrier scheduling, eICIC, enhanced downlink MIMO, MBMS, M2M/D2 are also not supported. SVLTE is not supported as described in the operational description. Yours sincerely Yusheng Wu (武予生) Manager Global Type Approval China Sony Mobile Communications (China) Co., Ltd

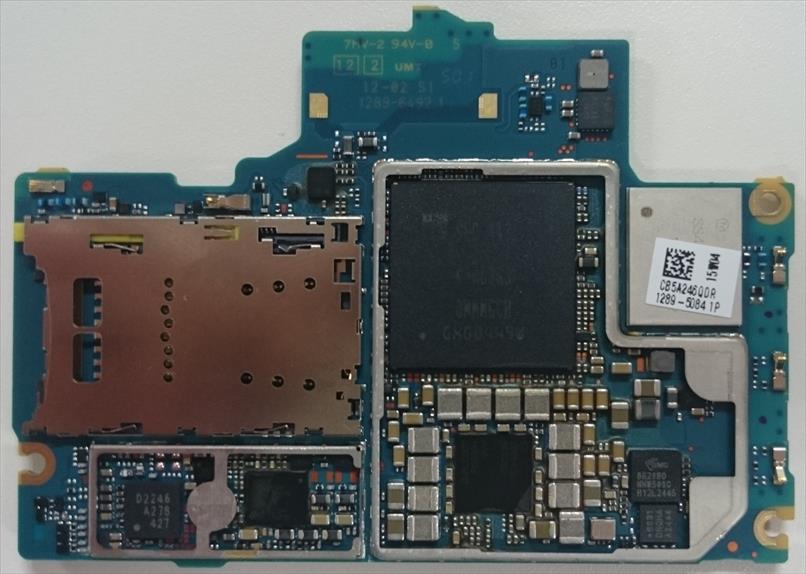

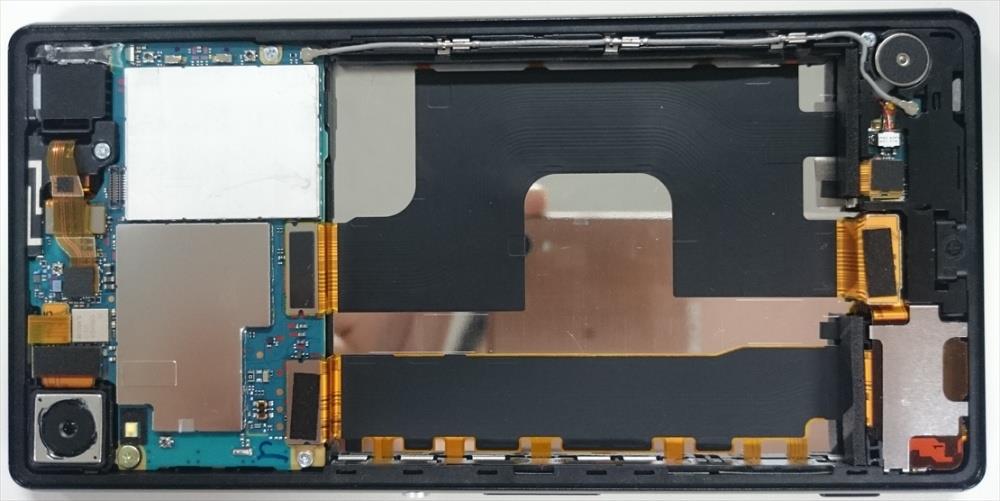

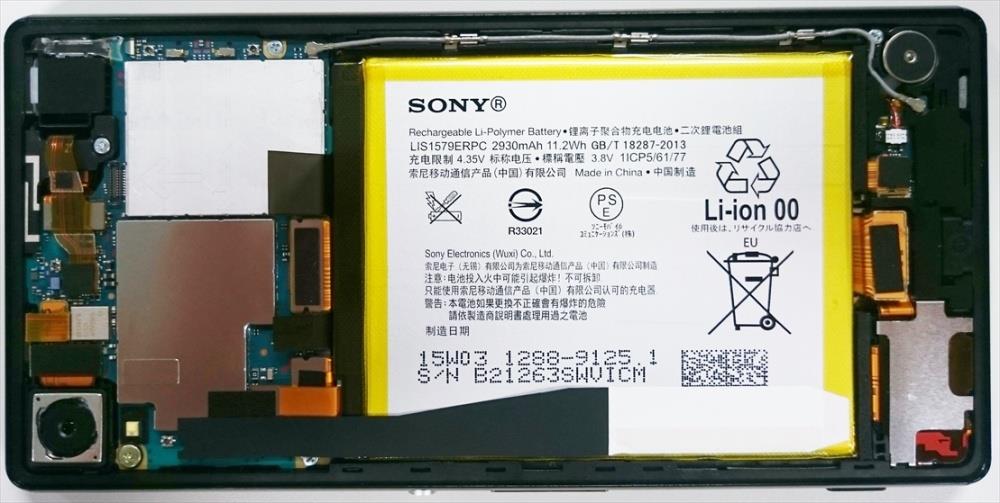

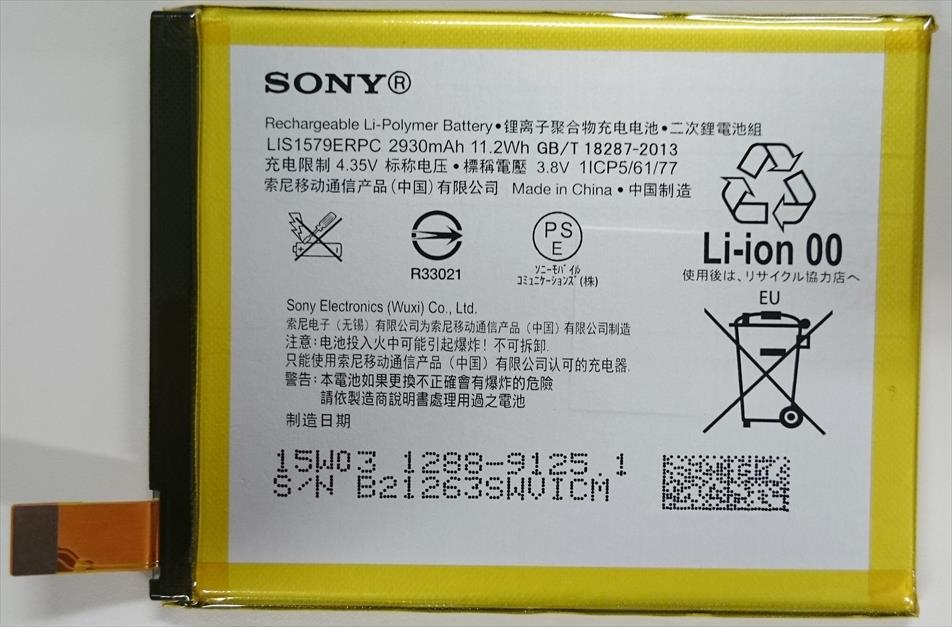

Sony Mobile Communications Company Internal REPORT 1(4) Document number Revision 31/0360-LXE 110 1383 Uen PA1 Prepared by Date SEM/CGVOHCB KEIGO OSHIRO 2015-04-01 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7-PM0793: Internal Photos: Without Rear Panel With PWB Without PWB Company Internal REPORT 2(4) Document number Revision 31/0360-LXE 110 1383 Uen PA1 Internal PWB with/without Shield cases – Front (LCD)-side: Internal PWB with Shield cases (Front-side) Internal PWB without Shield cases (Front-side) Company Internal REPORT 3(4) Document number Revision 31/0360-LXE 110 1383 Uen PA1 Internal PWB with/without Shield cases - Rear-side: Internal PWB with Shield cases (Rear-side) Internal PWB without Shield cases (Rear-side) Company Internal REPORT 4(4) Document number Revision 31/0360-LXE 110 1383 Uen PA1 Battery:

Label and Label Location PY7-PM0793 FCC ID: PY7-PM0793 Front side of the EUT Sony M obile Communications Confi denti al WORK DESCRIPTION Document number Prepared by Date SATOSHI KIKUCHI (22714875) 2014-12-24 Conte nts responsible if oth er t han preparer Remarks This d ocument is managed i n meta Doc. Approved by

Sony Mobile Communications Company Internal REPORT 1(2) Document number Revision 32/0360-LXE 110 1383 Uen PA1 Prepared by Date SEM/CGVOHCB KEIGO OSHIRO 2015-04-01 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7-PM0793: External Photos: Front: Rear: Side view: Company Internal REPORT 2(2) Document number Revision 32/0360-LXE 110 1383 Uen PA1 Top/Bottom view:

NVLAP LAB CODE 200065-0 SAR EVALUATION REPORT FCC 47 CFR § 2.1093 IEEE Std 1528-2013 For GSM/W-CDMA/LTE + BLUETOOTH, DTS/UNII a/b/g/n/ac, ANT+ & NFC FCC ID: PY7-PM0793 Report Number: 15J20116-S1A Issue Date: 4/14/2015 Prepared for SONY MOBILE COMMUNICATIONS INC. NYA VATTENTORNET MOBILVAGEN 10 LUND 22188 SWEDEN Prepared by UL VERIFICATION SERVICES INC. 47173 BENICIA STREET FREMONT, CA 94538, U.S.A. TEL: (510) 771-1000 FAX: (510) 661-0888 Report No.: 15J20116-S1A Issue Date: 4/14/2015 Page 2 of 43 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Revision History Rev. Date Revisions Revised By -- 4/14/2015 Initial Issue -- A 4/14/2015 Section 6.3: Fixed Typo Coltyce Sanders Report No.: 15J20116-S1A Issue Date: 4/14/2015 Page 3 of 43 UL Verification Services Inc. Doc. No.: 1.0 This report shall not be reproduced without the written approval of UL Verification Services Inc. Table of Contents 1. Attestation of Test Results ......................................................................................................... 5 2. Test Specification, Methods and Procedures ............................................................................ 6 3. Facilities and Accreditation ........................................................................................................ 6 4. SAR Measurement System & Test Equipment .......................................................................... 7 4.1. SAR Measurement System ........................................................................................................ 7 4.2. SAR Scan Procedures ............................................................................................................... 8 4.3. Test Equipment ........................................................................................................................ 10 5. Measurement Uncertainty ......................................................................................................... 11 6. Device Under Test (DUT) Information ...................................................................................... 11 6.1. DUT Description ...................................................................................................................... 11 6.2. Wireless Technologies ............................................................................................................. 11 6.3. Nominal and Maximum Output Power ...................................................................................... 12 6.4. General LTE SAR Test and Reporting Considerations ............................................................. 13 7. RF Exposure Conditions (Test Configurations) ...................................................................... 15 8. Dielectric Property Measurements & System Check .............................................................. 16 8.1. Dielectric Property Measurements ........................................................................................... 16 8.2. System Check.......................................................................................................................... 20 9. Conducted Output Power Measurements ................................................................................ 23 9.1. GSM ........................................................................................................................................ 23 9.2. W-CDMA .................…
