PY7-PM0841GSM/WCDMA/LTE + BLUETOOTH, DTS/UNII a/b/g/n/ac, ANT+ and NFC

SAR Information FCC Statement Declaration of Conformity Sony E6508 UMTS HSPA Band 1 2 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 2 3 4 5 7 13 20 SAR Information United States & Canada THIS PHONE MOD EL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO W AVES. The E6508 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.87 W/kg, and when worn on the body is 0 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7-PM08. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. 3 TAS importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la E6508 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.87 W/kg lorsqu'il est testé en utilisation près de l'oreille, et de 0 W/kg lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage (c.-à-d. près de l'oreille et porté sur le corps), tel que requis par la CFC. La CFC a accordé une autorisati…

Text truncated - open the document above for the full version.

Get to Know Your Phone SONY ® X p er ia® Z4V Welcome to Verizon Wireless. You’re now part of a growing movement that’s about speed, signal and strength. This guide will show you how to set up and use your phone, access special features, and find help. Charge the phone Before turning on your phone, charge it fully. 1. insert the small end of the USB cable into the USB/Charger port. 2. insert the other end into the power adapter, and then plug the power adapter into an electrical outlet. WarNiNG! please use only an approved charging accessory to charge your phone. improper handling of the charging port, as well as the use of an incompatible charger, may cause damage to your device and void the warranty. 36% 36% Setting Up Your Phone Optional: insert the microSD Card 1. With the phone facing down, open the Memory/SiM card slot cover. Using a fingernail, pull out the SiM card and memory card slot. 2. Carefully slide the micro SD card into the memory card slot with the gold contacts facing up. 3. push the Memory/SiM card slot back into place. Close the Memory/SiM card slot cover. NOTe: The microSD card is sold separately. Optional: replace the SiM Card Your phone comes with the SiM card already installed. if you need to replace the SiM card: 1. With the phone facing down, open the Memory/SiM card slot cover. Using a fingernail, pull out the Memory/SiM card slot. 2. remove the SiM card. 3. Carefully insert the new 4G LTe SiM card into the SiM card slot with the Verizon logo facing down. 4. push the Memory/SiM card slot back into place. Close the Memory/SiM card slot cover. Follow the onscreen instructions to restart the device. 1 4 23 Front Camera Lens Volume/ Zoom Key USB/Charger port Camera Key Speaker NOTe: Devices and software are constantly evolving—the screen images and icons you see here are for reference only. CaUTiON: after using your device in water, it’s important that the USB/Charger port is completely dry before a USB cable is insterted into it. To remove moisture from the USB/ Charger port, shake your device several times with the USB/ Charger port facing downwards and then use a micro-fibre cloth to wipe the device dry. if moisture is still visible in the USB/Charger port, repeat the shaking and drying procedure. Charging light/ Notification Light power/Lock Key proximity/Light Sensor ear Speaker Memory/ SiM Card Slot NFC Detection area Headset Jack Wireless Charge Detection area Main Camera Lens Camera Light Using Your Phone Turning Your phone On/Off it’s important to fully charge the battery before turning on your phone. To turn on your phone press and hold the Power/Lock key on the right side of your phone. To turn off your phone 1. press and hold the Power/Lock key until the Device options screen appears. 2. Tap Power off. Home Screen recent apps Button Back Button Home Button apps icon Setup Wizard When you turn on your phone for the first time, you have the option to quickly set up email accounts, sync contacts that you have backed up with Verizon Cloud, turn on location services, and more. Simply follow the onscreen instructions to complete the initial setup of your phone. Locking and Unlocking Your phone prevent accidental key presses by locking your phone. To lock your phone press the Power/Lock key. Your phone will also lock automatically if you haven’t used it for a while. To unlock your phone press the Power/Lock key to wake the screen. Then swipe your finger upwards on the screen. For added security, you can set up a screen lock such as a lock pattern or numeric piN. To set up a screen lock 1. From the Home screen, tap Apps Settings Security Screen lock . 2. Select the kind of screen lock you want to use and follow the instructions. Using the Touch Screen Use touch gestures to move around the screen, open menus, select items, zoom in or out on web pages, and more. Ta p—Tap to open or select an item, mark or unmark a checkbox or option, or enter text using the on-screen keyboard. Swipe—Swipe by quickly sliding your finger in any direction. Flick—Flick to scroll quickly, for example, in a list or on a web page. You can stop the scrolling movement by tapping the screen. Drag—Drag by touching an item and sliding it to a new position, activate an item- specific menu, or activate selection mode. Double-Tap—Tap two times rapidly to zoom in or out on a web page or picture. Multi Touch—pinch or spread your thumb and index finger to zoom in or out. ©2015 Verizon Wireless. all rights reserved. Making a Call 1. From the Home screen, tap the Phone icon. 2. Tap the Dialpad icon to display the dialpad. 3. enter the number you want to call or the first letters of the contact’s name and select the contact. 4. Ta p t h e Call icon to place the call. advanced Calling You can make High-Definition Voice and Video Calls, and surf the web while you talk on the phone when you add advanced Calling to your line. Visit verizonwireless. com/advancedCalling to learn how. receiving a Call Tap the Answer icon to answer an incoming call. Setting Up Voice Mail 1. Tap the Phone icon on the Home screen. 2. Tap the Dialpad icon to display the dialpad. 3. Dial *86 and tap Call icon. 4. Follow the instructions to select the language, set up your voice mail password, and more. Checking Voice Mail 1. From the Home screen, tap Phone Dialpad. 2. Touch and hold 1. 3. When you hear a greeting, tap # to interrupt. 4. Follow the instructions. NOTe: Voice mailboxes not set up within 45 days will be canceled. Your voice mailbox is not password protected until you create a password by following the setup tutorial. Sending a Text 1. From the Home screen, tap Apps Message+ Compose. 2. enter the name or number of the person you want to send the message to and you’ll see matching contacts. Or just enter a phone number. 3. Tap the message area and enter your message. 4. To add an attachment to your message, tap the Add icon. 5. review your message and tap Send. Taking photos 1. From the Home screen, tap Apps Camera. Yo…

Text truncated - open the document above for the full version.

Get to Know Your Phone SONY Xperia® Z4 v Welcome to Verizon Wireless. You’re now part of a growing movement that’s about speed, signal and strength. This guide will show you how to set up and use your phone, access special features, and find help. Charge the Phone Before turning on your phone, charge it fully. 1. Insert the small end of the USB cable into the USB/Charger Port. 2. Insert the other end into the power adapter, and then plug the power adapter into an electrical outlet. NOTE: You can also use a Qi/PMA wireless charging accessory to charge your phone. WARNING! Please use only an approved charging accessory to charge your phone. Improper handling of the charging port, as well as the use of an incompatible charger, may cause damage to your device and void the warranty. Setting Up Your Phone Optional: Replace the SIM Card Your phone comes with the SIM card already installed. If you need to replace the SIM card: 1. With the phone facing down, open the SD/SIM card slot cover. Using a fingernail, pull out the card tray. 2. Remove the SIM card. 3. Carefully insert the new 4G LTE SIM card into the card tray with the Verizon logo facing down. 4. Push the card tray back into place. Close the SD/SIM card slot cover. 1 4 23 Optional: Insert the microSD Card 1. With the phone facing down, open the SD/SIM card slot cover. Using a fingernail, pull out the card tray. 2. Carefully slide the micro SD card into the card tray with the gold contacts facing up. 3. Push the card tray back into place. Close the SD/SIM card slot cover. NOTE: The microSD card is sold separately. Front Camera Volume/ Zoom Key USB/Charger Port Camera Key Speaker CAUTION: At purchase, there are two sheets of plastic film on the front of your device. You can peel off the outer sheet of film when you start using the device. It is not recommended to peel off the second sheet of film as it protects your screen from damage and scratching. Charging/Notification Light Power/Lock Key Proximity/Light Sensor Ear Speaker SD/SIM Card Slot NFC Detection Area Headset Jack Wireless Charge Detection Area Back Camera Camera Light CAUTION: Your device has a capless USB port. The USB port must be completely dry before a cable can be connected for charging or data transfer, for example. If your device gets exposed to water and the USB port gets wet, wipe the device dry with a microfiber cloth and shake it several times with the USB port facing downwards. Repeat the procedure until no moisture is visible in the USB port. Microphone A Microphone B Using Your Phone Turning Your Phone On/Off It’s important to fully charge the battery before turning on your phone. To turn on your phone Press and hold the Power/Lock key on the right side of your phone. To turn off your phone 1. Press and hold the Power/Lock key until the Device options screen appears. 2. Tap Power off. Home Screen Recent Apps Button Back Button Home Button Apps Icon NOTE: Devices and software are constantly evolving—the screen images and icons you see here are for reference only. Setup Wizard When you turn on your phone for the first time, you have the option to quickly set up email accounts, sync contacts that you have backed up with Verizon Cloud, turn on location services, and more. Simply follow the onscreen instructions to complete the initial setup of your phone. Locking and Unlocking Your Phone Prevent accidental key presses by locking your phone. To lock your phone Press the Power/Lock key. Your phone will also lock automatically if you haven’t used it for a while. To unlock your phone Press the Power/Lock key to wake the screen. Then swipe your finger upwards on the screen. For added security, you can set up a screen lock such as a lock pattern or numeric PIN. To set up a screen lock 1. From the Home screen, tap Apps Settings Security Screen lock . 2. Select the kind of screen lock you want to use and follow the instructions. Using the Touch Screen Use touch gestures to move around the screen, open menus, select items, zoom in or out on web pages, and more. Ta p—Tap to open or select an item, mark or unmark a checkbox or option, or enter text using the onscreen keyboard. Swipe—Swipe by quickly sliding your finger in any direction. Flick—Flick to scroll quickly, for example, in a list or on a web page. You can stop the scrolling movement by tapping the screen. Drag—Drag by touching an item and sliding it to a new position. Touch and Hold— Touch and hold an item to see options or to turn on selection mode. Double-Tap—Tap two times rapidly to zoom in or out on a web page or picture. Multi Touch—Pinch or spread your thumb and index finger to zoom in or out. ©2015 Verizon Wireless. All Rights Reserved. Making a Call 1. From the Home screen, tap the Phone icon. 2. Tap the Keypad icon. 3. Enter the number you want to call or the first letters of the contact’s name and select the contact. 4. Ta p t h e Call icon to place the call. Advanced Calling You can make High-Definition Voice and Video Calls, and surf the web while you talk on the phone, when you add Advanced Calling to your line. Visit verizonwireless. com/AdvancedCalling to learn how. Receiving a Call Tap the Answer icon to answer an incoming call. Visual Voice Mail Listen to, manage and delete your message directly from your phone, in any order, without having to listen to instructions. 1. From the Home screen, tap Voice Mail. 2. Follow the instructions to set up your voice mail. NOTE: Voice mailboxes not set up within 45 days will be canceled. Your voice mailbox is not password protected until you create a password by following the setup instructions. Sending a Text 1. From the Home screen, tap Apps Message+ Compose. 2. Enter the name or number of the person you want to send the message to and you’ll see matching contacts. Or just enter a phone number. 3. Tap the message area and enter your message. 4. To add an attachment to your message, tap the Add icon. 5. Review your message and tap Send. Taking Photos 1. From the …

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 2/0061-22/FCP 119 1532 Uen A Prepared by Date SEM/CGQTAGC LEI 3 CHEN 2015-04-16 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (YUSHENG WU) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. UL Verification Services Inc. 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Confidential LETTER 2(2) Document number Revision 2/0061-22/FCP 119 1532 Uen A e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Yours sincerely Yusheng Wu (武予生) Manager Global Type Approval China Sony Mobile Communications (China) Co., Ltd

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 1/0061-22/FCP 119 1532 Uen A Prepared by Date SEM/CGQTAGC LEI 3 CHEN 2015-03-09 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGQTAGC (YUSHENG WU) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: PY7-PM0841 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Antenna Specification - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential Confidential LETTER 2(2) Document number Revision 1/0061-22/FCP 119 1532 Uen A documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely Yusheng Wu Manager Global Type Approval China Sony Mobile Communications (China) Co., Ltd

Sony Mobile Communications Company Internal REPORT 1(2) Document number Revision 40/0360-LXE 110 1383 Uen PA1 Prepared by Date SEM/CGVFDB KEIGO OSHIRO 2015-04-16 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7-PM0841: External Photos: Front: Rear: Company Internal REPORT 2(2) Document number Revision 40/0360-LXE 110 1383 Uen PA1 Side view: Top/Bottom view:

Label and Label Location PY7-PM0841 FCC ID: PY7-PM0841 Back side of the EUT Sony M obile Communications Confi denti al WORK DESCRIPTION Document number Prepared by Date Takashi Okada (22715996) 2015-02-06 Conte nts responsible if oth er t han preparer Remarks This d ocument is managed i n meta Doc. Approved by

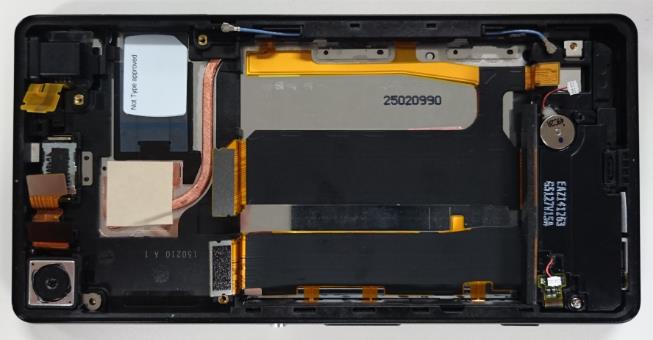

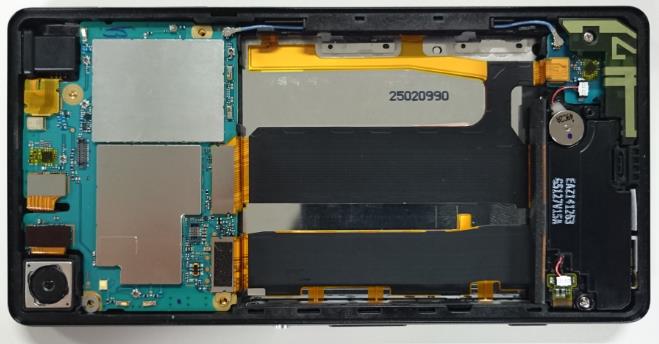

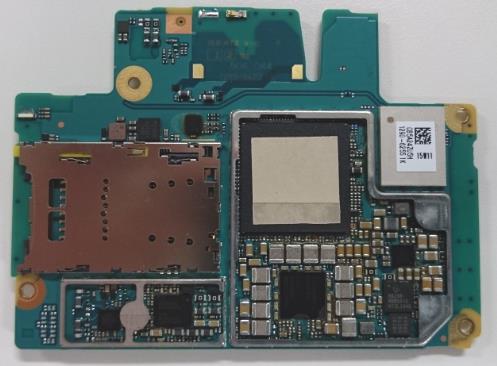

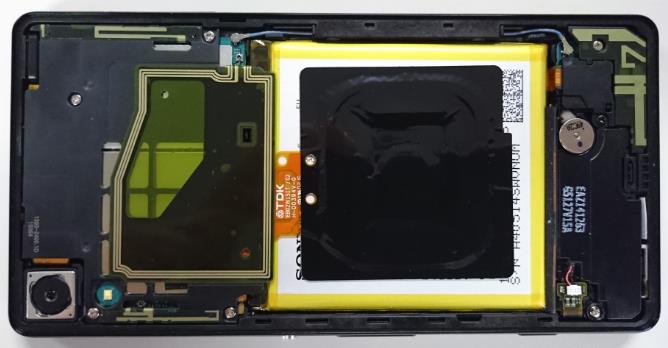

Sony Mobile Communications Company Internal REPORT 1(5) Document number Revision 41/0360-LXE 110 1383 Uen PA1 Prepared by Date SEM/CGVFDB KEIGO OSHIRO 2015-04-16 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. PY7-PM0841: Internal Photos: Without Rear Panel With PWB Company Internal REPORT 2(5) Document number Revision 41/0360-LXE 110 1383 Uen PA1 Without PWB Company Internal REPORT 3(5) Document number Revision 41/0360-LXE 110 1383 Uen PA1 Internal PWB with/without Shield cases – Front (LCD)-side: Internal PWB with Shield cases (Front-side) Internal PWB without Shield cases (Front-side) Company Internal REPORT 4(5) Document number Revision 41/0360-LXE 110 1383 Uen PA1 Internal PWB with/without Shield cases - Rear-side: Internal PWB with Shield cases (Rear-side) Internal PWB without Shield cases (Rear-side) Company Internal REPORT 5(5) Document number Revision 41/0360-LXE 110 1383 Uen PA1 Battery:

Plot No. 1 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 3/30/2015 12:01:13 PM 20150330_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2450 MHz; σ = 1.994 S/m; ε r = 50.711; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3902; ConvF(7.35, 7.35, 7.35); Calibrated: 5/19/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection (Locations From Previous Scan Used)), Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 6.90 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 53.884 V/m; Power Drift = 0.09 dB Peak SAR (extrapolated) = 10.9 W/kg SAR(1 g) = 5.27 W/kg; SAR(10 g) = 2.45 W/kg Maximum value of SAR (measured) = 7.47 W/kg 0 dB = 7.47 W/kg = 8.73 dBW/kg Plot No. 2 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 3/30/2015 12:18:47 PM 20150330_SystemPerformanceCheck-D2450V2 SN 706 Frequency: 2450 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.71 W/kg Plot No. 3 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 4/3/2015 11:35:35 AM 20140403_SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 2600 MHz; σ = 2.227 S/m; ε r = 51.496; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3902; ConvF(7.18, 7.18, 7.18); Calibrated: 5/19/2014; - Sensor-Surface: 2.5mm (Mechanical Surface Detection) - Phantom: ELI-A v5.0; Type: QDOVA002AA; Serial: TP 1194 Body/Pin=100 mW/Area Scan (8x8x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 7.82 W/kg Body/Pin=100 mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.474 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 12.7 W/kg SAR(1 g) = 5.81 W/kg; SAR(10 g) = 2.56 W/kg Maximum value of SAR (measured) = 8.43 W/kg 0 dB = 8.43 W/kg = 9.26 dBW/kg Plot No. 4 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 4/3/2015 11:57:10 AM 20140403_SystemPerformanceCheck-D2600V2 SN 1006 Frequency: 2600 MHz; Duty Cycle: 1:1 Body/Pin=100 mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 5.63 W/kg Plot No. 5 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 4/8/2015 6:34:40 PM 20150408_SystemPerformanceCheck-D5GHzV2 SN 1168 Frequency: 5800 MHz; Duty Cycle: 1:1; Room Ambient Temperature: 24.0°C; Liquid Temperature: 23.0°C Medium parameters used: f = 5800 MHz; σ = 5.107 S/m; ε r = 34.262; ρ = 1000 kg/m 3 DASY5 Configuration: - Area Scan Setting: Find Secondary Maximum Within: 2.0 dB and with a peak SAR value greater than 0.0012W/kg - Electronics: DAE4 Sn1352; Calibrated: 11/7/2014 - Probe: EX3DV4 - SN3902; ConvF(4.75, 4.75, 4.75); Calibrated: 5/19/2014; - Sensor-Surface: 1.4mm (Mechanical Surface Detection) - Phantom: SAM; Type: QD000P40CD; Serial: TP 1751 Head/5.8 GHz, Pin=100mW/Area Scan (7x7x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 19.9 W/kg Head/5.8 GHz, Pin=100mW/Zoom Scan (8x8x7)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=1.4mm Reference Value = 55.831 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 36.6 W/kg SAR(1 g) = 8.36 W/kg; SAR(10 g) = 2.38 W/kg Maximum value of SAR (measured) = 20.5 W/kg 0 dB = 20.5 W/kg = 13.12 dBW/kg Plot No. 6 Test Laboratory: UL Verification Services Inc., SAR Lab 1 Date/Time: 4/8/2015 6:57:12 PM 20150408_SystemPerformanceCheck-D5GHzV2 SN 1168 Frequency: 5800 MHz; Duty Cycle: 1:1 Head/5.8 GHz, Pin=100mW/Z Scan (1x1x21): Measurement grid: dx=20mm, dy=20mm, dz=5mm Maximum value of SAR (measured) = 13.6 W/kg Plot No. 7 Test Laboratory: UL Verification Services Inc., SAR Lab 2 Date/Time: 3/31/2015 12:55:40 PM 20150331_SystemPerformanceCheck-D1900V2 SN …
