PY7-PM0892Smart phone

Support for you Help is never far away. You can access our support website and a range of help options directly in your device using the Support application. Or you can visit support.sonymobile.com from any supported browser. The support options on our website include downloads, troubleshooting tips, User guides, support numbers, and chat and email support. You can access support contact information for your country or region using the Contact us links. If you don’t have a network connection, you can still access support contact information such as phone numbers and email addresses in your device. Just open the Support application and select the Contact us option near the top of the screen. To access the Support application 1 From your Home screen, tap . 2 Find and tap . Overview 1 2 3 4 6 5 1Charging/Notification light 2Power key 3Volume/Zoom key 4Camera key 5Charger/USB cable port 6Nano SIM/Memory card slot cover To insert a memory card 1 Open the cover for the nano SIM card and memory card slots. 2 Place the memory card in the memory card slot, then push the memory card all the way into the slot until you hear a clicking sound. 3 Close the cover. Make sure you insert the memory card in the correct orientation. To insert the nano SIM card Your device only supports nano SIM cards. Make sure you use the nano SIM card holder and don’t confuse the nano SIM card slot with the memory card slot. 1 Open the cover for the nano SIM and memory card slots. 2 Using a fingernail or other similar object, drag out the nano SIM card holder. 3 Place the nano SIM card in the holder, then re-insert the holder. 4 Close the cover. If you insert a nano SIM card while the device is powered on, the device restarts automatically. To turn on the device 1 Make sure your device is charged for at least 30 minutes before you turn it on for the first time. 2 Press and hold down the power key until the device vibrates. 3 Wait a while for the device to start. To activate the screen • Briefly press the power key . Starting up The first time you start your device, a Setup guide opens to help you configure basic settings, personalise your device and sign in to some accounts, for example, your Google™ account. The Setup guide can also be accessed later from the Settings menu. Important Information Before you use your device, please read the Important information provided in the Setup guide in your device. From here, you can find legal information as well as warranty, safety and SAR information. Transferring contacts and other content If you need help to find and transfer contacts, messages, photos and other data from an old device to your new device, we recommend that you use the Xperia™ Transfer application. Visit www.sonymobile.com/xperiatransfer for more information. Learn more You are now ready to start using your new device. To learn more about your device and its full functionality, access our support website directly in your device using the Support application or by visiting support.sonymobile.com. Frequency bands and model info Below is the model number and supported frequency bands for your device. You can find your model number under Settings > About phone. E5506 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 LTE Band 2 4 5 7 12 13 17 28 E5553 UMTS HSPA Band 1 2 5 8 GSM GPRS/EDGE 850/900/1800/1900 FDD LTE Band 1 3 5 7 8 28 TDD LTE Band 40 Some frequency bands might be turned off in certain markets or by certain operators. Legal information Sony E5506/E5553 Publication number: 1284-9581.2 This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. See regulatory information such as the device CE mark in the relevant label tray in the device. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. Visit www.sonymobile.com/global- en/legal/ for more information. Product compliance: This product has been manufactured by or on behalf of Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Inquiries related to product compliance based on national legislation shall be addressed to Sony Mobile Quality Office, Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Should your device need warranty service, please return it to the dealer from whom it was purchased or visit support.sonymobile.com/contact to contact your local Sony Mobile repair partner (national rates may apply). © 2014–2015 Sony Mobile Communications Inc. All rights reserved. To view the CE mark 1 Detach the cover for the nano SIM and memory card slots. 2 Place a fingernail under the right or left edge of the label tray, then drag the tray outwards. The CE mark is displayed on the tray. To view the FCC ID 1 Detach the cover for the nano SIM and memory card slots. 2 Place a fingernail under the right or left edge of the label tray, then drag the tray outwards. The FCC ID is displayed on the tray. To view the regulatory compliance mark • Open the phone dialer, then enter *#07#. Startup guide Xperia ™ C5 Ultra E5506/E5553 Sony Mobile Communications Inc. 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan 1284-9581.2

SAR Information FCC Statement Declaration of Conformity Sony E5553 UMTS HSPA Band 1 2 5 8 GSM GPRS/EDGE 850/900/1800/1900 FDD LTE Band 1 3 5 7 8 28 TDD LTE Band 40 Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The E55 53 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.78 W/kg, and when worn on the body is 1.02 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7-PM0892. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADI OÉLECTRIQUES. Les téléphones mobiles de la E5553 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.78 W/kg lorsqu'il est testé en utilisation près de l'oreille, et de 1.02 W/kg lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage (c.-à-d. près de l'oreille et porté sur le corps), tel que requis par la CF…

Text truncated - open the document above for the full version.

Arima Communications Corp. 6F,No.866,Jhongjheng Rd., Jhonghe Dist., New Taipei City 23586, Taiwan Date: July 9, 2015 Product Equality Declaration We, Arima Communications Corp., declare on our sole responsibility for the product of (Type Name: PM-0892-BV, FCC ID: PY7-PM0892) as below: The difference between Type Name: PM-0891-BV, FCC ID: PY7-PM0891 and Type Name: PM- 0892-BV, FCC ID: PY7-PM0892 is: PM-0891-BV support dual SIM slot, and PM-0892-BV support single SIM slot Except Listings above, the others are the same as previous version. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely yours, Jay Chiang [email protected]

Letter of Authority One behalf of Sony Mobile Communications Inc., I, Yusheng Wu, manager hereby give: Name Representative of agent: Jones Tsai Agent Company name: SPORTON INTERNATIONAL, INC Address: No.52, Hwa Ya 1 st Road Hwa Ya Technology Park Kwei-Shan Hsiang, Tao Yuan Hsien, Taiwan, R.O.C Authority to apply for NB opinion and FCC certification only in respect of product identified below, Type Number FCC ID IC ID PM-0891-BV PY7-PM0891 N/A PM-0893-BV PY7-PM0893 N/A PM-0892-BV PY7-PM0892 N/A PM-0890-BV PY7-PM0890 4170B-PM0890 This authorization will be only effective to filing, answering inquiring from Notify Body “ CETECOM ( Germany ) “or TCB reviewer “ TIMCO Engineering Inc.” , any associative matter involving application of this NB opinion and FCC certification, and it will not be extended beyond the aforementioned scope. Regards ______________ Yusheng Wu Manager, No.16, Guangshun South street, Chaoyang District Beijing, China, 100102

Sony Mobile Communications Inc Nya Vattentornet, Lund, 22188, Sweden Tel: +46 10 802 33 57 ; Fax: +46 10 800 24 41 Date: July 9, 2015 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: PY7‐PM0891 FCC ID: PY7‐PM0892 FCC ID: PY7‐PM0893 FCC ID: PY7‐PM0890 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune‐up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04‐1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot‐term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04‐1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _________________________ Jones Tsai [email protected]

Arima Communications Corp. 6F,No.866,Jhongjheng Rd., Jhonghe Dist., New Taipei City 23586, Taiwan Variation Attestation We hereby declare Type Name: PM-0892-BV, FCC ID: PY7-PM0892, as a variant of Type Name: PM-0891-BV, FCC ID: PY7-PM0891. The differences as following, Type NameFCC IDDifferences PM-0891-BVPY7-PM0891Dual SIM slot design PM-0892-BVPY7-PM0892Single SIM slot design PCB/trace layouts, product form factor and antenna between the two versions remain identical We hereby request to leverage the test data of type Name: PM-0891-BV, FCC ID: PY7-PM0891 to demonstrate the compliance of Type Name: PM-0892-BV, FCC ID: PY7-PM0892 regarding to FCC Part 15 Subpart B/ 22(H)/ 24(E)/ 27(M)/ Part 2 (2.1093)/ EN 301908-1-2-13/ EN 301511/ EN 301489 / EN 50360/ EN 50566/ EN 62311/ EN 62209-1-2/ EN 62479 requirements. The test worst cases found in Type Name: PM-0891-BV, FCC ID: PY7-PM0891 are verified on Type Name: PM-0892-BV, FCC ID: PY7-PM0892 to ensure the compliance is kept. Use the exact same BT/WLAN/GPS/NFC/Audio/Safety hardware and software solution as Type Name: PM-0891-BV, FCC ID: PY7-PM0891. Base on the similarities between these devices, FCC Part 15 subpart C and subpart E report (FR542942A, FR542942B, FR542942C, FR542942D, FR542942E, FR542942F, FZ542942), CE EN 300440 report (EQ542942), CE EN300328 (ER542942A), CE EN301893 (ER542942B), CE EN302291 (ER542942-01), CE EN50332 (EO542942) and CE EN60950-1 (L542942L161 ) by Sporton International Inc. issued for Type Name: PM-0891-BV, FCC ID: PY7-PM0891 also applies for Type Name: PM-0892-BV, FCC ID: PY7-PM0892, Sincerely Yours, ________________________________ Jay Chiang [email protected]

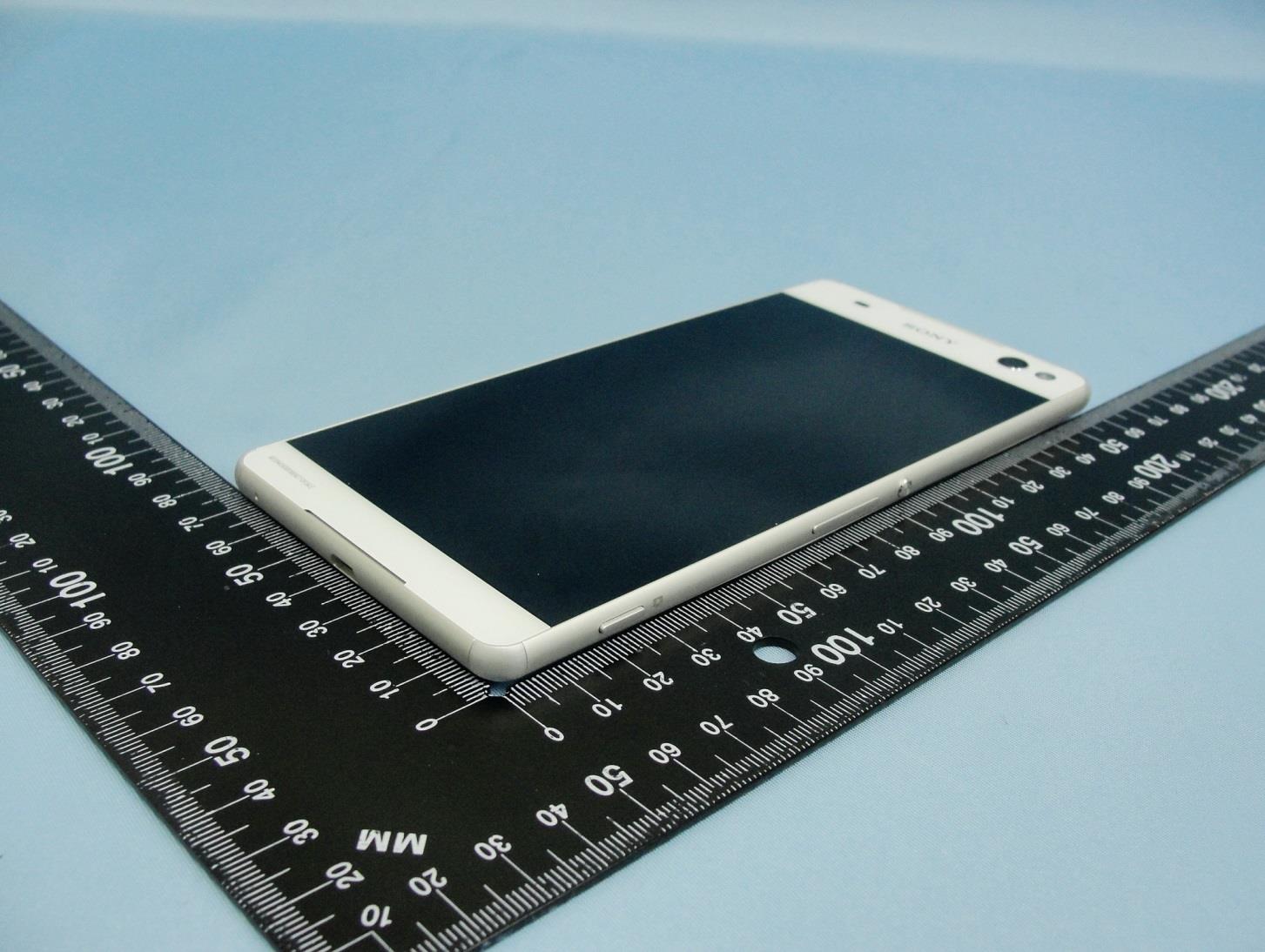

Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 1 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 2 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 3 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 4 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 5 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 6 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 7 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Specification of Accessory AC Adapter Brand Name Sony Model Name EP800 Type Name CAA-0002016-US B Car Charger Brand Name Sony Model Name AN400 Type Name AC-0110-DC Battery Brand Name Sony Model Name LIS1579ERPC Earphone 1 Brand Name Sony Model Name MH410c Type Name AG-1100 Earphone 2 Brand Name Sony Model Name MH410c Type Name AG-1103 USB Cable Brand Name Sony Model Name EC450 Type Name AI-0700 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 8 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 720510 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 9 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 AC Adapter Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 10 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Car Charger Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 11 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Battery Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 12 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 13 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Earphone 1 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 14 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Earphone 2 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 15 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 USB Cable

TYPE: PM-0892-BV FCC ID:PY7-PM0892 XXX SI XXXX-XXXX 0000000-0000000-0 yyWww Made in China

Open t pull ou trays a Note: A and foo version Labe 1. O 2. P the Micro SD ut the label, th are visible to t Any hard copy oter may fail to d n. Any outdated el Loca Open Mic Pull out th door and he label the users y of this docum display correct d hard copy is inv tion roSD door he Label Lab Loc a ment is for refer data. It is the re valid and must r el ation rence only. Due esponsibility of t be removed fro e to template an he user to ensu m possible use Front Si d nd application d re that they ha v . de dependencies th ve a correct and 1(1) he header d valid

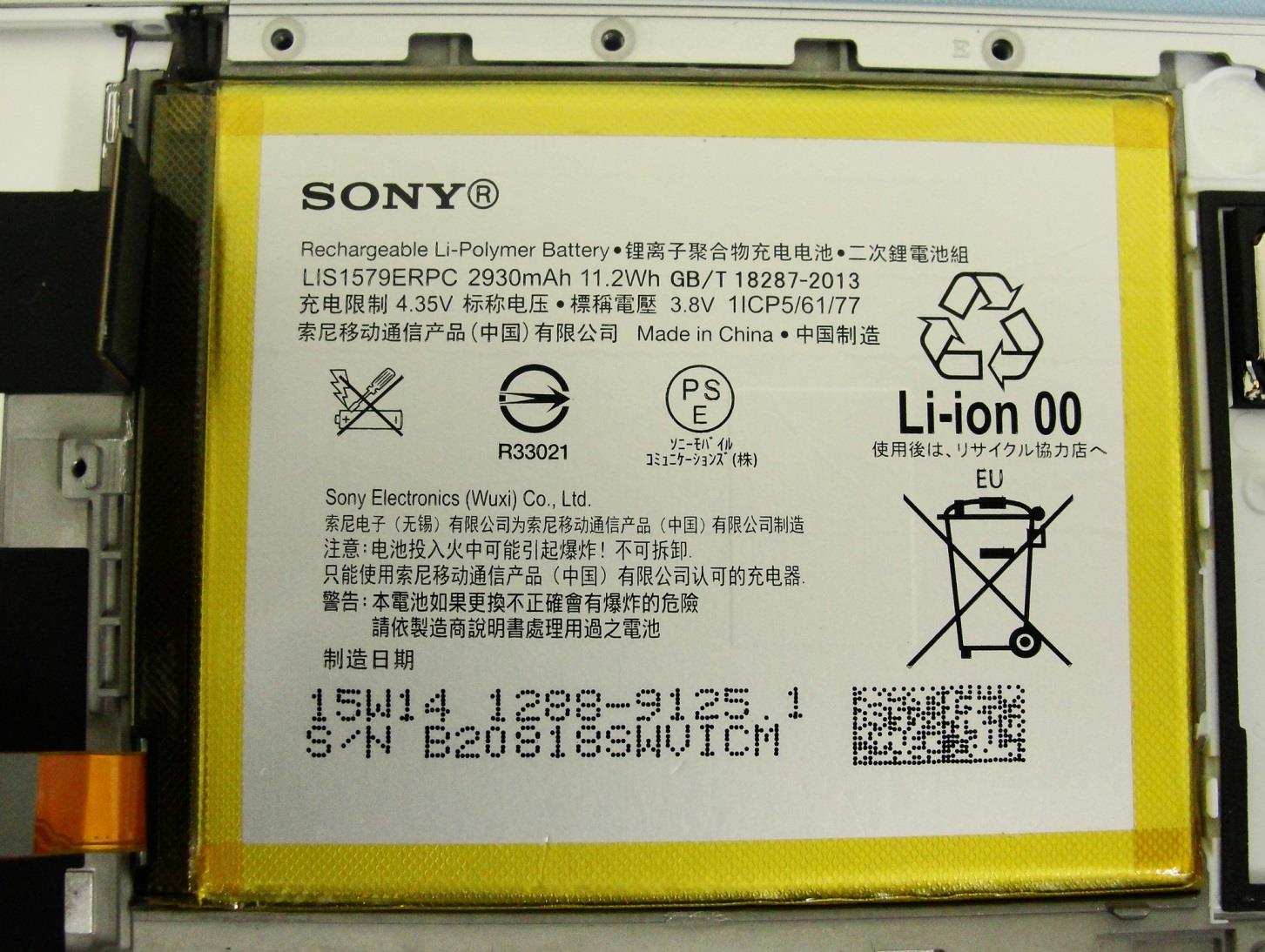

Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 16 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 17 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 18 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 19 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 20 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 21 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 22 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 23 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 24 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 25 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 26 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 27 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 28 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 29 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 30 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 WWAN Antenna Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 31 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 32 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 GPS Antenna Bluetooth & WLAN Antenna Bluetooth & WLAN Antenna GPS Antenna Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 33 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 34 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 NFC Antenna Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 35 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892 Diversity Antenna Photographs of EUT Report No.: EP542944 Brand Name: SONY / Type Name: PM-0892-BV SPORTON INTERNATIONAL INC. Page Number : 36 of 36 TEL : 886-3-327-3456 Report Issued Date : Jul. 09, 2015 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID: PY7-PM0892

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jul. 13, 2015 FCC ID : PY7-PM0892 Page 1 of 50 Form version. : 150415 FCC SAR Test Report Report No. : FA542944 FCC SAR Test Report APPLICANT : Sony Mobile Communications Inc. EQUIPMENT : Smart phone BRAND NAME : SONY TYPE NAME : PM-0892-BV FCC ID : PY7-PM0892 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2003 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jul. 13, 2015 FCC ID : PY7-PM0892 Page 2 of 50 Form version. : 150415 FCC SAR Test Report Report No. : FA542944 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) ....................................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Device Serial Number ............................................................................................................................................ 6 4.3 Maximum Tune-up Limit ......................................................................................................................................... 7 4.4 General LTE SAR Test and Reporting Considerations ........................................................................................... 8 5. RF Exposure Limits..…
