PY7-PM0912GSM/WCDMA/LTE Phone + Bluetooth, DTS/UNII a/b/g/n/ac, ANT+, and NFC

www.sonymobile.com American English Hearing Aid Compatibility Your phone is designed for Hearing Aid Compatibility (HAC) and can be used with hearing aids. Hearing Aid Settings You can choose the setting in the phone to match the setting in your hearing aid before making or receiving calls. To select a phone setting for HAC 1From the Home screen, tap . 2Find and tap Settings > Call settings. 3Mark the Hearing aids checkbox to turn on hearing aid compatibility. Hearing Aid Compatibility Information This phone has been tested and rated for use with hearing aids for some of the wireless technologies it uses. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility. If you have questions about return or exchange policies, consult your service provider or phone retailer. 2 FCC Caution: Please note that Sony Mobile did NOT perform the testing of Hearing Aid Compatibility of VoLTE and VoIP over Wi-Fi for CMRS air interfaces because the test instrumentation for it was not readily available at the time of testing. Hearing Aid Compatibility Rating This model handset was designed to comply with the requirements set forth in Section 20.19 of the Federal Communication Commission's (FCC) rules governing hearing aid compatibility (HAC), for the reduction of RF interference and magnetic coupling (T-coil) to hearing aids. The Microphone (M) rating and T-coil (T) rating is defined and labeled on the handset box. Devices meeting HAC compliance must have a minimum M3 and/or T3 rating or above as defined by the FCC in accordance with the latest ANSI Standard C63.19. The (M) rating refers to lower RF emission levels of the handset. The (T) rating refers to the magnetic coupling between the handset and the T-coil compatible hearing aid. Some hearing aids are also provided an (M) rating, and are more immune than others to interference. To determine the (M) rating of your hearing aid, please contact your hearing health professional. More information about digital wireless devices and hearing aid compatibility can be found at http://blogs.sonymobile.com/about-us/sustainability/ accessibility/overview/hearing-aid-compatibility/ . 3 Español Latinoamericano Compatibilidad de aparatos auditivos Su teléfono está diseñado para la compatibilidad de aparatos auditivos (HAC, por su sigla en inglés) y se puede usar con aparatos auditivos. Ajustes de los aparatos auditivos Puede elegir que el ajuste del teléfono coincida con el ajuste de su aparato auditivo antes de realizar o recibir llamadas. Seleccionar una configuración de teléfono para HAC 1Desde Pantalla Inicio, toque suavemente . 2Busque y toque suavemente Configuración > Config. de llamada. 3Marque la casilla de verificación Ayudas auditivas para activar la compatibilidad de aparatos auditivos. Información sobre la compatibilidad de audífonos Este teléfono ha sido probado y calificado para su funcionamiento con audífonos para algunas de las tecnologías inalámbricas que utiliza. Sin embargo, es posible que haya algunas tecnologías inalámbricas más nuevas usadas en este teléfono que aún no han sido probadas para su funcionamiento con audífonos. Es importante probar las distintas funciones de este teléfono minuciosamente y en distintas ubicaciones, usando su audífono o implante coclear, para determinar si detecta alguna interferencia. Consulte con su proveedor de servicio o con el fabricante de este teléfono para obtener 4 información sobre la compatibilidad de audífonos. Si tiene preguntas sobre las políticas de devolución o cambio, consulte con su proveedor de servicio o con el distribuidor del teléfono. Precaución de FCC: Tenga en cuenta que Sony Mobile NO realizó la prueba de compatibilidad de audífonos de VoLTE y VolP a través de Wi-Fi para las interfaces de aire de los CMRS (Servicios Comerciales de Radio Móvil), porque los instrumentos de prueba para realizarla no estaban disponibles en el momento de la prueba. Clasificación de compatibilidad de los aparatos auditivos Este modelo de teléfono fue diseñado para cumplir los requisitos establecidos en la Sección 20.19 de las normas de la Federal Communication Commission (FCC) que rigen la compatibilidad de los aparatos auditivos (HAC, por sus siglas en inglés), para la reducción de la interferencia RF y el acoplamiento magnético (T-coil) con los aparatos auditivos. La clasificación de Micrófono (M) y la clasificación de T-coil (T) está definida y marcada en la caja del teléfono. Los dispositivos que cumplen los requisitos de HAC deben tener una clasificación mínima de M3 y/o T3 o superior definida por la FCC de acuerdo con la última norma ANSI C63.19. La clasificación (M) se refiere a los niveles de emisiones RF inferiores del teléfono. La clasificación (T) se refiere al acoplamiento magnético entre el teléfono y el aparato auditivo compatible de T-coil. Algunos aparatos auditivos también tienen una clasificación(M) y la interferencia los afecta menos que a otros. Para determinar la clasificación (M) de 5 April 8, 2014 17:10:40 Important information about hearing aid compatibility Información importante acerca de la compatibilidad de audífonos Informations importantes concernant la compatibilité avec les appareils auditifs Sony Mobile Communications I nc. 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan 1239-4751.7 ?? 23, 2014 09:00:46 1239-4751.7 Sony Mobile Communications AB.pdf 1 of 2 sus aparato auditivo, contáctese con su profesional de la salud auditiva. Hay más información acerca de los dispositivos inalámbricos digitales y la compatibilidad de los aparatos auditivos se puede encontrar en http:// blogs.sonymobile.com/about-us/sustainability/ ac…

Text truncated - open the document above for the full version.

Support for you Access our support website directly in your device or visit support.sonymobile.com from any supported browser. Support options include User guides, downloads, troubleshooting tips and contact information. Even if you don ́t have a network connection, you can access support contact numbers or email addresses in your device. Depending on the country or region where you purchased your device, you can find this information directly in the Support application, or by searching your contacts for Xperia™ Care. To access the Support application 1 From your Home screen, tap . 2 Find and tap . For best support available, we recommend connecting to the Internet when using the Support application. Overview 5 1 2 3 4 6 1Charging/Notification light 2Power key/Fingerprint sensor 3Volume/Zoom key 4Camera key 5Charger/USB cable port 6Nano SIM/Memory card slot cover To insert a memory card 1 Open the nano SIM/Memory card slot cover. 2 Insert the memory card into the memory card slot, then close the cover. Make sure you insert the memory card in the correct orientation. To insert the nano SIM cards If you insert the nano SIM card while the device is powered on, the device restarts automatically. 1 Open the nano SIM/Memory card slot cover. 2 Using a fingernail or other similar object, drag out the nano SIM card holder. 3 Place the nano SIM card (or cards) in the relevant nano SIM card slot (or slots) in the holder, then re-insert the holder. 4 Close the cover. Make sure you re-insert the nano SIM card holder in the correct orientation. When you drag out the holder to insert the nano SIM card, do not turn the holder upside down. To turn on the device 1 Make sure your device is charged for at least 30 minutes before you turn it on for the first time. 2 Press and hold down the power key until the device vibrates. 3 Wait a while for the device to start. To activate the screen • Briefly press the power key . Dust and water protection Your device is waterproof and protected against dust: all ports and attached covers should be firmly closed. You should not put the device completely under water or expose it to sea water; salt water; chlorinated water; or liquids such as drinks. Improper use will invalidate the warranty. Your device has the Ingress Protection ratings IP65 and IP68. To understand what these ratings mean and how they affect your usage, visit www.sonymobile.com/waterproof. Your capless USB port must be completely dry before a cable can be connected. If your USB port gets wet, wipe dry with a microfibre cloth and shake it several times with the USB port facing downwards. Repeat until no moisture is visible in the USB port. Important Information Before you use your device, please read the Important information provided under Settings > About phone > Legal information in your device. From here, you can find legal information as well as warranty, safety and SAR information. Transferring contacts and other content If you need help to find and transfer contacts, messages, photos and other data from an old device to your new device, we recommend that you use the Xperia™ Transfer application. Visit www.sonymobile.com/xperiatransfer for more information. Frequency bands and model info Below is the model number and supported frequency bands for your device. You can find your model number under Settings > About phone. E6833 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 FDD LTE Band 1 2 3 4 5 7 8 12 17 20 E6883 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 FDD LTE Band 1 2 3 4 5 7 8 12 17 20 TDD LTE Band 38 39 40 41 Some frequency bands might be turned off in certain markets or by certain operators. To view the CE mark 1 Open the nano SIM/Memory card slot cover. 2 Place a fingernail under the right or left edge of the label tray, then drag the tray outwards. The CE mark and FCC ID are displayed on the tray. To view the regulatory compliance mark • Open the phone dialer, then enter *#07#. Legal information Sony E6833/E6883 Publication number: 1284-9581.2 This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. Visit www.sonymobile.com/global- en/legal/ for more information. Product compliance: This product has been manufactured by or on behalf of Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Inquiries related to product compliance based on national legislation shall be addressed to Sony Mobile Quality Office, Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Should your device need warranty service, please return it to the dealer from whom it was purchased or visit support.sonymobile.com/contact to contact your local Sony Mobile repair partner (national rates may apply). © 2015 Sony Mobile Communications Inc. All rights reserved. Startup guide Xperia ™ Z5 Premium Dual E6833/E6883 Sony Mobile Communications Inc. 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan 1284-9581.2

SAR Information FCC Statement Declaration of Conformity Sony E6833 UMTS HSPA Band 1 2 4 5 8 GSM GPRS/EDGE 850/900/1800/1900 FDD LTE Band 2 3 4 5 78  20 Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The E6833 Series mobile phones have been designed to comply with applicable safe ty requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.39 W/kg, and when worn on the body is 1.14 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7-PM0912. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la E6833 ont été conçus pour répondre aux normes de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.39 W/kg lorsqu'il est testé en utilisation près de l'oreille, et de 1.14 W/kg lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage (c.-à-d. près de l'oreille et porté sur le corps), tel que requis par la CFC. L…

Text truncated - open the document above for the full version.

Sony Mobile Communications Confidential LETTER 1(2) Document number Revision 77/0061-LXE 110 1480 Uen A Prepared by Date SEM/CGLQKACD CAROL LI 2015-10-14 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by SEM/CGLQKACD (YUSHENG WU) It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 FCC ID: PY7-PM0912 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. - Schematic Diagram - Block Diagram - Theory of Operation - Antenna Specification - Parts List - Tune up Information Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180days from date of the Grant of Equipment Authorization. - External Photos - Internal Photos - Test Setup Photos - User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential Confidential LETTER 2(2) Document number Revision 77/0061-LXE 110 1480 Uen A documents and those information will be available for public review once the grant of equipment authorization is issued. Yours sincerely Yusheng Wu Manager Global Type Approval China Sony Mobile Communications (China) Co., Ltd

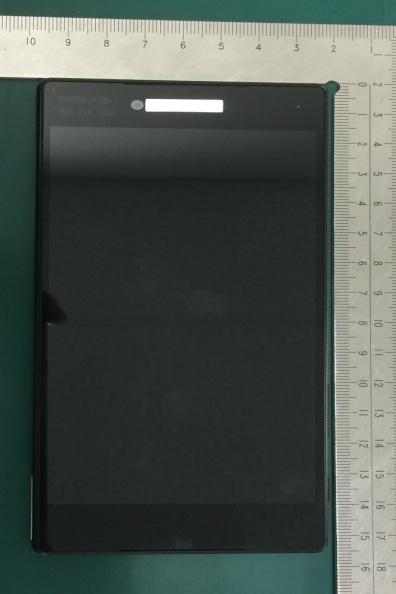

Sony Mobile Communications Company Internal INTRODUCTION 1(1) Document number Revision 14/0341-FEA 202 8219 Uen PA2 Prepared by Date SEM/CGQKACD DAO KANG 2015-09-10 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-PM0912 External Photos Front Rear Side view: Top/Bottom view Top Bottom

Label and Label Location PY7-PM0912 FCC ID: PY7-PM0912 Front side of the EUT Sony M obile Communications Confi denti al WORK DESCRIPTION Document number Prepared by Date Takashi Okada (22715996) 2015-05-25 Conte nts responsible if oth er t han preparer Remarks This d ocument is managed i n meta Doc. Approved by

Sony Mobile Communications Company Internal INTRODUCTION 1(3) Document number Revision 12/0341-FEA 202 8219 Uen PA2 Prepared by Date SEM/CGQKACD DAO KANG 2015-09-10 Contents responsible if other than preparer Remarks This document is managed in metaDoc. Approved by It is the responsibility of the user to ensure that they have a correct and valid version. Any outdated hard copy is invalid and must be removed from possible use. FCC ID: PY7-PM0912 Internal Photos Without Rear Panel Rear Panel With PWB Without PWB Company Internal INTRODUCTION 2(3) Document number Revision 12/0341-FEA 202 8219 Uen PA2 Internal PWB with/without Shield cases–Front (LCD)– side Internal PWB with Shield cases (Front - side) Internal PWB without Shield cases (Front - side) Internal PWB with/without Shield cases–Rear–side Internal PWB with Shield cases (Rear-side) Internal PWB without Shield cases (Rear-side) Company Internal INTRODUCTION 3(3) Document number Revision 12/0341-FEA 202 8219 Uen PA2 Battery

Page 1 of 138 Sony Mobile Communications (China) Co., Ltd. Test Laboratory Test Report Report Title: C1691B SAR FCC Test Report Report NO: TARC-C1691B-SAR-FCC-01 Report Date: 2015-10-15 Initial Test Report / Test Report replace <document ID> Prepared by: Zhou, Zhili Reviewed by: Tang, Hailiang Approval by: Wu, Yusheng Title： Test Engineer Title：Lab Supervisor Title：Authorized Signatory Date: 2015/10/19 Date: 2015/10/19 Date: 2015/10/19 Note: The test results in this test report relate only to the devices listed in this report. This report shall not be reproduced except in full without the written approval of Sony Mobile Communications (China) Co., Ltd. Test Laboratory. Test Laboratory: 2.948 Listed: No.634550 Sony Mobile Communications (China) Co., Ltd. Test Laboratory Address: No.15, TianZhu Lu, TianZhu Airport development area, ShunYi district, Beijing, China Tel: +86(0)10-80481188-68138, Fax: +86 1080481188 – 68010 TESTING CNAS L6619 Sony Mobile Communications (China) Co., Ltd. Test Laboratory Report No.：TARC-PY7- C1691B-FCC-01 C1691B SAR FCC Test Report Edition 1 Revision 0 ___________________________________________________________________________ Page 2 of 138 Report Edition Report Number Edition Date Memo TARC-C1691B-SAR- FCC-01 1 2015-10-19 Initial creation of test report Sony Mobile Communications (China) Co., Ltd. Test Laboratory Report No.：TARC-PY7- C1691B-FCC-01 C1691B SAR FCC Test Report Edition 1 Revision 0 ___________________________________________________________________________ Page 3 of 138 Lab Information Lab name： Sony Mobile Communications (China) Co., Ltd. Test Laboratory Address： No.15, TianZhu Lu, TianZhu Airport development area, ShunYi district, Beijing 101312 Beijing China City： Beijing Country： China Postal Code: 101312 Responsible ： Gang Ma Telephone: +86 1080481188 - 68138 Fax： +86 1080481188 - 68010 E-mail: [email protected] Applicant Information Company Name: Sony Mobile Communications Inc. Address: Nya Vattentornet Mobilvägen 10 City: Lund Postal Code: 22188 Country: Sweden Manufacturer Information Company Name: Sony Mobile Communications Inc. Address: 1-8-15 Konan, Minato-ku, Tokyo, 108-0075 Japan City: Tokyo Postal Code: 108-0075 Country: Japan Sony Mobile Communications (China) Co., Ltd. Test Laboratory Report No.：TARC-PY7- C1691B-FCC-01 C1691B SAR FCC Test Report Edition 1 Revision 0 ___________________________________________________________________________ Page 4 of 138 C1691B SAR FCC Test Report Catalog 1 SUMMARY ........................................................................................... 6 1.1 Highest Standalone Reported SAR ......................................................................................... 6 1.2 Statement of Compliance ........................................................................................................ 6 1.3 EUT Information ..................................................................................................................... 7 1.3.1 Basic Information ............................................................................................................ 7 1.3.2 Reference Standard and Criteria ..................................................................................... 8 1.3.3 RF Exposure Limits ........................................................................................................ 9 1.3.4 Test Basic Information .................................................................................................... 9 2 SPECIFIC ABSORPTION RATE (SAR) ........................................ 10 2.1 Introduction ........................................................................................................................... 10 2.2 SAR Definition ..................................................................................................................... 10 3 TEST SET UP AND PROCESS ........................................................ 11 3.1 SAR System set-up ............................................................................................................... 11 3.1.1 System Description ....................................................................................................... 11 3.1.2 Probe Description .......................................................................................................... 12 3.1.3 Phantom Description ..................................................................................................... 14 3.1.4 Device Holder Description ............................................................................................ 17 3.1.5 Scanning Procedure....................................................................................................... 18 3.1.6 Spatial Peak SAR Evaluation ........................................................................................ 19 3.2 Electrical Parameters of the Tissue Simulating Liquid ......................................................... 20 3.3 System Accuracy Verifications ............................................................................................. 22 4 POWER MEASUREMENT .............................................................. 25 4.1 Power Reduction for SAR..................................................................................................... 25 4.2 Nominal and Maximum Output Power Specifications ......................................................... 25 4.2.1 Hotspot Mode Disabled ................................................................................................ 25 4.2.2 Hotspot Mode Enabled .................................................................................................. 36 4.3 Conducted Power Results ..................................................................................................... 40 4.3.1 GSM .............................................................................................................................. 4…

Text truncated - open the document above for the full version.

Date/Time: 10/3/2015 4:15:31 PM Test Laboratory: Product Compliance_Beijing 750MHz_Head_Validation DUT: Dipole 750 MHz D750V3 Communication System: UID 0, CW (0); Communication System Band: D750 (750.0 MHz); Frequency: 750 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 750 MHz; σ = 0.855 S/m; ε r = 41.252; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:
Probe: ES3DV3 - SN3170; ConvF(6.59, 6.59, 6.59); Calibrated: 12/16/2014;
Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0
Electronics: DAE4 Sn1326; Calibrated: 12/11/2014
Phantom: Phantom 4-3; Type: QD000P40CC; Serial: TP:xxxx
DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/750MHz_Head_Validation/Area Scan (61x201x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.37 W/kg Configuration/750MHz_Head_Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 50.93 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 3.04 W/kg SAR(1 g) = 2.03 W/kg; SAR(10 g) = 1.33 W/kg Maximum value of SAR (measured) = 2.39 W/kg Page 1 of 1 Date/Time: 10/3/2015 10:32:45 AM Test Laboratory: Product Compliance_Beijing 835MHz_Head_Validation DUT: Dipole 835 MHz Communication System: UID 0, CW; Communication System Band: D835 (835.0MHz); Frequency: 835 MHz;Communication System PAR: 0 dB; PMF: 1 Medium parameters used: f = 835 MHz; σ = 0.883 S/m; ε r = 40.469; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY Configuration:
Probe: ES3DV3 - SN3169; ConvF(6.31, 6.31, 6.31); Calibrated: 12/16/2014;
Sensor-Surface: 3mm (Mechanical Surface Detection), z = 2.0, 32.0
Electronics: DAE4 Sn854; Calibrated: 12/15/2014
Phantom: SAM with CRP v4.0_1488; Type: QD000P40CC; Serial: TP:1488
DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/835MHz Head_Validation/Area Scan (61x181x1): Interpolated grid: dx=1.000 mm, dy=1.000 mm Maximum value of SAR (interpolated) = 2.65 W/kg Configuration/835MHz Head_Validation/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 52.13 V/m; Power Drift = 0.14 dB Peak SAR (extrapolated) = 3.40 W/kg SAR(1 g) = 2.26 W/kg; SAR(10 g) = 1.48 W/kg Maximum value of SAR (measured) = 2.65 W/kg Page 1 of 1 10/9/2015file://C:\Documents and Settings\gtatester\Desktop…
