PY7-PM0923GSM/WCDMA/LTE Phone+Bluetooth, DTS/UNII a/b/g/n and NFC

Device basics 3 1 6 2 4 5 1Charging/Notification light 2Nano SIM/Memory card slot cover 3Power key/Fingerprint sensor 4Volume/Zoom key 5Camera key 6Charger/USB cable port To insert a memory card 1 Open the nano SIM/Memory card slot cover. 2 Place the memory card in the memory card slot in the correct orientation as shown in the illustration. 3 Close the cover. To insert the nano SIM card If you drag out the nano SIM card holder while the device is powered on, the device restarts automatically. 1 Open the nano SIM/Memory card slot cover. 2 Using your fingernail or a similar object, drag out the nano SIM card holder. 3 Place the nano SIM card in the holder, then insert the holder into to the slot. 4 Close the cover. Make sure you insert the nano SIM card and the holder in the correct orientation as shown in the illustration. To turn on the device Make sure that the battery is charged for at least 30 minutes before you turn on the device for the first time. 1 Press and hold down the power key until the notification light flashes once. 2 Wait a while for the device to start. To activate the screen • Briefly press the power key . Screen protection Before using your device, remove the transparent protection film by pulling up on the protruding tab. The use of non Sony-branded screen protection accessories may prevent your device from working properly by covering sensors, lenses, speakers, or microphones and can also invalidate the warranty. Warranty, SAR and usage guidelines For information about warranty, SAR (Specific Absorption Rate) and safety guidelines, please read the Important information provided under Settings > About phone > Legal information in your device. Support for you Access our support website directly in your device or visit support.sonymobile.com from any supported browser. Support options include User guides, downloads, troubleshooting tips and contact information. Even if you don ́t have a network connection, you can access support contact information in your device. Depending on the country or region where you purchased your device, you can find this information directly in the Support application, or by searching your contacts for Xperia™ Care. To access the Support application 1 From your Home screen, tap . 2 Find and tap . For best support available, we recommend connecting to the Internet when using the Support application. Transferring contacts and content If you need help to transfer contacts, messages, photos and other data from an old device to your new device, we recommend that you use the Xperia™ Transfer application. Visit www.sonymobile.com/xperiatransfer for more information. To view the CE mark 1 Open the nano SIM/Memory card slot cover. 2 Using your fingernail or a similar object, drag out the nano SIM card holder. 3 Drag out the label tray in the same way. The CE mark and FCC ID are displayed on the label tray. To view the regulatory compliance mark • Open the phone dialer, then enter *#07#. To find your model number • From your Home screen, tap > Settings > About phone. Legal information Publication number: XXXX-XXXX.1 This Startup guide is published by Sony Mobile Communications Inc. or its local affiliated company, without any warranty. Improvements and changes to this Startup guide necessitated by typographical errors, inaccuracies of current information, or improvements to programs and/or equipment, may be made by Sony Mobile Communications Inc. at any time and without notice. Such changes will, however, be incorporated into new editions of this Startup guide. All illustrations are for illustration only and may not accurately depict the actual device. See regulatory information such as the device CE mark in the relevant label tray in the device. All product and company names mentioned herein are the trademarks or registered trademarks of their respective owners. Any rights not expressly granted herein are reserved. Visit www.sonymobile.com/global- en/legal/ for more information. Product compliance: This product has been manufactured by or on behalf of Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Inquiries related to product compliance based on national legislation shall be addressed to Sony Mobile Quality Office, Sony Mobile Communications Inc., 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan. Should your device need warranty service, please return it to the dealer from whom it was purchased or visit support.sonymobile.com/contact to contact your local Sony Mobile repair partner (national rates may apply). © 2015 Sony Mobile Communications Inc. All rights reserved. Supported frequency bands Some frequency bands might be turned off in certain markets or by certain operators. Sony EXXXX/EXXXX UMTS HSPA+ Band 1 2 5 8 GSM GPRS/EDGE 850/900/1800/1900 FDD LTE Band 1 2 3 4 5 7 8 12 17 20 28 TDD LTE Band 38 40 Startup guide Xperia ™ XXXX XXXXXX/XXXXXX Sony Mobile Communications Inc. 1-8-15 Konan, Minato-ku, Tokyo 108-0075, Japan XXXX-XXXX.1 Model: F3115

SAR Information FCC Statement Declaration of Conformity Sony F3115 Important Information United States & Canada THIS PHONE MODEL HAS BEEN CERTIFIED IN COMPLIANCE WITH THE GOVERNMENT’S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. The F3115 Series mobile phones have been designed to comply with applicable safety requirements for exposure to radio wave s. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits of exposure to radio frequency (RF) energy set by governmental authorities. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all individuals, regardless of age and health. The radio wave exposure guidelines employ a unit of measurement known as the Specific Absorption Rate (SAR). Tests for SAR are conducted using standardized methods with the phone transmitting at its highest certified power level in all used frequency bands. While there may be differences between the SAR levels of various phone models, they are all designed to meet the relevant guidelines for exposure to radio waves. The highest SAR value as reported to the authorities for this phone model when tested for use by the ear is 0.55 W/kg, and when worn on the body is 1.20 W/kg. For body-worn operation, the phone has been tested when positioned a minimum of 15 mm from the body without any metal parts in the vicinity of the phone or when properly used with an appropriate accessory and worn on the body. For devices which include “WiFi hotspot” functionality, SAR measurements for the device operating in WiFi hotspot mode were taken using a separation distance of 10 mm. Use of third-party 2 accessories may result in different SAR levels than those reported. Before a phone model is available for sale to the public in the US, it must be tested and certified by the Federal Communications Commission (FCC) that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., by the ear and worn on the body) as required by the FCC for each model. The FCC has granted an Equipment Authorization for this phone model with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this phone model is on file at the FCC and can be found under the Display Grant section of http://transition.fcc.gov/oet/ea/fccid after searching on FCC ID PY7-PM0923. Additional information on SAR can be found on the Mobile Manufacturers Forum EMF website at http://www.emfexplained.info/. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. 3 Renseignements importants États-Unis et Canada CE MODÈLE DE TÉLÉPHONE A ÉTÉ CERTIFIÉ CONFORME AUX EXIGENCES GOUVERNEMENTALES RELATIVES À L'EXPOSITION AUX ONDES RADIOÉLECTRIQUES. Les téléphones mobiles de la F311 5 ont été conçus pour répondre aux norm es de sécurité en vigueur en matière d'exposition aux ondes radioélectriques. Votre téléphone sans fil est un émetteur et un récepteur radio. Il est conçu de manière à ne pas dépasser les limites d'exposition à l'énergie des fréquences radio (RF) établies par les autorités gouvernementales. Ces limites fixent les niveaux maximaux d'énergie RF auxquels peut être soumis le grand public. Ces lignes directrices sont basées sur des normes qui ont été élaborées par des organisations scientifiques internationales par le biais d'évaluations périodiques et approfondies des études scientifiques. Ces normes prévoient une marge de sécurité visant à assurer la protection de tous les individus, peu importe leur âge et leur état de santé. Les lignes directrices relatives à l'exposition aux ondes radioélectriques utilisent une unité de mesure appelée « Taux d'absorption spécifique » (TAS). Les tests de TAS sont effectués selon des méthodes standardisées dans lesquelles le téléphone émet dans toutes les bandes de fréquences utilisées, à la plus forte puissance pour laquelle il a été homologué. Bien que le TAS puisse être différent d'un modèle de téléphone à un autre, tous les appareils sont conçus pour respecter les lignes directrices relatives aux ondes radioélectriques. Le DAS le plus élevé relevé par les autorités pour ce modèle de téléphone est de 0.55 W/kg lorsqu'il est testé en utilisation près de l'oreille, et de 1.20 W/kg lorsqu'il est porté sur le corps. En mode d’utilisation porté sur le corps, le téléphone a été testé lorsqu’il est à au moins 15 mm du corps et à l’écart de toute pièce en métal, ou lorsqu’il est utilisé de façon adéquate avec un accessoire et porté sur le corps. Pour les appareils munis de la fonctionnalité « point d'accès WiFi », les mesures du DAS de l'appareil en mode WiFi ont été prises à une distance de sécurité de 10 mm. L'utilisation d'accessoires tiers peut produire des niveaux de DAS différents de ceux relevés. Avant qu'un modèle de téléphone ne soit mis en vente auprès du public aux États-Unis, la Commission fédérale des communications (CFC) doit le tester et certifier qu'il respecte les limites fixées dans les exigences gouvernementales d'exposition sans danger*. Pour chaque modèle, les tests sont effectués en position et aux endroits d'usage (c.-à-d. près de l'oreille et porté sur le corps), tel que requis par la CFC. La CFC a accordé une autorisation d'équipement pour ce modèle de téléphone, après que tous le…

Text truncated - open the document above for the full version.

Sony Mobile Communications Inc Nya Vattentornet, Lund, 22188, Sweden Tel: +46 10 802 33 57 ; Fax: +46 10 800 24 41 Date: December 10, 2015 FCC Laboratory 7435 Oakland Mills Rd. Columbia, MD 21046 Subject: Request for Confidentiality FCC ID: PY7-PM0920 FCC ID: PY7-PM0921 FCC ID: PY7-PM0922 FCC ID: PY7-PM0923 FCC ID: PY7-PM0924 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely.  Schematic Diagram  Block Diagram  Part List  Operational Description  Tune-up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’ s policy, in order to comply with the marketing regulations in 47 CFT §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant shot-term confidentiality request on the following attachment(s) for 180 days after the grant as outlined in Public Notice DA 04-1705.  External Photos  Internal Photos  Test Setup Photos  User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards, _________________________ Jones Tsai [email protected]

Sporton International Inc. No.52, HwaYa 1st Rd., Kwei-Shan Hsiang, Taoyuan Hsien 333, Taiwan, R.O.C. Tel: 886-3-327-3456 ; Fax: 886-3-328-4978 Date: January 29, 2016 Authority to Act as Agent To whom it may concern, We hereby authorize Jerry Feng in Compal Electronics, Inc to act all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. This authorization is limited to the product of as following: FCC ID: PY7-PM0920 FCC ID: PY7-PM0921 FCC ID: PY7-PM0922; IC: 4170B-PM0922 FCC ID: PY7-PM0923 FCC ID: PY7-PM0924 Should you have any questions or comments regarding this matter, please don’t hesitate to contact me. Sincerely yours, Jones Tsai [email protected]

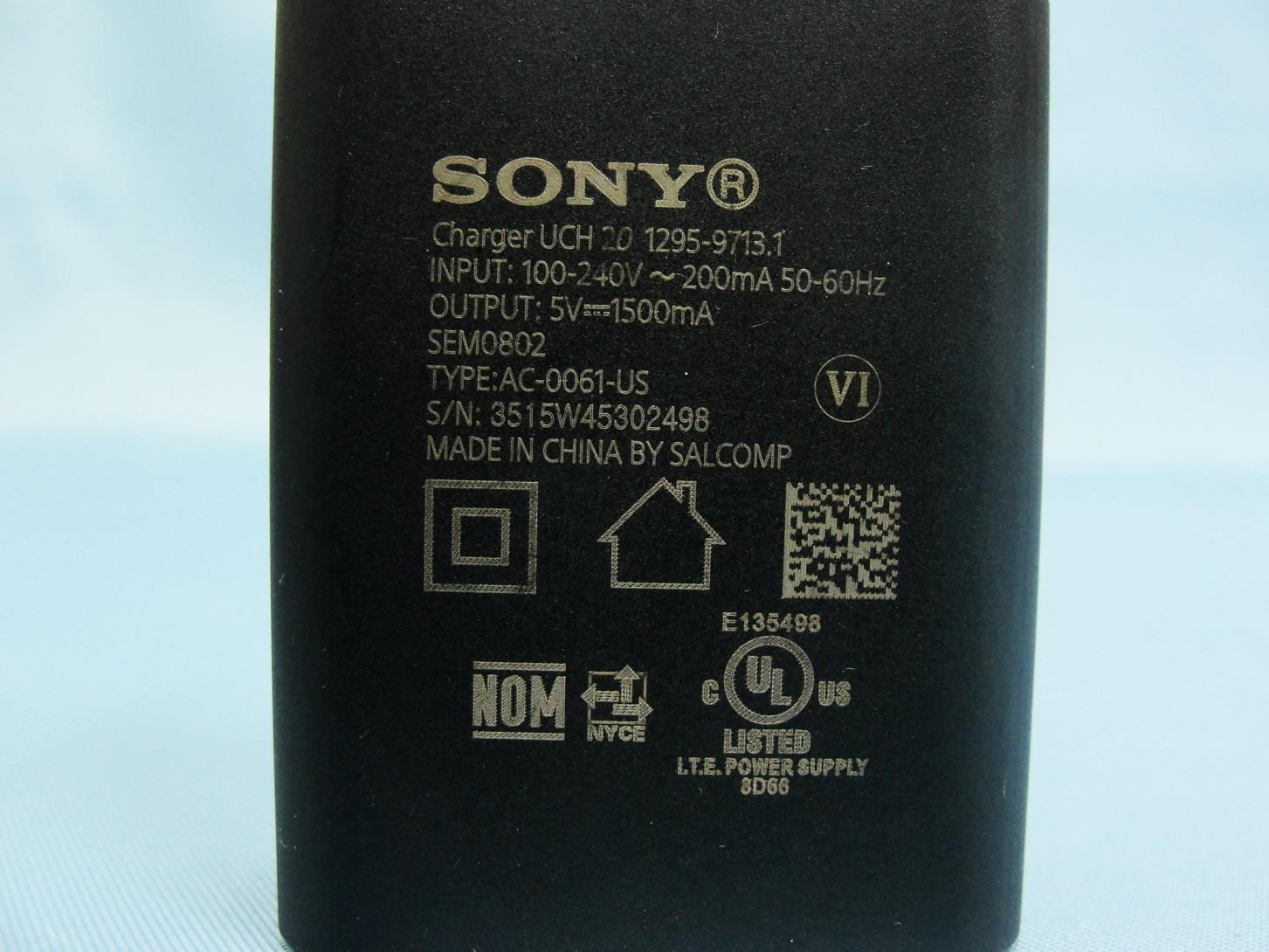

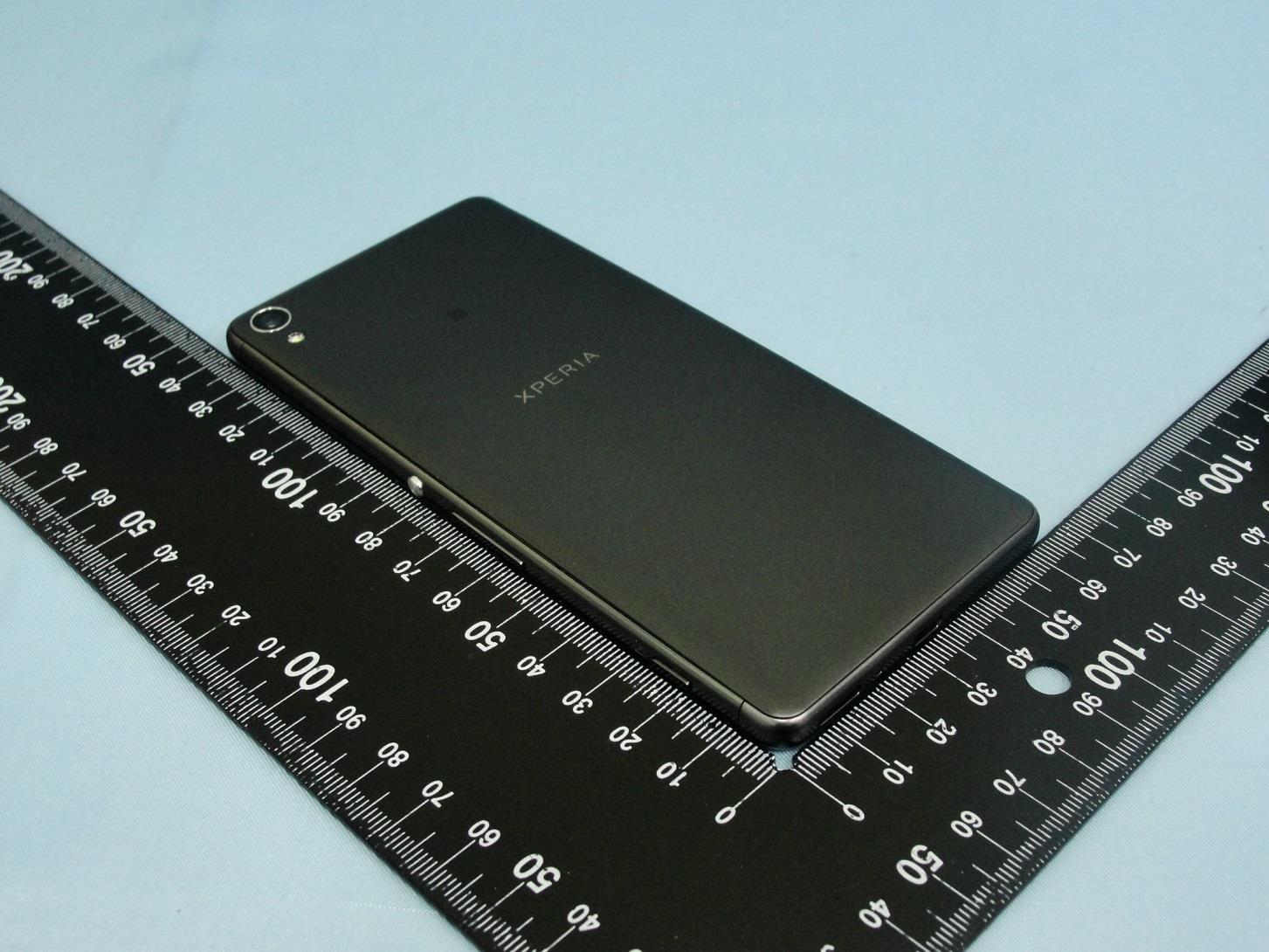

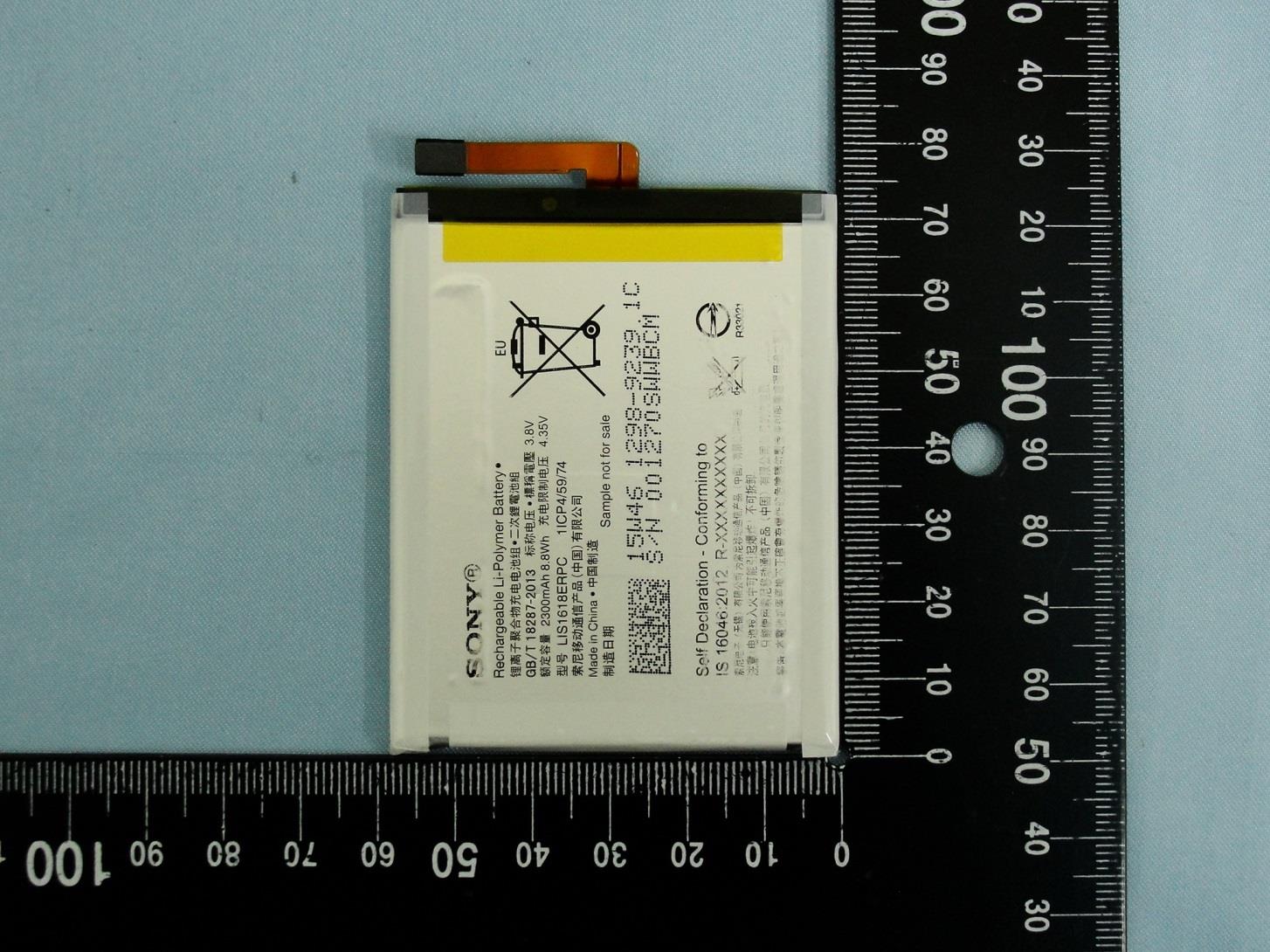

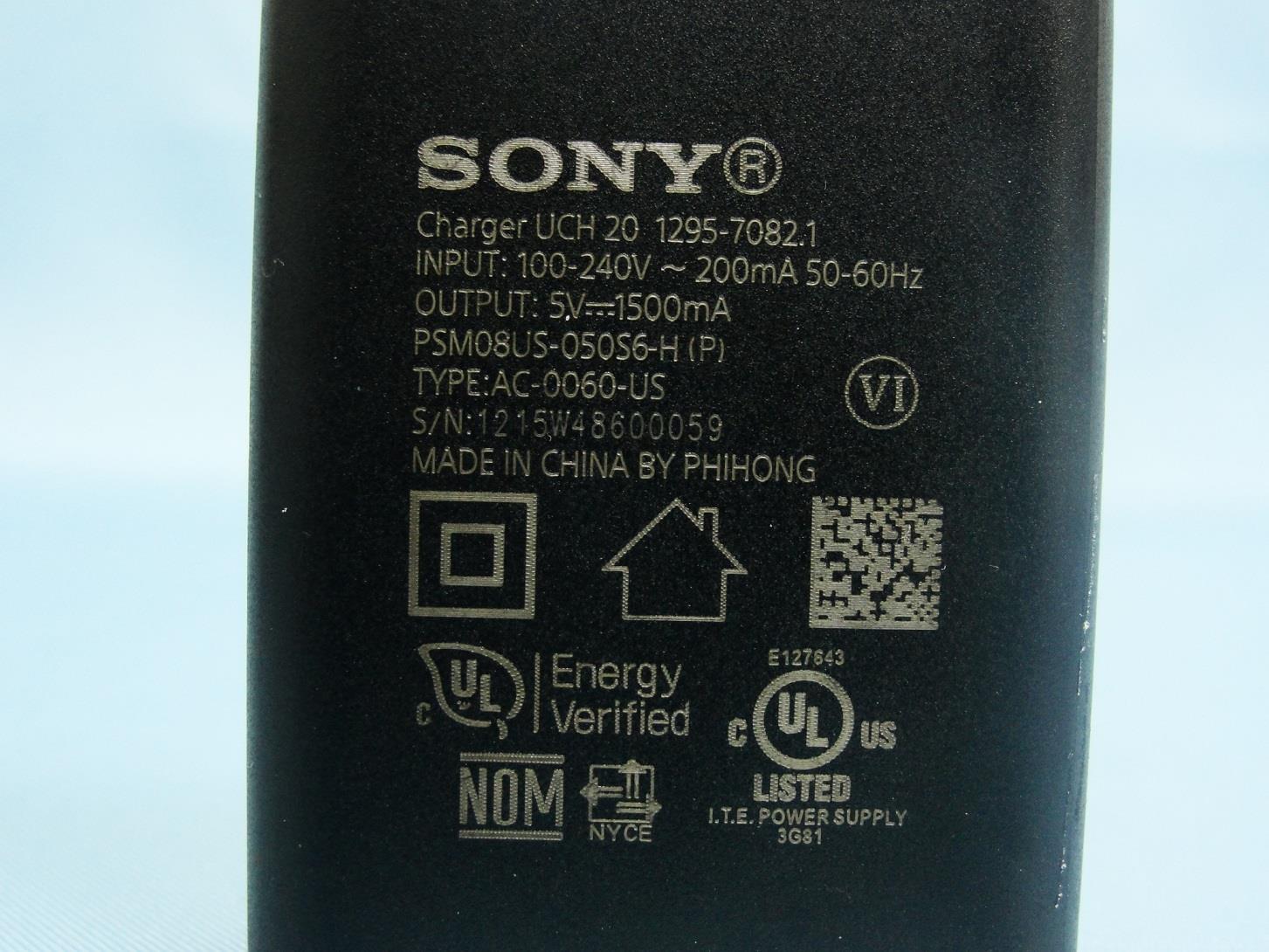

Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 1 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 1. External Photograph of EUT Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 2 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 3 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 Specification of Accessory AC Adapter 1 Brand Name Sony Model Name UCH20 Type Number AC-0060-US AC Adapter 2 Brand Name Sony Model Name UCH20 Type Number AC-0061-US Car Charger Brand Name Sony Model Name AN400 Type Number AC-0110 DC Battery 1 Brand Name Sony Model Name LIS1618ERPC Battery 2 Brand Name Sony Model Name GB-S10-385871-010H Earphone Brand Name Sony Model Name MH410c USB Cable 1 Brand Name Sony Model Name EC803 USB Cable 2 Brand Name Sony Model Name UCB16 Remark: For accessories equipped with this EUT, please refer to the following photos. 2. Photograph of Accessory Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 4 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 5 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 AC Adapter 1 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 6 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 AC Adapter 2 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 7 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Car Charger Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 8 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Battery 1 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 9 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Battery 2

Open t pull ou trays a Note: A and foo version Labe 1. O 2. P the Micro SD ut the label, th are visible to t Any hard copy oter may fail to d n. Any outdated el Loca Open Mic Pull out th door and he label the users y of this docum display correct d hard copy is inv tion ro‐SD doo he Label Lab Loc a ment is for refer data. It is the re valid and must or el ation rence only. Due esponsibility of th be removed fro e to template an he user to ensu m possible use Front Si d nd application d ure that they hav . de dependencies th ve a correct and 1(1) he header d valid

Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 10 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 3. Internal Photograph of EUT Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 11 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 12 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 13 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 14 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 15 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 16 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 17 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 18 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 19 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 20 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 21 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 WWAN Antenna Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 22 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 23 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 GPS and Bluetooth and WLAN Antenna Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 24 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 25 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Diversity Antenna Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 26 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 Photographs of EUT Report No.: EP5O0118-01 Brand Name: Sony SPORTON INTERNATIONAL INC. Page Number : 27 of 27 TEL : 886-3-327-3456 Report Issued Date : Jan. 21, 2016 FAX : 886-3-328-4978 Report Version : Rev. 01 FCC ID : PY7-PM0923 720510 NFC Antenna

SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jan. 18, 2016 FCC ID : PY7-PM0923 Page 1 of 61 Form version. : 151208 FCC SAR Test Report Report No. : FA5O0118-01 FCC SAR Test Report APPLICANT : Sony Mobile Communications Inc. BRAND NAME : Sony FCC ID : PY7-PM0923 STANDARD : FCC 47 CFR Part 2 (2.1093) ANSI/IEEE C95.1-1992 IEEE 1528-2013 We, SPORTON INTERNATIONAL INC., would like to declare that the tested sample has been evaluated in accordance with the procedures and had been in compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC., the test report shall not be reproduced except in full. SPORTON INTERNATIONAL INC. No.52, Hwa Ya 1st Rd., Hwa Ya Technology Park, Kwei-Shan District, Taoyuan City, Taiwan (R.O.C.) Approved by: Jones Tsai / Manager Reviewed by: Eric Huang / Deputy Manager SPORTON INTERNATIONAL INC. TEL : 886-3-327-3456 / FAX : 886-3-328-4978 Issued Date : Jan. 18, 2016 FCC ID : PY7-PM0923 Page 2 of 61 Form version. : 151208 FCC SAR Test Report Report No. : FA5O0118-01 Table of Contents 1. Statement of Compliance ............................................................................................................................................. 4 2. Administration Data ...................................................................................................................................................... 5 3. Guidance Standard ....................................................................................................................................................... 5 4. Equipment Under Test (EUT) Information ................................................................................................................... 6 4.1 General Information ............................................................................................................................................... 6 4.2 Device Serial Number ............................................................................................................................................ 6 5. RF Exposure Limits....................................................................................................................................................... 7 5.1 Uncontrolled Environment ...................................................................................................................................... 7 5.2 Controlled Environment .......................................................................................................................................... 7 6. Specific Absorption Rate (SAR) ................................................................................................................................... 8 6.1 Introduction ............................................................................................................................................................ 8 6.2 SAR Definition ........................................................................................................................................................ 8 7. System Description and Setup .................................................................................................................................... 9 7.1 E-Field Probe ........................................................................................................................................................10 7.2 Data Acquisition Electronics (DAE) .......................................................................................................................10 7.3 Phantom ................................................................................................................................................................ 11 7.4 Device Holder........................................................................................................................................................12 8. Measurement Procedures ...........................................................................................................................................13 8.1 Spatial Peak SAR Evaluation ................................................................................................................................13 8.2 Power Reference Measurement............................................................................................................................14 8.3 Area Scan .............................................................................................................................................................14 8.4 Zoom Scan ............................................................................................................................................................15 8.5 Volume Scan Procedures ......................................................................................................................................15 8.6 Power Drift Monitoring ...........................................................................................................................................15 9. Test Equipment List .....................................................................................................................................................16 10. System Verification ....................................................................................................................................................17 10.1 Tissue Verification ...............................................................................................................................................17 10.2 System Performance Check Results ...................................................................................................................18 11. RF Exposure Positions .................................................…

Text truncated - open the document above for the full version.

Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/12/3 System Check_Head_835MHz_151203 DUT: D835V2-499 Communication System: CW ; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL_850_151203 Medium parameters used: f = 835 MHz; σ = 0.906 S/m; ε r = 41.593; ρ = 1000 kg/m 3 23.6 22.6 DASY5 Configuration - Probe: ES3DV3 - SN3270; ConvF(6.32, 6.32, 6.32); Calibrated: 2015/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2015/8/25 - Phantom: SAM_Left; Type: QD000P40CD; Serial: S/N:1796 - Measurement SW: DASY52, Version 52.8 (8); SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 3.23 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 62.89 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 3.95 W/kg SAR(1 g) = 2.48 W/kg; SAR(10 g) = 1.6 W/kg Maximum value of SAR (measured) = 3.19 W/kg 0 dB = 3.19 W/kg = 5.04 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/11/18 System Check_Body_835MHz_151118 DUT: D835V2-499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_151118 Medium parameters used: f = 835 MHz; σ = 0.985 S/m; ε r = 56.563; ρ = 1000 kg/m 3 Ambient Temperature：23.7 °C; Liquid Temperature：22.7 °C DASY5 Configuration: - Probe: ES3DV3 - SN3270; ConvF(6.24, 6.24, 6.24); Calibrated: 2015/9/28; - Sensor-Surface: 2mm (Mechanical Surface Detection) - Electronics: DAE4 Sn778; Calibrated: 2015/8/25 - Phantom: SAM-Right; Type: SAM; Serial: 1795 - Measurement SW: DASY52, Version 52.8 (8);SEMCAD X Version 14.6.10 (7331) Configuration/Pin=250mW/Area Scan (61x61x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 2.87 W/kg Configuration/Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 56.11 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.57 W/kg SAR(1 g) = 2.47 W/kg; SAR(10 g) = 1.64 W/kg Maximum value of SAR (measured) = 2.85 W/kg 0 dB = 2.85 W/kg = 4.55 dBW/kg Test Laboratory: Sporton International Inc. SAR/HAC Testing Lab Date: 2015/11/20 System Check_Body_835MHz_151120 DUT: D835V2­499 Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium: MSL_850_151120 Medium parameters used: f = 835 MHz; σ = 1.003 S/m; ε r = 54.968; ρ = 1000 kg/m 3 Ambient Temperature：23.2 °C; Liquid Temperature：22.2 °C DASY5 Configuratio…

Text truncated - open the document above for the full version.
