PY71022101Licensed Transmitter

Company Internal APPLICATION INFO. 1 (1) Prepared (also subject responsible if other) No. LD/SEM/GUG/NB Håkan Sjöberg +46 46 193559 GUG/N03:341 Uen Approved Checked Date Rev Reference LD/SEM/GUG/N Bo Johansson 2003-10-30 A Receiver Federal Communication Commission Application PY71022101 Statement on hardware Sony Ericsson mobile phone T106 1900 (FCC ID PY71022101) uses the exact same hardware and software as T106 (FCC ID PY71222101) except that the GSM 850 band is turned off in the production (via a SW switch) on T106 1900. This band lock can only be done in the production and cannot be activated by the end user. Best regards, ____________________ Håkan Sjöberg Type Approval Department Sony Ericsson Mobile Communications AB

Beteckning. Reference GUG/NO3:340 Er beteckning. Your reference Vår handlåggare, namn, tfn .Attending to this mattet; name, te/ephone LD/SEM/GUG/NB Håkan Sjöberg +4646 193559 Confidentiality Request Datum. Date 2003-10-30 Ert datum. Your date Receiver Federal Communications Commission Request for Confidentiality FCC ID: PY71022101 Subject: To Whom It May Cancern: In accordance with §0.459 of CFR 47, Sony Ericsson Mobile Communications AB requests confidentiality for the below Iisted items for our mobile phone type 1022101- SV, FCC ID: PY71022101: 1. 2. 3. 4 Block Diagram Schematic Diagram Part list Operational Description These items contain detailed system and equipment description and related information about the product which Sony Ericsson Mobile Communications AB considers to be proprietary I confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Sony Ericsson Mobile Communications AB also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Sony Ericsson Mobile Communications AB Momsnr .~A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Ini +4646194100 Styrelsens säte: Lund Registered office: Lund Telefon' Te/ephone Nat 046-19 40 00 Int +4646194000 Besöksadress. Office address Nya Vattentornet Lund Postadress. Mail SE-221 88 Lund Sweden

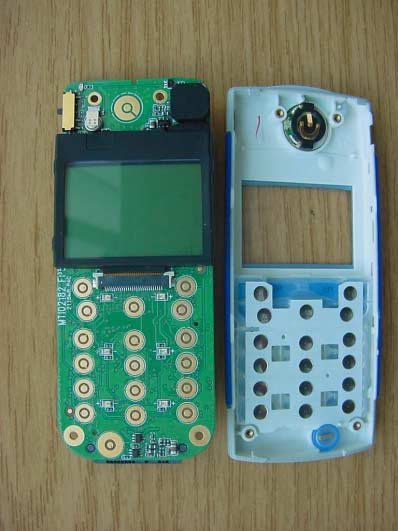

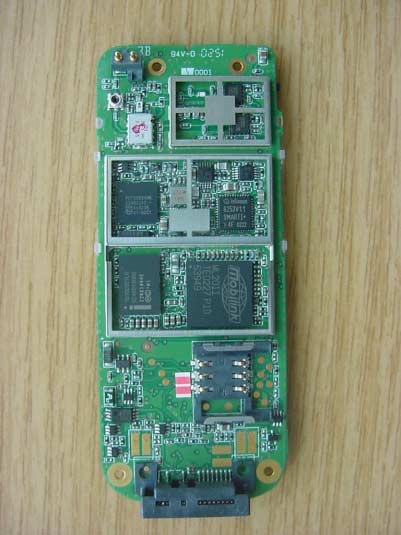

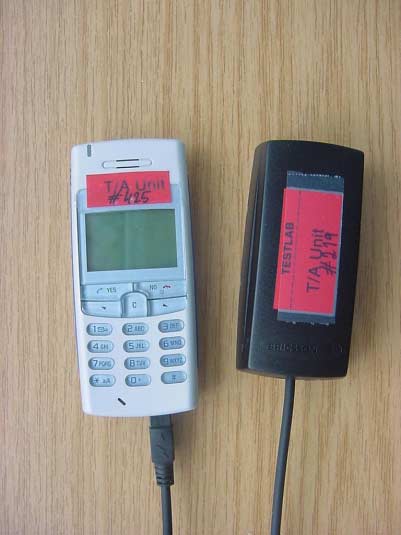

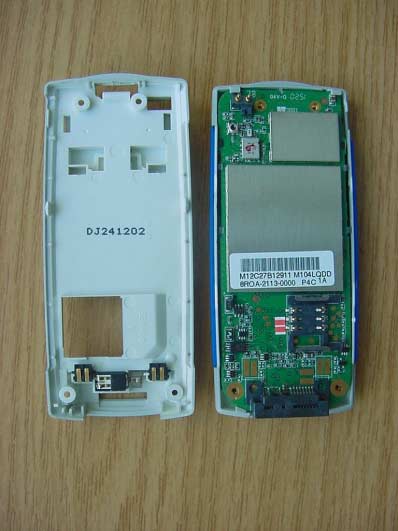

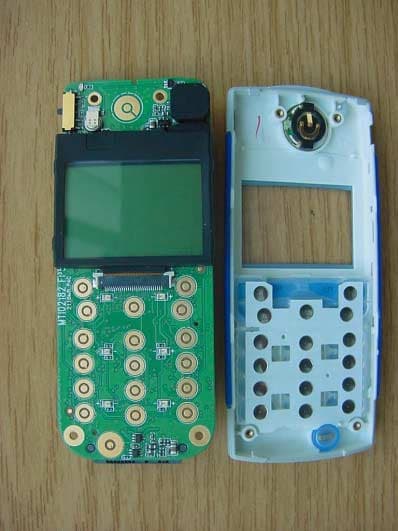

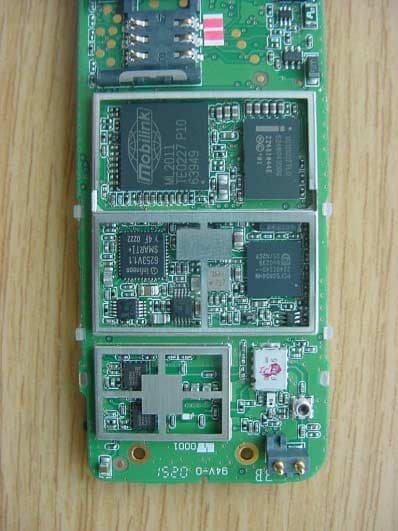

CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 101 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 102 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 103 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 104 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 105 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 106 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 107 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 108 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 109 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 110 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 111 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 112 (112) Photographs of the equipment

1 (3) Public Prepared (also subject responsible if other) No. LD/SEM/BGUU Magnus Nilsson 151 86-SVV 107 057/4 Uen Approved Checked Date Rev Reference LD/SEM/BGUU (Magnus Nilsson) ecsniln 2003-10-28 A Approved according to: 000 21 – LXE 107 42/1 Type 1022101-BV. Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 808. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88) for the KRH. Print layout Sony Ericsson stylized name Model Name Type number G – H field Productionweek KRC number R-state Repair week Country approval mark 1 CDA number Country approval mark 2 IMEI-numbers as barcode IMEI-numbers as characters Serial number as barcode Serial number as characters Additional Field Marking of origin ” D P Y ” n u m b e r R - s t a t e Print sample Definitions: Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Additional field The field shall be left blank unless otherwise stated in a separate 151 86 document for the SVV. 2 (3) Public Prepared (also subject responsible if other) No. LD/SEM/BGUU Magnus Nilsson 151 86-SVV 107 057/4 Uen Approved Checked Date Rev Reference LD/SEM/BGUU (Magnus Nilsson) ecsniln 2003-10-28 A Type number The type number is 1022101-BV and shall be printed “Type 1022101-BV” G-field R-state identification of the CXC-module according to the Marking data 1/151 86 for the SVV. H-field R-state identification of the hardware according to the Marking data 1/151 86 for the SVV. Country approval mark 1 Consist of text: FCC ID: PY71022101 Within a frame with height > 1,5 mm. CDA number The number of the CDA file loaded including the R-state of the file. Country approval mark 2 Consist of text: IC:4170B-1022101 Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx (R = repair, y = year, ww = week, xx = Revision eg. 1A) Production week The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no-). IMEI number as characters The IMEI number has format: TAC-SNR-CD TAC = TBD (New TAC is coming) Example: 01021900-000000-0 SNR = A serial number from 000 000 to 999 999 CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Beijing CB5 Dashi TP7 Yingko Factory TP8 Flex, Mexico TF5 Flex, Brazil SOR 1. The notified body number according to the TTE Annex III certificate for the production plant. If this is not available, use the notified body number from the type approval certificate 3 (3) Public Prepared (also subject responsible if other) No. LD/SEM/BGUU Magnus Nilsson 151 86-SVV 107 057/4 Uen Approved Checked Date Rev Reference LD/SEM/BGUU (Magnus Nilsson) ecsniln 2003-10-28 A (normally 0682). The print size (height) for the notified body number (e.g. 0682) and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. 2. According to 1424 - SVF 930 196 Model name The model name T106 1900 Marking of origin The field shall be left blank unless otherwise stated in a separate 2/151 86-SVV document. “DPY” number The DPY number for the product without DPY 101 e.g. if you are producing DPY 101 2595/2 the printing should be 2595/2. R-state The R-state for the DPY according to the 1095 for the DPY. Print regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.1 mm Line spacing min 1.5 mm Trademark min 1.5 mm Approval marks min 5.0 mm

CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 101 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 102 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 103 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 104 (112) Test site CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 105 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 106 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 107 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 108 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 109 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 110 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 111 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 112 (112) Photographs of the equipment

SecurityClass REPORT 1 (24) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/N03 :352 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 031103 A File SAR Test Report: T106 (PY71022101) Date of test: January 15 to 22, 2003 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Lab Sony Ericsson Mobile Communications AB Nya Vatenttornet SE-221 82 LUND, Sweden Test Responsible: H. Kami Shirazi Type Approval Engineer [email protected] + 46 46 23 26 44 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type 1022101-BV (T106); FCC ID: PY71022101 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. SecurityClass REPORT 2 (24) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:352 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 031103 A File 1 Table of contents 1 TABLE OF CONTENTS.............................................................................................................................2 2 INTRODUCTION........................................................................................................................................3 3 DEVICE UNDER TEST..............................................................................................................................3 3.1 ANTENNA DESCRIPTION.........................................................................................................................3 3.2 DEVICE DESCRIPTION..............................................................................................................................3 4 TEST EQUIPMENT.....................................................................................................................................4 4.1 DOSIMETRIC SYSTEM..............................................................................................................................4 4.2 ADDITIONAL EQUIPMENT........................................................................................................................4 5 ELECTRICAL PARAMETERS ON THE TISSUE..................................................................................4 SIMULATING LIQUID.......................................................................................................................................4 6 SYSTEM ACCURACY VERIFICATION .................................................................................................5 7 SAR MEASUREMENT UNCERTAINTY .................................................................................................6 8 TEST RESULTS...........................................................................................................................................7 9 REFERENCES.............................................................................................................................................8 10 APPENDIX ...............................................................................................................................................9 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION..........................................9 10.2 SAR DISTRIBUTION PLOT......................................................................................................................13 10.3 PHOTOGRAPHS OF THE DEVICE UNDER TEST..........................................................................................18 10.4 DEVICE POSITION ON SAM TWINS PHANTOM.......................................................................................21 10.5 PROBE CALIBRATION PARAMETERS.......................................................................................................23 10.6 Reference SAR value for system validation using body material with No. EUS/CV/R-01:1118/REP SecurityClass REPORT 3 (24) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:352 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 031103 A File 2 Introduction In this test report, compliance of the Sony Ericsson T106 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device under Test 3.1 Antenna Description Type Internal antenna Location Inside the back cover, near the top Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model T106 Serial number M12C27B13163 Mode GSM 1900 Multiple Access Scheme TDMA Maximum Output Power Setting 29.5dBm Factory Tolerance in Power Setting ± 0.5dB Maximum Peak Output Power 30dBm Crest Factor 8 Transmitting Frequency Range (1850.2 – 1909.8) MHz) Prototype or Production Unit Preproduction Device Category Portable RF exposure environment General population / uncontrolled SecurityClass REPORT 4 (24) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:352 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 031103 A File 4 Test equipment 4.1 Dosimetric system SAR measure…

Text truncated - open the document above for the full version.

CI> o =' '< mc :J. (") '" '" o =' ~ o g (;' (j o ~ =' t:;. ~ ö' =' '" ~ Ut "o N tI1 I N - "o o t;1 ~ ~ - tI1 I - N "o - tI1 I - N tJI t11 I \.-) "o - tt1 I - ~ iJI - tI1 I - ~ <=> N tn I - ~ Ut ~ tI1 I VI "o N rn I ---en-- ~ ...j ~ ~ ~ ~()()::?cn"'C ~~~~~~ '"' G VI.. J -..~ - ~ .'""' .~ tT1 O() ~ \.of i O O..~ ~ IN O 01l:-:10~N 8._cn<:8.N VI>'" Q.O~I ~o tx1 " cnO \.of-ZO ,«JQ o II ':-:' VI =-- 00()~ _.~:;) VI ~.. - O\O()O .o o S o :;).. N S < ~ II ~;:!!~. -(JQ ~ =-- o' ~:3: .cn O ~ 0>1JI:;) ~...,..Q. ,,"",Ocn -.G OVlO (JQ ...,.. r;:. '-'00 ..'-' :;) O.. .. N()-C VI O 00G '" '" ... - S ~ g ~ ~ .. -"0""" (JQ ...O ~?OOci ~O' O ..IN 0 ", -G O I ~,'-' O -.. ~ Q. ~-41 G\OG ~ 0.0 1;'0= ~ ~ g '0:3:0 O '< _N.. ~ .. -,... - \O O II - :;) O '-'- ...,..~ ~:3: g.N ~ ,.(') II IN ?O - "O II - O O (JQ i=)- S '" C/} o =' '< tt1 ~. () ~ o =' ~ ~ ~ (") o ~ c =' r;. ~ g. {/) >- tP 0\ ~ - tI1 I N - N 00 ~ \c N tI1 I N l.II 0\ t:r1 w N - tI1 I - ~ ~ ~ \O tI1 I - Ut t.j ~ Ut "-..01 ...J tI1 I - o- ~ tri I ~ >- ~ --I g ~ -. ~ ~nn~C/J~ ~Og.a ~~ -~Gc:r ~,. '" G-' a. GUl" ~ tt1 00""" S;°Ul--i°O ..~ ~ V) O N ° II ..O ~ "o-C/J<:8.N \OUI>o-. Q."o~1 ::00 ~ C/JO""" "",-ZO '<~-~ II ..UI::T OOO~ _.~= UI 0 - .N n o .° ~ o ~ ~3 ~~ II~~~ -(JQ.o.~ 'C/JO~ 0,,--. = UlQ. ~~C/J ---OG -.n O ~ C'. (JQ~O ':-:0= O':;-;'~ ~no -~ '" V) '" &: -o 3 ~?: ~n--- ~ö- (JQ ...O ...o-. ---00 o ~"o<JI O ..\O ~:C-..3 -G.' ~ ~ ~ ~ Q. ... r6 -.8 G \O ~ ~ O G =1'°= ~ ~~ 'O :C.. 2.N- ~ ..\O g. Q Ö = II !7 '-'_i:.. .:c tN 8- ~ .,(') II V) 00 - "O II - "o O ~ 3 CI> o = '< tI1' :2. (") '" '" o = ~ o g: (;' \) o ~ = n. ~ o' = '" ~ UI "-"" to.) tI1 I N - o \O tt1 I o- ~ tI1 I N - -J tI1 I - N " } N tt1 I - ~ N 0- m I - ~ 00 ~ I - ~ (,.. ~ tI1 I ~ (JO \O tI1 I Ut ".I:-. ~ tI1 I ~ ~ .-I g ~ ~ ;Cg(1~cn"'C ~~g~~~ Q. CD Ut J :J .;..:. ~ tI1 ;X; ~'""~ ~O O..~ '" W O b":-;JO~N ._cn<:='N SUt;l>o-Q Q..o~1 ~O ~O,-..cno ,<o";ZO ,-,-"C " ..Ut =- _ooo~ .~ =' Ut ~.. 0'00...,0 .-I \13 O O.. N~3 ~ ~ 'I1 _. " '-"(IQc -(IQC ~ =- o' ~:I: O.cn o ~ ;l>iJI=' ~~Q. ,-..ocn -.CD oUt n (IQc ~ a. '-'00 ..'-' =' O" .. N (1 "C o- "'I o _CD'" ~ '" _. 3 S' o ~$?~ 0'-" (IQc "'I '00 ,-.. 00 o ~o'w o ..o "'I'T"- '" o 7CD~ n ~ ~Q.41 CD -CD CD '00.0 ~ O C ~OCD ~~g O :I:',<; _N ~ ..- '"' '00 g II O '-':-,~ ~:I: ~N §. O 3 ,.r'> " w ?O - "O " - O O ~ 3 '" tf) o =' '< tt1 ~, () '" '" o =' ~ ~ 5' (:) o § = =' (=;' ~ ö' =' '" ).- ~ a- u. - tI1 , I-.J- ~ o m I ~ i.o \.11 tI1 I N O- O tI1 I - !.JJ N g; I - w \o - t11 I - ~ tJI o- tr1 I - Ut N tI1 I - \.II "00 o- tn I 0\ tI. - tI1 I --en-> ~ .-j ~ ~ -- !!:?. ~nn"Ccn"'tj ~og.a;J>~ CD~CDg-~~ Q. CD VI 00 _-J :Jo Ö ~ tIj ~ ~><~joO o 1100 O ~ N "o_cn<:8.N .l'o.VI;J>o- Q."o~1 ::00 ~ ,-..cno v-Zo '<~-"C II o o VI ::r ooo~ _o ~=' VI 0-.0 o 10 n o .0 -I o 3 o =," N 3 < ~ II~~~ _0eI o ~ O.~ .cn o ~ o =' VlQ. ~~cn ,-..OCD -.n O ~ .::. 0eI~0 ':-:'O=' 0'::-;'-'; ~no VI o; '" to) CD "0 '" '::0 O 3~=' ~ ~ 00 <; ,-" ';::'010 o; - .00 o ~OO' o VI 010 0.0 o ~~'::-;' ';'"CD'Tj ~~~ '" _oC CD 10 = CDOCD >< O=' n o; !7'< ~ i:.. o. 'O~- g.NIO ~ 00 - '::0 C\ O g II ~ '-'~~ ~N ~ g. ~ .,l"I II to) ~ - "O II - "o O ~ 3 "" tI) o =' '< tt1 o-; n" '" '" o = ~ g: ~ (j o ~ = el (") ~! ~. o = '" > tx1 ~ ~ ~ t11 I N -J ~ CX> m I N - - N m I - tJI o tt1 I 00 -J tt1 I N ~ tI1 I N a- N rn I N i.o \O t!1 I ~ t.. -J t11 . - (..> ~ tr1 I - -00- >- ..F ~ ~ -- ~ ;o n n ~ ~\.n ~ ~og.o A -~~c:T ~ ,. '" ~ -, ~ ~ Ut ~ o o ~ trJ (X) $~Ut~oo .0 ~ ~ w o N b II 00 ~ § .N\.n<:Q.N So> 0'1_"'" Q."o~1 \00 \.no ""v-Z o '<~-"O II o. Ut =:r" .,0(X)~ .-o ~ = o w.. ... o\Ono p...Jo.R ~3~:!1 1I~~a -(JQ. \.n o' o~ .\.non o > 1JI C'. "",. o ""0= ---O" -."O o~o ~ 8~. '-' _. o.' o .'"' = N '.lo. N~--- W",\O "'0 3 ~.o ~nN <; J riQ-oo .:-! o '-' ---(X) .. ~"o41 o ..~ ~ ~.o ...= = b '" ~ ~ n = ",_n ~ ~ '< -.0 G\O- ~O\O r:io- ~~o g.:I:~ aN:I: N g Q '-' II - u. Ut g. O 3 .,!'1 II Ut O ~ "O II - "o O ~ 3 '" CI1 o o '< rn :3. (") '" '" o o ~ o ~ (;' ~ o ~ o n. ~ o' o '" ~ Ut \o o [I1 ~ - - (XI tri . ~ --.1 tr1 I N i.-> 0\ tn , N io \.II tt1 I ~ ~ ~ t;1 .jO. - ~ t:r1 .,.. ~ N t;1 UI W - tI1 , Ut ~ tI1 I ..- -m ~ '""' g ~ -- ~ ~("}("}~cn~ ~~g~~.-< ~ G VI" --.J _..~ - ~. VI t1j 00 ~ ~v o-i° O..~ ~ ~ O bll,--:JO~N ._cn<='N OVl>O\Q.~ ...J _ OQ. .0,.., I \C t%) cno~ v-zO '<~-~ II ..VI::r _OOO~ .~ =' VlO\.. O-("}O J O S O =,'. N S < ~ II~~§: -0'1 ~ o' ~:I: .cn O ~ °;l>'\JI=' ~"-""Q. Ocn -.G O~~ (IQ ~_. '-' 00 ..'-' =' O.. .. ~(")~ N"" O ~ G ~ -~ _. SS'§ ~ ~ .. -0' (IQ ...O ~~~ ~O' O ..~ ""'T'° ~ G o I ~,'-' (") -.. ~ Q. ~-41 G \C G ~ 0.0 01: !? G ~ ~ =' ~:I:(") O '< _N.. ~ .. " - _.'"' 00 O I I00 =' O '-'- "-""~ ~:I: g.N O 3 ~C') II ~ ~ - "O II - o O ~ S cn o = '< tI1 ~. (') '" '8 =' ~ 8: 5" ~ I = ö' a ö' = '" ~ -J "00 l;.) tI1 N tJI -J tI1 I - N ~ UI tr1 , - w w tt1 , ~ i.o IV t;t1 - ~ ~ o tI1 I - Ut ~ 00 tI1 I 0- N 0- m I --.J "e; tn I -..l 00 ~ tI1 I ~ ~ '""' ~ ~ -- ~ "C()()"Ccn~ ~o§.a ~~ _ei(1>O" '"""'; ,. '" (1> -, a. (1> UI.. '"' ..~ tI1 00 ~ S;°Ul...,°a ..~ ~ V-' O N I II ..O I" o ="-" .-cn <: Q. l'J ~UI>o- ~ Q."o~1 :öa ,-.,cno~ ""'v-Z o '<~-"C II ..UI =ro 0001" _.~= UI-J,. .oo()o .0'O0~ 03 = t"" N ~ < (1> II~~~ -(]Q...,., o, ~ .cn o I" o ' = UlQ. ~~cn ,-.,0(1> -' (") o ~ ~. (]Q~O ':-:'0= o':;-:'~ ~()o 'O '"' '" 00 (1> '" ~. o 3 ~ = ~~;..:.. -0- (]Q '"' o , ..o- ,-., 00 o ~"o~ o ..'O '"' ..,., o "' '--' (1> .. b I" '11 I" Q. '"' '" (1> (1> -.r;, (1> 'O = ~ 0(1> 0= '"' ~ (") I" i::..,< 'O :c .. g.N- I" ..00 """"00 ö"" o = II ~ '--'-i::.. .:c tN §. o S .,(f) II V-' .00 - "O II - "o o ~ 3", V} o ~ '< tI1 '"1 ö' '" '" o ~ ~ Z n (") o ~ ~ ö' ~ ö' ~ '" ~ 0\ i.o - tI1 I t-.;) - ~ 00 tr1 I ~ S tI1 I N ~ O- tt1 I (j;) ~ o- tI1 I ~ - VI tI1 , .fo. ~ tI1 I VI VI IN tt1 I 0\ N N rr1 I 0\ \o ti1 I (;) ~ ~ ~ -. ~ ~g(")::?C/)~ ~~g.g.~~ ~ ~ VI ..~ -J _..>< ~ ~. .-.VI tI1 00 ~ ~v --i° O..>< >< ~ O 611~O~N ._C/)<:='N OVl>O\Q.~ 00. - Q..O~I\CO ~.-.r-..C/)0~ V-ZO ,<OQ--o II':-:"VI~ ~OOO~ -' ~=' VlO\" - <=>~(")O .-J 3 O O.. N 3 ~ ~ II~,.':!1c§: -OQ ~ o' ~:I: .C/)O~ O>iJI=' ~".I::.oQ. r-.. O C/) -' ~ O~~ OQ ~_. '-"00 ..'-" =' O., .. ~(")-o …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 112 PagesPage 1 (112) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission FCC–Identification Number: 90462 TCB ID: DE 001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 166/98 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 2_3127-01-01/03 FCC Part 24 1222101-BV FCC ID: PY71222101 IC : 4170B-1222101 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 2 (112) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom-ict.de Accredited testing laboratory The Test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-166/98 Listed by: Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 3 (112) 1.3Details of applicant Name : Sony Ericsson Mobile Communications AB Street : Nya Vattentornet City : 22188 Lund Country : Sweden Telephone : +46-46-193-242 Telefax : +46-46-193-295 Contact : Mr. Bo G. Johansson Telephone : +46-46-193-242 e-mail: 1.4Application details Date of receipt of application : 2003-01-16 Date of receipt of test item : 2003-01-16 Date of test : 2003-01-21/22 1.5Test item Type of equipment : Dual Band GSM Mobile Phone (PCS 1900 MHz) Type designation:1222101-BV Manufacturer:Applicant Street: City: Country: Serial number:IMEI : 00.1003.00.059014.0 Additional informations: : Frequency : 1850 – 1910 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) and 125 (PCS850) Antenna:Integral antenna Power supply:3,6V DC Li-Ion Output power GSM 1900 :cond : 30.4 dBm Peak , ERP: 30.3 dBm (Burst); EIRP: 32.4 dBm (Burst) Type of equipment : Temperature range : -30°C - +60°C FCC – ID:PY71222101 IC :4170B-1222101 Hardware:P2A Software:P1B 1.6 Test standards: FCC Part 24 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 4 (112) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2003-01-23RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2003-01-23RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 5 (112) 2.2Testreport TEST REPORT Test report no. : 2_3127-01-01/03 CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 6 (112) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.2359 AFC FREQ ERROR VS. VOLTAGE10 AFC FREQ ERROR VS. TEMPERATURE10 EMISSIONS LIMITS §24.23812 CONDUCTED SPURIOUS EMISSIONS26 OCCUPIED BANDWIDTH §2.98935 CONDUCTED EMISSIONS § 15.107/20742 CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 7 (112) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Signal Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,0 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2030.430.2 1880.0030.230.0 1909.8029.829.7 Measurement uncertainty ± ±± ±0.5 dB CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 8 (112) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 EIRP Measurements Description: This is the test for the maximum radiated power from the phone. Rule Part 24.232(b) specifies that "Mobile/portable stations are limited to 2 watts e.i.r.p. peak power..." and 24.232(c) specifies that "Peak …
