PY71222101Licensed Transmitter

This is the Internet version of the user's guide. © Print only for private use. 3 Cont ents Qui ck guide 5 Easy ac cess to cer tain functions. Getting st arted 8 Make and r ecei ve t he first call. Ge tting to know your ph one 11 Key functio ns, quick k eys, enter ing letter s. Persona lizing your phone 18 Choos e r ing signal, create p ictur es and mo re. Ca lling 27 Us e the phone book, call opti ons . Me ssag ing 43 E-ma il and te xt me ssages. Using m obil e Internet 48 WAP brows er, bookm arks. Mo re featu res 52 Calendar , alar m clock, games and m ore. Secu rity 55 SIM car d lock, pho ne lock. Trou ble shoot ing 57 Why does nít the phone wor k the way I want? Addition al information 60 Sa fe and e ffic ient use, wa rranty, declaration of c onfor mity Disp lay i cons 69 What do t he icons mean? Inde x 71 This is the Internet version of the user's guide. © Print only for private use. 4 Sony Er icsson T1 06 GS M 850 /GS M 19 00 First ed ition ( December 20 02) This m anu al is p ublished by Sony Ericsson M obile Co mmunica tions AB , with out any wa rranty. Im pro vem ents a nd chan ge s to this m anual ne cessi tate d b y typ ogr aph ical errors, inaccur acies of cur rent infor mation, or improve ments to pro grams an d/o r equi pment, m ay be ma de b y Sony Ericss on Mo bile Commun ications A B at an y ti me and witho ut notice . Such changes will, h owe ver, be incorporated into new e ditio ns of this m anual. All righ ts res erved. ©Sony E rics son Mo bile Co mmunica tions AB, 20 02 Publ ication nu mb er: AE/LZT 108 634 4/2 R1A INNOV ATRON PATENT S Please not e: Some of the se rvices in this manual are not su ppo rte d by al l ne tworks. This also app lies to th e GS M Int ernational Emergen cy Numb er 1 12 . Please co ntact yo ur net work ope rator or ser vice provi der if you are in dou bt w heth er you can use a particular service or no t. Please re ad the Gu idel ines fo r sa fe and ef ficient use an d th e Limited w arra nty cha pter s before y ou use you r m obile ph one . T9ô Text Input is a r egistered trad em ark of Tegic Co mmunica tions. T9 ô T ext In pu t is licen sed un der on e o r m ore of th e following: U.S. Pat. Nos. 5,8 18,43 7, 5 ,95 3,5 41, 5,1 87, 480 , 5 ,94 5,9 28, and 6, 011,554 ; C anad ian Pat. No. 1,3 31,0 57, United K ingdo m P at. No. 2238 414 B; Hong Kong Stan dar d P at. No. HK09 403 29; Republ ic of Singap ore P at. No. 51 383 ; E uro.Pat. N o. 0 8 42 46 3(9 692 72 60. 8) DE/DK, FI , F R, IT , NL, PT, ES, SE, GB ; a nd add itional pate nts are pe nd ing w orldwide. This is the Internet version of the user's guide. © Print only for private use. Quick gui de 5 Quick guide To... Do th is: enter th e Ca ll Li st press fro m standby to enter the first fu nction in the m enu My Short cuts press a nd ho ld from standby to en ter th e Find and Call me nu press a nd ho ld from standby Ca ll you r v oice m ail se rvi ce press and ho ld from standby enter th e + s ign to make an international phone call press a nd ho ld from standby set the pho ne t o silent press and ho ld from standby turn of f the m icrophon e press and hold du rin g a ca ll spe ed dial (ph one book posi tions 1ñ 9) press any of the n umber keys ñ and from standb y find a phon e bo ok entry beginning with th e first letter (or the cl ose st fo llow ing) o n a key press a nd hol d a ny of t he keys ñ from standby find a phon e bo ok entry enter the position num ber and pr ess from standby put a call on ho ld press switch between tw o ca lls press enter the Option s me nu wh en writing a text m essage press a nd hol d To... Do this: This is the Internet version of the user's guide. © Print only for private use. 6 Quick guide This is the Internet version of the user's guide. © Print only for private use. 7 Front Back Indicator light Volume key Disp lay Micro pho ne On/off key KeypadOpt ion key Back cove r This is the Internet version of the user's guide. © Print only for private use. 8 Getting st arted Getting s tarte d Abou t this Userís Guide Som e servi ces and func tion s de scribed i n this Userís Guide ar e ne twork- and s ubscription-depend ent. Be cause of this, all m enu s m ay no t be available in yo ur pho ne and the sh ort cut num bers to m enus and fun ctions m ay va ry be tween pho nes. This symb ol indicat es that a service or fun ction is ne twork- or op era tor-de pende nt. Please re fer to the inform ation p rovi ded by you r ne twork ope rator for m ore inform ation about you r subscr iption. We recomme nd that yo u read the chapter ìG etting to kno w yo ur p hon eî on pa ge 11 for i nform ation a bou t how to move through the m enu s. The SI M card When you register as a sub scri ber with a ne twork ope rator, you get a SIM (Subsc riber Identity M odu le) card. T he S IM card con tains a com pute r ch ip that keeps track of your ph one num ber, the ser vices include d in your su bscr iption, and your Pho ne Book inform ation, am ong ot her things. Assem bly Before yo u can use your phone you need to: ï insert th e S IM card. ï attach an d ch arge th e ba ttery. No te: Alwa ys tu rn off th e p hone and detach the char ger before yo u i nsert or r emove a SIM c ard. This is the Internet version of the user's guide. © Print only for private use. Ge tting st arted 9 SIM card and bat tery inform ation It may take up to 30 minu tes before an icon ap pea rs in the di spl ay wh en cha rging . 1. Inse rt the SIM c ard. Ma ke sure the SIM card i s pl aced unde r the si lvery ho lders. 2. Place the ba ttery on the ba ck of t he p hon e and push un til you hear a c lick. 3. Conn ect the charger to th e phone at the flash sym bol . The flash sym bol on t he cha rger pl ug m ust fa ce upw ards. 4. It ca n t ake up t o 30 minu tes before an icon is shown in the display. 5. Wait approxi mately fou r hou rs or unt il you se e the ba ttery i s ful ly charged. 6. Re move the charger by t ilting t he pl ug upw ards. You ha ve to insert the SIM card and charge the battery be fore yo u c an us…

Text truncated - open the document above for the full version.

Beteckning' Reference GUG/NO3:009 Er beteckning' Your reference Confidentiality Request Datum. Date 2003-01-20 Ert datum. Your date Vår handlåggare, namn, tfn .Attending to this matter; name, telephone LD/SEM/GUG/NB Håkan Sjöberg +4646193559 Receiver Federal Communications Commision Confidentiality Request Sony Ericsson Mobile Communications AB hereby requests that the FCC application materials Iisted below for Sony Ericsson mobile phone type 1222101-BV/CN (FCC ID: PY71222101) shall be treated as confidential and withheld from public inspection. Electrical diagrams Component listings Technical description Block diagrams ...This material contains information relating to circuit function and complexity that could be of benefit to competitors. The material contains secrets and confidential information that Sony Ericsson does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned if there are any further questions or additional information needed in this matter. Type Approval Manager Sony Ericsson Mobile Communications AB Nya Vattentornet 221 88 Lund Sweden Telephone: +4646 193242 E-mail: [email protected] Sony Ericsson Mobile Communications AB Momsnr. \'(A. 7:No: SE556615665801 Organisationsnr. Reg No: 556615-6658 Telefax. Telefax Nat 046-1941 00 Int +46461941 00 Styrelsens säte: Lund Registered office: Lund Telefon. Te/ephone Nat 046-19 40 00 Int +4646194000 Besöksadress. Office address Nya Vattentornet Lund Postadress. Mail SE-221 88 Lund Sweden

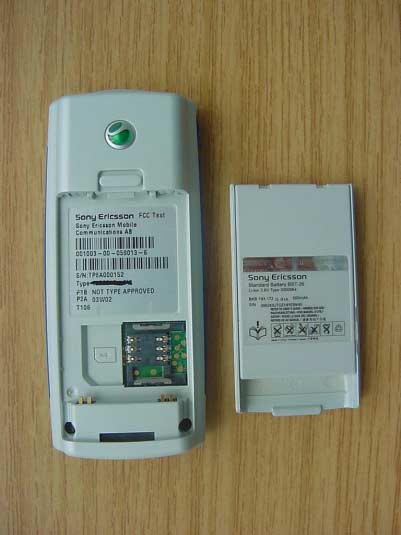

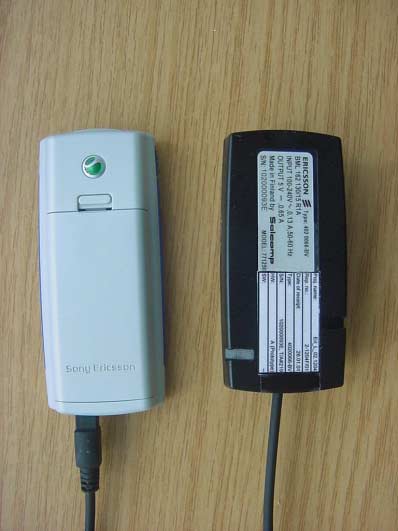

CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 105 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 106 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 107 (112) Photographs of the equipment

Public 1 (3) Prepared (also subject responsible if other) No. LD/SEM/GUU Magnus Nilsson 151 86-SVV 107 057/1 Uen Approved Checked Date Rev Reference LD/SEM/GUU (Magnus Nilsson) ecsniln 2003-01-14 A Approved according to: 000 21 – LXE 107 42/1 Type 122 21 01-BV. Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 808. Placing The label shall be placed on the back of the telephone according to the Assembly Drawing (151 88) for the KRH. Print layout Sony Ericsson stylized name Model Name Type number G – H field Productionweek KRC number R-state Repair week Country approval mark 1 CDA number Country approval mark 2 IMEI-numbers as barcode IMEI-numbers as characters Serial number as barcode Serial number as characters Additional Field Approval marks (1, 2,) Marking of origin Definitions: Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Additional field The field shall be left blank unless otherwise stated in a separate 151 86 document for the SVV. Type number The type number is 1222101-BV and shall be printed “Type 1222101-BV” G-field R-state identification of the CXC-module according to the Marking data 1/151 86 for the SVV. H-field R-state identification of the hardware according to the Marking data 1/151 86 for the SVV. Country approval mark 1 Consist of text: FCC ID: PY71222101 Within a frame with height > 1,5 mm. CDA number The number of the CDA file loaded including the R-state of the file. Country approval mark 2 Consist of text: IC:4170B-1222101 ”DPY” number R - state Public 2 (3) Prepared (also subject responsible if other) No. LD/SEM/GUU Magnus Nilsson 151 86-SVV 107 057/1 Uen Approved Checked Date Rev Reference LD/SEM/GUU (Magnus Nilsson) ecsniln 2003-01-14 A Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as Rywwxx (R = repair, y = year, ww = week, xx = Revision eg. 1A) Production week The production week shall be given as yyWww (yy = year, ww = week) according to the ISO 8601 standard. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no-). IMEI number as characters The IMEI number has format: TAC-FAC-SNR-CD TAC = 350463, 350464 FAC = 62 for the Beijing factory = 80 for the Yingko Factory, Taiwan R.O.C = 81 for the Arima Factory, P.R.O = 90 for the Flex, Brazil = for the Flex, Mexico SNR = A serial number from 000 000 to 999 999 CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Beijing CB5 Dashi TP7 Yingko Factory TP8 Flex, Mexico TF5 Flex, Mexico SOR Approval marks 1. According to 1424 - SVF 930 52 2. The notified body number according to the TTE Annex III certificate for the production plant. If this is not available, use the notified body number from the type approval certificate (normally 0682). The print size (height) for the notified body number (e.g. 0682) and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. 3. According to 1424 - SVF 930 196 Model name The model name T106 Marking of origin The field shall be left blank unless otherwise stated Public 3 (3) Prepared (also subject responsible if other) No. LD/SEM/GUU Magnus Nilsson 151 86-SVV 107 057/1 Uen Approved Checked Date Rev Reference LD/SEM/GUU (Magnus Nilsson) ecsniln 2003-01-14 A in a separate 2/151 86-SVV document. “DPY” number The DPY number for the product without DPY 101 e.g. if you are producing DPY 101 2561/2 the printing should be 2561/2. R-state The R-state for the DPY according to the 1095 for the DPY. Print regulations The printing shall be well readable and permanent. Typeface OCR-B Type size min 1.1 mm Line spacing min 1.5 mm Trademark min 1.5 mm Approval marks min 5.0 mm Picture of label Application:PY71222101

CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 107 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 108 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 109 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 110 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 111 (112) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3127-01-01/03Issue Date: 2003-01-23Page 112 (112) Photographs of the equipment

SecurityClass REPORT 1 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/N03 :012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030125 A File SAR Test Report: T106 (PY71222101) Date of test: January 16 to 21, 2003 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Lab Sony Ericsson Mobile Communications AB Nya Vatenttornet SE-221 82 LUND, Sweden Test Responsible: H. Kami Shirazi Type Approval Engineer [email protected] mailto:Kami.shirazi@sonyericsson + 46 46 23 26 44 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type 1222101-BV (T106); FCC ID: PY71222101 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. SecurityClass REPORT 2 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030125 A File 1 Table of contents 1 TABLE OF CONTENTS ............................................................................................................................. 2 2 INTRODUCTION ........................................................................................................................................ 2 3 DEVICE UNDER TEST .............................................................................................................................. 2 3.1 ANTENNA DESCRIPTION......................................................................................................................... 3 3.2 DEVICE DESCRIPTION.............................................................................................................................. 3 4 TEST EQUIPMENT .................................................................................................................................... 4 4.1 DOSIMETRIC SYSTEM.............................................................................................................................. 4 4.2 ADDITIONAL EQUIPMENT........................................................................................................................ 4 5 ELECTRICAL PARAMETERS ON THE TISSUE.................................................................................. 4 SIMULATING LIQUID ....................................................................................................................................... 4 6 SYSTEM ACCURACY VERIFICATION ................................................................................................. 5 7 SAR MEASUREMENT UNCERTAINTY................................................................................................. 6 8 TEST RESULTS........................................................................................................................................... 7 9 REFERENCES ............................................................................................................................................. 8 10 APPENDIX ............................................................................................................................................... 9 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.......................................... 9 10.2 SAR DISTRIBUTION PLOT...................................................................................................................... 13 10.3 PHOTOGRAPHS OF THE DEVICE UNDER TEST......................................................................................... 22 10.4 DEVICE POSITION ON SAM TWINS PHANTOM....................................................................................... 25 10.5 PROBE CALIBRATION PARAMETERS...................................................................................................... 27 2 Introduction In this test report, compliance of the Sony Ericsson T106 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device under Test SecurityClass REPORT 3 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030125 A File 3.1 Antenna Description Type Internal antenna Location Inside the back cover, near the top Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model T106 Serial number M12C27B13163 Mode GSM 1900 GSM 850 Multiple Access Scheme TDMA TDMA Maximum Output Power Setting 29.5dBm 32.5dBm Factory Tolerance in Power Setting ± 0.5dB ± 0.5dB Maximum Peak Output Power 30dBm 33dBm Crest Factor 8 8 Transmitting Frequency Range (1850.2 – 1909.8) MHz) (824.2 – 848.8) MHz) Prototype or Production Unit Preproduction Device Category Portable RF exposure environment General population / uncontrolled SecurityClass REPORT 4 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030125 A File 4 Test equipment 4.1 Dosimetric sy…

Text truncated - open the document above for the full version.

SAR Information T106-SAR-USA-EN.fm Page 1 Thursday, January 30, 2003 11:54 AM This phone model has been certified in compliance with the government’s requirements for exposure to radio waves. This mobile phone model T106 has been designed to comply with applicable safety requirements for exposure to radio waves. Your wireless phone is a radio transmitter and receiver. It is designed to not exceed the limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) of the U.S. Government. These limits establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by international scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg.* Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value as reported to the FCC for this model phone when tested for use at the ear is 1.32 W/kg and when worn on the body is 1.0 W/kg. Body worn measurements are made while the phone is in use and worn on the body with an Ericsson or Sony Ericsson accessory. Accessories can significantly affect SAR compliance. The Federal Communication Commission requires that some manufacturers' accessories be tested, and Sony Ericsson has done so with respect to its products. Sony Ericsson has only tested Ericsson and Sony Ericsson original accessories in conjunction with Sony Ericsson phones. It is therefore recommended that only Ericsson and Sony Ericsson original accessories be used in conjunction with Sony Ericsson phones. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. While there may be differences between the SAR levels of various phones, all mobile phones granted an FCC equipment authorization meet the government requirement for safe exposure. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID PY 7 122210 1. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications & Internet Association (CTIA) web-site at http://www.phonefacts.net/ . * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a margin of safety to give additional protection for the public and to account for any variations in measurements. AE/LZT 108 4721/9 T106-SAR-USA-EN.fm Page 2 Friday, January 31, 2003 1:07 PM

SecurityClass REPORT 1 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/N03 :012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030320 B File SAR Test Report: T106 (PY71222101) Date of test: January 15 to 22, 2003 Laboratory: Electromagnetic Near Field and Radio Frequency Dosimetry Lab Sony Ericsson Mobile Communications AB Nya Vatenttornet SE-221 82 LUND, Sweden Test Responsible: H. Kami Shirazi Type Approval Engineer [email protected] + 46 46 23 26 44 Statement of Compliance Sony Ericsson Mobile Communications AB declares under its sole responsibility that the product Sony Ericsson Type 1222101-BV (T106); FCC ID: PY71222101 to which this declaration relates, is in conformity with the appropriate RF exposure standards recommendations and guidelines. It also declares that the product was tested in accordance with the appropriate measurement standards, guidelines and recommended practices. Any deviations from these standards, guidelines and recommended practices are noted below: (None) © Sony Ericsson Mobile Communications AB, 2002 This test report shall not be reproduced except in full, without written approval of the laboratory. The results and statements contained herein relate only to the items tested. The names of individuals involved may be mentioned only in connection with the statements or results from this report. Sony Ericsson encourages all feedback, both positive and negative, on this report. SecurityClass REPORT 2 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030320 B File 1 Table of contents 1 TABLE OF CONTENTS ............................................................................................................................. 2 2 INTRODUCTION ........................................................................................................................................ 3 3 DEVICE UNDER TEST .............................................................................................................................. 3 3.1 ANTENNA DESCRIPTION......................................................................................................................... 3 3.2 DEVICE DESCRIPTION.............................................................................................................................. 3 4 TEST EQUIPMENT .................................................................................................................................... 4 4.1 DOSIMETRIC SYSTEM.............................................................................................................................. 4 4.2 ADDITIONAL EQUIPMENT........................................................................................................................ 4 5 ELECTRICAL PARAMETERS ON THE TISSUE.................................................................................. 4 SIMULATING LIQUID ....................................................................................................................................... 4 6 SYSTEM ACCURACY VERIFICATION ................................................................................................. 5 7 SAR MEASUREMENT UNCERTAINTY................................................................................................. 6 8 TEST RESULTS........................................................................................................................................... 7 9 REFERENCES ............................................................................................................................................. 8 10 APPENDIX ............................................................................................................................................... 9 10.1 SAR DISTRIBUTION COMPARISON FOR SYSTEM ACCURACY VERIFICATION.......................................... 9 10.2 SAR DISTRIBUTION PLOT...................................................................................................................... 13 10.3 PHOTOGRAPHS OF THE DEVICE UNDER TEST......................................................................................... 22 10.4 DEVICE POSITION ON SAM TWINS PHANTOM....................................................................................... 25 10.5 PROBE CALIBRATION PARAMETERS...................................................................................................... 27 10.6 Reference SAR value for system validation using body material with No. EUS/CV/R-01:1118/REP SecurityClass REPORT 3 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:012 Approved Checked Date Rev Reference LD/SEM/GUG/NMC/Mats Hansson 030320 B File 2 Introduction In this test report, compliance of the Sony Ericsson T106 portable telephone with RF safety guidelines is demonstrated. The applicable RF safety guidelines and the SAR measurement specifications used for the test are described in the SAR Measurement Specifications of Wireless Handsets [1]. 3 Device under Test 3.1 Antenna Description Type Internal antenna Location Inside the back cover, near the top Max length 38mm Dimensions Max width 14mm Configuration PIFA 3.2 Device description Device model T106 Serial number M12C27B13163 Mode GSM 1900 GSM 850 Multiple Access Scheme TDMA TDMA Maximum Output Power Setting 29.5dBm 32.5dBm Factory Tolerance in Power Setting ± 0.5dB ± 0.5dB Maximum Peak Output Power 30dBm 33dBm Crest Factor 8 8 Transmitting Frequency Range (1850.2 – 1909.8) MHz) (824.2 – 848.8) MHz) Prototype or Production Unit Preproduction Device Category Portable RF exposure environment General population / uncontrolled SecurityClass REPORT 4 (28) Prepared (also subject responsible if other) No. LD/SEM/GUG/NM/H. Kami Shirazi GUG/NV 03:012 Approved Checked Date Rev Reference LD/SEM/GUG/N…

Text truncated - open the document above for the full version.

REPORT 1 (3) Prepared (also subject responsible if other) No. SEM/CV/PF/P Dulce Altabella EUS/CV/R-01:1118/REP Approved Checked SEM/CV/PF/P Dulce Altabella DA 2002-5-07 A C:\Programme\Adobe\Acrobat 4.0\Acrobat\plug_ins\OpenAll\Transform\temp\musclepara meters.doc Reference SAR values for system validation using body material Introduction SAR measurements are performed by scanning an electric field probe in a liquid simulant representing the dielectric parameters of the body. These measurements are sensitive to the choice of dielectric parameters and to environmental conditions (such as temperature and background RF noise). It is therefore important to conduct a performance check of the measurement system on a regular basis to verify that the system is operating properly. The standard method of checking the measurement system is to measure the SAR induced in a flat phantom by a dipole antenna (as specified in [1]) and compare the results with reference values. Reference SAR values currently exist for head simulating liquids [1]. However, there are no known reference values for the body parameters defined in [2]. The purpose of this document is to establish reference SAR values for these body parameters. Method The reference values in [1] for head parameters were determined from numerical simulations and validated with experimental measurements. Theref…
