PY76130201PCMCIA card for Laptop Computer

GC75 Sony Ericsson GPRS PC Card Modem GC75 User’s Guide 2Contents Content Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Hardware Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Checklist. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Services Available Over the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 GC75 Hardware Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Installing the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Start Using GC75 Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GC75 Manager Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 GC75 Manager Settings Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 Create a Dial-Up Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 GPRS Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 HSCSD or CSD Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 Modify a Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Delete a Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using your Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Browse the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Send and Receive emails. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 GC75 Manager Status Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 The Connection Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 GC75 Manager Telephony Settings Screen. . . . . . . . . . . . . . . . . 22 Phone Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 Networks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Divert Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Restrict Calls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 GC75 Manager Phonebook Screen. . . . . . . . . . . . . . . . . . . . . . . . 29 The Phonebook Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Phonebook Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 GC75 Manager SMS Messages Screen . . . . . . . . . . . . . . . . . . . . 33 SMS Manager Functionality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 Contents3 Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 GC75 Manager Icon Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Software Errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 SIM Card Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Error Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38 Additional Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Sony Ericsson Support Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41 Technical Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 License Agreement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Term . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Limited Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 Intended use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Limitation of liability. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Disputes and Governing Law . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 FCC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 Appendix A - Connection Parameters . . . . . . . . . . . . . . . . . . . . . 53 General Connection Parameters for CSD/HSCSD and GPRS. . . . . . . . . . 53 GPRS Specific Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 CSD/HSCSD Specific Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 Index . . . . . . . . . …

Text truncated - open the document above for the full version.

Limited Internal DECLARATION 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/MD/V Jose A. Rodrigo GBBA/SEM/BMD/V 03:0004 Uen Approved Checked Date Rev Reference GBBA/SEM/MD/P (Danny Bravo)) 2003-01-17 A FCC DECLARATION Applicant: Sony Ericsson Mobile Communications AB Nya Vattentornet SE-221 88 Lund, Sweden Product details: Sony Ericsson Type 6130201-BV (FCC ID: PY76130201) triple band GSM900, GSM1800 and GSM1900 PCMCIA card for Laptop Computer, all software and hardware versions. Declaration: We declare that, due to the small size of the Sony Ericsson Type 6130201-BV PCMCIA card, the following statement will be included in the user documentation instead in the product label: FCC Notice: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Signed for and on behalf of the applicant: Authorised sign: Jose A. Rodrigo Verification & TA Manager M2M Com

Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 November 26, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Sony Ericsson requests confidentiality for the following products: FCC ID Number Product Title/Model PY76130203-BV 6130203-BV For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) BOM No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Sony Ericsson trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Lothar Schmidt Technical Manager CETECOM Inc.

Limited Internal MARKING DRAWING 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 123 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Danny Bravo 2002-12-17 PC1 Marking Drawing Type 6130201-BV Label The label used for marking is defined in the Manufacturing Specification on the media used. Placing The label shall be placed on the back of the module according to the Assembly Drawing (151 88) for the KRD. Print layout Printing area 38 x 26 mm. 2 3 4 XXXXXX-XX-XXXXXX-X 5 6 XXXXXXXXXX 7 FCC ID: PY76130201 8 IC: 4170B-6130201 9 TYPE 6130201-BV GHY 1 Y 2 Y 3 Line 10 Line 11 Lines: 2 (5) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 123 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Danny Bravo 2002-12-17 PC1 Definitions Line 1 Sony Ericsson trademark 2 Approval marks ( 1,2 ) and Local approval marks 3 IMEI number as bar-code 4 IMEI number as characters 5 Serial number as bar-code 6 Serial number as characters 7 Country approval mark 1 8 Country approval mark 2 9 Type number and GHY 1 Y 2 Y 3 fields 10 Production week, Product number, R-state 11 Marking of origin Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Height min. 3 mm. Approval marks 1. CE Marking. According to 1424 - SVF 930 52. 2. The Notified Body number. It shall be 0682. The print size (height) for the notified body number and the corresponding approval marks shall be minimum 5 mm. This is a regulatory requirement. Local approval marks This field shall be used for local approval marks in countries where special marking is required. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). Height 3.5 mm. 3 (5) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 123 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Danny Bravo 2002-12-17 PC1 IMEI number as characters The IMEI number has format: TAC-FAC-SNR-CD TAC = Type Approval code after assignment from the Notified Body FAC = The corresponding Final Assembly Code assigned by Notified Body. SNR = A serial number from 000 000 to 999 999. CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Height 3.5 mm. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Tecom (Taiwan) S48 Country approval mark 1 FCC approval marking: consists of the text: FCC ID: PY76130201 Within a frame with height > 1.5 mm. Country approval mark 2 Canada approval marking: consists of text: IC: 4170B-6130201 Type number The type number is 6130201-BV and shall be printed “TYPE 6130201-BV”. G-field R-state identification of the CXC-module loaded in KRH 901 08 according to the Marking data 1/151 86 for the KRD. H-field R-state identification of the hardware version used during the current Type Approval according to the Marking data 1/151 86 for the KRD. Y 1 -field R-state identification of the current KRD 4 (5) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 123 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Danny Bravo 2002-12-17 PC1 according to the Marking data 1/151 86 for the KRD. Y 2 -field ROA structure identification of the KRH 901 08 according to the Marking data 1/151 86 for the KRD. Y 3 -field R-state identification of the ROA of the KRH 901 08 according to the Marking data 1/151 86 for the KRD. Production week The production week shall be given as yyWww (yy = year, ww = week) KRD number The KRD number for the product. R-state The R-state for the KRD according to the 1095 for the KRD. Marking of origin Marking of origin according to 3/151 86 document for the KRD. Printing regulations Fontface: OCR-B Type size: min. 1.3 mm Line spacing: min. 0.3 mm Trade mark height: min. 3 mm Approval marks height: min. 5 mm Colour: Black 5 (5) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 123 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P Danny Bravo 2002-12-17 PC1 Print layout for prototypes Line 7, 8 and 9 are replaced with text "NOT TYPE APPROVED". Text height min. 2 mm. Line 2 is replaced with text with alternative shown below. Type size min. 5 mm. DEMO PROTOTYPE 2A PROTOTYPE 2B PROTOTYPE 2C etc. Line 4, the field shall be filled with the test IMEI number. The test IMEI number is: XXXXXX-XX-and the SNR are between XXXXXX --- > XXXXXX (the CD numer must be added) LINES 1 2 XXXXXXXXXX 3 4 XXXXXX-XX-XXXXXX-X 5 6 XXXXXXXXXX 7, 8, 9 NOT TYPE APPROVED 10 yyWww KRD 102 123 RXX 11 Marking of origin

CETECOM Inc. 411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Phone: + 1 (408) 586 6200
Fax: + 1 (408) 586 6299
E-mail: [email protected]
http://www.cetecom.com CETECOM Inc. is a Delaware Corporation with Corporation number: 2113686 Board of Directors: Dr. Harald Ansorge, Dr. Klaus Matkey, Hans Peter May V.2.16M-2002-03-12 g:\emc\projects\broadcom(mobilink)\358-2002_gc75i\sar\report\sar_358_2002_fcc_1900.doc © Copyright by CETECOM SAR Test Report No. SAR_358_2002_FCC_1900 for the SonyEricsson Mobile Communications PC-Card Radio Module for GSM/GPRS 1850.2MHz – 1909.8MHz Model Number: GC75i Date of Report: 11/20/2002 Date of issue: 11/20/2002 Report Copy No.: 01 SAR Test Report No. Date of Report: Page 2 of 28 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. Contents 1. ASSESSMENT ................................................................................................................ 4 2. ADMINISTRATIVE DATA ................................................................................................ 5 2.1. Identification of the Testing Laboratory Issuing the SAR Assessment Report.............. 5 2.2. Identification of the Client ........................................................................................ 5 2.3. Identification of the Manufacturer ............................................................................ 5 3. EQUIPMENT UNDER INVESTIGATION (EUI)................................................................. 6 3.1. Identification of the Equipment under Investigation ................................................. 6 3.2. Front View of the Equipment under Investigation .................................................... 7 4. SUBJECT OF INVESTIGATION ...................................................................................... 8 4.1. The IEEE Standard C95.1 and the FCC Exposure Criteria...................................... 8 4.2. Distinction Between Exposed Population, Duration of Exposure and Frequencies .. 8 4.3. Distinction between Maximum Permissible Exposure and SAR Limits..................... 9 4.4. SAR Limit ................................................................................................................ 9 5. THE FCC MEASUREMENT PROCEDURE................................................................... 10 5.1. General Requirements .......................................................................................... 10 5.2. Device Operating Next to a Person’s Ear .............................................................. 10 5.3. Test Positions........................................................................................................ 11 5.4. Test positions of device relative to head................................................................ 11 5.5. Test to be Performed............................................................................................. 14 5.6. Body-worn and Other Configurations.................................................................... 14 5.7. Procedure for assessing the peak spatial-average SAR ........................................ 15 5.8. Determination of the largest peak spatial-average SAR ........................................ 17 6. THE MEASUREMENT SYSTEM.................................................................................... 18 6.1. Robot system specification.................................................................................... 18 6.2. Probe and amplifier specification........................................................................... 19 6.3. Phantoms.............................................................................................................. 19 6.4. SAR measurement procedure ............................................................................... 20 SAR Test Report No. Date of Report: Page 3 of 28 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, CA 95035
U.S.A. 6.5. SARA2 Interpolation and Extrapolation schemes.................................................. 20 6.6. Interpolation of 2D area scan ................................................................................ 21 6.7. Extrapolation of 3D scan ....................................................................................... 21 6.8. Interpolation of 3D scan and volume averaging..................................................... 21 7. UNCERTAINTY ASSESSMENT ....................................................................................23 7.1. Measurement Uncertainty Budget ......................................................................... 24 8. TEST RESULTS SUMMARY ......................................................................................... 25 8.1. Conducted Output Power ...................................................................................... 25 8.2. Test Positions........................................................................................................ 25 8.3. SAR results for GC75i configured in Laptop #1 Sony PCG-9211........................... 25 8.4. SAR results for GC75i configured in Laptop #2 Sony PCG-Z505 HE.................... 26 8.5. SAR results for GC75i configured in Laptop #3 Compaq ARMADA 7800............. 26 8.6. Validation Check Results....................................................................................... 27 9. REFERENCES............................................................................................................... 28 SAR Test Report No. Date of Report: Page 4 of 28 Error! Reference source not found. This report shall not be reproduced except in full without the written approval of: CETECOM Inc.
SAR
411 Dixon Landing Road
Milpitas, C…

Text truncated - open the document above for the full version.

SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 1 of 16 Appendix A: Measurement Plots Plot 1. Date: 11/06/2002 Temperature Air / Liquid: 22.3
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 53.18 : 1.576 Position: Left bystander, Laptop #1 Sony PCG-9211 Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.271W/Kg Maximum 10 gram SAR: 0.180W/Kg Power reference start: 0.103W/Kg Power reference end 0.103W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 2 of 16 Plot 2. Date: 11/06/2002 Temperature Air / Liquid: 22.1
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 53.18 : 1.576 Position: Lap position, Laptop #1 Sony PCG-9211 Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 1.084W/Kg Maximum 10 gram SAR: 0.746W/Kg Power reference start: 0.468W/Kg Power reference end 0.459W/Kg Power reference change 2 -1.94% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 3 of 16 Plot 3. Date: 11/06/2002 Temperature Air / Liquid: 22.1
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 53.18 : 1.576 Position: Lap position, Antenna parallel, Laptop #1 Sony PCG-9211 Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.759W/Kg Maximum 10 gram SAR: 0.594W/Kg Power reference start: 0.406W/Kg Power reference end 0.387W/Kg Power reference change 2 -4.74% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 4 of 16 Plot 4. Date: 11/06/2002 Temperature Air / Liquid: 22.2
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 53.32 : 1.563 Position: Lap position Laptop #1 Sony PCG-9211 Channel / Frequency: 512 / 1850.2 MHz Maximum 1 gram SAR: 0.809W/Kg Maximum 10 gram SAR: 0.626W/Kg Power reference start: 0.400W/Kg Power reference end 0.400W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 5 of 16 Plot 5. Date: 11/06/2002 Temperature Air / Liquid: 23.2
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 52.98 : 1.581 Position: Lap position Laptop #1 Sony PCG-9211 Channel / Frequency: 810 / 1909.8 MHz Maximum 1 gram SAR: 0.621W/Kg Maximum 10 gram SAR: 0.565W/Kg Power reference start: 0.450W/Kg Power reference end 0.450W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 6 of 16 Plot 6. Date: 11/06/2002 Temperature Air / Liquid: 22.0
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 53.18 : 1.576 Position: Lap position, Laptop #2 Sony PCG-Z505 Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.685W/Kg Maximum 10 gram SAR: 0.483W/Kg Power reference start: 0.325W/Kg Power reference end 0.325W/Kg Power reference change 2 -0.00% 1 DCP: Diode compression potential for different types of modulation is determined during the calibration of the probe. See section 6.2 of this report Probe and Amplifier Specification. Crest factor is not used. 2 The power reference change is calculated by the test system with more digits than indicated in the power reference start and end values. SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix A Page 7 of 16 Plot 7. Date: 11/06/2002 Temperature Air / Liquid: 22.0
C / 22.1
C Liquid mass density (
): 1 DCP 1 8 Probe factors (S/N 0106) (ConvF): X=0.646, Y=0.950, Z=0.583 Simulated tissue dielectric parameters:  r : 53.18 : 1.576 Position: Left bystander, Laptop #2 Sony PCG-Z505 Channel / Frequency 661 / 1880 MHz Maximum 1 gram SAR: 0.251W/Kg Maximum 10 gram SAR: 0.164W/Kg Power reference start: 0.078W/Kg Power re…

Text truncated - open the document above for the full version.

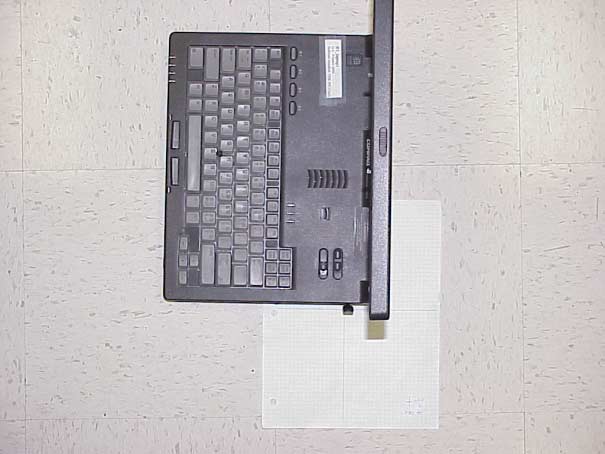

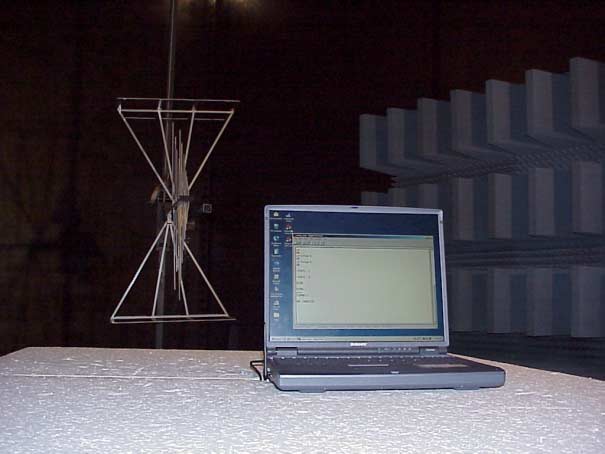

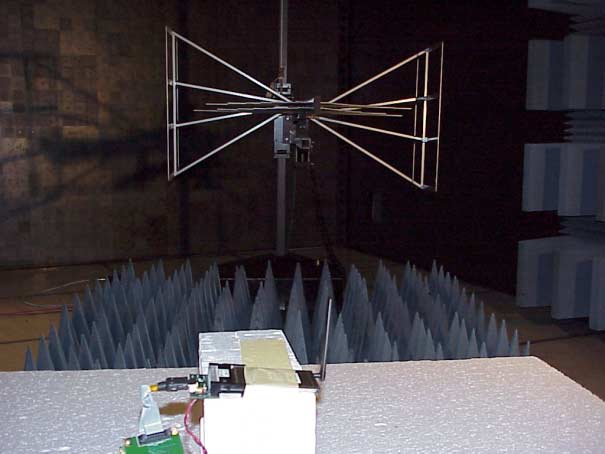

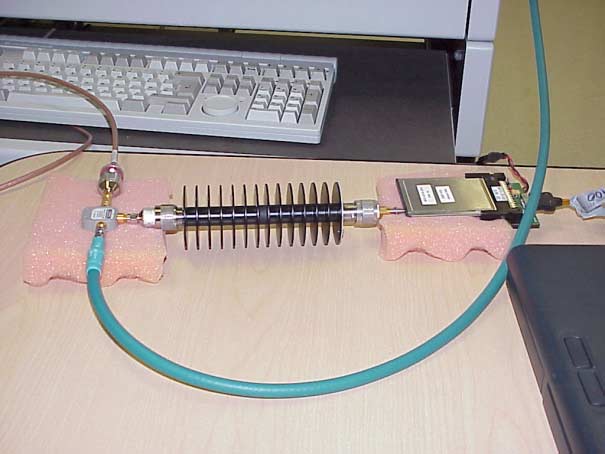

SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 1 of 15 Appendix B: Photos EUT Photos Photo 1. EUT front SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 2 of 15 Photo 2. EUT back SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 3 of 15 Set-up Photos Photo 3. Left bystander PC #1 Sony PCG-9211 SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 4 of 15 Photo 4. Left bystander PC #1 Sony PCG-9211 distance SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 5 of 15 Photo 5. Lap PC #1 Sony PCG-9211 SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 6 of 15 Photo 6. Lap PC #2 Sony PCG-Z505 HE SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 7 of 15 Photo 7. Left bystander PC #2 Sony PCG-Z505 HE SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 8 of 15 Photo 8. Left bystander PC #2 Sony PCG-Z505 HE distance SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 9 of 15 Photo 9. Front user PC #2 Sony PCG-Z505 HE SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 10 of 15 Photo 10. Front user PC #2 Sony PCG-Z505 HE distance SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 11 of 15 Photo 11. Right bystander PC #3 Compaq Armada 7800 SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 12 of 15 Photo 12. Right bystander PC #3 Compaq Armada 7800 distance SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 13 of 15 Photo 13. Lap PC #3 Compaq Armada 7800 SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 14 of 15 Photo 8. Photo to demonstrate 15 cm Z-axis head phantom SAR Test Report No.: SAR_258_2002_FCC_1900 Date of Report:11/20/2002 Appendix B Page 15 of 15 Photo 9. Photo to demonstrate 15 cm Z-axis flat phantom

SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix C Page 1 of 23 Test Setup Position and Distance Diagrams: Sony, PCG-9211: Lap position: bottom of PC touching phantom Left bystander Antenna normal position: 2.5 cm Antenna parallel 8mm bottom of PCMCIA antenna to phantom slot to PC bottom SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix C Page 2 of 23 Sony, PCG-Z505 HE: Lap position: bottom of PC touching phantom Left bystander position: 2.5 cm antenna to 4mm bottom of PCMCIA Front user position: phantom slot to PC bottom 2.5cm antenna to phantom SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix C Page 3 of 23 Compaq Armada 7800: Lap position: bottom of PC touching phantom Right bystander Antenna normal 9 mm bottom of PCMCIA Position: 2.5 cm Antenna parallel slot to PC bottom Antenna to phantom SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix C Page 4 of 23 Tissue Parameters 1900MHz Head liquid: Recipe: The following recipe is provided in percentage by weight. 54.9% distilled water 44.92% DGBE 0.18% salt 0.1% bactericide Di-electric constants measured on 11/06/2002. SAR measurements were made within 24 hours of the measurement of liquid parameters. 11/06/2002 22.1°C Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 38.98 1.404 1880 38.84 1.427 1900 38.82 1.444 1909.8 38.75 1.45 Conductivity 1.32 1.34 1.36 1.38 1.4 1.42 1.44 1.46 1.48 185018751900 frequency (MHz) conductivity (S/m) 1900 MHz head liquid 1528 std Pe rmittiv ity 37 38 39 40 41 42 43 185018751900 frequency (MHz) relative permittivity 1900 MHz head liquid 1528 std +5% -5% SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix C Page 5 of 23 1900MHz Body Liquid: Recipe: The following recipe is provided in percentage by weight. 69.17% distilled water 30.29% DGBE 0.44% salt 0.1% bactericide Di-electric constants measured on 11/06/2002. SAR measurements were made within 24 hours of the measurement of liquid parameters. 11/06/2002 22.1°C Freq. Rel. Condy (MHz) Perm. (S/m) 1850.2 53.32 1.563 1880 53.18 1.576 1909.8 52.98 1.581 Conductivity 1.35 1.4 1.45 1.5 1.55 1.6 1.65 1850187018901910 frequency (MHz) conductivity (S/m) 1800/1900Bo dy liquid 1528 std Permittivity 47 49 51 53 55 57 1850187018901910 frequency (MHz) relative permittivity 1800/1900Body liquid 1528 std +5% -5% Environment 11/06/2002 and 11/07/2002: Temperature: 22.0
C – 23.2
C Humidity: 45% _ 55 % SAR Test Report No : SAR_358_2002_FCC_1900 Date of Report: 11/20/2002 Appendix C Page 6 of 23 Test Equipment Test Equipment Model Serial Instrument description Supplier/Manufacturer Model Serial No. Calibration (date) Bench top Robot Mit…
