PY76220502-BVTransmitter module for mobile applications

4.3.6 SAR warning If the application is using an antenna which is less than 20cm away from the any part of the users body, integrators are legally obliged to publish SAR figures for the product. This testing would need to be carried out by the system integrator. The GM28 module is FCC approved for fixed and mobile applications. If the final product after integration is intended for portable use, a new application and FCC ID is required. Even if SAR measurements are not required it is considered good practice to insert a warning in any manual produced indicating it is a radio product and that care should be taken.

Product Photo/Illustration GM28 Integrator’s Manual SAR statement: This product is intended to be used with the antenna or other radiating element at least 20cm away from any part of the human body. The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International. The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Sony Ericsson Mobile Communications International, is strictly prohibited. Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, without the prior written consent of Sony Ericsson Mobile Communications International, the copyright holder. First edition (November 2002) Sony Ericsson Mobile Communications International publishes this manual without making any warranty as to the content contained herein. Further Sony Ericsson Mobile Communications International reserves the right to make modifications, additions and deletions to this manual due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this manual. All rights reserved. ©Sony Ericsson Mobile Communications International, 2002 Publication number: LZT 123 7468 P1A Printed in UK 3 LZT 123 7468 P1A Contents Part 1: Overview................................................................................................. 11 1. Introduction............................................................................................................ 13 1.1 Target Users ......................................................................................... 13 1.2 Prerequisites ......................................................................................... 13 1.3 Manual Structure ......................................................................................... 13 2. GM28 Modem......................................................................................................... 14 2.1 Description......................................................................................... 14 2.2 Highlights......................................................................................... 14 2.3 GM28 in a Communication System............................................................. 15 2.4 Main Features and Services ......................................................................... 17 2.4.1 Types of Mobile Station .................................................................. 17 2.4.2 Short Message Service.................................................................... 17 2.4. 3Voice Calls...................................................................................... 18 2.4.4 Data................................................................................................. 18 2.4.5 Fax .................................................................................................. 18 2.4.6 Supplementary Services .................................................................. 18 2.4.7 Serial Communication .................................................................... 19 2.4.8 Interfacing with the GM28.............................................................. 19 2.5 Service and Support ..................................................................................... 20 2.6 Precautions......................................................................................... 20 3. Abbreviations ......................................................................................................... 21 Part 2: Integrating the Modem............................................................................ 23 1. Mechanical Description......................................................................................... 25 1.1 Overview......................................................................................... 25 1.2 Physical Dimensions.................................................................................... 27 2. Electrical Description ............................................................................................ 28 2.1 Power Connector ......................................................................................... 28 2.2 Audio Connector ......................................................................................... 29 2.3 Antenna Connector....................................................................................... 31 2.4 SIM Card Reader ......................................................................................... 32 2.5 RS232 Serial Port......................................................................................... 33 2.5.1 Serial Data...................................................................................... 34 2.5.2 Serial Data Signals - RD, TD ......................................................... 34 2.5. 3Control Signals - RTS, CTS, DTR, DSR, DCD, RI ......................... 34 2.6 Real Time Clock ......................................................................................... 35 2.7 Software Updates ......................................................................................... 35 3. Operation................................................................................................................ 36 GM28 INTEGRATOR’S MANUAL 4 LZT 123 7468 P1A 3.1 Switching On the Modem............................................................................. 36 3.2 Switching Off the Modem............................................................................ 36 3.3 Resetting the Modem........................................................................…

Text truncated - open the document above for the full version.

Limited Internal INFORMATION 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 3/0062-111 FCP 103 4454 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/V (Jose A. Rodrigo) 2002-10-29 A Receiver Federal Communications Commission Intended use of Sony Ericsson GM28, FCC ID: PY76220502-BV The applications intended to use Sony Ericsson GM28, FCC ID 6220502-BV, are those designed to provide communication between machines. The groups of applications are the following: • Applications for provide data to a cellular network. The module is included in radio base stations to provide positioning information to users of the network. The module is integrated in the instruments of the station and the antenna is external (outside of the station enclosure).The application in this case is fixed. • Applications for remote sensing of events. The application automatically collects information from a process or the status of a machine. There are several subgroups: vending and dispensing machines, meters (for gas, electricity, water, etc.), alarms (fire, anti-theft, etc.). In all these cases there is no human intervention. The module is integrated in the machine and the antenna is external. The application in this case is fixed. • Applications for fleet control management. In this case, the module is on board of vehicles providing to the control station of the fleet information related to the vehicle: position, speed, etc. These applications might provide voice capabilities. In this case, the module is integrated in the instrument panel of the vehicle and the antenna is external (outside of the vehicle). The application in this case is fixed inside the vehicle taking into account the mobility of such vehicle. The module will be offered to integration companies and service providers different to Sony Ericsson. But there are some possible applications that could be integrated by Sony Ericsson. Jose A. Rodrigo Verification & TA Manager M2M Com Sony Ericsson Mobile Communications

Limited Internal CONFIDENTIALITY REQUEST 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 4/0062-111 FCP 103 4454 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/V (Jose A. Rodrigo) 2002-10-29 A Receiver Federal Communications Commission Confidentiality Request Sony Ericsson Mobile Communications hereby requests that the FCC application materials listed below for Sony Ericsson GSM module type 6220502-BV (FCC ID: 6220502-BV) shall be treated as confidential and withheld from public inspection. • Electrical diagrams • Component listings • Technical description • Block diagrams This material contains information relating to circuit function and complexity that could be of benefit of competitors. The material contains secrets and confidential information that Sony Ericsson does not customarily release to the public and which is otherwise not generally available to the public. Please contact the undersigned if there are any further questions or additional information needed in this matter. Regards, Jose A. Rodrigo Verification & TA Manager M2M Com Sony Ericsson Mobile Communications Maplewwod, Chineham Business Park Basingstoke, Hampshire, RG24 8YB UK Telephone: +441256774841 E-mail: [email protected]

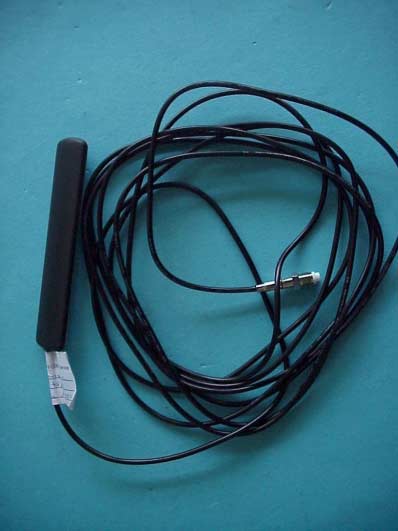

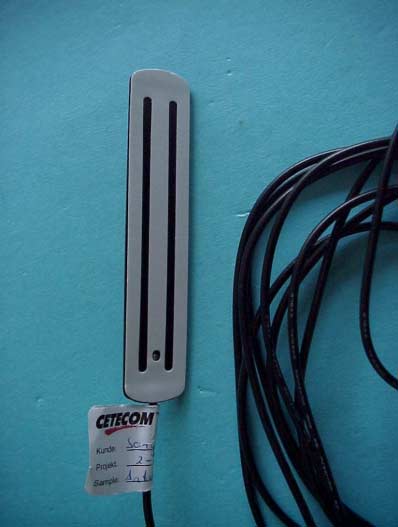

CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 88 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 89 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 90 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 97 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 98 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 99 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 100 (100) Photographs of the equipment

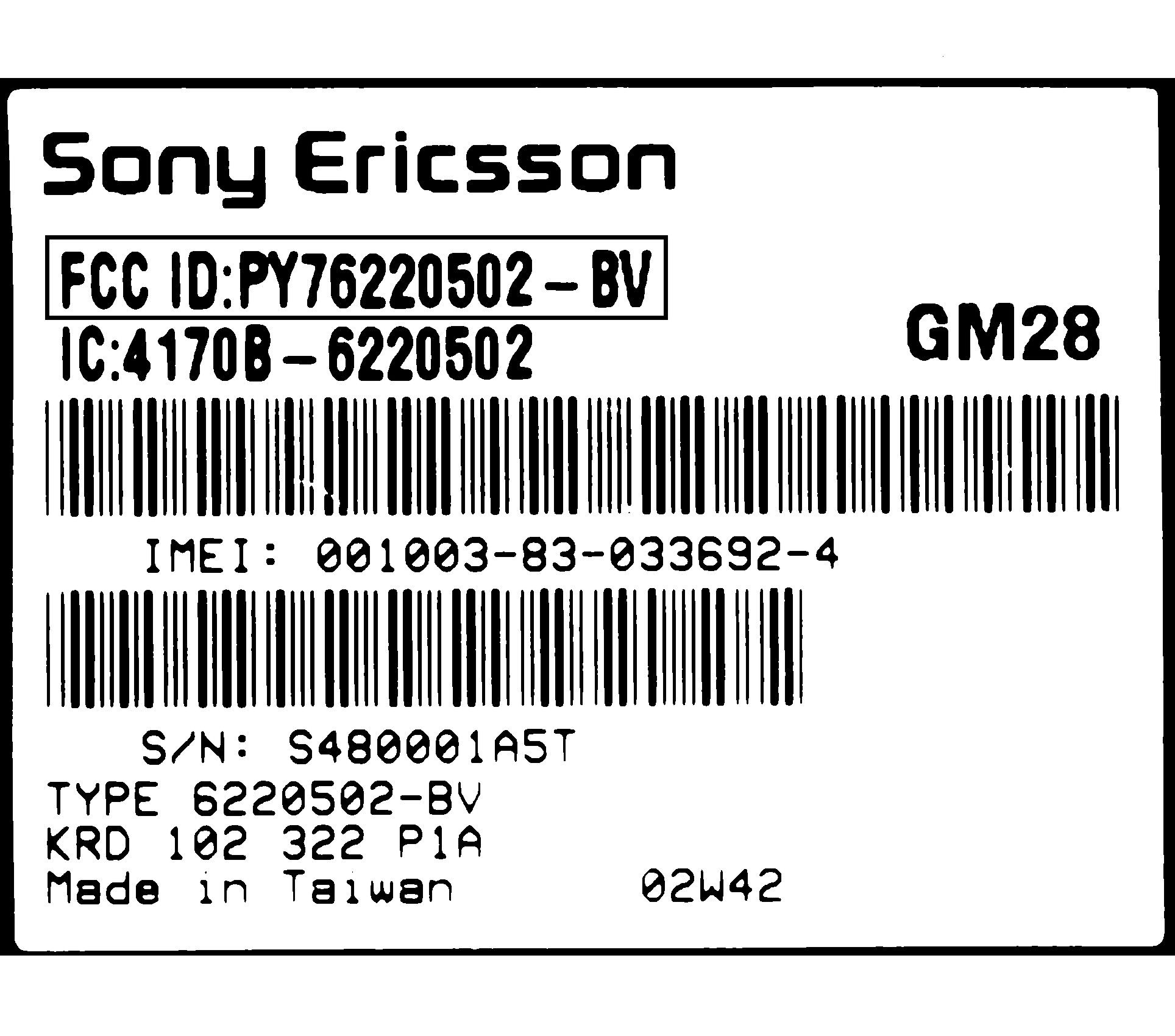

Limited Internal MARKING DRAWING 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 322 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Richard Barker) 2002-10-11 A Approved according to: 1776- KRD 102 322-1 Marking Drawing Type 6220502-BV Label The label used for marking is defined in the Manufacturing Specification on the SVF 930 2218. Placing The label shall be placed on the back of the module according to the Assembly Drawing (151 88) for the KRD. Print layout Sony Ericsson trademark Model Name Additional Field Approval marks (1, 2, 3) Local Approval marks Approval marks (5) Approval marks (4) Approval marks (6) IMEI-numbers as barcode IMEI-numbers as characters Serial number as barcode Serial number as characters Type number G – H – Y 1 – Y 2 – Y 3 – field KRD number R-state Repair week Manufacturing country Production week Definitions Sony Ericsson trademark Sony Ericsson and the Sony Ericsson trademark shall be according to the corporate standard 190 89-EN/LZT 108 5347. Model Name Text “GM28”. Type size 1.5 mm (min). Additional Field The field shall be marked according to the GM28 hardware signalling variant: V28 signalling = blank field TTL signalling = “TTL” Inverted TTL signalling = “Inv TTL” Type size 1.5 mm (min). Limited Internal MARKING DRAWING 2 (3) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 322 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Richard Barker) 2002-10-11 A Approval marks 1. FCC approval marking: consists of the text: FCC ID: PY76220502-BV Within a frame with height > 1.5 mm. 2. This field shall be blank. 3. This field shall be blank. 4. Canada approval marking: consists of text: IC: XXXXX-6220502 5. This field shall be blank. 6. This field shall be blank. Local approval marks This field shall be used for local approval marks in countries where special marking is required. IMEI number as bar code See below for definition of IMEI-number. The bar code shall only contain the digits of the IMEI number (no -). IMEI number as characters The IMEI number has format: TAC-FAC-SNR-CD TAC = Type Approval code after assignment from the Notified Body FAC = The corresponding Final Assembly Code of the factory used for the production (i.e. 69 for the Bilbao factory and 83 for Tecom factory). SNR = A serial number from 000 001 to 999 999. CD = A check digit, from 0-9, calculated according to the Luhn formula (ISO/IEC 7812), GSM 02.16. Serial number as bar code According to Ericsson corporate standard 102 01 - 109. Serial number as characters According to Ericsson group standard 0012-101. Ericsson group factory number system according the Ericsson corporate standard 1120-101 Factory codes: Bilbao S69 Tecom (Taiwan) S48 Type number The type number is 6220502-BV and shall be printed “Type 6220502-BV”. Limited Internal MARKING DRAWING 3 (3) Prepared (also subject responsible if other) No. GBBA/SEM/BMD/V Jose A. Rodrigo 151 86-KRD 102 322 Uen Approved Checked Date Rev Reference GBBA/SEM/BMD/P (Richard Barker) 2002-10-11 A G-field R-state identification of the CXC-module according to the Marking data 1/151 86 for the KRD. H-field R-state identification of the hardware version used during the current Type Approval according to the Marking data 1/151 86 for the KRD. Y 1 -field R-state identification of the current KRD according to the Marking data 1/151 86 for the KRD. Y 2 -field ROA structure identification according to the Marking data 1/151 86 for the KRD. Y 3 -field R-state identification of the ROA according to the Marking data 1/151 86 for the KRD. Production week The production week shall be given as yyWww (yy = year, ww = week) KRD number The KRD number for the product. R-state The R-state for the KRD according to the 1095 for the KRD. Repair week The field shall be left blank unless a repair centre repairs the unit. The repair week shall then be given as RyyWww (yy = year, ww = week) Manufacturing country The text “Made by Sony Ericsson” printed horizontally for phones produced in Bilbao. For phones produced in Tecom (Taiwan) the horizontal text shall be “Made in Taiwan”. Print regulations The printing shall be well readable and permanent. Other texts different whose definition is not specified formerly have the following characteristics: Typeface: ZPL II standard font D Type size: min 1.1 mm Line spacing: min 1.5 mm Trademark: min 1.5 mm Approval marks: min 5.0 mm

Limited Internal DECLARATION 1 (1) Prepared (also subject responsible if other) No. GBBA/SEM/MD/V Jose A. Rodrigo 3/0062-111/FCP 103 4495 Uen Approved Checked Date Rev Reference GBBA/SEM/MD/P (Richard Barker) 2003-01-17 A FCC DECLARATION Applicant: Sony Ericsson Mobile Communications AB Nya Vattentornet SE-221 88 Lund, Sweden Product details: Sony Ericsson Type 6220502-BV dual band GSM850 and GSM1900 communication module, all software and hardware versions. Declaration: We declare that, due to the small size of the Sony Ericsson Type 6220502-BV communication module, the following statement will be included in the user documentation instead in the product label: FCC Notice: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user documentation will include the following statement as well: OEM LABELING A label must be affixed to the outside of the end product into which the authorized terminal is incorporated, with a statementsimilar to the following: “This device contains TX FCC ID: PY76220502-BV". Signed for and on behalf of the applicant: Authorised sign: Jose A. Rodrigo Verification & TA Manager M2M Com

CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 91 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 92 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 93 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 94 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 95 (100) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 96 (100) Photographs of the equipment

Application PY76220502-BV Dipl.-Ing. Karin Silberhorn CETECOM GmbH, Essen, Germany Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 2 4R PG S π = where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna The table below is excerpted from Table 1B of 47 CFR 1.1310 titled Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure: Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 – 1500 f/1500 30 1500 – 100.000 1.0 30 where f = frequency in MHz Prediction Antenna Type: 0dBi Antenna / 3dBi Antenna / 6 dBi Antenna GSM 850 GSM 1900 Maximum peak output power at antenna input terminal: 30.7 dBm 27.1 dBm Maximum peak output power at antenna input terminal: 1174,9 mW 512.86 mW Antenna gain(typical): 0 dBi 0 dBi Maximum antenna gain: 1 numeric 1 numeric Prediction distance: 20 cm 20 cm Prediction frequency: 839 MHz 1880 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 2 cm mW 1 2 cm mW Power density at prediction frequency: with Antenna Gain of 0dBi 0,234 2 cm mW 0,102 2 cm mW Power density at prediction frequency: with Antenna Gain of 3dBi 0,467 2 cm mW 0,204 2 cm mW Power density at prediction frequency: with Antenna Gain of 6dBi 0,934 2 cm mW 0,408 2 cm mW Maximum allowable antenna gain: 6.31 dBi 9.9 dBi This predictions demonstrate the following: 1) The power density levels at a distance of 20 cm with typical antennas of 0-6dBi are below the maximum levels allowed by the FCC regulations. 2) The antenna gain where 1 2 cm mW would be reached at 20 cm distance, is G= 6.31 dBi for GSM 850 G= 9.9 dBi for GSM 1900

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 SaarbrückenTelefon: +49 (0)681 598-9100Telefax: -9075 RSC11issue test report consist of 100 PagesPage 1 (100) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM TTI-P-G-166/98-30 Accredited Bluetooth Test Facility (BQTF) Test report no.: 2_3045-01-01/02 FCC Part 24 and Part 22 GM28 FCC ID: PY76220502 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 2 (100) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail: [email protected] Internet: www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G-166/98-30 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 3 (100) 1.3Details of applicant Name : Sony Ericsson Mobile Communication AB Street : Nya Vattentornet City : 22188 Lund Country : Sweden Telephone : +46-46-193-242 Telefax : +46-46-193-295 Contact : Mr. Bo Johansson Telephone : +46-46-193-242 1.4Application details Date of receipt of application : 2002.09.14 Date of receipt of test item : 2002.10.10 Date of test : 2002.10.14-22 1.5Test item Type of equipment : Dual Band PCS module (PCS 850 and PCS1900) Type designation : GM28 / 6220502-BV Manufacturer:Applicant Street: City: Country: Serial number:IMEI 010110.83.013412.0 Additional informations: : Frequency:1850 – 1910 MHz and 824 – 849 MHz Type of modulation:300KGXW Number of channels :300 (PCS1900) and 125 (PCS850) Antenna:coax socket and dedicated dual band antenna Power supply:8V DC via socket Output power GSM 850:cond.: 30.70 dBm Peak , ERP: 25.00 dBm (Burst); EIRP: 27.10 dBm (Burst) Output power GSM 1900 :cond : 27.10 dBm Peak , ERP: 18.30 dBm (Burst); EIRP: 20.40 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID:PY76220502 Hardware:R1A Software:R1A008 1.6Test standards: FCC Part 22 and Part 24 CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 4 (100) 2 Technical test The radiated measurements were performed vertical and horizontal over the whole frequency range. We start at 1 m high with vertical receiving antenna and rotate the dish continuously. During rotation we use the antenna lift system to vary the high from 1 to 4 m. So we find maximum radiation output. At this points we do manual re-measurements. After this we do the same measurements in horizontal position of the receiving antenna. This (horizontal and vertical) is made for all the three planes of the test sample. We use the maximum received results. The detector function and selection of bandwidth are according ANSI C63.2-1996 item 8.2.1 and ANSI C63.4-1992 Item 4.2. Antennas are conform with ANSI C63.2-1996 item 15. 150 kHz - 30 MHz: Quasi Peak measurement, 9kHz Bandwidth, passive loop antenna. 30 MHz - 200 MHz: Quasi Peak measurement, 120KHz Bandwidth, biconical antenna 200MHz - 1GHz: Quasi Peak measurement, 120KHz Bandwidth, log periodic antenna >1GHz: Average, RBW 1MHz, VBW 10 MHz, wave guide horn For Part 24/22 we use the substitution method ( TIA/EIA 603). 2.1Summary of test results We did measurements for GSM 850 with the same parameters as for GSM 1900. No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2002-10-22RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 2002-10-22RSC8412Hausknecht D. DateSectionNameSignature CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 5 (100) 2.2Testreport TEST REPORT Test report no. : 2_3045-01-01/022 CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 6 (100) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE ß 24.2327 RF EXPOSURE CALCULATIONSUBCLAUSE ß 1.1307(B)9 FREQUENCY STABILITY SUBCLAUSE ß 24.2359 EMISSIONS LIMITS ß24.23810 CONDUCTED SPURIOUS EMISSIONS24 OCCUPIED BANDWIDTH ß2.98933 Part PCS 850 POWER OUTPUT SUBCLAUSE ß 24.23234 RF EXPOSURE CALCULATION SUBCLAUSE ß 1.1307(B)36 FREQUENCY STABILITY SUBCLAUSE ß 24.23536 EMISSIONS LIMITS ß24.23837 CONDUCTED SPURIOUS EMISSIONS51 OCCUPIED BANDWIDTH ß2.98960 CONDUCTED EMISSIONS ß 15.107/20761 EMISSION LIMITATIONS FOR CELLULAR ß22.917(F)63 ADDITIONEL MEASUREMENTS FOR THE DIGITAL PART PART 15.10971 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS81 Test site83 Photographs of the equipment88 CETECOM ICT Services GmbH Test report no..: 2_3045-01-01/02Issue Date: 2002-10-22Page 7 (100) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 17 - 24 PART PCS1900 POWER OUTPUT SUBCLAUSE ß 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurem…
