PY76220511Transmitter module for mobile applications

Product Photo/Illustration GR47/GR48 Integrator’s Manual The GR47 described in this manual conforms to the Radio and Telecommunications Terminal Equipment (R&TTE) directive 99/5/EC with requirements covering EMC directive 89/336/EEC and Low Voltage directive 73/23/EEC. The product fulfils the requirements according to 3GPP TS 51.010-1, EN 301 489-7 and EN60950. SAR statement: This product is intended to be used with the antenna or other radiating element at least 20 cm away from any part of the human body. The information contained in this document is the proprietary information of Sony Ericsson Mobile Communications International.
The contents are confidential and any disclosure to persons other than the officers, employees, agents or subcontractors of the owner or licensee of this document, without the prior written consent of Sony
Ericsson Mobile Communications International, is strictly prohibited. Further, no portion of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, without the prior written consent of Sony Ericsson Mobile Communications International, the copyright holder. First edition (May 2003) Sony Ericsson Mobile Communications International publishes this manual without making any warranty as to the content contained herein. Further Sony Ericsson Mobile Communications International reserves the right to make modifications, additions and deletions to this manual due to typographical errors, inaccurate information, or improvements to programs and/or equipment at any time and without notice. Such changes will, nevertheless be incorporated into new editions of this manual. All rights reserved. ©Sony Ericsson Mobile Communications International, 2003 Publication number: LZT 123 7589 R1A Printed in UK " LZT 123 7589 R1A Contents Overview ................................................................................................................... 5 1.Introduction .............................................................................................................. 6 Target Users ................................................................................................................ 6 Prerequisites ................................................................................................................ 6 Manual Structure ......................................................................................................... 6 2.GR47/GR48 Radio Devices ...................................................................................... 7 About the GR47/GR48 Family ................................................................................... 7 Radio Devices in a Communication System ................................................................. 7 Features .......................................................................................................................9 Service and Support ................................................................................................... 12 Precautions ................................................................................................................ 13 3.Abbreviations .......................................................................................................... 14 Integrating the Radio Device ................................................................................ 16 4.Mechanical Description .......................................................................................... 17 Interface Description ................................................................................................. 17 Physical Dimensions.................................................................................................. 18 5.System Connector Interface ................................................................................... 19 Overview ................................................................................................................... 19 General Electrical and Logical Characteristics ............................................................ 22 Grounds .................................................................................................................... 23 VCC - Regulated Power Supply Input ....................................................................... 23 Battery Charging Input (CHG_IN) ........................................................................... 24 Turning the Radio Device ON/OFF and the External Power Signal ........................... 25 Analogue Audio ........................................................................................................ 29 PCM Digital Audio ................................................................................................... 33 Serial Data Interfaces ................................................................................................. 36 SIM Card Related Signals .......................................................................................... 40 Service/Programming ................................................................................................ 41 Buzzer ....................................................................................................................... 42 LED .......................................................................................................................... 42 General Purpose Digital I/O Ports ............................................................................. 43 Extended I/O capabilities .......................................................................................... 44 General Purpose Analogue I/O Ports ......................................................................... 45 External I 2 C Serial Control Bus................................................................................. 48 TX_ON - Burst Transmiss…

Text truncated - open the document above for the full version.

Date 03/09/03 Dear Sirs, The applications intended to use GR48 are those designed to provide communication between machines. The groups of applications are the following: • Applications for provide data to a cellular network. The module is included in radio base stations to provide positioning information to users of the network. The module is integrated in the instruments of the station and the antenna is external (outside of the station enclosure).The application in this case is fixed. • Applications for remote sensing of events. The application automatically collects information from a process or the status of a machine. There are several subgroups: vending and dispensing machines, meters (for gas, electricity, water, etc.), alarms (fire, anti-theft, etc.). In all these cases there is no human intervention. The module is integrated in the machine and the antenna is external. The application in this case is fixed. • Applications for fleet control management. In this case, the module is on board of vehicles providing to the control station of the fleet information related to the vehicle: position, speed, etc. These applications might provide voice capabilities. In this case, the module is integrated in the instrument panel of the vehicle and the antenna is external (outside of the vehicle). The application in this case is fixed inside the vehicle taking into account the mobility of such vehicle. The module will be offered to integration companies and service providers different to Sony Ericsson. But there are some possible applications that could be integrated by Sony Ericsson. Jose A. Rodrigo Verification & QA Manager M2M Com Sony Ericsson Mobile Communications

Date 02/10/2003 02 October, 2003 Telecommunication Certification Body Radio Frequency Investigation Ltd. Ewhurst Park Ramsdell Basingstoke Hampshire RG26 5RQ England Subject: Certification Application FCC ID: PY76220511 It is requested that the following information is to be held confidential on behalf of Sony Ericsson Mobile Communication. FCC Rules Part 0.459 refers. • Electrical diagrams. • Component listing. • Technical description. • Operational description. • Block diagrams. This material contains information relating to circuit function and complexity that could be of benefit to competitors. The material contains secrets and confidential information that Sony Ericsson does not customarily release to the public and which is otherwise not generally available to the public. Please, contact the undersigned if there are any further questions or additional information needed in this matter. Yours sincerely Jose A. Rodrigo M2M Com Sony Ericsson Mobile Communications 1 Lakeside Road, Aerospace Centre Farnborough, Hampshire, GU14 6XP, UK Phone: +441252551694 E-mail: [email protected]

Date 01/10/2003 Application PY76220511 Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Prediction for GSM 1900 (1850-1910 MHz) Band Maximum peak output power at antenna input terminal: 27,80 dBm Maximum peak output power at antenna input terminal: 602,559 mW Antenna gain (typical): 5,0 dBi Maximum antenna gain: 3,162 numeric Prediction distance: 20 cm Prediction frequency: 1880 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 mW cm 2 Power density at prediction frequency: 0,379045712 mW cm 2 Prediction for GSM 850 (824-849 MHz) Band Maximum peak output power at antenna input terminal: 31,40 dBm Maximum peak output power at antenna input terminal: 1380,384 mW Antenna gain (typical): 5.0 dBi Maximum antenna gain: 3.162 numeric Prediction distance: 20 cm Prediction frequency: 839 MHz MPE limit for uncontrolled exposure at prediction frequency: 1 mW cm 2 Power density at prediction frequency: 0,868344238 mW cm 2 The power density levels at a distance of 20 cm. are well below the maximum levels allowed by the FCC regulations. Jose A. Rodrigo M2M Com Sony Ericsson Mobile Communications PG 4pR 2

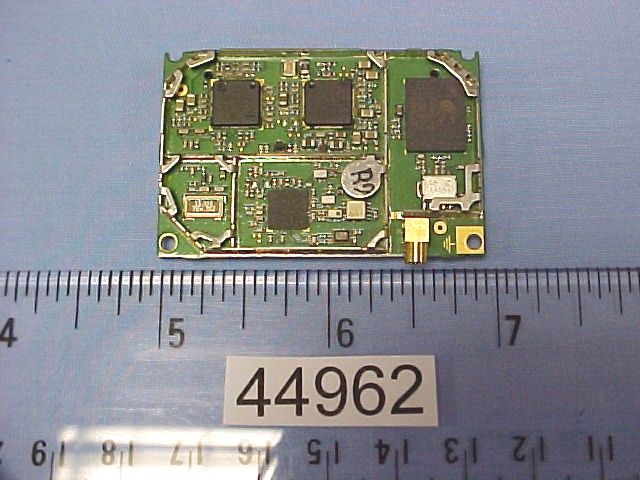

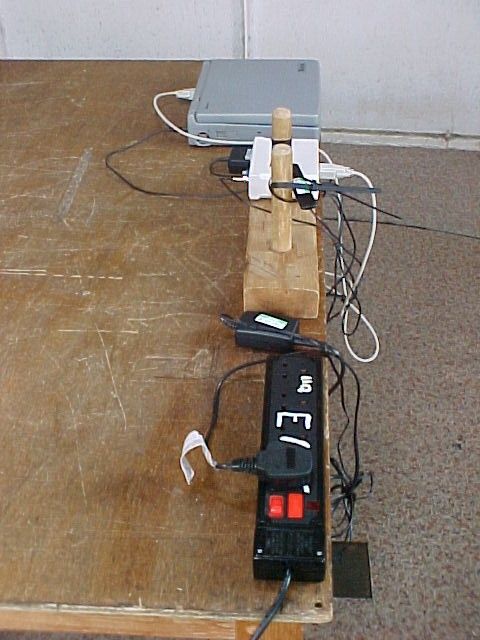

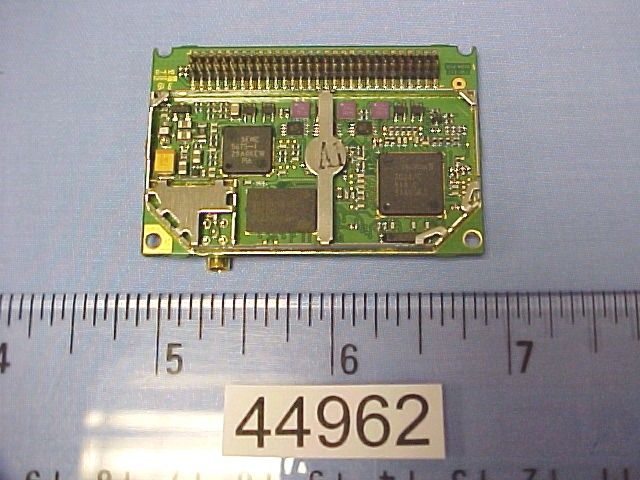

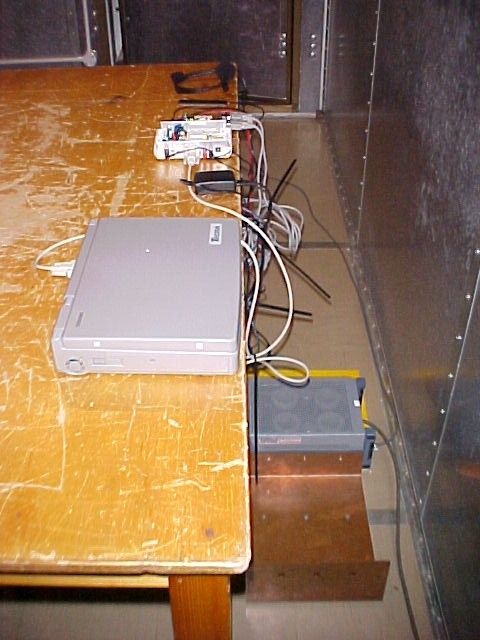

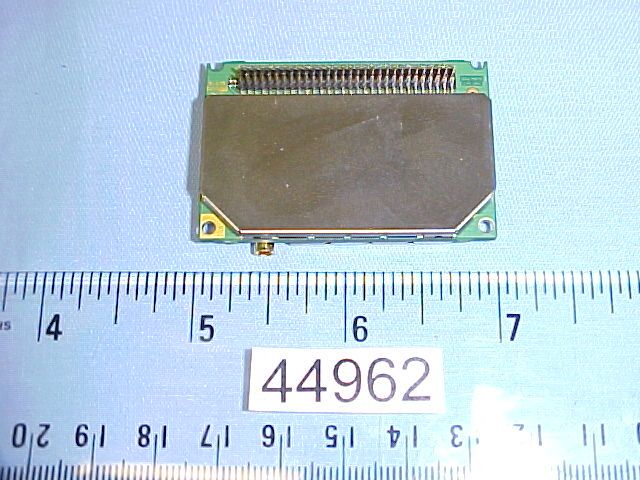

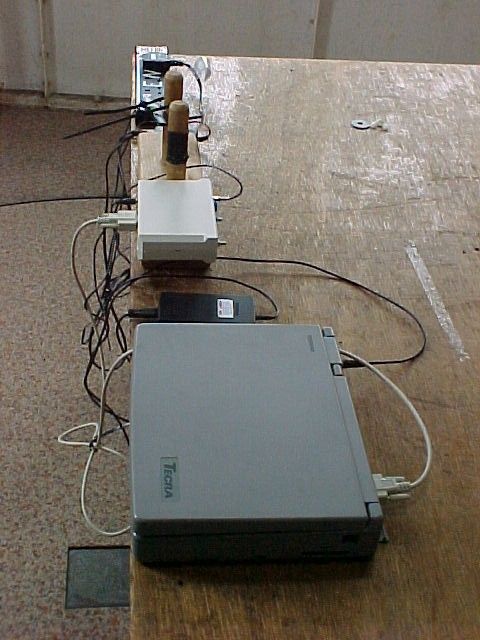

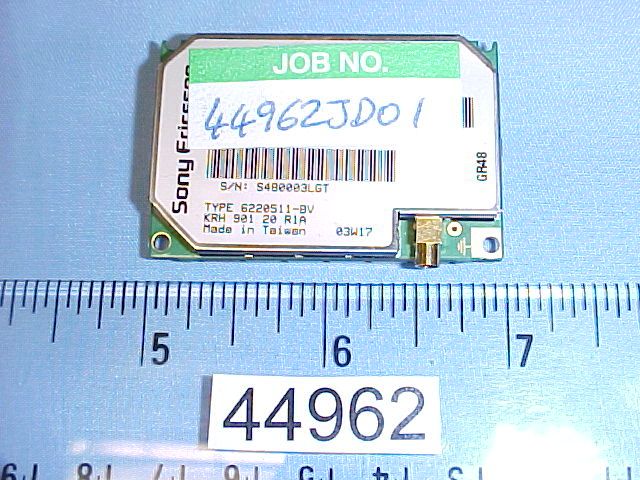

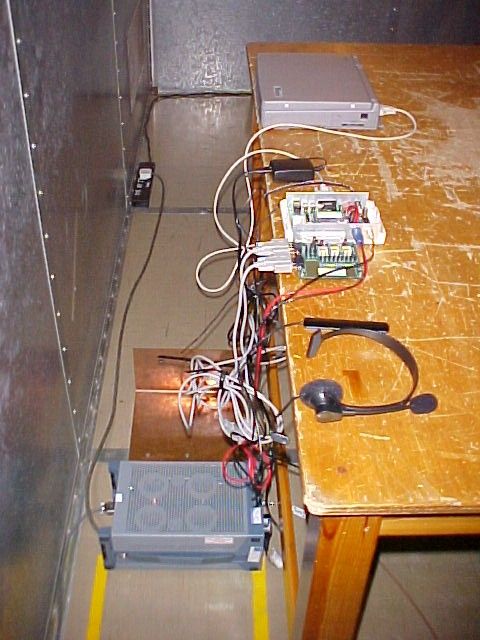

Radio Frequency Investigation Ltd, Ewhurst Park, Ramsdell, Basingstoke, Hampshire, RG26 5RQ, ENGLAND. Tel: +44 (0) 1256 851193 Fax: +44 (0) 1256 851192 Registered in England, No. 211 7901. Registered Office: Ewhurst Park, Ramsdell, Basingstoke, Hampshire RG26 5RQ TESTING 0644 TEST REPORT FROM RADIO FREQUENCY INVESTIGATION LTD. Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 and 24 Test Report Serial No: RFI/MPTB1/RP44962JD01A This Test Report Is Issued Under The Authority Of Richard Jacklin, Operations Director: Checked By: Tested By: pp Release Version No: PDF)1 Issue Date: 19 September 2003 Test Dates: 08 July 2003 to 19 July 2003 This report is issued in Adobe Acrobat portable document format (PDF). It is only a valid copy of the report if it is being viewed in PDF format with the following security options not allowed: Changing the document, Selecting text and graphics, Adding or changing notes and form fields. Furthermore, the date of creation must match the issue date stated above. This report may be copied in full. The results in this report apply only to the sample(s) tested. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44962JD01A Operations Department Page 2 of 96 Issue Date: 19 September 2003 Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 & 24 This page has been left intentionally blank. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44962JD01A Operations Department Page 3 of 96 Issue Date: 19 September 2003 Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 & 24 Table of Contents 1. Client Information..........................................................................................................4 2. Equipment Under Test (EUT) .......................................................................................5 3. Test Specification, Methods And Procedures ..........................................................11 4. Deviations From The Test Specification ...................................................................13 5. Operation Of The EUT During Testing ......................................................................14 6. Summary Of Test Results...........................................................................................16 7. Measurements, Examinations And Derived Results................................................18 8. Test Results 850 MHz..................................................................................................19 9. Test Results 1900 MHz................................................................................................47 10. Measurement Methods .............................................................................................80 11. Measurement Uncertainty ........................................................................................90 Appendix 1. Test Equipment Used ................................................................................91 Appendix 2. Test Configuration Drawings....................................................................93 RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44962JD01A Operations Department Page 4 of 96 Issue Date: 19 September 2003 Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 & 24 1. Client Information Company Name: Sony Ericsson Mobile Communications. Address: Maplewood Chineham Business Park Basingstoke Hampshire RG24 8YB UK Contact Name: Mr Jose Aurelio Rodrigo RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44962JD01A Operations Department Page 5 of 96 Issue Date: 19 September 2003 Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 & 24 2. Equipment Under Test (EUT) The following information (with the exception of the Date of Receipt) has been supplied by the client: 2.1. Identification Of Equipment Under Test (EUT) Brand Name: Sony Ericsson Model Name or Number: GR48 Unique Type Identification: 6220511-BV FCC IDNumber: PY76220511 Country of Manufacture: Taiwan Date of Receipt: 08 July 2003 2.2. Description Of EUT The equipment under test is a GSM/GPRS communications module for the GSM bands 850 and 1900 for voice, SMS, CSD, HSCSD (Class 2) and GPRS (class 8). Accessories to be included in the testing and approval are the following: GR47/GR48 Developer’s Kit Switch Mode Power Supply EPA-121DA-12 Portable Hands-free J-Type PHF Quad Band Antenna DG/AG300 9 Pin to 9 Pin RS232 Cable 2.3. Modifications Incorporated In EUT The EUT has not been modified from what is described by the Model Number and Unique Type Identification stated above. RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44962JD01A Operations Department Page 6 of 96 Issue Date: 19 September 2003 Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 & 24 2.4. Additional Information Related To Testing Power Supply Requirement: DC Supply of (Customer supplied) EPA- 121DA-12 Intended Operating Environment: Residential, Commercial Type of Unit: Cellular Communications Module Weight: 18.5 g Dimensions: 50 x 33 x 6.82 mm Interface Ports: Systems Bus Connector of 60 Pin Highest Fundamental Frequency 1908.75 MHz RADIO FREQUENCY INVESTIGATION LTD TEST REPORT S.No. RFI/MPTB1/RP44962JD01A Operations Department Page 7 of 96 Issue Date: 19 September 2003 Test Of: Sony Ericsson Mobile Communications. GR48 GSM/GPRS Communications Module To: FCC Part 15, 22 & 24 850 MHz Transmit Frequency Range 824.2 MHz to 848.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 824.2 Middle 190 836.6 Transmit Channels Tested Top 251 848.8 Receive Frequency Range 869.2 MHz to 893.8 MHz Channel ID Channel Number Channel Frequency (MHz) Bottom 128 869.2 Middle 190 881.6 Receive Channels Teste…

Text truncated - open the document above for the full version.
